Smeg FS9608AS-1 User manual

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Identification plate 8
1.3 Manufacturer liability 9
1.4 Appliance purpose 9
1.5 This user manual 9
1.6 How to read the user manual 9
1.7 To save energy 10
2 Description 11
2.1 General Description 11
2.2 Cooktop 12
2.3 Control panel 12
2.4 Other parts 13

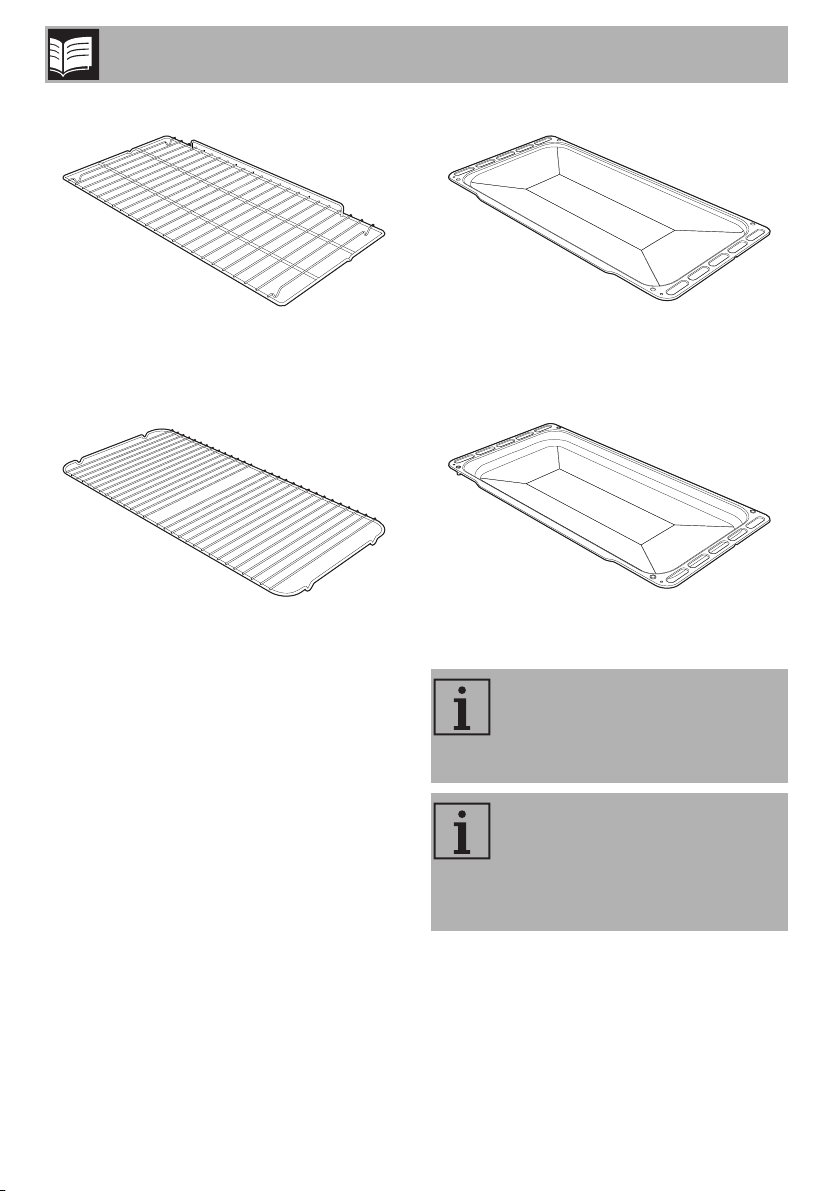

2.5 Available accessories 13
3 Use 15
3.1 First use 16
3.2 Using the accessories 17
3.3 Using the cooktop 18
3.4 Using the storage compartment 19
3.5 Using the oven 19
3.6 Cooking advice 21
3.7 Programmer clock 22
4 Cleaning and maintenance 27
4.1 Cleaning the appliance 27
4.2 Removing the door 28
4.3 Cleaning the door glazing 29
4.4 Removing the internal glass panes 29
4.5 Vapour Clean 31
4.6 Extraordinary maintenance 32
5 Installation 35
5.1 Minimum clearance to combustible surfaces 35
5.2 Gas connection 35
5.3 Adaptation to different types of gas 38
5.4 Positioning 39
5.5 Electrical connection 45
5.6 For the installer 46
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance
becomes hot. Care should be
taken to avoid touching heating
elements inside the oven.
• Protect your hands by wearing
oven gloves when handling food
inside the oven cavity.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• The appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge,
unless they have been given
supervised or instruction
concerning use of the appliance
by a responsible person for their
safely.
• Young children should be
supervised to ensure that they do
not play with the appliance.
• Keep children under eight years of
age at a safe distance if they are
not constantly supervised.
• Do not allow children younger
than 8 years old to come near the
appliance when in operation.
• Young children should be
supervised to ensure that they do
not play with the appliance.
• During use the appliance
becomes hot. Care should be
taken to avoid touching heating
elements inside the oven.
• WARNING: Ensure the appliance
is switched off before replacing
the lamp to avoid the possibility of
electric shock.
• WARNING - Accessible parts will
become hot when in use. To avoid
burns young children should be
kept away.
• Danger of fire – Do not store items
on the cooking surface.
• CAUTION – The cooking process
has to be supervised. A short term
cooking process has to be
supervised continuously.
• Warning – Unattended cooking
on a hob with fat or oil can be
dangerous and may result in a fire.
• This appliance is not intended to
be operated by means of external
timer or separate remote control
system.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• Make sure that the flame-spreader
crowns are correctly positioned in

Instructions
5
EN
their housings with their respective
burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid on
the pan and turn off the relevant
cooking zone.
• The cooking process must always
be monitored. Short cooking
processes must be monitored
continuously.
• When in use, do not place metal
objects, such as dishes or cutlery,
on the surface of the cooktop as
they may overheat.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door 5 cm
for a few seconds, let the steam
come out, then open it fully.
• Do not open the storage
compartment (if present) when the
oven is on and still hot.
• The items inside the storage
compartment could be very hot
after the oven has been used.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS IN THE
APPLIANCE STORAGE DRAWER
OR NEAR THIS APPLIANCE.
• DO NOT SPRAY AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN
OPERATION.
• Switch the appliance off
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Before carrying out any work on
the appliance (installation,
maintenance, positioning or
moving), wear personal protective
equipment.
• Before carrying out any work on
the appliance, disconnect the
mains power supply.
• Have authorised persons carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• Do not pull the cable to remove
the plug.

Instructions
6
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays must be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use a steam cleaner to
clean the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations in which fats or oils
could be released that could
overheat and catch fire. Be very
careful.
• Do not use a steam cleaner to
clean this appliance.
• Do not use harsh abrasive
cleaners or sharp metal scrapers
to clean the oven glass door since
they can scratch the surface, which
may result in shattering of the
glass.
• Never leave objects on the
cooking surface.
• DO NOT USE THE APPLIANCE
AS A SPACE HEATER.
• DO NOT PLACE ARTICLES ON
OR AGAINST THIS APPLIANCE.
• Do not spray any spray products
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
panel.
• The cooking vessels or griddle
plates should be placed inside the
perimeter of the cooktop.
• All cookware must have smooth,
flat bottoms.

Instructions
7
EN
• If any liquid does boil over or spill,
remove the excess from the
cooktop.
• Take care not to spill acidic
substances such as lemon juice or
vinegar onto the cooktop.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on steel parts or parts with
metallic surface finishes (e.g.
anodizing, nickel- or chromium-
plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash the removable
components such as the cooktop
pan stands, flame-spreader
crowns and burner caps in a
dishwasher.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
• NOT SUITABLE WITH
AFTERMARKET LIDS OR
COVERS.
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS.
• If this appliance is installed on a
base, measures must be taken to
prevent the appliance from
slipping from the base.
• The appliance must not be
installed on a stand.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• This appliance must not be
installed behind a decorative
door.
• The gas connection should be
carried out by authorised persons.
• Installation with flexible hose must
be carried out so that the length of
the piping does not exceed 2 metres
when fully extended as regards
flexible steel hoses and 1.2 metres
in case of rubber hoses.
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• Use a pressure regulator that
complies with current regulations.
• After carrying out any operation,

Instructions
8
check that the tightening torque of
gas connections is between 10 Nm
and 15 Nm.
• At the end of the installation, check
for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• If the electrical supply is restricted,
means of allpole disconnection
must be accessible and
incorporated in the fixed wiring in
accordance with the wiring rules.
• If this cooking range is to be
connected to a new or upgraded
electrical installation, then it must
be connected by a supply cord
fitted with: 1) An appropriate rated
plug that is compatible with the
socket-outlet fitted to the final sub
circuit in the fixed wiring that
supplies this cooker. 2) An
appropriate rated installation male
connector that is compatible with
the installation female connector
fitted to the final sub-circuit in the
fixed wiring that supplies the
cooker.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• If this appliance is installed on a
base, measures must be taken to
prevent the appliance from
slipping from the base.
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
• This appliance is not intended to
be operated by means of external
timer or separate remote control
system
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Identification plate
• The identification plate bears the
technical data, serial number and
brand name of the appliance. Do
not remove the identification plate
for any reason.
• Place the supplied data plate to a
suitable adjacent surface or within
the instruction manual for future
reference.

Instructions
9
EN
1.3 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
the one envisaged;
• non-observance of the user
manual provisions;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.4 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and in an
accessible place for the whole
working life of the appliance.
Read this user manual carefully
before using the appliance.
1.6 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for authorised persons:
installation, operation and
inspection.
Safety instructions
Information
Advice

Instructions
10
1.7 To save energy
• Only preheat the appliance if the
recipe requires you to do so.
• Unless otherwise indicated on the
package, defrost frozen foods
before placing them in the oven.
• When cooking several types of
food it is recommended to cook
the foods one after the other to
make the best use of the already
hot oven.
• Use dark metal moulds: They help
to absorb the heat better.
• Remove all trays and racks which
are not required during cooking.
• Stop cooking a few minutes
before the time normally used.
Cooking will continue for the
remaining minutes with the heat
which has accumulated inside the
oven.
• Reduce any opening of the door
to a minimum to avoid heat
dispersal.
• Keep the inside of the oven clean
at all times.

Description
11
EN
2 Description
2.1 General Description
1 Backguard
2 Cooktop
3 Control panel
4 Oven light
5 Seal
6 Door
7 Fan
8 Storage compartment
Rack/tray support frame shelf

Description
12
2.2 Cooktop
AUX = Auxiliary
SR = Semi-rapid
R= Rapid
UR = Ultra rapid
2.3 Control panel
1 Programmer clock
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.
2 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
3 Door lock indicator light
It comes on when the automatic (pyrolytic
function) cleaning cycle is activated.
4 Function knob
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
