Smeg ALFA31XE User manual

Contents
1. INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 19
2. INSTALLATION OF THE OVEN_____________________________ 21
3. DESCRIPTION OF CONTROLS ____________________________ 23
4. USE OF THE OVEN______________________________________ 24
5. CLEANING AND MAINTENANCE ___________________________ 29
6. REACTIVE MAINTENANCE________________________________ 31
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified technician charged with installing the appliance,
commissioning it and making a final test.
INSTRUCTIONS FOR THE USER: these contain advice for the user,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.
18

Introduction
1. INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN
ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE
OVEN. WE ADVISE READING THIS MANUAL AND ALL THE
INSTRUCTIONS HEREIN BEFORE USING THE OVEN.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED
TECHNICIANS IN ACCORDANCE WITH THE REGULATIONS IN
FORCE. THIS OVEN IS INTENDED FOR COMMERCIAL USE AND
CONFORMS TO CURRENT CEE REGULATIONS IN FORCE. THE
APPLIANCE HAS BEEN BUILT TO IMPLEMENT THE FOLLOWING
FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER
USES ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
IMPROPER USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT.
SEPARATE THE VARIOUS WASTE MATERIALS AND TAKE THEM
TO THE NEAREST AUTHORISED WASTE DISPOSAL CENTRE.
THE ELECTRICAL SYSTEM MUST BE GROUNDED IN
ACCORDANCE WITH ESTABLISHED SAFETY REGULATIONS.
WHEN HOOKING UP TO THE MAINS WITH A PLUG AND SOCKET,
MAKE SURE THAT BOTH ARE COMPATIBLE AND CONNECT BY
MEANS OF A POWER CABLE COMPLYING WITH APPLICABLE
REGULATIONS.
NEVER UNPLUG BY PULLING ON THE CABLE.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT
DISPERSAL SLITS.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF
INSPECTION TEST OF THE OVEN, FOLLOWING THE
INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE POWER SUPPLY AND
CONTACT THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
19

Introduction
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE 0(OFF)
POSITION WHEN YOU FINISH USING THE OVEN.
NEVER PUT FLAMMABLE OBJECTS IN THE OVEN: THEY MAY
IGNITE ACCIDENTALLY AND CAUSE FIRES.
THE APPLIANCE BECOMES VERY HOT DURING USE. WEAR HEAT-
PROOF GLOVES AT ALL TIMES.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER
AND BRAND NAME IS LOCATED IN AN EXPOSED POSITION AT THE
REAR OF THE OVEN.
THE PLATE MUST NOT BE REMOVED.
THE APPLIANCE IS INTENDED FOR COMMERCIAL USE BY
APPROPRIATELY TRAINED PERSONNEL. CHILDREN SHOULD
ALWAYS BE KEPT AWAY FROM IT AND NEVER BE ALLOWED TO
PLAY WITH IT.
BEFORE USE, THE OVEN DISHES MUST BE WASHED WITH A
SUITABLE DISHWASHING DETERGENT (DO NOT USE ABRASIVE
PRODUCTS).
THE OVEN IS SIZED FOR A MAXIMUM LOAD OF 3.5 KG.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN
DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY
OF RETURN AND RECYCLING ON WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE
LABELS AND PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE
MUST BE REMOVED.
The manufacturer declines all liability for damage to persons or things
caused by non-observance of the above prescriptions or by tampering
with any part of the appliance or by the use of non-original spares.
20

Instructions for the installer
2. INSTALLATION OFTHE OVEN
The oven must be set up on a perfectly flat surface and left standing
free. Make sure to allow enough room at the back for easy access to the
terminal block for connection of the power cable to the mains.
Installation must be carried out by a qualified technician in compliance
with the applicable CEE regulations in force.
2.1 Electrical connection
Make sure that the power line voltage matches the specifications
indicated on the rating plate located to the rear of the oven. This rating
plate must never be removed.
The oven is fitted with a H07RN-F three-core cable for operation at
230V~ and a power supply plug.
The standard cable is of the three-core 3 x 1.5 mm2H07RN-F type.
If necessary, the power lead must be changed by the manufacturer or by
an authorised service centre to prevent any risks.
Make sure that plug and wall socket are of the same type and are in
conformity with CEI regulations in force. Also check that the power
supply line is provided with an adequate ground plant. Avoid using
adapters or shunts.
2.1.1 Safety thermostat
The oven is fitted with a safety device which trips in case of serious
malfunction. To reset, contact the nearest service centre.
The manufacturer declines all liability for damage to persons or things
caused by non-observance of the above prescriptions or by tampering
with any part of the oven.
21

Instructions for the installer
2.2 Levelling
Adjust the four feet so as to level the oven. To do this, loosen the lock
nut and unscrew the foot. The range of adjustment of the screw is 10
mm.
2.3 Steam exhaust pipe
An exhaust pipe is fitted on the back of the oven
to allow the discharge of steam during cooking.
Make sure that it is not obstructed in any way
and take care do not crush it.
22

Instructions for the user

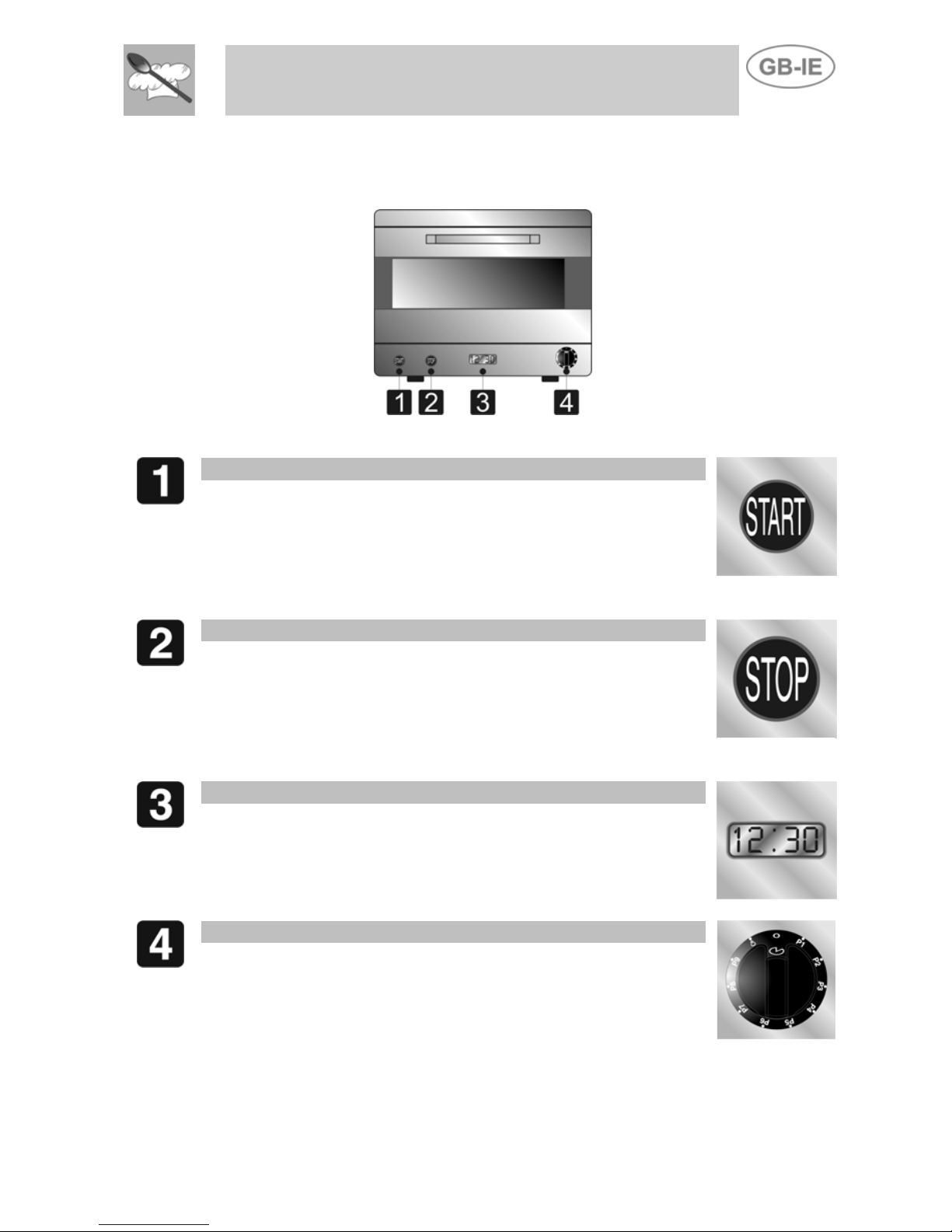

3. DESCRIPTION OF CONTROLS
START BUTTON
Use this button to set the time when turning on the
appliance for the first time or after a power failure, scroll
through preset programs and start cooking cycles. On 90 cm
models, it also selects the operating power.
STOP BUTTON
Use this button to set the time when turning on the
appliance for the first time or after a power failure, scroll
through preset programs and terminate cooking cycles.
On 90 cm models, it also selects the operating power.
DISPLAY
Displays the current time, the selected program, its cooking
parameters and the operating power.
PROGRAM SELECTION KNOB
Turn this knob to set the cooking cycle with a preset
program.
23

Instructions for the user
4. USE OFTHE OVEN
4.1 Warnings and general advice
When using for the first time, it is advisable to
heat up the oven to its maximum temperature for
enough time to burn off any possible oily
manufacturing residues.
This means that, if the food being cooked needs
to be checked, it is best to leave the door open
for as short a time as possible in order to avoid
the temperature inside the oven from dropping
too much and thus compromising cooking results.

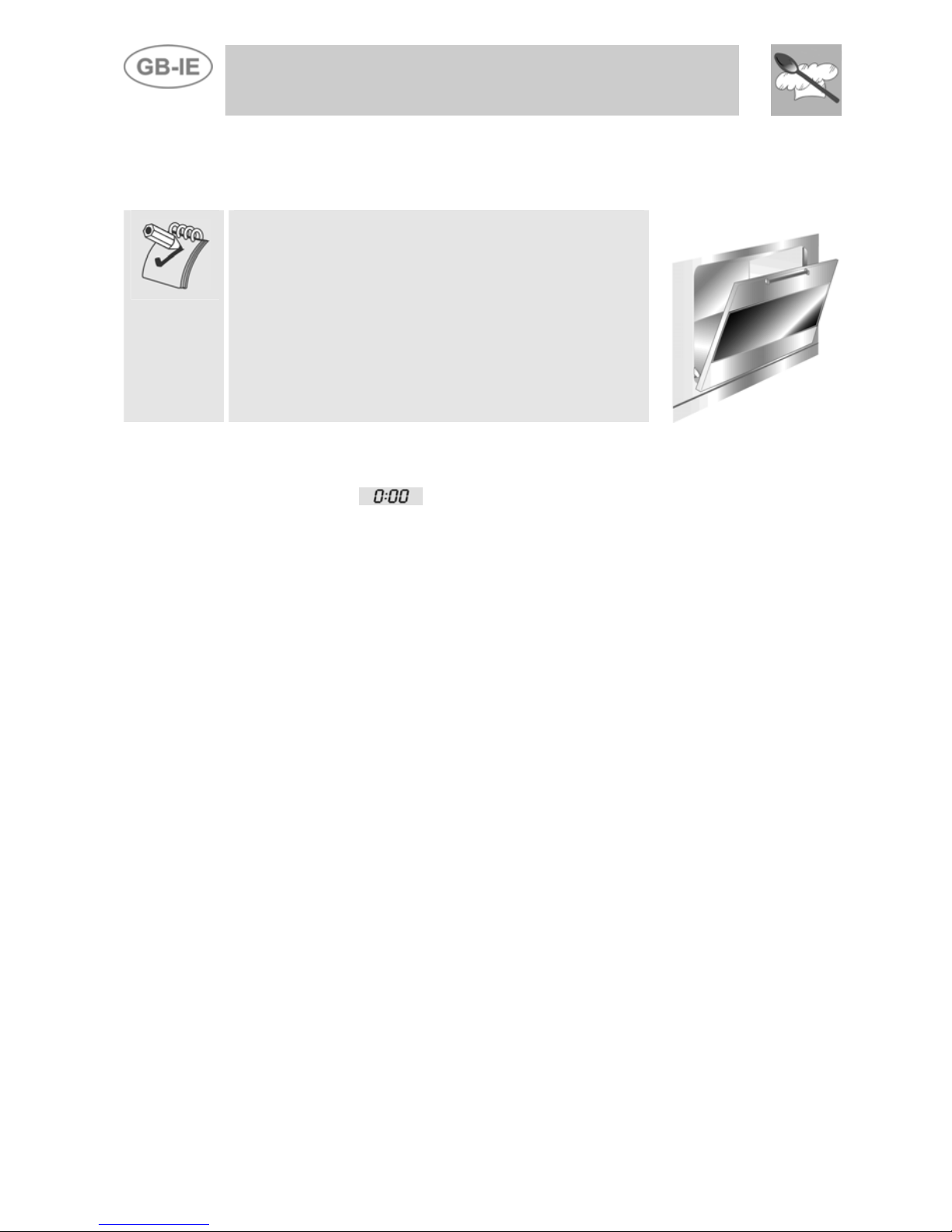

4.2 Setting the time
At first use, or after a power failure, the time must be set. The display will
show a flashing icon.
To set the current time, hold down START + STOP together until the
display stops flashing.
Now press or hold down START to increment the hour display. Once the
current hour has been set, press STOP to set the minutes and increment
them as before by pressing the START button.
When the correct time is set, press the STOP button and the display will
stop flashing.
24

Instructions for the user
4.3 Program selection
This oven has 10 different cooking programs, including:
5 preset programs for fan-mode cooking (P1 to P5);
4 user-editable programs for fan-mode cooking (P6 to P9),
1 "easy" user-editable program for fan-mode cooking.
The following table shows the parameters for each program.
Uprh
preheating
temperature
Ut °C
cooking
temperature
U Ct
cooking time
P1 170 °C 170 °C 20 minutes
P2 175 °C 175 °C 20 minutes
P3 180 °C 180 °C 20 minutes
P4 190 °C 190 °C 20 minutes
P5 200 °C 200 °C 20 minutes
P6 Editable Editable Editable
P7 Editable Editable Editable
P8 Editable Editable Editable
P9 Editable Editable Editable
P10 Same as edited
Ut°C
Editable Editable
4.4 Fan mode cooking
Use the knob to select one of the preset programs (P1 – P5).
The display shows the parameters of the selected program (tc = cooking
time; temperature in degrees Centigrade and program number, e.g. P1).
Press START to confirm the start of the program.
The program starts, performing the preheating stage; the display shows
“PrEh”.
When the preheating is complete, a "BEEP" sounds to indicate that
cooking can start.
Press START to start cooking.
(If START is not pressed after the beep, the temperature is held constant
for about 10 minutes, after which it will start to drop for a period up to a
maximum time of 20 minutes, counted from when the beep sounded. After
this the oven switches off. During this stage, the display shows the
parameters of the selected program).
N.B. – although this is not recommended in terms of cooking quality, the
program can be started even before the preheating temperature is
reached by pressing START.
During cooking, the display shows the time left until the end of the cooking
process and the temperature set. During the last minute of cooking, the
25

Instructions for the user
display will only show the countdown from 60 to zero seconds (end of
cooking time). When all the cooking time has passed, a BEEP will sound
for 20 seconds and the display will show “End”.
During these 20 seconds the user can extend the cooking time as
required, in manual mode, as follows.
Press START; the display will show "tp00". From now on, each pressure
on the START key corresponds to one more minute's cooking; up to 10
extra minutes are permitted. Cooking will restart at the programmed
temperature after 5 seconds.
When these additional minutes have passed the program repeats the
cooking end procedure exactly as described above and
after the 20-second BEEP the word "End" will flash for 20 minutes, during
which time the temperature will gradually fall, stabilising at 100°C. After
20 minutes, the oven switches off.
4.5 Manual cooking
Use the knob to select the "easy" program (P10 *).
The special feature of this user-editable program is that the cooking
parameters set are not retained in the memory when the knob is turned to
any other position.
This means that an "empty" program is always immediately available for
quick, easy editing.
4.5.1 How to use this program
Use the knob to select the "easy" program (P10 *).
The display shows “- - - - “ to indicate that there are no cooking
parameters present.
Press START or keep it pressed to increase the preheating temperature;
each time START is pressed the temperature increments by 5°C (from 30°
to 300°).
Press STOP to increase the number of minutes of cooking (N.B. if a
cooking time of 99 minutes is set, the cooking time will be infinite, meaning
that cooking can only be stopped in manual mode, by ending the
program).
Release STOP and preheating will start automatically after 5 seconds.
N.B. – When the cooking process is over, to repeat the same program do
not turn the knob and press START again.
26

Instructions for the user
4.6 Editing a program
The programs the user is able to edit are: P6 P7 P8 P9
A number of parameters can be edited for each program:
•preheating temperature [Uprh] :User pre heating
•cooking temperature [U t°C] User heating
•cooking time [U Ct] : User cooking time
To edit a program by entering the parameters exactly as required, turn the
knob to one of the programs from P6 to P9.
The display shows “- - - - “ to indicate that there are no cooking
parameters present.
Hold down STOP for 2 seconds.
The display shows Uprh.
Press START to move on to display of the preheating temperature.
Press START or keep it pressed to increase the preheating temperature;
each time START is pressed the temperature increments by 1°C (from 30°
to 300°).
Press STOP to move on to displaying the next parameter.
The display shows U t°C.
Press START to display the cooking temperature.
Press START or keep it pressed to increase the preheating temperature;
each time START is pressed the temperature increments by 1°C (from 30°
to 300°).
Press STOP to move on to displaying the next parameter.
The display shows U Ct.
Press START to display the cooking time.
Press START or keep it pressed to increase the cooking time (from 5 min.
to 99 min.).
Press STOP to complete the program editing procedure.
The display shows UEnd.
The parameters set are now saved in the chosen program.
Press START to display the parameters just set.
Press START again to run the program just edited.
4.7 Modifying a previously edited program
To modify one of the programs, turn the knob to one of the programs from
P6 to P9 edited previously.
The parameters saved earlier will appear on the display.
Hold down STOP for 2 seconds.
The display shows Uprh.
Press START to display the preheating temperature.
Press START or keep it pressed to increase the preheating temperature;
each time START is pressed the temperature increments by 1°C (from 30°
to 300°).
27

Instructions for the user
Press STOP to display the next parameter.
The display shows U t°C.
Press START to display the cooking temperature.
Press START or keep it pressed to increase the preheating temperature;
each time START is pressed the temperature increments by 1°C (from 30°
to 300°).
Press STOP to display the next parameter.
The display shows U Ct.
Press START to display the cooking time.
Press START or keep it pressed to increase the cooking time (from 5 min.
to 99 min.).
Press STOP to complete the program editing procedure.
The display shows UEnd.
The parameters set are now saved in the chosen program.
4.8 Possible error messages on the display
The display is able to show two different types of error:
Err1 = probe failure
Err2 = low voltage : less than 160 volts.
4.9 Technical notes
If the power supply to the appliance fails at any time, always return the
knob to the 0 setting before running any programs.
28

Instructions for the user
5. CLEANING AND MAINTENANCE
Important:
Never spray water directly on to the oven. Never use pressure jets of
water.
Before working on the oven, disconnect it from the power supply.
5.1 Cleaning stainless steel parts
To maintain stainless steel parts in perfect condition, clean regularly at
the end of the work day. Allow to cool first.
To clean and maintain the stainless steel surfaces, always use only
specific non-abrasive products without chlorine-based acids.
How to use: pour the product on a damp cloth and wipe the surface,
rinse thoroughly and dry with a soft cloth or deerskin.
Do not use metallic sponges or sharp scrapers: they will
damage the surface.
Use normal non-abrasive products for steel, and a wooden or
plastic tool if necessary.
Rinse thoroughly and dry with a soft cloth or chamois leather.
29

Instructions for the user
5.2 Cleaning the inside of the oven
To maintain the oven in perfect condition, clean it regularly at the end of
the work day. Allow it to cool first. Take off all removable parts.
Remove the side guides by unscrewing the ring nut Aand sliding them
out of the rear hole B.
•Clean the oven grill and side guides with warm water and non-
abrasive detergents. Rinse and dry.
5.3 Door glass
The door glass should always be kept clean. Use absorbent kitchen paper
to clean. In case of obstinate dirt, clean with a damp sponge using regular
detergent.
30

Instructions for the user
6. REACTIVE MAINTENANCE
The oven may require reactive maintenance or replacement of parts
subject to wear such as seals, bulbs, and so on. The following
instructions describe how to carry out these minor maintenance
operations.
Before any intervention, disconnect the oven from its power
supply.
6.1 Replacing the light bulb
Remove the protective cover A. Replace the bulb Bwith a similar one.
Refit the protective cover A.
Use only oven light bulbs (suitable for a temperature of up to
300°C).
31

Instructions for the user

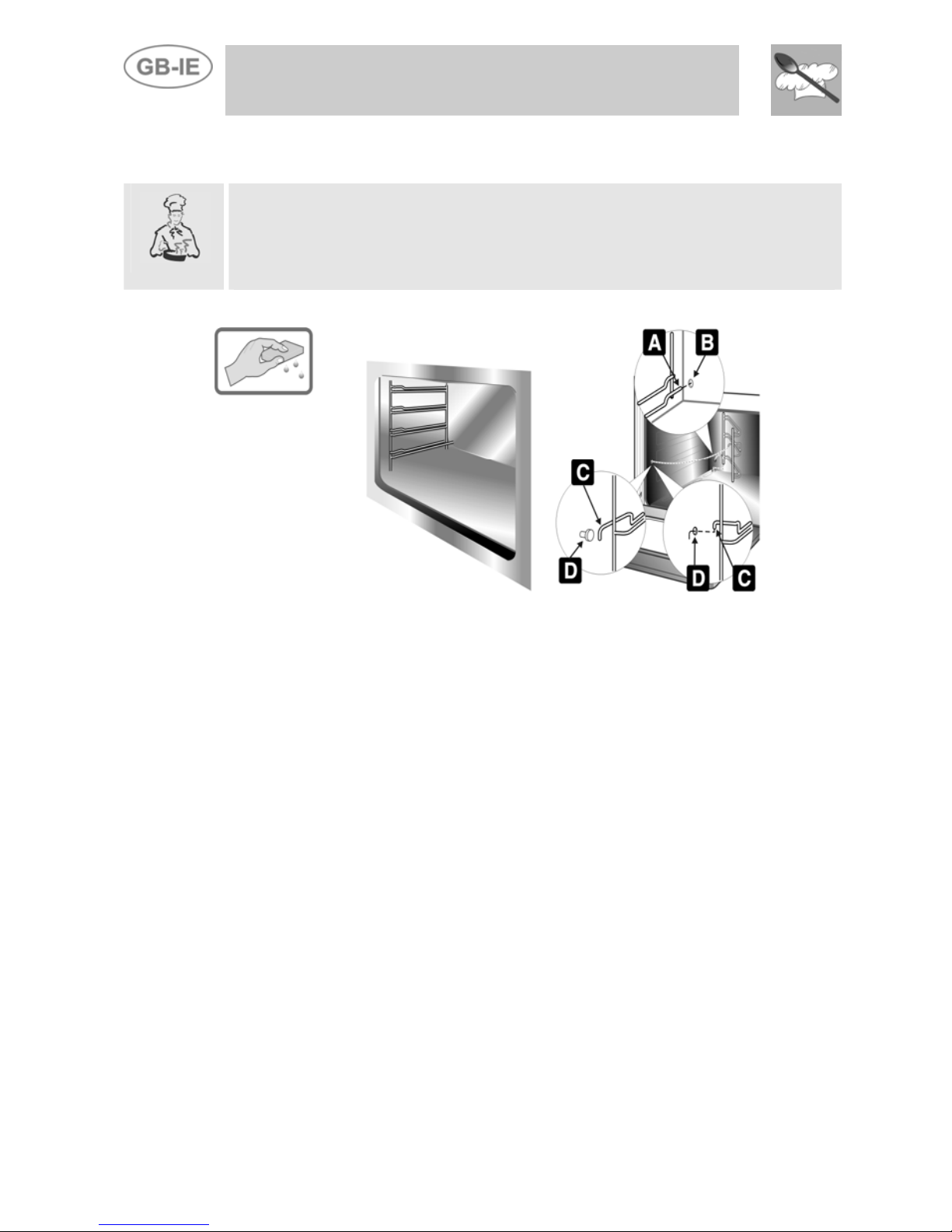

6.2 Removing the door
Hinges with mobile connecting plates
Grip the door at the two sides with both hands in proximity to hinges Cand
lift up the small levers D. Lift the door upwards at an angle of about 45° and
slide out. To remount, insert hinges Cinto the appropriate grooves, allow the
door to settle downwards and release the small levers D.
Hinges with mobile levers
Open the door completely and take the door in both hands holding it at the
sides close to the hinges. Push the levers Aforwards with the thumbs and
lift the door upwards at the same time tilting it to an angle of about 45°,
then remove the door. To replace, slide the hinges Cinto their grooves,
and then open the door completely to unhook the sections B. At this stage
the door can be closed normally.
6.3 Oven door seal
To permit thorough cleaning of the oven, the gasket may
be removed. Before removing the gasket, take off the
door as described above. Once the door has been taken
off, lift the tabs at the corners as shown in the figure.
32
