Smeg SAP109-9 User manual

3
Table of contents
EN
INSTRUCTIONS FOR THE USER: these contain user advice, description of
the commands and the correct procedures for cleaning and maintenance
of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these instructions are intended for
the qualified technician who must perform the installation, put it into
operation and test the appliance.
Further information about the products can be found at www.smeg.com
@
1. INSTRUCTIONS FOR USE ................................................................ 4
2. SAFETY PRECAUTIONS ................................................................... 6
3. ENVIRONMENTAL RESPONSIBILITY ............................................... 8
4. GET TO KNOW YOUR OVEN............................................................. 9
5. AVAILABLE ACCESSORIES ............................................................ 10
6. USING THE OVEN ........................................................................... 15
7. COOKING WITH THE OVEN............................................................ 29
8. CLEANING AND MAINTENANCE.................................................... 39
9. EXTRAORDINARY MAINTENANCE ................................................ 51
10. INSTALLING THE APPLIANCE ........................................................ 56

General instructions
EN
4
1. INSTRUCTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE KEPT IN ITS
ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF
THE APPLIANCE.
CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN
BEFORE USING THE APPLIANCE IS ESSENTIAL. INSTALLATION MUST BE CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE AND COMPLIES
WITH THE EEC DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN
BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING FOOD; ALL OTHER
USES ARE CONSIDERED UNSUITABLE.
THE MANUFACTURER CANNOT BE HELD LIABLE FOR USE OTHER THAN AS
INDICATED.
IF THE APPLIANCE IS INSTALLED ON BOATS OR IN CARAVANS, DO NOT USE IT AS
A ROOM HEATER.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
THIS APPLIANCE IS MARKED ACCORDING TO EUROPEAN DIRECTIVE 2002/96/EC
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE DEFINES THE STANDARDS FOR THE COLLECTION AND
RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT APPLICABLE
THROUGHOUT THE EUROPEAN UNION.
NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR VENTILATION AND
HEAT DISPERSAL.
DO NOT REST ANY WEIGHT OR SIT ON THE OPEN DOOR OF THE APPLIANCE.
THE IDENTIFICATION PLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND
BRAND NAME HAS BEEN VISIBLY AFFIXED TO THE APPLIANCE.
DO NOT REMOVE THIS PLATE FOR ANY REASON.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE PROTECTIVE FILMS
APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
TAKE CARE THAT NO OBJECTS ARE STUCK IN THE DOOR OF THE OVEN.
THE APPLIANCE BECOMES VERY HOT INSIDE DURING USE. SUITABLE HEAT-
PROOF GLOVES SHOULD BE WORN FOR ALL OPERATIONS.

General instructions
EN
5
DO NOT USE STEEL SPONGES AND SHARP SCRAPERS AS THEY WILL
DAMAGE THE SURFACE.
USE NORMAL NON-ABRASIVE PRODUCTS, INCLUDING WOODEN OR
PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY
USING A SOFT CLOTH OR A MICROFIBRE CLOTH.
DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO SET
INSIDE THE OVEN. IF THEY ARE ALLOWED TO SET FOR TOO LONG,
THEY COULD RUIN THE ENAMEL COVERING THE INSIDE OF THE OVEN.
DO NOT USE PLASTIC KITCHENWARE OR CONTAINERS. THE HIGH
TEMPERATURES INSIDE THE OVEN COULD MELT THE PLASTIC, DAMAGING THE
APPLIANCE.
DO NOT USE SEALED TINS OR CONTAINERS IN THE APPLIANCE. OVERPRESSURE
MAY OCCUR INSIDE THE CONTAINERS DURING COOKING, CREATING A DANGER
OF EXPLOSION.
DO NOT LEAVE THE APPLIANCE UNATTENDED DURING COOKING PROCESSES
WHERE FATS OR OILS COULD BE RELEASED.
FATS AND OILS MAY CATCH FIRE.
DO NOT COVER THE BOTTOM OF THE OVEN WITH ALUMINIUM OR TINFOIL
SHEETS DURING COOKING AND DO NOT PLACE PANS OR TRAYS ON IT TO AVOID
DAMAGE TO THE ENAMELLED SURFACE.
IF THE SURFACES ARE STILL VERY HOT DURING COOKING, DO NOT POUR WATER
DIRECTLY ONTO THE TRAYS. THE STEAM COULD CAUSE SEVERE BURNS AND
DAMAGE TO ENAMELLED SURFACES.
ALL COOKING OPERATIONS MUST TAKE PLACE WITH THE DOOR CLOSED.

General instructions
EN
6
2. SAFETY PRECAUTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS
FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY THE LAW REQUIRES THAT THE
INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE.
OUR APPROVED INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRICAL APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
BEFORE CONNECTING THE APPLIANCE TO THE POWER GRID, CHECK THE DATA
ON THE PLATE AGAINST THE DATA FOR THE GRID ITSELF.
BEFORE CARRYING OUT INSTALLATION/MAINTENANCE WORK, MAKE SURE THAT
THE APPLIANCE IS NOT CONNECTED TO THE POWER GRID.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND ITS SOCKET
MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT-IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE CABLE.
IF THE POWER SUPPLY CABLE IS DAMAGED, CONTACT THE TECHNICAL SUPPORT
SERVICE IMMEDIATELY AND THEY WILL REPLACE IT.
IT IS OBLIGATORY FOR ALL ELECTRICAL EQUIPMENT TO BE EARTHED
ACCORDING TO THE METHODS LAID DOWN BY SAFETY REGULATIONS.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE ELECTRICITY SUPPLY AND CALL THE
NEAREST TECHNICAL SUPPORT CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: IF IT IS SWITCHED ON BY
ACCIDENT, IT MAY CAUSE A FIRE.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH
THE HEATING ELEMENTS INSIDE THE OVEN.
THIS APPLIANCE MAY NOT BE USED BY PEOPLE (INCLUDING CHILDREN) OF
REDUCED PHYSICAL AND MENTAL CAPACITY, OR LACKING IN EXPERIENCE IN
THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR
INSTRUCTED BY ADULTS RESPONSIBLE FOR THEIR SAFETY.

General instructions
EN
7
DO NOT LET CHILDREN GO NEAR THE APPLIANCE WHEN IT IS IN OPERATION OR
PLAY WITH IT AT ANY TIME.
DO NOT INSERT POINTED METAL OBJECTS (CUTLERY OR UTENSILS) INTO THE
SLITS IN THE APPLIANCE.
DO NOT USE STEAM JETS FOR CLEANING THE APPLIANCE.
THE STEAM COULD REACH THE ELECTRONICS, DAMAGING THEM AND CAUSING
SHORT-CIRCUITS.
DO NOT MODIFY THIS APPLIANCE.
DO NOT SPRAY ANY SPRAY PRODUCTS NEAR THE ELECTRICAL APPLIANCE
WHILE IT IS IN OPERATION.
DO NOT USE SPRAY PRODUCTS WHILE THE PRODUCT IS STILL HOT.
The manufacturer cannot be held liable for damage to persons or things caused by
failure to observe the above instructions, by interference with any part of the
appliance or by the use of non-original spare parts.

Instructions for disposal
EN
8
3. ENVIRONMENTAL RESPONSIBILITY
Our product's packing is made of non-polluting materials, which are therefore
compatible with the environment and recyclable. Please help by disposing of the
packaging correctly. You can obtain the addresses of collection, recycling and
disposal centres from your retailer or from the competent local organisations.
Do not discard the packaging or any part of it, or leave it unattended. It can
constitute a suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the
collection of electrical appliances no longer in use. Correct disposal enables
intelligent recovery of valuable materials.
Before disposing of your appliance it is important to remove doors and leave
shelves in the same position as for use, to ensure that children cannot
accidentally become trapped inside during play. It is also necessary to cut the
connecting cable to the power grid, removing it along with the plug.

Instructions for the user
EN
9
4. GET TO KNOW YOUR OVEN
Control panel
Roof liner
Inside lights
Rack and tray support
frames (on some
models only)
Bottom plate (on some
models only)
Pizza plate or cover recess
(on some models only)
Multifunction Model Oven fan
Pyrolytic Model

Instructions for the user
EN
10

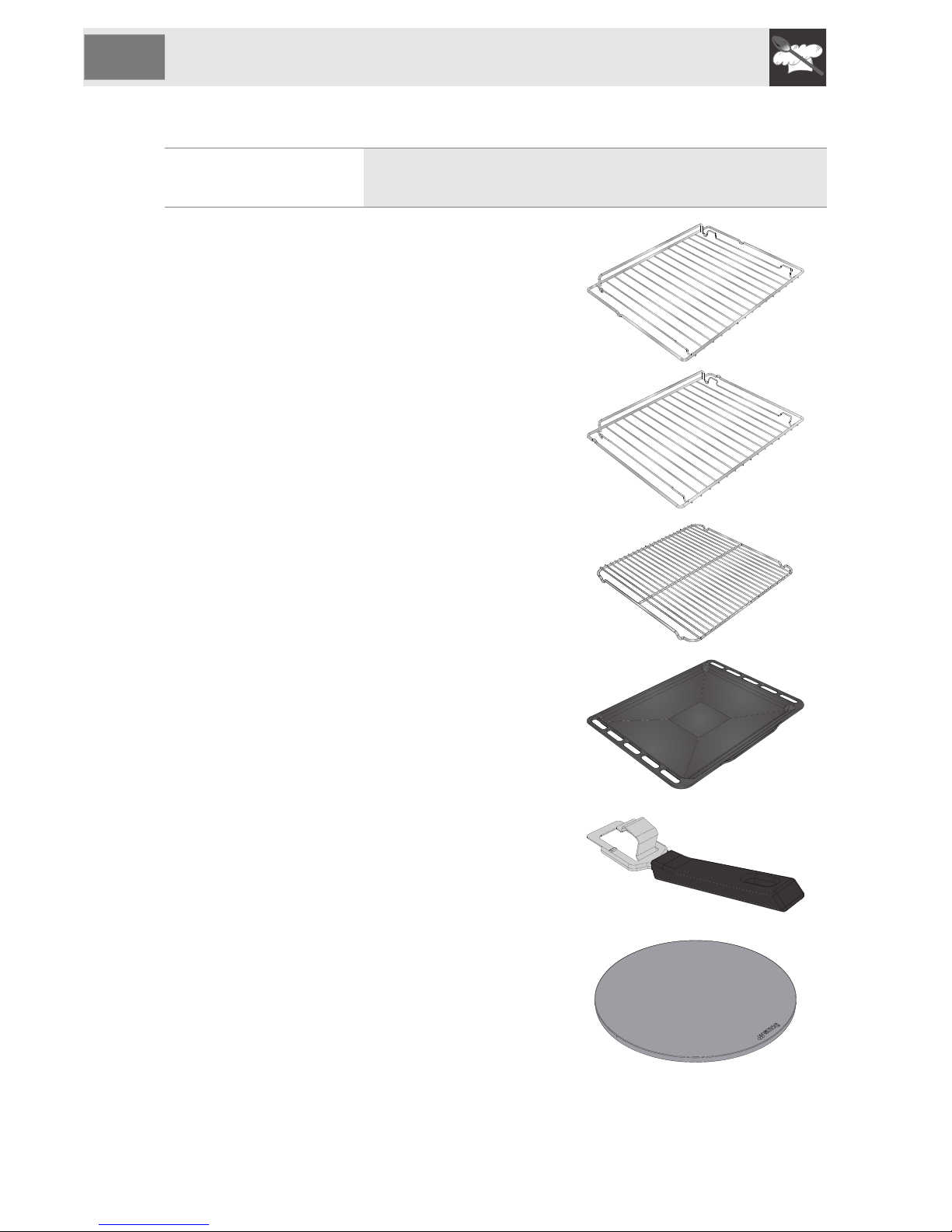

5. AVAILABLE ACCESSORIES
NOTE: Some models are not provided with all
accessories.
Rack: useful for holding cooking containers.
For use in ovens with frames.
Rack: useful for holding cooking containers.
For use in ovens with moulded runners.
Tray rack: to be placed over the top of the oven
tray; for cooking foods which may drip.
Oven tray: for collecting fat from foods placed
on the rack above.
Handle: for removing hot racks and trays.
Pizza plate: specially designed for cooking
pizza and similar dishes.

Instructions for the user
EN
11
Pizza spatula: for easy placement of the pizza
on the pizza plate.
Pizza plate cover: for covering the pizza plate
when it is not in use.
• Accessories available on request:
Original supplied and optional accessories may be ordered from any
Authorised Support Centre.
• Use original SMEG accessories only.
The rotisserie kit is available on request, including the following accessories (to
be used as described below):
Rotisserie frame: supports the rotisserie rod.
Rotisserie rod: for cooking chicken and all
foods which require uniform cooking over their
entire surface.

Instructions for the user
EN
12

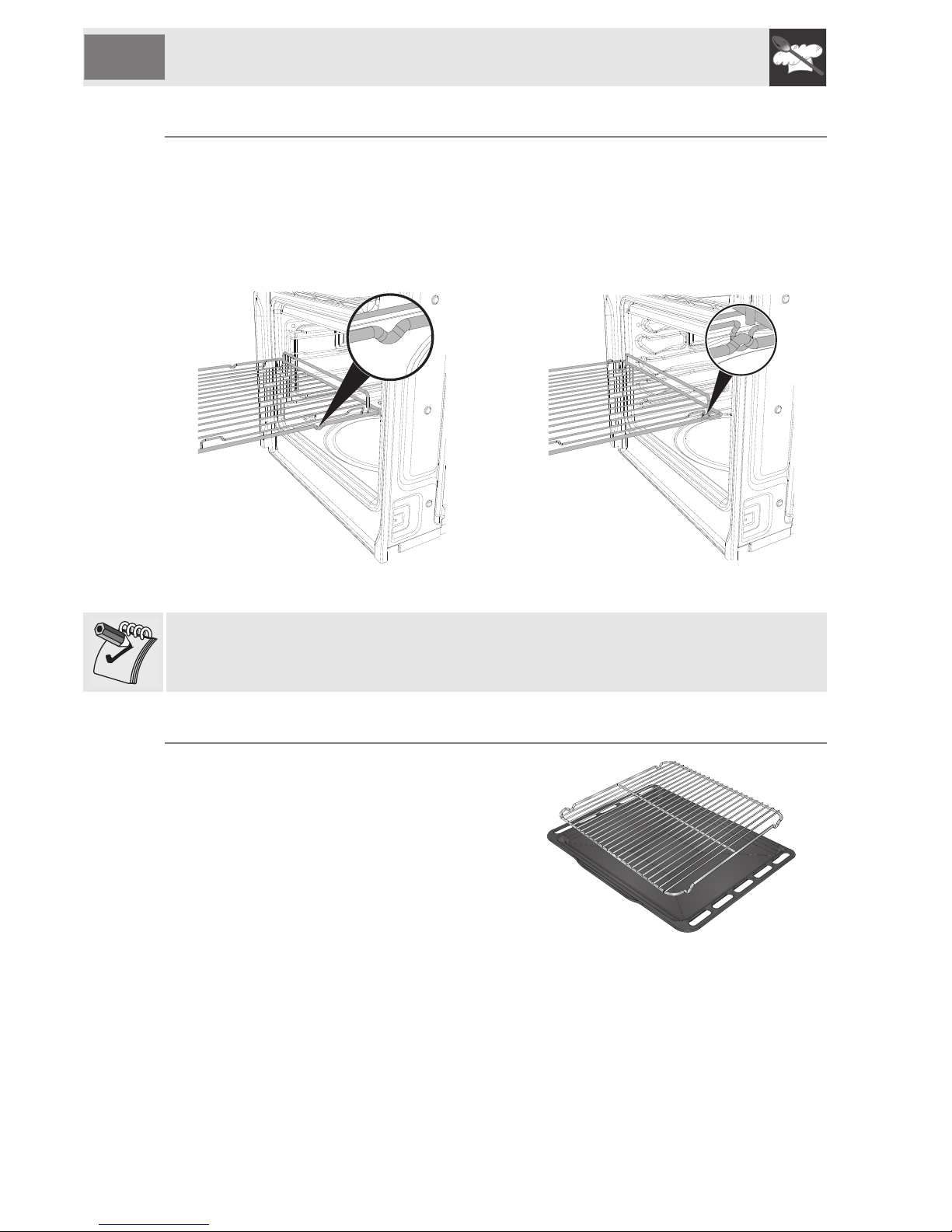

5.1 Using the rack or tray

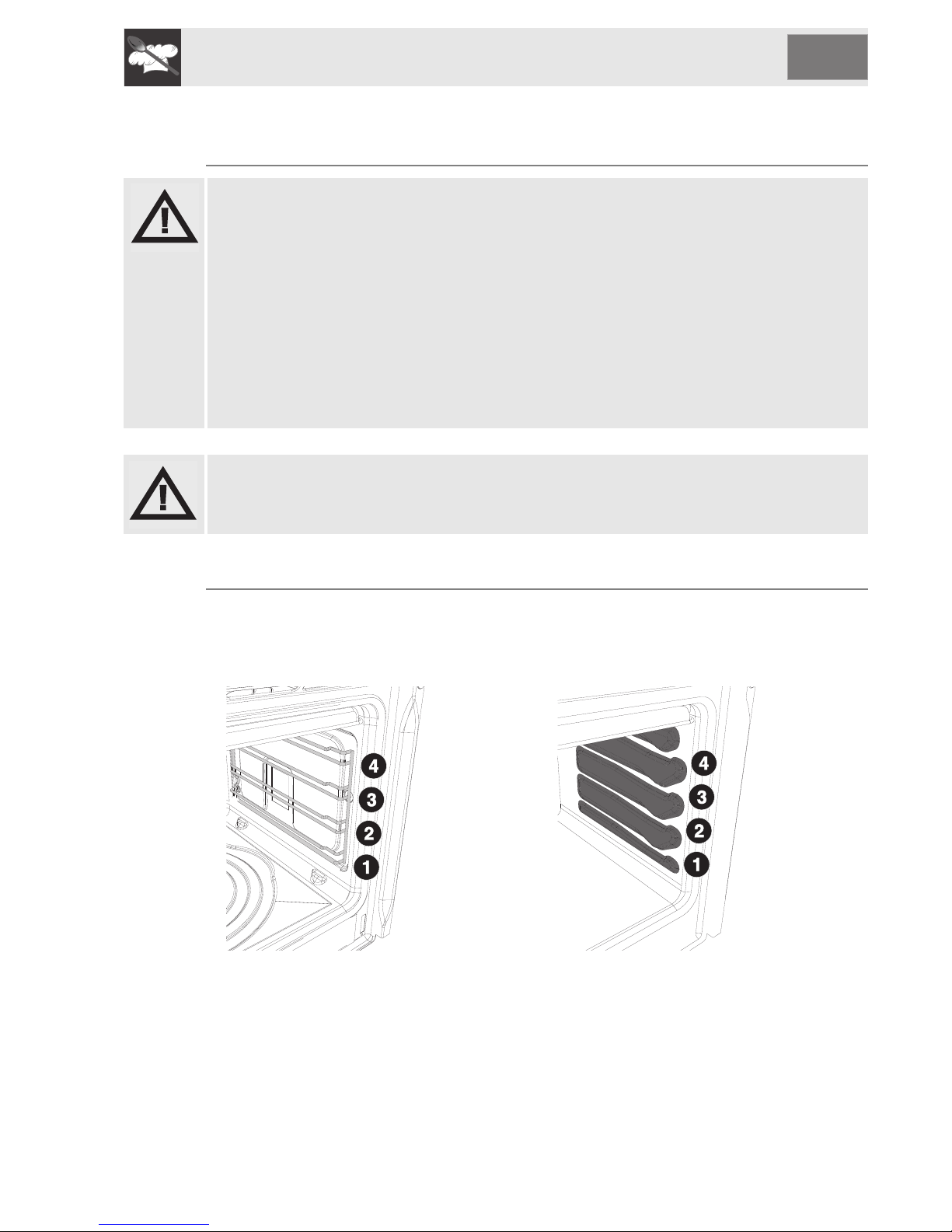

The racks and trays are equipped with a mechanical safety lock which prevents
them from being taken out accidentally. To insert the rack or tray correctly, check
that the lock is facing downwards (as shown in the illustration on the right).
To remove the rack or tray, lift the front slightly.
The mechanical lock must always face the back of the oven.
Ovens with frames Ovens with runners
Insert racks and trays fully into the oven until they come to a stop.
5.2 Using the support rack
The support rack is inserted into the tray
(as shown in the illustration).
Using this, foods can be cooked and the
fat can be collected separately from the
food which is being cooked.

Instructions for the user
EN
13
5.3 Using the handles
The handles are used to extract hot trays
and racks from the oven.
Use the accessories as shown in the
illustrations.
5.4 Using the pizza plate (on some models only)
With the oven cold, remove the circular cover from the bottom (as shown in the
illustration) and insert the pizza plate.
Make sure that the plate is inserted correctly in the recess provided.
To cook, set the pizza function.
Ovens with frames Ovens with runners
Do not use the pizza plate other than as described, for example do not use it on
gas or glass-ceramic hobs or in ovens which are not designed for this purpose.
If you wish to add oil to your pizza, it is best to add it after removing it from the
oven since oil stains on the pizza plate are unsightly and may reduce its
efficiency.
In models where it is provided, if the pizza plate is not in use, cover the bottom
of the oven with the cover provided.

Instructions for the user
EN
14

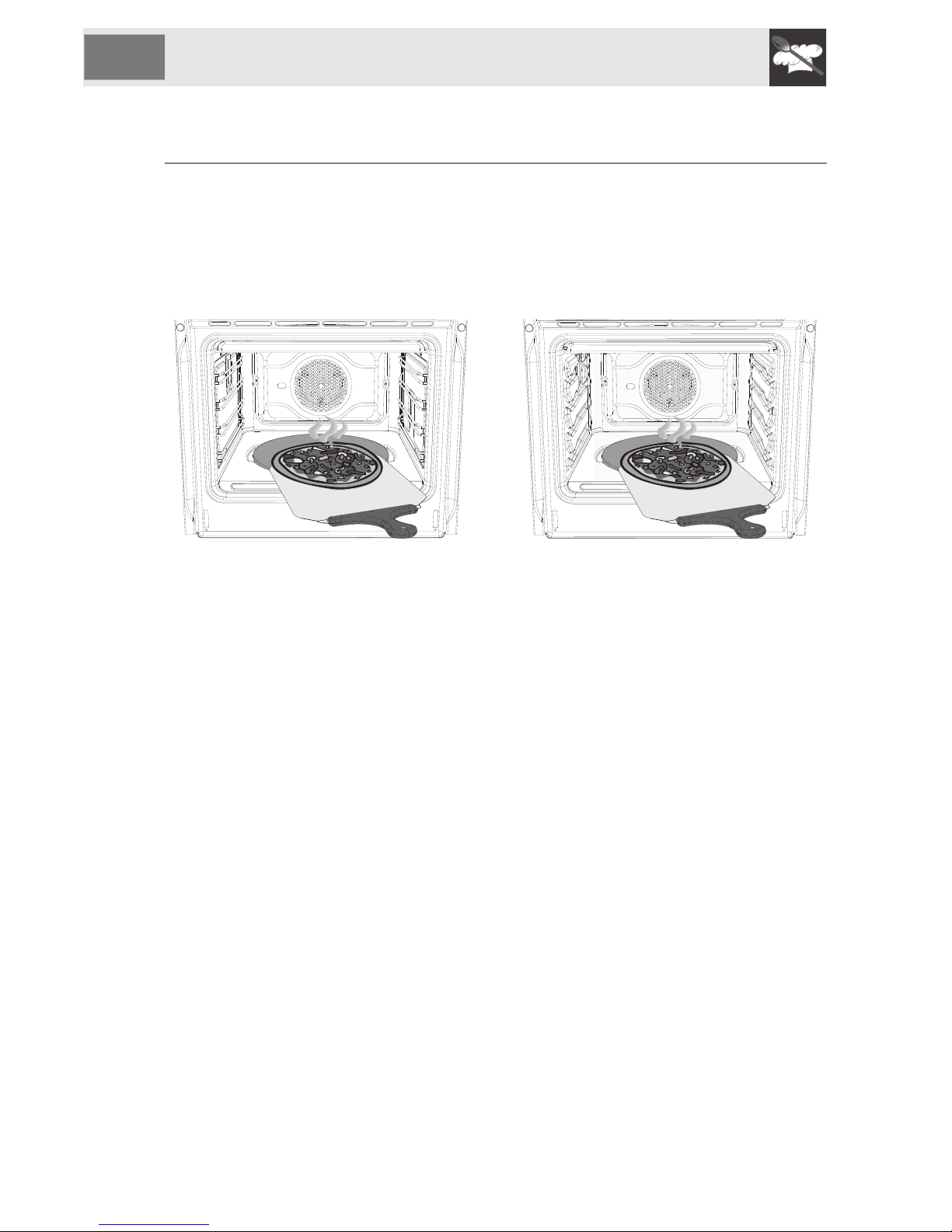

5.5 Using the pizza spatula (on some models only)
Always grip the pizza spatula on the wooden handle to put food in and take it out
of the oven.
You are advised to dust the steel surface lightly with flour to make it easier to
slide fresh products on and off, as they could stick to the steel due to their
moisture content.
Ovens with frames Ovens with runners

Instructions for the user
EN
15
6. USING THE OVEN
6.1 Before using the appliance
• Remove any labels (apart from the technical data plate) from trays, dripping
pans and the cooking compartment.
• Remove any protective film from the outside or inside of the appliance,
including from accessories such as trays, dripping pans, the pizza plate or
the base cover.
• Before using the appliance for the first time, remove all accessories from the
oven compartment and wash them as indicated in “8. CLEANING AND
MAINTENANCE”.
Heat the empty appliance to the maximum temperature in order to remove
any manufacturing residues which could affect the food with unpleasant odours.
6.2 General Description
6.2.1 Oven runners
The oven features 4 runners for positioning trays and racks at different heights.
The insertion heights are indicated from the bottom upwards (see figure).
Ovens with frames Ovens with runners

Instructions for the user
EN
16

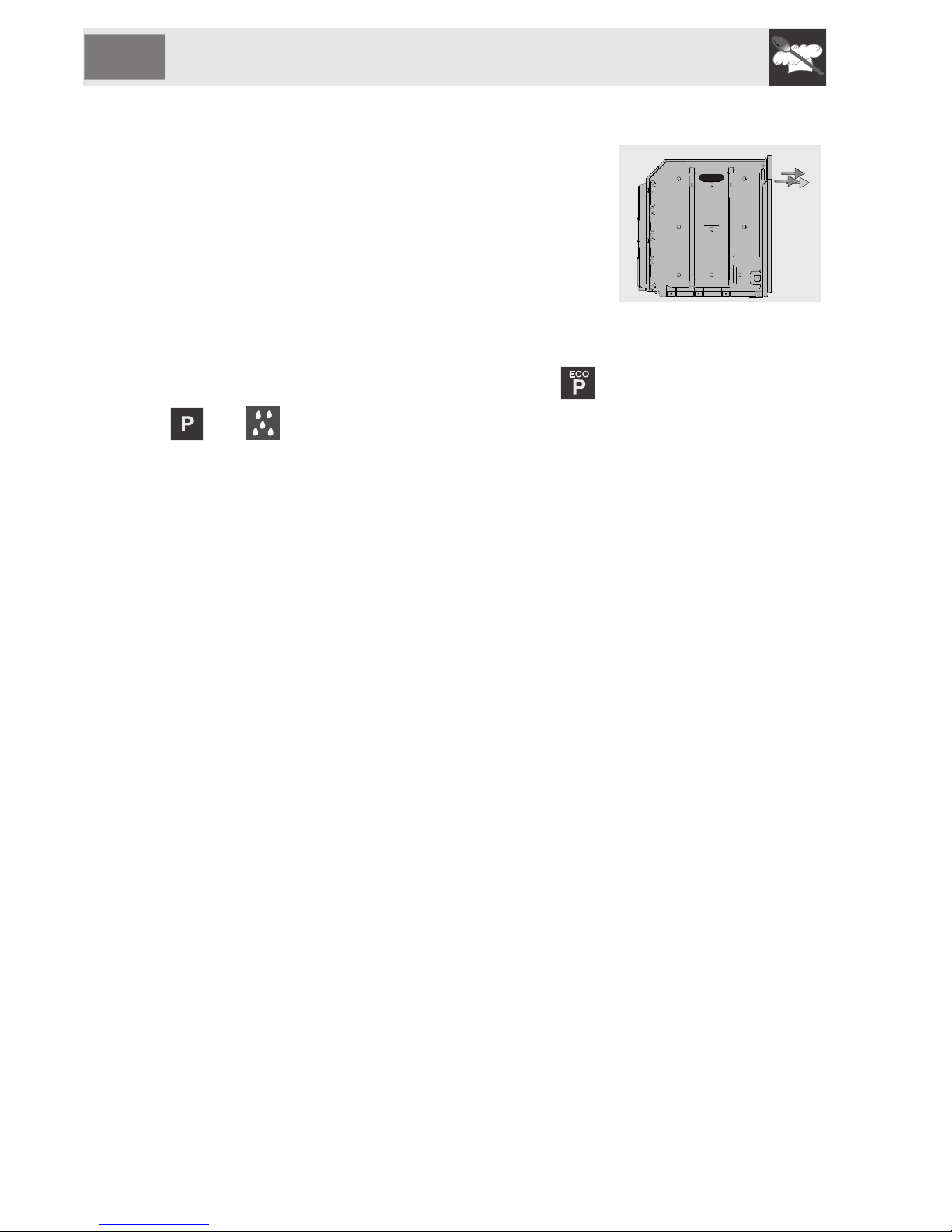

6.2.2 Cooling system
The appliance is equipped with a cooling system
which comes into operation as soon as a cooking
function starts. The fan causes a steady outflow of
air from above the door which may continue for a
brief period of time even after the oven has been
turned off.
6.2.3 Oven inside lights
The oven lights come on when the door is opened or
any function or recipe is selected, except for ,
and (where present).

Instructions for the user
EN
17
6.3 Warnings and general advice for usage
All cooking operations must be carried out with the door closed.
During cooking, do not cover the bottom of the oven with aluminium or tin foil
and do not place pans or oven trays on it as this may damage the enamel
coating. If you wish to use greaseproof paper, place it so that it will not interfere
with the hot air circulation inside the oven.
For the best cooking results, we recommend
placing cookware in the centre of the rack.
To prevent any steam in the oven from causing
problems, open the door in two stages: half
open (5 cm approx.) for 4-5 seconds and then
fully open. If you need to access the food,
always leave the door open for as short a time
as possible to prevent the temperature in the
oven from falling and ruining the food.
To prevent excessive amounts of condensation from forming on the internal
glass, hot food should not be left inside the oven for too long after cooking.

Instructions for the user
EN
18
6.4 Description of the controls on the front panel
All the appliance's control and monitoring devices are located together on the front panel.
Temperature selection knob Function selection
knob
This knob can be used to: set the
clock, select a temperature and the
cooking time, and set cooking
programmes.
(Temperature knob)
This knob can be used to select a
function or to switch off the oven.
(Function selection knob)
Multifunction Model Pyrolytic Model
The display shows the current time and,
during cooking programmes, it shows the
remaining cooking time or the completion
time.
During cooking, it shows the cooking
temperature set for the selected function.
Multifunction Model
Pyrolytic Model

Instructions for the user
EN
19

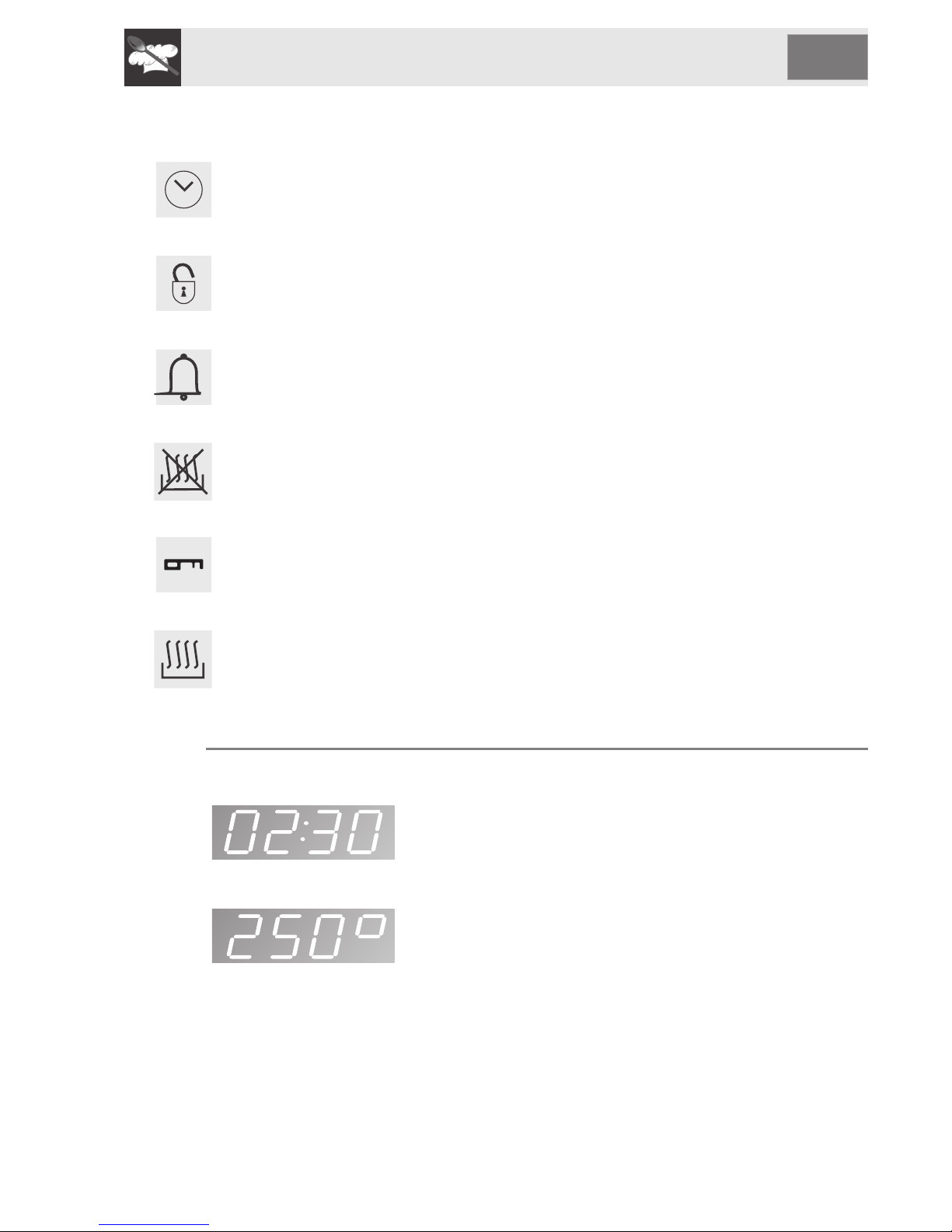

If the symbols to the side of the display are lit up, it means:
If flashing, it indicates that the time is being set; if steady it shows the
normal display (on multifunction models only).
Indicates that the door lock is activated during the automatic cleaning
phase (on pyrolytic models only).
Timer countdown activated.
Delayed-start timed cooking activated.
Child lock function ON (see 6.10 Secondary menu).
Timed cooking activated
6.5 Operating modes
This appliance is designed to have two operating modes.
STAND-BY condition: this condition is set when the
function selection knob is positioned on the “0” symbol.
The appliance displays the current time.
ON condition: this condition is set when the function
selection knob is turned to any function and the
selected temperature appears on the display, or the
message “PYRO” if in pyrolysis.

Instructions for the user
EN
20
6.6 First use
On the first use, or after a power failure, will be flashing on the oven's
display. To be able to start any cooking function, the current time must be set.
Turn the temperature selection knob right or left to
reduce or increase the displayed time.
Keep it in the turned position to reduce or increase
more rapidly.
(Temperature knob)
A few seconds after the last adjustment is made, the
time display will steady and the colon separating the
hours from the minutes will flash to indicate the start
of the countdown.
It may be necessary to alter the current time, for example due to daylight saving
hours; if so, hold the temperature selection knob turned to the right or left until
the value changes.
6.7 Selecting a cooking function
To select a cooking function, turn the function
selection knob right or left.
(Function selection knob)
Once the desired function has been selected, the
oven will begin cooking at the pre-set temperature.
Cooking itself is preceded by a preheating stage,
which allows the oven to heat to the cooking
temperature more quickly.
flashes to indicate that this stage is in progress.
When the preheating stage is over, will remain
lit steadily and a buzzer will sound to indicate that
the food can be placed inside the oven.
On pyrolytic models, the special defrosting and proving functions are brought
together under the same function indicated by .
See “7.4 Proving and defrosting functions” for further details.

Instructions for the user
EN
21
A cooking operation can be interrupted at any time by turning the function
selection knob to “0”.
6.7.1 Modifying the preset temperature
The preset temperature for each function can be
changed to suit the user's requirements.
At any time while cooking is in progress, turn the
temperature selection knob right or left to increase or
decrease the cooking temperature by 5 degrees at a
time. (Keep the knob turned to produce a faster
increase or decrease).
(Temperature knob)

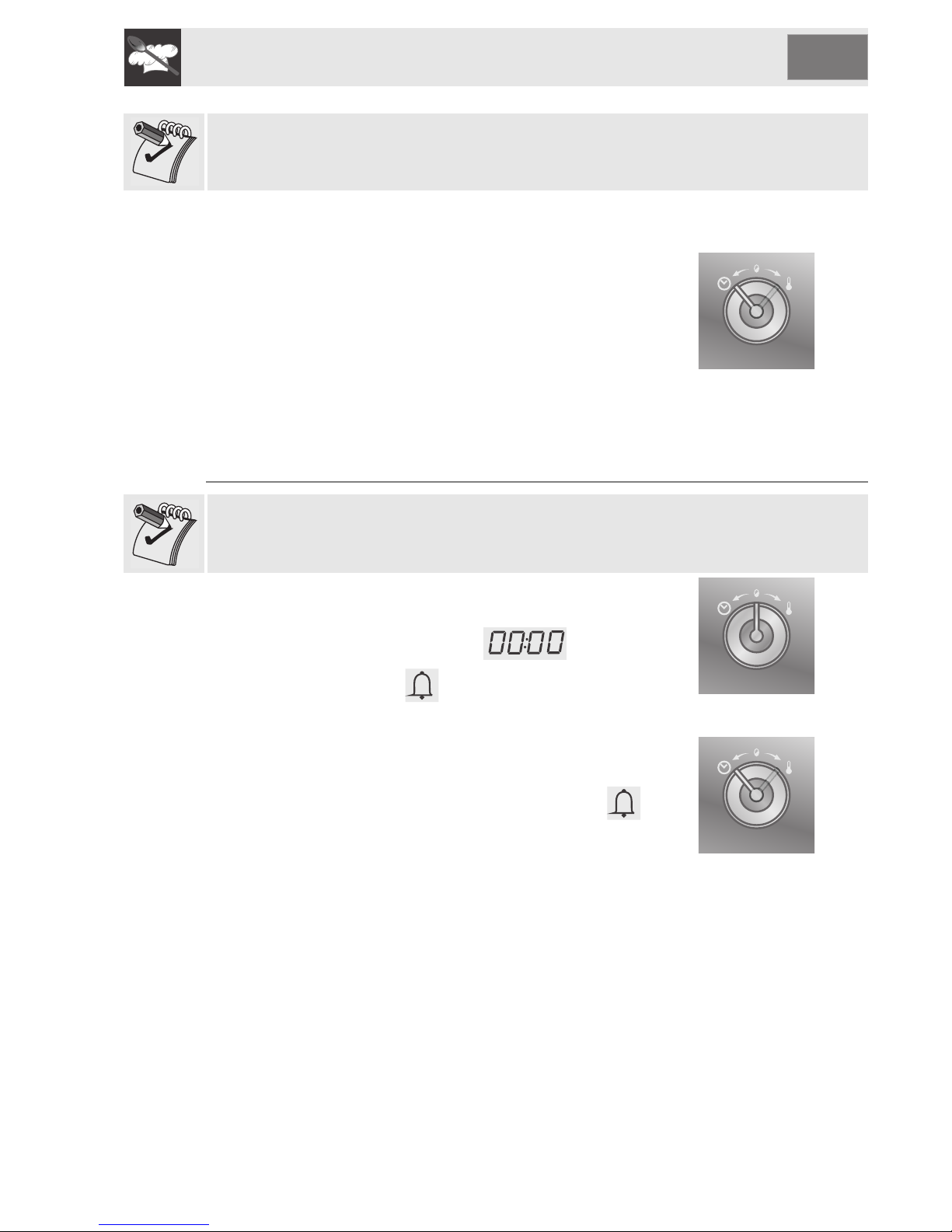

6.8 Using the timer
Warning: the timer does not stop the cooking process. It only warns the user that the
preset number of minutes have passed.
The timer can be activated in any of the appliance's
modes. Press the temperature selection knob and
the display will show the figures
(constantly on) and the symbol (flashing).
(Temperature knob)
Turn the knob right or left to set the minutes from
00:01 to 04:00.
A few seconds after the required duration is set,
will stop flashing and stay on constantly; the
countdown will start from that moment. (Temperature knob)
At this point it is possible to select the desired
cooking function and wait for the buzzer to sound,
indicating that the cooking time is over.

Instructions for the user
EN
22
Press the temperature selection knob to switch off
the buzzer. Another time can then be selected by
turning the same knob right or left.
(Temperature knob)
If the timer was set in STAND-BY mode, when the oven is activated in ON mode (selection
of a cooking operation), the counter is reset to zero.
6.8.1 Modifying the set data
Once the countdown has started, press the
temperature selection knob. will start flashing.
(Temperature knob)
Turn the knob right or left to modify the set period. A
few seconds after the last change, will stop
flashing and the countdown will restart from the new
value.
