Smeg Oven SA280X User manual

Contents
29
1. INSTRUCTIONS FOR SAFE AND PROPER USE _____________________ 30
2. INSTALLATION ________________________________________________ 32
3. DESCRIPTION OF CONTROLS ___________________________________ 36
4. USE OF THE OVEN ____________________________________________ 44
5. AVAILABLE ACCESSORIES _____________________________________ 45
6. COOKING HINTS ______________________________________________ 46
7. CLEANING AND MAINTENANCE__________________________________ 52
8. EXTRAORDINARY MAINTENANCE________________________________ 53
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified technician who must install the appliance, set it functioning
and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.

Introduction
30
1.INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE
CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS
THEREIN BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE
REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC
USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE
APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING
FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES
ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE
THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SPECIAL GARBAGE COLLECTION CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT
BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE
COMPLYING WITH APPLICABLE REGULATIONS.
NEVER UNPLUG BY PULLING ON THE CABLE.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL
SLITS.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION
TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD
THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND
CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.

Introduction
31
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF)
POSITION WHEN YOU FINISH USING THE OVEN.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE
ACCIDENTALLY LIGHTED AND CAUSE FIRES.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.
THE PLATE MUST NOT BE REMOVED.
THE OVEN IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN
TO GO NEAR OR PLAY WITH IT.
REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE
COLLECTION CENTRE.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.

Instructions for the installer
32
2.INSTALLATION
2.1Electrical connection
Check that mains voltage and power cable ratings are as per the
indications provided on the label attached to the oven door frame.
This label must never be removed.
I
t is obligatory for the electrical system to be grounded according to the
methods required by safety rules.
If a plug and socket connection is being used make sure that the plug
and socket are compatible. Avoid use of adapters and shunts as these
could cause overheating and risk of burns.
If a fixed connection is being used fit power line with an omnipolar circuit
breaker with a contact opening gap equal to or greater than 3 mm in an
easily accessible position in proximity to the oven.
2.1.1Ovens with top controls
In the ovens with top controls the power cable is not supplied. Use a
H05RR-F or H05RN-F rubber-sheathed cable making sure that it does
not come into contact with any external metal parts of the oven when
routing.
Remove rear cover by loosening relevant screws to gain access to the
terminal strip. If necessary change jumper configuration as shown in the
figure and then connect wires making sure that the earth wire is at least
20 mm longer than the others. Secure power cable to oven by means of
the appropriate fitting.

Instructions for the installer
33
For operation on 230V ∼ :use an H05RR-F
/ H05RN-F
type three-core cabl
e
(3 x 2.5
mm2).
For operation on 400V2N ∼ :use an
H05RR-F / H05RN-F type four-core cabl
e
(4 x 2.5 mm2).
For operation on 400V3N ∼ :use an
H05RRF / H05RN-F type five-core cabl
e
(5 x 1.5 mm2).
The cable end to be connected to th
e
appliance must be provided with an groun
d
wire (yellow-green) at least 20 mm longer.
The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance.

Instructions for the installer
34

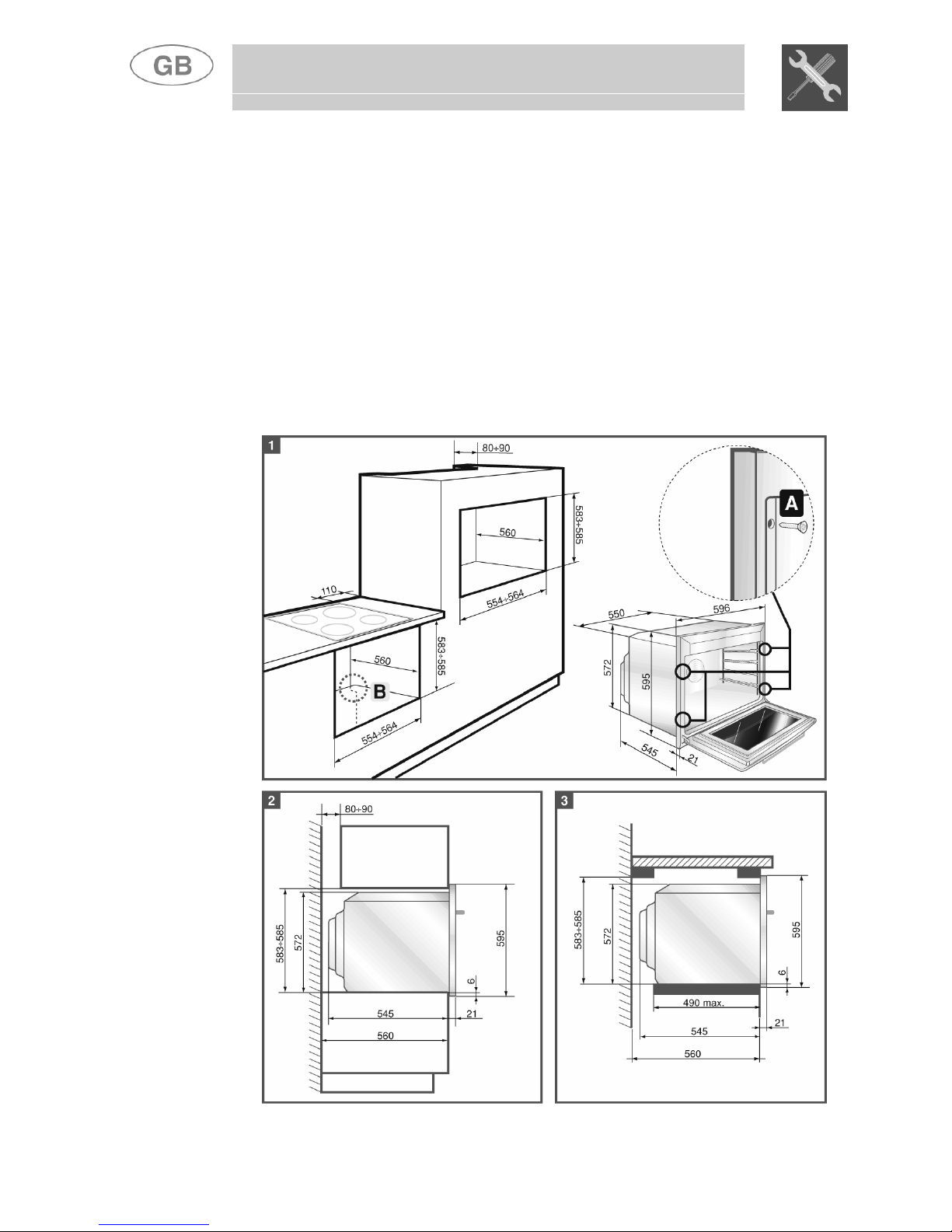

2.2Mounting the oven
The oven is designed for mounting into any piece of furniture as long as
heat-resistant. Proceed according to the dimensions shown in Figures 1,
2and 3. For installing under a work top, follow the dimensions given in
Figure 1-3. For installing under a work top with combined heating plates,
ensure a minimum clearance from any side walls of at least 110 mm as
shown in Figure 1.
For installing in a column, follow the dimensions given in Figure 1-2
allowing for a clearance of 80 to 90 mm at the top and sides of the
column. Tighten the four screws Ainside the frame to secure (Fig. 1).
For installing beneath a non-integrated top, allow for a rear and bottom
clearance as shown in Figure 1(ref. B). See relevant instructions for
fitting and securing the cook top.

Instructions for the installer
35
Never use the oven door to lever the oven int
o
place when fitting.
Avoid exerting too much pressure on the ove
n
door when open.
2.3Connecting the cook top to the oven
Once installed, the cook top must be connected to the oven. Mount the
oven allowing enough room for the following operations to be made.
•Connect the earth wire (yellow-green) of the cook top to the earth
terminal Aof the oven (see figure).
•Fit the cook top connectors into the appropriate sockets in the top
cover of the oven. Make sure that the colours and symbols of the
connectors match those of the oven sockets.
•If the cook top is equipped with a connector for the residual heat
indicator, same must be fitted into the free socket on the right side.
The oven can now be fully mounted into the cabinet; make sure that the
power cable is properly routed and does not come into contact with parts
which may become hot during operation.

Instructions for the user
36

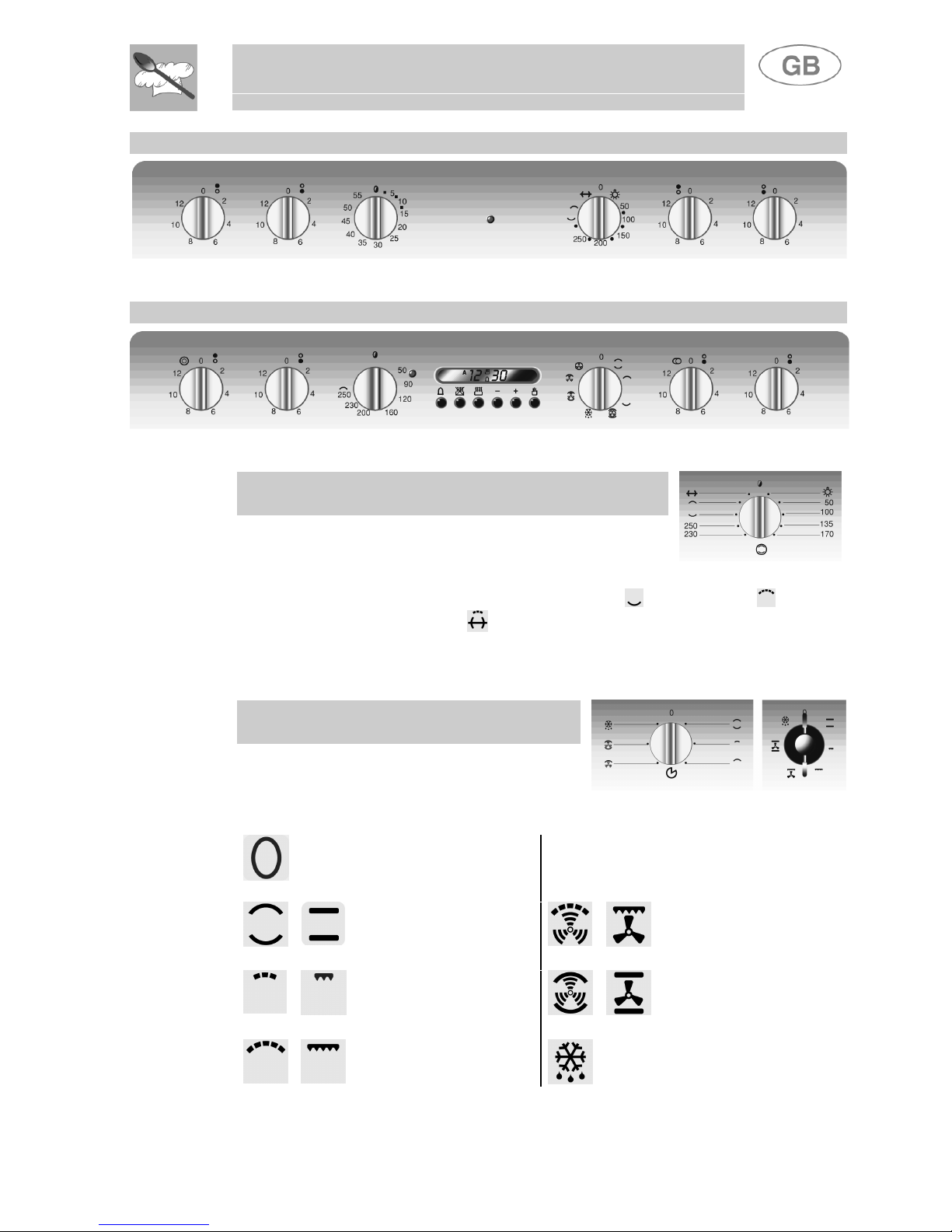

3.DESCRIPTION OF CONTROLS

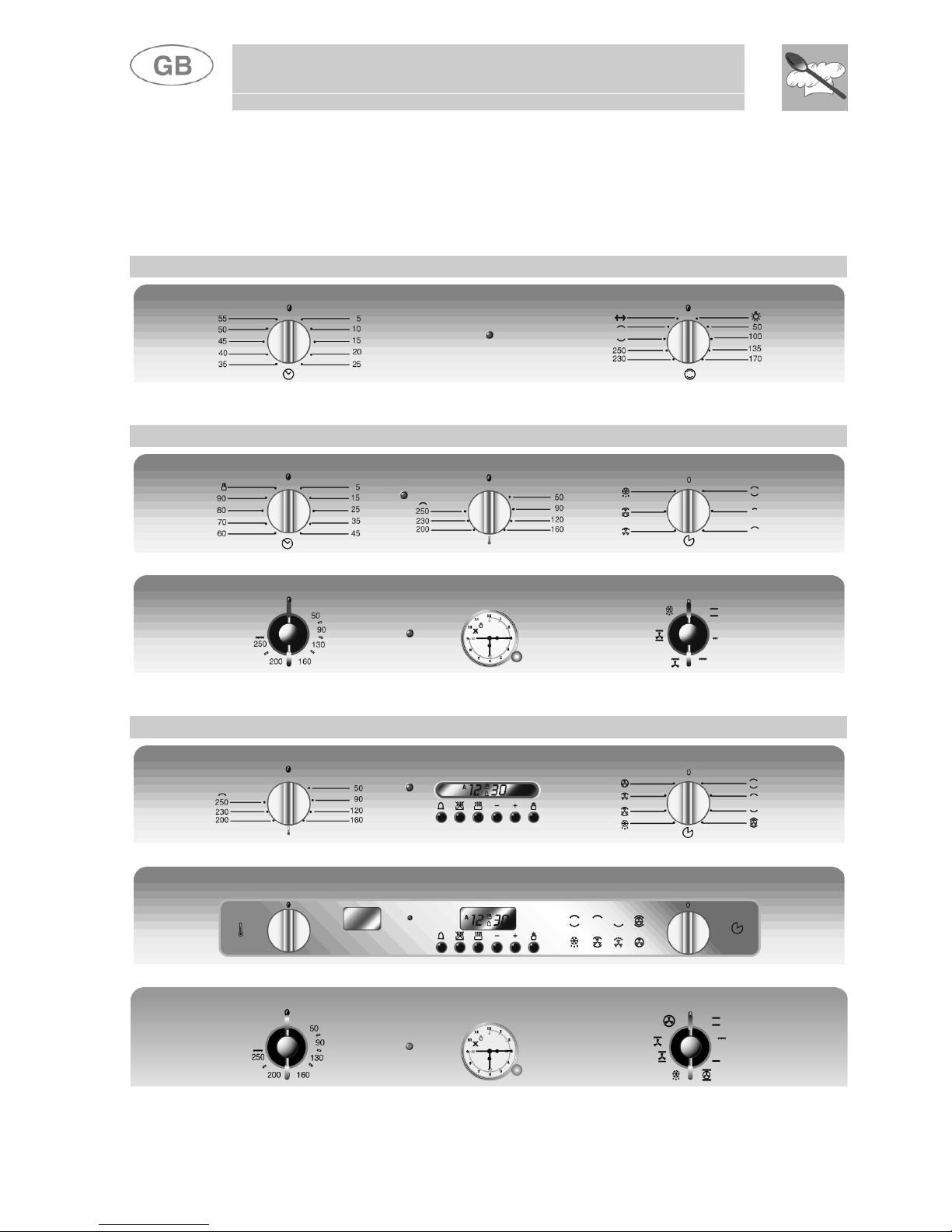

3.1Front control panel
All the oven controls are grouped together on the front panel.
STATIC MODEL
6-FUNCTIONS MODEL
8-FUNCTIONS MODEL

Instructions for the user
37
STATIC MODEL + COOK TOP CONTROLS
8-FUNCTIONS MODEL + COOK TOP CONTROLS
FUNCTION SWITCH KNOB
(static oven)
Cooking temperature is selected by turning the
knob clockwise to the desired setting, between 50°
and 250°C.
This knob permits to select either the bottom ( )or top (grill) ( ) heating
element. A further symbol at end of knob rotation permits to turn on
the spit motor and the top grill heating element.
FUNCTION SWITCH KNOB
(6 functions)
Rotate the knob in either direction to
select desired function from the
following:
NO FUNCTION SET
UPPER AND LOWER
HEATING ELEMENT
GRILL ELEMENT +
VENTILATION
GRILL ELEMENT UPPER AND LOWER
HEATING ELEMENT +
VENTILATION
WIDE GRILL
ELEMENT
DEFROSTING

Instructions for the user
38
FUNCTION SWITCH KNOB
(8-functions)
Rotate the knob in either direction to
select desired function from the
following:
NO FUNCTION SET
UPPER AND LOWER
HEATING ELEMENT
DEFROSTING
GRILL ELEMENT UPPER AND LOWER
HEATING ELEMENT +
VENTILATION
LOWER HEATING
ELEMENT
GRILL ELEMENT +
VENTILATION
UPPER AND LOWER
HEATING ELEMENT +
VENTILATED HEATING
ELEMENT
VENTILATED
HEATING ELEMENT
THERMOSTAT KNOB
(multifunction oven)
Cooking temperature is selected by
turning the knob clockwise to the desired
setting, between 50°and 250°C.
Maximum temperature in models with
front glass panel is 260°C.
THERMOSTAT INDICATOR LIGHT
When this light comes on, the oven is heating up.
When this light goes out, the preset heating temperature has
been reached.
When the light flashes, the temperature inside the oven is
steady at the set temperature.
