Smeg SC115 User manual

65
Contents
INSTRUCTIONS FOR THE USER: these contain user advice, description of
the commands and the correct procedures for cleaning and maintenance
of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these instructions are intended for
the qualified technician who must perform the installation, put it into
operation and test the appliance.
1. INSTRUCTIONS FOR USE ......................................................................... 66
2. SAFETY PRECAUTIONS ............................................................................ 68
3. ENVIRONMENTAL RESPONSIBILITY ........................................................ 70
4. GET TO KNOW YOUR OVEN...................................................................... 71
5. AVAILABLE ACCESSORIES ....................................................................... 72
6. USING THE OVEN ...................................................................................... 77
7. COOKING WITH THE OVEN....................................................................... 98
8. CLEANING AND MAINTENANCE ............................................................. 107
9. EXTRAORDINARY MAINTENANCE ......................................................... 117
10. INSTALLING THE APPLIANCE ................................................................ 123

General instructions
66
1. INSTRUCTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE KEPT IN ITS
ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF
THE APPLIANCE.
CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN
BEFORE USING THE APPLIANCE IS ESSENTIAL. INSTALLATION MUST BE CARRIED
OUT BY COMPETENT PERSONS IN ACCORDANCE WITH THE REGULATIONS IN
FORCE. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE AND COMPLIES
WITH THE EEC DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN
BUILT TO CARRY OUT THE FOLLOWING FUNCTION: COOKING FOOD; ALL OTHER
USES ARE TO BE CONSIDERED INCORRECT.
THE MANUFACTURER CANNOT BE HELD LIABLE FOR USE OTHER THAN AS
INDICATED.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
THIS APPLIANCE IS MARKED ACCORDING TO EUROPEAN DIRECTIVE 2002/96/EC
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS DIRECTIVE DETERMINES THE STANDARDS FOR THE COLLECTION AND
RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT APPLICABLE
THROUGHOUT THE EUROPEAN UNION.
NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR VENTILATION AND
HEAT DISPERSAL.
DO NOT REST ANY WEIGHT OR SIT ON THE OPEN DOOR OF THE APPLIANCE.
THE IDENTIFICATION PLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND
BRAND NAME HAS BEEN VISIBLY AFFIXED TO THE APPLIANCE.
DO NOT REMOVETHIS PLATE FOR ANY REASON.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE PROTECTIVE FILMS
APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
TAKE CARE THAT NO OBJECTS ARE STUCK IN THE DOOR OF THE OVEN.
THE APPLIANCE BECOMES VERY HOT DURING USE. SUITABLE HEAT-PROOF
GLOVES SHOULD BE WORN FOR ALL OPERATIONS.

General instructions
67
DO NOT USE METALLIC SPONGES AND SHARP SCRAPERS AS THEY
WILL DAMAGE THE SURFACE.
USE NORMAL NON-ABRASIVE PRODUCTS, INCLUDING WOODEN OR
PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY
USING A SOFT CLOTH OR CHAMOIS LEATHER.
DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO SET
INSIDE THE OVEN. IF THEY ARE ALLOWED TO SET FOR TOO LONG,
THEY COULD RUIN THE ENAMEL COVERING THE INSIDE OF THE OVEN.
DO NOT USE PLASTIC KITCHENWARE OR CONTAINERS. THE HIGH
TEMPERATURES INSIDE THE OVEN COULD MELT THE PLASTIC, DAMAGING THE
APPLIANCE.
DO NOT USE SEALED TINS OR CONTAINERS IN THE APPLIANCE. OVERPRESSURE
MAY OCCUR INSIDE THE CONTAINERS DURING COOKING, CREATING A DANGER
OF EXPLOSION.
DO NOT LEAVE THE APPLIANCE UNATTENDED DURING COOKING PROCESSES
WHERE FATS OR OILS COULD BE RELEASED.
FATS AND OILS MAY CATCH FIRE.
DO NOT COVER THE BOTTOM OF THE OVEN WITH ALUMINIUM OR TINFOIL
SHEETS DURING COOKING AND DO NOT PLACE PANS OR TRAYS ON IT TO AVOID
DAMAGE TO THE ENAMELLED SURFACE.
IF THE SURFACES ARE STILL VERY HOT DURING COOKING, DO NOT POUR WATER
DIRECTLY ONTO THE TRAYS. THE STEAM COULD CAUSE SEVERE BURNS AND
DAMAGE TO ENAMELLED SURFACES.
ALL COOKING OPERATIONS MUST TAKE PLACE WITH THE DOOR CLOSED.

General instructions
68
2. SAFETY PRECAUTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS
FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY THE LAW REQUIRES THAT THE
INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS CARRIED
OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE.
OUR APPROVED INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRICAL APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
BEFORE CONNECTING THE APPLIANCE TO THE POWER GRID, CHECK THE DATA
ON THE PLATE AGAINST THE DATA FOR THE GRID ITSELF.
BEFORE CARRYING OUT INSTALLATION/MAINTENANCE WORK, MAKE SURE THAT
THE APPLIANCE IS NOT CONNECTED TO THE POWER GRID.
THE PLUG TO BE CONNECTED TO THE POWER SUPPLY CABLE AND ITS SOCKET
MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT-IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE CABLE.
IF THE POWER SUPPLY CABLE IS DAMAGED, CONTACT THE TECHNICAL SUPPORT
SERVICE IMMEDIATELY AND THEY WILL REPLACE IT.
IT IS OBLIGATORY FOR ALL ELECTRICAL EQUIPMENT TO BE EARTHED
ACCORDING TO THE METHODS LAID DOWN BY SAFETY REGULATIONS.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE ELECTRICITY SUPPLY AND CALL THE
NEAREST TECHNICAL SUPPORT CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: IF IT IS SWITCHED ON BY
ACCIDENT, IT MAY CAUSE A FIRE.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH
THE HEATING ELEMENTS INSIDE THE OVEN.
THIS APPLIANCE MAY NOT BE USED BY PEOPLE (INCLUDING CHILDREN) OF
REDUCED PHYSICAL AND MENTAL CAPACITY, OR LACKING IN EXPERIENCE IN
THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR
INSTRUCTED BY ADULTS RESPONSIBLE FOR THEIR SAFETY.

General instructions
69
DO NOT LET CHILDREN GO NEAR THE APPLIANCE WHEN IT IS IN OPERATION OR
PLAY WITH IT AT ANY TIME.
DO NOT USE STEAM JETS FOR CLEANING THE APPLIANCE.
THE STEAM COULD REACH THE ELECTRONICS, DAMAGING THEM AND CAUSING
SHORT-CIRCUITS.
DO NOT MODIFY THIS APPLIANCE.
DO NOT SPRAY ANY SPRAY PRODUCTS NEAR THE ELECTRICAL APPLIANCE
WHILE IT IS IN OPERATION.
The manufacturer cannot be held liable for damage to persons or things caused by
failure to observe the above instructions, by tampering with any part of the appliance
or by the use of non-original spare parts.

Instructions for disposal
70
3. ENVIRONMENTAL RESPONSIBILITY
3.1 Our environmental responsibility
Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to
the reduction of the use of hazardous substances in electrical and electronic
appliances, as well as to the disposal of refuse, the crossed out bin symbol on
the appliance indicates that at the end of the useful life of the product, it must be
collected separately from other refuse. Therefore, at the end of the product's
working life, the user must deliver it to the appropriate differentiated collection
centres for electrical and electronic waste, or deliver it back to the retailer when
purchasing an equivalent product, on a one-for-one basis. Adequate
differentiated collection for the subsequent forwarding of the decommissioned
product to recycling, processing and ecologically compatible disposal
contributes to avoiding possible negative effects on the environment and on
health, and promotes recycling of the appliance's constituent materials. Illicit
disposal of the product by the user will lead to the application of administrative
sanctions.
3.2 Your environmental responsibility
Our product's packing is made of non-polluting materials, which are therefore
compatible with the environment and recyclable. Please help by disposing of the
packaging correctly. You can obtain the addresses of collection, recycling and
disposal centres from your retailer or from the competent local organisations.
Do not discard the packaging or any part of it, or leave it unattended. It can
constitute a suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for the
collection of electrical appliances no longer in use. Correct disposal enables
intelligent recovery of valuable materials.
Before disposing of your appliance it is important to remove doors and leave
shelves in the same position as for use, to ensure that children cannot
accidentally become trapped inside during play. It is also necessary to cut the
connecting cable to the power grid, removing it along with the plug.

Instructions for the user
71

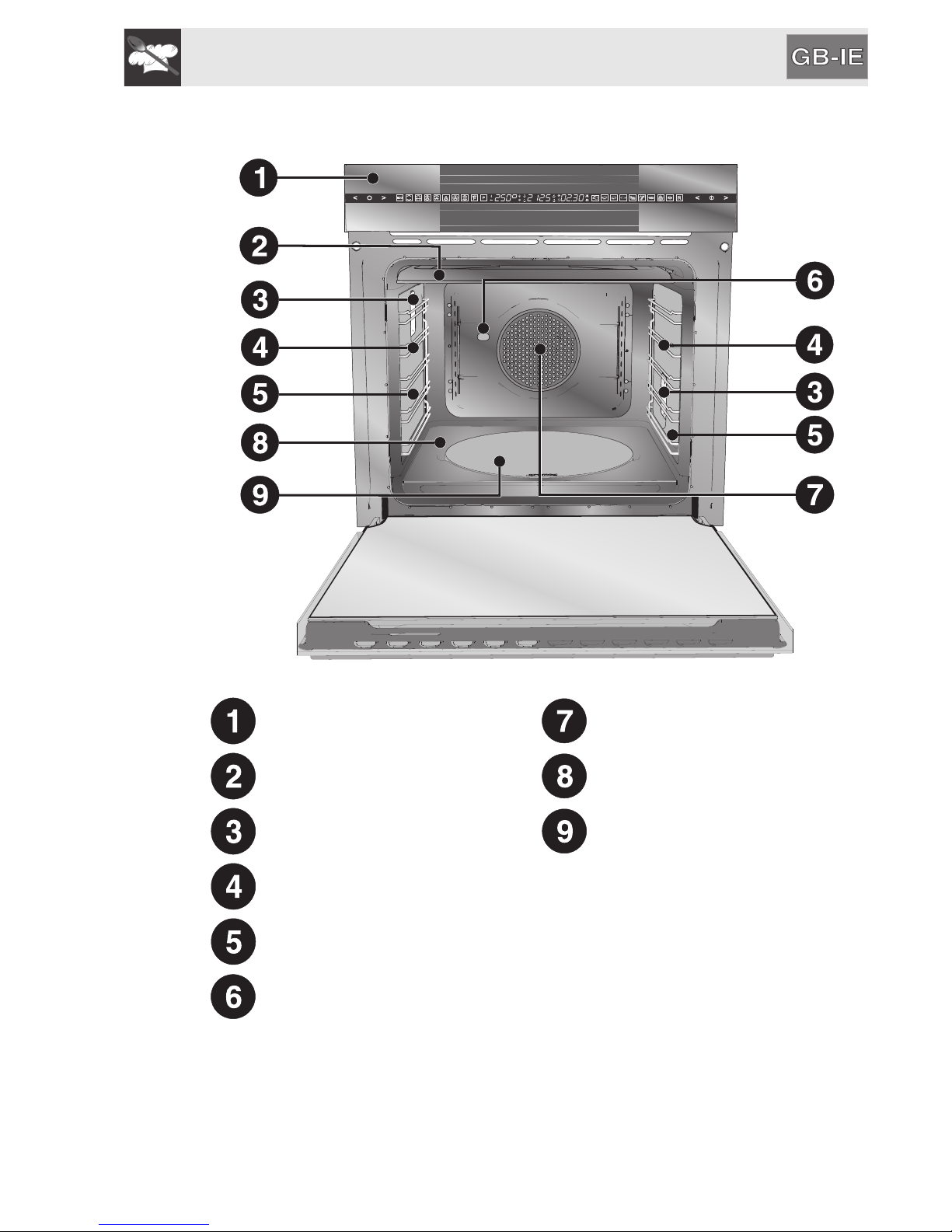

4. GET TO KNOW YOUR OVEN
Control panel Oven fan
Roof liner Bottom plate (on some models
only)
Inside lights Pizza plate or cover recess (on
some models only)
Rack and tray support frames
Self-cleaning side panels (on
some models only)
Insert for the rotisserie rod (on
some models only)

Instructions for the user
72
5. AVAILABLE ACCESSORIES
NOTE: Some models are not provided with all
accessories.
Rack: for holding cooking containers.
Tray rack: to be placed over the top of the oven
tray; for cooking foods which may drip.
Oven tray: for collecting fat from foods placed
on the rack above.
Deep oven tray: for baking cakes, pizza and
oven desserts.
Handle: for removing hot racks and trays.
Rotisserie frame: supports the rotisserie rod.

Instructions for the user
73
Rotisserie rod: for cooking chicken and all
foods which require uniform cooking over their
entire surface.
Pizza plate: specially designed for cooking
pizza and similar dishes.
Pizza spatula: for easy placement of the pizza
on the pizza plate.
Pizza plate cover: for covering the pizza plate
when it is not in use.
The oven accessories intended to come into contact with food are made of
materials that comply with the provisions of Directive 89/109/EEC, dated 21/12/
88, and of Legislative Decree 108, dated 25/01/92.
• Accessories available on request:
Original supplied and optional accessories may be ordered from any
Authorised Support Centre.
• Use original SMEG accessories only.

Instructions for the user
74
5.1 Using the rack or tray

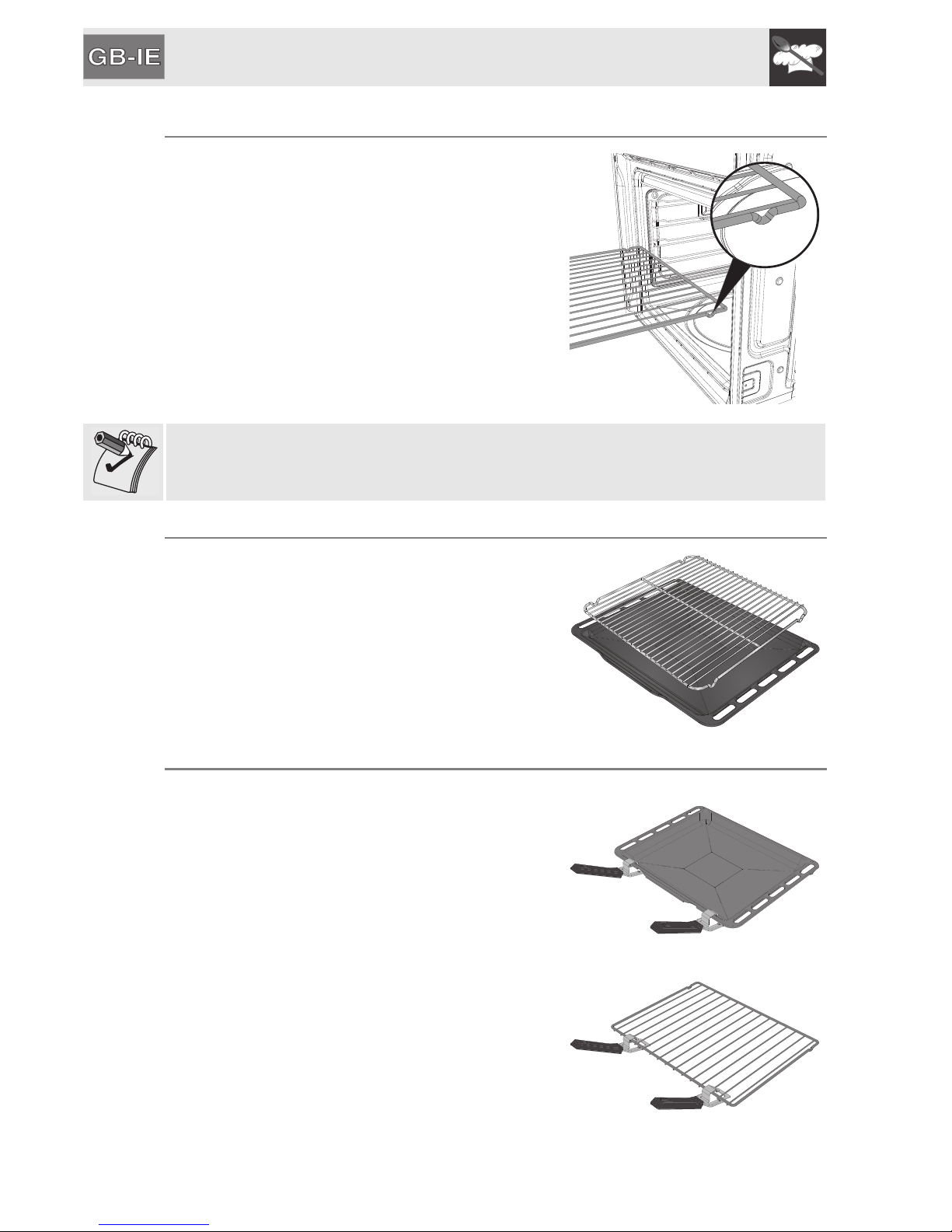

The racks and trays are equipped with a
mechanical safety lock which prevents them
from being taken out accidentally. To insert the
rack or tray correctly, check that the lock is
facing downwards (as shown in the illustration
on the right).
To remove the rack or tray, lift the front slightly.
The mechanical lock must always face the
back of the oven.
Insert racks and trays fully into the oven until they come to a stop.
5.2 Using the support rack
The support rack is inserted into the tray (as
shown in the illustration).
Using this, foods can be cooked and the fat can
be collected separately from the food which is
being cooked.
5.3 Using the handle
The handle is used to extract hot trays and
racks from the oven.
Use the accessory as shown in the illustrations.

Instructions for the user
75
5.4 Using the rotisserie rod

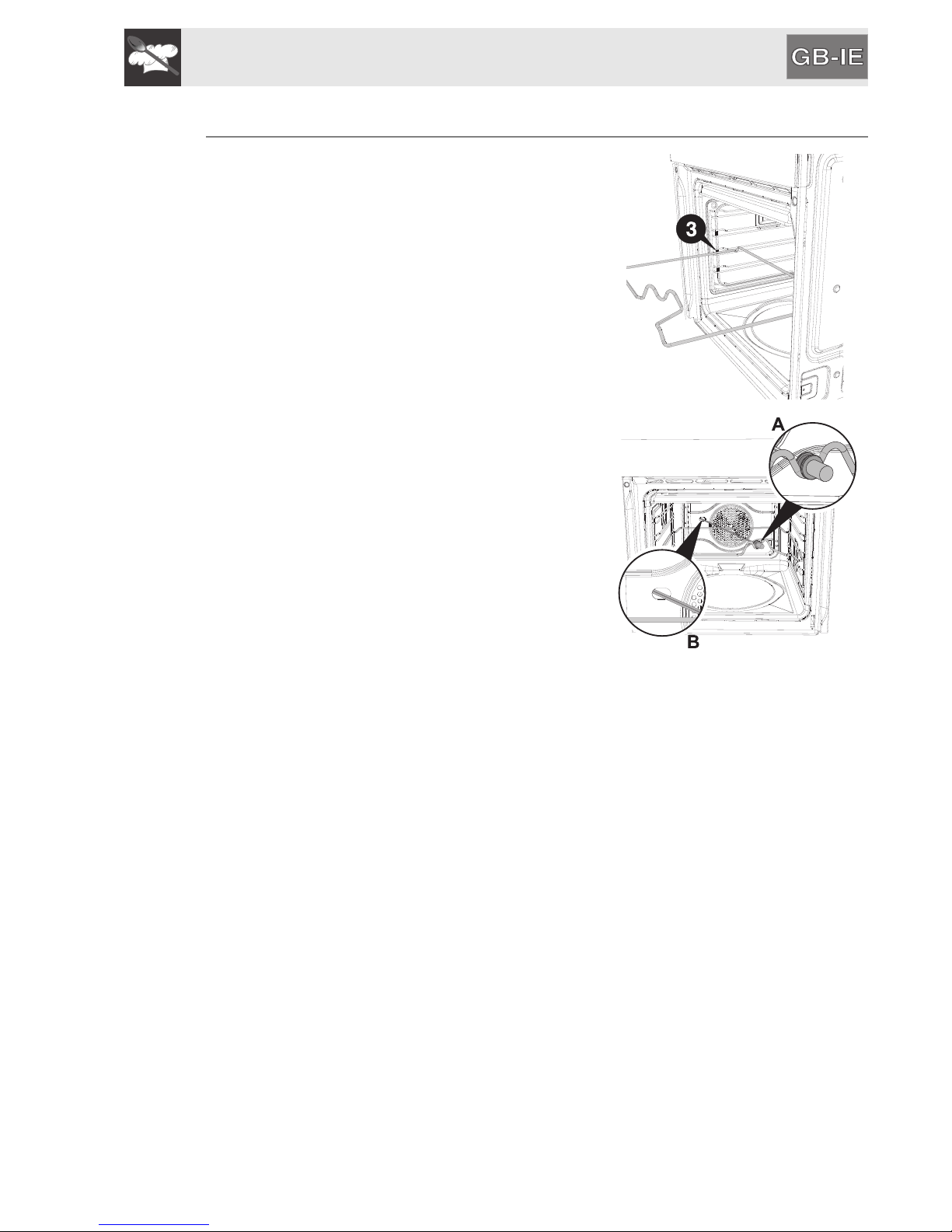

When cooking with the rotisserie, position the
frame on the third runner (see 6.2.1 Oven
runners). Once the frame is inserted, the
shaped part must sit facing outwards (as shown
in the illustration).
Then prepare the rotisserie rod with the food,
using the clip forks provided.
In order to handle the rod with the food on it
readily, screw on the handle provided.
Having prepared the rotisserie rod with the
food, position it on the guide frame as shown in
the illustration.
Insert the rod into the hole (detail B) so that it
connects with the rotisserie motor.
Make sure that the pin is placed correctly on
the guide frame (detail A).

Instructions for the user
76

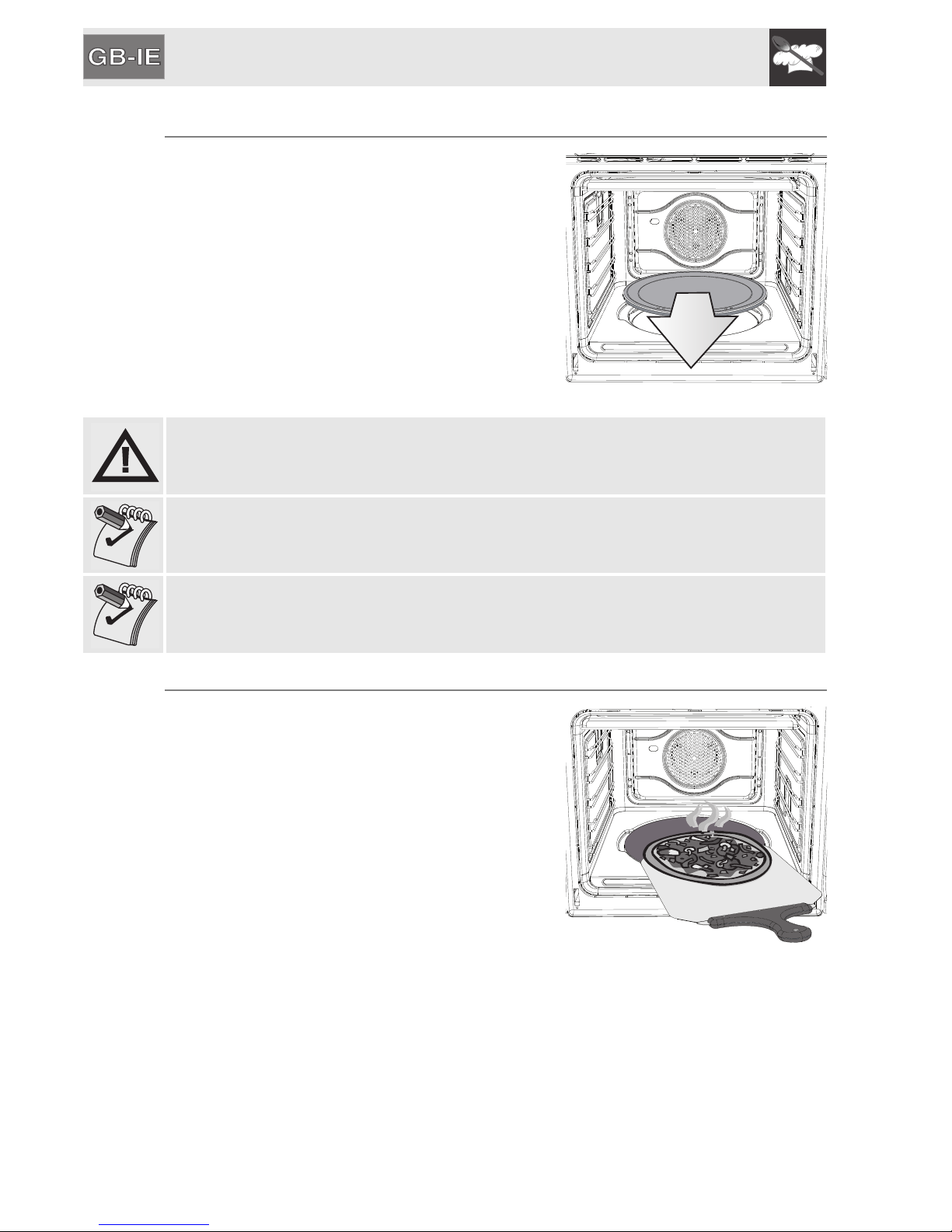

5.5 Using the pizza plate (on some models only)
With the oven cold, remove the circular cover
from the bottom (as shown in the illustration)
and insert the pizza plate.
Make sure that the plate is inserted correctly in
the recess provided.
To cook, follow recipe usage instructions (see
6.12 Selecting a recipe).
Do not use the pizza plate other than as described, for example do not use it on
gas or glass-ceramic hobs or in ovens which are not designed for this purpose.
If you wish to add oil to your pizza, it is best to add it after removing it from the
oven since oil stains on the pizza plate are unsightly and may reduce its
efficiency.
In models where it is provided, if the pizza plate is not in use, cover the bottom
of the oven with the cover provided.
5.6 Using the pizza spatula (on some models only)
Always grip the pizza spatula on the wooden
or plastic handle to put food in and take it out of
the oven.
You are advised to dust the steel surface
lightly with flour to make it easier to slide fresh
products on and off, as they could stick to the
steel due to their moisture content.

Instructions for the user
77
6. USING THE OVEN
6.1 Before using the appliance
• Remove any labels (apart from the technical data plate) from trays, dripping
pans and the cooking compartment.
• Remove any protective film from the outside or inside of the appliance,
including from accessories such as trays, dripping pans, the pizza plate or
the base cover.
• Before using the appliance for the first time, remove all accessories from the
oven compartment and wash them as indicated in “8. CLEANING AND
MAINTENANCE”.
Heat the empty appliance to the maximum temperature in order to remove
any manufacturing residues which could affect the food with unpleasant odours.
6.2 General description

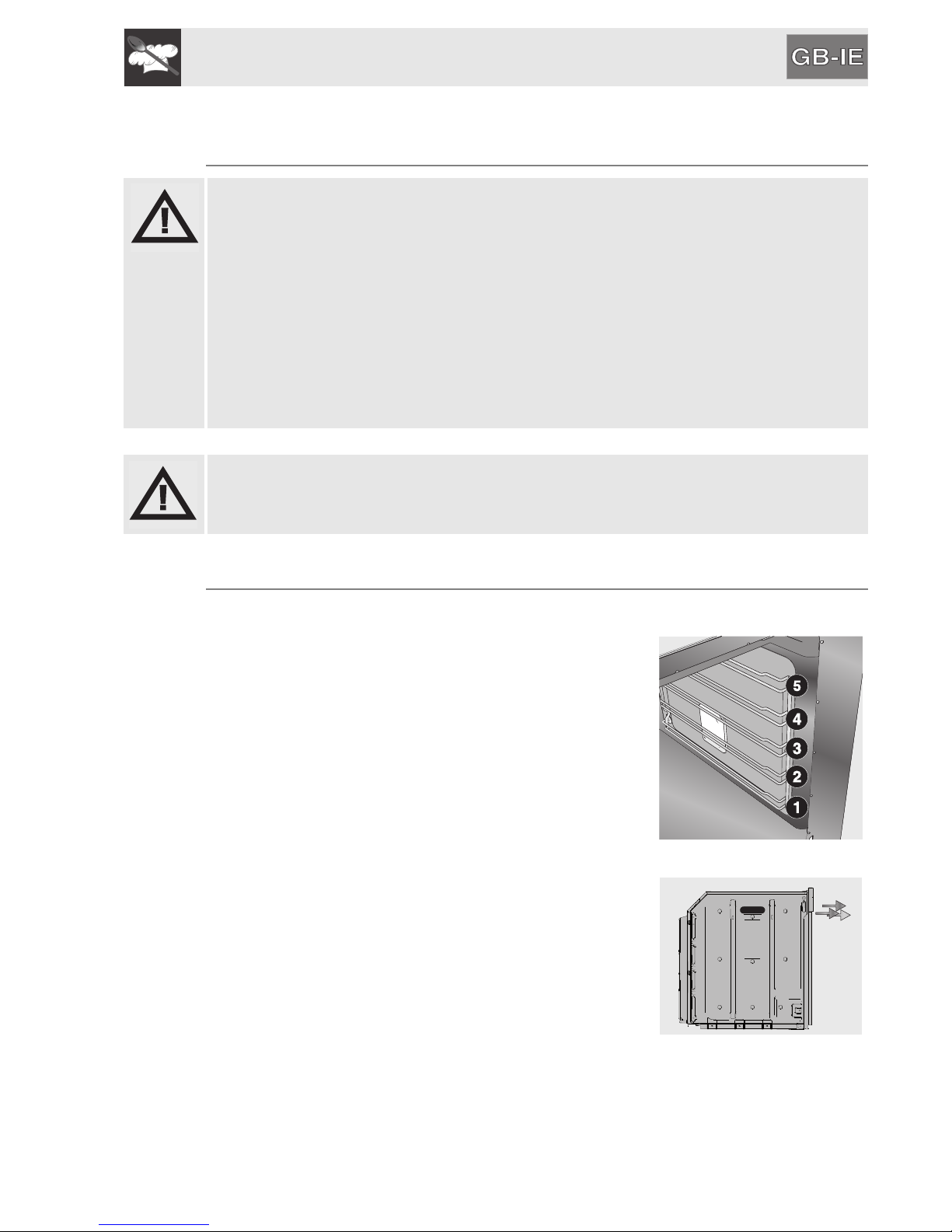

6.2.1 Oven runners
The oven features 5 runners for positioning trays
and racks at different heights. The insertion heights
are numbered from the bottom upwards (see
illustration).
(When using the recipes, the display will show the
recommended runner for the selected recipe).
6.2.2 Cooling system
The appliance is equipped with a cooling system
which comes into operation as soon as a cooking
function starts. The fan causes a steady outflow of
air from above the door which may continue for a
brief period of time even after the oven has been
turned off.

Instructions for the user
78

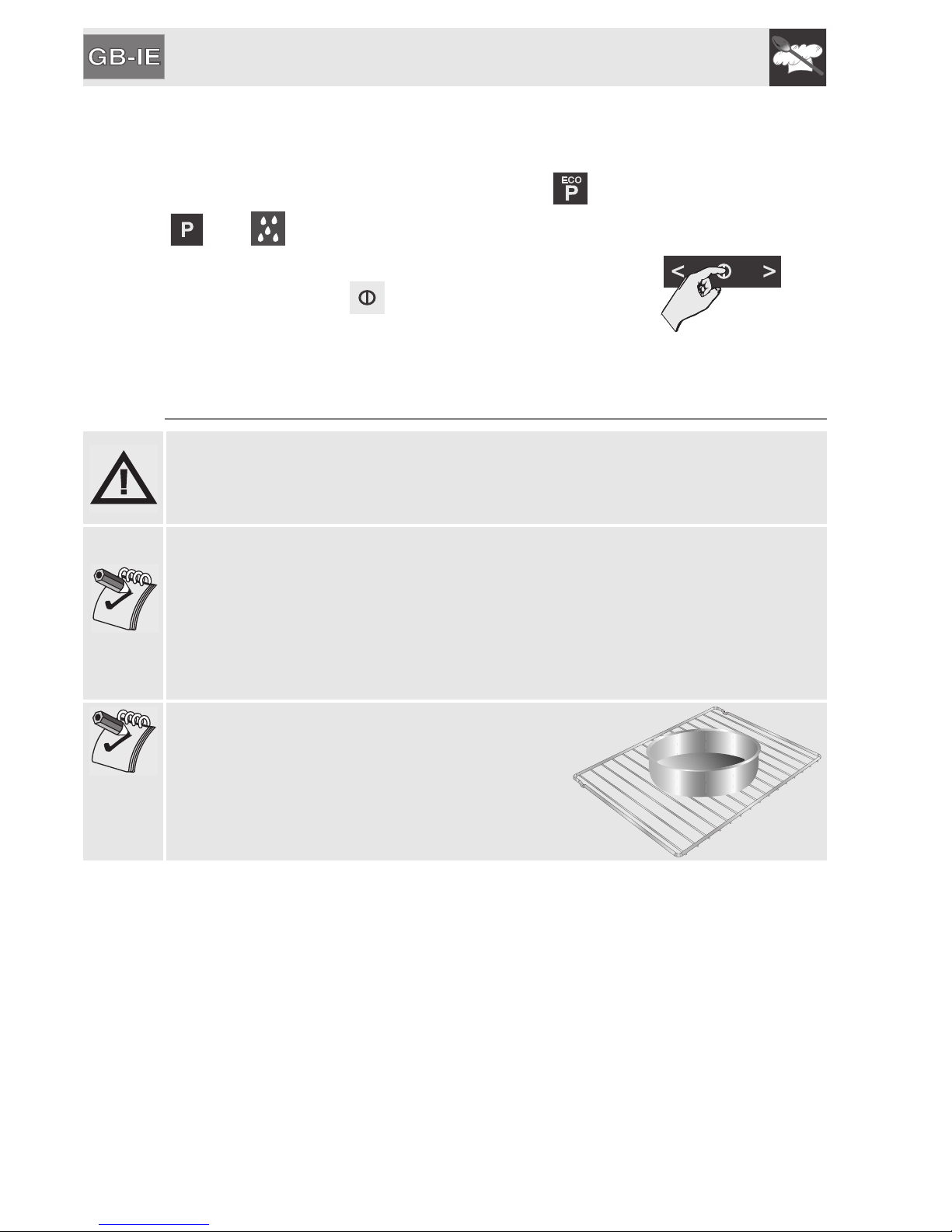

6.2.3 Oven inside lights
The oven lights come on when the door is opened or
any function or recipe is selected, except for ,
and (where present).
When set to ON, the oven lights can be switched on/
off by briefly pressing .
ON-OFF zone
6.3 Warnings and general advice for usage
All cooking operations must be carried out with the door closed.
During cooking, do not cover the bottom of the oven with aluminium or tin foil
and do not place pans or oven trays on it as this may damage the enamel
coating. If you wish to use greaseproof paper, place it so that it will not interfere
with the hot air circulation inside the oven.
For the best cooking results, we recommend
placing cookware in the centre of the rack.

Instructions for the user
79
To prevent any steam in the oven from causing
problems, open the door in two stages: half
open (5 cm approx.) for 4-5 seconds and then
fully open. If you need to access the food,
always leave the door open for as short a time
as possible to prevent the temperature in the
oven from falling and ruining the food.
To prevent excessive amounts of condensation from forming on the internal
glass, food should not be left inside the oven for too long after cooking.

Instructions for the user
80

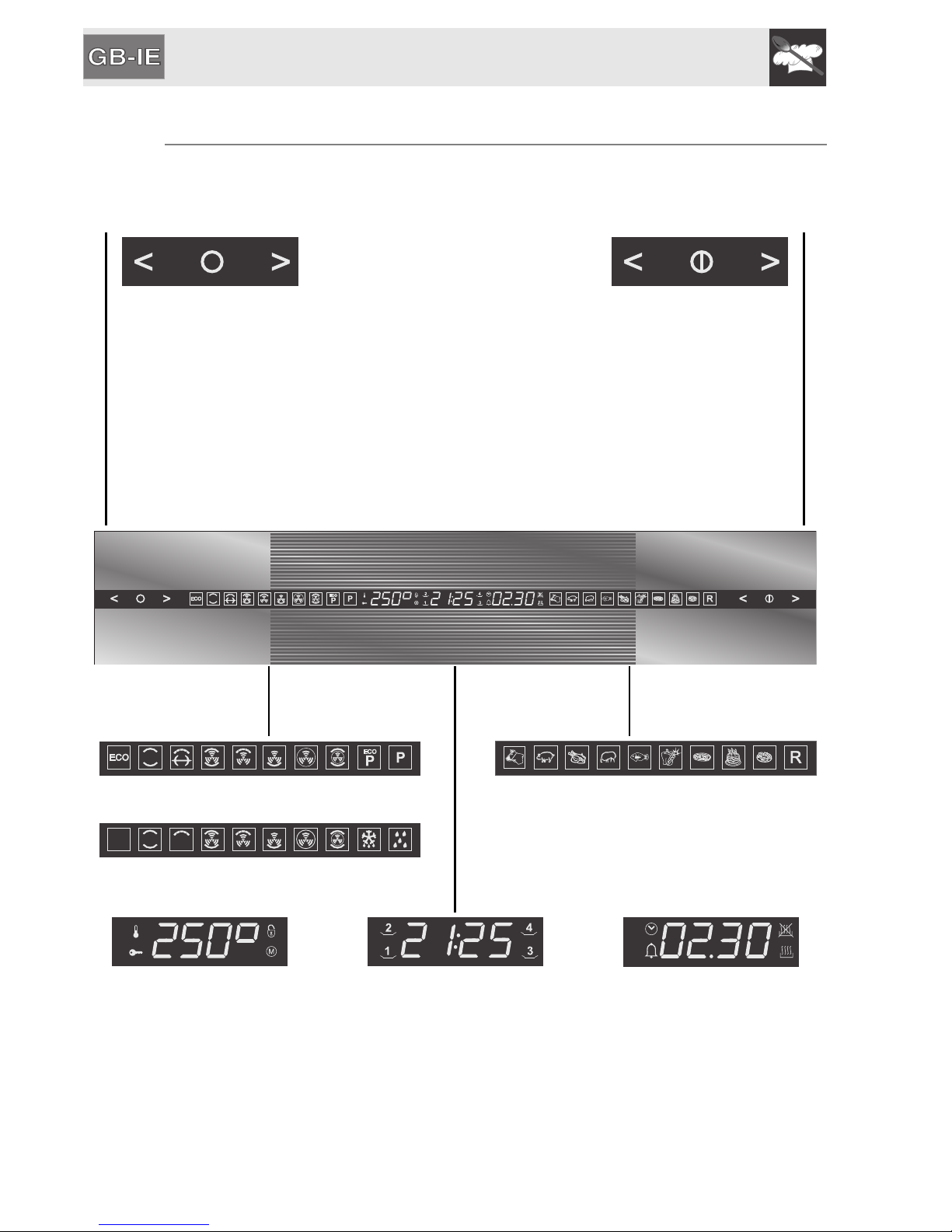

6.4 Description of the controls on the front panel
All the appliance's control and monitoring devices are placed together on the
front panel.
Temperature zone ON-OFF zone
This touch-sensitive zone can
be used to set the clock, select
a temperature and the cooking
time, and set cooking
programmes.
This touch-sensitive zone can
be used to access the three
oven operating modes or select
a cooking function/recipe.
Selectable
functions Selectable recipes
(On pyrolytic models only)
(On multi-function models only)
Indicates the set or
preset cooking
temperature for the
selected recipe or
function
Indicates the current time. If a
cooking programme is
activated, the display switches
off automatically.
During cooking
programmes, it shows
the remaining cooking
time or the end of
cooking time.
ECO

Instructions for the user
81
If the symbols to the side of the display are lit up, it means:
Indicates that the door lock
is activated (on pyrolytic
models only). In multi-
function models, this
symbol is replaced with
which indicates that
the “showroom” mode is
activated (see 6.15
Secondary menu).
Appliance in cooking
phase
Accidental control
activation lock (see 6.9
Selecting a cooking
function)
Modification of the
parameters for cooking
recipes.
Recommended runner
number according to the
selected recipe.
Recommended runner
number according to the
selected recipe.
If flashing, it indicates that
the time is being set; if
steady it shows the
normal display.
Delayed-start timed
cooking activated
Timed cooking activated
Timer minute minder
activated

Instructions for the user
82

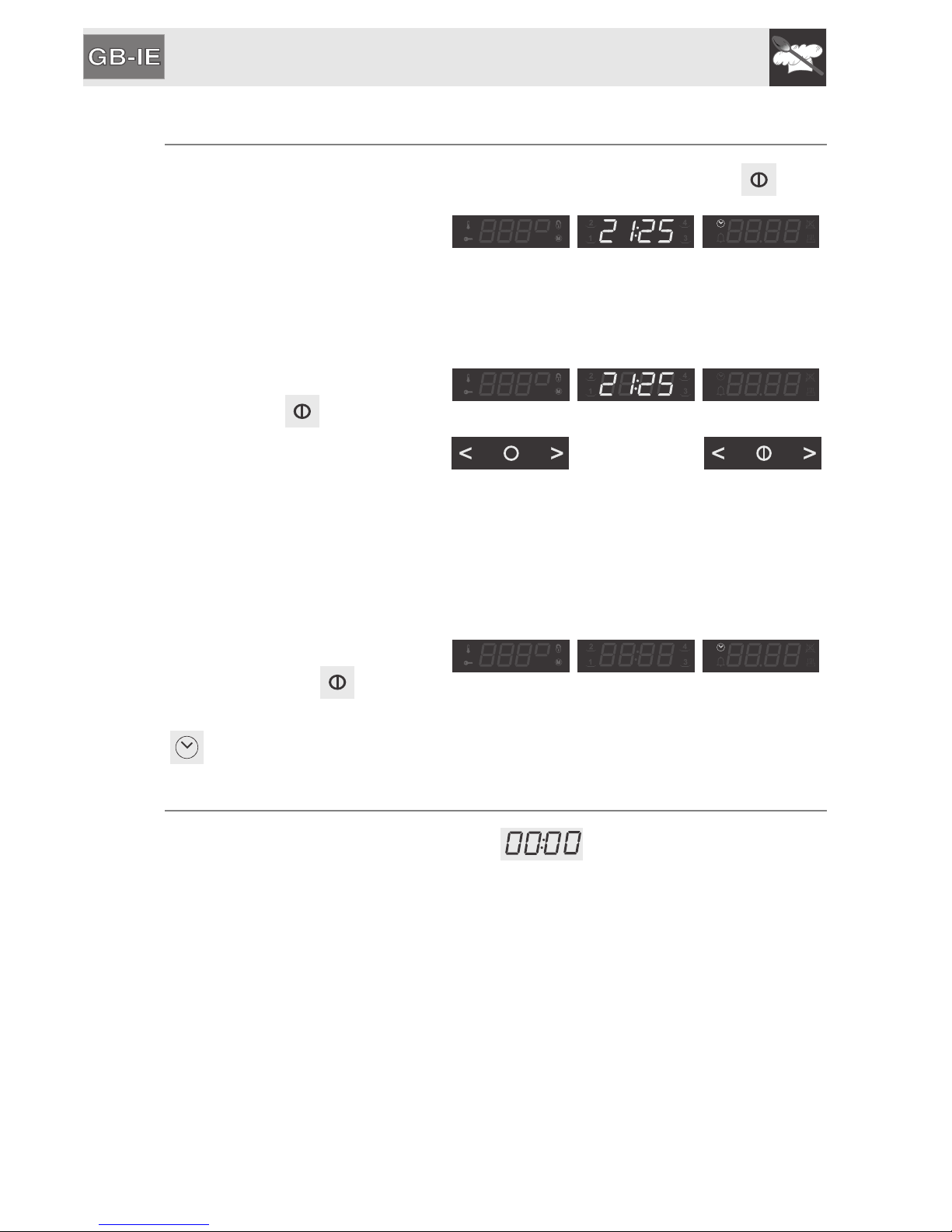

6.5 Operating modes
This appliance has three operating modes which can be activated via .
STAND-BY setting: the
appliance displays the current
time (activated as soon as the
current time has been
confirmed).
ON setting: from the standby
setting, press once.
The touch-sensitive zones light
up to indicate that it is now
possible to select a cooking
function or a recipe.
If no function is selected within
20 seconds, the oven goes into
STAND-BY setting automatically.
OFF setting: from the ON
position, keep pressed
down until it switches off. Only
will remain lit up.
6.6 First use
On the first use, or after a power failure, will be flashing on the oven's
main display. To be able to start any cooking function, the current time must be
set.

Instructions for the user
83
6.7 Setting the current time
Press or to decrease or increase the time
shown.
Hold down the symbol in question to increase or
decrease rapidly.
Temperature zone
A few seconds after the last button is pressed, the
time display will become steady and the colon
separating the hours from the minutes will flash to
indicate the start of the countdown.
It may become necessary to change the current
time, for example for daylight saving time. Starting
from stand-by (see “6.5 Operating modes”), hold
down or to enter time adjustment mode
and to increase or decrease the value.
Temperature zone
6.8 Accidental control activation lock
This lock is used to prevent any accidental contact with the touch-sensitive
zones. It activates 30 seconds after the last pressure on any symbol and in all
operating modes.
When it is activated, will appear on the display .
In order to enable the controls after the lock has taken effect, press and hold any
symbol briefly until a short beep sounds. If the symbol is pressed for longer than
indicated, the appliance will treat the attempt to unlock the controls as an
accidental instruction, it will be ignored and a longer beep will sound.
If the unlocking procedure is performed correctly, will go out and a
confirmation beep will sound, indicating that the controls are now enabled.

Instructions for the user
84
6.9 Selecting a cooking function
It is only possible to select a cooking function in ON
mode; it is done simply by pressing or .
The selected function will light up and the preset
cooking time will be displayed. ON-OFF zone
After selection of the function desired, the oven will
start the cooking procedure at the preset
temperature and will light up. Cooking itself is
preceded by a preheating stage, which allows the
oven to heat to the cooking temperature more
quickly. flashes to indicate that this stage is in
progress. When the preheating stage is over,
will remain lit steadily and a buzzer will sound to
indicate that the food can be placed inside the oven.
On pyrolytic models, the special defrosting and proving functions are brought
together under the same function indicated by .
See “7.4 Proving and defrosting functions” for further details.
Cooking can be interrupted at any time by holding down for at least two
seconds.
6.9.1 Modifying the preset temperature
The preset temperature for each function can be
changed to suit the user's requirements.
At any time while cooking is in progress, press
or to increase or decrease the cooking
temperature by 5 degrees at a time. (Hold down the
symbols to produce a faster increase or decrease).
Temperature zone
