EN
1Instructions 52
1.1 General safety instructions 52
1.2 Appliance purpose 55
1.3 Manufacturer liability 55
1.4 This user manual 55
1.5 Identification plate 55
1.6 Disposal 55
1.7 How to read the user manual 56
2 Description 57
2.1 General Description 57
2.2 Control panel 59
2.3 Other parts 60
2.4 Available accessories 61
3Use 63
3.1 Instructions 63
3.2 First use 63
3.3 Using the accessories 64
3.4 Using the oven 65
3.5 Cooking advice 73
3.6 Special functions 75
3.7 Secondary menu 78
4 Cleaning and maintenance 81
4.1 Instructions 81
4.2 Cleaning the appliance 81
4.3 Removing the door 81
4.4 Cleaning the door glazing 82
4.5 Vapor Clean (on some models only) 86
4.6 Pyrolytic (on some models only) 89
4.7 Extraordinary maintenance 91
5Installation 93
5.1 Electrical connection 93
5.2 Cable replacement 93
5.3 Positioning 94
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Smeg SFP580X o cerca
il tuo prodotto tra le migliori offerte di Forni

Instructions
52
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released, as these could then
heat up and catch fire. Be very
careful.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door 5 cm
for a few seconds, let the steam
come out, then open it fully.

Instructions
53
EN
• Do not use or store flammable
materials near the appliance.
• Do not use aerosols in the vicinity
of this appliance whilst it is in use.
• Switch off the appliance
immediately after use.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not spray any spray products
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.

Instructions
54
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation and maintenance
• This appliance must not be
installed in a boat or caravan.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Do not modify this appliance.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.

Instructions
55
EN
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.3 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified;
• Failure to comply with the
instructions in the user manual;
• Tampering with any part of the
appliance;
• The use of non-original spare
parts.
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.

Instructions
56
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
57
EN
2 Description

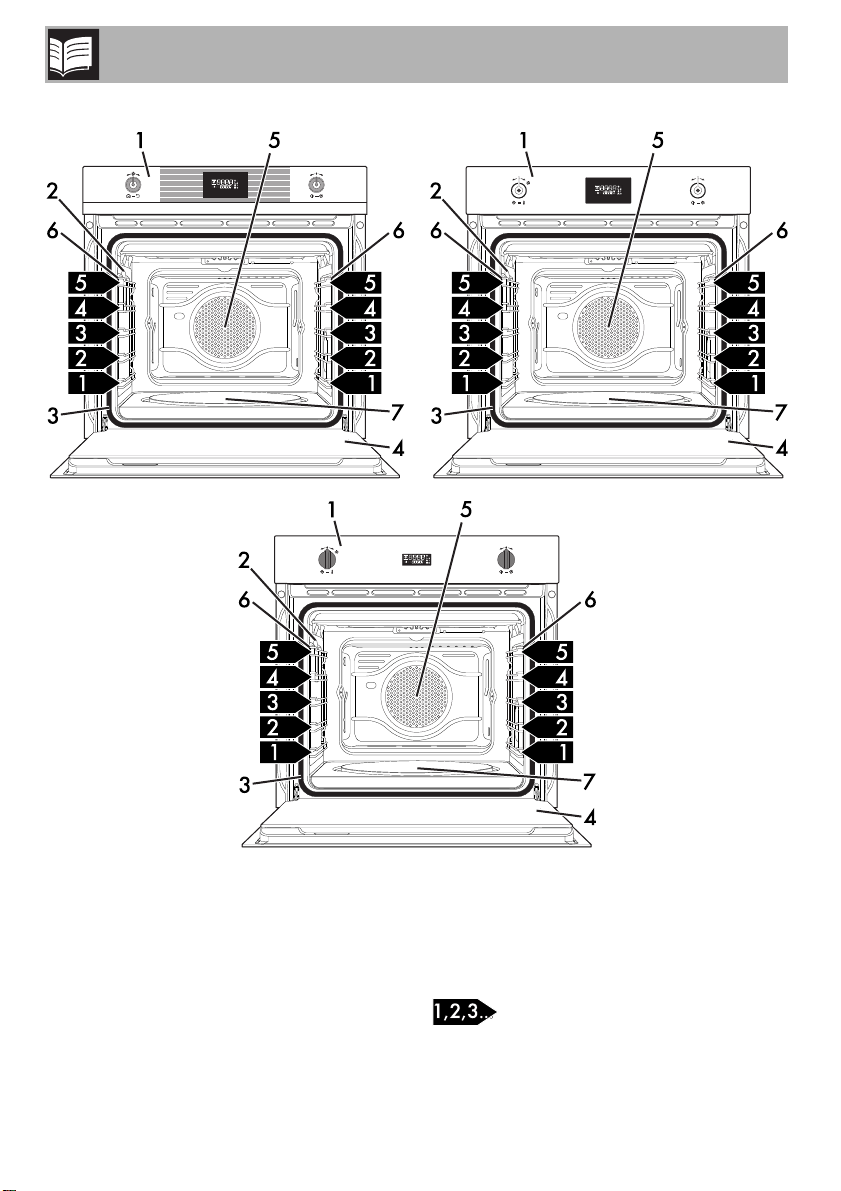

2.1 General Description
Multifunction/Pyrolytic models
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
Frame shelf

Description
58
Models with pizza stone
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
7 Pizza stone
Frame shelf

Description
59
EN

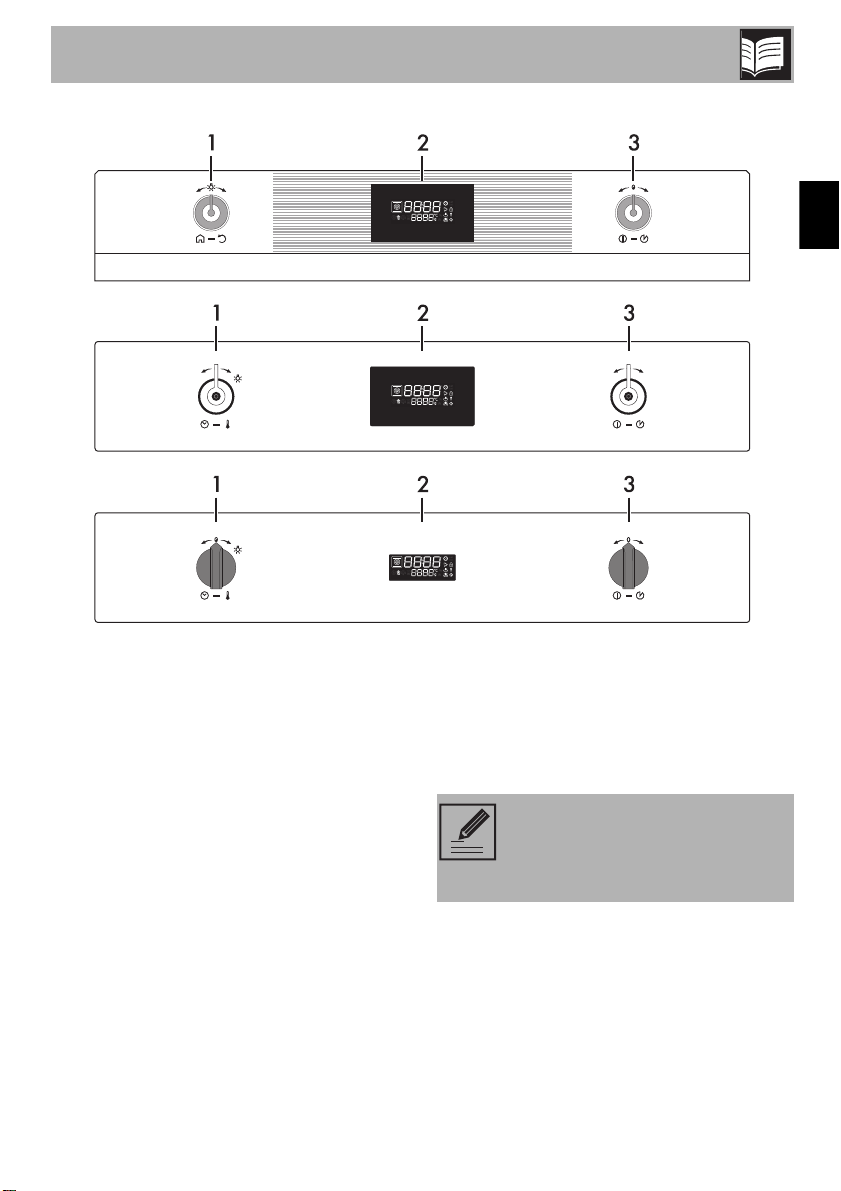

2.2 Control panel
1 Programming knob
This knob can be used to select:
• The cooking temperature
• The duration of a function
• Programmed cooking procedures
• The current time
• The turning on or off of the light inside the
appliance.
2 Display
Displays the current time, the selected
cooking temperature, power and function
and any time set.
3 Function knob
This knob can be used to:
• Turn the appliance on and off
• Select a function
• Temporarily start or stop a function.
Press and hold the function knob
down for around 3 seconds to
immediately terminate any cooking
operation.

Description
60
2.3 Other parts
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened (on some
models only).
• When any function is selected, apart
from the , and
functions (where present)
• When no function is selected, turn the
programming knob briefly to the right to
activate or deactivate internal lighting.
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
In order to save energy, the light
turns off after a minute at the start of
cooking (this function can be
deactivated via the secondary
menu).
When the door is open, it is not
possible to turn off the interior
lighting (on some models only).

Description
61
EN
2.4 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Tray rack (on some models only)
To be placed over the top of the oven tray;
for cooking foods which may drip.
Oven tray (on some models only)
Useful for collecting fat from foods placed
on the rack above and for cooking sweets,
biscuits, etc.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Some models are not provided
with all accessories.

Description
62
Pizza stone (on some models only)
Specially designed for cooking pizza and
similar dishes.
Pizza spatula (on some models only)
For easily placing the pizza on the pizza
stone.
Pizza stone cover (on some models only)
To be placed in the housing on the base of
the oven in place of the pizza stone when
this is not being used.
Self-cleaning panels (on some models
only)
Useful for absorbing small grease residues.
The appliance accessories
intended to come into contact with
food are made of materials that
comply with the provisions of
current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
63
EN
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
•Donotuseplastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.

Use
64
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally must face downwards and
towards the back of the oven cavity.
Tray rack (on some models only)
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Cover and pizza stone (on some models
only)
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Improper use
Danger of burns and damage to
surfaces
• The stone stays hot for many minutes
after cooking has ended. Ensure it is
handled with due caution.
• Do not use the pizza stone other than as
described, for example do not use it on
gas or glass ceramic hobs or in ovens
which are not designed for this purpose.
• If you like oil on your pizza, it is best to
add it after removal from the oven since
oil stains on the pizza stone are unsightly
and may reduce its efficiency.
• If the pizza stone is not in use, remove it
from the oven and cover the bottom of
the oven with the cover provided.

Use
65
EN
With the appliance cold, remove the cover
from the bottom and insert the pizza stone.
Make sure that the stone is inserted
correctly in the recess provided.
For cooking, use the special pizza
function .
Pizza spatula (on some models only)
Always grip the pizza spatula by the
handle when moving food to avoid the risk
of burns. You are advised to dust the steel
surface lightly with flour to make it easier to
slide fresh products on and off, as they
could stick to the steel due to their moisture
content.
3.4 Using the oven
Switching on the oven
1. Press the function knob to turn on the
display.
2. Turn the function knob to the right or left
to select the required function.
3. Press the programming knob.
4. Turn the programming knob to set the
temperature.
5. Press the programming knob or wait 3
seconds.
6. Press the function knob to start cooking.
Preheating stage
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat
to the cooking temperature more quickly.
The light flashes to indicate that this
stage is in progress.
Press and hold the function knob
down for around 3 seconds to
immediately terminate any cooking
operation.

Use
66
When the preheating stage is over, the
indicator light will remain lit steadily
and a buzzer will sound to indicate that the
food can be placed inside the oven.
List of cooking functions
Cooking can be interrupted at any
time by pressing and holding the
function knob down for at least 3
seconds.
Eco
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
Ideal for cooking meat, fish and
vegetables. It is not recommended
for leavened foods.
To obtain maximum energy savings
and reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function.
Static (on some models only)
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.

Use
67
EN
Small grill (on some models only)
Using only the heat released from
the central element, this function
allows you to grill small portions of
meat and fish for making kebabs,
toasted sandwiches and any types
of grilled vegetable side dishes.
Lower element (on some models
only)
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan assisted (on some models
only)
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2nd and
4th shelves).
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan-assisted small grill (on some
models only)
Through the combined action of the
fan and the heat of the central
element only, this function is perfect
for rapid cooking and cooking au
gratin of small quantities of food
(particularly meats), by bringing
together the dietary advantages of
the grill and the even cooking of the
fan.
Fan + lower element (on some
models only)
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.

Use
68
Turbo (on some models only)
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking. (For multiple-level cooking,
we recommend using the 1st and 4th
shelves.)
Circulaire (on some models only)
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Pizza (on some models only)
The operation of the fan, combined
with the grill and the lower heating
element, ensures uniform cooking
even with complex recipes. Perfect
not just for pizzas, but also for
biscuits and cakes.

Use
69
EN
Display
Clock indicator light
Minute minder timer indicator light
Programmed cooking indicator light
Timed cooking indicator light
Door lock indicator light (pyrolytic
models only)
Child lock indicator light
Showroom indicator light
Operating modes
Stand-by: When no function is selected, the
display shows the current time.
ON: When a function is activated, the
display shows the parameters set such as
temperature, duration and temperature
reached.
Each time the programming knob is pressed
during a function, the parameters will be
cycled through in the following order.
Temperature
Minute minder timer duration
Programmed cooking duration
Timed cooking duration
Current time display
In all states it is possible to modify the value
by turning the programming knob to the left
or right. Keep the knob turned to produce a
faster increase or decrease.

Use
70

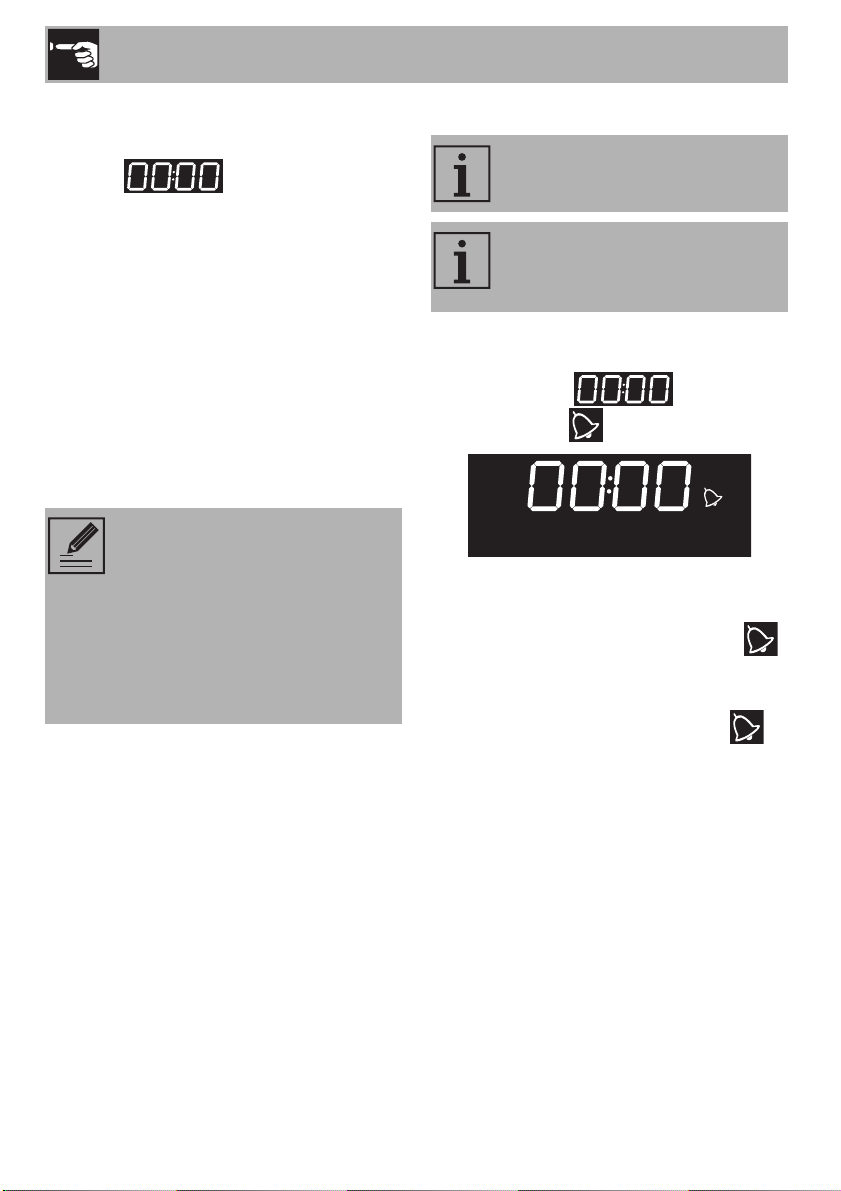

Setting the time
On the first use, or after a power failure, the
message will flash on the
appliance's display. To be able to start any
cooking function, the current time must be
set.
1. Turn the programming knob to set the
displayed hour (keep the knob turned to
produce a faster increase or decrease).
2. Press the programming knob.
3. Turn the programming knob to set the
minutes (keep the knob turned to
produce a faster increase or decrease).
4. Press the programming knob to complete
the setting.
Minute minder
1. Press the programming knob once (twice
if cooking is already in progress). The
display shows and the
indicator light flashes.
2. Turn the programming knob to set the
duration (from 1 minute to 4 hours). After
a few seconds, the indicator light
stops flashing and the countdown starts.
3. Wait for the buzzer to indicate that the
time has finished. The indicator light
flashes.
4. Turn the programming knob to select
another minute minder. Or else press the
programming knob to stop the buzzer.
It may become necessary to
change the current time, for
example for daylight saving time.
From the stand-by position, keep
the programming knob turned to
the right or left until the hours flash.
It is not possible to change the time
if the oven is ON.
This function only activates the
buzzer, without stopping cooking.
The minute minder can be
activated both during cooking and
when the appliance is in standby.
