Technika TGO65ES User manual

USER GUIDE
60CM MULTIFUNCTION OVEN
TGO65ES
TECHNIKA.COM.AU
� \
    

PG 3
PG 3
CONTENTS TABLE
For Your Safety 4
Use and Care
Controls 7
Oven & accessories 7
How to use your oven 8
Positioning the oven trays & shelves 9
Cooking modes 10
Mechanical timer 11
The oven light 12
Cooling ventilation 12
Practical cooking advice 12
Cooking guide 16
Cleaning and maintenance 17

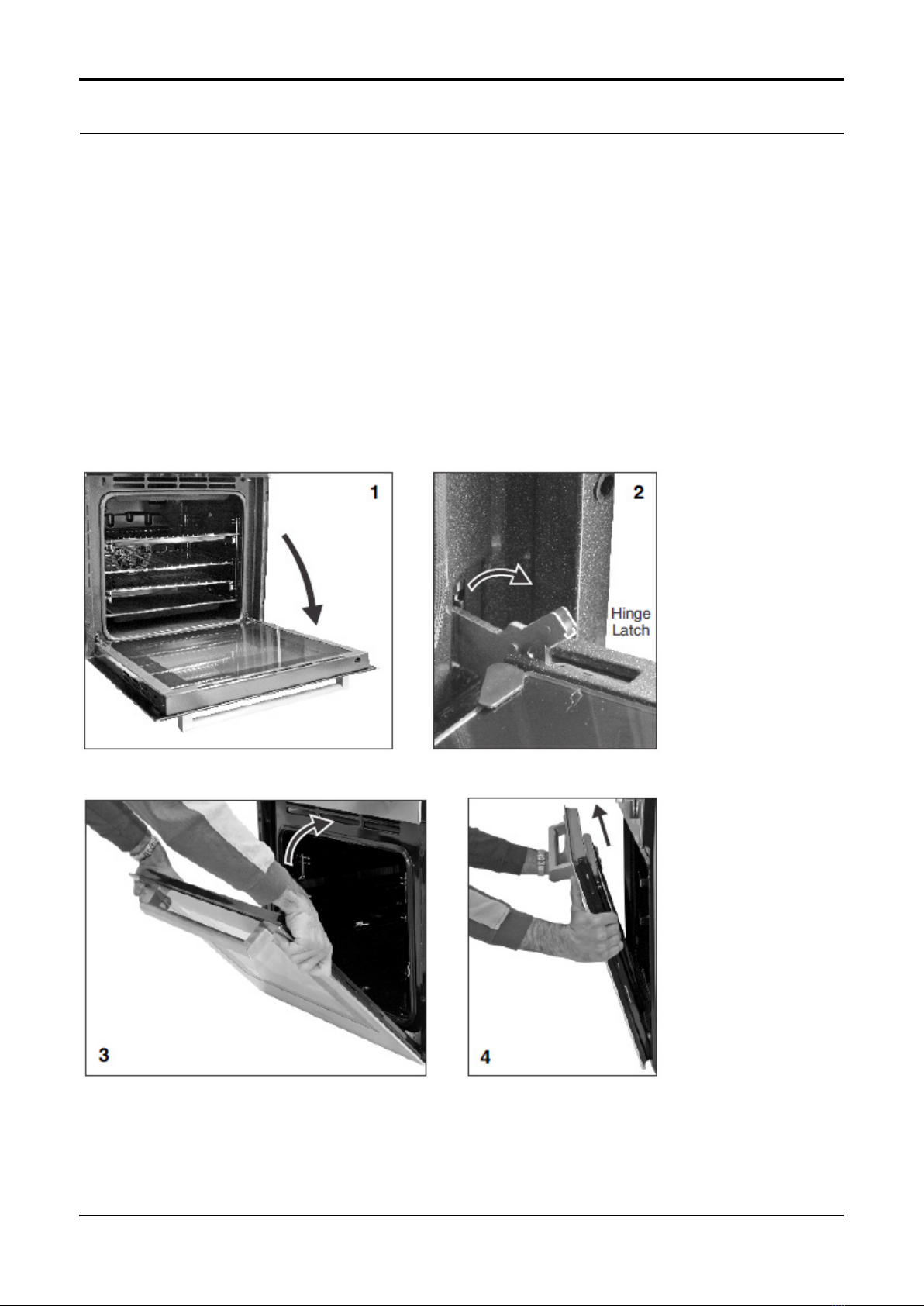

How to remove the oven door 18

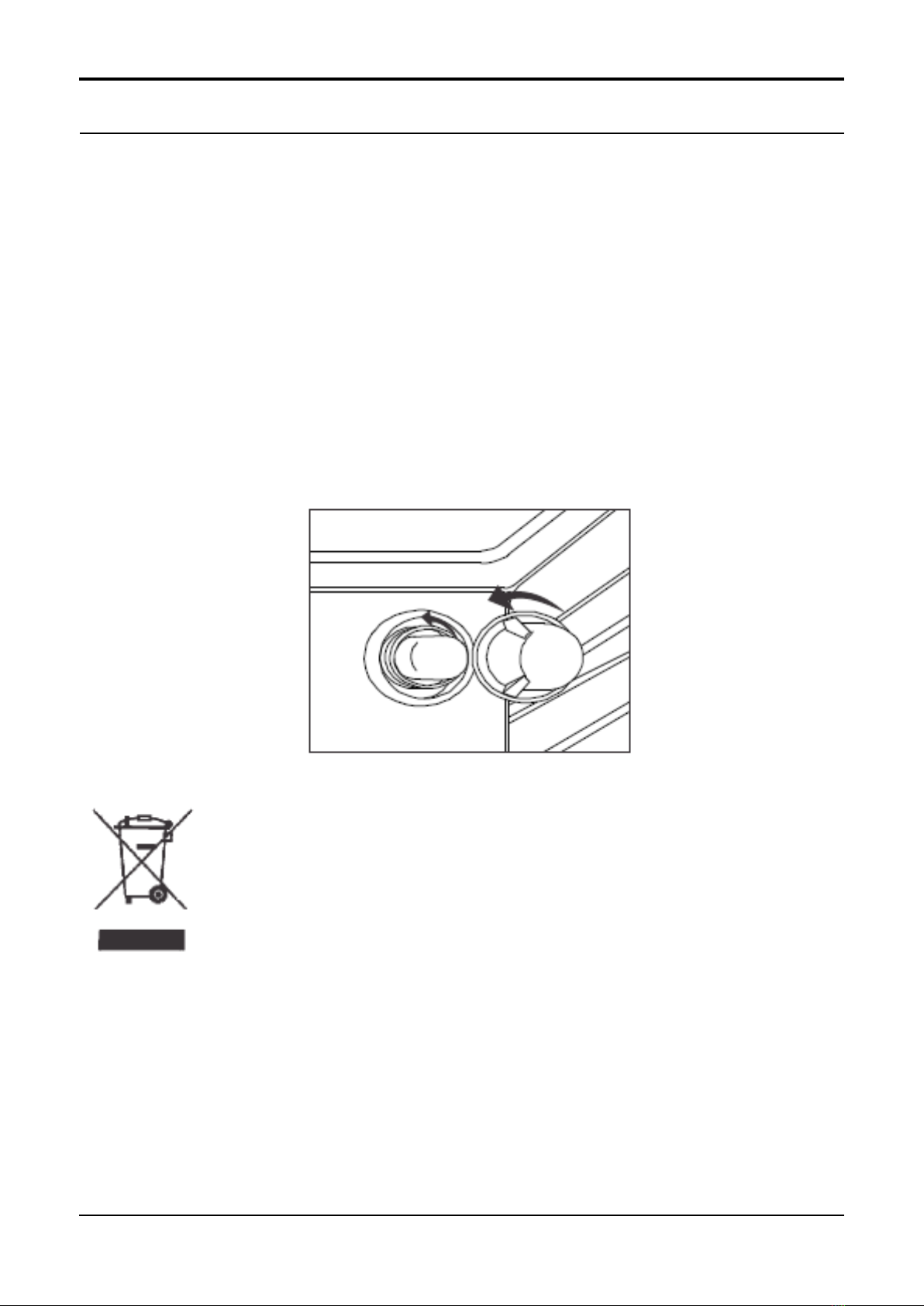

Replacing the oven lamp 20
Disposal 20
Installation
Cabinet details 21
Electrical connection 22
Technical data 23
Warranty 24

PG 4
PG 4
• Always call the Glen Dimplex service department if there are any faults with your appliance.
• Always use original spare parts available from Glen Dimplex.
• This appliance is designed for non-commercial, household use and it must not be altered in
any way.
• WARNING: This appliance is a domestic kitchen appliance suitable for indoor installation. It is
not suitable for outdoor installations such as alfresco kitchens or garages unless a qualified,
competent installer has deemed the location and installation to be suitable & compliant.
• This appliance can only be used safely when it is correctly connected to an ecient earthing
system in compliance with current electrical safety standards.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualified person in order to avoid a hazard.
• During use, the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
• WARNING: Accessible parts will become hot when in use.
• To avoid burns and scalds, children should be kept away.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• DO NOT use a steam cleaner to clean the appliance.
We recommend that you read the instructions in this owner's manual carefully before use for
the best performance and to extend the life of your appliance. It will provide you with all the
information you need to ensure its safe installation, use and maintenance. Retain this owner's
manual for future reference.
When handling the appliance, we recommend you always use the handles recessed into the
sides of the oven to prevent personal injury or damage to the appliance.
To maintain the eciency and safety of this appliance, we recommend that you do the following:
FOR YOUR SAFETY

PG 5
PG 5
Packaging items such as plastic bags, polystyrene, nails, etc. are potentially dangerous, and
therefore appropriate measures must be taken to prevent children and the disabled from coming
into contact with them.
Avoid the following:
• Touching the appliance with wet parts of the body.
• Using the appliance while barefoot.
• Improper or dangerous operation.
• Obstructing the ventilation or heat dissipation slots.
• Allowing power supply cables of other appliances to come into contact with hot parts of the
oven.
• Exposing the appliance to atmospheric agents such as rain, or direct sunlight.
• Using the oven for storage purposes.
• Using flammable liquids near the appliance.
Authorised personnel must be contracted to...
• Install the appliance according to these installation instructions and any local requirements.
• Replace the temperature probe if it is damaged. The probe is part of thermostat. Only use
the temperature sensing probe recommended for this oven.
Glen Dimplex Service Department must be contacted...
• If in doubt about the operation of the appliance.
• If in doubt about the soundness of the appliance after removing it from its packaging.
• If the power supply cable has been damaged or needs to be replaced.
• If the appliance requires a service.
• If you need spare parts.
FOR YOUR SAFETY

PG 6
PG 6
WARNINGS:
• DO NOT steam clean the oven.
• DO NOT use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.
• DO NOT install the appliance behind a decorative door in order to avoid overheating.
• Only use the appliance to cook food and nothing else.
• Check that the appliance has not been damaged immediately after it has been unpacked.
• Disconnect the appliance from the electrical mains if it is not functioning properly and before
cleaning or performing maintenance.
• When left unused for a long period, unplug the appliance from the electricity mains.
• Use oven gloves to place cookware in the oven or when removing it.
• Always grip the oven door handle in the centre.
• Make sure the knobs are in the ‘Off' position when the appliance is not in use.
• Glen Dimplex will not accept any liability as a result of any damage due to incorrect installation
or improper use.
FOR YOUR SAFETY

PG 7
USE AND CARE
Controls
Oven & Accessories
5 function model
Cooking Mode
Selection Knob
Timer / Manual Mode
Selection Knob
Oven Temperature
Indicator Light
Cooking Temperature
Selection Knob
FUNCTIONFUNCTION
80
100
120
140
200
220
MAX
60
The oven is supplied with chrome wire shelf supports, a baking / grill tray and a removable grill
insert. There are five shelf positions in the oven.
Grill Tray with
removabe insert
Oven Shelf
Baking Tray
(If supplied)
Oven Door
Level 5
Level 4
Level 3
Level 2
Level 1

PG 8
How to use your oven
USE AND CARE
This fan forced oven is an extremely versatile appliance that allows you to choose easily and
safely between dierent cooking modes. The various cooking modes are selected by means of
a cooking mode selection knob, located on the control panel.
To operate the oven:
• Ensure that manual mode or timer is selected (page 10)
• Turn the cooking mode selection knob to the desired cooking mode (explanation of cooking
modes is on pages 9 to 10)
• Turn the cooking temperature selection knob to the desired temperature (cooking guide is
on page 15) or to ‘MAX’ if Grilling.
• The first time you use your appliance, we recommend that you set the thermostat to the
highest setting, set the cooking mode selection knob to a cooking mode and leave the
oven on for about half an hour with nothing in it and the oven door closed. Then, open the
oven door and allow the oven to cool. Any odour that may be detected during this initial use
is due to the evaporation of substances used to protect the oven during storage.
Note: Place tray on the bottom shelf position of the oven to prevent any spillages from dripping
onto the bottom of the oven. Never place anything (including foil and oven trays) on the
bottom of the oven when it is in operation because this could damage the enamel. Only
place your cookware (dishes, trays, aluminum foil, etc.) on the oven shelves provided with the
appliance.
If supplied, use the chrome wire
handle shown left when removing
the trays from the oven.

PG 9
Positioning the oven trays & shelves
USE AND CARE
The Grill Tray or Oven Shelf can be located in any of the five height positions in the oven.
Refer to the ‘Cooking Guide Table’ for the recommended shelf position. When fitting the trays
or shelves, ensure they are fitted between the two wires that are closest together as shown
below.
Oven Shelves have a stop so that they are not fully withdrawn by accident. To fully remove the
Oven Shelves, lift the front of the shelf slightly and withdraw fully from the oven. Note that the
Grill Tray does not have a stop position and can be fully withdrawn without interruption, so be
careful not to accidentally fully withdraw the tray.
To remove the Oven Shelf
Support, push down on the
wire below the top locking pin,
pull away from the oven wall
until you can release the top
of the support from the holes
in the oven wall. Replace in
reverse procedure.
Fit Trays and Shelves
between bars as shown
right.
Chrome Wire Shelf
Support
Shown With Oven Shelf

PG 10
Grill mode
Select ‘Grill’ mode with cooking mode selection knob and turn cooking temperature
selection knob to ‘Max’. When set to Grill mode, the top inner element operates.
The extremely high and direct temperature of the grill makes it possible to brown
the surface of meats and roasts while locking the juices in to keep them tender. Grill
mode can also be used for dishes that require a high temperature on the surface
such as beef steaks, veal, rib steak, filets, hamburgers, etc.
Grill food with the oven door closed.
Fan assisted grill mode
Select ‘Fan Assisted Grill’ mode with cooking mode selection knob and turn cooking
temperature selection knob to the desired temperature setting. When set to Fan
Assisted Grill mode, the top inner element and the fan operate. This mode increases
the circulation of air throughout the oven, which helps prevent food from burning on
the surface, allowing the heat to penetrate right into the food. Particularly suitable for
kebabs made with meats and vegetables, sausages, ribs, lamb chops, chicken, quail,
pork chops, fish steaks, stued cuttlefish etc.
In Fan Assisted Grill mode, grill with the oven door closed.
Fan forced mode
When set to ‘Fan Forced’ mode, the fan element and the fan operate providing a
delicate heat distributed uniformly throughout the oven.
This mode is ideal for baking and cooking delicate foods on multiple shelves,
especially cakes that need to rise such as cream pus and for certain tartlets, sweet
or savoury biscuits, savoury pus, swiss rolls and small portions of vegetables, etc.
Defrost mode
When set to ‘Defrost’ mode, the fan located at the back of the oven circulates room
temperature air around the food. This is recommended for the defrosting of all types
of food, but in particular for delicate types of food which do not require heat, for
example: ice cream cakes, cream or custard desserts, fruit cakes, etc. By using
‘Defrost’ mode, the defrosting time is approximately halved.
USE AND CARE
Cooking modes
