1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
22 ENGLISH

1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children aged from 3 to 8 years and
persons with very extensive and complex disabilities are
allowed to load and unload the appliance provided that they
have been properly instructed. Children of less than 3 years
of age should be kept away from the appliance unless
continuously supervised.
•Children should be supervised to ensure that they do not
play with the appliance.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
1.2 General Safety
•This appliance is for storing food and baverages only.
•This appliance is designed for single household domestic
use in an indoor environment.
•This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
•To avoid contamination of food respect the following
instructions:
–do not open the door for long periods;
–clean regularly surfaces that can come in contact with
food and accessible drainage systems;
–store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
•WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
ENGLISH 23

•WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
•When the appliance is empty for long period, switch it off,
defrost, clean, dry and leave the door open to prevent
mould from developing within the appliance.
•Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before installing
it in the built-in structure due to safety
manner.
• Follow the installation instructions supplied
with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Make sure the air can circulate around the
appliance.
• At first installation or after reversing the
door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow back
in the compressor.
• Before carrying out any operations on the
appliance (e.g. reversing the door),
remove the plug from the power socket.
• Do not install the appliance close to
radiators or cookers, ovens, or hobs,
unless otherwise specified in the
installation instructions.
• Do not expose the appliance to the rain.
• Do not install the appliance where there is
direct sunlight.
• Do not install this appliance in areas that
are too humid or too cold.
• When you move the appliance, lift it by the
front edge to avoid scratching the floor.
• The appliance contains a bag of
desiccant. This is not a toy. This is not
food. Please dispose of it immediately.
24 ENGLISH

2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
WARNING!
When positioning the appliance, ensure
the supply cord is not trapped or
damaged.
WARNING!
Do not use multi-plug adapters and
extension cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
electrician to change the electrical
components.
• The mains cable must stay below the level
of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric shock or
fire.
The appliance contains flammable gas,
isobutane (R600a), a natural gas with a high
level of environmental compatibility. Be
careful not to cause damage to the refrigerant
circuit containing isobutane.
• Do not change the specification of this
appliance.
• Any use of the built-in product as free-
standing is strictly prohibited.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.
• If damage occurs to the refrigerant circuit,
make sure that there are no flames and
sources of ignition in the room. Ventilate
the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure on
the drink container.
• Do not store flammable gas and liquid in
the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are wet
or damp.
• Do not freeze again food that has been
thawed.
• Follow the storage instructions on the
packaging of frozen food.
• Wrap the food in any food contact material
before putting it in the freezer
compartment.
• Do not allow food to come in contact with
the inner walls of the appliance
compartments.
2.4 Internal lighting
WARNING!
Risk of electric shock.
• This product contains one or more light
sources of energy efficiency class F.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
ENGLISH 25

2.5 Care and cleaning
WARNING!
Risk of injury or damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons in
the cooling unit. Only a qualified person
must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If the
drain is blocked, defrosted water collects
in the bottom of the appliance.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be available
for 7 years after the model has been
discontinued: thermostats, temperature
sensors, printed circuit boards, light
sources, door handles, door hinges, trays
and baskets. Please note that some of
these spare parts are only available to
professional repairers, and that not all
spare parts are relevant for all models.
• Door gaskets will be available for 10 years
after the model has been discontinued.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and
pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
WARNING!
Refer to installation instruction document
to install your appliance.
WARNING!
Fix the appliance in accordance with
installation instruction document to avoid
a risk of instability of the appliance.
26 ENGLISH

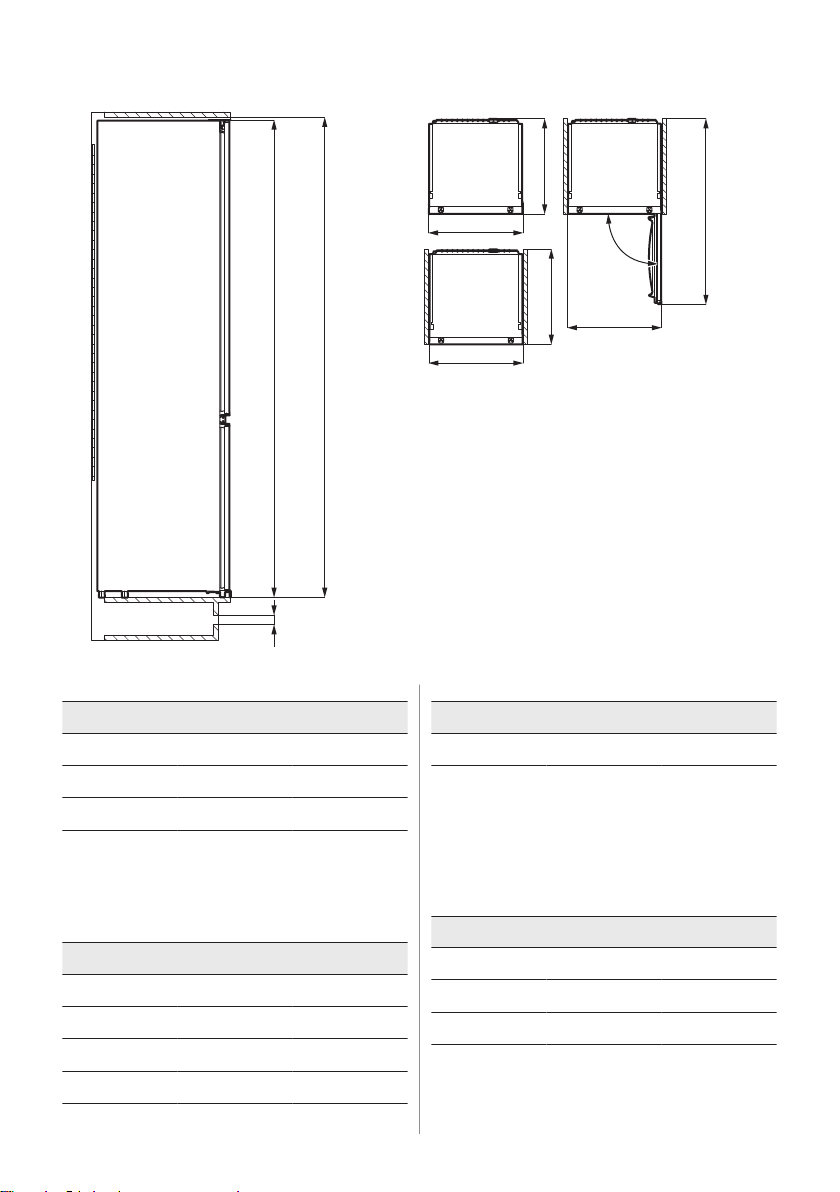

3.1 Dimensions
B
A
H1
W1
D1
W2
D2
W3
D3
90°
Overall dimensions ¹
H1 mm 1772
W1* mm 548
D1 mm 549
¹ the height, width and depth of the appliance
without the handle
* including the width of the bottom hinges (8
mm)
Space required in use ²
H2 (A+B) mm 1816
W2* mm 548
D2 mm 551
A mm 1780
Space required in use ²
B mm 36
² the height, width and depth of the appliance
including the handle, plus the space
necessary for free circulation of the cooling
air
* including the width of the bottom hinges (8
mm)
Overall space required in use ³
H3 (A+B) mm 1816
W3* mm 548
D3 mm 1071
³ the height, width and depth of the appliance
including the handle, plus the space
ENGLISH 27

necessary for free circulation of the cooling
air, plus the space necessary to allow door
opening to the minimum angle permitting
removal of all internal equipment
* including the width of the bottom hinges (8
mm)
3.2 Location
To ensure appliance's best functionality, you
should not install the appliance in a place with
direct sunlight. Do not install the appliance
close to radiators or cookers, ovens, or hobs,
unless otherwise specified in the installation
instructions.
Make sure that air can circulate freely around
the back of the cabinet.
This appliance should be installed in a dry,
well ventilated indoor position.
This appliance is intended to be used at
ambient temperature ranging from 10°C to
43°C.
The correct operation of the
appliance can only be guaranteed within
the specified temperature range.
If you have any doubts regarding
where to install the appliance, please turn
to the vendor, to our customer service or
to the nearest Authorised Service Centre.
It must be possible to disconnect the
appliance from the mains power supply.
The plug must therefore be easily
accessible after installation.
3.3 Electrical connection
• Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power
supply.
• The appliance must be earthed. The
power supply cable plug is provided with a
contact for this purpose. If the domestic
power supply socket is not earthed,
connect the appliance to a separate earth
in compliance with current regulations,
consulting a qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.

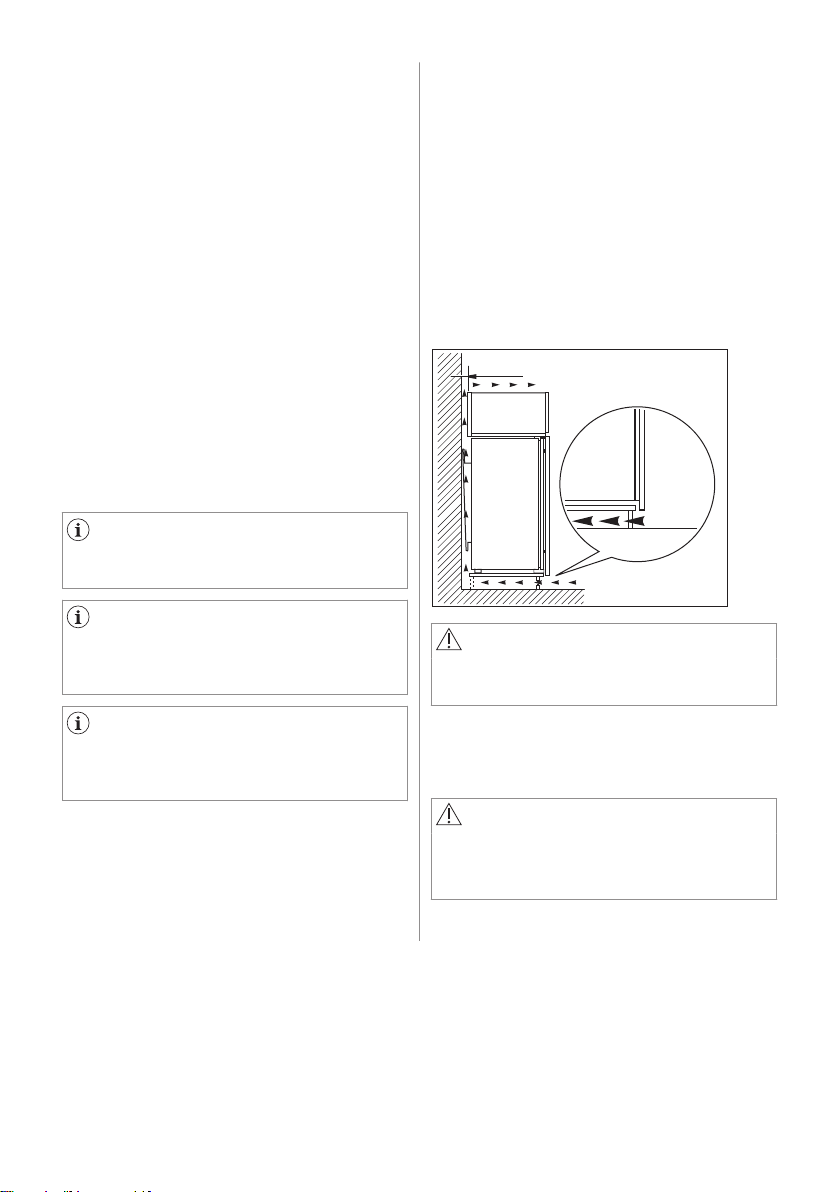

3.4 Ventilation requirements
The airflow behind the appliance must be
sufficient.
38 mm min.
200 cm2
min.
200 cm2
CAUTION!
Refer to the installation instructions for
the installation.
3.5 Door reversibility
Please refer to the separate document with
instructions on installation and door reversal.
CAUTION!
At every stage of reversing the door
protect the floor from scratching with a
durable material.
28 ENGLISH

4. CONTROL PANEL
5
1
678 4 3 2
1Display
2Freezer Temperature warmer button
3Freezer Temperature colder button
4OK
5Mode
6Fridge Temperature warmer button
7Fridge Temperature colder button
8ON/OFF
It is possible to change predefined sound of
buttons by pressing together Mode and
temperature colder button for a few seconds.
Change is reversible.
4.1 Display
min
A B C D E
G FHIJ
A. Fridge compartment indicator
B. Timer indicator
/Temperature indicator
C. Shopping function
D. FastFreeze function
E. Temperature indicator
F. Freezer compartment indicator
G. Alarm indicator
H. ChildLock function
I. DrinksChill function
J. DYNAMICAIR function
4.2 Switching on
1. Connect the mains plug to the power
socket.
2. Press the appliance ON/OFF if the
display is off. The temperature indicators
show the set default temperature.
To select a different set temperature refer to
"Temperature regulation".
If "dEMo" appears on the display, refer to
"Troubleshooting" .
4.3 Switching off
1. Press the appliance ON/OFF for 3
seconds.
The display switches off.
2. Disconnect the mains plug from the
power socket.
4.4 Temperature regulation
Set the temperature of the appliance by
pressing the temperature regulators.
Recommended set temperature is:
• +4°C for the fridge
• -18°C for the freezer
The temperature range may vary between
-16°C and -22°C for freezer and between 2°C
and 8°C for fridge.
The temperature indicators show the set
temperature.
The set temperature will be reached
within 24 hours.
After a power failure the set temperature
remains stored.
ENGLISH 29

4.5 Shopping function
If you need to insert in the fridge
compartment a large amount of warm food,
for example after doing the grocery shopping,
we suggest activating the Shopping function
to chill the products more rapidly and to avoid
warming the other food which is already in
the refrigerator.
1. Press the Mode until the corresponding
icon appears.
The Shopping indicator flashes.
2. Press the OK to confirm.
The Shopping indicator is shown. When the
Shopping function is on, the fan may work
automatically.
This function stops automatically after
approximately 6 hours.
You can deactivate the Shopping function
before its automatic end by repeating the
procedure or by selecting a different fridge
set temperature.
4.6 FastFreeze function
The FastFreeze function is used to pre-freeze
and fast freeze in sequence in the freezer
compartment. This function accelerates the
freezing of fresh food and, at the same time,
protects foodstuffs already stored from
undesirable warming.
To freeze fresh food activate the
FastFreeze function at least 24 hours
before placing the food to complete pre-
freezing.
1. To activate this function press the Mode
button until the corresponding icon
appears.
The FastFreeze indicator flashes.
2. Press the OK button to confirm.
The FastFreeze indicator is shown.
This function stops automatically after 52
hours.
You can deactivate the FastFreeze function
before its automatic end by repeating the
procedure until the FastFreeze indicator turns
off or by selecting a different set temperature.
4.7 DYNAMICAIR function
The refrigerator compartment is equipped
with a device that allows rapid cooling of food
and keeps more uniform temperature in the
compartment.
This device activates automatically when
needed or manually.
To switch on the function:
1. Press the Mode button until the
corresponding icon appears.
The DYNAMICAIR indicator flashes.
2. Press the OK button to confirm.
The DYNAMICAIR indicator is shown.
To switch off the function repeat the
procedure until the DYNAMICAIR indicator
turns off.
If the function is activated
automatically the DYNAMICAIR indicator
is not shown (refer to "DYNAMICAIR"
section in "Daily use").
The activation of the DYNAMICAIR
function increase the energy
consumption.
The fan operates only when the door is
closed.
4.8 ChildLock function
Activate the ChildLock function to lock the
buttons from unintentional operation.
1. Press Mode until the corresponding icon
appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function, repeat
the procedure until the ChildLock indicator
turns off.
4.9 DrinksChill function
The DrinksChill function is to be used to set
an acoustic alarm at the preferred time,
useful for example when a recipe requires to
cool down food products for a certain period
of time.
It is also useful when a reminder is needed in
order not to forget the bottles or cans placed
in the freezer for fast cooling.
30 ENGLISH

1. Press Mode until the corresponding icon
appears.
The DrinksChill indicator flashes.
The Timer shows the set value (30 minutes)
for a few seconds.
2. Press the Timer regulator to change the
Timer set value from 1 to 90 minutes.
3. Press OK to confirm.
The DrinksChill indicator is shown.
The Timer starts to flash (min).
At the end of the countdown the "0 min"
indicator flashes and an audible alarm
sounds. Press OK to switch off the sound and
terminate the function.
To switch off the function repeat the
procedure until the DrinksChill indicator turns
off.
It is possible to change the time at
any time during the countdown and at the
end by pressing the Temperature colder
button and the Temperature warmer
button.
4.10 Door open alarm
If the fridge door is left open for
approximately 5 minutes, the sound is on and
alarm indicator flashes.
The alarm stops after closing the door. During
the alarm, the sound can be muted by
pressing any button.
If you do not press any button, the
sound switches off automatically after
around one hour to avoid disturbing.
5. DAILY USE

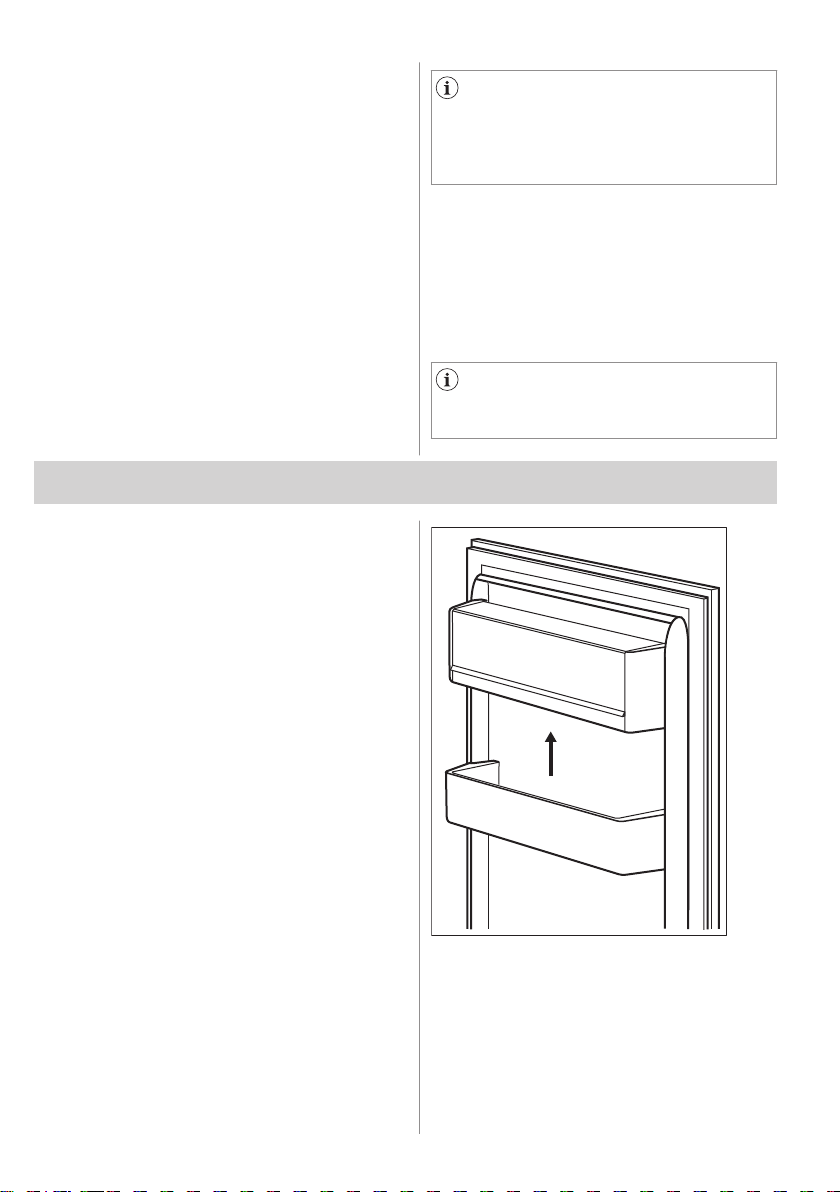

5.1 Positioning the door shelves
To permit storage of food packages of
various sizes, the door shelves can be placed
at different heights.
1. Gradually pull the shelf up until it comes
free.
2. Reposition as required.
5.2 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
ENGLISH 31

Do not move the glass shelf above
the vegetable drawer to ensure correct
air circulation.
5.3 Vegetable drawer
The drawer is suitable for storing fruit and
vegetables.
To remove the drawer (e.g. for cleaning):
1. Pull out the drawer and lift it up.
2. Push the rails inside the cabinet to avoid
damage to the appliance when closing
the door.
To reassemble:
1. Pull out the rails.
2. Place the rear part of the drawer (1) on
the rails.
2
1
3. Keep the front of the drawer (2) lifted up
while pushing the drawer in.
4. Press the front part of the drawer
downwards.
Pull out the drawer again and check if
it is placed correctly on both rear and
front hooks.
5.4 Temperature indicator
For proper storage of food the refrigerator is
equipped with the temperature indicator. The
symbol on the side wall of the appliance
indicates the coldest area in the refrigerator.
If OK is displayed (A), put fresh food into area
indicated by symbol, if not (B), wait at least
12 hours and check if it is OK (A).
32 ENGLISH

If it is still not OK (B), adjust the setting
control to a colder setting.
OK
OK
A
B
5.5 DYNAMICAIR
The refrigerator compartment is equipped
with a device that allows rapid cooling of
foods and keeps more uniform temperature in
the compartment.
WARNING!
Do not remove the Styrofoam at the
bottom of the device.
This device activates automatically when
needed.
It is also possible to switch on the device
manually when needed (refer to
"DYNAMICAIR function").
The fan operates only when the door
is closed.
5.6 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the FastFreeze
function at least 24 hours before placing the
food to be frozen in the freezer compartment.
Store the fresh food evenly distributed in all
compartments or drawers.
The maximum amount of food that can be
frozen without adding other fresh food during
24 hours is specified on the rating plate (a
label located inside the appliance).
When the freezing process is complete, the
appliance automatically returns to the
previous temperature setting (see
"FastFreeze function").
For more information refer to "Hints for
freezing".
5.7 Storage of frozen food
When activating an appliance for the first time
or after a period out of use, before putting the
products in the compartment let the appliance
run at least 3 hours with the FastFreeze
function switched on.
Keep the food no closer than 15 mm from the
door.
CAUTION!
In the event of accidental defrosting, for
example due to a power failure, if the
power has been off for longer than the
value shown on rating plate under "rising
time", the defrosted food must be
consumed quickly or cooked immediately
then cooled and then re-frozen.
5.8 Thawing
Deep-frozen or frozen food, prior to being
consumed, can be thawed in the refrigerator
or inside a plastic bag under cold water.
This operation depends on the time available
and on the type of food. Small pieces may
even be cooked still frozen.
ENGLISH 33

6. HINTS AND TIPS
6.1 Hints for energy saving
• Fridge: Most efficient use of energy is
ensured in the configuration with the
drawers in the bottom part of the
appliance and shelves evenly distributed.
Position of the door bins does not affect
energy consumption.
• Do not open the door frequently or leave it
open longer than necessary.
• Freezer: The colder the temperature
setting, the higher the energy
consumption.
• Fridge: Do not set too high temperature to
save energy unless it is required by the
characteristics of the food.
• If the ambient temperature is high and the
temperature control is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice
formation on the evaporator. In this case,
set the temperature control toward higher
temperature to allow automatic defrosting
and to save energy this way.
• Ensure a good ventilation. Do not cover
the ventilation grilles or holes.
6.2 Hints for freezing
• Activate FastFreeze function at least 24
hours before placing the food inside the
freezer compartment.
• Before freezing wrap and seal fresh food
in: aluminium foil, plastic film or bags,
airtight containers with lid.
• For more efficient freezing and thawing
divide food into small portions.
• It is recommended to put labels and dates
on all your frozen food. This will help to
identify foods and to know when they
should be used before their deterioration.
• The food should be fresh when being
frozen to preserve good quality. Especially
fruits and vegetables should be frozen
after the harvest to preserve all of their
nutrients.
• Do not freeze bottles or cans with liquids,
in particular drinks containing carbon
dioxide - they may explode during
freezing.
• Do not put hot food in the freezer
compartment. Cool it down at room
temperature before placing it inside the
compartment.
• To avoid increase in temperature of
already frozen food, do not place fresh
unfrozen food directly next to it. Place food
at room temperature in the part of the
freezer compartment where there is no
frozen food.
• Do not eat ice cubes, water ices or ice
lollies immediately after taking them out of
the freezer. Risk of frostbites.
• Do not re-freeze defrosted food. If the food
has defrosted, cook it, cool it down and
then freeze it.
6.3 Hints for storage of frozen food
• Freezer compartment is the one marked
with .
• Good temperature setting that ensures
preservation of frozen food products is a
temperature less than or equal to -18°C.
Higher temperature setting inside the
appliance may lead to shorter shelf life.
• The whole freezer compartment is suitable
for storage of frozen food products.
• Leave enough space around the food to
allow air to circulate freely.
• For adequate storage refer to food
packaging label to see the shelf life of
food.
• It is important to wrap the food in such a
way that prevents water, humidity or
condensation from getting inside.
6.4 Shopping tips
After grocery shopping:
• Ensure that the packaging is not damaged
- the food could be deteriorated. If the
package is swollen or wet, it might have
not been stored in the optimal conditions
and defrosting may have already started.
• To limit the defrosting process buy frozen
goods at the end of your grocery shopping
and transport them in a thermal and
insulated cool bag.
• Place the frozen foods immediately in the
freezer after coming back from the shop.
• If food has defrosted even partially, do not
re-freeze it. Consume it as soon as
possible.
34 ENGLISH
