Smeg STA161S1 User manual

1
WASHER DRYER
INSTRUCTIONS MANUAL GB

2
GB
Contents
1. The new washing system 3
2. Safety warnings
3. Installation instructions 7
. Description of controls 9
5. Washing instructions 13
6. Drying instructions 19
7. Cleaning and maintenance 21
8. Troubleshooting 23
9. Control panel symbols 25
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment
WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not
be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the product.

GB
3
1. THE NEW WASHING SYSTEM
This new washer dryer is the outcome of years of research.
The leading-edge design and the quality of the production processes used to
manufacture this product ensure it will give you many years of excellent service.
Its concept satisfies all current and future washing and drying requirements.
Its low water, power and detergent cons mption help protect the environment
and red ce r nning costs to a minim m.
Water and power cons mption has been red ced in all programmes.
These results were achieved by means of a special washing system valid for all
programmes and all fabrics.
The drum is fitted with three external vanes that keep the water constantly circulating,
thereby offering intensive and uniform washing whilst consuming less water.
This ensures your laundry is washed and treated with utmost care.
The new washing system is so effective that normally dirty la ndry can even be
cleaned witho t a pre-wash cycle.
Washing times have also been reduced.
Pre-washing is only recommended for very dirty laundry.
Please read the operating instructions with care in order to take full advantage of all
the features offered by this washer dryer.
Warning!
Please read all the instructions contained in this manual in order to understand how
to operate this appliance correctly and safely.
This manual is divided into paragraphs which provide a step-by-step description of
all the functions of the appliance. The instructions are easy to understand and are
accompanied by detailed illustrations.
This manual provides a quic and easy reference for answering all your questions
concerning the use of your new washer dryer.
Keep this manual near the machine for future consultation.
When selling or moving the appliance, ma e sure this manual remains with the
machine.

GB
4
2. SAFETY WARNINGS
Attention!
These warnings are given for safety reasons.
Please read them caref lly before installing and sing the appliance.
This manual forms an integral part of the appliance and must therefore be kept intact together with the
machine. Before using the appliance, carefully read all the instructions contained in this manual.
Installation must be performed by a qualified technician in compliance with the regulations in force. It
has been designed for domestic use and complies with EEC Directives 72/23, 89/336 (including 92/31
and 93/68) currently in force. The appliance is designed for the following purpose: washing and drying
linen or fabrics declared by their manufacturers to be suitable for machine washing by means of an
appropriate symbol. Any other use shall be considered improper. The man fact rer declines all
responsibility for ses other than those described above.
The name plate featuring the technical data, serial number and markings is visibly positioned on the
inner edge of the door. This name plate m st never be removed.
Do not leaving discarded packaging materials unsupervised within the home. Separate the various
packaging materials and take them to the nearest sorted waste collection centre.
The electrical and pl mbing work req ire to install the appliance may only be performed by
q alified technicians.
The appliance must be provided with an earth connection in accordance with the electrical safety
regulations in force. The man fact rer declines all responsibility for damage to persons or
property res lting from fail re to earth the appliance or from a defective earth connection.
If the appliance is not connected to the electrical power supply by means of a plug, it is necessary to
install an isolation switch with a contact opening gap of at least 3 mm.
The plug on the power cord and the corresponding socket must be of the same type and must conform
to the regulations in force. Check that the voltage and frequency of the electrical power supply match
the ratings on the name plate. Avoid using adaptors or shunt connections. Never unplug the appliance
by pulling the power cord.
The machine is only disconnected from the electrical power s pply if the pl g has been
removed from the socket or if the general switch has been t rned off. After installation, the
pl g m st remain accessible.
The appliance must always be connected to the water supply with new hoses (supplied with the
appliance). Old hoses must never be reused.
Make sure the appliance does not lie on the power cord.
Before use, make sure the tub assembly has been released (see instructions).
If the tub assembly has not been released, it may damage the appliance or adjacent furniture or
appliances during the spin cycle.
The washer dryer must never be used in vehicles, on ships or planes, or in special environmental
conditions such as explosive or corrosive (powder, vapour and gas) atmospheres or near explosive
and/or corrosive liquids.
Do not install the washer dryer in areas subject to frosting. Frozen pipes may burst under pressure.
Make sure that the drain hose is sec rely attached to the basin and cannot move.
If it is not securely fitted, the repulsive force of the water may detach it from the basin and cause
flooding.
When attaching the hose to the basin, make s re the water drains away rapidly and does not fill
the basin p.
Do not overload the appliance.
Never use detergents containing solvents or chemicals.
These may damage the machine and form poisono s f mes.
They may also catch fire and explode.

GB
5
Do not wash petrol-soaked garments in the washer dryer. Make sure there are no inflammable items
(e.g.: lighters, matches, etc.) in pockets before washing.
If volatile fluids have been used to clean garments, make sure that the substances have been removed
before loading them in the washing machine.
Before loading garments for washing, make sure the pockets are empty, the buttons securely fixed and
the zips closed.
Do not wash frayed or torn garments.
The glass of the door will heat up considerably when washing at elevated temperatures.
Make s re all the water has drained away before yo open the door.
If water is present, only open the door after draining it. If in doubt, read the instructions manual.
The water in the machine is not drinkable!
Swallowing washing machine detergents can cause lesions in your mouth and throat.
Before removing laundry from the washer dryer, make s re the dr m has stopped moving.
Always switch off the appliance after use to avoid wasting electricity.
Leave the door ajar between one wash and the next in order to keep the gasket in good condition.
Prolonged inactivity.
If the machine is left inactive for a long period: disconnect the machine from the electricity and water
supplies and leave the door ajar to prevent bad smells from forming.
In the event of a fault, never attempt to repair the machine yo rself. Disconnect the appliance from
the electrical power supply and shut off the water tap. Then call a qualified technician. Repairs may
only be performed by q alified technicians.
Repairs performed by unqualified people may be hazardous for users.
Obsolete appliances m st be rendered n sable: make s re that the door cannot be closed (to
prevent children from getting trapped inside while playing and risking their lives) and c t off
the power cord after npl gging it.
The appliance m st then be taken to a sorted waste collection centre.
This appliance is intended for se by ad lts.
Do not allow children to tamper with the controls or play with the washer dryer.
Do not allow children to approach the appliance while it is working.
Keep children away from the appliance.
Small animals or children may get inside the washer dryer.
Always check the inside of the drum before use and do not allow children to play with the
appliance.
Packaging materials (plastic bags, polystyrene, metal profiles, etc.) must not be left within reach of
children.
Keep children away from the machine when the door or detergent tray is open; the appliance may
contain residues of detergent which can cause irreversible damage to the eyes, mouth and throat, as
well as possible death by suffocation.
Important !
This appliance is easy to use.
In order to obtain the best results, however, read this manual with care and follow all the instructions
before starting.
The manual gives instructions and useful advice on how to install, use and service the appliance
correctly.
The manufacture declines all responsibility for damage to persons or property resulting
from failure to observe the above precautions, from tampering with even just a single
component of the appliance, or from the use of unoriginal spare parts.

GB
6
For Great Britain only
Warning: this appliance must be earthed.
Fuse replacement
If the mains lead of this appliance is fitted with a
BS 1363A 13amp fused plug, to change a fuse in
this type of plug use an A.S.T.A. approved fuse to
BS 1362 type and proceed as follows:
1. Remove the fuse cover (A) and fuse (B)
2. Fit replacement 13A fuse into fuse cover
3. Refit both into plug
Important:
The fuse cover must be refitted when changing a
fuse and if the fuse cover is lost the plug must not
be used until a correct replacement is fitted.
Correct replacement are identified by the colour
insert or the colour embossed in words on the
base of the plug.
Replacement fuse covers are available from your
local electrical store.
If the appliance is provided with a plugless supply cord:
• It is necessary to install in the fixed wiring an all-pole disconnection device having a gap
between contacts of at least 3,5mm. After installation the disconnection device has to be easy
to reach.
• The connection to the mains must be carried out by a qualified technician in accordance to the
scheme shown below and the regulations in force
L = brown
N = blue
= yellow-green
• In the event of damage to the supply cord, it has to be replaced by the manufacturer or an
authorized technical service center in order to avoid any risk.

GB
7
3. INSTALLATION INSTRUCTIONS
Important !
The appliance m st be installed by a specialised technician according to c rrent reg lations.
This washer dryer is very heavy. Take care when lifting it.
3.1 UNPACKING

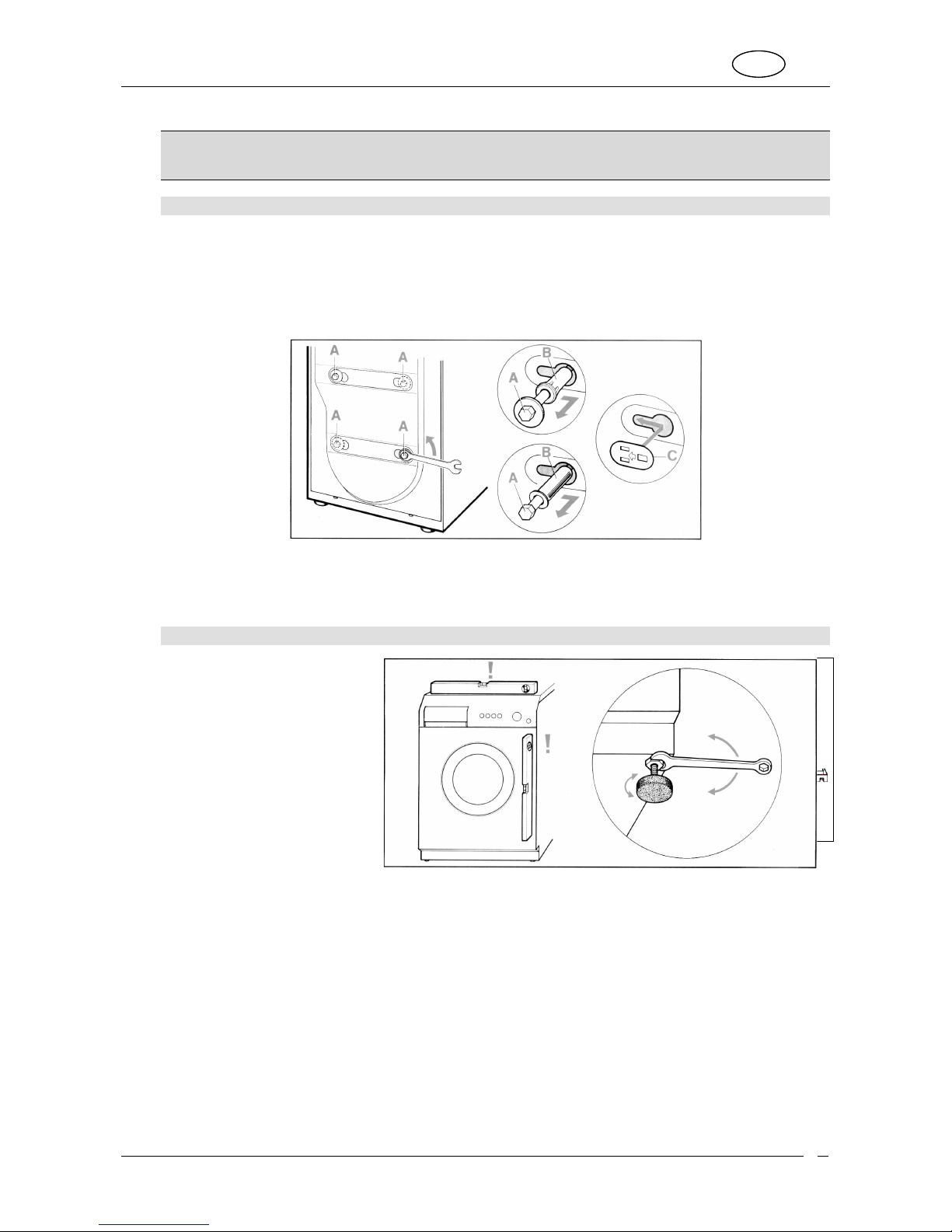

The inside of the machine comprises a moving assembly which is blocked for transport purposes by the screws
(A) located at the rear of the washer dryer.
1. Release the assembly by removing these screws with a 13 mm wrench.
2. Remove the screws (A) and relative spacers (B) from the back of the washer dryer.
3. To prevent water from entering the machine or people from touching live components with their fingers, close
the fo r holes left open by the screws with the s pplied plastic pl gs (C).
Attention!
• Do not turn the machine upside down and do not place it on its side.
• Keep all the components used to block the drum assembly as they will be needed if you decide to move the
appliance in future.
3.2 POSITIONING AND LEVELLING
1. Place the appliance in the
chosen position.
2. Carefully level the machine in
all directions using a spirit
level and adjusting the height
of the feet if necessary. After
adjusting the machine, lock
the feet with the relative lock
nuts.
The water inlet and drain hoses can be turned to the right or left depending on installation requirements.
Attention!
• Carry o t this operation caref lly to prevent the washing machine from vibrating, generating noise or
moving d ring operation.
• If the appliance is installed on a carpeted floor, ens re that the openings on its nderside are not
obstr cted.
• Make sure the washing machine does not touch walls, furniture, etc., while it is working.
• The appliance must not be installed behind a lockable door, or sliding door, or a door with hinge on the
opposite side to the tumble dryer

GB
8
3.3 WATER SUPPLY CONNECTION
1. Check that inlet pressure lies between the following values: 50-900kPa. For higher
pressures, install a pressure reducer.
2. Connect the cold water inlet hose (light bl e ring nut) to the cold water tap with a ¾
gas thread, taking care to screw it firmly into place in order to prevent leaks. The water
inlet hose must not be bent or crushed and must not be replaced or cut.
3. If a hot water inlet is used, inlet water temperature must not exceed 60°C and the
hose with the red ring nut must be connected to the hot water tap.
Attention!
• If the water pipe is new or has not been used for a long time, let a certain amount of water run before
attaching the inlet hose. This stops any deposits of sand and other impurities from clogging the filters used
by the machine to protect the water inlet valves.
• The new hose-set supplied with the appliance are to be used and the old hose-set should not be reused
3.4 DRAIN CONNECTION
1. Insert the end of the drain hose into a drain pipe having an internal diameter of at least cm and a height
ranging between 50 and 90 cm, or attach it (using the relative curved plastic profile) to a basin or bath tub.
2. Always check that the end of the drain hose is securely attached in order to prevent the repulsive force of the
water from moving it out of position.
Attention!
• Do not bend or obstruct the hose as this will reduce the flow of water.
• Any extensions to the drain hose must not exceed 1 metre, they must have the same internal diameter and
must not be obstructed in any way.
• In no case may the end of the drain hose be submerged in water.
3.5 ELECTRICAL CONNECTION
Before fitting the plug into the socket, make sure that:
1. Input voltage matches that indicated on the name plate attached to the inner edge of the door.
2. The contactor, pressure relief valves, power line and socket are capable of withstanding the maximum
rated power input indicated on the name plate.
3. The socket is compatible with the plug supplied with the machine without the need to fit multiple sockets,
adaptors or extension leads that could cause overheating or burning.
If the socket does not correspond to the supplied plug, replace the socket with one of a suitable type.
Attention
• The plug must be accessible after installation.
• The appliance m st be earthed. Plug the machine into a socket fitted with an efficient earth connection.
The man fact rer declines all responsibility for damage to persons or property res lting from
fail re to earth the appliance or from a defective earth connection. Correct electrical
connections g arantee maxim m safety.
• This appliance complies with EEC directive 89/336 of 3.5.89 (modified by EEC directive 92/31) relative to the
elimination of radio interference.
• If the power cord is damaged, only replace it with an original spare part available from our service
department.
• Do not insert/remove the pl g from the socket if yo r hands are wet.
• Remove the pl g from the socket by gripping the pl g and not the cord.

GB
9

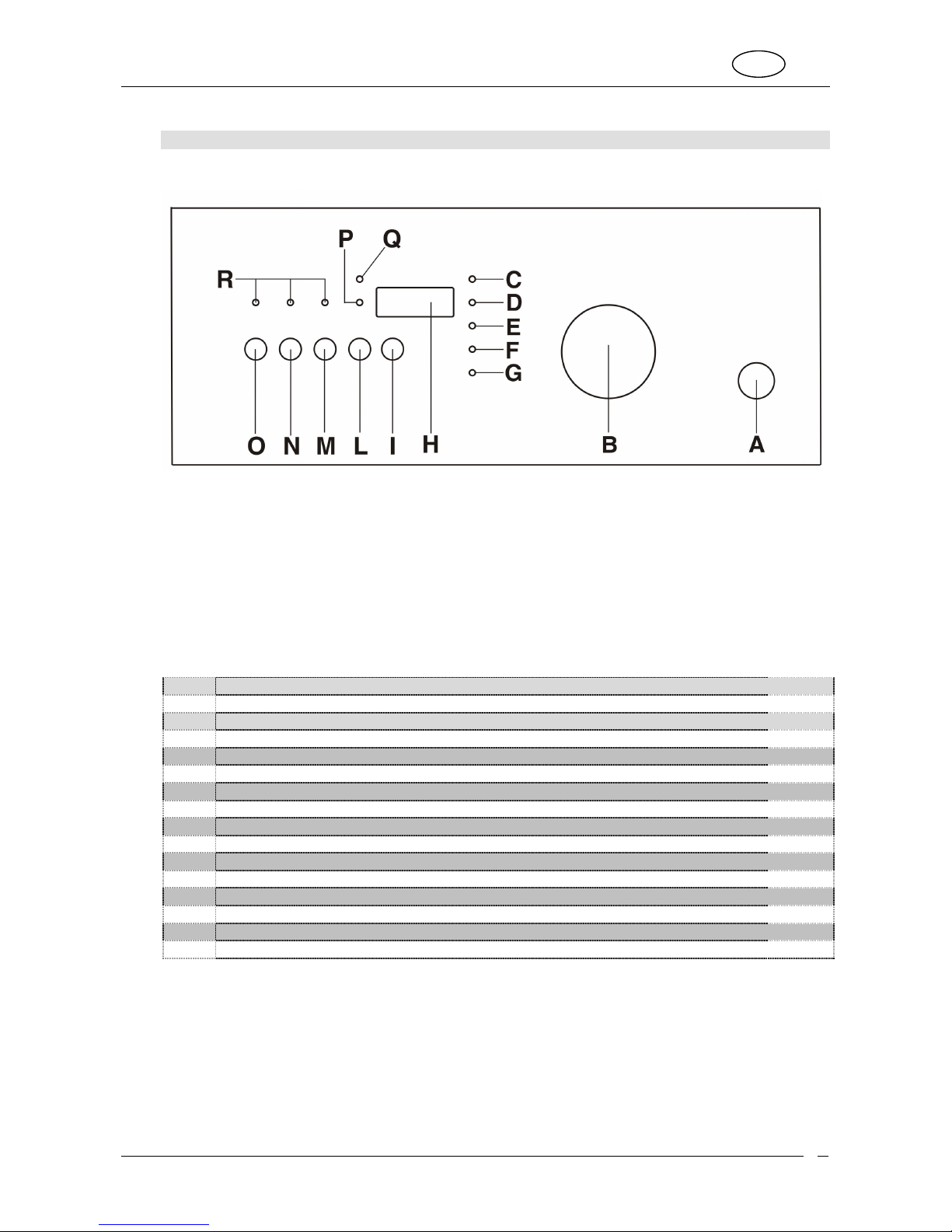

4. DESCRIPTION OF CONTROLS
4.1 CONTROL PANEL
All the commands and controls of the appliance are assembled together on the front panel.
Description of controls
A Open door button
B ON-OFF and programme selection knob
C Delay timer shown on display LED – (only for models with this option)
D Time remaining shown on display LED
E Spin speed shown on display LED
F Drying programme for normal garments shown on display LED
G Drying programme for delicates shown on display LED
H Display
I Select spin speed and drying time for delicates button
L Drying programme button (a tomatic or timed) and drying time
M Options button – for models with delay timer: selection of time delay
N Options buttons
O Start-Pa se button
P Timed drying shown on display LED
Q A tomatic drying activation with humidity sensor shown on display LED
R Button activation and Start-Pause shown on LED

GB
10
A
Open door b tton
Press the button to open the door. Chapter 5 – Washing
instructions – explains how the door works and how to use it.
B
ON-OFF and washing and
drying programme
selection knob
This knob lets you:
• switch the machine on and off by moving it in either
direction from the OFF position (knob indicator
vertical)
• select washing temperat res within the various
fabric sectors by turning it in both directions
• select the drying programme
The knob does not rotate while the programme is running.
The programme is electronically controlled by the machine.
C
Delay timer shown on
display LED – (only for
models with this option)
This LED indicates that the display is showing the time
selected for the delay timer.
D
Time remaining shown on
display LED
This LED indicates that the display is showing the total
duration of the selected programme before the programme
starts, and the time remaining while the programme is
running.
E
Spin speed shown on
display LED
This LED indicates that the display is showing the maximum
spin speed for the selected programme. It stays on while spin
speed is being selected with the relative button.
F
D rying programme for
normal garments shown on
display LED
This LED indicates the selection of the normal drying
programme (drying temperat re 90°C – for resistant
items, cottons).
G
Drying programme for
delicates shown on display
LED
This LED indicates the selection of the delicate drying
programme (drying temperat re 60°C – for synthetics,
delicates).
H
Display
The display shows the following information:
1. time remaining for the selected programme, given
in hours/minutes.
2. delayed start (for models featuring this option).
Given in hours/minutes. When the time remaining
before the programme starts is less than 60 minutes,
this information is given in minutes/seconds.
3. spin speed
. drying times given in hours/minutes
5. cycle pa se - flashing STOP
6. end of cycle - END
7. error codes
8. a tomatic drying programme (A t1 or A t2)

GB
11
I
Select spin speed and
drying time for delicates
b tton
Press the button repeatedly to select the required spin
speed. The following spin speeds are available:
• 0000: spin disabled and stop with tub full. The
machine does not perform the final spin and ends the
washing programme with water in the tub. To drain
the water, see the explanations shown in paragraph
5.13
• from 600 rpm to the maximum speed indicated for
the model: for cotton and coloured programmes,
speed increases by 100 rpm starting from 600 rpm
up to the maximum speed indicated for the model
• from 600 to 900 rpm: for synthetics, delicates and
woollens programmes, speed increases by 100 rpm
starting from 600 rpm up to 900 rpm.
Also, select the delicates drying programme (see G).
L
Drying programme b tton
(a tomatic or timed) and
drying time
Press the button repeatedly to select the drying programme:
timed drying or a tomatic. As regards the drying time, it
ranges from 2:00 hours down to 0:00 hours. For automatic
drying it is possible to select two levels of residual humidity at
the end of the drying process: Aut1 and Aut2.
M
N
Options b ttons
The options that may be available on the washer dryer are
shown below.
Quick wash Button
This button reduces the overall duration of the washing cycle. This
option is used to wash small loads or less dirty washing in less time.
The bleach stage is skipped when the Quick Wash button is
pressed (for models with bleach function).
(M)
Select delayed start
b tton
– (only for
models with this option)
Press the button repeatedly to select the required time from
that moment to start the washing/drying programme selected.
The value set by the machine is 0 hours 0 minutes and, using
the button, this value can be increased by 60 mins up to 12
hours and by 120 mins for the next 12 hours, up to 2 hours.
Increase water button
This washer dryer is programmed to use a certain quantity of water
and consume a certain amount of power considered to be sufficient
for a normal washing cycle.
Only press this b tton for specific req irements, e.g.: for very
delicate fabrics (curtains or wool).
The water level for washing and rinsing rises and power
cons mption for heating increases.
Easy-iron button
This option reduces creasing on garments at the end of the
programme. The machine performs a more delicate spin cycle and
moves the garments at the end of the programme. Spin speed for
all programmes is 600 rpm.

GB
12
Economy cycle button
- e
Press this button for cottons programmes, the machine will
perform an extended wash at 35°C (biological step) thereby
offering good washing performance combined with power
saving.
The machine then contin es the cycle at the selected
temperat re.
.B.:
Press the economy cycle button to obtain a maximum washing
temperature of 60° C and the elimination of the pre wash cycle.
Extra Rinse button
In areas with soft water or to improve rinsing, press this button
(optional for intensive programmes) to enable the extra rinse
function (about 20% more water).
Delicates button
Press this button to reduce movement of the drum and,
consequently, of the washing. Suitable for particularly delicate
garments (shirts, silk, curtains, etc.)
Half load button
1/2
If the machine is used with a smaller amount of washing than that
indicated in the “Programme Chart”, press this button to save water,
detergent and electricity.
This option should not be used for synthetics or woollens.
The recommended doses of detergents sho ld be red ced in
proportion to the load.
O
“Start/Pa se” b tton
Press this button to start the selected washing programme.
During washing, press the “Start/Pause” button for about 3
seconds to pause the washing cycle. During the pause, the
“Time remaining” Led flashes and STOP appears on the
display. To resume the washing cycle from where it left off,
simply press the “Start/Pause” button again.
P
Timed drying shown on
display LED
This LED indicates that drying is carried out with the selected
drying time.
Q
A tomatic drying activation
with h midity sensor
shown on display LED
This LED indicates that drying is carried out automatically
with the selection of the required residual humidity level (Aut1
or Aut2)
R
B tton activation shown on
LED
This LED indicates that the corresponding buttons have been
pressed.

GB
13

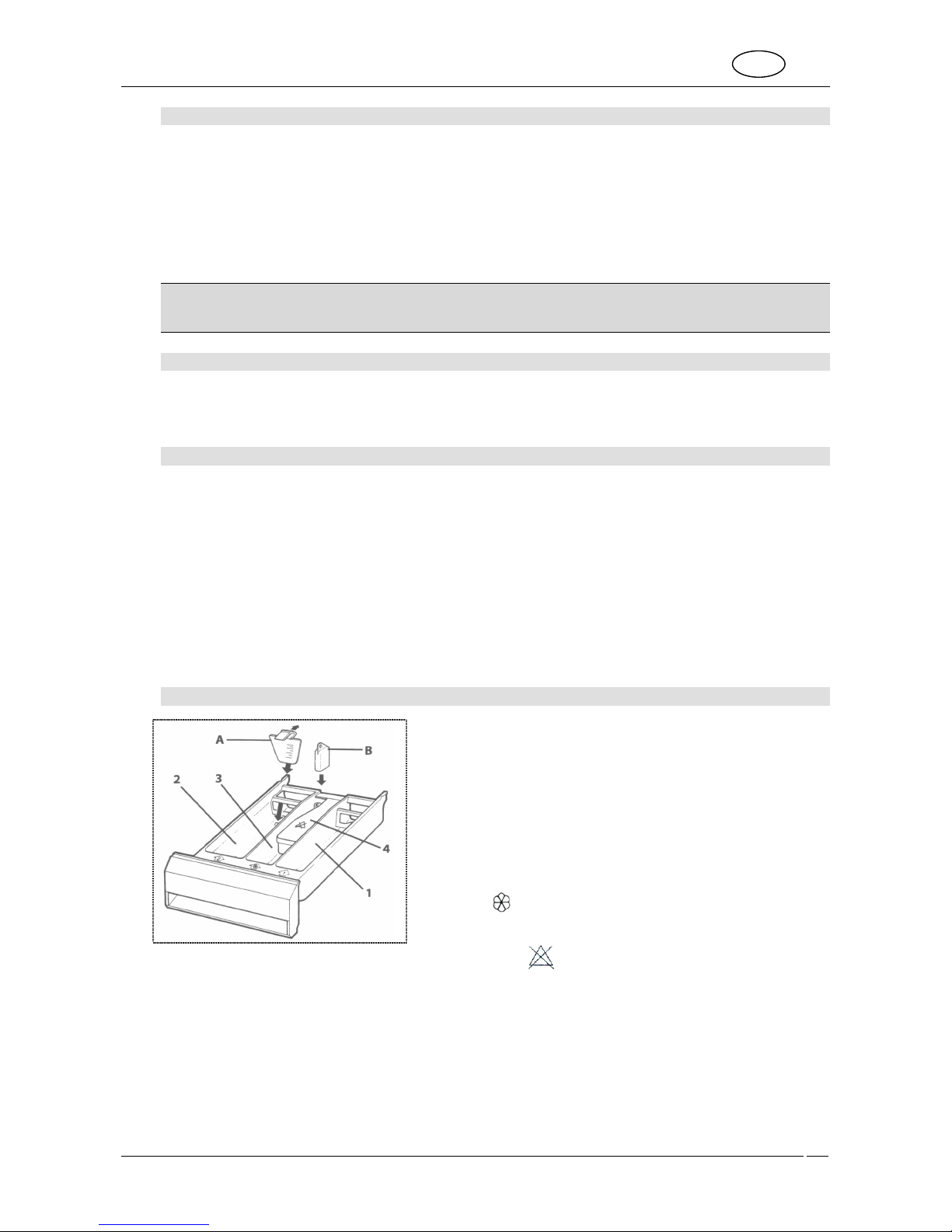

4.2 DETERGENT TRAY
This is located to the left of the control panel. Pull it out to
open.
The tray comprises four compartments which are marked as
follows
“1”: pre-wash detergent
“2”: main wash detergent
“” or “3”: fabric softener, starch, etc. (treatment products).
Compartment “4” is used for bleach. If there is a cover marked
, this means that bleach cannot be used with this model of
machine. If bleach can be used with the machine, there is no
cover.
5. WASHING INSTRUCTIONS
5.1 PREPARING THE WASHING
1. Separate the washing according to the type and colourfastness of the fabrics.
2. Wash whites and coloureds separately. Wash new coloured garments separately for the first time. A label is
normally applied to garments giving information on how to clean them. A brief description of these labels is
shown below.
WASHING BLEACHING
Machine wash at max. 90°C
Machine wash at max. 60°C
Bleaching allowed
Do not bleach
IRONING
Machine wash at max. 0°C
Machine wash at max. 30°C
Hot iron Warm iron Cool iron
Do not iron
DRY CLEANING
Machine wash, delicate cycle
at max. 60°C
Machine wash, delicate cycle
at max. 0°C
Machine wash, delicate cycle
at max. 30°C
Any solvent
Any solvent
except
trichloroethylene
Petroleum
solvent and
R113
Do not dry clean
DRYING
Hand wash
Do not wash
High
temperature
Less than 60°C
Do not tumble dry
Attention!
• Do not wash unhemmed or torn garments as they may fray.
• Foreign bodies may damage garments or machine components. Therefore, empty all pockets and turn them
inside out, remove rollers from curtains or put them in a string bag.
• Put very small articles (belts, handkerchiefs, socks, bras with stiffeners, etc.) into a white canvas bag. Close
push buttons and zips and sew on dangling buttons.
• Modern detergents and correct washing temperatures are generally sufficient to remove stains from fabrics.
However, some stubborn stains, such as grass, fruit, egg, blood, rust and biro, should be pre-treated before
washing. Depending on the type of fabric, many stain removers can be fo nd in the shops. Stains
sho ld always be cleaned or dil ted immediately as the older they get, the more diffic lt they are to
remove.
• Garments may be damaged if fabric care symbols are not observed.
Wool – Only pure wool, identified by or with the label <<shrink-proof machine washable and dryable>> can
be machine washed with the specific programme, other types of wool should be hand-washed or dry-cleaned.

GB
14
5.2 OPENING THE DOOR
The machine is fitted with a safety device that prevents the door from opening while it is working.
1. Before opening the door, wait 1 or 2 min tes after the programme ends (“End” LED on) to allow the
safety device to disengage.
2. Make s re there is no water in the t b and that the dr m is not moving. Open the door by pressing the
“Open door” button on the front panel and pulling it open.
Attention!
• If the washing programme is interrupted, you will have to wait from 3 to 15 minutes, depending on the
temperature of the water, before the door opens.
Attention!
The water may still be boiling if the washing cycle was performed at high temperat res.
If there is still water inside the dr m, do not open the door!
5.3 PREPARING THE WASHING
Where possible, save electricity by washing f ll loads divided by type of fabric. Introduce loose washing and
alternate large items with small ones. For the first few times, weigh the loads of washing and then rely on your
judgement. Average weights of common garments are shown below:
5.4 LOADING THE WASHING
1. Open the door and load the washing taking care to distribute it uniformly, loosely and not packed into the
drum; alternate large items with small ones if possible.
2. The washer dryer described in this manual can be loaded with p to 5kg of washing. Heavier loads will
lead to unsatisfactory washing results and may cause the machine to work incorrectly.
3. To save energy, wash f ll loads divided by type of fabric, according to the quantities indicated in the
“Programmes chart” supplied with this manual.
. Close the door by pressing it against the body of the appliance until you hear a click. Make sure no
garments have got caught between the door and the rubber gasket.
Attention!
• If the door is not closed properly, a safety device prevents the washer dryer from working.
• Do not se more than the recommended amo nt of detergent: too m ch may deteriorate washing
res lts.
5.5 ADDING DETERGENT AND ADDITIVES
Follow the instructions shown in the “Programme Chart” provided
together with the manual and add detergent and any additives to the
relative compartment before starting the programme.
Pour the pre-wash powder detergent into the compartment marked
“1”.
Pour main wash detergent into compartment “2”. Machine accessories
include a red insert “A” that can be placed inside compartment “2” to
allow liquid detergent to be used. The additives are automatically
introduced into the tub during final rinsing.
Pour liquid additives such as starch and fabric softener into “3”,
marked with .
If bleach can be used with the machine (no cover marked with ) add bleach to compartment “4” if you wish.
The level of the liq ids m st not exceed the maxim m limit, otherwise the trays will be emptied too soon.
Before pouring thick additives into the tray, dilute them with a little water to prevent them from obstructing the trap.
Only use foam-controlled detergent suitable for use in washer dryers.
Determine the q antity of detergent according to the hardness of the water, and the type, q antity and
dirtiness of the washing.
This will allow you to obtain the required effect using as little detergent as possible.
Detergent packs indicate the quantities to use according to levels of hardness and for normally dirty loads of -5
kg.
Ask your local water board to tell you how hard your water is.

GB
15
Water hardness
Hardness level French degree fH German degree dH
Soft Up to 15° Up to 8°
Moderately hard 15° - 25° 8° - 1 °
Hard 25° - 0° 1 ° - 22°
Very hard Over 0° Over 22°
5.6 DOSING POWDER DETERGENTS
Normally dirty washing
1. Choose a programme without prewash.
2. Pour the total quantity of detergent indicated on the packs into compartment “2” of the detergent tray.
Very dirty washing
1. Choose a programme with prewash.
2. Add ¼ of the recommended quantity of detergent into compartment “1” of the detergent tray and ¾ of the
detergent into compartment “2”.
Attention!
• If there are no dosage indications for delicate synthetics, add from ½ to 2/3 of the recommended quantity for
resistant cottons.
• For the wool programme, only use neutral detergents for woollens.
• Base your doses according to the detergent manufacturer's recommendations.
5.7 DOSING LIQUID DETERGENTS
1. Pour the recommended dose into the batcher supplied with the liquid detergent and place it inside the drum;
otherwise, pour it into compartment “2” of the detergent tray after fitting the relative red insert “A” (see
paragraph 5.5).
2. The scale on the red insert will help you to use the right quantity of liquid detergent.
Attention!
• Liquid detergents can be used according to the manufacturer's recommended dose only for the main
washing cycle, that is, in all programmes witho t prewash.
• When compartment “2” is used for powder detergent, the red insert “A” must be removed.
5.8 SCALE-REMOVERS
Scale-removers can be introduced into compartments “1” and “2” according to the manufacturer's indications.
First, add the detergent and then the scale-remover.
5.9 SWITCHING ON THE MACHINE AND SELECTING THE WASHING PROGRAMME
To switch on the machine and select programmes, proceed as follows:
1. Turn the programme knob in either direction.
2. Select the washing temperature, within the sectors marked on the front panel by the following words:
• Cotton, coloureds
• Wool
• Synthetics, delicates
The washer dryer has the following basic washing programmes which, by adjusting the temperature and
using the various button functions, allow a wide range of programmes to be set for all requirements.

GB
16
Intensive washing programme
for resistant cotton, coloured or hemp fabrics.
Delicate washing programmes
for delicate artificial synthetic fibres, blends or linen fabrics.
They prevent the formation of creases that are difficult to remove during
ironing.
Wool programme
only for garments marked “pure wool” washable, treated, shrink proof.
Other types of wool should be hand washed or dry-cleaned.
To select programmes according to the type of fabric, cons lt the “Programme chart” s pplied
together with this man al.
Display information
When the machine is switched on, the display visualises
the duration (hours/minutes) and maximum spin speed
envisaged for the programme. These two parameters are
displayed alternatively for 3 seconds each, together with
their relative LED's, until the selected programme starts.
Attention!
• The following partial washing programmes can be set
using the programmes knob:
-Rinse with additive
-Drain and spin
-Fabric softener
These partial programmes are inside the Cotton, Synthetics and Wool sectors, except for the drain and spin
programme (Drain
) .
• If the indicated temperature shows 0°, this means that the programme performs a cold wash cycle. The same
cold wash is also performed by the Hand wash programme in the Wool sector.
• The fabric treatment labels show which washing temperature must be set.
• If vario s garments in the same load req ire different washing temperat res, choose the lowest
washing temperat re of all.
• If the laundry is only slightly dirty and does not need the bleaching effect of high temperatures, a lower
temperat re can be chosen to save power. In spite of the low temperature and consequent saving of
electricity, an automatic time control keeps the duration of the main washing unvaried compared with that of a
high temperature programme. It is therefore possible to successfully wash normally dirty la ndry at lower
washing temperat res than the maximum temperatures shown on the fabric care labels.
5.10 MODIFYING STARTING PARAMETERS
5.10.1 SPIN SPEED
Press the select spin speed button ( ), the relative LED lights up and the display visualises the maximum speed
envisaged for the selected washing programme.
Press the button repeatedly. Speed decreases by 100 rpm every time until the spin cycle reaches 0 rpm and is
disabled.
5.10.2 OPTIONS
Use the options buttons (indicated in chapter – Description of controls, letter M) to enable machine options. A
selected option is highlighted by the option LED located above the button in question.
3 seconds 3 seconds

GB
17
5.10.3 DELAYED START (O LY FOR MODELS FEATURI G THIS FU CTIO )

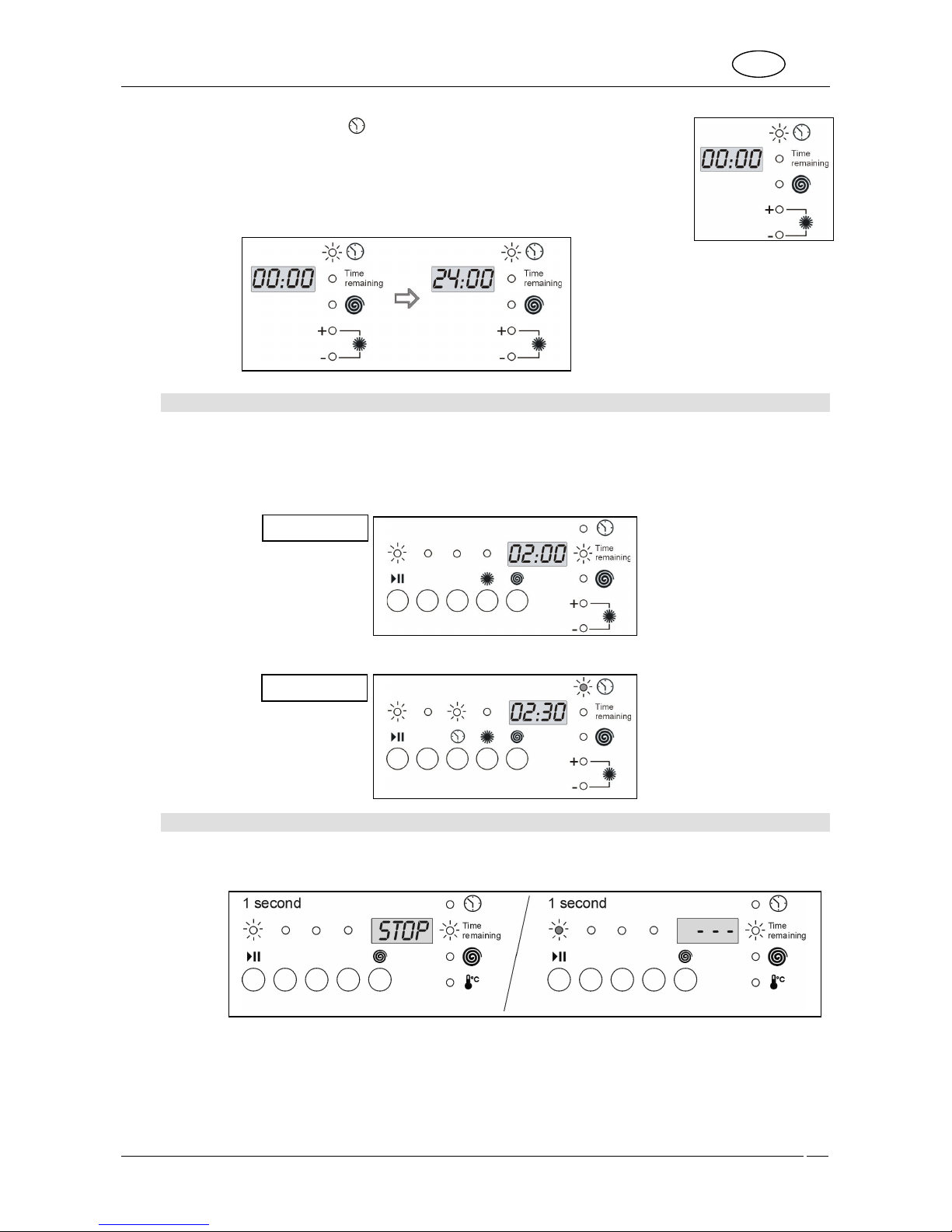

Press the delayed start button ( ). The relative LED located above the button lights up.
The display visualises the time remaining (hours/minutes) before the selected washing
programme starts: the display initially shows 0 hours 0 minutes for all programmes.
Press the button repeatedly. The Start delay increases by 30 minutes each time it is
pressed for the first 12 hours. After that it increases to 60 minutes up to 2 hours.
5.11 STARTING THE WASHING PROGRAMME
1. Before starting the selected programme, carefully close the door, open the water tap and add the
detergent and additive
2. Press the “Start-Pause” button. The LED located above the Start-Pause button remains lit throughout the
cycle.
After starting, the display shows the time remaining until the end of the programme. The LED remains on
throughout the cycle.
If delayed starting has been set (only for models featuring this option), the display visualises the time
remaining before the cycle starts. When delayed starting is set, the relative LED flashes on and off.
5.12 INTERRUPTING OR CHANGING THE WASHING PROGRAMME
The washing programme may be interrupted at any time while it is running:
1. press “Start/Pause” for approximately 3 seconds: the display alternates between STOP (for 1 second)
and three horizontal lines (for 1 second) and the Start/Pause LED flashes.
The programme can also be stopped by turning the programme/temperature selection knob while the
cycle is running.
2. If you wish to change the washing programme, simply select the new programme by turning the
programme knob without pausing the machine first. The new washing cycle will be performed starting
from the beginning. If the tub is already full of water, the new programme will omit the filling phase.
3. To resume the cycle, press Start-Pause again.
Example
Example
While selecting the delayed start time,
you can reset the timer by pressing the
button for at least 3 seconds.

GB
18
5.13 END OF PROGRAMME
The washing programmes are automatically completed, the display shows END and the
“Time remaining” LED lights up.
1. T rn the programmes knob to OFF to switch off the machine.
2. Open the door.
3. Remove the washing from the drum.
. Leave the door ajar in order to allow the inside of the washer dryer to dry.
5. T rn off the water tap.
If the no-spin option was selected during the initial spin speed set up phase and the machine stops with the tub full
(spin speed 0), STOP appears on the display at the end of the washing programme, alternating with 0000 (spin
speed 0) and the spin LED lights up.
To continue draining and spinning, press the spin select button twice. The machine resumes the cycle by draining
the water and spinning. To select spin speed, press the button until the required speed is displayed. If you wish to
drain the water in the tub without spinning, press the spin select button until 0000 appears on the display. This
indicates that the machine will drain the water without spinning.
5.14 END OF PROGRAMME BEEPER
When a washing and/or drying cycle finishes, the message END appears on the display and a beepers sounds
twice. To disable this signal, press the second and third button from the left simultaneously. The message OFF
immediately appears on the display to indicate that the beeper has been disabled.
To enable the end of programme beeper, repeat the operation. This time, the message ON will appear on the
display.
The appliance is supplied with the end of programme beeper enabled.

GB
19
6. USING THE MACHINE FOR DRYING PURPOSES
6.1 GENERAL INFORMATION
D ring drying cycles it is essential that the water tap is open and that the drain hose is correctly
positioned.
With this machine it is possible to set wash-only programmes, dry-only programmes and wash-dry programmes.
For the latter programmes, the cycle shifts automatically from washing to drying without the controls being
touched and the cycle continues after washing.
Warnings
• Only dry linen or garments washed in a water-based solution and suitable for tumble drying.
•
• The q antity of washing that can be introd ced into the washer dryer for drying m st not exceed
2.5kg. This washer dryer has been built to offer maximum performance with dry loads weighing not more
than 2.5 kg.
• When intensive washing programmes are set, drying is automatically performed at 90°C (normal drying).
• For delicate programmes, drying is automatically performed at 60°C (delicate drying). Therefore, for an
automatic washing programme plus drying, the drying programme is dictated by the washing programme
selected.
• In order to carry out a dry-only programme, the linen must already have been washed and spun.
• After drying particularly soft linen, e.g. new towelling underwear, it is advisable to carry out the “Rinse”
programme in order to ensure that any small fabric deposits are drained away and are not deposited on
the linen in the next wash load.
Important – do not dry delicate fabrics that cannot withstand temperatures of 60°C or in any case fabrics that
cannot withstand the selected temperatures.
6.1.1 TABLE OF APPROXIMATE DRYING TIMES AND TEMPERATURES
Weight of
washing
Resistant fabric
drying at 90°
Delicate fabric
drying at 60°
Drying
result
1,5kg
0 minutes 80 minutes Damp for ironing
80 minutes
100 minutes Dry
2.5kg
80 minutes 120 minutes Damp for ironing
100 minutes
- Dry
6.1.2 EXTRA DRYING
If the washing is still too wet when the programme finishes, set a short timed drying cycle.
Ca tion! Do not dry garments too much as they may crease or shrink.
6.2 AUTOMATIC DRYING
During the drying cycle, the sensor senses the residual humidity. The length of drying time is adjusted according
to the weight and type of washing. During the drying cycle the display shows the variations in the length of drying
time. With automatic drying it is possible to select 2 levels of resid al h midity at the end of drying.
A t1 Normal dry – suitable for thinner and normal fabrics.
Weight: 1.5 – 2.5kg
A t2 Extra dry – suitable for thicker, heaver fabrics.
Weight: 1.5 – 2.5kg
6.2.1 Display messages if the weight is not appropriate
LO Weight is too low – the programme stops after minutes in order to avoid ruining the washing.
HI Weight is too high – the programme carries out the drying for a maximum of the following times:
Normal drying programme
(length in hrs and mins)
Delicate drying programme
(length in hrs and mins)
A t1
1:50 1:50
A t2
2:30 2:00

GB
20
6.3 TIMED DRYING
The length of drying time corresponds to the time selected with the drying selection button.
6.4 WASH-DRY PROGRAMME
It is possible to use a wash-dry programme for intensive programmes (cotton, coloureds) and for
synthetics/delicates. With the wool wash programme it is not possible to select automatic drying after washing.
To automatically wash and dry the washing, its weight m st not exceed 2.5kg for cotton or 1.5kg for
synthetics.
Therefore, if the weight of washing to be washed and dried exceeds the above limits, it is not advisable to carry
out a wash-dry programme as, at the end, it will be necessary to half the load and carry out the drying process in
two halves.
To carry out a wash-dry programme, follow the following steps:
1. Select the wash programme as indicated in paragraph 5.9;
2. Select the required spin speed as indicated in paragraph 5.10.1;
3. Press the select drying programme and times button (b tton L) to set the required drying
programme:
(Automatic drying) A to LED display showing: once the automatic drying programme has been selected
(Aut1 or Aut2), the sensor inside the machine independently establishes the drying time. After about 5
seconds the programme setting closes and the value set is shown.
Time LED display showing: With this programme it is sufficient to repeatedly press the button to select the
required drying time. After about 5 seconds the programme setting closes and the value set is shown. The
drying time can be anything from 2:00 hours to 0:00 hours.
During the selection of the drying programme (automatic or timed) the LED of the normal drying
programme stays on. This programme indicates an intense drying cycle and is meant for resistant items and
cottons.
If a delicate drying cycle is required (less intensive drying, suitable for delicates and synthetics), press the
Delicate Drying button. In this case the delicate drying programme LED is shown.
After selecting a drying programme (normal or delicate), press the Drying selection button within 5 seconds.
6.6 DRY-ONLY PROGRAMME
After a washing cycle has finished, follow the following steps to program a drying cycle:
1. Switch off the machine by turning the select washing/drying programme knob to OFF.
2. Position the knob on the drying program indicated with the symbol ;
3. Repeatedly press the select drying button (button L) until the programme is set (Automatic or timed). If
you wish to reduce the drying temperature, press the Delicate Drying button.
. Press the “Start-Pause” button to start the drying programme. The display shows the time remaining.
Warnings
• As there has been no washing cycle selected, the selection of the programme for drying (normal or
delicate) is totally free. Remember that normal drying is advisable for cottons and coloureds, whereas
delicate drying is advisable for synthetics and delicates.
• In order to obtain good drying results, the weight of the washing m st not exceed 2.5kg for cotton or
1.5kg for synthetics.
6.5 INTERRUPTION OR CHANGE OF DRYING PROGRAMME
1. For the interruption or change of the drying programme, follow the instructions indicated in paragraph
5.12 – interruption or change of washing programme. When the machine is paused, it is possible to
change drying programme and/or times by pressing the select drying button.
2. If you need to stop the programme and take out the linen, it is advisable to cool the linen down first.
Using the select button, set the drying time to 20 minutes. Restart the machine as indicated in the
following point and at the end it is possible to take out the linen.
