smev CU322 User manual

www.smev.com
SAFETY ALERT SYMBOLS
COOKERS & OVENS
Instruction Book
FOR YOUR SAFETY
Safety Symbols alerting you to potential personal safety hazards. Obey all safety messages following these symbols.
CU322 - CU325 - CU402 - CU403 - CU423 - CU434 - FO300
WARNING: if the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use phones in your recreational vehicle.
• Evacuate the recreational vehicle of all occupants.
• Turn off the gas supply tank valve(s) or main gas supply.
• Immediately call your gas supplier for instructions.
• If you cannot reach your gas supplier, call the fire
department.
- Have the gas system checked and leakage source
corrected by a qualified installer, service agency,
manufacturer or dealer or the gas supplier.
WARNING
Avoid possible injury
or death.
CAUTION
Avoid possible injury and/or
property damage.
FOR YOUR SAFETY READ ALL INSTRUCTIONS BEFORE OPERATING APPLIANCE
INSTALLER: PROVIDE THESE INSTRUCTIONS TO THE CONSUMER.
CONSUMER: KEEP DOCUMENTS FOR FUTURE REFERENCE.
DOMETIC USA
DOCUMENT: COD41REV2
DATE: 2011-11

ENGLISH
2
CONTENTS
INSTALLATION 3
WARNING 3
HOLE 3
CONNECTING TO GAS SUPPLY 4
CONNECTING TO ELECTRICITY SUPPLY 4
FIXING 5
USE 6
SAFETY WARNINGS 6
CONTROLS 6
BURNERS: 8
COOKTOP 9
SELECTING BURNER 9
ELECTRONIC IGNITION COOKTOP 9
MANUAL IGNITION COOKTOP 9
COOKTOP FLAME REGULATION 9
OVEN 10
ELECTRONIC IGNITION OVEN 10
MANUAL IGNITION OVEN 10
FLAME REGULATION OVEN 10
BROILER 11
ELECTRONIC IGNITION BROILER 11
MANUAL IGNITION BROILER 11
FLAME REGULATION BROILER 11
VISUAL FLAME CONTROL 11
MAINTENANCE 12
INJECTOR 12
TEST PRESSURE POINT 12
CLEANING 12
WARRANTY 12
DRAWING AND LAYOUT 25-39
CARBON MONOXIDE POISONING
• NEVER USE THIS APPLIANCE AS A SPACE HEATER TO HEAT OR WARM THE ROOM.
DOING SO MAY RESULT IN CARBON MONOXIDE POISONING AND OVERHEATING
OF THE APPLIANCE.
• CARBON MONOXIDE (CO) POISONING PRODUCES FLU-LIKE SYMPTOMS, WATERY
EYES, HEADACHES, DIZZINESS, FATIGUE AND POSSIBLY DEATH. YOU CANNOT SEE
IT AND YOU CANNOT SMELL IT. IT IS AN INVISIBLE KILLER. IF THESE SYMPTOMS ARE
PRESENT DURING OPERATION OF THIS PRODUCT GET FRESH AIR IMMEDIATELY!
FOR YOUR SAFETY

USE
MAINTENANCE INSTALLATION ENGLISH
3
WARNING
THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH REGULATIONS IN
FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS
BEFORE INSTALLING OR USING THIS APPLIANCE.THE APPLIANCE MUST BE
INSTALLED BY SPECIALIST TECHNICIANS.
Installation must conform with local codes or in the absence of local codes, with the American National Standard
for Recreational Vehicles, ANSI/A119.2 and the National Electrical Code, ANSI/NFPA 70. In Canada, installation
must conform with CSA Z240.4.2-M.
This appliance is designed to cook foods only. Any other use is considered incorrect and dangerous.
Any storage cabinet placed directly above the appliance should not be used when one or more of the appliance
burners are on. The manufacturer is not responsible for any damage to persons or parts due to incorrect
installation, improper, incorrect, or irresponsible use.
For proper operation of your cooking appliance:
THE CABINET MUST BE
• properly constructed.
• squared to the countertop and cabinet face
THE OPENING IN THE CABINET MUST BE
• level from side to side and front to rear
The cabinet opening must be constructed so that no combustible material can be placed next to the cooktop sides.
The maximum depth of cabinets installed above the cooktop must be 13’’.
INFLAMMABLE MATERIALS MUST BE KEPT AT A SAFE DISTANCE FROM THE
APPLIANCE.
HOLE
Clearances are measured to combustible materials.
Make a hole in the furniture as indicated in FIG. 3 - PAG. 29
The cabinet must be suitably constructed and horizontally and vertically aligned.
The cabinet aperture must be perfectly squared and aligned.
If there are apertures for cabinet ventilation, avoid that any flammable material can enter these.
THE APPLIANCE IS NOT TO BE USED AS A SPACE HEATER.
MINIMUM CLEARANCES FROM THE EXTERNAL COMBUSTIBLE SURFACES (FIG.5 - PAG. 39):
SIDE CLEARANCE FROM THE EDGE OF THE
APPLIANCE TO ANY VERTICAL WALL
OVERHEAD CLEARANCE FROM THE
APPLIANCE COOKTOP TO A
RANGE-HOOD OR SHELVES
BETWEEN THE TOP EDGE OF THE
APPLIANCE AND TOP HORIZONTAL WALL
BETWEEN THE SIDE OF THE APPLIANCE
AND ADJACENT SIDE WALLS
0 mm - 0”
762 mm - 30”
THE CLEARANCE MAY BE 495 mm - 19 1/2”
ONLY WHEN A VENT HOOD IS INSTALLED IN
ACCORDANCE WITH ANSI/NFPA 1192 ET CSA Z240
305 mm - 12”
102 mm - 4”

USE INSTALLATION
MAINTENANCE ENGLISH
4
DURING INSTALLATION AND CONNECTION, THE APPLIANCE GAS PIPE MUST
NOT BE TWISTED, STRETCHED OR DEFORMED IN ANY OTHER WAY CAUSING A
HAZARD TO THE USER.
THE APPLIANCE AND ITS INDIVIDUAL SHUTOFF VALVE MUST BE DISCONNECTED
FROM THE GAS SUPPLY PIPING SYSTEM DURING ANY PRESSURE TESTING.
LEAK TEST IN EXCESS OF 1/2 PSI (3,5 kPa) OF AIR PRESSURE WILL INVALIDATE
WARRANTY.
Do not over tighten connections to the gas regulator, as this may crack the regulator and cause a gas leak. Do not
allow the regulator to turn on the pipe when tightening fittings.
The connection of the gas supply pipe to the appliance must be gastight. Make sure that the gas supply pipe does
not touch any metal parts which get hot during operation of the appliance. It must also be installed so that there is
no contact with moving parts (e.g. drawers etc.) and must not pass through spaces where it can be deformed.
PRESSURE GAS
INPUT
INLET MAX INLET MIN. MANIFOLD
propane
14 IN. W.C.
(1/2 PSI)
11 IN. W.C.
(1/2 PSI)
10 IN. W.C.
(1/2 PSI)
TOTAL FLOW RATE DEPENDS ON THE MODEL AND NUMBER OF BURNERS. FOR FURTHER DETAILS ON
TOTAL FLOW RATE FOR THE MODEL PURCHASED, REFER TO THE “ BURNER” SECTION.
CONNECT THE UNIT TO 12 V DIRECT CURRENT ONLY
DO NOT CONNECT TO HIGHER VOLTAGE
CONNECT ONLY TO PROTECTED CIRCUIT FUSED FOR NOT MORE THAN 3 Amps.

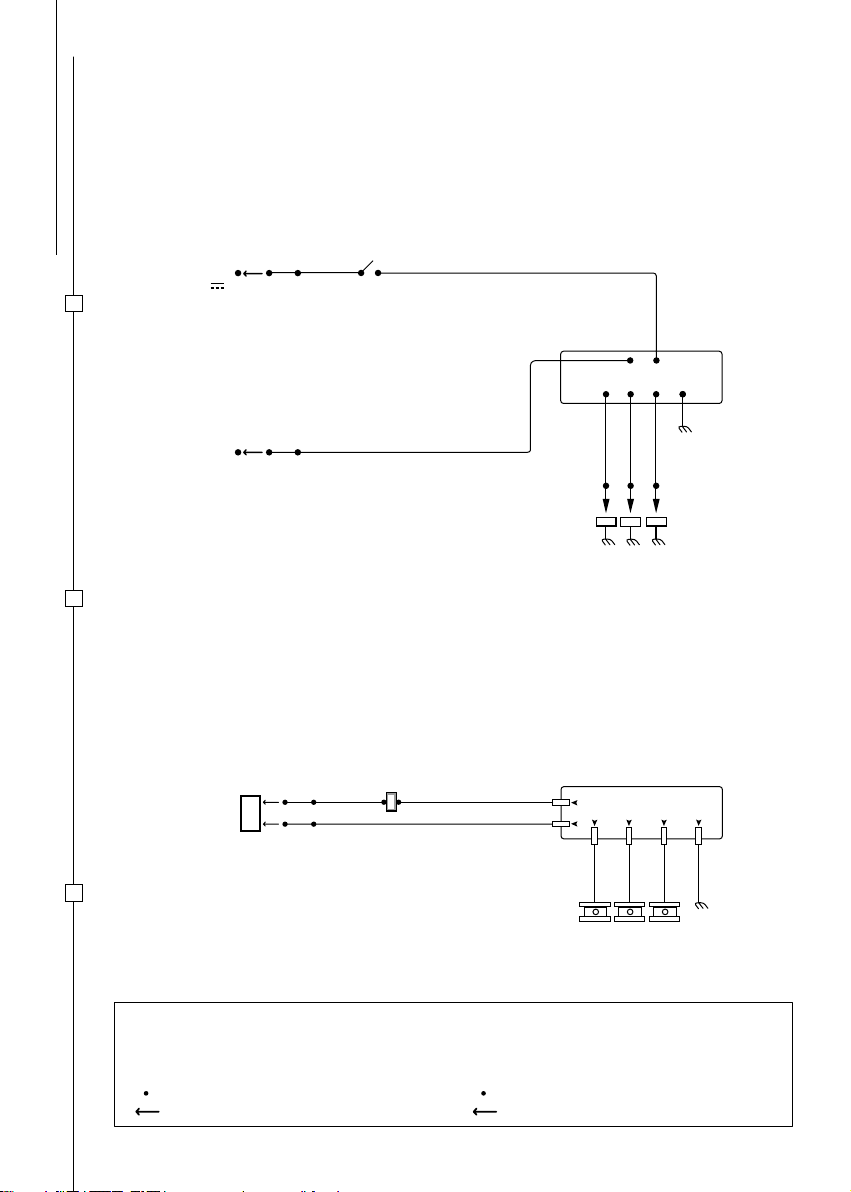

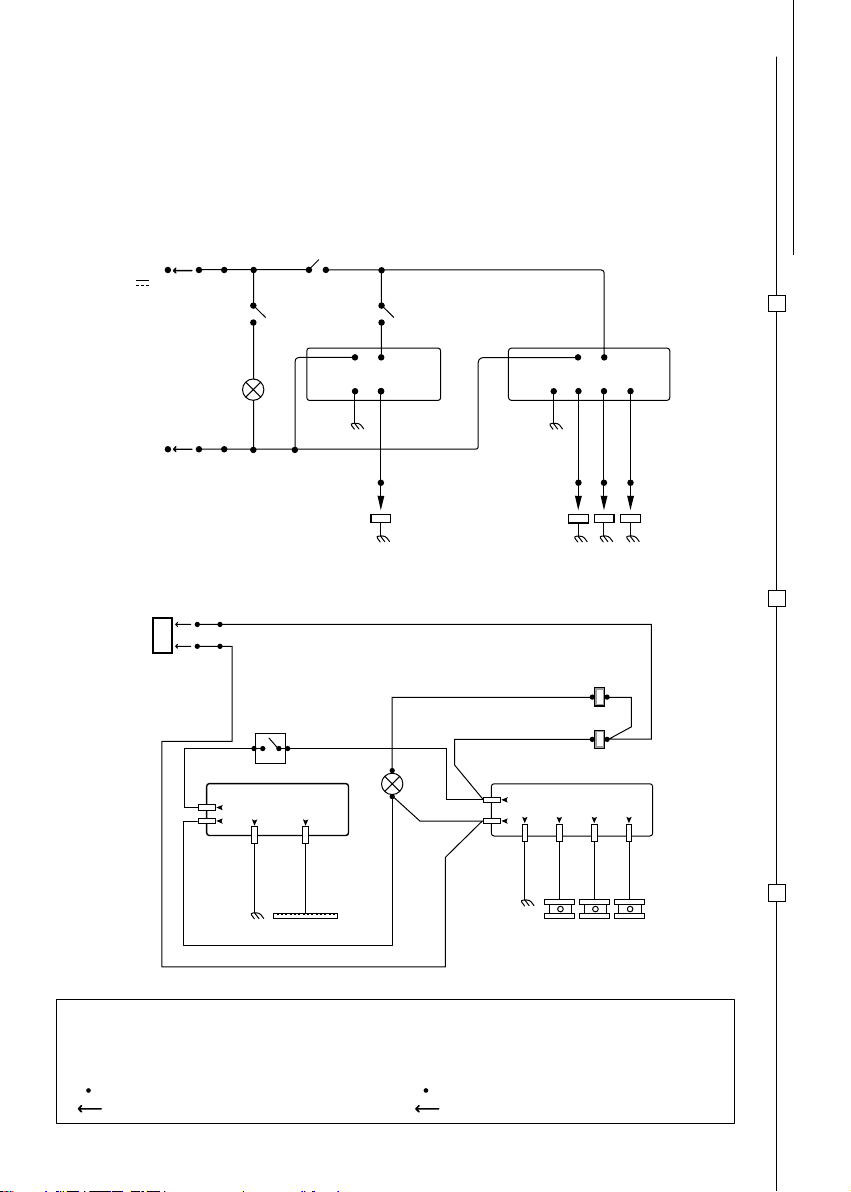

For the WIRING DIAGRAM see FIG. 4 - PAG. 32. Voltage supply must be between 9 and 13 V
This chapter refers only to models with the wording 12 V on the appliance specifications label affixed to the appliance.
This appliance runs off the following gas at the corresponding supply pressures. The gas category of the appliance is
given on the specifications label affixed to the appliance.
CONNECTING TO GAS SUPPLY
THE USE OF A TYPE OF GAS AND/OR OF A PRESSURE DIFFERENT FROM THOSE
PRESCRIBED BY SMEV, MAY CAUSE IRREGULAR OPERATING CONDITIONS OF
THE APPLIANCE; FOR THIS REASON, SMEV DECLINES ANY RESPONSIBILITY
ORIGINATING FROM INCORRECT USE OF THE APPLIANCE ITSELF.
Check all connections for gas leaks using a non-corrosive leak detection fluid. Do not use a soap and water
solution. Never use a naked flame.
LEAK TESTING OF THE APPLIANCE SHALL BE CONDUCTED ACCORDING TO THE
MANUFACTURER’S INSTRUCTIONS.
CONNECTING TO ELECTRICITY SUPPLY

USE INSTALLATION
MAINTENANCE ENGLISH
5
FIXING
The appliance must be secured by means of the fastening screws (FIG. 2 - PAG. 26):
1) insert the appliance in the unit;
2) tighten the screws.
ALWAYS DISCONNECT THE ELECTRIC SUPPLY BEFORE ANY TYPE OF
INTERVENTION ON THE UNIT
LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS.
WIRING ERRORS CAN CAUSE IMPROPER AND HAZARDOUS OPERATION.
VERIFY PROPER AND EFFICIENT OPERATION AFTER SERVICING
If polarity is incorrect electronic igniter will not function.

USE INSTALLATION
MAINTENANCE ENGLISH
6
SAFETY WARNINGS
THIS APPLIANCE MUST ONLY BE USED BY RESPONSIBLE ADULTS. DURING AND
IMMEDIATELY AFTER USE ACCESSIBLE PARTS MAY BE HOT; DO NOT TOUCH THEM
AND KEEP CHILDREN AWAY. ONCE COOKING IS COMPLETED, ENSURE THAT ALL
GAS CONTROL KNOBS ARE TURNED TO THE OFF POSITION. AFTER USE TURN OFF
THE GAS AT THE MAIN SUPPLY.
USE THE APPLIANCE ONLY IN A WELL VENTILATED SPACE. THE USE OF A GAS
COOKING APPLIANCE RESULTS IN THE PRODUCTION OF HEAT AND MOISTURE
IN THE ROOM IN WHICH IT IS INSTALLED. ENSURE THAT THE KITCHEN IS WELL
VENTILATED: KEEP NATURAL VENTILATION APERTURE OPEN OR INSTALL
A MECHANICAL VENTILATION DEVICE (MECHANICAL EXTRACTOR HOOD).
PROLONGED INTENSIVE USE OF THE APPLIANCE MAY REQUIRE ADDITIONAL
VENTILATION, FOR EXAMPLE OPENING OF A WINDOW, OR MORE EFFECTIVE
VENTILATION, FOR EXAMPLE INCREASING THE LEVEL OF THE MECHANICAL
VENTILATION WHERE PRESENT. COOKING FACILITIES MUST NOT BE USED
TO HEAT THE INSIDE OF THE VEHICLE. USE OVEN GLOVES OR POT HOLDERS
WHEN HANDLING HOT ELEMENTS. NEVER LAY PYREX LIDS OR OTHER ITEMS ON
THE BURNERS. KEEP APPLIANCE AREA CLEAR AND FREE FROM COMBUSTIBLE
MATERIALS, GASOLINE AND OTHER FLAMMABLE VAPORS AND LIQUIDS. DO NOT
OBSTRUCT THE FLOW OF COMBUSTION OR VENTILATION AIR.

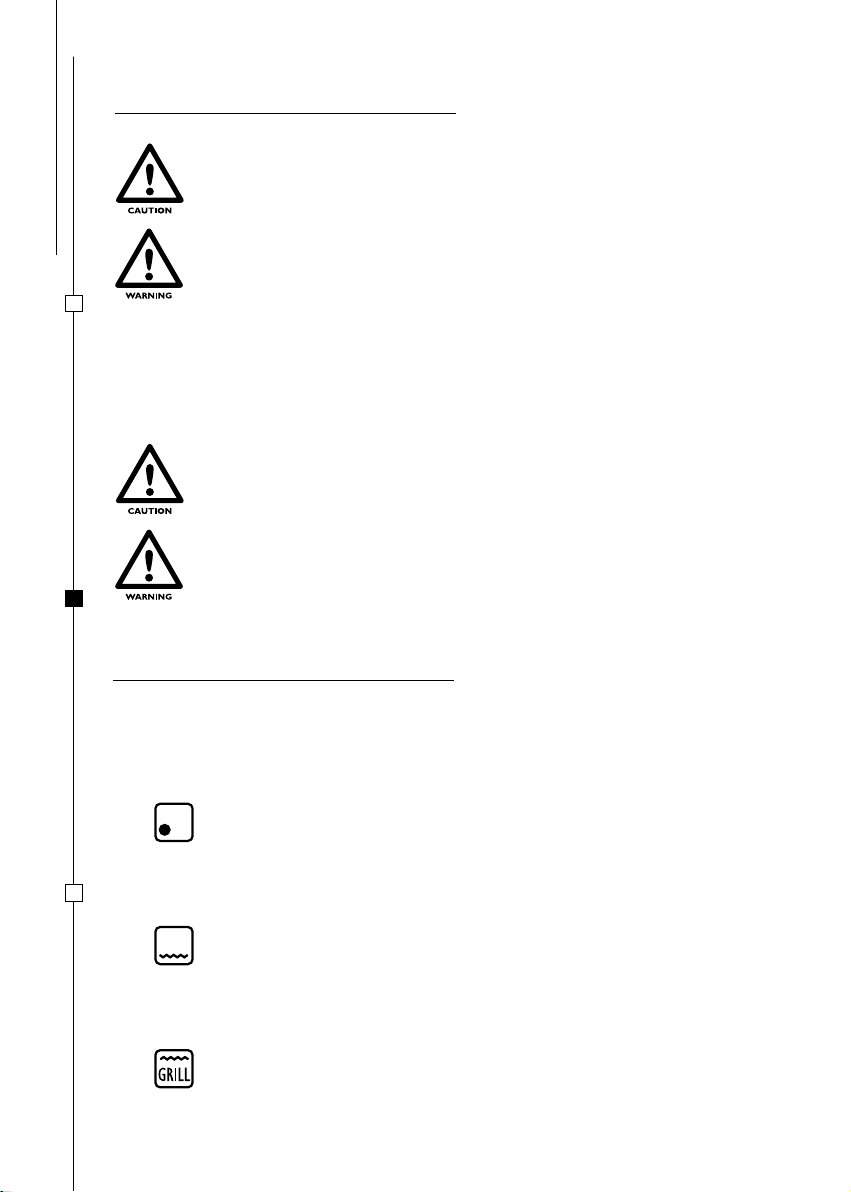

CONTROLS
The following symbols indicate the burner corresponding to the control knob.
NOTE: different models may have different knobs and different symbols.
BEFORE COOKING WITH THE OVEN AND BROILER FOR THE FIRST TIME TURN
ON THE OVEN OR BROILER AT HIGH FLAME AND LEAVE THE OVEN ON FOR
AT LEAST 30 MINUTES AND THE BROILER FOR 15-20 MINUTES.
THIS SYMBOL IS PLACED NEXT TO THE COOKTOP BURNER KNOBS.
FULL DOT REFERS TO THE CORRESPONDING COOKTOP BURNER.
SYMBOL PLACED NEXT TO THE OVEN BURNER KNOB.
SYMBOL PLACED NEXT TO THE BROILER BURNER KNOB.
GLASS COOKTOP COVERS MAY SHATTER WHEN HEATED.
TOP COVER MUST BE OPEN WHEN ANY BURNER (COOKTOP, OVEN AND BROILER)
IS IN OPERATION AND TURN OFF ALL BURNERS (COOKTOP, OVEN AND BROILER)
BEFORE LOWERING THE COOKTOP GLASS COVER.

USE INSTALLATION
MAINTENANCE ENGLISH
7

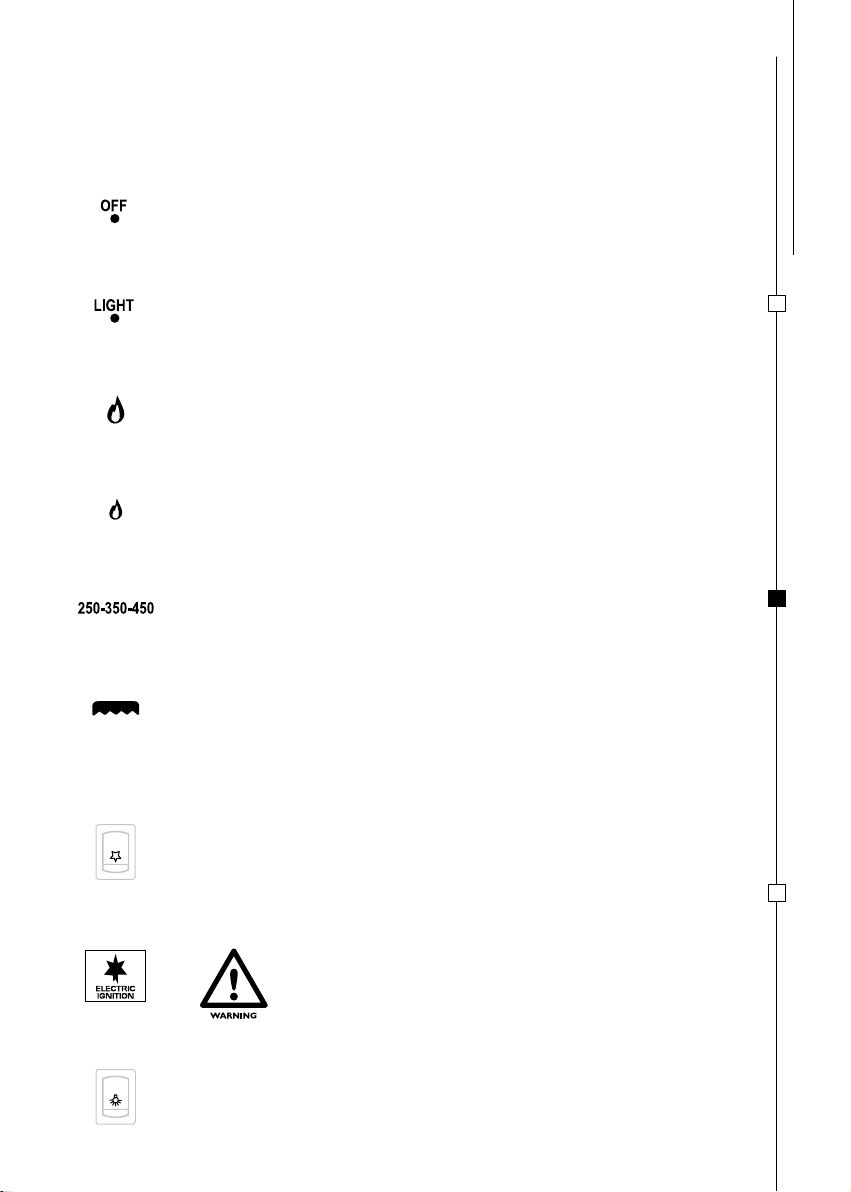

OTHER SYMBOLS
THIS SYMBOL IS POSITIONED ON THE OVEN DOOR SO THAT IS VISIBLE
FOR ALL MODELS FITTED WITH ELECTRONIC IGNITION ACTIVATED
BY MAINTAINING THE GAS KNOB PRESSED.
PUSHBUTTON ELECTRONIC IGNITION
PUSHBUTTON LIGHT
GAS OFF
HIGH FLAME
MINIMUM FLAME
VARIOUS OVEN TEMPERATURES
BROILER
The following symbols indicate the burner regulation corresponding to the knob position.
NOTE: different models may have different knobs and different symbols.
IGNITE POSITION

USE INSTALLATION
MAINTENANCE ENGLISH
8
BURNERS
Technical specifications for burners referring to appliance model:
MODEL BURNERS TOTAL
FLOW RATE
SEMIRAPID AUXILIARY RAPID BROILER OVEN
Ø 62 mm
Ø 2 7/16” Ø 47 mm Ø 1 27/32” Ø 77 mm Ø 3”
nr. (BTU/HR) nr. (BTU/HR) nr. (BTU/HR) nr. nr. BTU/HR
CU322 1 (5900) 1 (3700) 1 (3700) 13300
CU325 2 (5900) 1 (3700) 1 (3700) 19200
CU402 3 (5900) 1 (3700) 1 (5200) 26600
CU403 3 (5900) 1 (3700) 21400
CU423 1 (5900) 1 (3700) 1 (6700) 16300
CU434 1 (5900) 1 (3700) 1 (6700) 1 (3700) 20000
FO300 1 (3700) 3700

USE INSTALLATION
MAINTENANCE ENGLISH
9
To ignite burner, gently push-in and turn the control knob to IGNITE POSITION and maintaining the knob pushed at
the same time press the electronic ignition pushbutton. Once the burner is alight maintain the knob in this position
for few seconds to the ensure the flame remains alight.
-MANUAL IGNITION COOKTOP

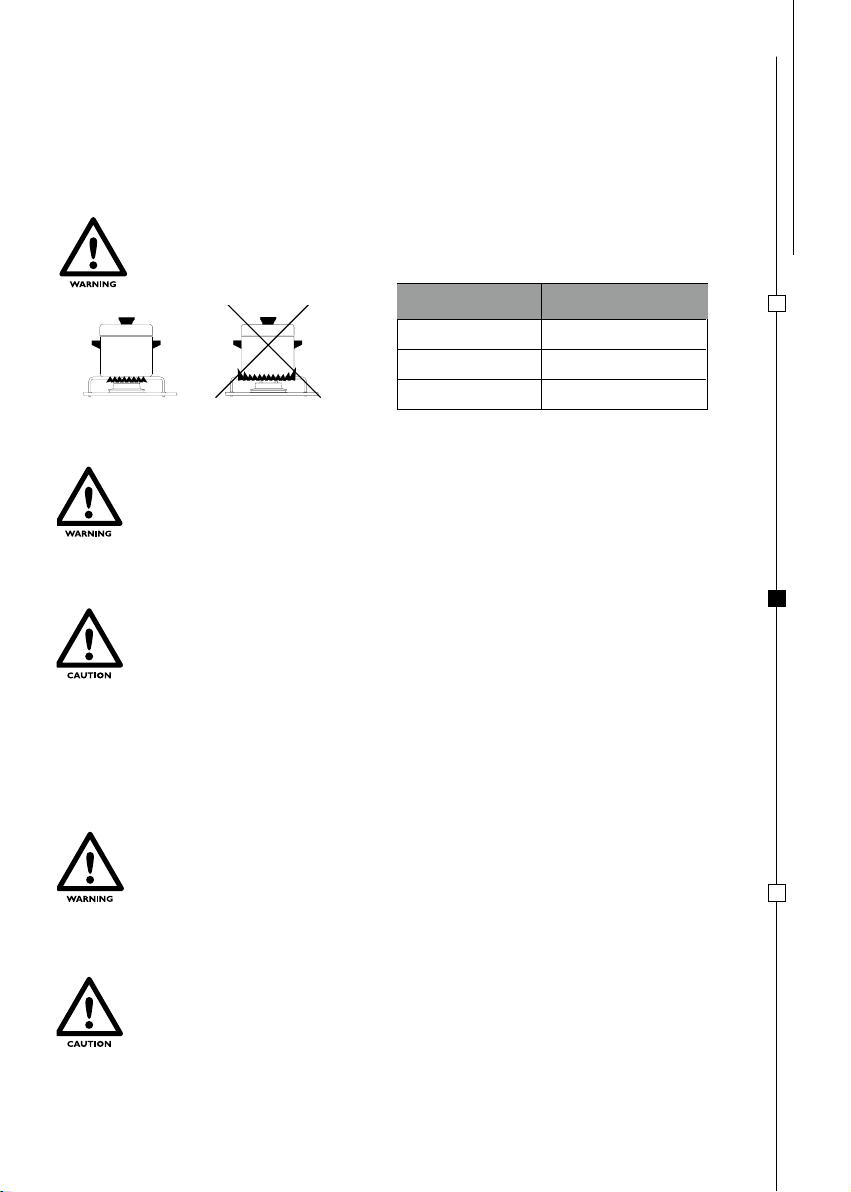

THE FLAME MUST NEVER EXTEND BEYOND THE EDGE OF THE PAN. CENTER THE
PAN OVER THE BURNER ENSURING STABILITY ON THE PAN SUPPORT.
- SELECTING BURNER
- ELECTRONIC IGNITION COOKTOP (DEPENDING ON MODEL)
COOKTOP
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the
electronic ignition.
MAKE SURE THERE ARE NO PANS OR OTHER ANY OBJECTS ON THE BURNERS
WHEN IGNITING.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER
HAVING FOLLOWED EACH STEP BELOW:
• TURN THE KNOB TO “MINIMUM FLAME”
• PROCEED WITH MANUAL IGNITION
• CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.
IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE
MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.
MAKE SURE THERE ARE NO PANS OR OTHER ANY OBJECTS ON THE BURNERS
WHEN IGNITING.
To ignite burner, gently push-in and turn the control knob to IGNITE POSITION and maintaining the knob pushed at
the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position
for few seconds to the ensure the flame remains alight.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT
GAS IN THE GAS BOTTLE.
IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE
MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.
- COOKTOP FLAME REGULATION
To regulate flame turn the knob to the desired cooking flame.
6 - 16 cm
2 3/8” - 6 5/16”
16 - 22 cm
6 5/16” - 8 21/32”
AUXILIARY
Ø 47 mm - 1 27/32”
SEMIRAPID
Ø 62 mm - 2 7/16”
BURNER PAN DIAMETER
16 - 22 cm
6 5/16” - 8 21/32”
RAPID
Ø 77 mm - 3”

INSTALLATION
USE
MAINTENANCE ENGLISH
10
To ignite burner, gently push-in and turn the control knob to IGNITE POSITION and maintaining the knob pushed at
the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position
for few seconds to the ensure the flame remains alight.
- MANUAL IGNITION OVEN
OVEN
THE OVEN BURNER MUST BE IGNITED ONLY WITH THE OVEN DOOR FULLY OPEN.
THE WIRE SHELF, DRIP TRAY AND OVEN DISH WHEN IN THE OVEN MUST BE
POSITIONED SO AS TO AVOID COMING INTO CONTACT WITH THE FLAMES.
IF THE BURNER FLAME GOES OUT ACCIDENTALLY TURN OFF THE GAS KNOB AND
WAIT ONE MINUTE BEFORE RE-IGNITING.
- ELECTRONIC IGNITION OVEN (DEPENDING ON MODEL)
To ignite burner, push-in and turn the control knob to IGNITE POSITION and maintaining the knob pushed at the same
time press the electronic ignition pushbutton (for models that have ★ affixed to the oven door the electronic ignition
button is not visible and is activated by pressing the gas knob down). Once the burner is alight maintain the knob in
this position for few seconds to the ensure the flame remains alight.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT
GAS IN THE GAS BOTTLE.
IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE
MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER
HAVING FOLLOWED EACH STEP BELOW:
• PROCEED WITH MANUAL IGNITION
• CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.
IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE
MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the
electronic ignition.
- FLAME REGULATION OVEN
When the oven burner is ignited the flame remains at high flame in all knob positions. When the oven reaches the set
temperature the flame automatically goes down to low flame.
POSITION 250 350 450
TEMPERATURE 250° F 350° F 450° F

USE INSTALLATION
MAINTENANCE ENGLISH
11
To ignite burner, gently push-in and turn the control knob to IGNITE POSITION and maintaining the knob pushed at
the same time press the electronic ignition button (for models with the ★ symbol affixed to the door, the ignition
button is not visible and is activated by pressing the knob down). Once the burner is alight maintain the knob in this
position for few seconds to the ensure the flame remains alight.
BROILER
- ELECTRONIC IGNITION BROILER (DEPENDING ON MODEL)
THE BROILER BURNER MUST BE IGNITED ONLY WITH THE DOOR FULLY OPEN.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY, RELEASE THE KNOB WAIT FOR
AT LEAST 10 SECONDS AND IGNITE AGAIN.
AS ACCESSIBLE PARTS MAY BE VERY HOT WHEN USING THE BROILER KEEP
CHILDREN AT A SAFE DISTANCE FROM BROILER.
NEVER USE THE BROILER FOR MORE THAN 25 MINUTES. THE BROILER CANNOT BE
USED AS AN OVEN.
IF THE BURNER FLAME GOES OUT ACCIDENTALLY TURN OFF THE GAS KNOB AND
WAIT ONE MINUTE BEFORE RE-IGNITING.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER
HAVING FOLLOWED EACH STEP BELOW:
• PROCEED WITH MANUAL IGNITION
• CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.
IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE
MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.
VISUAL FLAME CONTROL
Propane: The flames internal tongue should be blue and the outline well defined.
- FLAME REGULATION BROILER (only for models CU401 and CU402)
To adjust flame simply turn burner knob to the desired cooking flame.
To ignite burner, gently push-in and turn the control knob to IGNITE POSITION and maintaining the knob pushed at
the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position
for few seconds to the ensure the flame remains alight.
IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT
GAS IN THE GAS BOTTLE.
IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE
MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.
- MANUAL IGNITION BROILER
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the
electronic ignition.

INSTALLATION
USE
MAINTENANCE
12
TURN OFF THE APPLIANCE AND ALLOW TO COOL BEFORE CLEANING.
COLD WATER OR A DAMP CLOTH MAY DAMAGE HOT SURFACES.
CLEANING
TEST PRESSURE POINT
THE OPERATIONS MUST BE CARRIED OUT BY AUTHORIZED PERSONNEL.
SMEV DECLINES ANY RESPONSIBILITY RELATED TO SAID INTERVENTION.
The test pressure point is located on the pressure regulator.
WARRANTY
In case of warranty claim or any repair or replacement which becomes necessary, the vehicle or part dealer who sold
the product should be contacted. Give model and serial number on all repair part orders and correspondence.
DO NOT USE ABRASIVE, CORROSIVE, CHLORIDE-BASED PRODUCTS OR STEEL OR
OTHER SCOURING PADS. DO NOT LEAVE ACIDIC SUBSTANCES E.G. VINEGAR, SALT,
LEMON JUICE ETC. ON THE APPLIANCE SURFACES. STAINLESS STEEL SURFACES
AND ENAMELED PARTS SHOULD ONLY BE WASHED WITH SOAPY WATER OR
NEUTRAL DETERGENT, RINSED AND DRIED. ONLY USE CLEAN SPONGES OR
CLOTHS.
INJECTOR
CLEANING AND/OR REPLACEMENT OF BURNER INJECTORS (FIG. 1 - PAG. 25)
When removing or installing an injector, the holder must be held with a suitable tool.
THE OPERATIONS MUST BE CARRIED OUT BY AUTHORIZED PERSONNEL.
SMEV DECLINES ANY RESPONSIBILITY RELATED TO SAID INTERVENTION.
BURNERS INJECTOR
Ø mm HOB NUMBER
AUXILIARY
Ø 47 mm - 1 27/32” 0,57 57
SEMIRAPID
Ø 62 mm - 2 7/16” 0,72 72
RAPID
Ø 77 mm - 3” 0,80 80
BROILER 0,67 67
OVEN 0,57 57

25
1 FIG.

CU403
CU423
CU434
CU401
CU402
CU322
CU325
FO300
CU403
CU423
CU434
CU401
CU402
CU322
CU325
FO300
27

CU403
CU423
20 mm
13/16”
20 mm
13/16”
488 mm
19 7/32”
MIN. 494 mm
MIN. 19 7/16"
479 mm
18 27/32”
MIN. 500 mm
MIN. 19 11/16”
488 mm
19 7/32"
281 mm - 11 3/32”
281 mm - 11 3/32”
TOP VIEW SIDE VIEWFRONT VIEW
20 mm
13/16”
20 mm
13/16”
488 mm
19 7/32”
MIN. 494 mm
MIN. 19 7/16"
479 mm
18 27/32”
MIN. 500 mm
MIN. 19 11/16”
488 mm
19 7/32"
130 mm - 5 1/8” 130 mm - 5 1/8”
TOP VIEW SIDE VIEWFRONT VIEW
20 mm
13/16”
20 mm
13/16”
488 mm
19 7/32”
MIN. 494 mm
MIN. 19 7/16"
25 mm
1"
479 mm
18 27/32”
MIN. 500 mm
MIN. 19 11/16”
488 mm
19 7/32"
489 mm - 19 1/4”
499 mm - 19 21/32”
489 mm - 19 1/4”
499 mm - 19 21/32”
TOP VIEW SIDE VIEWFRONT VIEW
TOP VIEW SIDE VIEWFRONT VIEW
20 mm
13/16”
20 mm
13/16”
488 mm
19 7/32”
MIN. 494 mm
MIN. 19 7/16"
601 mm - 23 21/32”
25 mm
1"
479 mm
18 27/32”
MIN. 21 mm
MIN. 27/32”
MIN. 500 mm
MIN. 19 11/16”
591 mm - 23 9/32”
MIN. 21 mm
MIN. 27/32”
MIN. 21 mm
MIN. 27/32”
MIN. 21 mm
MIN. 27/32”
488 mm
19 7/32"
601 mm - 23 21/32”
591 mm - 23 9/32”
MIN. 25 mm
MIN. 1"
FLOOR
MIN. 25 mm
MIN. 1"
FLOOR
MIN. 25 mm
MIN. 1"
FLOOR
CU434
20 mm
13/16”
20 mm
13/16”
488 mm
19 7/32”
MIN. 494 mm
MIN. 19 7/16"
479 mm
18 27/32”
MIN. 500 mm
MIN. 19 11/16”
488 mm
19 7/32"
281 mm - 11 3/32”
281 mm - 11 3/32”
TOP VIEW SIDE VIEWFRONT VIEW
20 mm
13/16”
20 mm
13/16”
488 mm
19 7/32”
MIN. 494 mm
MIN. 19 7/16"
479 mm
18 27/32”
MIN. 500 mm
MIN. 19 11/16”
488 mm
19 7/32"
130 mm - 5 1/8” 130 mm - 5 1/8”
TOP VIEW SIDE VIEWFRONT VIEW
20 mm
13/16”
20 mm
13/16”
488 mm
19 7/32”
MIN. 494 mm
MIN. 19 7/16"
25 mm
1"
479 mm
18 27/32”
MIN. 500 mm
MIN. 19 11/16”
488 mm
19 7/32"
489 mm - 19 1/4”
499 mm - 19 21/32”
489 mm - 19 1/4”
499 mm - 19 21/32”
TOP VIEW SIDE VIEWFRONT VIEW
TOP VIEW SIDE VIEWFRONT VIEW
20 mm
13/16”
20 mm
13/16”
488 mm
19 7/32”
MIN. 494 mm
MIN. 19 7/16"
601 mm - 23 21/32”
25 mm
1"
479 mm
18 27/32”
MIN. 21 mm
MIN. 27/32”
MIN. 500 mm
MIN. 19 11/16”
591 mm - 23 9/32”
MIN. 21 mm
MIN. 27/32”
MIN. 21 mm
MIN. 27/32”
MIN. 21 mm
MIN. 27/32”
488 mm
19 7/32"
601 mm - 23 21/32”
591 mm - 23 9/32”
MIN. 25 mm
MIN. 1"
FLOOR
MIN. 25 mm
MIN. 1"
FLOOR
MIN. 25 mm
MIN. 1"
FLOOR
30

RR
OVEN BURNERGRILL
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
(only for three burner models)
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
(uniquement pour les modèles à 3 brûleurs)
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
CU401
R R
TOP BURNERS GRILL
+
+
-
+
-
BKBK
RR
R
R
R
R
BK BK
12 V DC
IGNITION MODULE 2F IGNITION MODULE 6F
G
R
G
R R
OVEN
R
SPARK ELECTRODES
-
LIGHT
SWITCH
IGNITION
PUSH-BUTTON
W W
TOP BURNERS
+
+
-
BKW
RRBK
IGNITION MODULE 4F
W W
SPARK ELECTRODES
-
CU403
IGNITION
PUSH-BUTTON +
+
-
BK
IGNITION
PUSH-BUTTON
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
BK BK
IGNITION MODULE 2F
G
OVEN
R
SPARK
ELECTRODES
-
FO300
CU300 CU322
W W
TOP BURNERS
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
IGNITION MODULE 4F
GG G
W W
OVEN
R
R R
R R
R
R
R
R
RR
R
BK R
W
BK
BK
G
BKBK
BKBK
R
SPARK ELECTRODES
-
TOP BURNERS
+
+
-
+
-
BKBKW
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RRBK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 2F
G
W W
OVEN
R
SPARK ELECTRODES
-
CU325
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
W
OVEN
R
SPARK ELECTRODES
-
CU402
R R
TOP BURNERS GRILL
+
+
-
BKW
RRBK
IGNITION MODULE 6F
G
RR R
SPARK ELECTRODES
-
IGNITION
PUSH-BUTTON
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTON
COOLLING
FANS
MICROSWITCH
LIGHT
SWITCH
SWITCH
RR
R
R
R
R
BK BK
12 V DC
IGNITION MODULE 2F IGNITION MODULE 4F
G
W W
OVEN
R
SPARK ELECTRODES
-
R
R
BK
CU404
CU311 CU333
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
W W
OVEN
R
SPARK ELECTRODES
-
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 2F
W W
OVEN
R
SPARK ELECTRODES
-
GRILL
R
GRILL
R
GRILL
R
G
CU335
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
W
OVEN
R
SPARK ELECTRODES
-
FAN
R
FAN
TOP BURNERS OVEN BURNER
IGNITION MODULE 2F
CONNECTORS
IGNITION MODULE 4F
CONNECTORS
COOLING FANS
FANS SWITCH
60
12 V
BATTERY
+
-
MOTMOT
W WW W G R BK
BK
BKBK
BK BK
BK
R
R
RRRR
R
R
R
R
RR
R
LIGHT
T
LIGHT
SWITCH
IGNITION
PUSH-BUTTON
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
WWWW
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 4F
R R
R R
R
R
R
R
RR
R
BK R
W
BK
BK
R
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNERGRILL
LIGHT
WWWW
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 2F
R R
R R
R
R
R
R
RR
R
BK R
W
BK
BK
G
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
WW
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 2F
R R
R R
R
R
R
RR
R
BK R
W
BK
BK
RR
OVEN BURNERGRILL
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
LIGHT
WW
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 4F
R R
R R
R
R
R
R
RR
R
RBK
W
BK
BK
G
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
WWWG
TOP BURNERS
IGNITION MODULE 4F
R R
R R
R
R
R
RR
R
BK R
W
BK
BK
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
LIGHT
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
WWWG
TOP BURNERS
IGNITION MODULE 4F
R
BK
BKW
CONNECTORS
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
WWWW
R R
TOP BURNERS
R
BK
BKW
IGNITION MODULE 6F
CONNECTORS
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
RRRR
R R
R
GRILL
G
R R
R R
R
R
RR
R
BK R
W
BK
BK
G
BK
BKBK
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
+
-
12 VOLT
BATTERY
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
+
+
-
BK
IGNITION
PUSH-BUTTON
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
BK BK
IGNITION MODULE 2F
OVEN
R
SPARK
ELECTRODES
-
FO311
GRILL
R
R R
R R
R
R
RR
R
BK R
W
BK
BK
R
BK
BKBK
IGNITION MODULE 2F
CONNECTORS
OVEN BURNERGRILL
LIGHT
+
-
12 VOLT
BATTERY
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
12 V
12 V 12 V 12 V 12 V
12 V 12 V
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
G G
G
CU434
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
W
OVEN
R
SPARK ELECTRODES
-
TOP BURNERS
IGNITION MODULE 4F
R R
R
R
R
R
RR R
RBK
W
BK
BK
G
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
WWWG
G
12 V
12 V
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
W
TOP BURNERS
+
+
-
BKW
RRBK
IGNITION MODULE 4F
W W
SPARK ELECTRODES
-
CU423
IGNITION
PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 4F
R
BK
BKW
CONNECTORS
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
WWW
R R
12 V
12 V
12 V
36

RR
OVEN BURNERGRILL
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
(only for three burner models)
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
(uniquement pour les modèles à 3 brûleurs)
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
CU401
R R
TOP BURNERS GRILL
+
+
-
+
-
BKBK
RR
R
R
R
R
BK BK
12 V DC
IGNITION MODULE 2F IGNITION MODULE 6F
G
R
G
R R
OVEN
R
SPARK ELECTRODES
-
LIGHT
SWITCH
IGNITION
PUSH-BUTTON
W W
TOP BURNERS
+
+
-
BKW
RRBK
IGNITION MODULE 4F
W W
SPARK ELECTRODES
-
CU403
IGNITION
PUSH-BUTTON +
+
-
BK
IGNITION
PUSH-BUTTON
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
BK BK
IGNITION MODULE 2F
G
OVEN
R
SPARK
ELECTRODES
-
FO300
CU300 CU322
W W
TOP BURNERS
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
IGNITION MODULE 4F
GG G
W W
OVEN
R
R R
R R
R
R
R
R
RR
R
BK R
W
BK
BK
G
BKBK
BKBK
R
SPARK ELECTRODES
-
TOP BURNERS
+
+
-
+
-
BKBKW
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RRBK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 2F
G
W W
OVEN
R
SPARK ELECTRODES
-
CU325
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
W
OVEN
R
SPARK ELECTRODES
-
CU402
R R
TOP BURNERS GRILL
+
+
-
BKW
RRBK
IGNITION MODULE 6F
G
RR R
SPARK ELECTRODES
-
IGNITION
PUSH-BUTTON
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTON
COOLLING
FANS
MICROSWITCH
LIGHT
SWITCH
SWITCH
RR
R
R
R
R
BK BK
12 V DC
IGNITION MODULE 2F IGNITION MODULE 4F
G
W W
OVEN
R
SPARK ELECTRODES
-
R
R
BK
CU404
CU311 CU333
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
W W
OVEN
R
SPARK ELECTRODES
-
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 2F
W W
OVEN
R
SPARK ELECTRODES
-
GRILL
R
GRILL
R
GRILL
R
G
CU335
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
W
OVEN
R
SPARK ELECTRODES
-
FAN
R
FAN
TOP BURNERS OVEN BURNER
IGNITION MODULE 2F
CONNECTORS
IGNITION MODULE 4F
CONNECTORS
COOLING FANS
FANS SWITCH
60
12 V
BATTERY
+
-
MOTMOT
W WW W G R BK
BK
BKBK
BK BK
BK
R
R
RRRR
R
R
R
R
RR
R
LIGHT
T
LIGHT
SWITCH
IGNITION
PUSH-BUTTON
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
WWWW
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 4F
R R
R R
R
R
R
R
RR
R
BK R
W
BK
BK
R
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNERGRILL
LIGHT
WWWW
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 2F
R R
R R
R
R
R
R
RR
R
BK R
W
BK
BK
G
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
WW
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 2F
R R
R R
R
R
R
RR
R
BK R
W
BK
BK
RR
OVEN BURNERGRILL
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
LIGHT
WW
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 4F
R R
R R
R
R
R
R
RR
R
RBK
W
BK
BK
G
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
WWWG
TOP BURNERS
IGNITION MODULE 4F
R R
R R
R
R
R
RR
R
BK R
W
BK
BK
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
LIGHT
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
WWWG
TOP BURNERS
IGNITION MODULE 4F
R
BK
BKW
CONNECTORS
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
WWWW
R R
TOP BURNERS
R
BK
BKW
IGNITION MODULE 6F
CONNECTORS
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
RRRR
R R
R
GRILL
G
R R
R R
R
R
RR
R
BK R
W
BK
BK
G
BK
BKBK
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
+
-
12 VOLT
BATTERY
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
+
+
-
BK
IGNITION
PUSH-BUTTON
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
BK BK
IGNITION MODULE 2F
OVEN
R
SPARK
ELECTRODES
-
FO311
GRILL
R
R R
R R
R
R
RR
R
BK R
W
BK
BK
R
BK
BKBK
IGNITION MODULE 2F
CONNECTORS
OVEN BURNERGRILL
LIGHT
+
-
12 VOLT
BATTERY
LIGHT SWITCH
MICROSWITCH
IGNITION PUSH-BUTTON
12 V
12 V 12 V 12 V 12 V
12 V 12 V
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
G G
G
CU434
W W
TOP BURNERS
+
+
-
+
-
BKBK
IGNITION
PUSH-BUTTONS
MICROSWITCH
LIGHT
LIGHT SWITCH
RR
W
BK
R
R
R
R
BK BK
IGNITION MODULE 2F IGNITION MODULE 4F
W
OVEN
R
SPARK ELECTRODES
-
TOP BURNERS
IGNITION MODULE 4F
R R
R
R
R
R
RR R
RBK
W
BK
BK
G
BKBK
BKBK
R
CONNECTORS
IGNITION MODULE 2F
CONNECTORS
OVEN BURNER
LIGHT
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
LIGHT SWITCH
MICROSWITCH
WWWG
G
12 V
12 V
R = RED Wire
G = GREEN WITH YELLOW STRIPES Wire
W = WHITE Wire
BK = BLACK Wire
= WIRE Connection
= Wired by Installer
R = Fil ROUGE
G = Fil A LIGNES VERTES ET JAUNES
W = Fil BLANC
BK = Fil NOIR
= BRANCHEMENT DES FILS
= Câblé par l’installateur
W
TOP BURNERS
+
+
-
BKW
RRBK
IGNITION MODULE 4F
W W
SPARK ELECTRODES
-
CU423
IGNITION
PUSH-BUTTON
TOP BURNERS
IGNITION MODULE 4F
R
BK
BKW
CONNECTORS
+
-
12 VOLT
BATTERY
IGNITION PUSH-BUTTON
WWW
R R
12 V
12 V
12 V
37

102 mm
4”
305 mm
12”
762 mm
30”
457 mm
18”
MAX 330 mm
MAX 13”
NOT LESS THAN
APPLIANCE WIDTH
102 mm
4”
CU322
CU325
CU402
CU403
CU423
CU434
5 FIG.
FO300
39

COD 41 REV 2
