Smith-Victor LED Desktop Studio User manual

LED Desktop Studio - Assembly Instructions
A. Slide LED Panel into Diffuser. The
LED lights will shine through the
Diffuser panel which softens the light
and reduces reflection on the objects
you will be photographing.
B. How to convert the Portfolio/Carry Case into the LED Desktop Studio - Unfold
to reveal the cut out in the roof portion of the cube that houses the LED panel.
Mount the LED Panel into the roof portion before assembling the cube. The LED
Panel only needs to be mounted once, then stores safely in place.
C. Peel back the LED frame in order
to mount the panel using the Velcro
strips.
D. Start at the hinged side of the LED Panel Cover. Feed cord through the opening in
the center. Locate the slot in the LED Panel and thread the Velcro® strap through it.
Take the end of the Velcro strap and follow the cords back through the hole, then
secure in place. Check alignment with the other 3 Velcro straps and adjust
accordingly. Continue to thread Velcro straps into holes in the other 3 sides and
secure in place. Fold over the LED Panel Cover to cover the Light Panel edges and
anchor the Velcro.

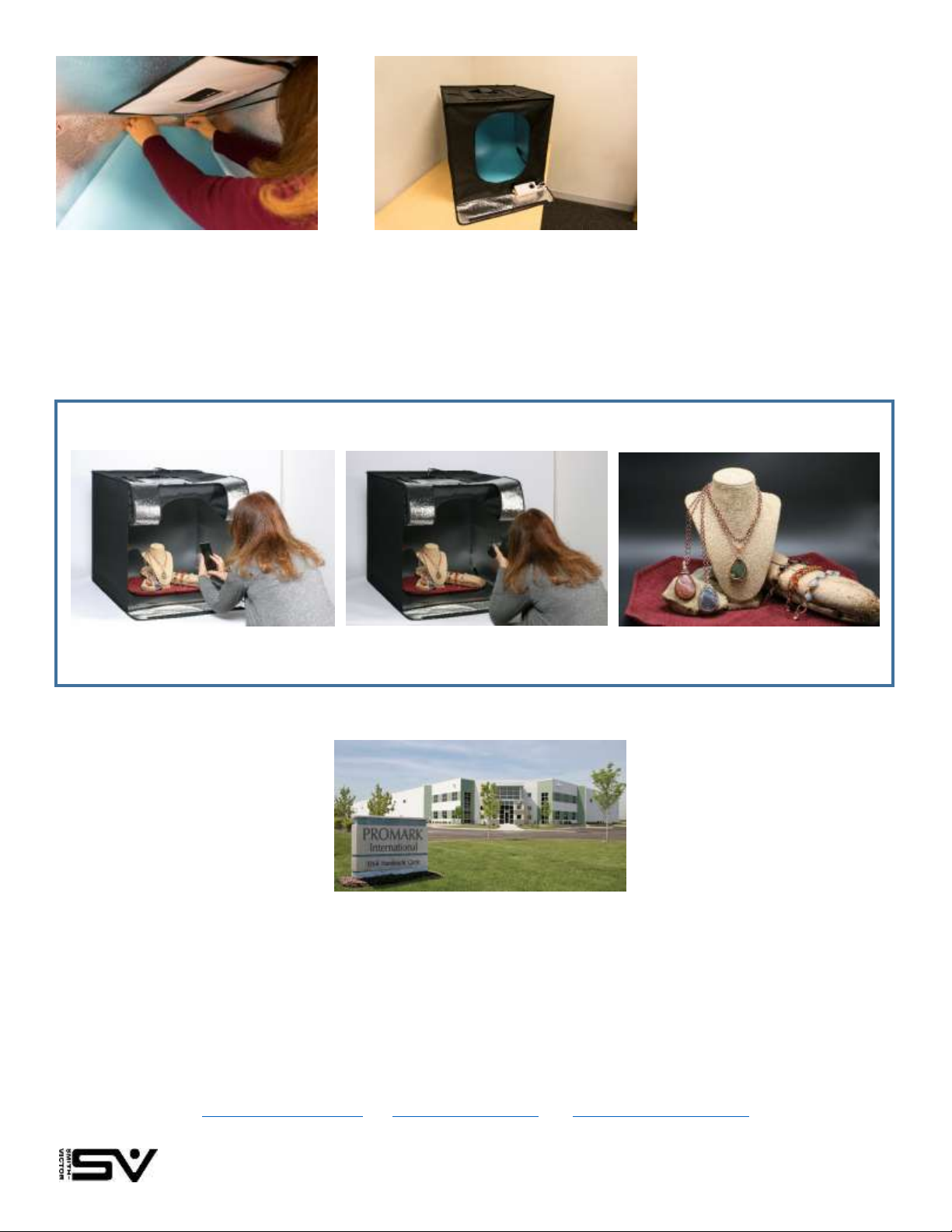

E. Assemble the cube. Each edge of the cube has Velcro to hold it in place.
Simply unfold then press edges together as the cube shape forms. Continue
this process until 3 sides are in place then fold the cube onto the base. Press
all of the sides to secure.
F. Attach the cord ends. Plug the
cord into your wall outlet. The
dimmer switch is located in the cord.

Please review other fine product lines available at PromarkBRANDS.
•Smith-Victor •Photogenic •Dot Line •Quantum •Radiopopper •
•Photoflex •Cool-Lux •Speedotron •Norman •Logan •
Smith-Victor is a division of PromarkBRANDS
1268 Humbracht Circle, Bartlett, IL 60102 U.S.A.
800-348-9862 or 630-830-9200
[email protected]om | www.smithvictor.com | www.promarkbrands.com
G. Choose one of the 4 color sweeps
or use your own fabric as a
backdrop. Clips are hanging from the
back corners to hold the sweeps in
place. Be sure to center the sweep.
You are now ready to start shooting
and posting images. Lighting is the
key to all professional photography.
Give your online customers that
“touch and feel” experience showing
every detail of your products.
You don’t have to be a professional to take great pictures!
Use a smart phone or camera, either way you will have great results!
# 999545 LDS15 & LDS24 Assembly Instructions_rev.3-2017
When finished and light is cool, simply
pull apart the sides to release the
Velcro then fold back into the
Portfolio/Carry Case for storage.
For more information on Smith-Victor
products go to:
www.smithvictor.com
facebook.com/smith.victor.corp
twitter.com/@smithvictorcorp
