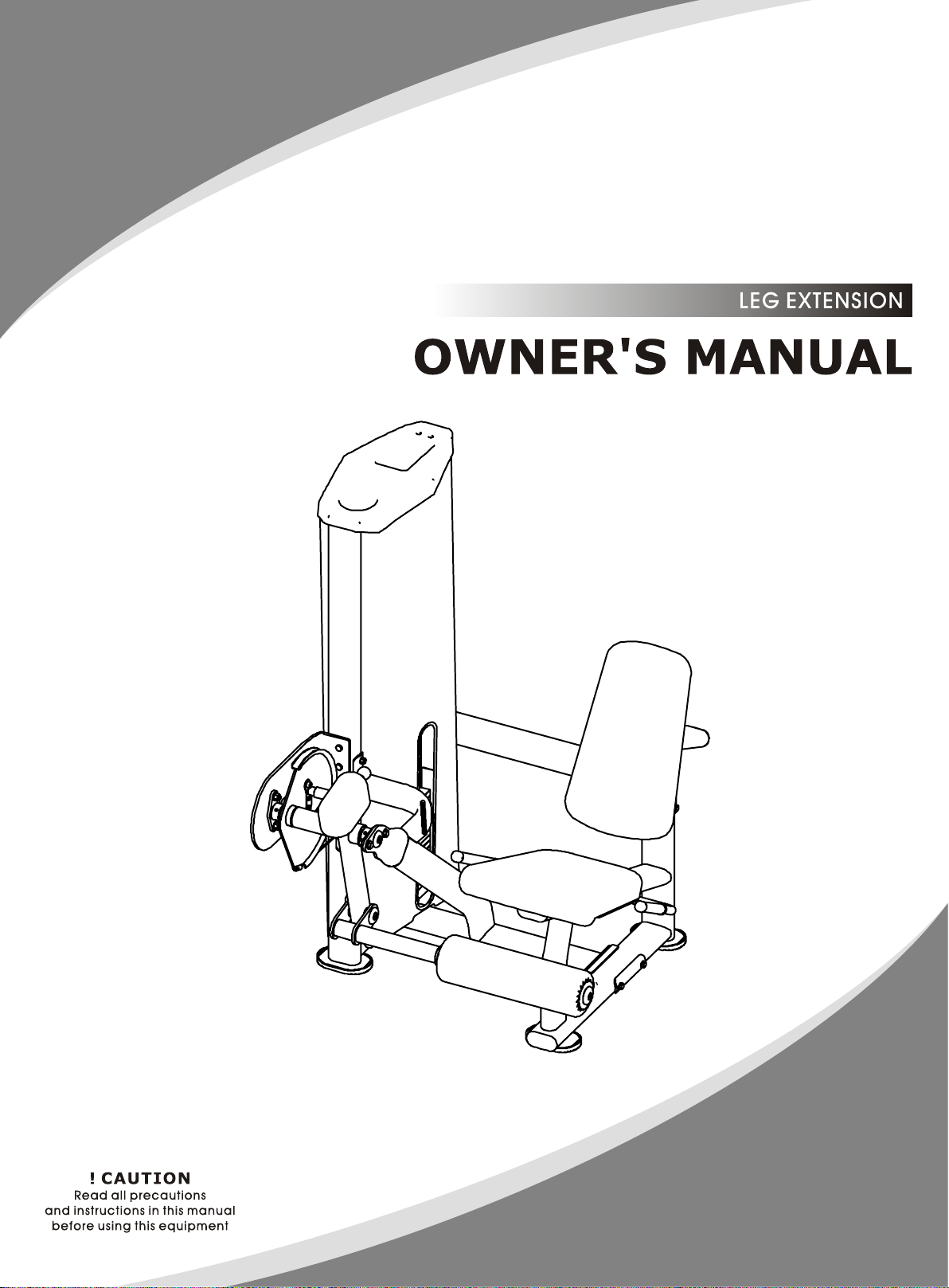

Smith DA014 User manual

DA014

15
16
17

─ 3 ─
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete
physical examination from your physician. When using exercise equipment,
basic precautions should always be taken, including the following:
* Read all instructions before using the equipment. These instructions are
written to ensure your safety and to protect the unit.
* Do not allow children on or near the equipment.
* Use the equipment only for its intended purpose as described in this
guide. Do not use accessory attachments that are not recommended by
the manufacturer: such attachments might cause injuries.
* Wear proper exercise clothing and shoes for your workout----no loose
clothing.
* Be careful when getting on or off the equipment.
* Do not overexert yourself or work to exhaustion.
* If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
* Never operate the unit when it has been dropped or damaged.
* Never drop or insert anything into any opening in the equipment.
* Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
* Frayed or worn cables can be dangerous and may cause injury.
Periodically check these cables for any indication of wear.
* Keep hands, limbs, loose clothing and long hair well out of the way of
moving parts.
* Do not attempt to lift more weight than you can control safely.
* Do not use the equipment outdoors.
Personal Safety During Assembly
* Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead. If you skip ahead, you may learn later that
you have to disassemble components and that you may have damaged
the equipment.
* Assemble and operate the equipment on a solid, level surface. Locate the
unit a few feet from walls or furniture to provide easy access. The
equipment is designed for your enjoyment. By following these precautions
and using common sense, you will have many safe and pleasurable hours
of healthful exercise with the equipment.

Instructions
Before beginning assembly please take the time to read instructions
thoroughly. Please use the various lists in this manual to make sure that all
parts have been included in your shipment. When ordering, use part number
and description from the lists. Use only our replacement part when servicing.
Failure to do so will void your warranty and could result in personal injury.
The equipment is designed to provide the smoothest, most effective
exercise motion possible. After assembly, you should check all functions to
ensure correct operation. If you experience problems, first recheck the
assembly instructions to locate any possible errors made during assembly. If
you are unable to correct the problem, call your authorized dealer. Be sure to
have your serial number and this manual when calling. When all parts have
been accounted for, continue on.

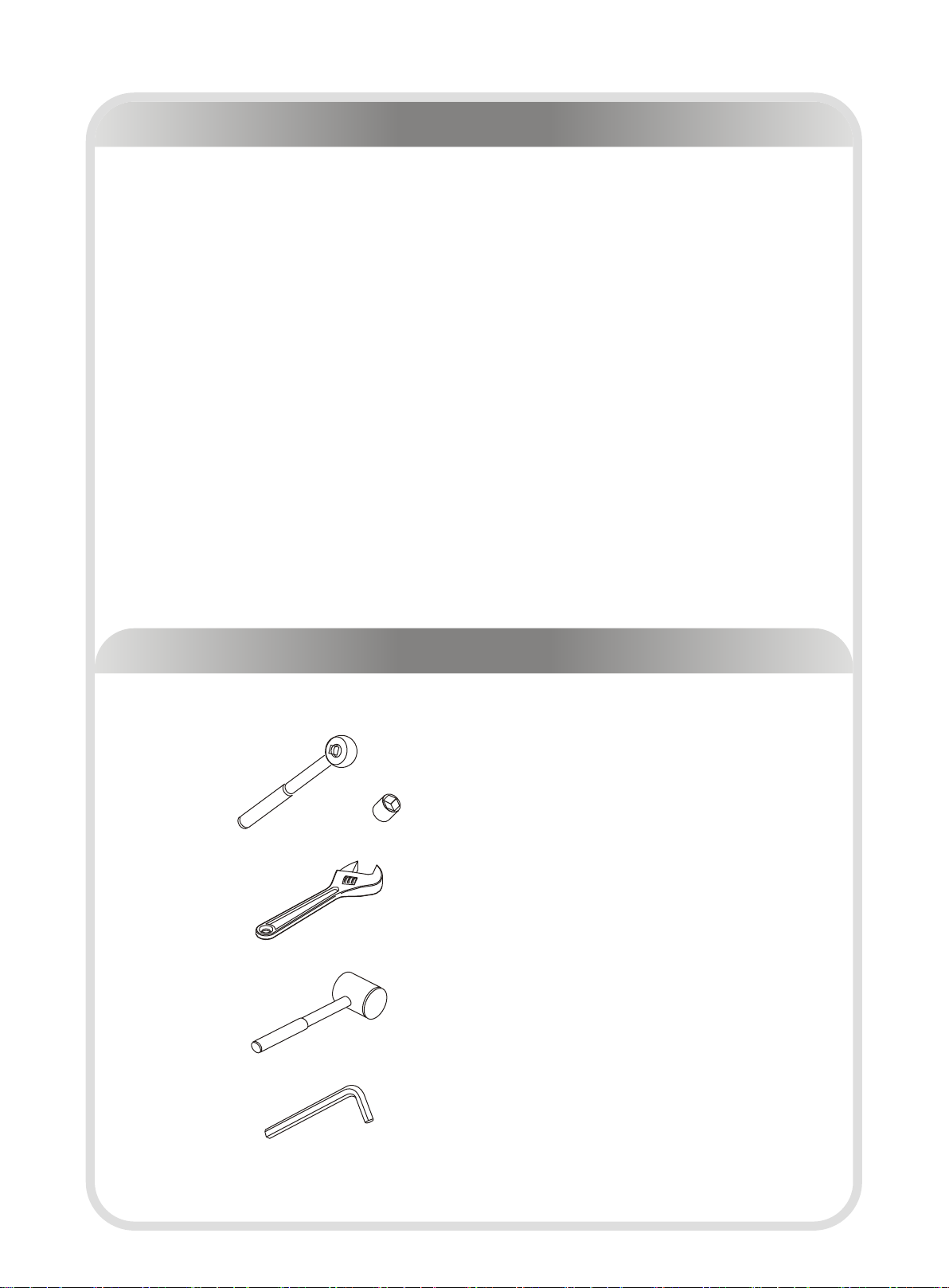

Tools Required
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set
─ 4 ─

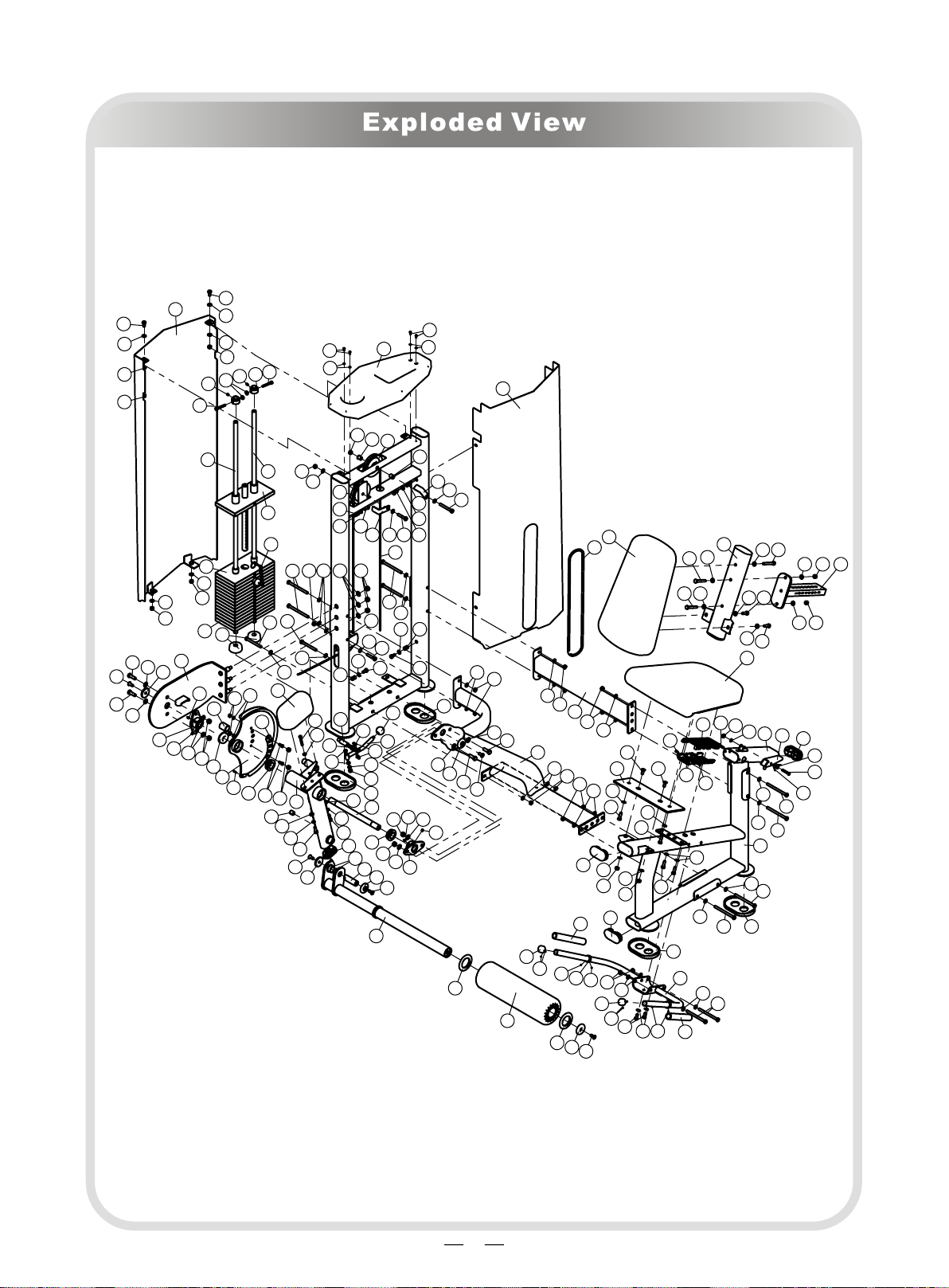

Item No. Description Qty Item No. Description Qty
1 Weight Stack Frame 1 46 Aluminium Cap φ60*φ12.5*10.6 1
2 Bottom Cross Brace 1 47 Aluminium Cap φ50*8 4
3 Rear Cross Brace 1 48 Spacer 1
4 Main Frame 1 49 Grip 2
5 Main Bracket 1 50 Plug PT50*100 5
6 Swing Support 1 51 Aluminium Grip Cap 2
7 Cam 1 52 Aluminium Grip Ring 2
8 Swing Tube 1 53 Bushing 2
9 Back Pad Support 1 54 Bearing Φ50.8*Φ25.4*15.9 4
10 Adjustable Tube 1 55 Flat Head Hex Rivet Nuts M10*19.5 4
11 Handle 1 56 Hex Head Bolt M12*35 4
12 Adjustable Handle 1 57 Flat Washer φ13*φ24*2 11
13 Flange 2 58 Nylon lock Nut M12 7
14 Seat Pad Plate 1 59 Flat Head Cap Screw M10*25 7
15 Front Shroud 1 60 Hex Head Bolt M10*130 4
16 Rear Shroud 1 61 Hex Head Bolt M10*125 6
17 Adjustable Support 1 62 Hex Head Bolt M10*95 2
18 Counter Poise Block 1 63 Hex Head Bolt M10*80 1
19 Seat Pad 1 64 Hex Head Bolt M10*75 1
20 Back Pad 1 65 Hex Head Bolt M10*70 2
21 Roller 1 66 Hex Head Bolt M10*50 2
22 Aluminium Grip Ring 2 67 Hex Head Bolt M10*30 8
23 Bumper 1 68 Hex Head Bolt M10*20 8
24 Pin 1 69 Flat Washer φ11*φ20*2 56
25 Shaft 1 70 Spring Washer φ10 2
26 Adjustable Plate 1 71 Nylon lock Nut M10 23
27 Bushing 2 72 Socket Set Screw M8*10 6
28 Plug PT40*80 1 73 Socket Head Cap Screw M8*60 1
29 Cable 1 74 Socket Head Cap Screw M8*45 1
30 L Board 2 75 Socket Head Cap Screw M8*50 2
31 Guide Rod 2 76 Socket Head Cap Screw M8*30 1
32 Fixing Sleeve 2 77 Socket Head Cap Screw M8*20 2
33 Sleeve 2 78 Flat Washer φ16*φ9*1.6 6
34 Spring 1 79 Nylon lock Nut M8 6
35 Top Shroud 1 80 Button Head Cap Screw M6*12 2
36 4.5" Pulley 3 81 Hex Nut M6 2
37 Plastic Tube Guide 2 82 Cross Recess Pan Head Screw M5*12 4
83 Flat Washer φ5.3*φ10*1 4
39 Rubber Foot 4 84 Socket Set Screw M5*3 8
40 Spacer 2 85 Socket Head Cap Screw M4*15 1
41 Lock Nut 1 86 Weight Plate 5KG 15
42 Chain Buckle 1 87 Top Plate 1
43 Spring 1 88 Weight Rubber Bumper 2
44 Handlebar 1 89 Selector Pin W/Coil 1
45 Shaft 1

6
82
83
35
82
83
15
38
20 9
65 69
65 69
69 67
69 67
69 64
7169 10
69 71
19
50
4
78
79
76
37
17
74
78
34
60
69
60
69
4
60
69
3960
69
80
81
80
59
5914
69
67 69
67
50 69
67
69
71
69
71
39
50
49
69
71
52 84
84
51
84
11
61
69
49
68 69
84
51
59
46
22
21
22
8
59
47
45
53
47
59
28
13
57
58
54
72
57
72
58
25
39
48
67
70
69
44
12
24
43
41
67
70
69
79
78
6
73
78
18
69
62
40
77
26
54
85
7
78
79
23
54
58
57
72
13
72
5
57 47
56
59
56
57
88
69
62
55
69 68
5569
68
66
69
6971 5857
69
61
69
71
69
71
89
86
86
87
68
69
69
71
68
69
69
71
75
32
72
79
72
75
31
31
69
71
71 33 36
36
33
63
69
30
666930
55
69 68
55
69
68
39
2
71
69
56
57
59
56
47
57 69 71 71 69
69
71 3
71
69
84
27
42
29
36
61
16

7

8

9
60
69
4
60
69
69 71
3
71
69
71
69
2
71
69
71
69
69
62
69
62
69
61
69
1
61

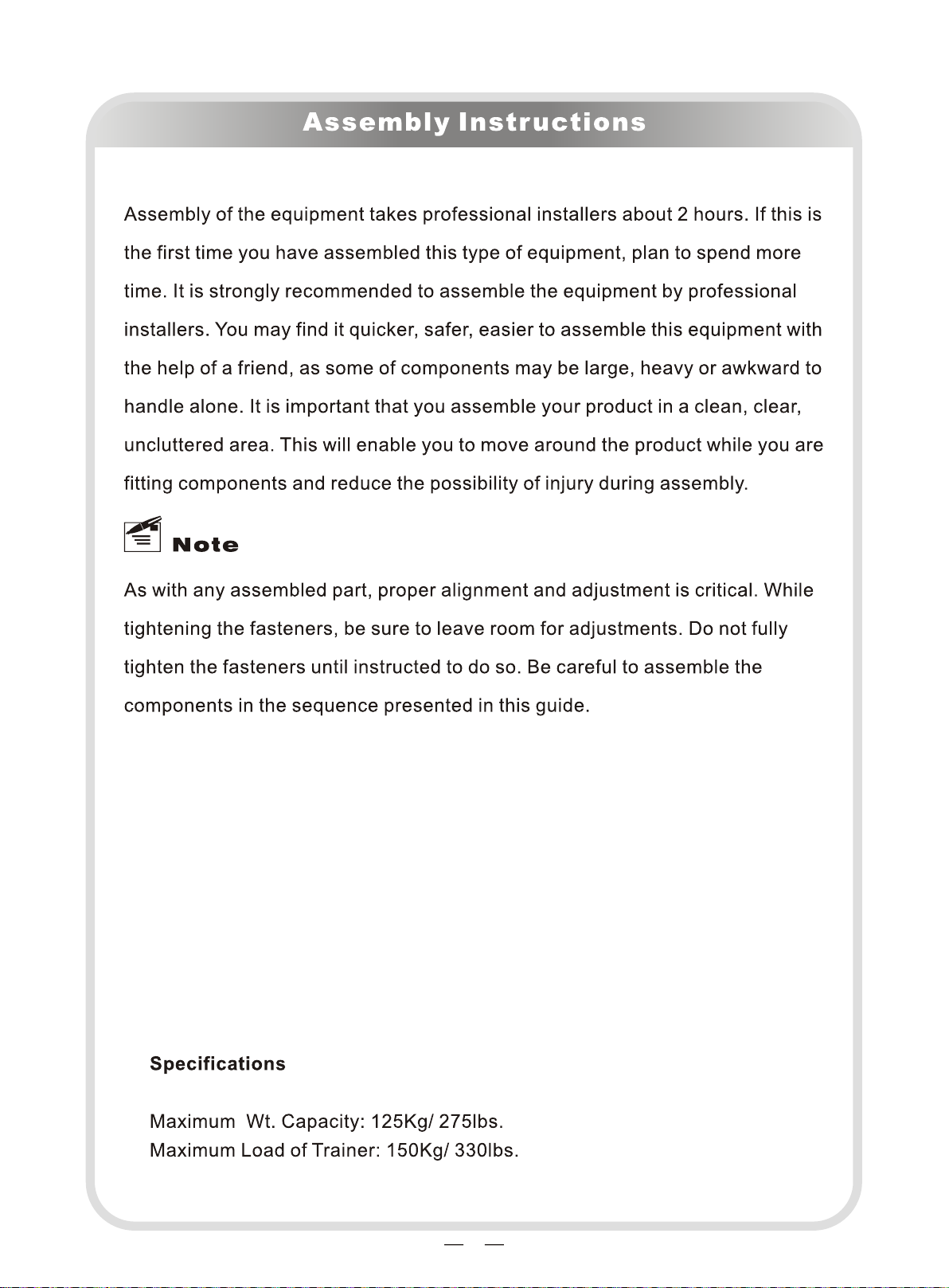

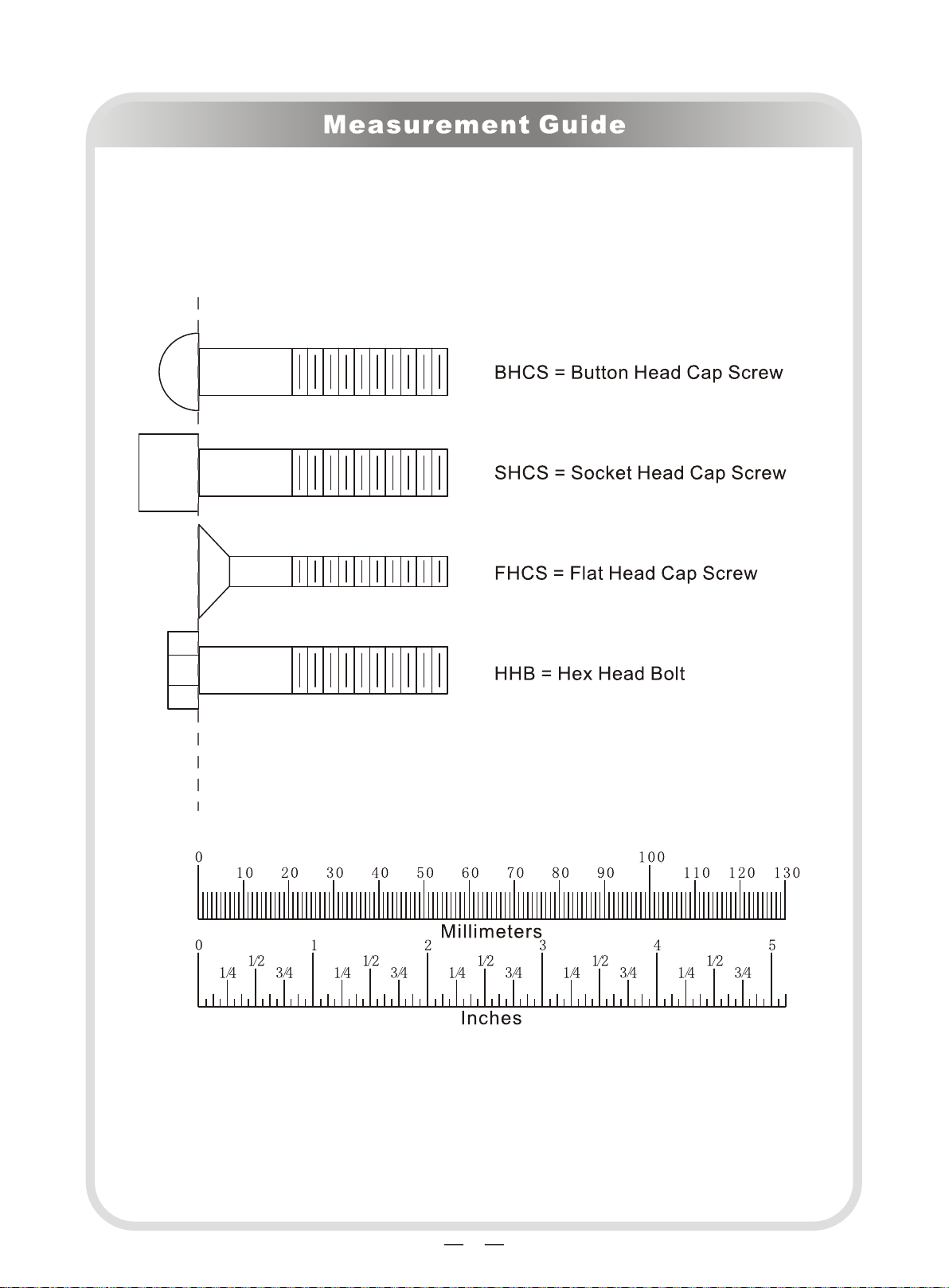

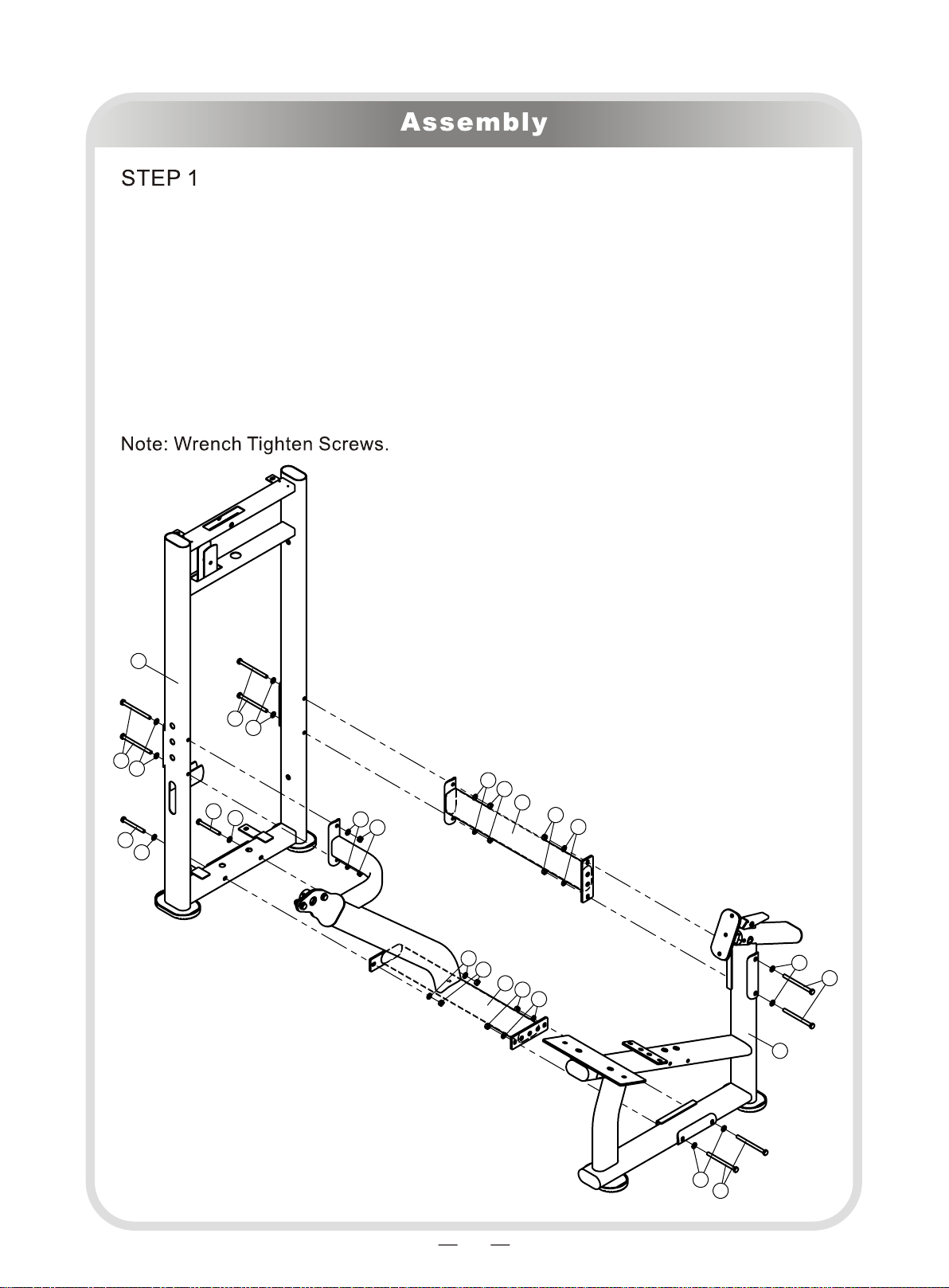

1.Attach the Bottom Cross Brace (#2) to the Weight Stack Frame (#1) using:
two M10*125 HHB (#61) two M10*95 HHB (#62)
eight φ11*φ20*2 Flat Washer (#69) four M10 Nylon lock Nut (#71)
2.Attach the Rear Cross Brace (#3) to the Weight Stack Frame (#1) using:
two M10*125 HHB (#61) four φ11*φ20*2 Flat Washer (#69)
two M10 Nylon lock Nut (#71)
3.Attach the Bottom Cross Brace (#2) to the Main Frame (#4) using:
two M10*130 HHB (#60) four φ11*φ20*2 Flat Washer (#69)
two M10 Nylon lock Nut (#71)
4.Attach the Rear Cross Brace (#3) to the Main Frame (#4) using:
two M10*130 HHB (#60) four φ11*φ20*2 Flat Washer (#69)
two M10 Nylon lock Nut (#71)

10
9
10
69 71
69 71
65 69
65 69
4
11
61
69
68
69
69
71
59
46
22
21
22
8
59
47
45
47
59
625
12
79
78
73
78
7
5
47
59
1
58
57
59
47
2

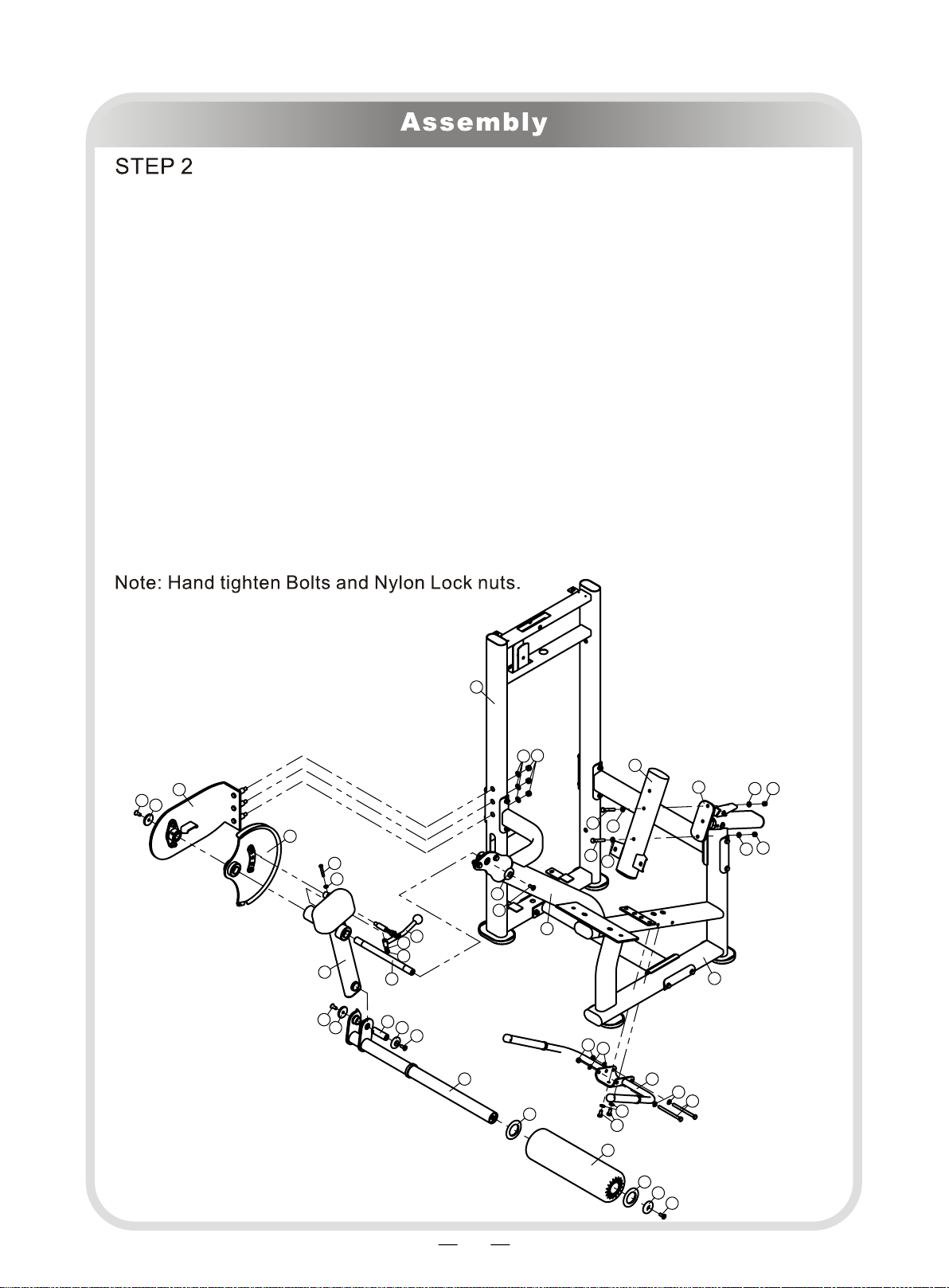

1.Attach
one Main Bracket (#5) one Cam (#7)
one Swing Support (#6) one Shaft (#25)
to the Weight Stack Frame (#1) and the Main Frame (#4) using:
two M10*25 FHCS (#59) two φ50*8 Aluminium Cap (#47)
2.Attach the Swing Tube (#8) to the Swing Support (#6) using:
one Shaft (#45) two M10*25 FHCS (#59)
two φ50*8 Aluminium Cap (#47)
3.Attach the Roller (#21) to the Swing Tube (#8) using:
two Aluminium Grip Ring (#22) two M10*25 FHCS (#59)
two Aluminium Cap φ60*φ12.5*10.6 (#46)
4.Attach the Adjustable Handle (#12) to the Swing Support (#6) using:
one M8*60 SHCS (#73) two φ16*φ9*1.6 Flat Washer (#78)
one M8 Nylon lock Nut (#79)
5.Attach the Back Pad Support (#9) to the Adjustable Tube (#10) using:
two M10*70 HHB (#65) four φ11*φ20*2 Flat Washer (#69)
two M10 Nylon lock Nut (#71)
6.Attach the Handle (#11) to the Main Frame (#4) using:
two M10*125 HHB (#61) two M10*20 HHB (#68)
six φ11*φ20*2 Flat Washer (#69) two M10 Nylon lock Nut (#71)

11
75
32
72
79
32
72
75
31
31
87
86
89
1
88

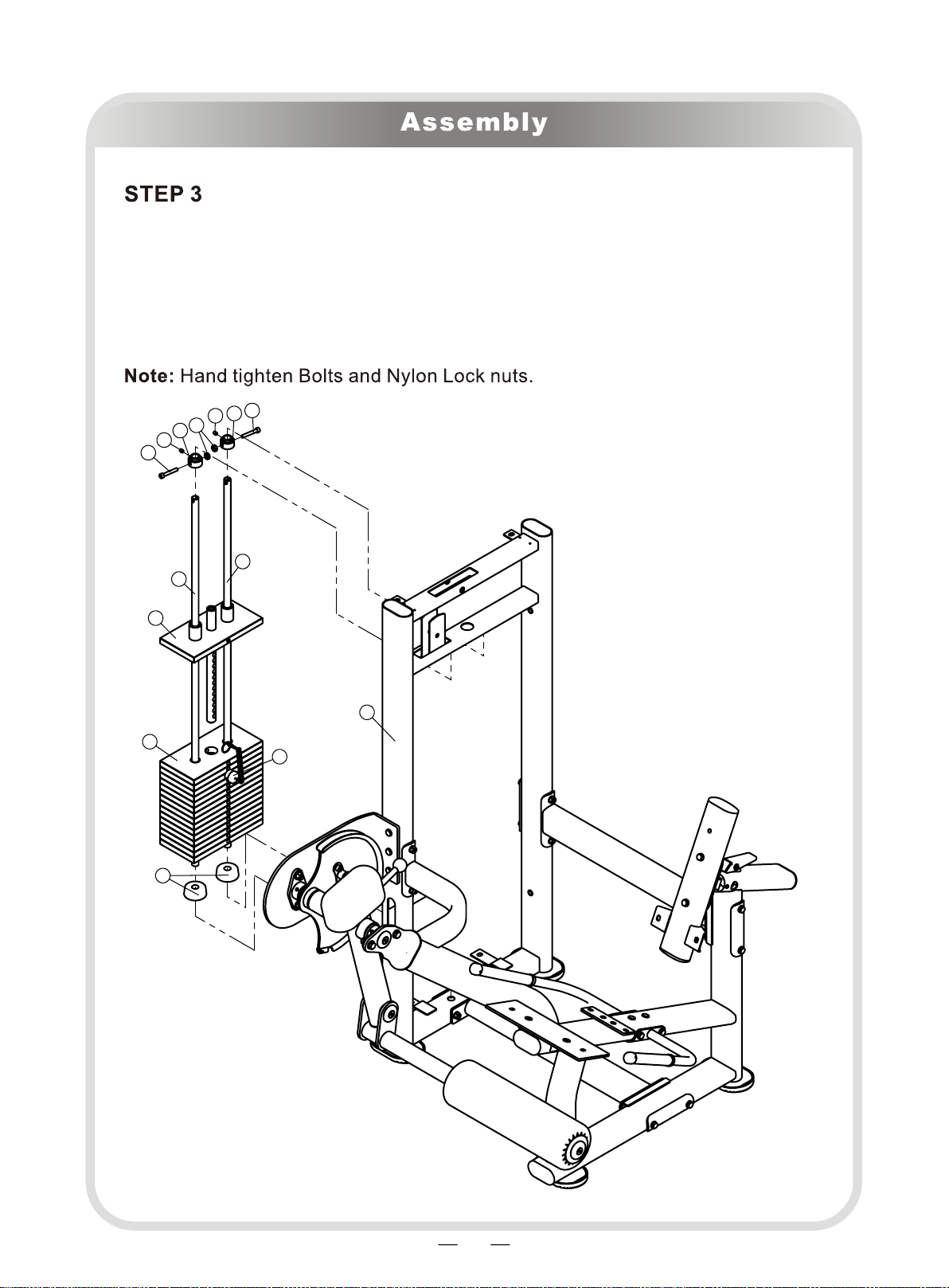

1.Attach:
two Guide Rod (#31) two φ63.5*25.4 Weight Rubber Bumper (#88)
fifteen Weight Plate 5KG （#86） one Top Plate （#87）
to the Weight Stack Frame (#1) using:
two Fixing Sleeve (#32) two M8*50 SHCS (#75)
two M8 Nylon lock Nut (#79) two M8*10 Socket Set Screw (#72)
2.Attach the Selector Pin W/Coil (#89) to the Top Plate （#87）

12
71
3369
36
36
33
3069
1
85
7
7169
36
69
66
63
66
29
87

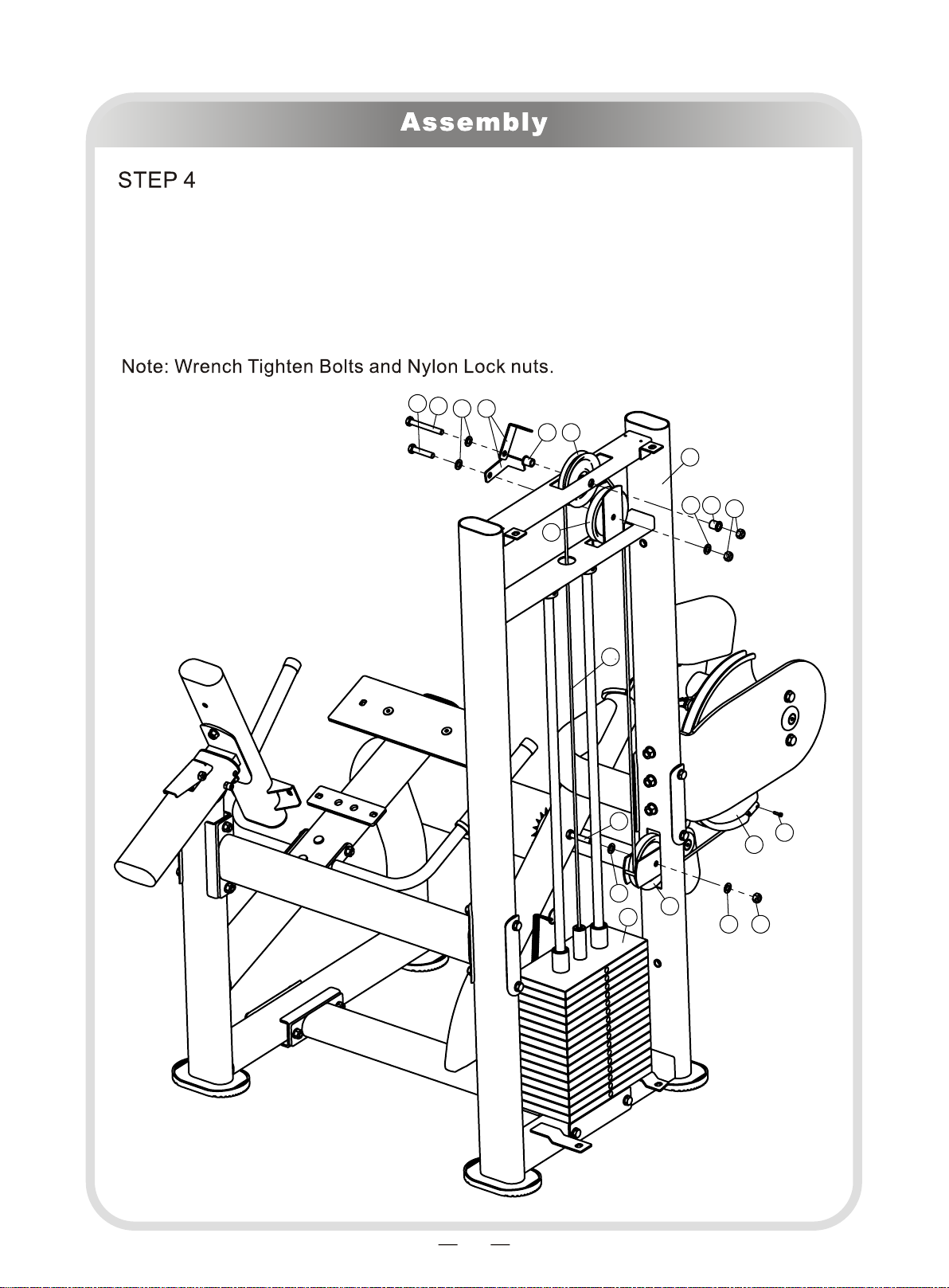

1.Attach the Cable (#29) to the Top Plate (#87).
2.Attach three 4.5" Pulley (#36) to the Weight Stack Frame (#1) using:
two L Board (#30) two φ20*φ16*19.3 Sleeve (#33)
one M10*80 HHB (#63) two M10*50 HHB (#66)
five φ11*φ20*2 Flat Washer (#69) three M10 Nylon lock Nut (#71)
3.Attach the Cable (#29) to the Cam（#7）using:
one M4*15 SHCS (#85)

13
20
19
64
69
67
69
9
14
4
67
69
67
69
67
69

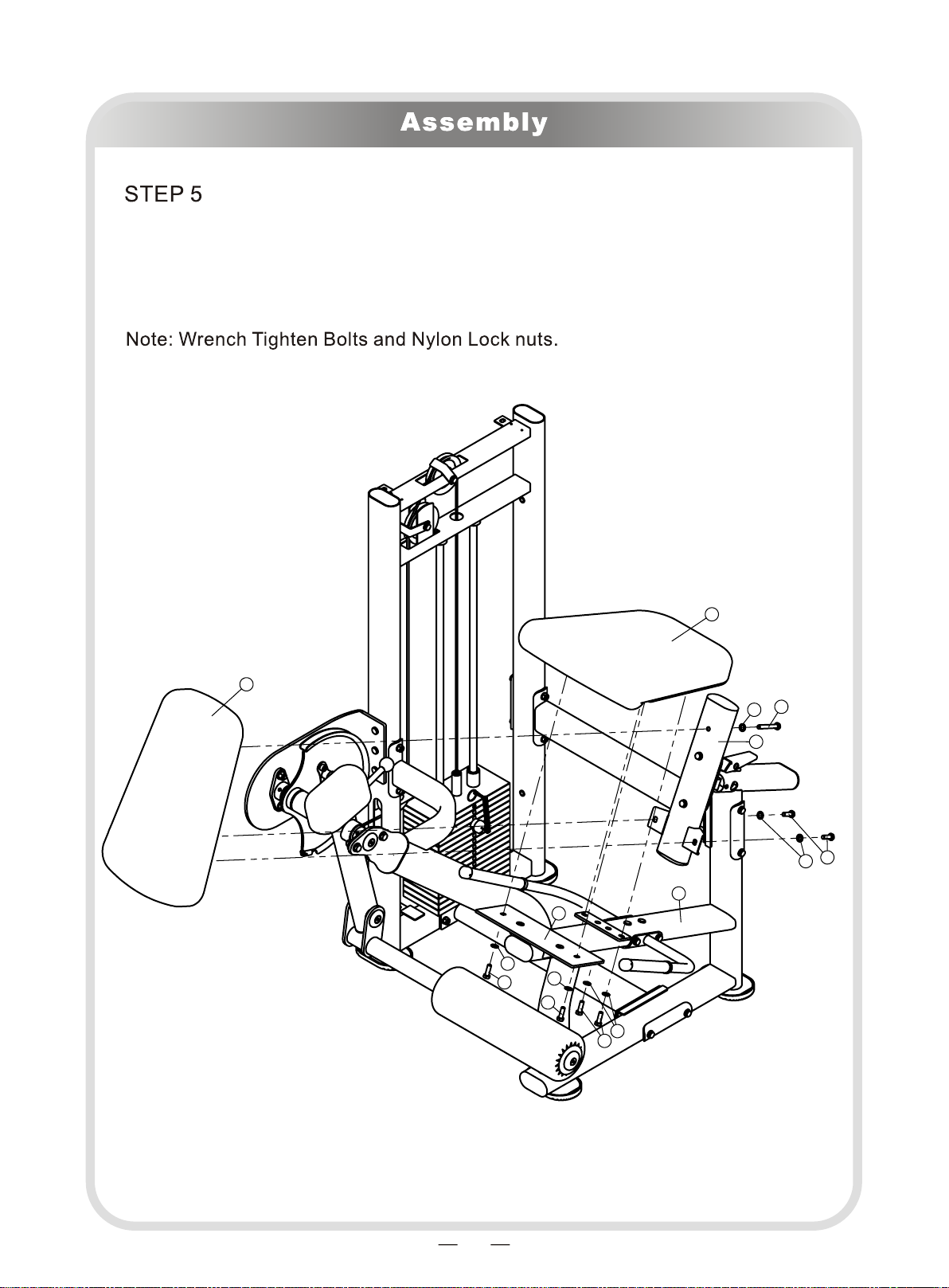

1.Attach the Seat Pad (#19) to the Seat Pad Plate (#14) using:
four M10*30 HHB (#67) four φ11*φ20*2 Flat Washer (#69)
2.Attach the Back Pad (#20) to the Back Pad Support (#9) using:
one M10*75 HHB (#64) two M10*30 HHB (#67)
three φ11*φ20*2 Flat Washer (#69)

14
82
83
35
82
83
68
69
69
71
68
69
69
71
16
1
69
68
69 68
69
71
69
71
15
69
68
68
69

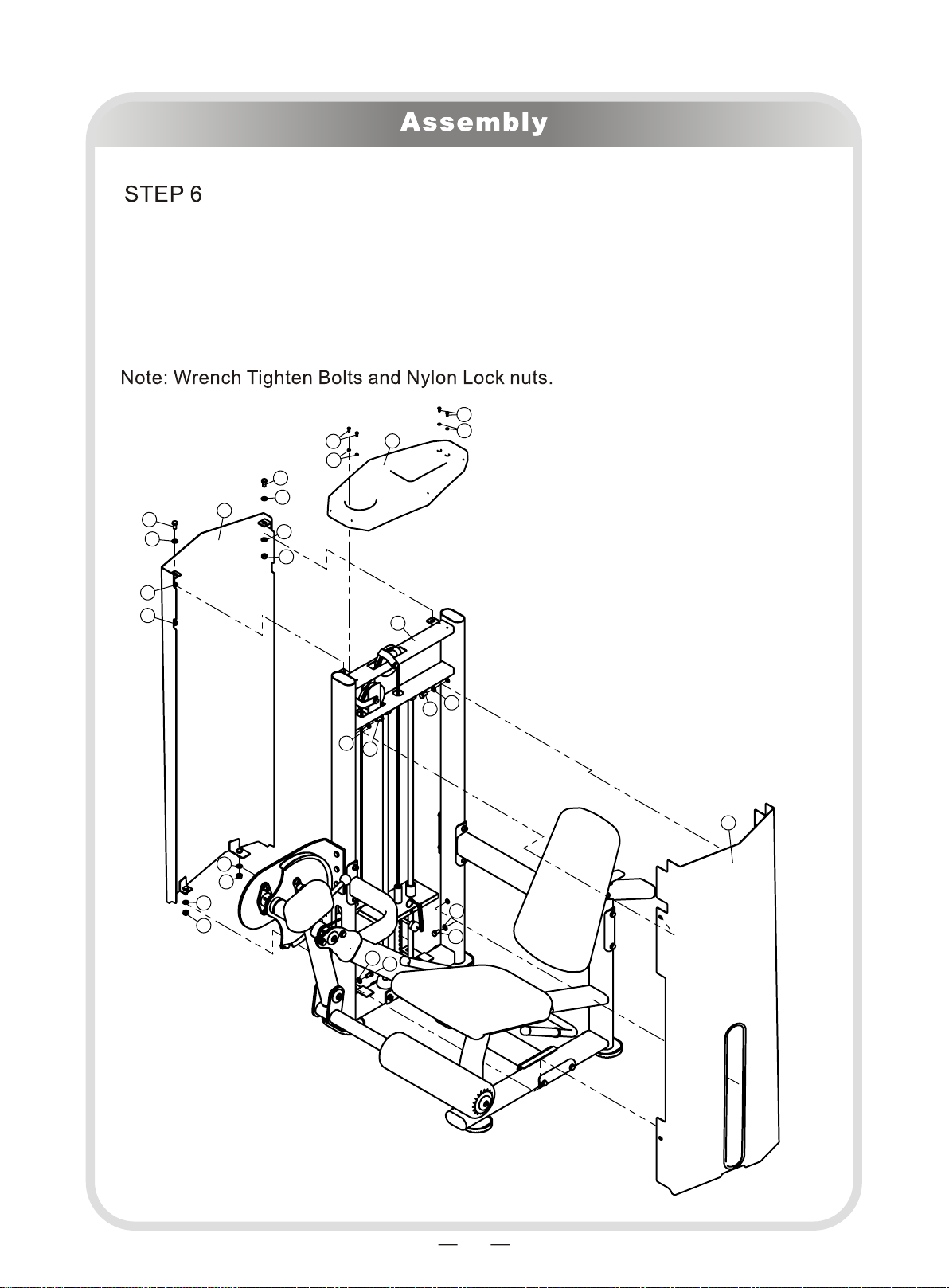

1.Attach the Front Shroud (#15) to the Weight Stack Frame (#1) using:
four M10*20 HHB (#68) four φ11*φ20*2 Flat Washer (#69)
2.Attach the Rear Shroud (#16) to the Weight Stack Frame (#1) using:
two M10*20 HHB (#68) six φ11*φ20*2 Flat Washer (#69)
four M10 Nylon lock Nut (#71)
3.Attach the Top Shroud (#35) to the Weight Stack Frame (#1) using:
four M5*12 BHCS (#82) four φ10*φ5.3*1 Flat Washer (#83)
