Smithco Sand Star CVT Quick start guide

Sand Star CVT
Mechanical
41-000-A
SN 41001
Product Support: Hwy SS & Poplar Ave; Cameron WI 54822
1-800-891-9435 productsupport@smithco.com
Parts & Service

Introduction Service Diagrams Parts Accessories Reference
CONTENTS
Introduction������������������������������������������������������������������������������������������������������������������������������ 1-3
Introduction�������������������������������������������������������������������������������������������������������������������������������� 1
Safe Practices ��������������������������������������������������������������������������������������������������������������������������� 2
��������������������������������������������������������������������������������������������������������������������������� 3
Service�������������������������������������������������������������������������������������������������������������������������������������� 4-8
Maintenance ��������������������������������������������������������������������������������������������������������������������������� 4-6
Service Chart����������������������������������������������������������������������������������������������������������������������������� 5
Adjustments���������������������������������������������������������������������������������������������������������������������������� 7-8
Storage �������������������������������������������������������������������������������������������������������������������������������������� 8
Diagrams ������������������������������������������������������������������������������������������������������������������������������ 10-11
Wiring Diagram������������������������������������������������������������������������������������������������������������������������ 10
Parts�������������������������������������������������������������������������������������������������������������������������������������� 12-29
Main Frame ������������������������������������������������������������������������������������������������������������������������ 12-13
Dash Panel ������������������������������������������������������������������������������������������������������������������������� 14-15
Front Fork ��������������������������������������������������������������������������������������������������������������������������� 16-17
Seat Panel �������������������������������������������������������������������������������������������������������������������������� 18-19
Foot Pedal Linkage ������������������������������������������������������������������������������������������������������������ 20-23
Brake Linkage��������������������������������������������������������������������������������������������������������������������� 24-25
Rear Axle and Engine��������������������������������������������������������������������������������������������������������� 26-27
Rear & Center Rake Lift ����������������������������������������������������������������������������������������������������� 28-29
Accessories ����������������������������������������������������������������������������������������������������������������������������� 30-
13-644 Aluminum Plow������������������������������������������������������������������������������������������������������� 30-31
41-021Sand Cultivator - Vertical Blades 32-33
41-022 Sand Cultivator-Spring Tine ����������������������������������������������������������������������������������� 34-35
�������������������������������������������������������������������������������������������������������� 36-37
13-298 Fan Rake���������������������������������������������������������������������������������������������������������������� 38-39
42-130 84” Steel Tournament Rake������������������������������������������������������������������������������������ 40-43
42-132 72” Steel Tournament Rake������������������������������������������������������������������������������������ 44-47
42-391 72” ProBrush Tournament Rake 48-51
42-392 84” ProBrush Tournament Rake 52-54
13-758 Rake with Finishing Blades ������������������������������������������������������������������������������������ 56-57
13-438 Rake with Finishing Blades ������������������������������������������������������������������������������������ 58-59
13-319 Fan Rake Kit for 13-438 Rake������������������������������������������������������������������������������������� 60
���������������������������������������������������������������������������������������� 61
26-008 Flex Action Field Finisher ��������������������������������������������������������������������������������������� 62-63
43-002 Flex Field Finisher w/ Brush ����������������������������������������������������������������������������������� 64-67
Decals�������������������������������������������������������������������������������������������������������������������������������������� 68
Warranty ����������������������������������������������������������������������������������������������������������������������������������������

1
Introduction
INTRODUCTION
Thank you for purchasing a Smithco product�
Read this manual and all other manuals pertaining to the Bunker Rake carefully as they contain safety, oper-
ating, assembly and maintenance instructions� Failure to do so could result in personal injury or equipment
damage�
Keep manuals in a safe place after operator and maintenance personnel have read them� Right and left sides
are from the operator’s seat, facing forward�
All Smithco machines have a Serial Number and Model Number� Both numbers are needed when ordering
parts� Serial number tag is located on left rear ROPs mount post� Refer to engine manual for placement of
engine serial number�
www�Smithco�com�
Information needed when ordering replacement parts:
1� Model Number of machine
2� Serial Number of machine
3� Name and Part Number of part
4� Quantity of parts
For easy access record your Serial and Model numbers here�
SMITHCO CUSTOMER SERVICE 1-800-891-9435
WARNING
Failure to follow cautious operating practices can re-
sult in serious injury to the operator or other persons.
The owner must understand these instructions, and
must allow only trained persons who understand these
instructions to operate this vehicle.
WARNING:
Engine exhaust and some of its constituents are
known to the State of California to cause cancer,
birth defects, and other reproductive harm�
For more information visit
www.P65Warning.ca.gov

2
Introduction
SAFE PRACTICES
1� It is your responsibility to read this manual and all publications associated with this machine (engine,
accessories and attachments)�
2� Never allow anyone to operate or service the machine or its attachments without proper training and
instructions� Never allow minors to operate any equipment�
3� Learn the proper use of the machine, the location and purpose of all the controls and gauges before
you operate the equipment� Working with unfamiliar equipment can lead to accidents�
4� Wear all the necessary protective clothing and personal safety devises to protect your head, eyes, ears,
5� Inspect the area where the equipment will be used� Beware of overhead obstructions and underground
obstacles� Stay alert for hidden hazards�
6� Never operate equipment that is not in perfect working order or without decals, guards, shields, or other
protective devices in place�
7� Never disconnect or bypass any switch�
8� Carbon monoxide in the exhaust fumes can be fatal when inhaled, never operate a machine without
proper ventilation�
10� Allow engine too cool before fueling�
11� Keep engine clean� Allow the engine to cool before storing and always remove the ignition key�
12� After engine has started, machine must not move� If movement is evident, the neutral mechanism is not
cause serious injury�
14� This machine demands your attention� To prevent loss of control or tipping of the vehicle:
A� Use extra caution in backing up the vehicle� Ensure area is clear�
B� Do not stop or start suddenly on any slope�
C� Reduce speed on slopes and in sharp turns� Use caution when changing directions on slopes�
D� Stay alert for holes in the terrain and other hidden hazards�
15� Before leaving operator’s position for any reason:
A� Disengage all drives�
B� Lower all attachments to the ground�
16� Keep hands, feet and clothing away from moving parts� Wait for all movement to stop before you clean,
adjust or service the machine�
17� Keep the area of operation clear of all bystanders�
18� Never carry passengers�
19� Stop engine before making repairs/adjustments or checking/adding oil to the crankcase�
20� Use parts and materials supplied by Smithco only� Do not modify any function or part�
These machines are intended for professional maintenance on golf courses, sports turf, and any other
area maintained turf and related trails, paths and lots. No guaranty as to the suitability for any task is
expressed or implied.

3
Introduction
MECHANICAL SAND STAR SPECIFICATIONS
WEIGHTS AND DIMENSIONS
Length 68" (1�73 m)
Width 61" (1�55 m)
Height 50" (1�3 m)
Wheel Base 51" (1�3 m)
Ground Clearance 5�5" - 7" (13 -18 cm)
Weight 841 lbs� (381 kg)
SOUND LEVEL (EAR PROTECTION REQUIRED)
At Ear Level 85 dB
ENGINE
Make Briggs and Stratton
Model# 19L237
Type / Spec# 0042-F1
Horsepower 10 hp (7�46 kW)
Fuel Minimum of 87 octane
Alternator 10 Amp
WHEELS & TIRE Front: 20 X 10 - 10 Turf Tires 5 psi (�34 bar) Smithco # 52-120
Rear: 25 X 10 - 12 Turf Tires 5 psi (�34 bar) Smithco # 45-617
SPEED
Forward Speed 0 to 12 m�p�h� (0-19 kph)
Reverse Speed 0 to 5 m�p�h� (0-8 kph)
BATTERY Lawn & Garden Type SP 35
BCI Group Size 35
Cold Cranking Amps 300
Ground Terminal Polarity Negative (-)
Maximum Length 7�5" (19 cm)
Maximum Width 5" (12,7 cm)
Maximum Height 7�5" (19 cm)
FLUID CAPACITY
Crankcase Oil See Engine Manual
Fuel 3�8 quarts (3�6 liters)
ACCESSORIES
13-644 Aluminum Plow
41-023 Sand Cultivator - Vertical Blades
41-022 Sand Cultivator-Spring Tines
13-298 Fan Rake
42-130 84” MIld Steel Tournament Rake
42-132 72” Mild Steel Tournament Rake
42-391 72” ProBrush Tournament Rake
42-392 84” ProBrush Tournament Rake
13-758 Rake with FInishing Blades
13-438 Rake with Finishing Blades
13-319 Fan Rake Kit for 13-438 Rake
26-008 Flex Action Field Finisher
43-002 Flex Action Field Finisher with Brush

4
Service
MAINTENANCE
Before servicing or making adjustments to machine, stop engine and remove
key from ignition�
Use all procedures and parts prescribed by the manufacturer's� Read the engine
manual�
LUBRICATION
Use No� 2 General purpose Lithium Base
Grease and lubricate every 100 hours� The
A� Shift Relay
B� LH Brake Relay
C� Forward Pedal
D� Reverse Pedal
E� RH Brake Relay
F� Gas Pedal
G� Brake Pedal
TOWING
When it is necessary to move the Sand Star without engine running, make sure park brake is released and
pedals are in neutral position� If the machine must be moved a considerable distance, transport it on a truck
or trailer�
TIRE PRESSURE
DAILY CHECKLIST
1� Check engine oil level in vehicle� Add as needed� DO NOT OVERFILL�
2� Check trap rake for loose or missing nuts, bolts, screws, etc�, and tighten or replace as needed��
3� Check tire pressure� 5 psi (�34 bar)
6� Check electrical system for loose connections or frayed wiring, including battery cables� Replace any
faulty equipment or tighten if loose�
7� Fill fuel tank� Allow engine to cool before fueling�

5
Service
MAINTENANCE
ENGINE
oils� Do not mix oil with gasoline�
SAE VISCOSITY GRADES
Starting Temperature Range Anticipated Before Next Oil Change
Outdoor temperatures determine the correct oil viscosity for the engine� Use the chart to select the best oil
for outdoor temperature range expected� Engines on most outdoor power equipment operate well with 5W-30
synthetic oil� For equipment operated in hot temperatures 15W-30 synthetic oil gives the best protection�
Before servicing or making adjustments to the machine, stop engine, set park
break, block wheels and remove key from ignition�
Follow all procedures and ONLY use parts prescribed by the manufacturer�
Read the engine manual before maintenance�
but as a supplement� You must adhere to the guidelines established by the manufacturer for warranty cover-
age� In adverse conditions such as dirt, mud or extreme temperatures, maintenance should be more frequent�
SERVICE INTERVALS
After First 5 hours:
Check engine oil�
After First 8 hours or daily
Check engine oil�
Clean air intake grille�
After 25 hours:
Clean pre-cleaner�
After 50 hours:
Check wheel lug nuts torque to 64-74 ft/lb (87-100Nm)�
Inspect tires - Check air pressure 5 psi (�34 bar)
Change engine oil�
Service exhaust system�

6
Service
MAINTENANCE
WHEEL MOUNTING PROCEDURE
2� Block one of the other wheels�
3� Loosen nuts slightly on wheel to be removed�
5� Remove nuts� Remove wheel�
5� Place new wheel on hub lining up bolt holes�
hours thereafter�
7� Lower machine to ground and remove blocks and jack�
BATTERY
any ignited object to come near the battery� When charging or working near battery, always shield your eyes
and always provide proper ventilation�
Battery cable should be disconnected before using "Fast Charge"�
Charge battery at 15 amps for 10 minutes or 7 amps for 30 minutes� Do not exceed the recommended
charging rate� If electrolyte starts boiling over, decrease charging�
1� Filling batteries in well-ventilated areas�
2� Wear eye protection and rubber gloves�
3� Avoid breathing fumes when electrolyte is added�
4� Avoid spilling or dripping electrolyte�
Battery Electrolyte is an acidic solution and should be handled with care� If
electrolyte is splashed on any part of your body, ush all contact areas imme-
diately with liberal amounts of water� Get medical attention immediately�

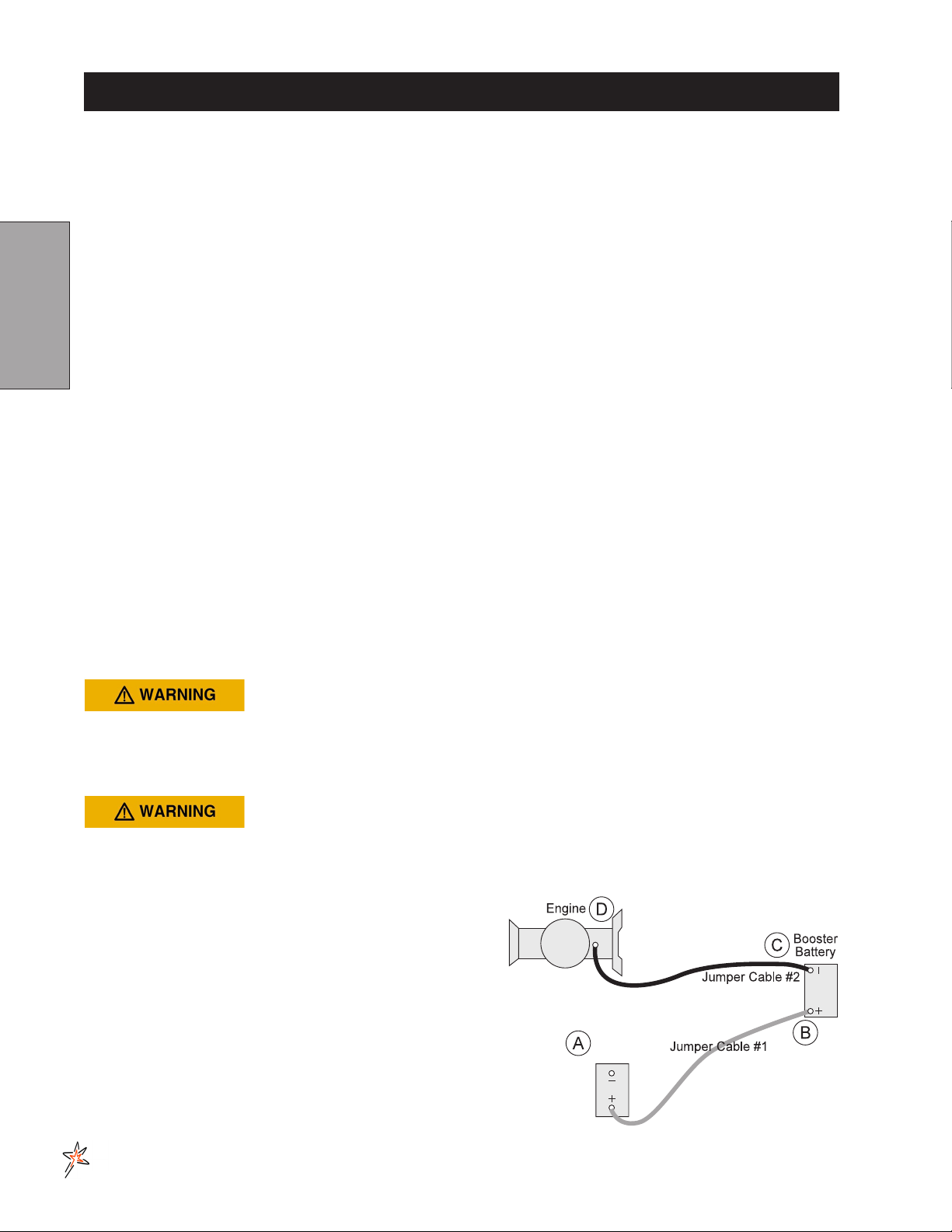

JUMP STARTING
Use of booster battery and jumper cables� Particular care should be used
when connecting a booster battery� Use proper polarity in order to prevent
sparks�
To jump start (negative grounded battery):
1� Shield eyes�
2� Connect ends of one cable to positive (+) terminals
post of booster battery� (B)�
3� Connect one end of other cable to negative (-) termi-
nal of booster battery (C)�
4� Connect other end of cable (D) to engine block on
unit being started�
To prevent damage to other electrical components on unit
being started, make certain that engine is at idle speed
before disconnecting jumper cables�

7
Service
ADJUSTMENTS
TO ADJUST GAS PEDAL THROTTLE CABLE
the ground� (Use jack stands)
2� Start the engine, make certain that the
gas pedal is in the idle position(1200 ±
100RPM)�
3� Engine speed must increase as soon as
the foot pedal begins to move in either
direction� At the full forward position, the
engine RPM must be 3300RPM ± 100�
4� When throttle is running wide open� The
throttle stop must contact the gas pedal�
5� Minor adjustment can be made by back-
ing out (unscrewing) Retainer (Ref A)
until you reach full engine RPM with the
gas pedal fully depressed in the forward
position� Be sure to recheck after the nuts
are fully tightened�
6� Major adjustment needs to be made by pulling the slack out of the cable� Loosen the screw in the wire
block(Ref B) on the engine that is clamped onto the end of the cable and sliding it up to the cable block
that is through the throttle plate� Do not let the throttle plate move to increase idle speed� Tighten the
screw�
7� Test run to determine that there is no binding and that engine idle speed is 1200 RPM and that it is
3300RPM at full forward position of the foot pedal�

8
Service
ADJUSTMENTS

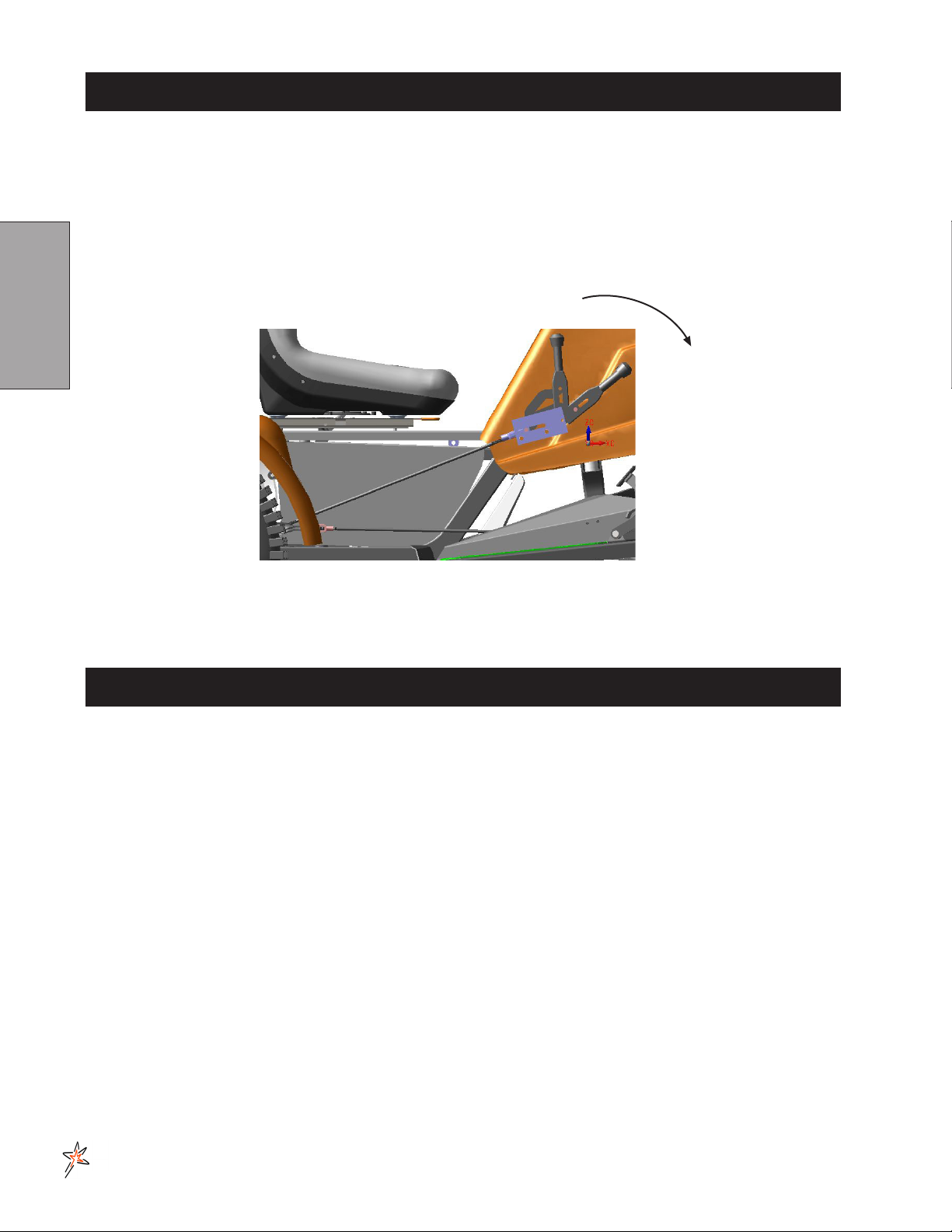

PARK BRAKE
The park brake is located on the right hand side of the machine and operates both rear wheels� Push forward
to engage and Pull lever back to disengage� To adjust park brake, turn the knob on the end of the handle�
STORAGE
When storing, remove the key from the key switch to avoid unauthorized persons from operating machine�
1� Before storing clean machine thoroughly�
2� Check bolts and nuts, tighten as necessary�
3� Make all repairs that are needed and remove any debris�
4� Remove the battery, adjust the electrolyte level and recharge it� Store the battery in a dry, dark place�
5� Store in a clean and dry area, but NOT near a stove, furnace or water heater which uses a pilot light or
any device that can create a spark�
6� If machine is stored for more then 30 days, the fuel system should either be completely drained or treat-
ed with a fuel stabilizer� This will aid in the prevention of gum and tarnish build up inside e the system
along with internal essential carburetor parts�
DISENGAGED
ENGAGED

9
Service
NOTES

10
Diagrams
Color Code Chart
Bl Blue
Br Brown
Y Yellow
Grn Green
O Orange
R Red
B Black
P Purple
W White
WIRING DRAWING

11
Diagrams
WIRING PARTS LIST
REF # PART # DESCRIPTION QUANTITY
1 14-272 Seat Switch 1
2 50-359 Warning Indicator Lights 1
3 41-082 10hp Briggs & Stratton 1
4 48-147 Negative Black Battery Cable 1
5 50-323 Positive Red Battery Cable 1
45-416 Red Battery Boot 1
6 Neutral Switch on Transaxle 1
7 8975 Circuit Breaker, 30AMP 1
8977 Breaker Boot 1
8 Battery (not included) 1
9 13-488 Ignition Switch 1
10 15-727 Switch Actuator, no light 1
11 45-631 Actuator 1
41-085 Wire Harness 1

12
Parts

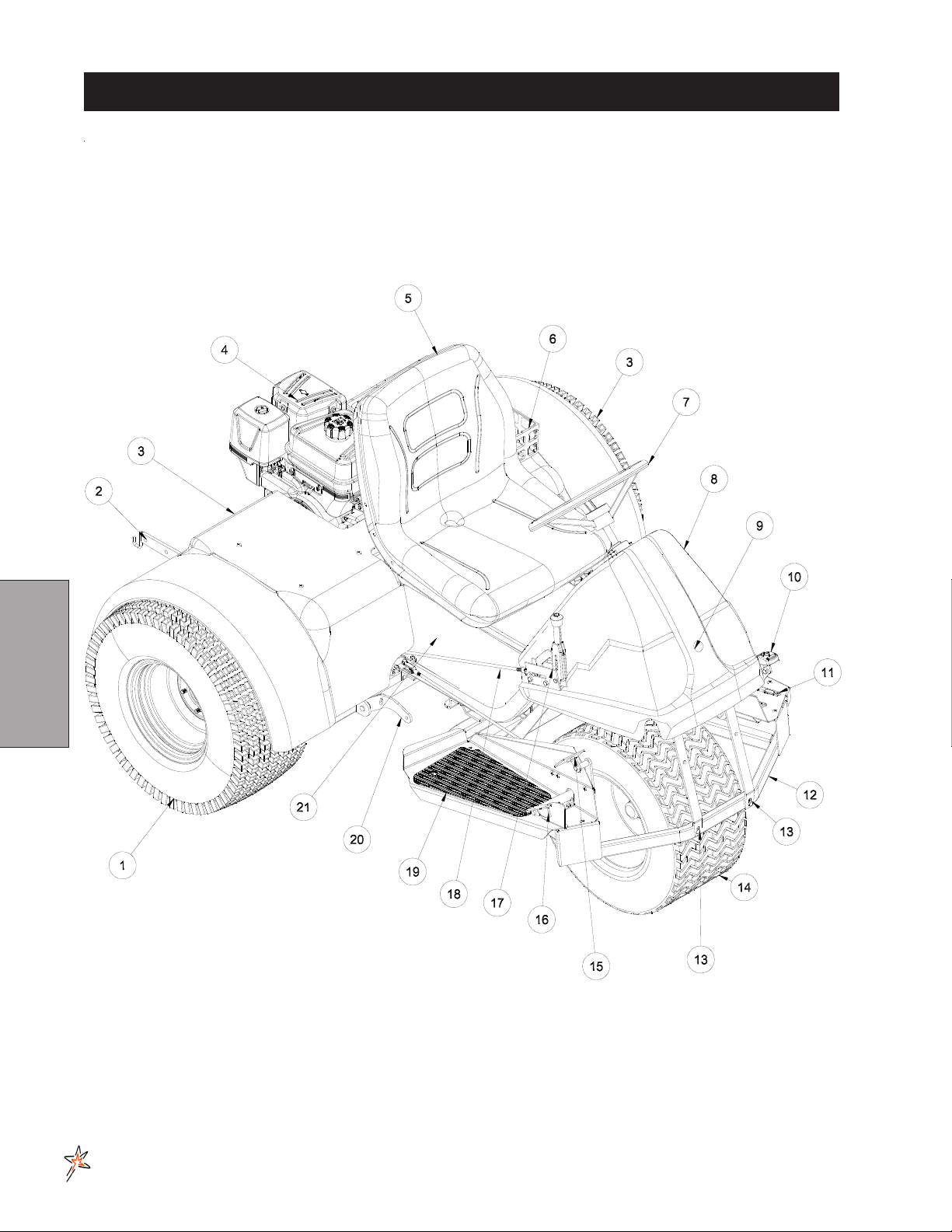

MAIN FRAME DRAWING

13
Parts
MAIN PARTS LIST
REF# PART# DESCRIPTION QUANTITY
1 45-617 Tire & Wheel 2
45-617-01 Tire, 25 - 10�00 x 12 2
45-617-02 Wheel 2
2 41-071 Rear Lift 1
4 41-082 Engine, Briggs & Stratton 10HP 1
5 14-293 Low Back Seat Assembly 1
6 8-532 Crate 1
7 20-057 Steering Wheel 1
20-129 Center Cap 1
9 18-436 Lock Hole Plug 1
10 41-029 Forward Pedal 1
45-022 Molded Foot Pedal 1
11 41-034 LH Floorboard 1
41-090 LH Floor Mat 1
12 41-050 Bumper 1
13 13-208 Bumper Brace 2
14 52-120 Tire and Wheel 1
52-120-01 Tire, 20 -10�00 x 10 1
16-857-02 Wheel 1
15 41-053 Brake Pedal 1
41-077 Brake Pedal Pad 1
15-015 Pedal Pad 1
16 41-049 Gas Pedal 1
17 60-106 Park Brake Lever 1
18 41-069 Foot Brake Link 1
19 41-035 RH Floorboard 1
41-089 RH Floor Mat 1
20 41-065 Center Lift 1
41-062 Lift Lock 1
21 41-032 RH Side Panel 1
41-033 LH Side Panel 1

14
Parts
DASH PANEL DRAWING

15
Parts
DASH PANEL PARTS LIST
REF# PART# DESCRIPTION QUANTITY
1 41-050 Bumper 1
3 13-208 Bumper Brace 2
6 45-124 Dash Brace 2
7 45-078 Top Mount Bracket 1
9 41-063 Dash Panel 1
10 41-075 Steering Shaft 1
11 45-026 Nose Cone - Fiberglass 1
12 20-057 Steering Wheel 1
20-129 Center Cap 1
13 41-086 Decal, Switch Panel 1
14 15-727 Rocker, No light 1
15-725 Mount Panel End 1
15 15-730 Mount Panel Plug 1
15-725 Mount Panel End 1
16 13-488 Ignition Switch 1
17 50-359 Warning Light 1
18 41-064 Seat Panel 1
20 41-036 Mud Guard 1
22 45-049 Wire Retainer 1
23 41-025 Mainframe 1

16
Parts
FRONT FORK DRAWING

17
Parts
FRONT FORK PARTS LIST
REF# PART# DESCRIPTION QUANTITY
1 20-129 Center Cap 1
2 20-057 Steering Wheel 1
4 40-009 Flange Block Bearing 1
5 41-078 Bearing Spacer Plate 1
7 41-075 Steering Shaft 1
9 60-300 U-joint 1
11 60-325 Spacer 2
12 60-298 Sprocket 1
15 26-060 Idler Pulley 1
16 11-038 Bearing w/ Race 2
11-039 Oil Seal 2
18 13-005 Bottom Steering Shaft 1
22 41-072 Front Fork 1
24 42-826 Weight, Front Fork 1
27* 80-167 Dust Cap 1
29 52-120 Tire and Wheel 1
52-120-01 Tire, 20 -10�00 x 10 1
16-857-02 Wheel 1
30* 11-043 Bearing w/ races 2
11-043-01 Bearing 2
11-043-02 Race 2
31* 80-019 Hub, Complete (includes* items) 1
32* 11-041 Oil Seal, 1" 1
33 20-141 Spacer 2
35 20-143 Bearing w/ Race 2
37 41-055 Steering Sprocket 1
8834-38 Roller Chain, #35 1
18-114 Connector Link, #35 1

18
Parts
SEAT PANEL DRAWING
This manual suits for next models
1
Table of contents
Other Smithco Lawn Mower manuals
