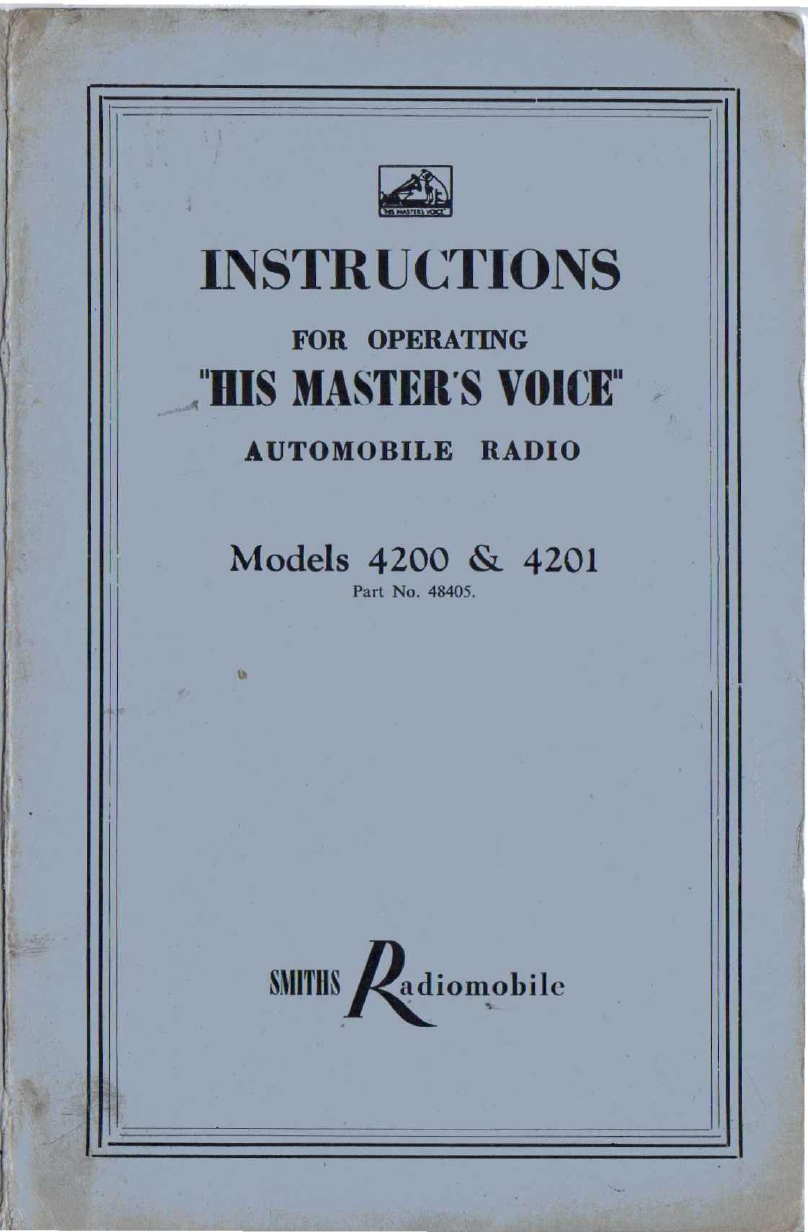

INSTRUCTIONS

FOR OPERATING

,"ms

MASTER'S VOICE"

AUTOMOBILE RADIO

Models 4200

4201

Part No. 48405.

III

SAIITIIS

kiom._obile

SERVICE AREAS OF B.B.C. STATIONS

HOME

Naturally,

the best reception of any of the

three programmes

will

be obtained on the

wavelength

the broadcasting station serving

the area in which the car happens to be

situated; for example. in the Midlands the

Home programme will be received better if

the set

tuned to

275.7

metres (Midland

Home Service) than if it is tuned to

205.9

metres (West of England Home Service).

The Light programme is obtainable at good

strength in most parts of the British Isles

1500

metres, except in North Scotland

(i.e,

North of a line drawn from

Oban

to Montrose)

which is not covered satisfactorily by the

Light programme on long waves.

The Third programme is radiated from

Daventry on

463.7

metres, and the following

local transmitters on the same wavelength.

Edinburgh, Glasgow, Newcastle, Hull.

The Third Programme is also radiated from

the following local transmitters on

194

metres.

Belfast Hull Portsmouth arid

Boumemouth Leeds Southampton

Brighton Liverpool Preston

Cardiff Manchester Redruth

Dundee Middlesbrough Sheffield

Exeter Plymouth

West

England 205.9 metres

North of Eng

land}260.6

Northern Ireland

Midland ... . .. 275.7

West

of England

285.2

London

330.4

Welsh 34l~.5

Scottish '"

370.8

North of

England 433.5

LIGHT

Droitwich

London ...

1500 metres

247.1

THIRD

Droitwich '"

463.7 metres

Local

Transmitters

194.05 "

S. SMITH" SONS (RADIOMOBILE) LTO., Goodwood Works, North Circular Road,

London, N.

W.2.

Phone: Gladltone 0171 Part No. 41HOS No. 383. Printed in England. June. 1953.

THE

controls of these receivers are easy to

operate. Nevertheless, read the instructions

carefully so

that

you can get the best results from

your" His Master's Voice" automobile radio.

OPERATING INSTRUCTIONS

MODEL 4200 (12 volt)

MODEL 4201 (6 voH)

THE CONTROLS for these receivers are shown in the illustration.

THE COMBINED VOLUME CONTROL AND ON/OFF SWITCH

is on the left of the five push-buttons. This control switches the receiver

on when turned clockwise and progressive rotation of the control increases

the volume. Turning the control fully anti-clockwise will switch off the

receiver. Allow about 40 seconds for the receiver to 'warm up' after

switching on.

THE TONE CONTROL is conoentric with the Volume Control and On/Off

Switch and provides selective tone oorrection for reproduction of either speech

or music. by four separate tone setting'>. The c011tr01is turned fully anti-

clockwise for speech and fully clockwise for music, the two intermediate

settings being provided to suit individual taste.

THE MANUAL TUN1NG CONTROL is on the right of the push-buttons

and provides completely variable station selection. A feature of this control

is that the knob will not engage the tuning mechanism until is is pressed in;

otherwise the knob will 'idle.' This prevents accidental disturbance of a

station-setting previously.selected by a push-button.

THE FIVE TUNING PUSH-BUTTONS provide automatic tuning of five

stations pre-selected from the Medium and Long wavebands. The right-hand

button provides for one station on the Long waveband, the four remaining

buttons beinz employed for Medium Wave pre-selection. The indication

"MW" (Medium Wave) or "LW" (Long Wave) is marked on the Tuning

Scale immediately above each push-button. Wave-change switching is auto-

matically effected when a button is pressed for any pre-selected station.

THE TUN1NG SCALE is divided into two sections, 'Medium Wave' and

'Long Wave,' and is calibrated in wavelengths. The tuning pointer has a

horizontal traverse and is viewed through a narrow window between the two

scale sections. Illumination of the Tuning Scale is by means of "edge-lighting."

,1,;

TONE CONTROL

VOLUME CONTROL

AND ON/OFf SWITCH MANUAL TUNING

CONTROL

TUNING

PUSH·HurrONS

TO SET UP THE TUNING PUSH·BUTTONS

1. Select the waveband required by pressing the appropriate push-button.

2. Tune-in the desired station by means of the Manual Tuning Control as

described previously

3. With the station accurately tuned in, grip the knurled portion of one of

the tuning push-buttons between finger and thumb and unscrew it (i.e ..

turn it anti-clockwise) about half a turn.

4. Push the button firmly home to the limit of its trave1. Allow

to return

to normal position and tighten firmly by turning clockwise. The push-

button is now set to tune the station required, and when pressed will

select the required station irrespective of the position to which the scale

pointer may have been adjusted previously.

5. Proceed in the same manner for the remaining tuning push-buttons ..

SERVICE AREA OF B.B.C. STATIONS

{'~

At the present time the B.B.e. broadcasts three alternative programmes- the

'Home,' 'Light' and 'Third.' The wavelengths on which these programmes

are broadcast are shown in the table overleaf, while the map (also overleaf)

indicates the approximate geographical coverage of the various B.B.e. stations.

A glance at this map will show to which station the set should

tuned for

best reception in any particular area

the British Isles.
