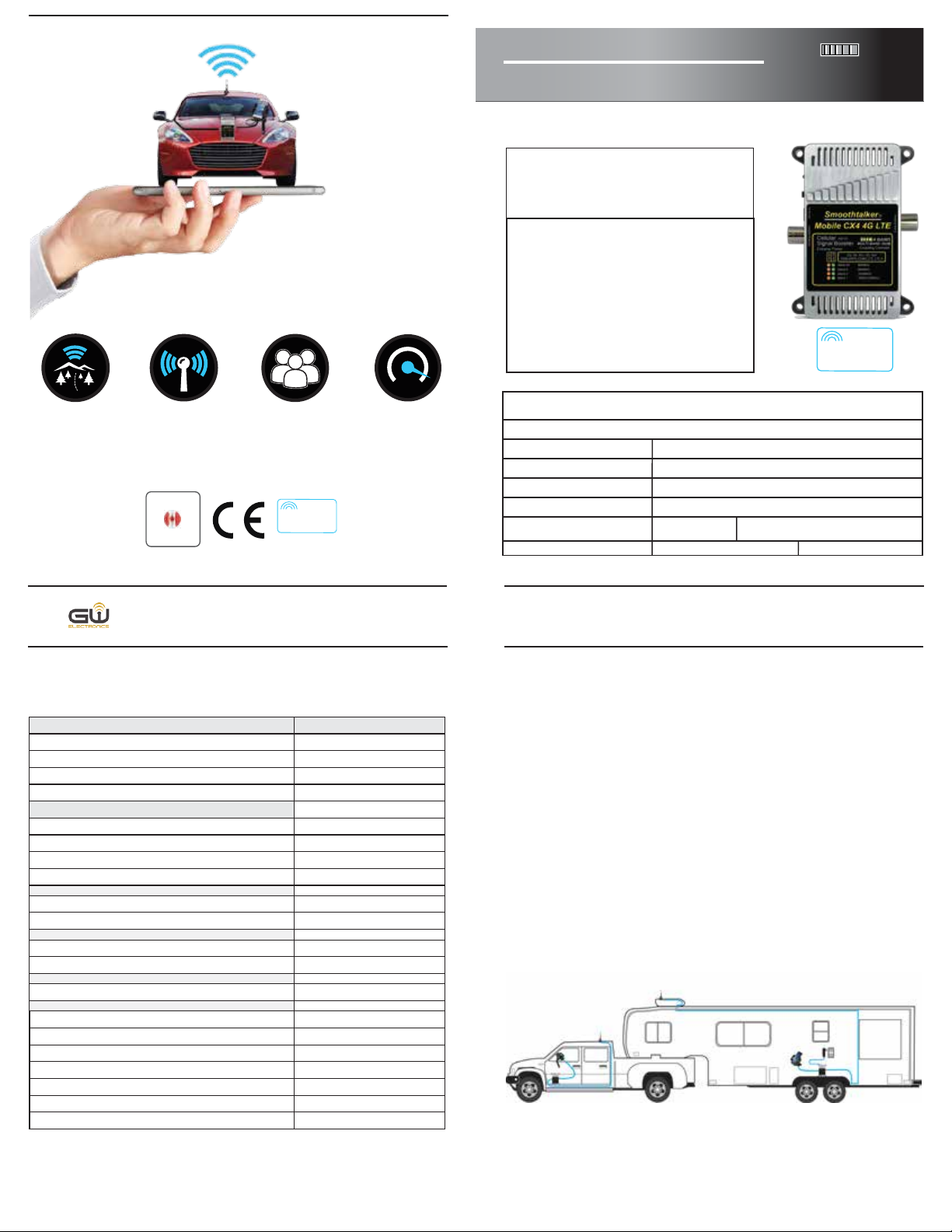

SmoothTalker BTEUX430 User manual

2
Installation
1) Connect the outside antenna to the side of the booster marked as
“outside antenna.”
Connect the inside antenna to the side of the booster marked as“inside antenna.”
2) Placement
Placement: Place the outside antenna in the middle of the vehicle roof. If the
vehicle has a sunroof please place the antenna on the roof towards the back
window. Place the Patch(inside) antenna in desired location. For cars and trucks
the console between the front seats is recommended. Connect the booster as
shown in Fig.1 & 2 on Pg. 1 or Fig. 3 on Pg. 4.
Important: Use only the power supply included with the booster. Connecting
another power supply at any time will result in damage to the booster and will
void the warranty. Do not turn on the power switch until ALL cables have been
screwed or plugged into the booster or you can cause damage to the booster.
The Mobile CX4
Can easily be moved from vehicle to vehicle
Smoothtalker.com 1-877-726-3444
5
Gain
30 dB
2
50 Ohm
Operating temp
-30 C TO + 85 C
Dimensions
L 11.6 x W 6.4 x H 3.2 (cm)
Model Series
BTEUX430
SPECIFICATIONS
2G, 3G, 3G+, 4G, 4G+, GSM, HSPA, CDMA, LTE, LTE A
Frequencies MHz
800MHz 900MHz 1800MHz 2100MHz
Max Power-TX: Watts EIRP
Impedance
POWER
SUPPLY
12V DC CLA or 12V DC FUSED
or 220V AC/DC
Smoothtalker.com
1-877-726-3444
Weight 0.249 kg
Smoothtalker approved accessories most be used with this booster to maintain
warranty.
Approved Equipment List
ANTENNA CABLES
ACX100, ACX900
CBXmaXfe10,20,30,40,50,60
CBNmaNfe10,20,30,40,50,60
CBGmaGfe 10,20,30,40,50,60
ANTENNAS
SEM2, 11, 14, series
SEM2M, 11M, 14M, series
SEM2LGM, 11LGM, 14LGM, 26LGM series
SEM2LGML 11LGML, 14LGML, 26LGML series
SEM2TH, 11TH, 14TH, 26TH series
SEM2THL, 11THL, 14THL, 26THL series
SEMTHMM series
SEMTHPB series
SEMRP1X , SEMRP1XL
SRBL series
SEMD1 series
SEMDA2 series
SEMO series
SEMDP1 series
SEMDY series
SEMDYD series
COUPLING HOLDERS
BTH Series
4 BAND
Mobile CX4 4G LTE
30dB
Coupling Cradle Connect Cellular
Signal Booster - Extreme Power
MULTI BAND
User Manual BTEUX430
Cellular
Signal Booster
CRADLE TYPE
RX/TX
30dB 4 BAND
MULTI BAND 30dB
GSM,HSPA,CDMA,LTE, LTE A
Connect
Extreme Power
2G, 3G, 3G+, 4G, 4G+
Vehicle
stealth
tech
®
Band 20
Band 8
Band 3
Band 1
1800MHz
2100MHz
800MHz
900MHz
Remote Area
Coverage
Booster RX and
TX Network Friendly
Multiple Users Increase Data Speeds
up to 30 times
stealth
tech
®
Automatic power
control protects the
Mobile Network
Made in
Canada
Fabriqué au
Canada
Gwelectronics.se

34
The “LEDS” on the face of the booster indicate operating gain state. In any given
frequency band. The Green and Orange LED which indicate the gain status I each
operating band. When both of these LEDS are “SOLID ON” it means that the booster
is operating normally and with full gain (No Automatic Gain Reduction).
When one or both of the LEDS are ashing (Per the chart on Pg. 7) it indicates that
the gain has been automatically reduced due to either:
A) High RX outside signal level (close to cell tower)
B) Loop Oscillation, which is due to the inside antenna (either on holder or
Patch antenna) and the outside antennas are located too close together.
When the booster is o it will be indicated as follows:
When inside and outside antennas are extremely close together the Green LED
will fast ash and the Orange LED will turn o indicating that the booster is o due
to loop oscillation.
Band Frequency
RX High Power Attenuation
Oscillation Attenuation
Hp Att
Osc Att
Understanding the LED Indicators LED Lights Explanation and Troubleshooting
Each ash indicates 3dB of gain reduction also known as gain attenuation.
For example: three ashes equals 9dB of attenuation.
Green LED indicates loop oscillation status. When ashing it means reduction
of gain. To improve you need to spread the distance between the inside and
outside antennas. If you spread them far enough away, the Green LED will
become SOLID ON.
Orange LED There are 4 Orange LED lights: 800Mhz, 900Mhz, 1800Mhz,
2100Mhz. LED ON state indicates that the RX (Receive Signal) function of
the band is functioning normally.
LED OFF (Green or Orange): indicates that the band is shut down. When ashing
it means reduction of gain also known as attenuation of gain. You cannot
prevent this condition. As you drive away from the nearby cell tower and get far
enough away the ashing Orange will automatically stop ashing which
indicates that the booster is no longer attenuated. As you approach another
nearby cell tower the Orange may begin ashing again and will stop ashing
as you get farther away. This is the normal operating process.

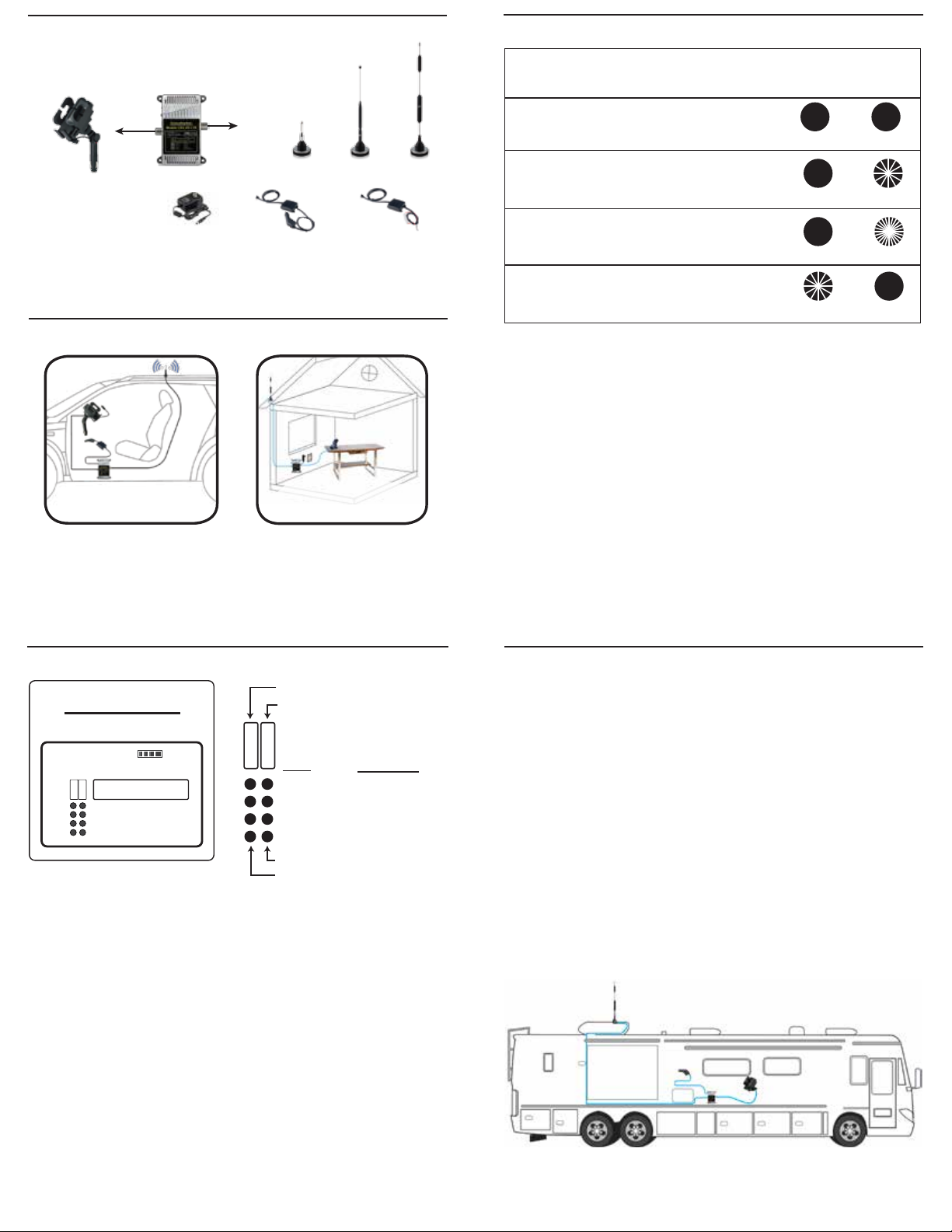

Typical RV Installation Mobile CX4 (Fig. 3)
Orange LED
Green LED
Band 1 2100MHz
Band 3 1800MHz
Band 8 900MHz
Band 20
Fig. 2
Desktop Cradle 220 volt
adapter
LED Lights Indicate Gain Status
ON ON
ON
SLOW FLASHING
SOLID ONSOLID ON
SOLID ON
SOLID ONSLOW FLASHING
FAST FLASHING
OFF
ON/
ORANGE LED
RX High Power
GREEN LED
Oscilation
Attenuation (Att)
Orange Solid ON = Full Gain & Green Solid ON = Full Gain
Orange Solid ON & Green Slow Flashing = Oscillation Att
Orange O & Green Fast Flashing = Oscillation Shutdown
Orange Slow Flashing & Green Solid ON = RX High Power Att
Each ash indicates 3dB of gain reduction also known as gain attenuation.
For example: three ashes equals 9dB of attenuation.
No Flashing = Full Gain
Each Flash = up to 3dB gain reduction
Each Flash = up to 3dB gain reduction
Fast Flashing = booster shutdown (pls troubleshoot)
Operational description:
This devices comprise with International NPS (Network Protection Standard):
NPS and other compliance / safeguard features for AGC and anti-oscillation have
been implemented. NPS and other compliance / safeguard features are defaulted
to be “On” (in operation). NPS and other compliance / safeguard features can not
be eld recongured, disabled or removed. This booster is not user programmable,
does not need ne tuning or adjustment.
In 2001 SmoothTalker produced the rst digital mobile cellular signal booster in
North America with FCC and ICAN approval. We continue to lead with the most
powerful and intelligent boosters in the world. Our dynamic adaptive proprietary
algorithms make them very network friendly. We call it STEALTH TECH technology.
6
Applications
Optional Desktop (Fig. 2)
(Additional parts required which are not
included in Booster kit.)
1
Contents
Cellular Booster
12 volt install12 volt socket plug220 volt AC/DC
Optional Power Types
Holder / Cradle
SEM2MX SEM11MX SEM14MX
NOTE: Only one of the outside antennas is included in this kit (check model) All kits include necessary brackets
and co-axial cables for assembly. It is normal for the booster to be quite warm while the phone is in use state.
To comply Smoothtalker warranty, this booster must only be operated with cables, antennas, and coupling
devices that have been approved for use with this equipment.(Pg. 5)
Typical Vehicle Installation (Fig. 1 )
(All parts are included)
Fig. 1
Mobile Cradle with 12 Volt
Socket CLA plug-in type
Outside antenna options
BTUN1PA
Smoothtalker®
Mobile CX4 4G LTE
Cellular
Signal Booster
Extreme Power
4 BAND
MULTI BAND 30dB
Coupling Connect
RX/TX
2G, 3G, 3G+, 4G, 4G+
GSM, HSPA, CDMA, LTE, LTE A
Hp Att
Osc Att
Band 20 800MHz
Band 8 900MHz
Band 3 1800MHz
Band 1 2100MHz
DC 6V Only Outside Antenna
Inside Antenna
