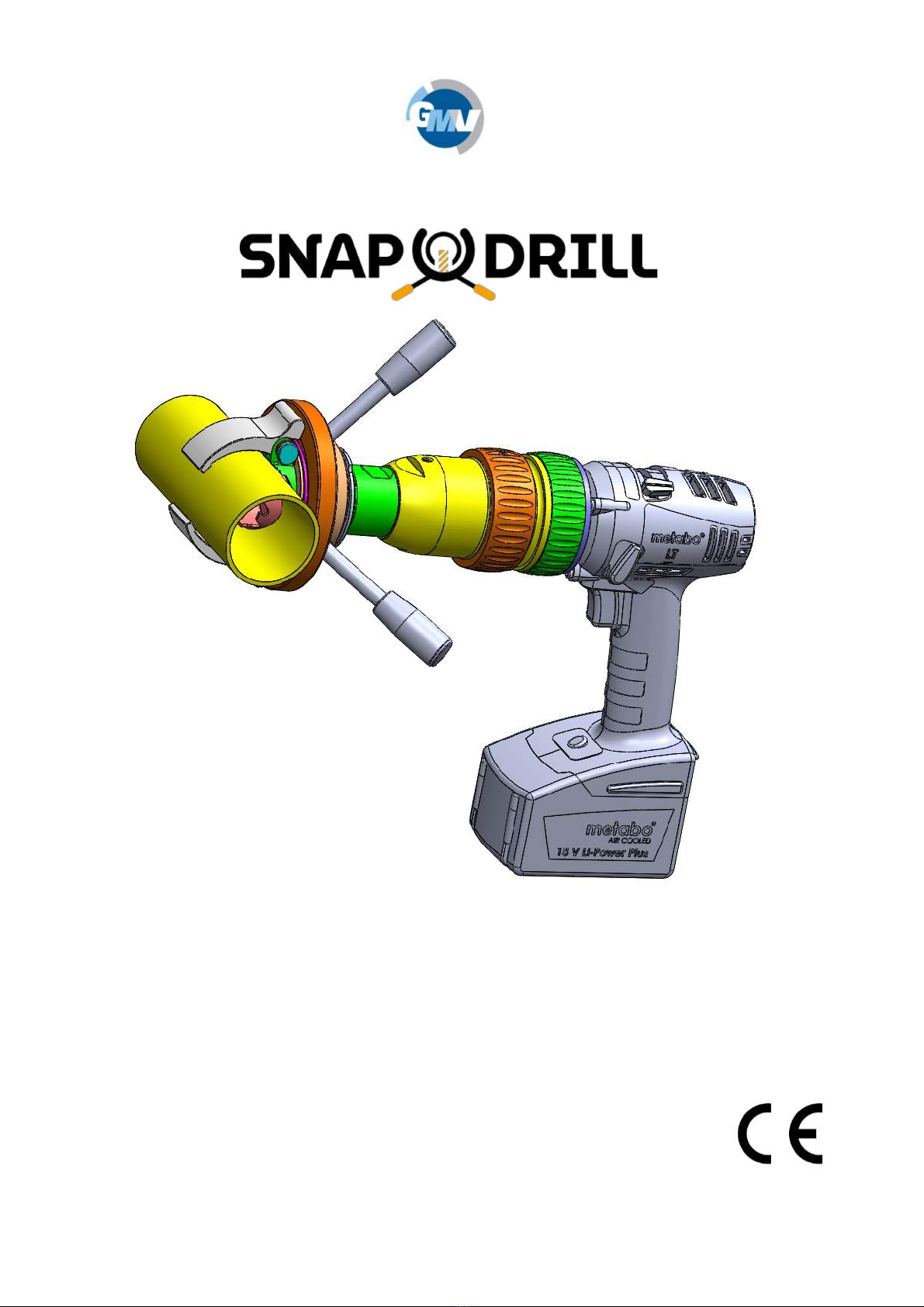

SNAP DRILL SD42,4 User manual

1
GMV SnapDrill 2021
TECHNICAL SPECIFICATIONS
TABLE OF CONTENTS
1. Description
2. Dimensions and weight
3. Hole cutters
4. Safety
5. Instructions for use
6. Changing of hole cutter
7. List of spare parts
8. Declaration of Conformity

2
GMV SnapDrill 2021
1 Description
The Snapdrill connects to a standard battery drill, and is a new patented tool for safe and efficient hole
cutting in pipes. The tools cover pipes with an external diameter of Ø42,4 up to and included Ø168,3 mm,
and drill holes from Ø24 up to and included Ø63,5 mm
2 Dimensions and weight
Snapdrill
SD42,4/48,3
SD60,3
SD76,1
SD88,9
SD114,3
SD168,3
Tube ØA (mm)
42,4 and 48,3
60,3
76,1
88,9
114,3
168,3
Diameter ØC
(mm)
95
114
124
124
139
139
Diameter ØD
(mm)
74
74
74
74
74
74
Length E (mm)
239,5
257
270
285
301
349,5
Weight (kg)
2,4
2,85
3,2
3,34
4,1
4,4
3 Hole cutters

3
GMV SnapDrill 2021
SD42,4/48,3 (42,4)
Hole cutter part no
HS24S 1)
HS30S 1)
Hole cutter diameter ØB (mm)
24
30
Tube diameter Ø42.4mm
Maximum wall thickness of tube (mm)
6.2
3.6
SD42,4/48,3 (48,3)
Hole cutter part no
HS24S 1)
HS30S 1)
Hole cutter diameter ØB (mm)
24
30
Tube diameter Ø48.3mm
Maximum wall thickness of tube (mm)
7
4.8
SD60,3
Hole cutter part no
HS24L
HS30L
HS38L
HS44L
Hole cutter diameter ØB (mm)
24
30
38,1
44,5
Maximum wall thickness of tube (mm)
11.3
9.2
6.1
3.5
SD76,1
Hole cutter part no
HS24L
HS30L
HS38L
HS44L
HS50L
Hole cutter diameter
ØB (mm)
24
30
38,1
44,5
50,8
Maximum wall
thickness of tube
(mm)
13
11.4
8.9
6.7
4.4
SD88,9
Hole cutter part no
HS24L
HS30L
HS38L
HS44L
HS50L
Hole cutter diameter
ØB (mm)
24
30
38,1
44,5
50,8
Maximum wall
thickness of tube
(mm)
11.8
10.6
8.6
6.8
4.9
SD114,3
Hole cutter
part no
HS24L
HS30L
HS38L
HS44L
HS50L
HS63L
Hole cutter
diameter ØB
(mm)
24
30
38,1
44,5
50,8
63,5
Maximum
wall thickness
of tube (mm)
14.4
13.5
11.9
10.5
8.9
5.3
SD168,3
Hole cutter
part no
HS24L
HS30L
HS38L
HS44L
HS50L
HS63L
Hole cutter
diameter ØB
(mm)
24
30
38,1
44,5
50,8
63,5
Maximum
wall thickness
of tube (mm)
13.1
12.5
11.6
10.7
9.7
7.3
1) Note that for cutter Ø24 and Ø30 there is a short (S) and a long (L) version.
4 Safety

4
GMV SnapDrill 2021
1. Check HSE rules and regulations
2. Make inspection of tool before starting
3. Emphasize the clamping danger
4. Supply data sheets of the tube
It is recommended to wear protective footwear, goggles, hard hat, hearing protection and gloves to
handle metal chips.
5 Instructions for use
1. Referring to fig. 1, place the teeth in the spindle housing against the tube where to drill the hole.

5
GMV SnapDrill 2021
2. Referring to fig. 2, fasten the snap drill to the tube by tightening the jaws against the tube by
rotating the thrust lock nut clockwise against the thrust ring by the help of the handle levers. Use
both hands for final tightening.
3. Referring to fig. 3, check that the feed nut is in the rear position before start. Lubrication directly
in the hole saw ahead of drilling is recommended. Use the battery drills “drilling mode” (drill
symbol) on the torque switch. Use battery drill gear stage 1. Start the battery drill clockwise
pushing the button fully down to achieve full torque. Gently rotate the feed nut outwards to
engage the clutch. The hole cutter will now move outwards and cut the hole in the tube. Drill
continuously, until the hole saw is fully through the pipe.

6
GMV SnapDrill 2021
4. Referring to fig. 4, loosen the jaws by rotating the thrust lock nut anticlockwise. The torsion
springs will lift up the jaws thus enable the snap drill to be pulled free.
5. Referring to fig. 5, get rid of the debris by rotating the drill anticlockwise and gently rotate the
feed nut outwards to engage the clutch. The hole cutter will now move backwards pushing the
debris against the hexagon drive shaft thus throwing it free from the hole cutter.

7
GMV SnapDrill 2021
6 Changing of hole cutter
1. Referring to fig. 6, screw out lock screw and remove the hole cutter.
2. Thoroughly clean all visible parts. Using air pressure to clean is not recommended. Insert the new
hole cutter.
3. It is important that the battery drill is set to gear stage 1. Fasten the hole cutter with the custom
socket and flex handle.
4. The table below gives the hole cutter part number and its size that fit for each SnapDrill. Note
that for cutter Ø24 and Ø30 there is a short (S) and a long (L) version.
SnapDrill part
number and
pipe size (mm)
SD42,4/48,3-
Ø42,4 and
Ø48,3
SD60,3
Ø60,3
SD76,1
Ø76,1
SD88,9
Ø88,9
SD114,3
Ø114,3
SD168,3
Ø168,3
Hole cutter part
number and
cutter size (mm)
SD030S -Ø30
SD024S -Ø24
SD046L -Ø46
SD044L -
Ø44,5
SD038L -
Ø38,1
SD030L -Ø30
SD024L -Ø24
SD050L -Ø50,8
SD046L -Ø46
SD044L -Ø44,5
SD038L -Ø38,1
SD030L -Ø30
SD024L -Ø24
SD050L -Ø50,8
SD046L -Ø46
SD044L -Ø44,5
SD038L -Ø38,1
SD030L -Ø30
SD024L -Ø24
SD063L -Ø63,5
SD050L -Ø50,8
SD046L -Ø46
SD044L -Ø44,5
SD038L -Ø38,1
SD030L -Ø30
SD024L -Ø24
SD063L -Ø63,5
SD050L -Ø50,8
SD046L -Ø46
SD044L -Ø44,5
SD038L -Ø38,1
SD030L -Ø30
SD024L -Ø24

8
GMV SnapDrill 2021
7 List of spare parts
Name
Description
42,4/48,3-JAW
Replacement jaw (2) for SD42,4/48,3 with brass bolt and spring (2) and circlip (2)
60,3-JAW
Replacement jaw (2) for SD60,3 with brass bolt and spring (2) and circlip (2)
76,1-JAW
Replacement jaw (2) for SD76,1 with brass bolt and spring (2) and circlip (2)
88,9-JAW
Replacement jaw (2) for SD88,9 with brass bolt and spring (2) and circlip (2)
114,3-JAW
Replacement jaw (2) for SD114,3 with brass bolt and spring (2) and circlip (2)
168,3-JAW
Replacement jaw (2) for SD168,3 with brass bolt and spring (2) and circlip (2)
M8-Handles
Replacement handles (3) for SD42,4/48,3 up to SD76,1 with locking-washers (6)
M10-Handles
Replacement handles (3) for SD88,9 up to SD168,3 with locking-washers (6)
Level Bubble
Replacement level bubble
Level Bracket
Replacement 3-position level bracket (with level bubble)
SD-Bolt
Hex bolt for hole saw fastening
SD-Flex handle
Flex handle for hex nut
SD-Socket
Hex socket for fastening of SD-Bolt

Declaration of conformity
We, Snap Drill AS (NO92171951, Koppholen 9, 4313 Sandnes Norway) declare under our
sole responsibility that the Snapdrill Hole Cutting Tools* is in conformity with the following
relevant standards and documents:
98/37/EC – 89/392/EEC – 91/368/EEC – 93/44/EEC – 2006/42/EC – DBS 522 – ISO 281 – ISO
898 - VDI 2230 – GEMEINHOLZER – NIEMANN
*Snapdrill hole cutting tools consist of the Snapdrill units (SD42,4/48,3 etc.) and all hole saws
(HS24 etc.). Snap Drill AS will not take responsibility for Metabo and Auer packaging
products.
Martin Talgø – CEO
Sign.
Oslo. 25.05.21
