870015 – 18 Gauge 2" Brad Nailer _Rev 9/6/07

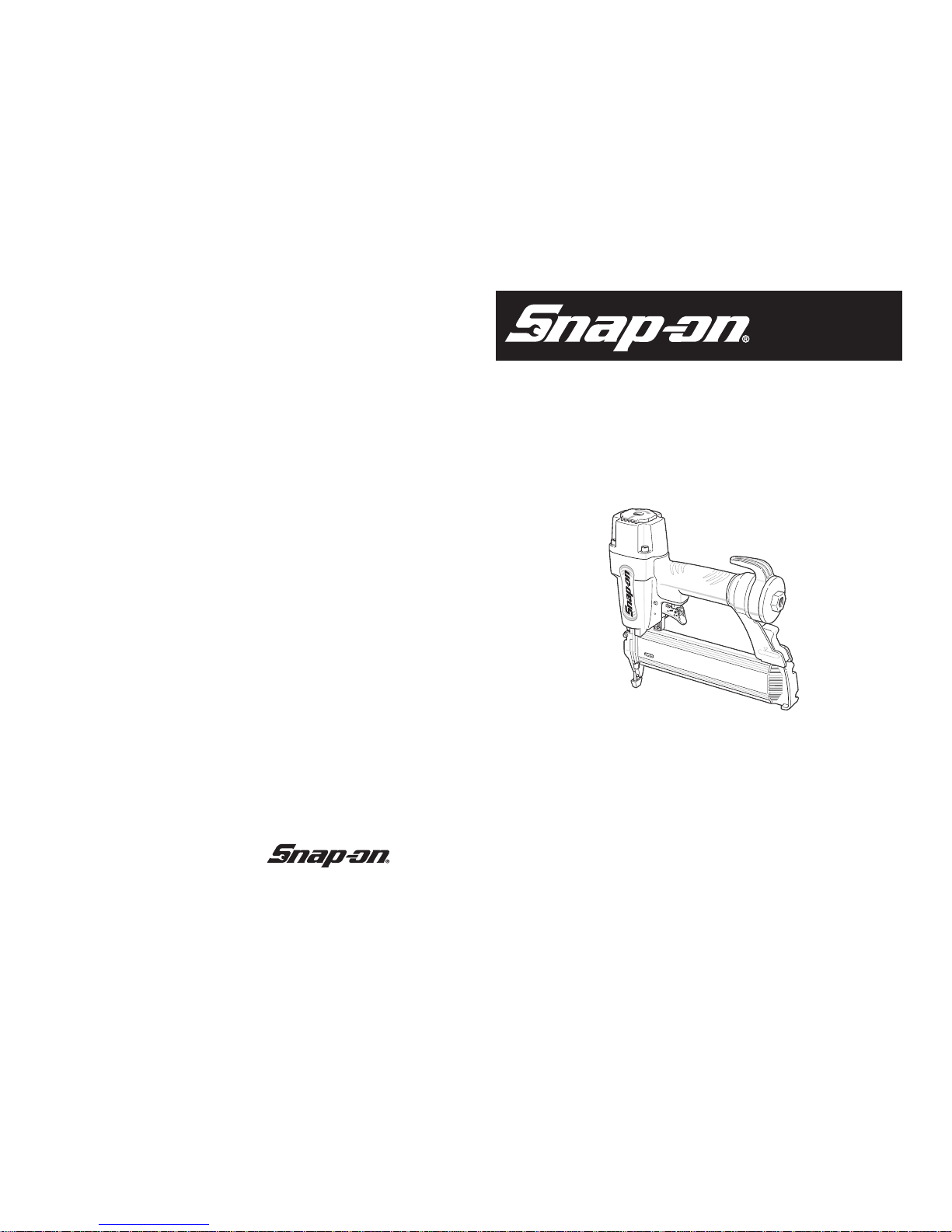

18 GAUGE 2" BRAD NAILER
INSTRUCTION MANUAL
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION,
MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE, READ CAREFULLY AND
UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO
COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.
IF YOU SHOULD HAVE ANY QUESTIONS OR EXPERIENCEA PROBLEM WITHYOUR SNAP-ON PRODUCT, DO
NOT RETURN THIS PRODUCT TO THE STORE. PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT AT
1-888-278-8092. BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION AVAILABLE: MODEL No.,
DATE PURCHASED AND STORE LOCATION.

CONGRATULATIONS!
Thanksforchoosingthisproduct.Ouraimistoprovideyouwiththehighestqualityprod-
ucts,and we want you to betotallysatisfiedwithyour product and our Customer Service.
If any help or advice is needed, please contact us at 1-888-278-8092. When properly
cared for, this product will give you many years of satisfaction.
GENERAL SAFETY RULES
RREEAADDAANNDDFFOOLLLLOOWWAALLLLIINNSSTTRRUUCCTTIIOONNSS..Failure to fol-
low all instructions in this manual may result in severe personal injury or death.
Keep this manual and refer to it for Safety Instructions, Operating Procedures,
and Warranty.
SSAAVVEETTHHEESSEEIINNSSTTRRUUCCTTIIOONNSSFFOORRFFUUTTUURREERREEFFEERREENNCCEE..
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS
The safety instructions provided in this manual are not intended to cover all possible
conditions and practices that may occur when operating, maintaining and cleaning
power tools.
Always use common sense and pay particular attention to all the DDAANNGGEERR,
WWAARRNNIINNGG, CCAAUUTTIIOONNand NNOOTTEEstatements of this manual.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
DDAANNGGEERRindicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WWAARRNNIINNGGindicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CCAAUUTTIIOONNindicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
TABLE OF CONTENTS
CCOONNGGRRAATTUULLAATTIIOONNSS!!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS . . . . . . . . 2-3
IMPORTANT INFORMATION ABOUT THIS MANUAL . . . . . . . . . . . 4
SAFETY WARNINGS AND PRECAUTIONS . . . . . . . . . . . . . . . . . . . 4-7
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
COMPONENT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
OPERATING THE BRAD NAILER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
SELECT TRIGGER ACTUATION MODE . . . . . . . . . . . . . . . . . . . . . . 9-11
ADJUSTING DEPTH OF NAILING . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
USING THE HOOK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
LOADING NAILS INTO THE AIR NAILER . . . . . . . . . . . . . . . . . . . . 12
USING THE NO-MAR NOSEPIECE . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
REQUIRED DAILY PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14
USING THE AIR NAILER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
CHANGING DIRECTION OF EXHAUST AIR . . . . . . . . . . . . . . . . . . . 15
CLEARING JAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-16
MANDATORY MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
PARTS DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-23
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
1 YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-26
1 2

IMPORTANT INFORMATION ABOUT THIS MANUAL
Improper maintenance and operation are responsible for the majority of accidents
involving brad nailers. The largest portion of these could be prevented by recogniz-
ing the basic safety rules and precautions. Most accidents can be avoided if the
operator recognizes a potentially hazardous situation before it happens and by
observing appropriate safety rules and procedures as outlined in this manual.
Basic safety precautions are outlined in the SSAAFFEETTYYportion of this manual and
throughout text in this manual where a potential hazard might occur.
Hazards that MMUUSSTTbe avoided to prevent serious injury follow headers marked
DDAANNGGEERRoorrWWAARRNNIINNGG. These same precautions are placed as labels on the tool
itself.
NNEEVVEERRuse this nailer for applications that are NNOOTTspecified in this manual.
SAFETY WARNINGS AND PRECAUTIONS
DDoonnoottooppeerraatteebbrraaddnnaaiilleerraannyywwhheerreeffaasstteenneerrmmaayyccoonnttaacctthhiiddddeenneelleeccttrriiccaall
wwiirriinngg..Contact with a “live” wire will make all metal parts of the brad nailer
“live.” This can result in severe electrical shock, severe burns or death to the
operator. Contact a qualified electrical contractor to ensure a safe working envi-
ronment exists.
BBeeaawwaarreeooffcco
onndduuiittssoorrggaassppiippeess..Striking a gas pipe could result in an explo-
sion causing serious injuries or even death to the operator or bystanders.
BBeeaawwaarreeooffwwhhaattiissbbeehhiinnddtthheewwoorrkkppiieeccee..A fastener could travel through the
work piece and out the other side, striking a bystander resulting in serious
injury or even death.
DDoonnoottooppeerraatteetthheebbrraaddnnaaiilleerriinntthheepprreesseenncceeooffffllaammmmaabblleelliiqquuiiddss,,ssuucchhaass
ggaassoolliinnee,,tthhiinnnneerr,,ppaaiinntt,,oorraaddhheessiivveess,,ggaasseessoorrdduusstt..
Sparks created by the tool
cancause flammable materials toignite or explode. Failuretocomply with this warn-
ing could result in serious injury or even death to the operator.
KKeeeeppbbyyssttaannddeerrss,,cchhiillddrreennaannddvviissiittoorrssaawwaayyffrroommaarreeaawwhheerreebbrraaddnnaaiilleerriiss
bbeeiinngguusseedd..Distractions can result in severe injury or even death to anyone
who inadvertently gets in the way of nailing operations.
DDoonnoottu
usseeooxxyyggeenn,,ccoommbbuussttiibblleeoorrbboottttlleeddggaasseess((ssuucchhaassccaarrbboonn
ddiiooxxiiddeeoorrnniittrrooggeenn))aassaappoowweerrssoouurrcceeffoorrt
thheebbrraaddnnaaiilleerr..Use
only compressed air from a source as outlined in this manual. The
tool will explode resulting in severe injury or even death to the operator and
bystanders.
3
CCAAUUTTIIOONNused without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in property damage.
NNOOTTEEprovides additional information that is useful
for proper use and maintenance of this tool. If a
NOTE is indicated make sure it is fully understood.
In addition to SSAAFFEETTYYAALLEERRTTSSlisted above, there could also be numerous symbols
alerting the operator that specific safety equipment is required to safely operate this
tool. Learn these SSAAFFEETTYYSSYYMMBBOOLLSSas well as the SSAAFFEETTYYAALLEERRTTSSto prevent
injury to the operator and to bystanders.
RREEAADDOOPPEERRAATTIINNGGIINNSSTTRRUUCCTTIIOONNSS::Read and understand tool labels,
safety warnings and precautions in this manual before operating the tool.
Failure to follow WARNINGS could result in serious injury or even death
to the operator or bystanders.
WWEEAARRAAPPPPRROOVVEEDDEEYYEEPPR
ROOTTEECCTTIIOONN::Safety glasses must conform to
the requirements of American National Standards Institute (ANSI) Z87.1
and provide protection against flying particles from both front and side.
WWEEAARRHHEEAARRIINNGGPPRROOTTEECCTTOORRSS::Hearing protectors should be worn to
protect the ears from loud exhaust noise produced by the air tools.
UUSSEEOONNLLYYCCLLEEAANN,,DDRRYYCCOOMMPPRREESSSSEEDDAAIIRR::Never use oxygen, com-
bustible gases and any other bottled gas to operate air tools. Using these
other sources can cause the air tool to explode.
NNEEVVEERRPPOOIINNTTTTHHEEBBRRAADDNNA
AIILLEERRAATTYYOOUURRSSEELLFFOORROOTTHHEERRSS::Fasteners
are under extreme pressure and can cause severe injury or even death if
misused.
DDOONNOOTTEEXXCCEEEEDD112200ppssii((88..4433kkgg//ccmm22GG))..Using excessive pressure
from the power source can cause the brad nailer to explode resulting in
severe injury or even death to the operator or bystanders.

AAllwwaayyssuusseehheeaarriinnggpprrootteeccttiioonnttoopprrootteeccttyyoouurreeaarrssaaggaaiinnsstt
hheeaarriinngglloossssdduueettooeexxhhaauussttnnooiissee..AAllwwaayys
swweeaarrpprrooppeerrssaaffee--
ttyyggllaasssseessttoopprreevveennttiinnjjuurriieessttootthheeeeyyeessffrroommffrraaggmmeennttssooff
tthheewwoorrkkppiieeccee,,ddeeffe
eccttiivveennaaiillssoorrootthheerrddeebbrriissccaauusseeddbbyyuussiinnggtthheebbrraaddnnaaiill--
eerr..All safety glasses must have side shields and should conform to the require-
ments of the American National Standards Institute (ANSI) z87.1. Failure to
comply with this warning could lead to serious or permanent damage to the
ears as well as serious damage or permanent blindness in the eyes.
NNeevveerrccaarrrryytthheebbrraaddnnaaiilleerrbbyytthhee
aaiirrhhoossee..A sudden disconnection of the air
hose could cause the brad nailer to remain charged and an accidental firing
could occur. Failure to comply with this warning could lead to serious injury to
the operator or bystanders.
AAllwwaayyssddiissccoonnnneecctttthheeppoowweerrssoouurrcceeaannddeennssuurreetthheettoooolliissnnoottcchhaarrggeedd
bbeeffoorreellooaaddiinnggffaas
stteenneerrss..Failure to comply with this warning could cause
severe injury or death to the operator, bystanders and severe damage to the
brad nailer.
NNeevveerruusseeaannoonn--rreelliieevviinnggaaiirrccoouupplleerrwwiitthhtthheebbrraaddnnaaiilleerr..Always use cou-
plers that release any built-up charge in the brad nailer’s firing mechanism. A
non-relieving air coupler can allow the brad nailer to discharge a fastener while
the tool is disconnected from the power source. Failure to comply with this
warning can result in serious or permanent injury or even death to the operator
or to bystanders.
DDoonnoottddrriivveennaaiillssoonnttooppoof
footthheerrnnaaiillss..Do not operate the brad nailer at too
steep of an angle. Nails can ricochet. Failure to comply with this warning can
result in serious injury or even death to the operator or bystanders.
DDoonnoottmmooddiiffyytthheebbrraaddnnaaiilleerriinnaannyywwaayy..Unauthorized alterations can jeop-
ardize safety in the tool’s operation. Failure to follow this precaution can result
in serious injury or even death to the operator or bystanders.
OOnnrrooooffttooppssaannddootthheerrhhiigghhllooccaattiioonnss,,aal
lwwaayyssmmoovveeffoorrwwaarrddaassyyoouuuusseetthhee
bbrraaddnnaaiilleerr..You can easily loose your footing if moving backwards. When nail-
ing against a perpendicular surface, nail from the top down. This causes less
fatigue and reduces the chances of accidents.
EEnnssuurreetthheewwoorrkkaarreeaaiissssuuffffiicciieennttllyyiilllluummiinnaatteeddttoo
ooppeerraatteeppoowweerrttoooollss..The
work area should be clear and free of litter.
DDoonnoottccoonnnneeccttbbrraaddnnaaiilleerrttooaannaaiirrssoouurrcceeccaappaabblleeooffggeenneerraattiinngg
mmoorreetthhaann220000ppssii((1144..0066kkgg//ccmm22GG))..Over-pressurizing the brad
nailer will result in bursting, abnormal operation or breakage of the
tool. Use only clean, dry, regulated compressed air at levels speci-
fied on the tool. Failure to comply can cause severe injury or death to the oper-
ator or bystanders.
DDoonnoottaatttteemmppttttooffaasstteenntthheettrriiggggeerriinntthhee““OONN””ppoossiittiioonn..This could lead to
an accidental discharge of the brad nailer. Do not operate the brad nailer if any
portion of the tool’s operating controls are inoperable, disconnected, altered in
any way or not in proper working order. Failure to comply with this warning
could result in serious injury or even death to the operator or other bystanders.
AAllllaaiirrccoommpprreessssoorrssmmuussttccoommppllyyw
wiitthhtthheerreeqquuiirreemmeennttssooffAANNSSII
bb1199..33..Pressure regulators must be used to limit air pressure where
air supply pressure exceeds the tool’s rated operating pressure.
DDoonnoottccaarrrryytthheebbrraaddnnaaiilleerrwwiitthhaaffiinnggeerroonntthheettrriiggggeerr..This could lead to an
accidental discharge of the brad nailer. Do not press the trigger of the brad nail-
er unless it is pressed firmly against the work piece. Do not point the brad nail-
er at yourself or in the direction of another person. Failure to comply with this
warning could result in serious injury or even death to the operator or other
bystanders.
DDoonnoottttaammppeerrwwiitthhtthheewwoorrkkppiieecceeccoonnttaacctt..The work piece contact prevents
accidental discharge of the brad nailer and should never be removed or com-
promised in any way. Failure to comply with this warning could result in seri-
ous injury or even death to the operator or other bystanders.
AAllwwaayyssddiissccoonnnneeccttaaiirrhhoosseeaannddrreemmoovveeaannyyrreemmaaiinniinnggnnaaiills
s::
1. When brad nailer is left unattended.
2. Before performing any maintenance or repair on the brad nailer.
3. Before attempting to clear a jam in the brad nailer.
4. Before moving the brad nailer to a new location.
AAllwwaayysscchheecckktthheeoovveerraallllccoonnddiittiioonnoofftthheebbrraaddnnaaiilleerrbbeeffoorreeuussiinngg..CChheecckkffoorr
aannddttiigghhtteennaannyyllo
ooosseessccrreewwss..Ensure all safety systems are in working condi-
tion before using the brad nailer. The brad nailer must not operate if only the
trigger is pulled or if only the work piece contact is pressed against the work
piece. The brad nailer must only be used if both the trigger and work piece con-
tact work at the same time.
65

COMPONENT INSTALLATION
NNeevveerruusseeaannoonn--rreelliieevviinnggaaiirrccoouupplleerrwwiitthhtthheebbrraaddnnaaiill--
eerr..Always use couplers that release any built-up charge in the brad nailer’s fir-
ing mechanism. A non-relieving air coupler can allow the brad nailer to dis-
charge a fastener while the tool is disconnected from the power source. Failure
to comply with this warning can result in serious or permanent injury or even
death to the operator or to bystanders.
When selecting an air compressor, it must comply with the requirements of the
American National Safety Institute - ANSI B19.3.
Choose an air compressor that can supply more than the required air pressure to
ensure optimum efficiency. Always use clean, dry compressed air with a maximum
pressure of 200 psi. Use a pressure regulator and set the pressure between 70 –
120 psi. (5.0 – 8.5 kg/cm2G). Before each use, check the pressure regulator to
ensure it is functioning within the proper pressure range.
UUssiinnggaannaaiirrpprreessssuurreeooffmmoorreetthhaann112200ppssiiccaann
ccaauusseetthheebbrraaddnnaaiilleerrttoommaallffuunnccttiioonnoorrppoossssiibbllyyeex
xppllooddeeccaauussiinngg
sseevveerreeiinnjjuurryyoorrpprrooppeerrttyyddaammaaggee..
SSEELLEECCTTIINNGGAAPPRROOPPEERRAAIIRRHHOOSSEE
Use an air hose with the largest diameter and shortest length possible to ensure
continuous, efficient nailing operations. Using an air pressure of 70 psi (5.0
kg/cm2G), an air hose with an inside diameter of 1/4" (6.5 mm) or greater and a hose
length of less than 6.6 ft (20 m), it is recommended that a 0.5 second interval be
allowed between each nailing. Air supply hoses shall have a minimum working pres-
sure of 150 psi (10.7 kg/cm2G) or 150% of the maximum pressure produced by the
compressor or whichever is higher.
LLoowwaaiirroouuttppuuttbbyytthheeccoommpprreessssoorroorraalloonnggeerrhhoosseewwiitthh
aassmmaalllleerriinnssiiddeeddiiaammeetteerriinnrreellaattiioonnttootth
heennaaiilliinnggffrreeqquueennccyymmaayyddeeccrreeaassee
tthheeddrriivviinnggccaappaabbiilliittyyoofftthheeaaiirrnnaaiilleerr..
SSEELLEECCTTIINNGGAAQQUUIICCKKDDIISSCCOONNN
NEECCTT
1. Remove the plastic protective plug
from the tool’s air inlet.
2. Insert a 1/4" NPT male quick
disconnect into the air inlet. Install
the female portion to the air hose.
TThhoorroouugghhllyycclleeaannaannddmmaaiinnttaaiinntthheebbrraaddnnaaiilleerraafftteerreevveerryyuussee..Lubricate
moving parts to prevent rust and minimize friction-related wear. Wipe down the
entire tool and remove all dust from the moving parts. Properly store the brad
nailer in a suitable case to keep it ready for the next job.
AAllllmmaaiinntteennaanncceeaannddrreeppaaiirrsssshhoouulld
dbbeeppeerrffoorrmmeeddbbyyaannaauutthhoorriizzeeddrreeppaaiirr
ffaacciilliittyy..Call 1-888-278-8092 to obtain a list of repair facilities in your area or
to make arrangements to return the tool for service.
FUNCTIONAL DESCRIPTION
CCOONNTTRROOLLSSAANNDDCCOOMMPPOONNEENNTTSS::
1. Exhaust Cover
2. Trigger
3. Jam Clearing Door
4. No-mar Nosepiece
5. Empty Magazine Indicator
6. Nail Depth Adjuster
7. Hanging Hook
8. Air Inlet
9. Nail Magazine Lever
10. Nail Magazine Cover
11. Work Piece Contact
12. Trigger Actuation Mode Selector
AACCCCEESSSSOORRIIEESS::
13. Lubricant
14. Safety Glasses
15. Hex Wrenches (2)
16. F32 - Brad Strips
78

OOPPEERRAATTIIOONNIINNSSIINNGGLLEESSEEQQUUEENNTTIIAALLAACCTTUUAATTIIOONNMMOODDEE
To select the Single Sequential Actuation Mode (see
Figure 1):
1. Press and hold the red Actuation Selector embedded
in the trigger.
2. Rotate Actuation Selector down to the Single
Sequential Actuation (T).
3. Release Actuation Selector, ensuring locking tab is
fully seated in the slot.
EEnnssuurreesseelleeccttoorrhhaasslloocckkeeddiinnttooppoossiittiioonn..EEnnssu
urree
aaccttuuaattiioonnpprroocceessssiissffuullllyyuunnddeerrssttooooddbbeeffoorreeaatttteemmppttiinnggttoouusseebbrraaddnnaaiilleerr..
TTOOUUSSEETTHHEEBBRRAADDNNAAIIL
LEERRIINNSSIINNGGLLEESSEEQQUUEENNTTIIAALL
AACCTTUUAATTIIOONNMMOODDEE::
1. Firmly grip brad nailer handle.
2. Position brad nailer work piece con-
tact on work piece surface.
3. Push brad nailer against work piece
compressing work piece contact.
4. Pull trigger on brad nailer to drive
nail. The brad nailer will recoil away
from the work piece as nail is driven.
5. Remove finger from trigger and lift
brad nailer away from surface of work
piece.
OOPPEERRAATTIIOONNIINNCCOONNTTAACCTTAACCTTUUAATTIIOONNMMOODDEE
WWhheennuussiinnggccoon
nttaaccttaaccttuuaattiioonnmmooddee,,bbeeccaarreeffuullooffuunniinn--
tteennttiioonnaallddoouubblleeffiirreessrreessuullttiinnggffrroommttoooollrreeccooiill..UUnnwwaanntteed
dffaasstteenneerrssmmaayybbee
ddrriivveenniifftthheewwoorrkkppiieecceeccoonnttaaccttiissaalllloowweeddttooaacccciiddeennttaallllyyrree--ccoonnttaacctttthheewwoorrkk
ppi
ieeccee..
9 10
To improve the connection between the quick disconnect and air nailer, and to help
prevent oxidation, apply PTFE tape or joint compound to the connector threads
before insertion.
3. Snap the air hose onto the quick disconnect on the air nailer. Check for air
leaks.
LLUUBBRRIICCAATTIIOONN
To ensure maximum performance, it is recommended to install an air set (oiler, reg-
ulator, and air filter) as close as possible to the air nailer. Adjust the oiler so that
approximately one drop of oil will be released for every 50 nails.
If an air set is not used or is unavailable, oil the tool using pneumatic tool oil by plac-
ing 2 or 3 drops into the air inlet. This should be done before and after use. For
proper lubrication, the tool must be fired several times after the oil is introduced to
the filter.
OPERATING THE BRAD NAILER
AAllwwaayyssuusseehheeaarriinnggpprrootteeccttiioonnttoopprrootteeccttyyoouurreeaarrssaaggaaiinnsstt
hheeaarriinngglloossssdduueettooeexxhhaauussttnnooiissee..AAllwwaayys
swweeaarrpprrooppeerrssaaffee--
ttyyggllaasssseessttoopprreevveennttiinnjjuurriieessttootthheeeeyyeessffrroommffrraaggmmeennttssooff
tthheewwoorrkkppiieeccee,,ddeeffe
eccttiivveennaaiillssoorrootthheerrddeebbrriissccaauusseeddbbyyuussiinnggtthheebbrraaddnnaaiill--
eerr..All safety glasses must have side shields and should conform to the require-
ments of the American National Standards Institute (ANSI) z87.1. Failure to
comply with this warning could lead to serious or permanent damage to the
ears as well as serious damage or permanent blindness in the eyes.
AAllwwaayyssddiissccoonnnneecctttthheeaaiirrhhoosseebbeeffo
orreemmaakkiinnggaaddjjuussttmmeennttssoorrcchheecckkiinnggtthhee
ffuunnccttiioonnaalliittyyoofftthheeaaiirrnnaaiilleerr..
SELECT TRIGGER ACTUATION MODE
The brad nailer is equipped with a selectable trigger. This allows the selection of
SSiinngglleeSSeeqquueennttiiaallAAccttuuaattiioonnMMooddeeor CCoonnttaaccttAAccttuuaattiioonnMMooddee.
Figure 1

To select Contact Sequential Actuation Mode (see Figure 2):
1. Press and hold Actuation Selector embedded in the
trigger.
2. Rotate Actuation Selector up to the Contact
Sequential Actuation (TTT).
3. Release Actuation Selector, ensuring locking tab is
fully seated in the slot.
EEnnssuurreesseelleeccttoorrhhaasslloocckkeeddiinnttooppoossiittiioonn..EEnnssuurree
aaccttuuaattiioonnpprroocceessssiissffuullllyyuunnddeerrssttooooddbbeeffoorreeaatttteemmppttiinnggttoouusseebbrraaddnnaaiilleerr..
TTOOUUSSEETTHHEEBBRRAADDNNAAIILLEERRIINNCCOONNTTAACCTTAACCTTUUAATTIIOONNMMOODDEE::
1. Firmly grip brad nailer handle.
2. Pull and hold the brad nailer trigger.
3. Push brad nailer against work piece compressing work piece contact.
4. The brad nailer will drive nail upon contact. The brad nailer will recoil away
from the work piece as nail is driven.
ADJUSTING DEPTH OF NAILING
BBeeaawwaarreeooffmmaatteerriiaalltthhiicckknneesssswwhheennuussiinnggnnaaiilleerr..AApprroo--
ttrruuddiinnggnnaaiillmmaayyccaauusseeiinnjjuurryy..
Adjust the depth of nailing by turning the
adjustment knob (Figure 3, Item 1) to the left
(A) for the deepest setting and to the right (B)
for the shallowest setting. To increase the depth
of the nails, when the adjustment knob is
already set to its highest setting, increase the air
pressure. To decrease the depth of nails when
the adjustment knob is already set to its lowest
setting, decrease the air pressure. Should nails
be driven too deep even when the adjustment
knob is set at its lowest setting, decrease the air
pressure. In general, the brad nailer will have a
longer service life when the adjustment knob is
set at a lower setting causing less wear and tear
on the driving mechanism.
AAllwwaayyssddiissccoonnnneecctttthheebbrraaddnnaaiilleerrbbeeffoorreemmaakkiinnggaannyy
aaddjjuussttmmeennttssttootthheennaaiillddeepptthhkknnoobb..
USING THE HOOK
AAllwwaayyssddiissccoonnnneecctttthheeaaiirrhhoosseebbeeffoorreehhaannggiinnggtthheebbrraaddnnaaiilleerrwwiitthhtthheehhooookk..
NNEEVVEERRhhooookktthheebbrraaddnnaaiilleerriinnaahhiigghhllooccaattiioonnoorroonnaannuunnssttaabblleeppllaattffoorrmm..
LOADING NAILS INTO THE AIR NAILER
AAllwwaayyssddiissccoonnnneecctttthheeaaiirrhhoosseeffrroommtthheennaaiilleerrbbeeffoorreeaaddddiinnggoorrrreemmoovviinngg
nnaaiillssttootthheebbrraaddnnaaiilleerr..
N
NEEVVEERRuusseeddeeffoorrmmeeddnnaaiillssoorrnnaaiillssttrriipp..FFaaiilluurreettoooobbsseerrvveetthhiisspprreeccaauuttiioonn
ccaannrreessuullttiinnppoooorrnnaaiillffe
eeeddiinnggaanndd//oorrjjaammssiinntthheeffeeeeddiinnggmmeecchhaanniissmm..
To load nails in brad nailer, depress magazine lever and pull magazine cover to back
of magazine. (Figure 4). Insert nails and slide magazine cover over nails until it locks
into place.
USING THE NO-MAR NOSEPIECE
AAllwwaayyssddiissccoonnnneecctttthheeaaiirrhhoosseebbeeffoorreeaattttaacchhiinnggtthhee
nnoo--mmaarrnnoosseeppiieeccee..
11
Figure 3
Figure 2
Figure 4
12

6. Select Single Sequential Actuation Operation. Check for leaks. Without pulling
the trigger, press the work piece contact against the work piece. The tool
MUST NOT operate. Holding the tool away from the work piece, pull trigger
and hold for 5 seconds. The tool MUST NOT operate. Repeat steps several
times. Without pulling trigger, press nailer against work piece and pull trigger.
The tool MUST operate. Release trigger. Driver MUST move up.
7. Select Contact Actuation Operation. Holding nailer away from work piece, pull
trigger. The tool MUST NOT operate. While still pulling trigger, press the nailer
against work piece. The tool MUST operate.
8. If Steps 1 through 7 function properly, prepare the tool for use. Select opera-
tion mode and load fasteners.
9. Set the required depth of drive.
10.Repeat these steps daily. Test again if the nailer is dropped, jammed, etc.
USING THE AIR NAILER
To drive a nail, place the work piece
contact of the brad nailer against the
work piece and pull the trigger. See
Figure 6.
To avoid any unexpected nailings,
perform the operation as follows:
1. Avoid placing the work piece contact
against the work piece with excessive
force.
2. Pull the trigger fully and hold it in the
fired position for 1 to 2 seconds
before releasing the trigger. This will
give the brad nailer time to complete-
ly expend the previous nail and build
enough pressure for the next nail.
DDOONNOOTThhoollddtthheettrriiggggeerriinnaahhaallff--ppuulllleeddppoossiittiioonn..This
could cause an unexpected nailing to occur if the work piece contact is permit-
ted to re-contact the work piece. Failure to comply could result in damage to
work piece.
14
In order to prevent the surface of the work piece from being
scratched or damaged, use the no-mar nosepiece. Install
no-mar nosepiece by pressing it into place on the nose
frame. See Figure 5.
Store the no-mar nosepiece in place when
not being used.
NNeevveerruusseeaannoonn--rreelliieevviinnggaaiirrccoouupplleerrwwiitthhtthheebbrraaddnnaaiill--
eerr..AAllwwaayyssuusseeccoouupplleerrsstthhaattrreelleeaasseea
annyybbuuiilltt--uuppcchhaarrggeeiinntthheebbrraaddnnaaiilleerr’’ss
ffiirriinnggmmeecchhaanniissmm..AAnnoonn--rreelliieevviinnggaaiirrccoouupplleerrccaannaalllloowwtthhee
bbrraaddnnaaiilleerrttoo
ddiisscchhaarrggeeaaffaasstteenneerrwwhhiilleetthheettoooolliissddiissccoonnnneecctteeddffrroommtthheeppoowweerrssoouurrccee..
FFaaiilluurreetto
occoommppllyywwiitthhtthhiisswwaarrnniinnggccaannrreessuullttiinnsseerriioouussoorrppeerrmmaanneennttiinnjjuurryy
oorreevveennddeeaatthhttootthheeooppeerraattoorroor
rttoobbyyssttaannddeerrss..
When the air hose is disconnected, the pressure reservoir in the brad nailer will dis-
charge removing any built up air inside the tool.
REQUIRED DAILY PREPARATION
The following steps should be performed on a daily basis to ensure the brad nailer
is operating correctly:
1. Disconnect air supply from nailer and remove fastener strip.
2. Check all screws, nuts and pins and ensure all are tight.
3. Press the pusher release button and slide back the pusher assembly
(Overriding the reload indicator). Press the work piece contact against a work
piece ensuring smooth movement.
4. With work piece contact against the work piece, pull trigger. The trigger must
operate smoothly.
5. Connect air supply and set regulator for 70 psi. DO NOT load a fastener strip.
13
Figure 6
Figure 5

OOVVEERRAALLLLMMAAIINNTTEENNAANNCCEEOOFFAAIIRRNNAAIILLEERR
AAllwwaayyssddiissccoonnnneecctttthheeaaiirrhhoosseeffrroommaaiirrnnaaiilleerrbbeeffoorree
aatttteemmppttiinngga
annyyttyyppeeooffmmaaiinntteennaanncceeoorrvviissuuaalliinnssppeeccttiioonnooffttooooll..
Always visually inspect air nailer before every use. Check on the overall condition
and for any loose screws. Tighten any screws that have come loose. See Figure 9.
Visually inspect the work piece contact
and trigger to ensure there is free
movement. See Figure 10.
When the tool is not going to be used
for an extended period, wipe off all dust
and debris that have collected on it.
Tighten all loose screws. Lubricate the
firing mechanism with pneumatic tool
oil. See page 9 for Lubrication.
Store the brad nailer in a safe location or in
suitable carrying case. It is recommended
that the brad nailer be secured in a locked
location to prevent unauthorized usage.
Avoid exposure to direct sunlight and/or
locations with high humidity and heat.
RReemmoovveetthheebbrraaddnnaaiilleerrffrroommuusseeaanndds
scchheedduulleettoohhaavvee
iittrreeppaaiirreeddaattaannaauutthhoorriizzeeddrreeppaaiirrffaacciilliittyyiifftthheewwoorrkkppiieecceeccoonnttaaccttiissbbiinndd--
iinngg
oorrnnoottmmoovviinnggffrreeeellyy..DDoonnoottaatttteemmppttttoorreeppaaiirrtthheebbrraaddnnaaiilleerr..FFaaiilluurreettoo
ccoommppllyyccaannrreessuullttiinnmmaallf
fuunnccttiioonnoofftthheettoooollaannddsseevveerreeiinnjjuurryyttootthheeooppeerraa--
ttoorroorraannyybbyyssttaannddeerrss..
CHANGING DIRECTION OF EXHAUST AIR
The direction of exhaust air on the air nailer can be
directed 360˚ degrees by placing hand on exhaust
cover and turning. See Figure 7.
CLEARING JAMS
Typically, jams are caused when a fastener or a fastener fragment becomes wedged
between the driver blade and nail guide. Using the wrong fastener can also cause jams.
TTOOCCLLEEAARRAAJJAAMM::
1.Disconnect the air supply and remove the fas-
tener strip. Leave the pusher assembly open.
2.Pull out the latch tab and open the jam-clear-
ing door.
3.Remove all debris that has built up during
operation.
4.Remove jammed fastener. If fastener is diffi-
cult to grasp, use needle nose pliers instead of
fingers.
5.If necessary, insert a flat-blade screwdriver so
that it touches the tip of the driver blade. See
Figure 8. Tap the screwdriver with a hammer.
The screwdriver will push the driver blade
back, freeing the jam.
6.Close the jam-clearing door securely.
MAINTENANCE
SSTTOORRAAGGEEOOFFNNAAIILLSS
Always handle nail strips and their box very carefully. If the nail strips have been
mishandled, they may be out of shape or have breaks in the connecting strips. This
will cause the nails to feed poorly and possibly result in misfiring or jams in the air
nailer.
Avoid storing nails in a very humid or hot environment or place in direct sunlight.
15 16
Figure 8
Figure 9
Figure 10
Figure 7

PPRROOBBLLEEMMPPOOSSSSIIBBLLEECCAAUUSSEESSOOLLUUTTIIOONN
MANDATORY MAINTENANCE
AAllllmmaaiinntteennaanncceeaannddrreeppaaiirrsssshhoouullddbbeeppeerrffoorrmmeeddbbyyaann
aauutthhoorriizzeeddrreeppaaiirrffaacciilliittyy..CCaallll11--888888--227788--88009
922ttoooobbttaaiinnaalliissttooffrreeppaaiirrffaacciill--
iittiieessiinnyyoouurraarreeaaoorrttoommaakkeeaarrrraannggeemmeennttssttoorreettuurrnntthheettoooollffo
orrsseerrvviiccee..
AACCTTIIOONNRREEAASSOONNOOPPEERRAATTIIOONN
TROUBLESHOOTING
Most minor problems can be resolved quickly and easily using the troubleshooting
table below. For problems that cannot be solved, contact Alltrade Customer Service
(toll free) at 1-888-278-8092.
PPRROOBBLLEEMMPPOOSSSSIIBBLLEECCAAUUSSEESSOOLLUUTTIIOONN
Clean magazine and
feeder mechanism. Prevents brad nailer from jamming. Use compressed air and clean daily.
Inspect and ensure work
piece contact operates
properly.
Ensures operator safety
and keeps brad nailer
working efficiently.
Use compressed air and
clean daily.
Lubricate brad nailer
after every use using
pneumatic tool oil. Extends life of brad nailer.
Apply 2 – 3 drops of
pneumatic tool oil to
brad nailer air inlet after
every use.
Weak drive. Slow to
cycle between nailings.
Ensure proper air pres-
sure is being used.
Inspect for worn driver
blade.
Inspect piston O-ring for
wear or damage.
Increase air pressure,
Do not exceed 120 psig
(8.3 bars, 8.5 kg/cm2)
Contact Customer
Service.
Nails driven too deep. Check air pressure. Reduce air pressure.
Brad nailer feeds inter-
mittently or skips nails.
Ensure correct nails are
being used.
Inspect nail feeder
mechanism.
Piston O-ring damaged
or worn
Nail feeder worn or
damaged.
Use ONLY recommend-
ed nails.
Clean and lubricate nail
feeder.
Use recommended
pneumatic tool oil.
Contact Customer
Service.
Replace nail feeder.
Nails jam or driven nail
is bent.
Ensure correct nails are
being used.
Inspect for worn driver
blade.
Nail feeder worn or
damaged.
Use ONLY recommend-
ed nails.
Contact Customer
Service.
Replace nail feeder.
Drives nails properly
during normal nailing
operations, but fails to
drive nails fully at faster
operating speeds.
Check inside diameter of
air hose. Switch to air hose with larger inside diameter.
Nailer operates, but no
nail is driven.
Check for jammed nail.
Inspect nail feeder
mechanism.
Ensure correct nails are
being used.
Clear jammed nail.
Clean and lubricate nail
feeder.
Use ONLY recommend-
ed nails.
17 18
