Parts Manual for
LAWN TRACTOR ACCESSORIES
FOR ALL SMALL FRAME LAWN TRACTORS
WITH DISC, GEAR & HYDRO DRIVE
SERIES 0, 1, 2 & SERIES A, B, C, D, E, F, G, H, I
COPYRIGHT © 2003
SNAPPER PRODUCTS INC.
ALL RIGHTS RESERVED
(Rev. 1, 1/24/03) MANUAL No. 06613

2
CONTENTS
LAWN TRACTOR MODEL IDENTIFICATION
Positive identification of the machine will be necessary. Identify the machine with the model
number to insure the correct kit is used for that model. The series number or letter of the
model number is used in this manual to match the correct kit with the correct model. Refer
to Owner’s Manual for correct Series number. The series number for all disc, gear and hydro
drive two piece frame models is 0, 1, 2. The series number for all gear and hydro drive one
piece frame models is A thru I. The Series number examples are as follows:
Lawn Tractor (Disc Drive Two Piece Frame) Example: LT12D330B - Series number is 0.
Lawn Tractor (Disc Drive Two Piece Frame) Example: LT115D411KV - Series number is 1.
Lawn Tractor (Gear Drive Two Piece Frame) Example: LT115G411KV - Series number is 1.
Lawn Tractor (Hydro Drive Two Piece Frame) Example: LT140H412KV - Series number is 2.
Lawn Tractor (Hydro Drive One Piece Frame) Example: LT160H42ABV - Series letter is A.
Lawn Tractor (Gear Drive One Piece Frame) Example: LT120G38AB - Series letter is A.
Lawn Tractor (Gear Drive One Piece Frame) Example: BH120G38BB - Series letter is B.
KIT No. DESCRIPTION PAGE
6-0609 Tire Chain (For 18” X 6.50” Tire)..........................................................................4
6-1085 Tire Chain (For 18” X 8.50” Tire)..........................................................................4
6-1399 Tire Chain (For 18” X 9.5” Tire)............................................................................4
6-1333 Tire Chain (For 20” X 10” Tire).............................................................................4
6-1245 Rear Weight..................................................................................................4 & 5
6-0870 Thatcherizer (LT12D Series) ........................................................................6 & 7
6-1247 Thatcherizer (1 Piece Frame Models) ..........................................................8 & 9
6-0737 Anti-Scalp Wheel (33” Deck).............................................................................10
6-0794 Anti-Scalp Wheel (41” Deck).............................................................................10

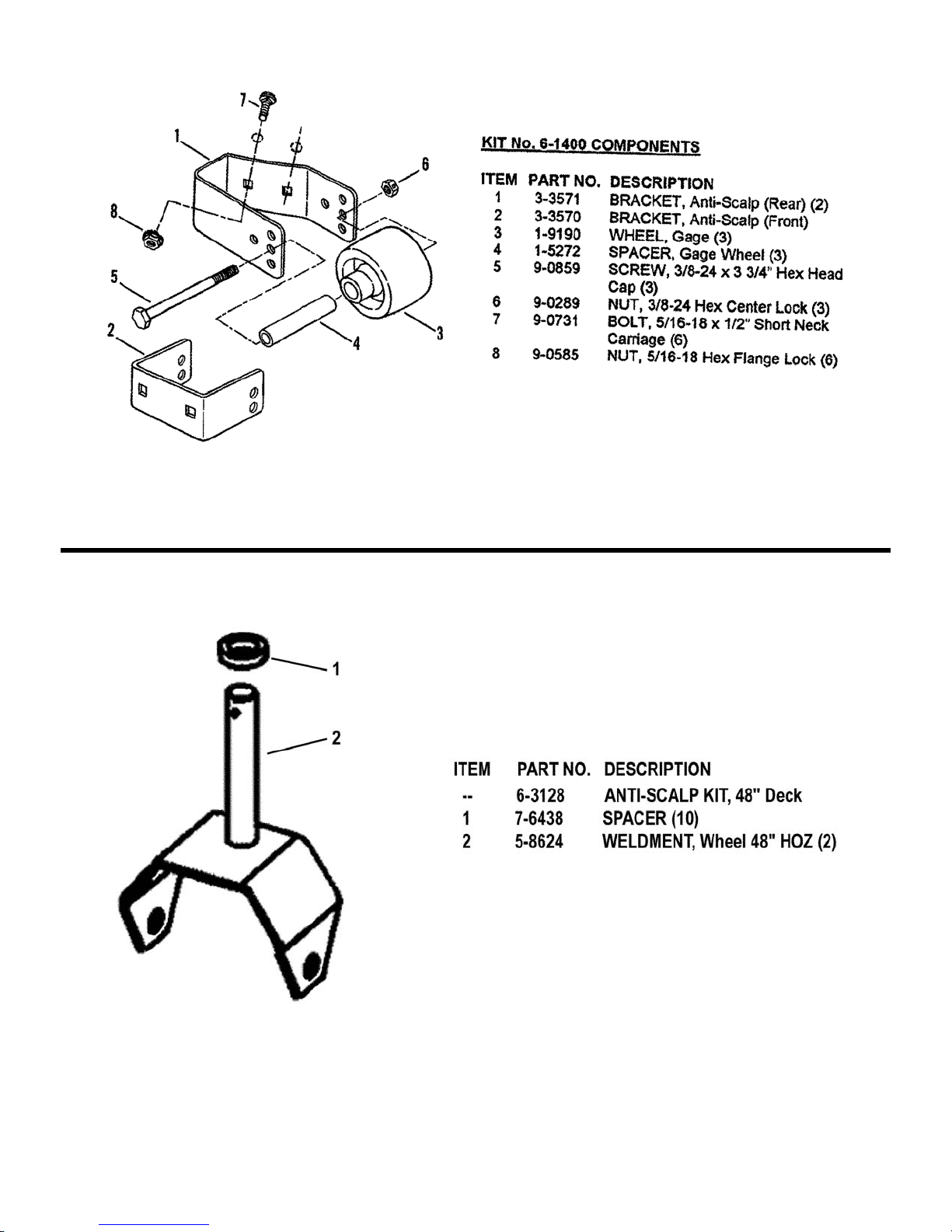

6-1400 Anti-Scalp Wheel (33” Deck).............................................................................11
6-3128 Anti-Scalp Wheel (48” Deck).............................................................................11
6-0943 33” Single Bag Grass Catcher ...............................................................12 & 13
6-1312 38” Single Bag Grass Catcher (For Hydro Drive Models).......................14 & 15
6-1886 38” Single Bag Grass Catcher (Replaced 6-1249)..................................16 & 17
6-0944 41 & 42” Single Bag Grass Catcher .......................................................18 & 19
6-3289 Debris Shield Kit, (For All Single Bag Catchers)................. 14 & 15, 16 & 17, 19
6-3281 33” Twin Bag Grass Catcher (6-1334 Adapter Kit Required)..................20 & 21
6-1248 38” Twin Bag Grass Catcher (6-1334 Adapter Kit Required)..................22 & 23
6-1888 38” Twin Bag Grass Catcher (6-1334 Adapter Kit Required)..................22 & 23
6-0945 41” Twin Bag Grass Catcher...................................................................24 & 25
6-3131 33” Clamshell Grass Catcher (6-1334 Adapter Kit Required).................26 & 27
6-3126 38” Clamshell Grass Catcher (6-1334 Adapter Kit Required).................28 & 29
6-1334 Grass Catcher Adapter (1 Piece Frame Models Series. A Thru D) ..................30
6-1068 Grass Catcher Adapter (Hydro and Gear Drive)...............................................31
6-1311 Grass Catcher Adapter (Hydro Drive; w/20-10.00 X 8 Tires)............................31
6-0860 Grass Catcher Adapter (LT12D Series)............................................................32
(continued on next page)
MANUAL No. 06613 LT SERIES (Small Frame)

3
(continued)
KIT No. DESCRIPTION PAGE
6-1308 Bag-N-Wagon Adapter (Series “A” 1-Piece Frame)..........................................33
6-0957 Bag-N-Wagon Adapter (LT12D Series).............................................................34
6-1089 Bag-N-Wagon Adapter (Hydro and Gear Drive)................................................35
6-3123 Front Bumper Kit (1-Piece Frame Only) ...........................................................36
6-3203 Water Bottle Kit.................................................................................................36
6-1320 Implement Lift Lever Kit (Ground Following Deck Units Only).........................37
6-3240 Bearing Pre-Seal Kit (For 48” Field Replaceable Spindle Decks Only).............37
6-0697 Dump Wagon............................................................................................38 & 39
6-0947 Bag-N-Wagon (Complete).........................................................................40 & 41
6-0734 Bag-N-Wagon (Hitch & Wagon Body).......................................................42 & 43
6-0964 Bag-N-Wagon (Cover Assembly)..............................................................44 & 45
6-0873 36” Snow Blade (3-Piece Frame).............................................................46 & 47
6-1347 42” Snow Blade (3-Piece Frame, Series 1 & 2) .......................................48 & 49
6-1352 42” Snow Blade (1-Piece Frame Hydro Only)..........................................50 & 51
(6-1370 Snow Blade Support Required For Mounting 6-1352 Kit)
6-1370 Snow Blade Support Kit ...................................................................................52
6-1781 Snow Thrower Support Update Kit..................................................................52
6-0720 Lift Handle..........................................................................................................53
6-1254 30” Recycling ....................................................................................................54
6-1051 33” Recycling ....................................................................................................55
6-1255 33” Recycling (Ninja Blade)...............................................................................56
6-1257 38” Recycling/Mulcher (Ninja Blade)................................................................57
6-1877 38” Recycling(Wave Blade) ..............................................................................58
6-1878 38” Recycling Kit (Ninja Blade).........................................................................58
6-1220 41” Recycling Cover (Ninja Blade)....................................................................59
6-1987 42” Recycling Cover (Ninja Blade)....................................................................60
6-3110 48” Wave Mulching Kit .....................................................................................61
6-1094 Hood Replacement (Gear Drive Series 0)................................................62 & 63
6-1383 Hood Replacement (1 & 3-Piece Frame) .................................................64 & 65
3-2392 Smooth Clutch Tool..........................................................................................66
6-0327 Wheel Hub Puller Kit.........................................................................................66
6-0694 Yoke Spring Attachment...................................................................................66
6-1000 Reverse Assist Spring (LT12D Series).............................................................66
6-1025 Brake Cable Extension.....................................................................................66
6-1163 Cold Starting (Hydro Drive Series) ....................................................................66
6-0691 Chute Brace (Snow Thrower Attachment) .........................................................66
6-1289 30” Cutting Deck Replacement (Gear Drive)...................................................66
6-1288 33” Cutting Deck Replacement (Gear Drive)...................................................66
6-1290 38” Cutting Deck Replacement (Gear Drive)...................................................66
6-1314 38” Cutting Deck Replacement (Hydro Drive)..................................................66
6-1299 38” Cutting Deck Replacement (Ground Following) (Gear Drive)....................66
6-1283 42” Cutting Deck Replacement (Gear Drive)...................................................66
6-1266 48” Cutting Deck Replacement (Hydro Drive)..................................................66
6-1335 Pivot Arm Replacement Kit (LTD Series 0)......................................................66
6-1787 Drive Disc Alignment Gauge Kit ......................................................................66
LT SERIES (Small Frame) MANUAL No. 06613

4
ACCESSORY, TIRE CHAINS
#6-0609 KIT, Tire Chains (18x6.50-8” Tires) (Contains 2 Chains)
#6-1085 KIT, Chain for LTD & LTH (18x8.50-8” RS Tires) (Contains 2 Chains)
#6-1399 KIT, Tire Chains (18x9.50 Tires) (Contains 2 Chains)
#6-1333 KIT, Tire Chains (20x10.00 Tires) (Contains 2 Chains)

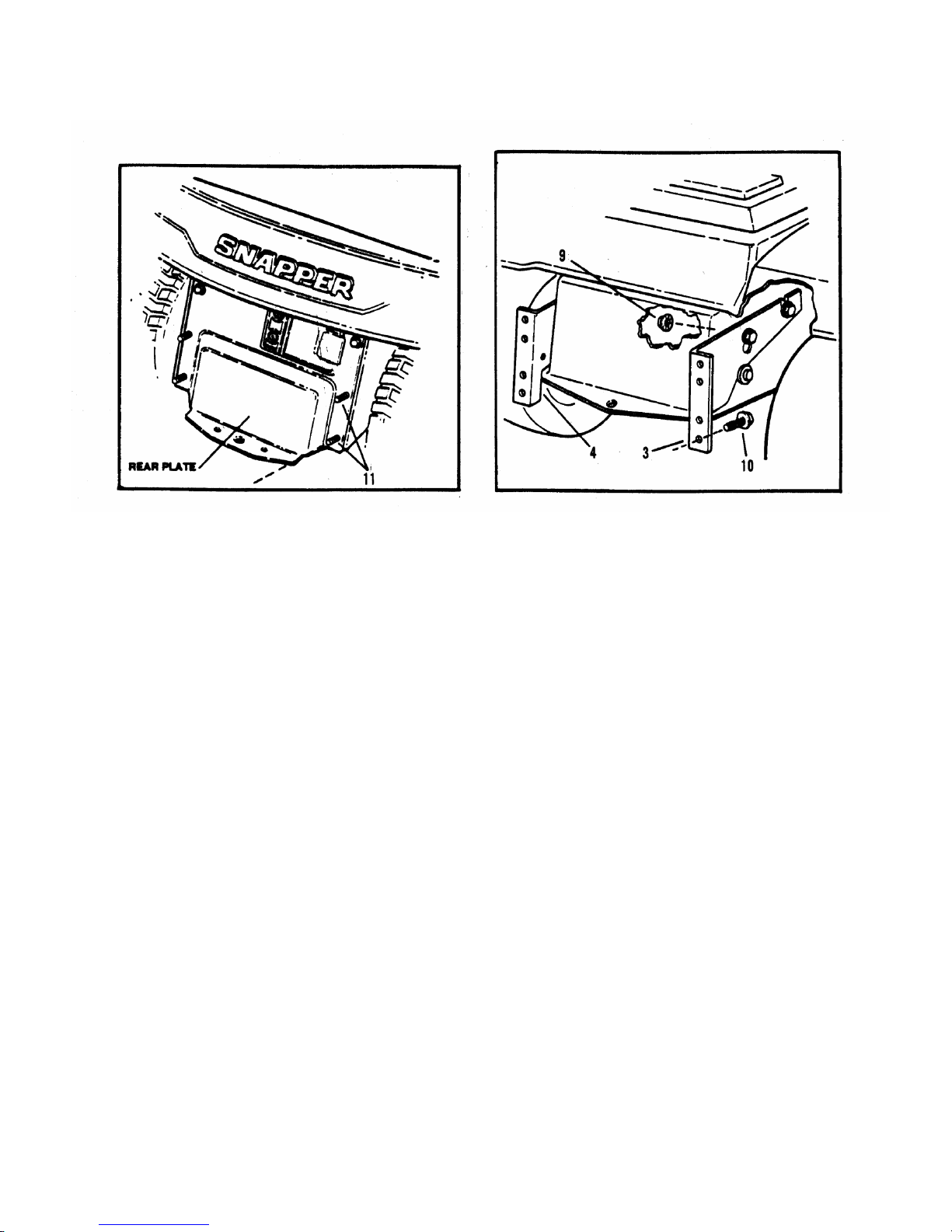

ACCESSORY, REAR WEIGHT #6-1245
MANUAL No. 06613 LT SERIES (Small Frame)
6
5
7
8
6 7 8
2
9
1

5
6-1245 ACCESSORY, REAR WEIGHT
SERIES 1 & 2 SERIES A & B
ITEM PART NO. DESCRIPTION
-- 6-1245 REAR WEIGHT KIT
1 3-4103 BRACKET, Weight Holder
2 1-9759 WEIGHT, 38 LB. (2)
3 3-4172 SUPPORT, Stand-Up Tube (R.H.)
4 3-4173 SUPPORT, Stand-Up Tube (L.H.)
5 1-5002 ROD, 3/8-16 x 9” Threaded (2)
6 9-1514 WASHER, 3/8 Flat (4)
7 9-1320 WASHER, 3/8 Split Lock (4)
8 9-1302 NUT, 3/8-16 Hex, Grade B or 5 (4)
9 9-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5 (8)
10 9-1592 BOLT, 5/16-18 x 2”, Hex Flange Lock, Grade 5 (4)
11 9-1591 BOLT, 5/16-18 x 1”, Hex Flange Lock, Grade 5 (4)
LT SERIES (Small Frame) MANUAL No. 06613

6

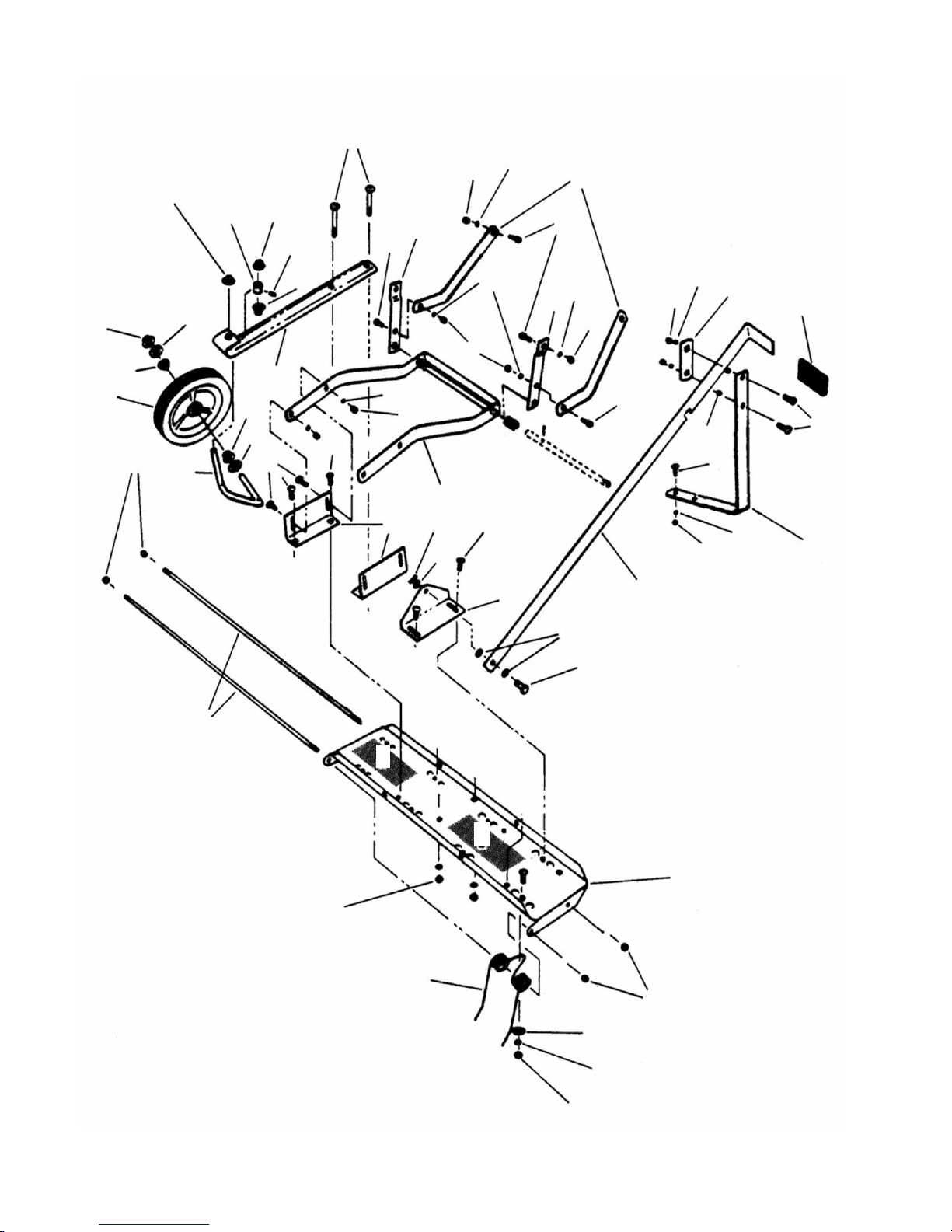

ACCESSORY, THATCHERIZER (LT12D Series) 6-0870
MANUAL No. 06613 LT SERIES (Small Frame)
21
17
12
18
16
13
18
17
12
16
17
18
17
32 31 30
33
30
9
16
18
17
30
20
16
8
6
7 30
20
32
14
24 25 15
23
17 16
34
27
18
17
16
5
22
28
29
11
16
29
26
4
10 22
1
2
3
22
18
19

7
6-0870 ACCESSORY, THATCHERIZER (LT12D Series)
ITEM PART NO. DESCRIPTION
-- 6-0870 THATCHERIZER KIT
1 1-9947 TRAY, Tine
2 2-3565 DECAL, Adjustment
3 1-4062 DECAL, Thatcherizer
4 2-3564 BRACKET, Frame Mounting (2)
5 1-4110 ROD, Tine (2)
6 1-8700 SUPPORT, Wheel
7 1-8189 WHEEL, 7 x 1.50 V21
8 1-8493 AXLE, Wheel
9 1-7046 ASSEMBLY, Mounting Bracket Mechanism
10 1-8491 TINE, Thatching (8)
11 1-9150 BRACKET, Lift
12 2-3532 BAR, Thatcher Mount (2)
13 1-9135 BAR, Mount Brace (2)
14 1-9137 HANDLE, Lift
15 1-9136 BRACKET, Lift Lock
16 9-0383 BOLT, 5/16-18 x 1” Short Neck Carriage, Grade 5 (22)
17 9-0196 NUT, 5/16-18 Hex (24)
18 9-0187 WASHER, 5/16” Split Lock (22)
19 1-4098 WASHER, 5/16” Flat (8)
20 9-0250 WASHER, 1/2” SAE Flat (2)
21 9-0015 BOLT, 1/4-20 x 1-3/4” Square Neck Carriage, Grade 2 (2)
22 9-0761 NUT, 1/4-20 Hex Top Lock (6)
23 9-0563 SCREW, 3/8-16 x 1” Hex Head Cap, Grade 5
24 9-0130 NUT, 3/8-16 Hex
25 9-0118 WASHER, 3/8 Split Lock
26 1-3113 PIN, Hair
27 1-4780 STRAP, Handle Retaining
28 1-4779 PIN, Clevis
29 9-0692 WASHER, 5/16” Flat (3)
30 1-4342 BEARING, Nylon (4)
31 1-4100 BUSHING, Wheel Adjustment
32 1-4101 NUT, 1/2” Push (2)
33 1-4103 SCREW, 5/16-18 x 1/4” Set
34 1-4784 GRIP, Vinyl
LT SERIES (Small Frame) MANUAL No. 06613

8
ACCESSORY, THATCHERIZER 6-1247
(for 1-Piece Frame Tractors)
MANUAL No. 06613 LT SERIES (Small Frame)

9
6-1247 ACCESSORY, THATCHERIZER
(for 1-Piece Frame Tractors)
ITEM PART NO. DESCRIPTION
-- 6-1247 KIT, Thatcherizer (Includes items 1 thru 35)
1 1-9947 TRAY, Tine
2 1-8491 TINE, Thatching (8)
3 1-8700 SUPPORT, Wheel
4 1-8493 AXLE
5 1-8189 WHEEL, Gauge
6 1-4110 ROD, Tine (2)
7 1-4778 BRACKET, Frame Mounting (2)
8 3-4184 SUPPORT, Lift Handle
9 4-1609 WELDMENT, Hitch Bar
10 1-4781 ASSEMBLY, Main Frame Weldment
11 9-0692 WASHER, 5/16 SAE Flat (3)
12 1-4113 LATCH, Frame Mount (2)
13 1-8666 BRACKET, Lift
14 3-4183 HANDLE, Lift
15 2-7168 SCREW, 5/16-18 x 1” Hex Head Cap, Grade 5
16 9-0798 BOLT, 1/4-20 x 2-1/2” Square Neck Carriage (2)
17 9-0383 BOLT, 5/16-18 x 1” Square Neck Carriage, Grade 5 (15)
18 1-4098 WASHER, Reinforcing (9)
19 9-0187 WASHER, 5/16” Split Lock (15)
20 9-0196 NUT, 5/16-18 Hex, Grade 5 (15)
21 1-4342 BEARING, Nyliner (4)
22 1-4100 BUSHING, Wheel Adjustment
23 1-4103 SCREW, 5/16-18 x 1/4” Set
24 1-4101 NUT, 1/2” Push (2)
25 9-0250 WASHER, 1/2” SAE Flat (2)
26 9-0761 NUT, 1/4-20 Hex Top Lock (8)
27 9-0831 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, Grade 5 (2)
28 1-4114 SPRING, Compression (2)
29 9-0078 BOLT, 1/4-20 x 1-1/4” Square Neck Carriage, Grade 5 (2)
30 9-0598 WASHER, 1/4” SAE Flat (2)
31 1-4779 PIN, 5/16” Lift
32 1-4784 GRIP, Handle
33 1-3113 COTTER, Hairpin
34 1-4062 DECAL, Thatcherizer
35 1-4785 DECAL, Adjustment
LT SERIES (Small Frame) MANUAL No. 06613

10
ACCESSORY, ANTI-SCALP 6-0737
ITEM PART NO. DESCRIPTION
-- 6-0737 KIT, Anti-Scalp Wheel (33” Decks) (Includes items 1 thru 6)
1 3-2478 BRACKET, Wheel (2)
2 1-9190 WHEEL (2)
3 1-5272 SPACER (2)
4 9-0859 SCREW, 3/8-24 x 3-3/4” Hex Head Cap, Grade 5 (2)
5 9-0289 NUT, 3/8-24 Hex Center Lock (6)
6 9-0292 SCREW, 3/8-24 x 3/4” Hex Head Cap, Grade 2 (4)
ACCESSORY, ANTI-SCALP 6-0794
ITEM PART NO. DESCRIPTION
-- 6-0794 KIT, Anti-Scalp Wheel (41” Decks) (Includes items 1 thru 7)
1 4-7913 BRACKET, R.H.
2 4-7914 BRACKET, L.H.
3 1-9190 WHEEL (2)
4 1-5272 SPACER
5 9-0859 SCREW, 3/8-24 x 3-3/4” Hex Head Cap, Grade 5 (2)
6 9-0289 NUT, 3/8-24 Hex Lock Center Lock (6)
7 9-0292 SCREW, 3/8-24 x 3/4” Hex Head Cap, Grade 2 (4)
MANUAL No. 06613 LT SERIES (Small Frame)
2
3
4
5
6
5
1
3
6
4
6
5
1
7
6
2
6
5
7
3
4

11
6-1400 ACCESSORY, ANTI-SCALP
6-3128 ACCESSORY, ANTI-SCALP
LT SERIES (Small Frame) MANUAL No. 06613

12
ACCESSORY, 33” SINGLE BAG GRASS CATCHER 6-0943
MANUAL No. 06613 LT SERIES (Small Frame)

13
6-0943 ACCESSORY, 33” SINGLE BAG GRASS CATCHER
ITEM PART NO. DESCRIPTION
1 5-1948 TOP, Container
2 1-6108 SKIRT, Dust
3 2-9840 WASHER, Faceted (5)
4 4-7973 FRAME, Grass Bag
5 2-9841 CLEVIS PIN, 5/16 x 1-11/16 (2)
6 3-1725 LATCH, Grass Catcher
7 9-0532 SCREW, 10-32 x 1-11/16 Hex Cap
8 9-0376 NUT, 10-32 Hex Lock w/Nylon Insert
9 3-7758 ROD, Bag
10 9-1503 PIN, 3/32 x 1-1/2 Hair (2)
11 1-2556 CONNECTOR, 1/2 x 3” Rod
12 1-9251 BAG, Single Zipperless
13 1-9912 ADAPTER, Bag
14 3-1951 LATCH, Tube
15 1-4517 TUBE, Grass
16 9-1576 NUT, 1/4-20 Hex (3)
17 9-1314 WASHER, 1/4 Lock (3)
18 3-7745 HANDLE, Tube
19 3-1952 BASE, Handle
20 9-1530 BOLT, 1/4-20 X 3/4" (3)
21 9-1537 WING-NUT, 5/16-18 Lock
22 9-1303 BOLT, 5/16-18 X 1" Carriage
-- 7-1677 SHIELD, Muffler (Shown on Page 1)
-- 4-2716 BRACKET, Bumper Reinforcement (Shown on Page 1)
LT SERIES (Small Frame) MANUAL No. 06613

14
ACCESSORY, 38” SINGLE BAG GRASS CATCHER 6-1312
(for Hydro Drive Models)
MANUAL No. 06613 LT SERIES (Small Frame)
17
16
18
21
18
20
28 KIT
30
29
31
32
6
4
5
7
7A
11
14
15
14
9
8
13
10
2
3

15
NOTE: 6-1068 Catcher Adapter Kit must be installed before Grass catcher can be mounted.
6-1312 ACCESSORY, 38” SINGLE BAG GRASS CATCHER
(for Hydro Drive Models)
ITEM PART NO. DESCRIPTION
1 6-1312 KIT, Single Bag Grass Catcher (Incl. Items 2 thru 28)
2 5-1948 TOP, Container (Includes Decal No. 1-1910)
3 2-9840 WASHER, Faceted (5)
4 4-7973 FRAME, Structure
5 3-7758 ROD, Bag
6 1-2556 CONNECTOR, Bag Rod
7 1-9251 BAG, Grass
7A 1-6108 SKIRT, Dust
8 3-1725 LATCH, Top
9 9-0532 SCREW, #10-32 Hex Head Cap, Grade 2
10 2-9841 PIN, 5/16 x 1-11/16” Clevis
11 2-6814 ADAPTER, 38” Deck
12 3-3995 BAFFLE
13 9-0376 NUT, #10-32 Hex Nyloc
14 9-1530 BOLT, 1/4-20 x 3/4” Short Neck Carriage, Grade 5 (3)
15 3-1951 LATCH, Tube
16 3-1952 BASE, Handle
17 9-1503 PIN, 3/32 x 1-1/2” Hair
18 9-1576 NUT, 1/4-20 Hex, Grade 5 or B (3)
18A 9-1314 WASHER, 1/4” Internal Tooth Lock (3)
19 9-0824 SCREW, 3/8-24 x 1-1/4” Hex Head Cap, Grade 5
(Blade Retaining Screw- not shown)
20 2-7915 TUBE, Grass
21 3-7745 HANDLE, Tube
22 6-0480 KIT, Air Lift (Includes items 22 thru 26)
23 9-0223 NUT, 5/16-24 Hex (6)
24 9-0391 WASHER, 5/16 Internal Tooth Lock (6)
25 3-7723 AIR-LIFT (2)
26 9-0228 SCREW, 5/16-24 x 11/16” Oval Head Machine, Grade 5
27 9-1575 NUT, 5/16-18 Hex Center Lock (4)
28 6-3289 KIT, Catcher, Debris Shield (Incl. items 29-32)
29 6-3287 SHIELD, Debris
30 9-0909 BOLT, 1/4-20 x 1-1/2” Hex (2)
31 9-1294 WASHER, 1/4” Flat (2)
32 9-1705 NUT, 1/4-20 Hex top Lock (2)
LT SERIES (Small Frame) MANUAL No. 06613

16

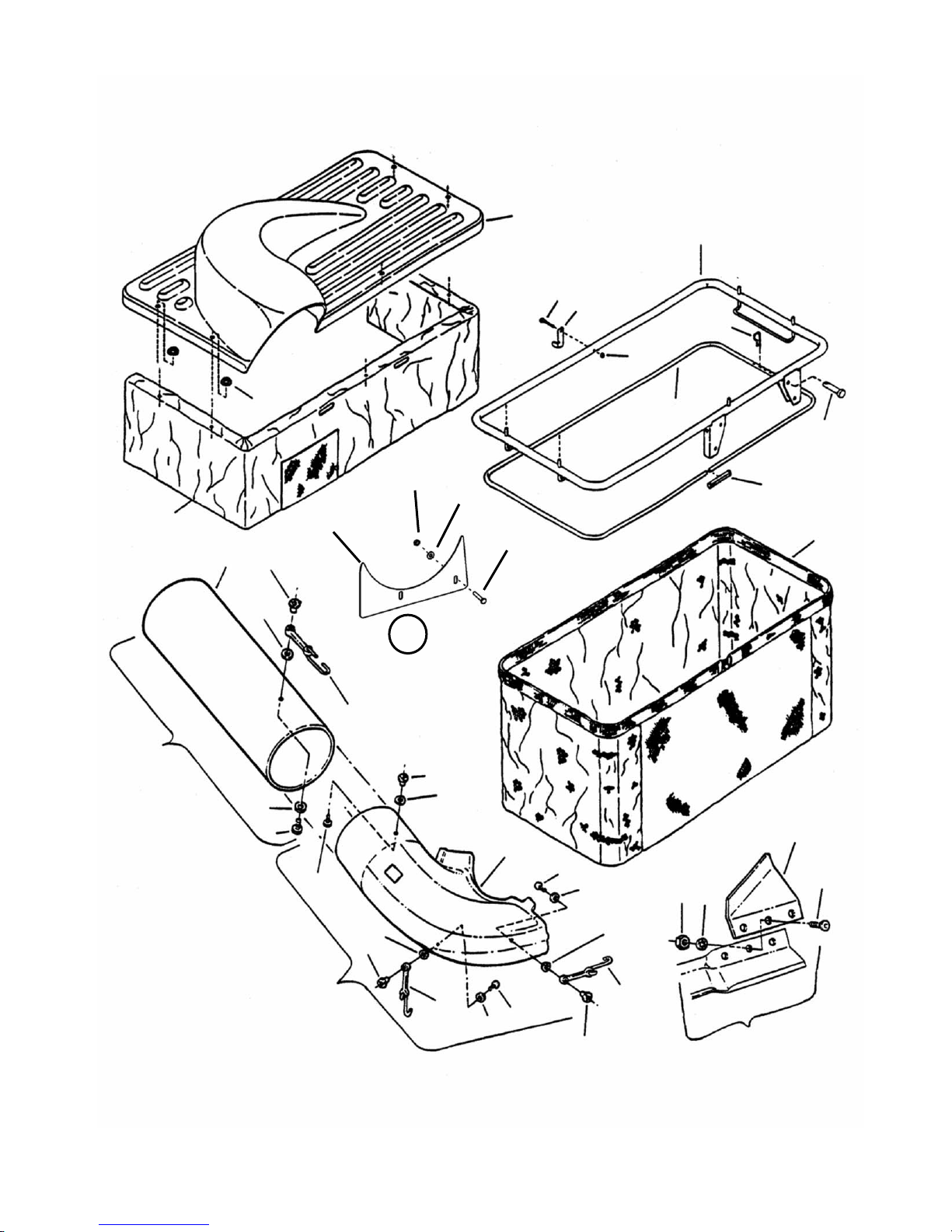

ACCESSORY, 38” SINGLE BAG GRASS CATCHER 6-1886
(Model Year 97; Replaced 6-1249)
MANUAL No. 06613 LT SERIES (Small Frame)
16
15
17
13
21
20
18 19
15
16
17
18
19
14
39
43 42 41
40
33
38
5
6
12
8
7
11
9
10
22
47
48
49
46
45 KIT
3
1
32
2
4
37
35 34
36

17
*NOTE: For location, see Instruction Sheet #4-2686, included in 6-1886 Kit.
NOTE: 6-1334 Catcher Adapter Kit must be installed before Grass catcher can be mounted.
6-1886 ACCESSORY, 38” SINGLE BAG GRASS CATCHER
(Model Year 97; Replaced 6-1249)
ITEM PART NO. DESCRIPTION
-- 6-1886 KIT, Single Bag Grass Catcher (Incl. Items 1 thru 45)
1 5-1948 TOP, Container (Includes #1-1910 Decal)
2 1-6108 SKIRT, Dust
3 4-7973 FRAME
4 3-7758 ROD, Bag
5 1-9251 BAG, Grass Catcher
-- 4-4726* BAFFLE
6 5-4395 ASSEMBLY, Tube/Strap (Includes Indented Items)
7 3-9478 TUBE, Grass
8 3-6404 NUT, #10-24 Weld (3)
9 3-6415 SCREW, #10-24 x 5/8” Pan Head (3)
10 9-1552 WASHER, 7/32” Flat (2)
11 3-6433 ASSEMBLY, Strap Mounting (3)
12 3-6422 WASHER, 3/16” Flat (3)
13 5-4388 ASSEMBLY, Adapter/Strap (Includes Indented Items)
14 5-9469 ADAPTER
15 3-6404 NUT, #10-24 Weld (2)
16 3-6433 ASSEMBLY, Strap Mounting (2)
17 3-6422 WASHER, 3/16” Flat (2)
18 9-1552 WASHER, 7/32” Flat (2)
19 3-6415 SCREW, #10-24 x 5/8” Pan Head (2)
20 3-6543 NUT, 5/16-18 “T”
21 9-1296 WASHER, 11/32” Flat
22 9-1833 SCREW, 5/16-18 x 5/8” Pan Head
23 5-4514* ASSEMBLY, Blade (Includes #4-4686 Decal)
24 6-1887 HARDWARE BAG (Includes Indented Items)
25 9-0492* NUT, 5/16-18 Wing (2)
26 9-1303* BOLT, 5/16-18 x 1” Short Neck Carriage, Grade 5 (2)
27 9-1575* NUT, 5/16-18 Hex Center Lock, Grade B or 5 (2)
28 9-1318* SCREW, 5/16-18 x 3/4” Hex Head Cap, Grade 5 (2)
29 3-6543* NUT, 5/16-18 “T” (2)
30 9-1296* WASHER, 11/32” Flat (7)
31 9-1833* SCREW, 5/16-18 x 5/8” Pan Head (2)
32 2-9840 WASHER, Faceted (5)
33 2-9841 PIN, 5/16 x 1-11/16” Clevis (2)
34 3-1725 LATCH, Grass Catcher
35 9-0532 SCREW, #10-32 x 1-1/16” Hex Head Cap, Grade 2
36 9-0376 NUT, #10-32 Hex Top Lock
37 9-1503 PIN, 3/32 x 1-1/2 Hair (2)
38 1-2556 CONNECTOR, Bag Rod
39 6-0480 KIT, Air Lift (Includes Indented Items)
40 3-7723 LIFTS, Air (2)
41 9-0228 SCREW, 5/16-24 x 21/32” Machine (6)
42 9-0391 WASHER, 5/16” Internal Tooth Lock (6)
43 9-0223 NUT, 5/16-24 Hex (6)
44 9-1296* WASHER, 11/32” Flat, Grade 5 (2)
45 6-3289 KIT, Catcher Debris Shield (Incl. items 46-49)
46 6-3287 SHIELD, Debris
47 9-0909 BOLT, 1/4-20 x 1-1/2” Hex (2)
48 9-1294 WASHER, 1/4” Flat (2)
49 9-1705 NUT, 1/4-20 Hex Top Lock (2)
LT SERIES (Small Frame) MANUAL No. 06613

18

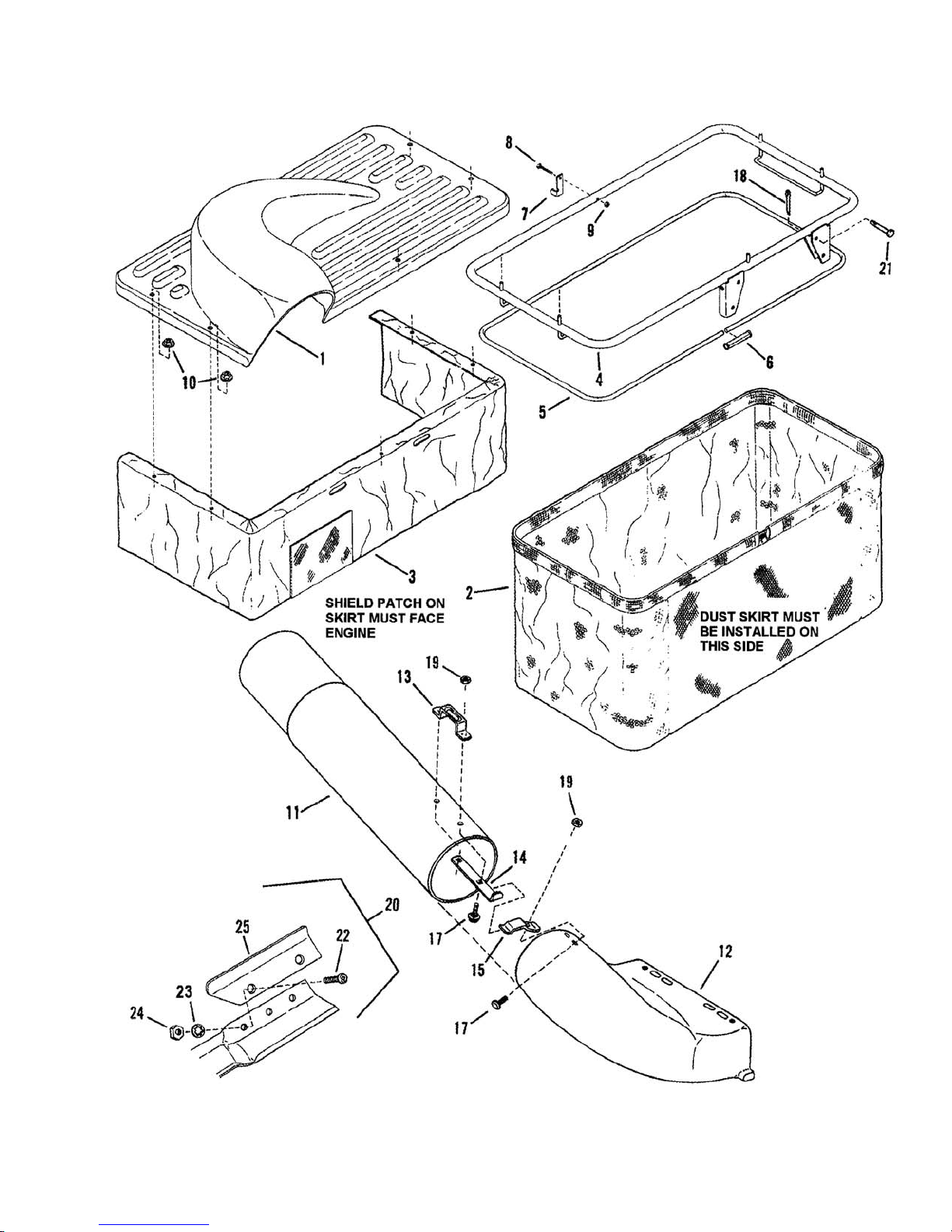

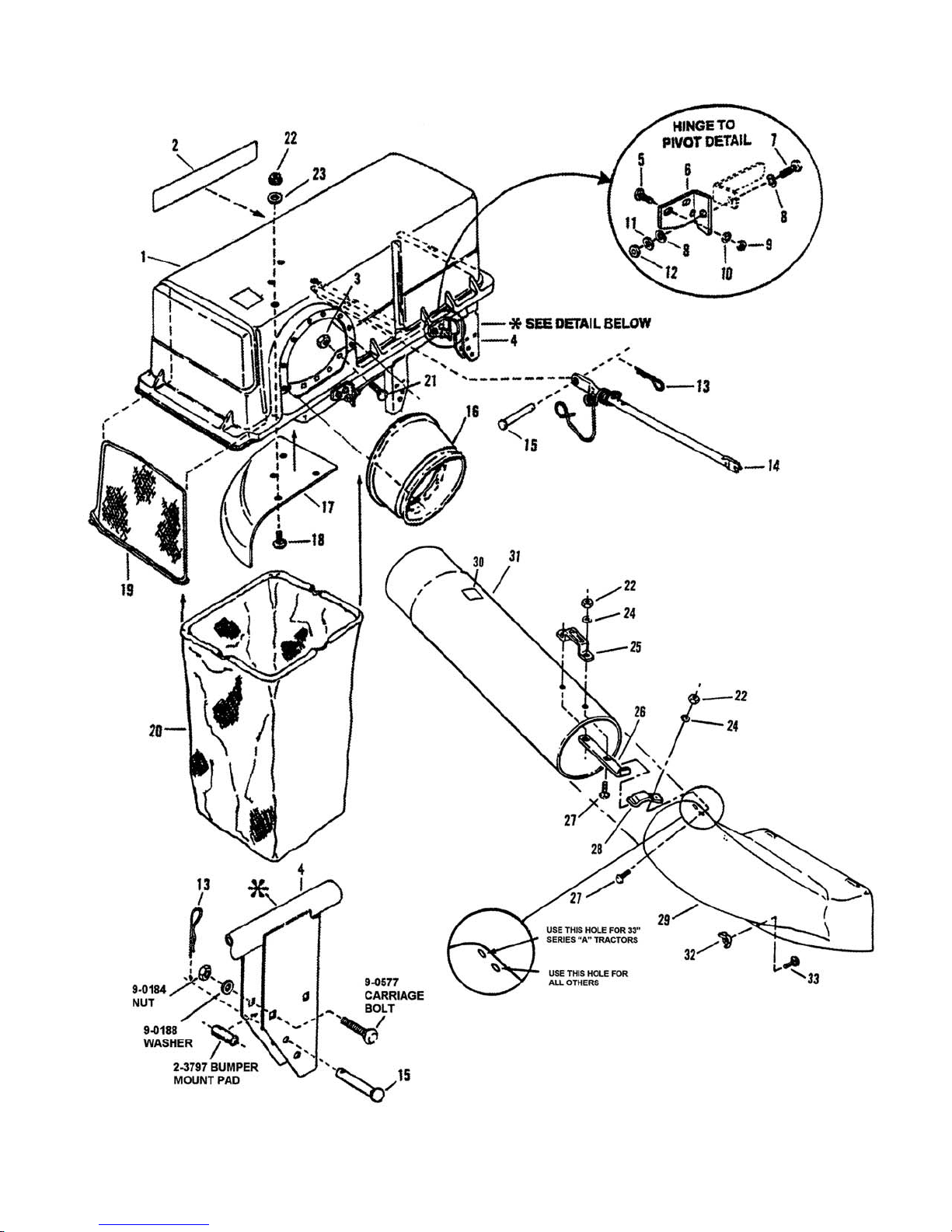

ACCESSORY, 42” SINGLE BAG GRASS CATCHER 6-0944
MANUAL No. 06613 LT SERIES (Small Frame)

19
6-0944 ACCESSORY, 42” SINGLE BAG GRASS CATCHER
ITEM PART NO. DESCRIPTION
- 6-0944 KIT, Grass Catcher Single Bag (Includes 1 Thru 33)
1 5-1948 TOP, Container (Includes Decal #1-1910)
2 1-9251 BAG, Grass (Includes Item 3)
3 1-6108 SKIRT, Dust
4 4-7973 FRAME, Structure
5 3-7758 ROD, Bag (Includes Item 6)
6 1-2556 CONNECTOR, Bag Rod
7 3-1725 LATCH
8 9-0532 SCREW, #10-32 x 1-3/8” Hex Cap
9 9-0376 NUT, #10-32 Hex Lock
10 2-9840 WASHER, Faceted (5)
11 1-7316 TUBE, Grass
12 5-1663 ADAPTER, Deck (Includes Decal 4-6720)
13 3-7745 HANDLE, Tube
14 3-1952 BASE, Handle
15 3-1951 LATCH, Tube
16 7-1677 SHIELD, Muffler (See Figure 2)
17 9-0803 BOLT, 1/4-20 x 3/4” Carriage (3)
18 9-1503 PIN, 3/32 x 1-1/2” Hair (2)
19 9-1584 NUT, 1/4-20 Hex Lock (6)
20 6-0735 KIT, Air Lift (Includes Items 22 Thru 25) (See Figure 1)
21 2-9841 PIN, 5/16 x 1-11/16” Clevis (2)
22 9-0228 SCREW, 5/16-24 x 21/32” Cross Recess (6) (See Figure 1)
23 9-0391 WASHER, 5/16 Internal Tooth Lock (6) (See Figure 1)
24 9-0223 NUT, 5/16-24 Hex (6) (See Figure 1)
25 3-1724 LIFT, Air (2) (See Figure 1)
26 3-8277 BAFFLE (See Figure 3)
27 9-1613 SCREW, 5/16-18 x 3/4” Round Head (3) (See Figure 3)
28 9-1601 NUT, 5/16-18 Hex Lock (3) (See Figure 3)
29 9-1589 SCREW, 3/8-24 x 1-1/4” Hex Cap (Not Shown - Replacement Blade Bolt)
30 1-9795 BLADE, 21” Cutting (See Figure 1)
31 2-3797 PAD, Bumper Mount (2)
32 9-0577 BOLT, 5/16-18 x 1-1/2” Carriage (2)
33 9-1575 NUT, 5/16-18 Hex Center Lock (2)
LT SERIES (Small Frame) MANUAL No. 06613

20
ACCESSORY, 33” TWIN BAG GRASS CATCHER 6-3281
MANUAL No. 06613 LT SERIES (Small Frame)
