Snapper 105287E User manual

Parts Manual fo
r
Revision 1,
TWO STAGE LARGE FRAM
E
(
2006
)
SERIES
7
COPYRIGHT
©
2006
McDonough, GA, 30253 U.S.A.
TP 400-5135-1-LF-N
2/7/2006 Manual No. 7006080
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
SNOW THROWER
MODEL
95247E
(
1694853
)
105287E
(
1694855
)
115327E
(
1694857
)
13387E
(
1694859
)
E95247
(
1694854
)
E105287
(
1694856
)
E115327
(
1694858
)
E13387
(
1694860
)

Table Of Content
s
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 3
PAGE GROUP
4Handles and Controls Group
8Auger Housing and Chute Group - 24, 28 & 32 inch
12 Auger Housing and Chute Group - 38 inch
16 Auger and Impeller Group
20 Engine and Frame Group
24 Traction Drive Group
28 Wheel & Tires Group
30 Decals Group
32 Headlight Group

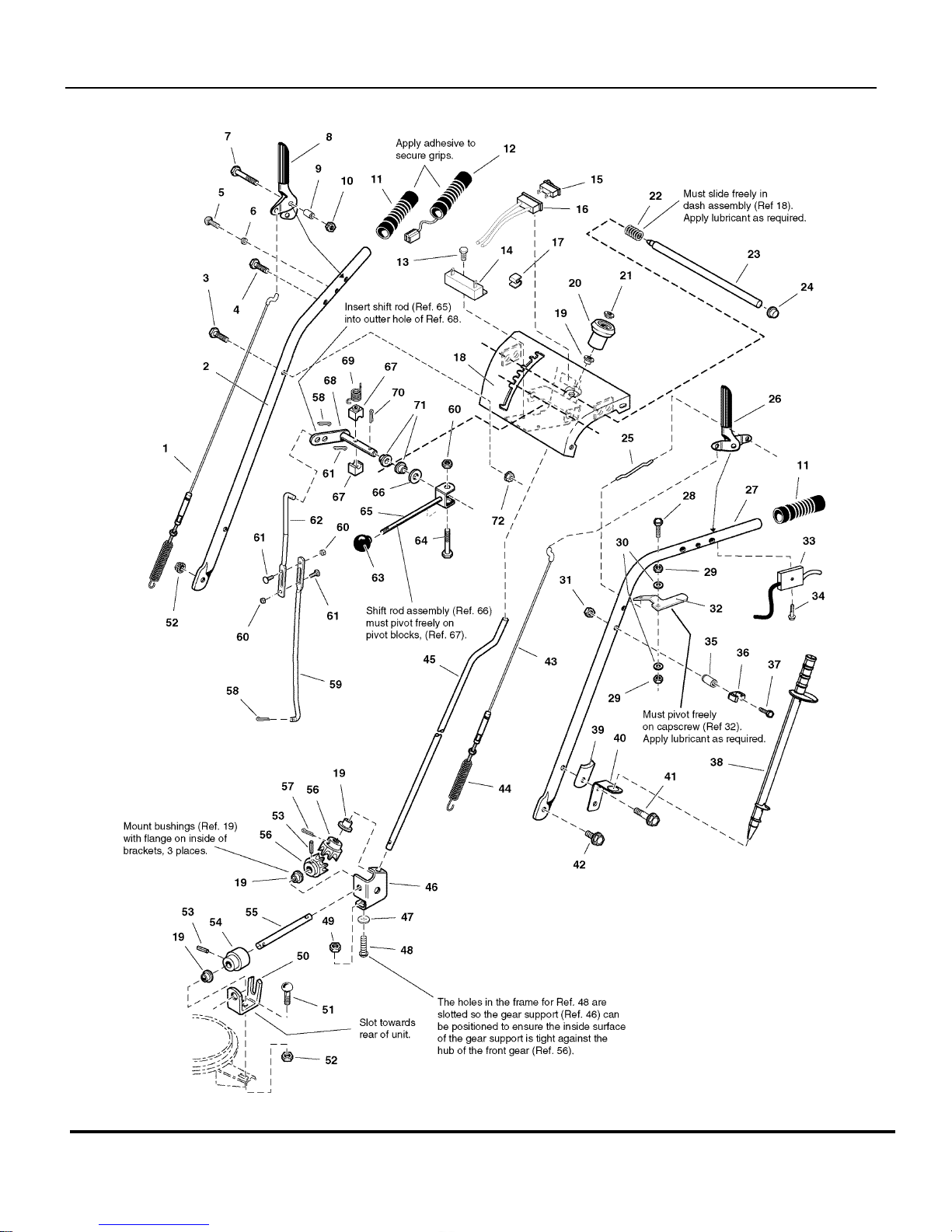

Handles and Controls Group
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
4

Handles and Controls Group
Footnotes:
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 5
Part No Descri
p
tionItem Qt
y
Note
1 1726833 1 CABLE AND SPRING ASSEMBLY, R.H. Auger
2 1731334A 1 HANDLE, Tube, R.H.
3 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 G5
4 1921221 3 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5
5 1960671 2 SCREW, Pan Head Torx, 1/4-20 x 3/4, Thread Cutting
6 1715654 2 SPACER, 1/4ID x 25/64OD x 11/64LG
7 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
8 1722638 1 HANDLE, Clutch R.H.
9 1715655 2 SPACER
10 1923358 2 NUT, Hex Centerlock, 1/4-20
11 1726317 2 GRIP On all except 38” models
12 1723965 2 HAND GRIP, Heated 1” Diameter Used on 38” models
13 1923341 3 CAPSCREW, Hex Head 1/4-20 x 3/4 G5 Used on 38” models
14 1724037 1 RESISTOR BLOCK, 2 Male Terminal Used on 38” models
15 1723967 1 SWITCH, Hand Warmer Used on 38” models
16 1728968 1 HARNESS, Wiring Used on 38” models
17 1715956 1 CLIP, Wire Used on 38” models
18 1726983A 1 DASH AND SUPPORT ASSEMBLY, Tubular
19 1667588 4 BUSHING, 47/125ID x 437/1000OD x 1/5LG On all except 38” models
20 1714084 1 KNOB, Spinner On all except 38” models
21 1960093 1 NUT, Push Pal, 3/8” Diameter Stud Capped On all except 38” models
22 1722690 1 SPRING, Complete
23 1722633 1 ROD AND SPRING ASSEMBLY, w/Pin (Includes Ref. No. 26)
24 1960519 1 PUSH NUT, Stud Cap, 1/2
25 1722630 1 ROD, 4/25” Diameter, E-Coat
26 1722667 1 HANDLE, Clutch L.H.
27 1731333A 1 HANDLE, Tube, L.H.
28 1960662 1 CAPSCREW, Hex Head, 1/4-20 x 2 G5
29 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20NC-3B
30 1921319 2 WASHER, 1/4
31 1933896 1 NUT, Hex Lock, 10-24
32 1722631A 1 LEVER, Pivot
33 1718791 1 CABLE AND HANDLE ASSEMBLY, Clutch
34 1725702 1 SCREW, Pan Head Torx, #10 x 1/2 Thread Cut
35 1726995 1 SPACER, 1-1/4 LG Beveled End
36 1726728 1 CLIP, Snow Stick
37 1960727 1 SCREW, Hex Flange Slot, #10-24 x 2-1/2

Handles and Controls Group
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
6

Handles and Controls Group
Footnotes:
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 7
Part No Descri
p
tionItem Qt
y
Note
38 7075909 1 STICK, Snow Removal
39 1720452 2 CLAMP, Saddle Snow Handle E-Coat
40 1726727A 1 BRACKET, Clean Out Tool
41 1960730 2 CAPSCREW, Hex Head Serrated Flange Taptite, 5/16-18 x 2 G5
42 1960729 1 CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
43 1726832 1 CABLE AND SPRING ASSEMBLY, L.H. Traction
44 1707452 1 SPRING, Extension
45 1727088 1 ROD, 3/8” Diameter, 26”LG, E-Coat On all except 38” models
46 1718793 1 SUPPORT, Gear On all except 38” models
47 1960518 2 NUT, Push for 1/4 Diameter Thread On all except 38” models
48 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5 On all except 38” models
49 1960294 2 NUT, Hex Flange, 1/4-20, Whiz Lock Small On all except 38” models
50 1611911 1 SUPPORT, Worm On all except 38” models
51 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5 On all except 38” models
52 1960684 2 NUT, Hex Keps, 5/16-18, Conical Washer Uses quantity of 1 on 38” models
53 2816168 2 PIN, Spring 1/8 x 3/4 On all except 38” models
54 1668186 1 WORM, Chute, L.H. On all except 38” models
55 1725283 1 ROD, 3/8” Diameter, Chute Worm E-Coat On all except 38” models
56 1718593 2 GEAR, Powdered Metal, Metafusion On all except 38” models
57 1918452 1 PIN, Cotter 1/4 x 1 On all except 38” models
58 1722460 1 PIN, Quick
59 1666255 1 ROD, 3/4” Diameter
60 1960685 3 NUT, Hex KEPS, 1/4-20, Conical Washer Uses quantity of 6 on 38” models
61 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5
62 1726304 1 ROD, 3/4” Diameter, Shift Upper E-Coat, 11-19/50LG
63 1726734 1 KNOB, Intermediate Thread, 3/8-16
64 1960705 1 SCREW, Hex Whiz Lock Flange, 1/4-20 x 2-1/4
65 1668523 1 ROD AND CLEVIS ASSEMBLY, Shift, Threaded
66 1924361 1 WASHER, 1/2
67 1668524 2 BLOCK, Pivot, 3/4 x 3/4, Powdered Metal
68 1720240 1 ROD AND ARM ASSEMBLY, Pivot
69 1715123 1 SPRING, Torsion
70 1960074 1 CLIP, Hair Pin
71 1668185 2 BUSHING, 1/2ID x 3/4OD x 1/4LG
72 1960686 4 NUT, Hex Flange, 5/16-18 ESNA

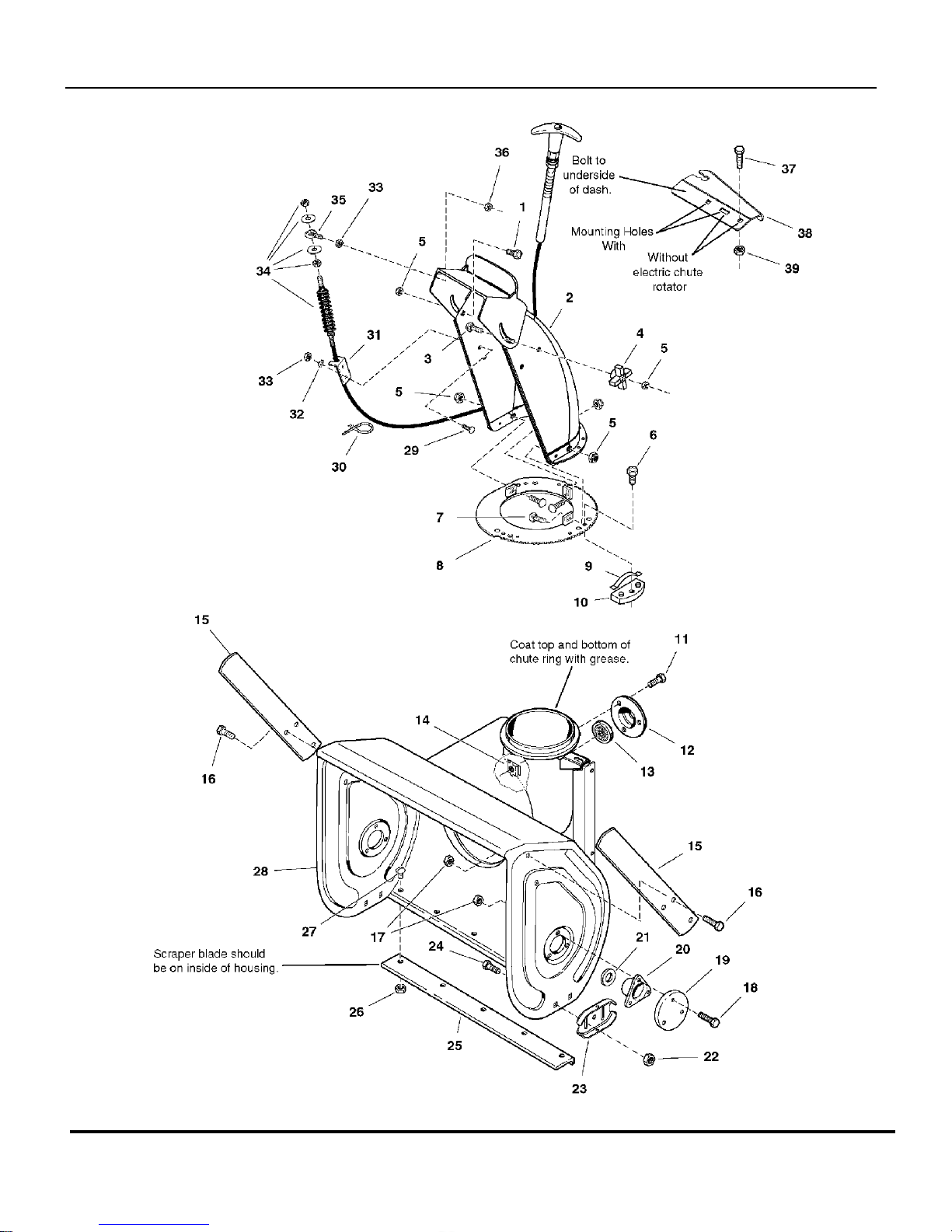

Auger Housing and Chute Group - 24, 28 & 32 inch
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
8

Auger Housing and Chute Group - 24, 28 & 32 inch
Footnotes:
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 9
Part No Descri
p
tionItem Qt
y
Note
1 1921332 2 CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 Uses quantity of 5 on 28”
models and quantity of 6 on 32”
models
2 7072881 1 CHUTE AND DEFLECTOR ASSEMBLY, w/Remote
2 7072850 1 CHUTE AND DEFLECTOR ASSEMBLY, Manual
3 1931335 1 CARRIAGE BOLT, 5/16-18 x 1 G5
4 1670578 1 KNOB, Internal Thread, 5/16
5 1960686 4 NUT, Hex Flange ESNA, 5/16-18 Used quantity of 5 on on 28” &
32” models
6 1960001 3 SCREW, Hex Washer Head Pastite, 10-14 x 5/8
7 1960282 1 CARRIAGE BOLT, 5/16-18 x 3/4
8 1726958A 1 RING AND TABS ASSEMBLY, Gear
9 1667865 3 SPRING, Flat
10 1666613 3 HOLD DOWN, Chute
11 1960738 3 CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 5/8 G5
12 1665982A 1 RETAINER, Bearing
13 1729578 1 BEARING, Ball
14 1930659 3 NUT, Retainer Speed, 5/16-18
15 1729642D 2 CUTTER, Drift, 1/4” Thick, 20LG Used on 28” & 32” models
16 1664847 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 G5 Uses quantity of 2 on 38” models
17 1931277 6 NUT, Hex Keps, 5/16-18, Conical Washer
18 1923325 6 CAPSCREW, Hex Head 5/16-18 x 7/8 G5
19 1668639D 2 CAP, Bearing, 3-3/4OD
20 1665980 2 BEARING, Flange
21 1663189 2 SPACER, Low
22 1960687 4 NUT, Hex Flange 3/8-16 ESNA
23 1727854D 2 SKID SHOE, Reversible
24 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5
25 1709946A 1 BLADE, Scraper, 24” Used on 24” models
25 1709947A 1 BLADE, Scraper, 28” Used on 28” models
25 1709948A 1 BLADE, Scraper, 32” Used on 32” models
26 1935048 5 NUT, Hex Flange, 5/16-18, Two-Way Lock GA Uses quantity of 7 on 32” models
27 1960699 5 CARRIAGE BOLT, 5/16-18 x 5/8 G5 Uses quantity of 7 on 32” models
28 1729724D 1 HOUSING AND IMPELLER ASSEMBLY, 24” Used on 24” models
28 1729726D 1 HOUSING AND IMPELLER ASSEMBLY, 28” Used on 28” models
28 1729728D 1 HOUSING AND IMPELLER ASSEMBLY, 32” Used on 32” models
29 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5 Used on 38” models
30 2825094 1 TIE, Self Locking
31 7032813 1 MOUNT, Cable Used on 38” models
32 1921880 2 LOCKWASHER, External Tooth, 1/4 Used on 38” models

Auger Housing and Chute Group - 24, 28 & 32 inch
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
10

Auger Housing and Chute Group - 24, 28 & 32 inch
Footnotes:
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 11
Part No Descri
p
tionItem Qt
y
Note
33 1960294 3 NUT, Hex Whiz Lock, 1/4-20 NC-2B Used on 38” models
34 7045172 1 CABLE, Remote Chute Deflector, 60” Used on 38” models
35 7023798 1 EYEBOLT, 1/4-20 x 1-1/2 LG Used on 38” models
36 1960694 1 NUT, Hex Lock ESNA Light, 1/4-20NC-3B Used on 38” models
37 1923341 2 CAPSCREW, Hex Head 1/4-20 x 3/4 G5 Used on 38” models
38 1726992A 1 SUPPORT, Cable Tubular Handles, 12GA Used on 38” models
39 1960685 2 NUT, Hex KEPS, 1/4-20, Conical Washer Used on 38” models

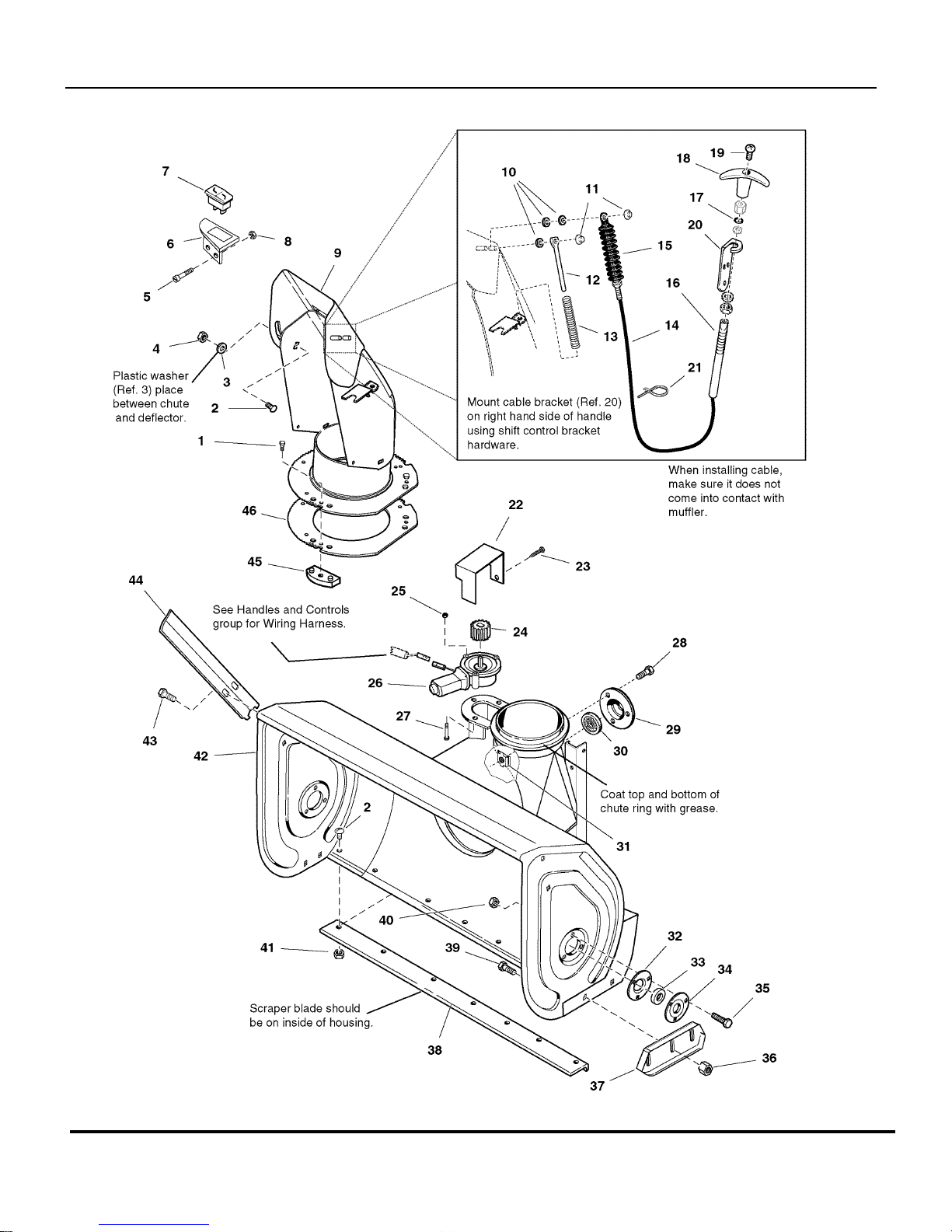

Auger Housing and Chute Group - 38 inch
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
12

Auger Housing and Chute Group - 38 inch
Footnotes:
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 13
Part No Descri
p
tionItem Qt
y
Note
1 1960001 3 SCREW, Hex Washer Head Pastite, 10-14 x 5/8
2 1931333 10 CARRIAGE BOLT, 5/16-18 x 3/4 G5
3 2860210 1 WASHER, Special, 97/250ID x 1-3/25OD x 3/100 Thick
4 1960686 1 NUT, Hex Flange ESNA, 5/16-18
5 1923341 1 SCREW, Hex Whiz Lock, 1/4-20 x 3/4
6 1729792A 1 BRACKET, Mounting Switch
7 1728969 1 SWITCH, Rocker Chute
8 1933896 2 NUT, Hex Nylon 10-24
9 1731498A 1 CHUTE AND DEFLECTOR ASSEMBLY
10 1702219 3 SPACER, Heat Treated
11 1960126 2 NUT, Push Pal, 1/4” Diameter Stud Capped
12 1611945 1 ROD, 5/16” Diameter, Spring Guide
13 1611939 1 SPRING, Complete
14 1720446 1 CABLE AND KNOB ASSEMBLY, Chute (Includes Ref. No. 18,
19, 20, 21 & 22)
15 1611989 1 BOOT, Bellows
16 1719140 1 COLLET
17 1719139 1 SEAL, Rod
18 1719138 1 KNOB
19 1960600 1 SCREW, 8-32
20 1726411A 1 SUPPORT, Cable
21 2825094 1 TIE, Self Locking
22 1729645A 1 COVER, Pinion, 18GA
23 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
24 1728967 1 PINION, 1-3/20 LG
25 1960745 4 NUT, Hex KEPS, #10-24
26 1728965 1 MOTOR, Electric
27 2860604 3 SCREW, Hex Washer Head Slot, #10-24 x 1-1/4
28 1960738 9 CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4
29 1665982A 1 RETAINER, Bearing
30 1729578 1 BEARING, Ball
31 1930659 3 NUT, Retainer Speed, 5/16-18
32 2172279A 2 FLANGE, Bearing, w/Fitting
33 2173934 2 BEARING, Cartridge
34 2172278A 2 FLANGE, Bearing, 3/8” Deep
35 1925205 6 CAPSCREW, Hex head, 5/16-18 x 5/8
36 1960687 4 NUT, Hex Flange, 3/8-16 ESNA
37 1725747A 2 SKID SHOE, 7GA Formed, Heat Treated

Auger Housing and Chute Group - 38 inch
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
14

Auger Housing and Chute Group - 38 inch
Footnotes:
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 15
Part No Descri
p
tionItem Qt
y
Note
38 1723921A 1 BLADE, Scraper, 35-3/4 for 38”
39 1960702 4 CARRIAGE BOLT, 3/8-16 x 1 G5
40 1931277 15 NUT, Hex Flange Whiz Lock, 5/16-18
41 1935043 9 NUT, Flange Lock, 5/16-18
42 1729734D 1 HOUSING AND IMPELLER ASSEMBLY, 38”
43 1664847 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 G5
44 1729642D 2 CUTTER, Drift, Red
45 1666613 3 HOLD DOWN, Chute
46 1717477A 1 GEAR, Chute

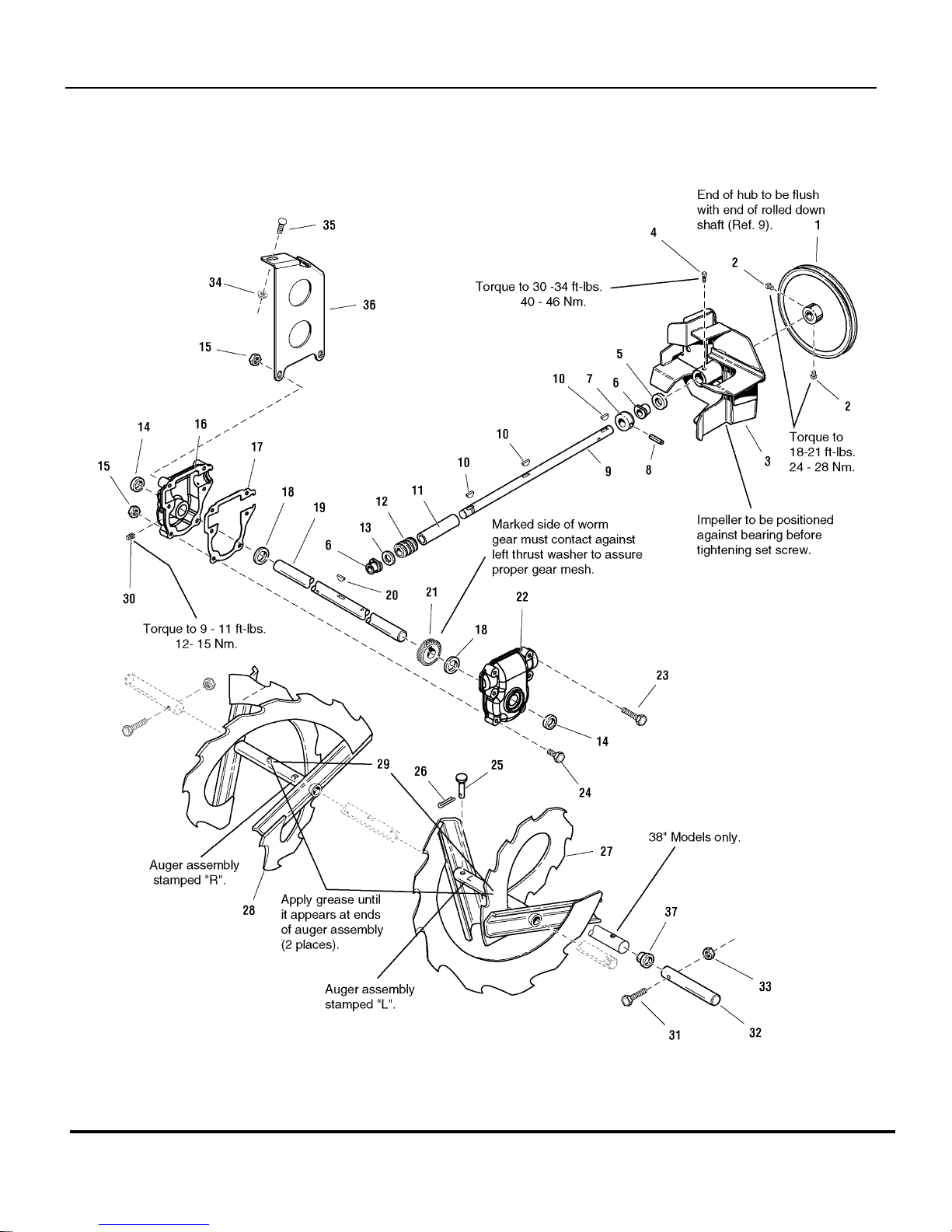

Auger and Impeller Group
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
16

Auger and Impeller Group
Footnotes:
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 17
Part No Descri
p
tionItem Qt
y
Note
1 1679293 1 PULLEY, w/Hub
2 1928721 2 SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8
3 1612187A 1 IMPELLER ASSEMBLY
4 1960474 1 SCREW, Set Square Head Cup Point, 3/8-16 x 1/2 G8
5 1612093 1 SEAL, Oil 1/4” Thick
6 1612149 2 BUSHING, 377/500 ID x 1-1/10 OD x 1-1/100 LG Powerdered
Metal
7 1612127 1 COLLAR, Thrust 3/4 LG
8 2836098 1 PIN, Drive Lock Type A 3/16 x 1-1/2
9 1612129 1 SHAFT, Worm 18-1/10 LG
10 2818312 3 KEY, Woodruff, 47/250 x 5/8
11 1612111 1 TUBE, 9/10 OD 39/50 ID, 7-1/2 LG
12 1612142 1 GEAR, Worm 1-3/8 LG
13 2168111 1 WASHER, Thrust
14 2118118 2 SEAL, Oil, 1/4” Thick
15 1930642 6 NUT, Hex Flange , 1/4-20 Toplock Small Qauntity 8 used on 38” models
16 1612137 1 CASE, Gear R.H.
17 1612124 1 GASKET, Gear Case
18 2118315 2 WASHER, Thrust
19 1612117 1 SHAFT, 16 LG Auger 3 Holes
20 2830246 1 KEY, Woodruff 1/4 x 3/4
21 1612141 1 GEAR, Worm 7/8 LG
22 1612136 1 CASE, Gear L.H.
23 1923282 2 CAPSCREW, Hex Head, 1/4-20 x 2-1/2 G5 Used on 38” models
24 1960346 4 CAPSCREW, Hex Head, 1/4-20 x 2-1/4 G5 Quantity 4 used on 38” models
25 1668344 2 PIN, Flat Head Drilled
26 1918447 2 PIN, Cotter 47/50 x 3/4
27 1718782A 1 AUGER ASSEMBLY, L.H. 9-1/2 LG Used on 24” models
27 1718784A 1 AUGER ASSEMBLY, L.H. 11-1/2 LG Used on 28” models
27 1718786A 1 AUGER ASSEMBLY, L.H. 13-1/2 LG Used on 32” models
27 1723945A 1 AUGER ASSEMBLY, L.H. 15-9/10 LG (without Bushing) Used on 38” models
27 1731322A 1 AUGER ASSEMBLY, L.H. 15-9/10 LG (with Bushing Ref. No. 37) Used on 38” models
28 1718783A 1 AUGER ASSEMBLY, R.H. 9-1/2 LG Used on 24” models
28 1718785A 1 AUGER ASSEMBLY, R.H. 11-1/2 LG Used on 28” models
28 1718787A 1 AUGER ASSEMBLY, R.H. 13-1/2 LG Used on 32” models
28 1723944A 1 AUGER ASSEMBLY, R.H. 15-9/10 LG (without Bushing) Used on 38” models
28 1723944A 1 AUGER ASSEMBLY, R.H. 15-9/10 LG (with Bushing Ref. No. 37) Used on 38” models
29 2821133 2 FITTING, Lube 1/4 Drive, No Check Ball

Auger and Impeller Group
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
18

Auger and Impeller Group
Footnotes:
TP 400-5135-1-LF-N
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7 19
Part No Descri
p
tionItem Qt
y
Note
30 1668971 1 FITTING, Pipe Plug, Square Head
31 1921962 2 CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5 Used on 38” models
32 1723931 2 SHAFT, 5 LG Used on 38” models
33 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20NC-3B Used on 38” models
34 1931277 2 NUT, Hex Flange, 5/16-18, Whiz Lock Small Used on 38” models
35 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4 G5 Used on 38” models
36 1723922A 1 SUPPORT, Gear Box 10GA Used on 38” models
37 1709894 2 BUSHING, Plastic Used on 38” models

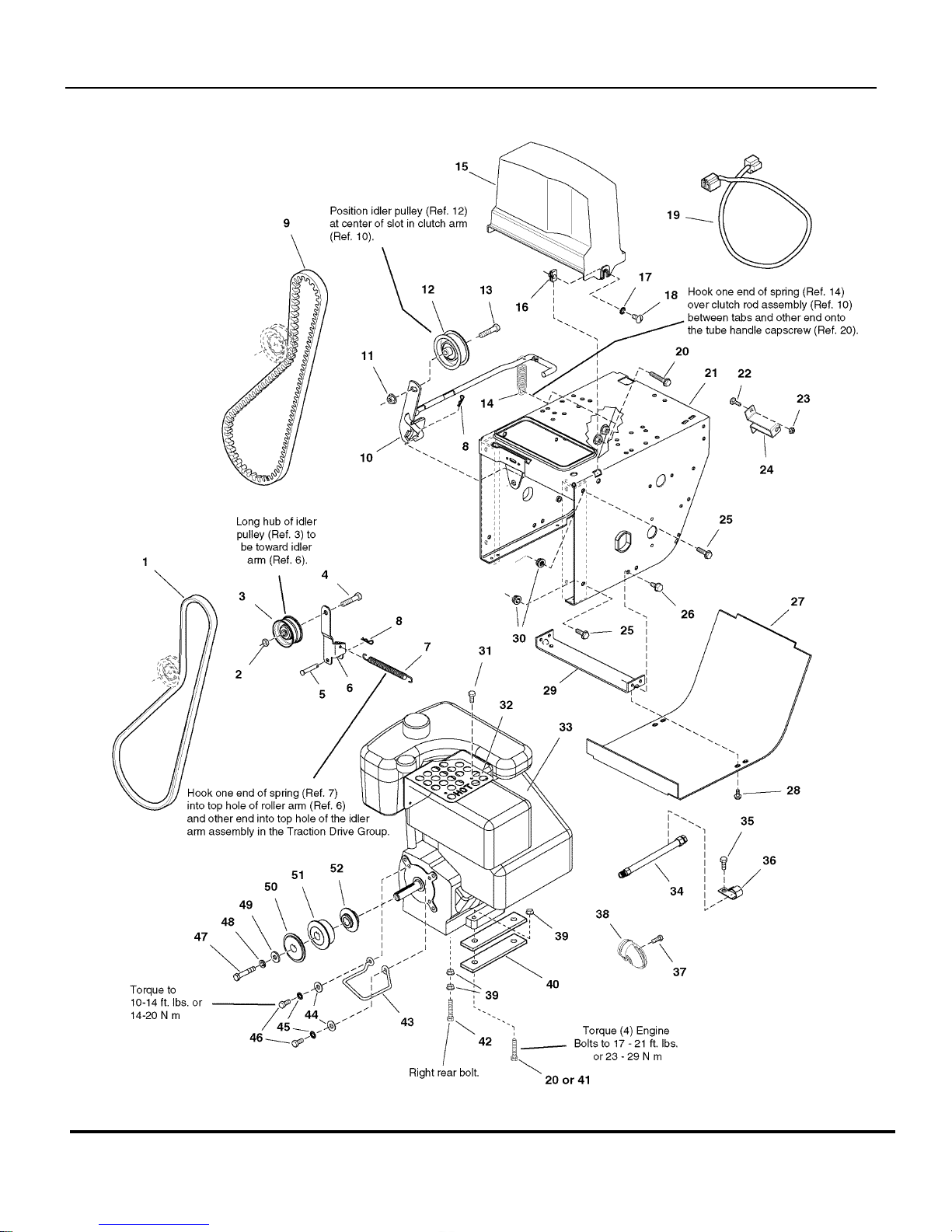

Engine and Frame Group
TP 400-5135-1-LF-N
Manual No. 7006080 TWO STAGE LARGE FRAME
(2006) SERIES 7
20
