Snapper 105308E User manual

Parts Manual fo
r
Revision IR,
TWO STAGE LARGE FRAM
E
SERIES 8
COPYRIGHT
©
2006
McDonough, GA, 30253 U.S.A.
TP 400-5237-IR-LF-N
10/6/2006 Manual No. 7006159
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
SNOW THROWER
MODEL
85268E
(
1694993
)
95288E
(
1694994
)
105308E
(
1694995
)
115328E
(
1694996
)
E85268E
(
1695093
)
E95288E
(
1695094
)
E105308E
(
1695095
)
E115328E
(
1695096
)

Table Of Content
s
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 3
PAGE GROUP
4Handle & Controls Group
8Auger Drive Group
10 Auger Housing & Chute Group - CE Models
14 Auger Housing & Chute Group - Domestic Models

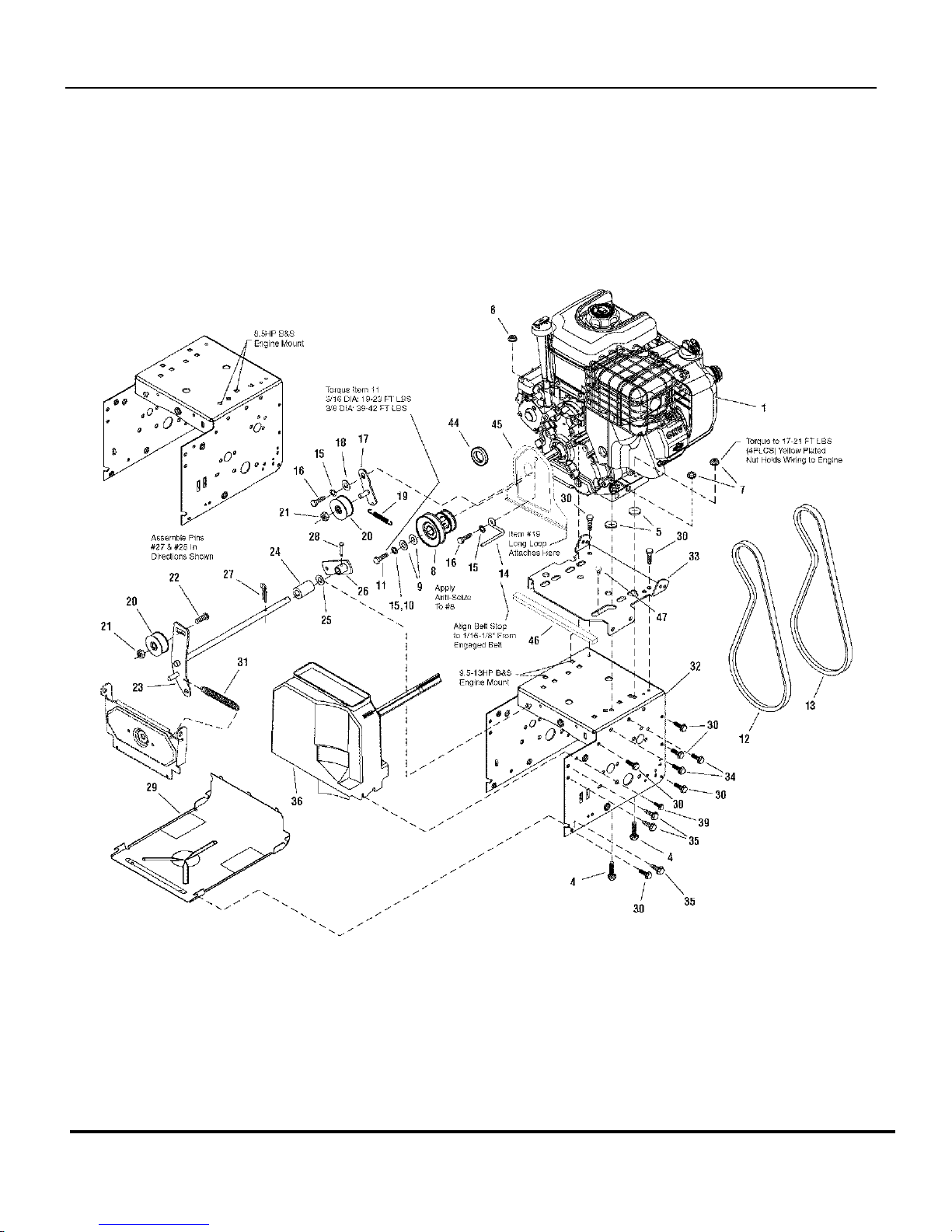

18 Engine & Frame Group - CE Models
22 Engine Group - Domestic Models
26 Traction Drive Group - EZ Turn
30 Traction Drive Group - Standard
32 Wheel & Tire Group
34 Decals Group

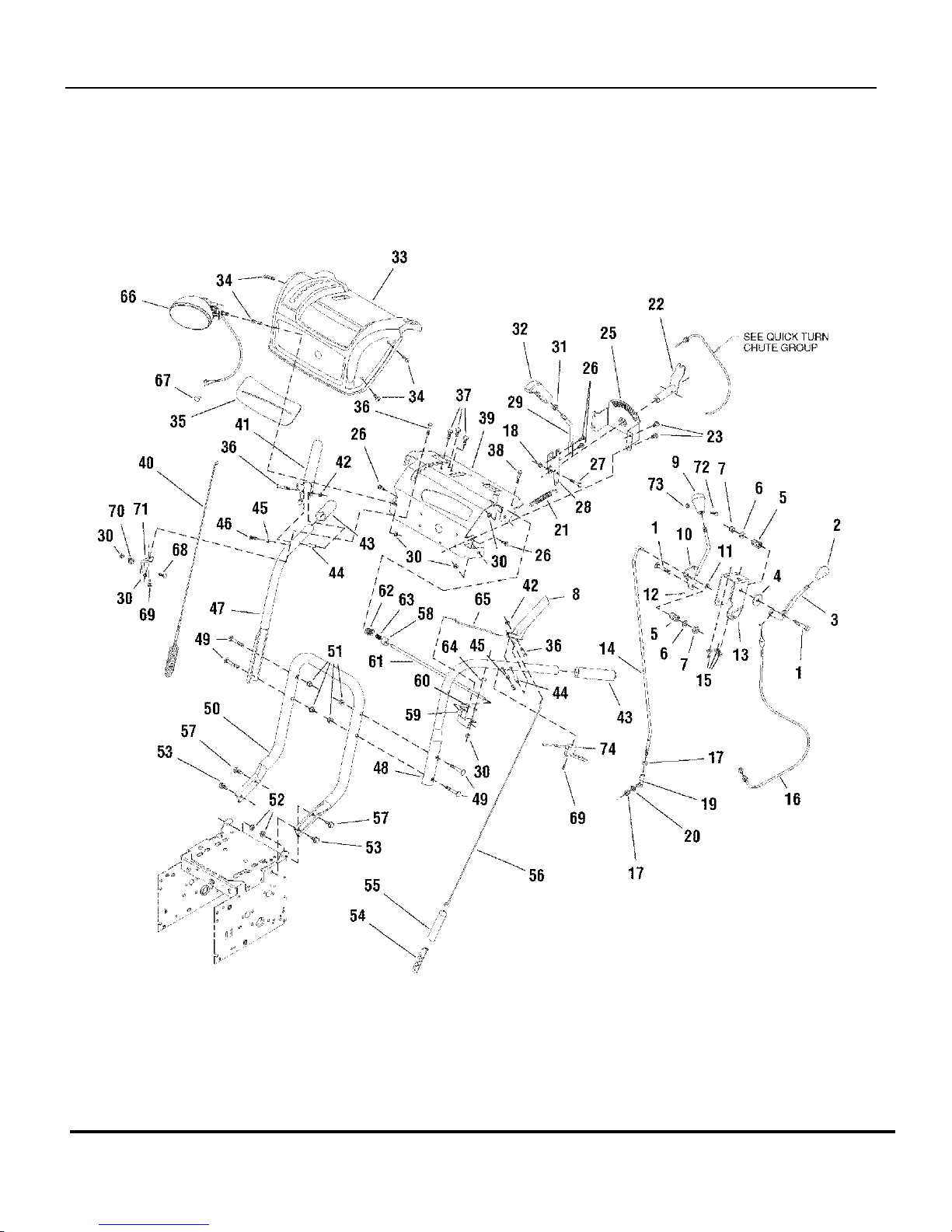

Handle & Controls Group
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
4

Handle & Controls Group
Footnotes:
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 5
Part No Descri
p
tionItem Qt
y
Note
1 1923701 2 CAPSCREW, Hex Head 3/8-16 x 2 G5
2 1732470 1 KNOB, Interior Thread 3/8-16
3 1732427 1 ROD, Chute
4 1924356 1 WASHER, 3/8
5 724361 2 SPRING
6 1918266 2 WASHER, 3/8
7 1919439 2 NUT, Hex Lock ESNA Light 3/8-16
8 1722667 1 GRIP, Clutch, L.H.
9 1733192 1 KNOB, Slot Speed
10 1733205 1 ROD & PLATE ASSEMBLY, Speed Control
11 1919326 1 WASHER, 5/16
12 1918447 1 COTTER PIN
13 1733045A 1 BRACKET, Trac & Deflector Control
14 1732531 1 ROD
15 1931277 3 NUT, Hex Flange 5/16-18 Whiz Lock
16 1732971 1 CABLE, Deflector Control
17 2820263 2 NUT, Hex 5/16-24
18 1960608 1 NUT, Hex Flange 1/4-20 Centerlock
19 724360 1 BALLJOINT, Steel
20 1917356 1 LOCKWASHER, Spring 5/16
21 1732970 1 SPRING, Extension
22 1732365 1 TUBE & BRACKET ASSEMBLY, Cable
23 1924856 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
25 1732364 1 SUPPORT, Chute Control
26 1927429 4 SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
27 1732944 1 BOLT, Shoulder 1/4-20
28 1733142 1 BRACKET, Support Quick Turn
29 1732369 1 ROD, Chute
30 1920397 7 NUT, Hex Lock ESNA Light 1/4-20
31 1917421 1 NUT, Hex Jam 3/8-16
32 723122 1 GRIP, Lever 3/8-16
33 1732417D 1 COVER, Panel
34 1960715 7 SCREW, Truss Head Torx Drive 1/4-20 x 3/4
35 1733204 1 BELLOWS, Black Rubber Quick Turn
36 1922837 3 CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
37 1931333 3 CARRIAGE BOLT, 5/16-18 x 3/4 G5
38 1921962 1 CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5

Handle & Controls Group
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
6

Handle & Controls Group
Footnotes:
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 7
Part No Descri
p
tionItem Qt
y
Note
39 1732064A 1 SUPPORT, Dash Panel Cover
40 1732471 1 CABLE & SPRING ASSEMBLY, Auger Drive R.H.
41 1722638 1 GRIP, Clutch R.H.
42 1923358 2 NUT, Hex Centerlock 1/4-20
43 1726317 2 GRIP
44 1715655 2 SPACER
45 1678392 2 SPACER
46 1960671 2 SCREW, Pan Head Torx 1/4-20 x 3/4
47 1732783A 1 HANDLE, Upper R.H. Tubular
48 1732782A 1 HANDLE, Upper L.H. Tubular
49 1960723 4 CARRIAGE BOLT, 5/16-18 x 2-1/4 G5
50 1732781A 1 HANDLE, Lower Tubular
51 1960686 4 NUT, Hex Flange 5/16-18 ESNA
52 1935048 2 NUT, Hex Flange 5/16-18 Two-Way Lock
53 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
54 723259 1 BRACKET, Cable Adjusting
55 723154 1 BOOT, Control Spring
56 727331 1 CABLE, Front Drive
57 1921333 2 CAPSCREW, Hex Head 5/16-18 x 1 G5
58 1679166 1 SPACER
59 1733505A 1 BRACKET, Free Hand Control
60 1733095 1 SPACER, Powdered Metal
61 1733509 1 ROD & SPRING ASSEMBLY, w/Pin
62 1960027 4 WASHER-, 1/2
63 2108360 1 SPRING, Compression
64 1960353 1 WASHER, 1/4
65 1722630 1 ROD, Hold Down
66 1732322 1 HEADLIGHT ASSEMBLY, Oval Clear
67 1704351 10 FASTENER, Panel
68 1931320 2 CARRIAGE BOLT, 1/4-20 x 1-1/4 G5
69 1725702 2 SCREW, Pan Head Torx #10 x 1/2
70 724621 1 SPOOL CABLE, Auger Control
71 1733481A 1 BRACKET, Spout Cable
72 1960589 1 SCREW, Round Head Phillips #10-24 x 3/4
73 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert
74 1718791 1 CABLE & HANDLE ASSEMBLY

Auger Drive Group
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
8

Auger Drive Group
Footnotes:
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 9
Part No Descri
p
tionItem Qt
y
Note
1 1668344 4 PIN, SHEAR
2 7023590 4 COTTER PIN, 1/4” Self Locking
3 1612187A 1 IMPELLER ASSEMBLY, Large Frame Snow
4 1960474 1 SCREW, Set, Square Head Cup Point 3/8-16 x 1/2 G8
5 1732185 1 PULLEY, w/Hub
6 1718783A 1 AUGER ASSEMBLY, 24” & 26” R.H.
6 1718785A 1 AUGER ASSEMBLY, 28” & 30” R.H.
6 1718787A 1 AUGER ASSEMBLY, 32” R.H.
7 1718782A 1 AUGER ASSEMBLY, 24” & 26” L.H.
7 1718784A 1 AUGER ASSEMBLY, 24” & 30” L.H.
7 1718786A 1 AUGER ASSEMBLY, 32” L.H.
8 1732303 1 GEAR BOX ASSEMBLY
9 1928721 2 SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
10 2818312 2 KEY, Woodruff
11 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5
12 1931277 1 NUT, Hex Flange Whiz Lock, 5/16-18HEX FLANGE 5/16-18
15 1733406 2 TUBE

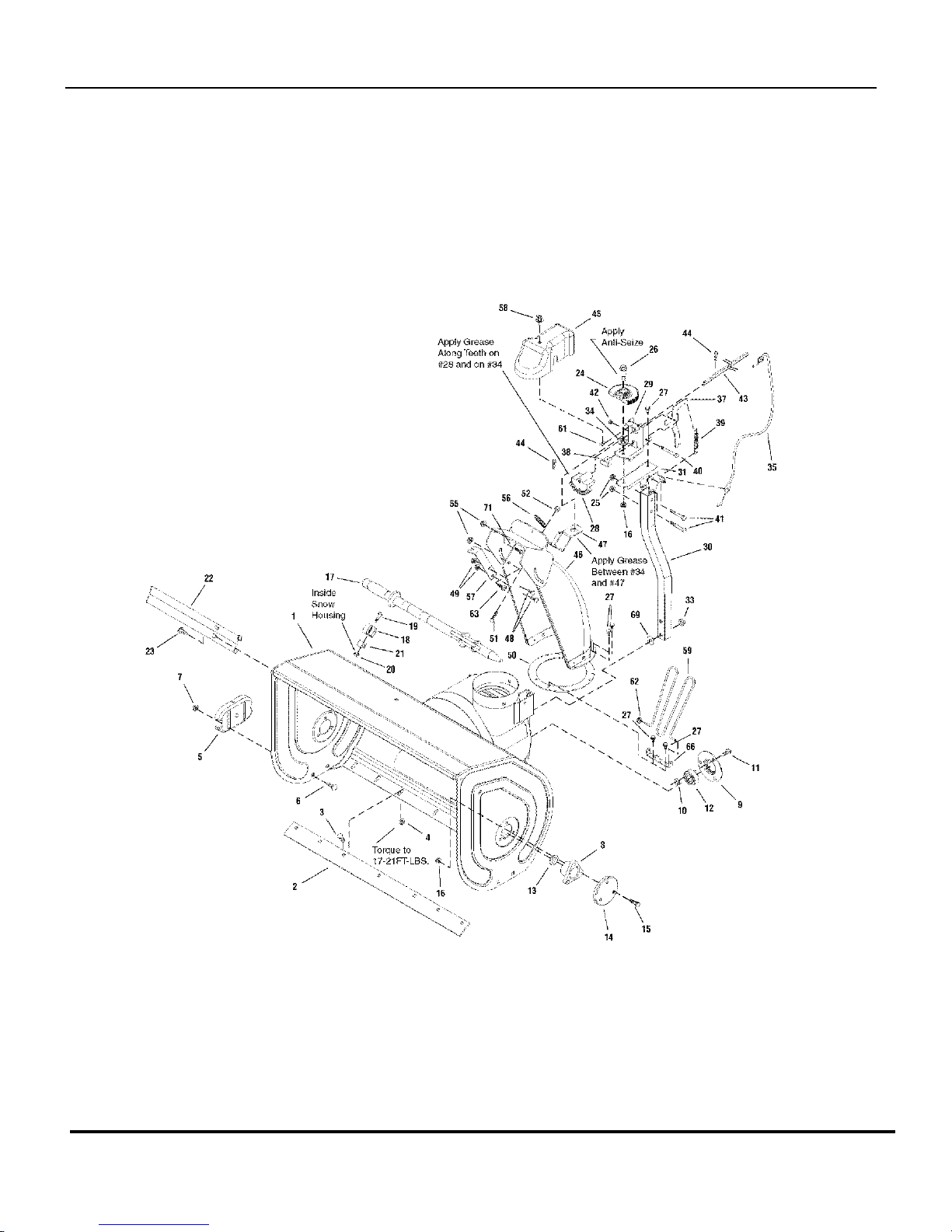

Auger Housing & Chute Group - CE Models
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
10

Auger Housing & Chute Group - CE Models
Footnotes:
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 11
Part No Descri
p
tionItem Qt
y
Note
1 1732268D 1 HOUSING ASSEMBLY, 26”
1 1732269D 1 HOUSING ASSEMBLY, 28”
1 1723370D 1 HOUSING ASSEMBLY, 30”
1 1732008D 1 HOUSING ASSEMBLY, 32”
2 1732384A 1 BLADE, Scraper 26”
2 1709947A 1 BLADE, Scraper 28”
2 1732385A 1 BLADE, Scraper 30”
2 1709948A 1 BLADE, Scraper 32”
3 1960699 7 CARRIAGE BOLT, 5/16-18 x 5/8 G5
4 1935048 7 NUT, Hex Flange 5/16-18 Two-Way Lock
5 1727854A 2 SKID, Shoe Reversible
6 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5
7 1960687 4 NUT, Hex Flange 3/8-16 ESNA
8 1665980 2 BEARING, Flange
9 1665982A 1 BEARING, Retainer
10 1930659 3 RETAINER, Nut, 5/16-18
11 1960738 3 SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
12 1729578 1 BEARING, Greased
13 1663189 2 SPACER
14 1668639D 2 CAP, Bearing
15 1923325 6 CAPSCREW, Hex Head 5/16-18 x 7/8 G5
16 1931277 7 NUT, Hex Flange 5/16-18, Whiz Lock
17 1733209 1 STICK, Cleanout w/Brush
18 722242 2 CLIP, Retainer
19 2860604 2 SCREW, Hex Washer Head
20 1933896 2 NUT, Hex Lock 10-24 w/Nylon Insert
21 724565 2 BLOCK, Universal Pivot
22 1733102D 2 CUTTER, Drift w/Tabs
23 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
24 1732608 1 GEAR, 13 Tooth
25 1960684 2 NUT, Hex KEPS 5/16-18 Conical Washer
26 1732412 1 BOLT, Shoulder 5/16-18 x 3/5
27 1925003 8 SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
28 1732607 1 GEAR, Sector 34 Tooth Powdered Metal
29 1732602A 1 SUPPORT, Driver Gear
30 1732227A 1 TUBE
31 1732606A 1 BRACKET, Gear Support

Auger Housing & Chute Group - CE Models
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
12

Auger Housing & Chute Group - CE Models
Footnotes:
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 13
Part No Descri
p
tionItem Qt
y
Note
33 1960680 2 NUT, Hex Keps, 3/8-16 Conical Washer
34 1733026 1 WASHER, Powdered Metal
35 1732238 1 CABLE, Chute Brake
37 1732837A 1 BRACKET, Brake
38 1732308 1 ARM & PAD ASSEMBLY, Brake
39 1679554 1 SPRING, Extension
40 1923282 1 CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
41 1921978 2 CAPSCREW, Hex Head 5/16-18 x 2 G5
42 1923358 1 NUT, Hex Centerlock 1/4-20
43 1732231 1 ROD, Hex Chute
44 1722460 2 PIN, Quick
45 1732241 1 COVER, Chute
46 1732506 1 CHUTE & DEFLECTOR ASSEMBLY
47 1732028A 1 BRACKET, Chute Support
48 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5
49 1960294 2 NUT, Hex Flange 1/4-20 Whiz Lock
50 1733768A 1 RING, Chute Base
51 1960715 3 SCREW, Truss Head Torx Drive 1/4-20 x 3/4
52 1920397 3 NUT, Hex Lock ESNA Light 1/4-20
55 1960686 3 NUT, Hex Flange 5/16-18 ESNA
56 1733455 1 SPRING, Extension
57 1733082A 1 BRACKET, Cable
58 696239 1 KNOB & SCREW ASSEMBLY
59 1733475 1 GUARD, Chute
61 1960593 1 NUT, Retainer Speed #10-24 w/Extrusion
62 1960140 2 NUT, Push
63 1960086 2 SCREW, Truss Head Trox Drive 5/16-18 x 7/8
66 1733476A 1 BRACKET, Chute Guard
69 1916965 2 LOCKWASHER, Spring 3/8
71 1921332 1 CAPSCREW, Hex Head 5/16-18 x 3/4 G5

Auger Housing & Chute Group - Domestic Models
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
14

Auger Housing & Chute Group - Domestic Models
Footnotes:
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 15
Part No Descri
p
tionItem Qt
y
Note
1 1732268D 1 HOUSING ASSEMBLY, 26”
1 1732269D 1 HOUSING ASSEMBLY, 28”
1 1732270D 1 HOUSING ASSEMBLY, 30”
1 1732008D 1 HOUSING ASSEMBLY, 32”
2 1732384A 1 BLADE, Scraper 26”
2 1709947A 1 BLADE, Scraper 28”
2 1732385A 1 BLADE, Scraper 30”
2 1709948A 1 BLADE, Scraper 32”
3 1960699 5/7 CARRIAGE BOLT, 5/16-18 x5/8 G5
4 1935048 5/7 NUT, Hex Flange Two-Way Lock, 5/16-18
5 1727854A 2 SKID, Shoe Reversible
6 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5
7 1960687 4 NUT, Hex Flange 3/8-16 ESNA
8 1665980 2 BEARING, Flange
9 1665982A 1 BEARING, Retainer
10 1930659 3 RETAINER, Nut, 5/16-18
11 1960738 3 SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
12 1729578 1 BEARING
13 1663189 2 SPACER
14 1668639D 2 CAP, Bearing
15 1923325 6 CAPSCREW, Hex Head, 5/16-18 x 7/8 G5
16 1931277 7 NUT, Hex Flange Whiz Lock, 5/16-18
17 1733209 1 STICK, Cleanout w/Brush
18 722242 2 CLIP, Retainer
19 2860604 2 SCREW, Hex Washer Head
20 1933896 2 NUT, Hex Lock
21 724565 2 BLOCK, Universal Pivot
22 1733102D 2 CUTTER, Drift w/Tabs
23 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
24 1732608 1 GEAR, 13Tooth
25 1960684 2 NUT, Hex Keps Conical Washer 5/16-18
26 1732412 1 BOLT, Shoulder 5/16-18
27 1925003 6 SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
28 1732607 1 GEAR, 34 Tooth
29 1732602A 1 SUPPORT, Driver Gear
30 1732227A 1 TUBE
31 1732606A 1 BRACKET, Gear Support

Auger Housing & Chute Group - Domestic Models
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
16

Auger Housing & Chute Group - Domestic Models
Footnotes:
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 17
Part No Descri
p
tionItem Qt
y
Note
32 1922755 2 WASHER, 3/8
33 1923701 2 CAPSCREW, Hex Head 3/8-16 x 2 G5
34 1733026 1 WASHER, Powdered Metal
35 1732238 1 CABLE, Chute Brake
37 1732837A 1 BRACKET, Brake
38 1732308 1 ARM & PAD ASSEMBLY, Brake
39 1679554 1 SPRING, Extension
40 1923282 1 CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
41 1921978 2 CAPSCREW, Hex Head 5/16-18 x 2 G5
42 1923358 1 NUT, Hex Centerlock 1/4-20
43 1732231 1 ROD, Hex
44 1722460 2 PIN, Quick
45 1732241 1 COVER, Chute
46 1732506 1 CHUTE & DEFLECTOR ASSEMBLY
47 1732028A 1 BRACKET, Chute Support
48 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5
49 1960294 2 NUT, Hex Flange Whiz Lock 1/4-20
50 1732172A 1 RING, Chute Base
51 1960715 3 SCREW, Truss Head Torx 1/4-20 x 3/4
52 1920397 3 NUT, Hex Lock ESNA Light 1/4-20
55 1960686 3 NUT, Hex Flange 5/16-18 ESNA
56 1733455 1 SPRING, Extension
57 1733082A 1 BRACKET, Cable
58 696239 1 KNOB & SCREW ASSEMBLY
59 1916965 2 LOCKWASHER, Spring 3/8
61 1960593 1 NUT, Retainer Speed #10-24 w/Extrusion
62 1960680 2 NUT, Hex Keps, 3/8-16 Conical Washer
63 1960086 2 SCREW, Truss Head Torx 5/16-18 x 7/8
71 1921332 1 CAPSCREW, Hex Head 5/16-18 x 3/4 G5

Engine & Frame Group - CE Models
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
18

Engine & Frame Group - CE Models
Footnotes:
TP 400-5237-IR-LF-N
Manual No. 7006159TWO STAGE LARGE FRAME
SERIES 8 19
Part No Descri
p
tionItem Qt
y
Note
1 1 * ENGINE, 8.5HP B&S Powerbuilt - Model #15A1140117E1
1 1 * ENGINE, 9.5HP B&S Powerbuilt - Model #20A4140116E1
1 1 * ENGINE, 10.5HP B&S Powerbuilt - Model #20E2140112E1
1 1 * ENGINE, 11.5HP B&S Powerbuilt - Model #21C2140113E1
4 720064 4 CARRIAGE BOLT, 3/16-18 x 1-1/2
5 720376 4 NUT, Speed
6 2831277 1 NUT, Hex Flange 5/16-18 Whiz Lock
7 1960686 3 NUT, Hex Flange 5/16-18 ESNA
8 722085 1 PULLEY, Engine
9 1919381 2 WASHER, 3/16
9 1922755 2 WASHER, 3/8
10 1916965 1 LOCKWSHER, Spring 3/8
11 1921982 1 CAPSCREW, Hex Head 3/8-24 x 1-1/4 G5
11 1960428 1 CAPSCREW, Hex Head 3/16-24 x 1-1/4 G5
12 1733324 1 V-BELT, 3L 33.13, Drive
13 1733051 1 V-BELT, 4L 36.5, Auger
13 1733507 1 V-BELT, 4L 38.5, Auger
14 1733014 1 STOP, Belt
15 1917356 3 LOCKWASHER, Spring 3/16
16 1921515 2 CAPSCREW, Hex Head 5/16-24 x 3/4 G5
17 722090 1 IDLER BRACKET ASSEMBLY, Drive Belt
18 722072 1 BUSHING, Idler Bracket
19 724418 1 SPRING, Extension Idler
20 722378 2 IDLER, Plastic Ball Bearing
21 1960251 2 NUT, Hex Centerlock Jam 3/8-16
22 724823 1 CARRIAGE BOLT, 3/8-16 x 1-1/4
23 1733055 1 IDLER ASSEMBLY, Auger
24 722118 1 SPACER/AUGER BRACKET
25 1960027 1 WASHER, 1/2
26 1733626 1 BRACKET & HUB ASSEMBLY, Spring
27 725367 1 PIN, Hair
28 725675 1 PIN, Clevis
29 722067A 1 PANEL, Bottom
30 1927429 12 SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
31 722455 1 SPRING, Extension Auger Idler
32 722061D 1 FRAME BOX, 7.5-8.5HP
32 1733154D 1 FRAME BOX, Steerable
Note* See your local Briggs & Strattion Distributor for Parts & Service.
Note* See your local Briggs & Strattion Distributor for Parts & Service.
Note* See your local Briggs & Strattion Distributor for Parts & Service.
Note* See your local Briggs & Strattion Distributor for Parts & Service.

Engine & Frame Group - CE Models
TP 400-5237-IR-LF-N
Manual No. 7006159 TWO STAGE LARGE FRAME
SERIES 8
20
