Snapper L1226E User manual

Parts Manual fo
r
Revision IR,
LARGE FRAME TWO STAG
E
2008 MODELS
McDonough, GA, 30253 U.S.A.
TP 400-5286-IR-LF-N
8/27/2007 Manual No. 7006185
SNOW THROWERS 26", 28", 30", & 32"
Copyright © 2007
Briggs & Startton Yard Power Products Group
Milwaukee, WI USA. All Rights Reserved
Briggs & Startton Corporation
MODEL
L1226E (1695324)
L1226EX (1695325)
L1428E (1695328)
L1428EX (1695329)
L1530E (1695332)
L1530EX (1695333)
L1632E (1695336)
L1632EX (1695337)

Table Of Content
s
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 3
PAGE GROUP
4Handle & Controls Group
8Auger Housing & Chute Group
12 Auger Drive Group
14 Engine Group
18 Traction Drive Group - Standard
20 Traction Drive Group - EZ Turn
24 Wheel & Tire Group
26 Decals Group

TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
4

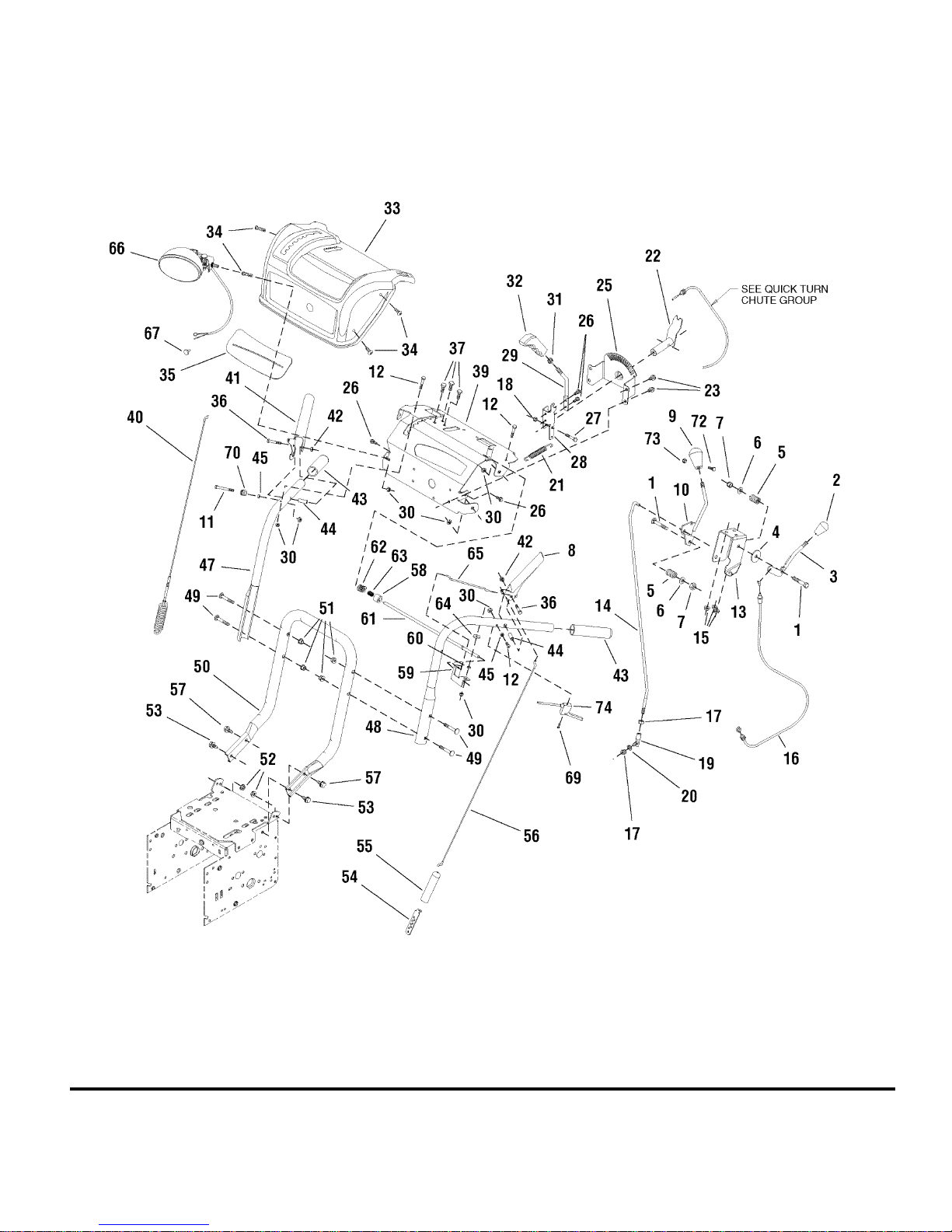

Handle & Controls Group
Footnotes:
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 5
Part No Descri
p
tionItem Qt
y
Note
1 1923701 2 CAPSCREW, Hex Head 3/8-16 x 2 G5
2 1732470 1 KNOB, Interior Thread 3/8-16
3 1732427 1 ROD, 3/8 Diameter 5" Large, 3/8-16 x 1 Chute
4 1924356 1 WASHER, 3/8
5 724361 2 SPRING
6 1918266 2 WASHER, 3/8
7 1919439 2 NUT, Hex Lock ESNA Light 3/8-16
8 1722667 1 HANDLE, Clutch L.H.
9 1733192 1 KNOB, Slot Speed
10 1733205 1 ROD & PLATE ASSEMBLY, Speed Control
11 1923282 1 CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
12 1921962 3 CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5
13 1733045A 1 BRACKET, Trac & Deflector Control
14 1734354 1 ROD
15 1931277 3 NUT, Hex Flange 5/16-18, Whiz Lock Small
16 1732971 1 CABLE, Deflector Control
17 2820263 2 NUT, Hex 5/16-24
18 1960608 1 NUT, Hex Flange 1/4-20 Centerlock Large
19 724360 1 BALLJOINT, Steel
20 1917356 1 LOCKWASHER, Spring 5/16
21 1732970 1 SPRING, Extension
22 1732365 1 TUBE & BRACKET ASSEMBLY, Cable Support
23 1924856 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
25 1732364 1 SUPPORT, Chute Control 14GA
26 1927429 4 SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
27 1732944 1 BOLT, Shoulder 1/4-20
28 1733142 1 BRACKET, Support Quick Turn
29 1732369 1 ROD, Chute
30 1920397 8 NUT, Hex Lock ESNA Light 1/4-20
31 1917421 1 NUT, Hex Jam 3/8-16
32 723122 1 GRIP, Lever
33 1733777D 1 COVER, Panel
34 1960715 4 SCREW, Truss Head Torx Drive 1/4-20 x 3/4
35 1733204 1 BELLOWS, Black Rubber Quick Turn
36 1922837 2 CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
37 1931333 3 CARRIAGE BOLT, 5/16-18 x 3/4 G5
39 1732064A 1 SUPPORT, Dash Panel Cover

Handle & Controls Group
TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
6

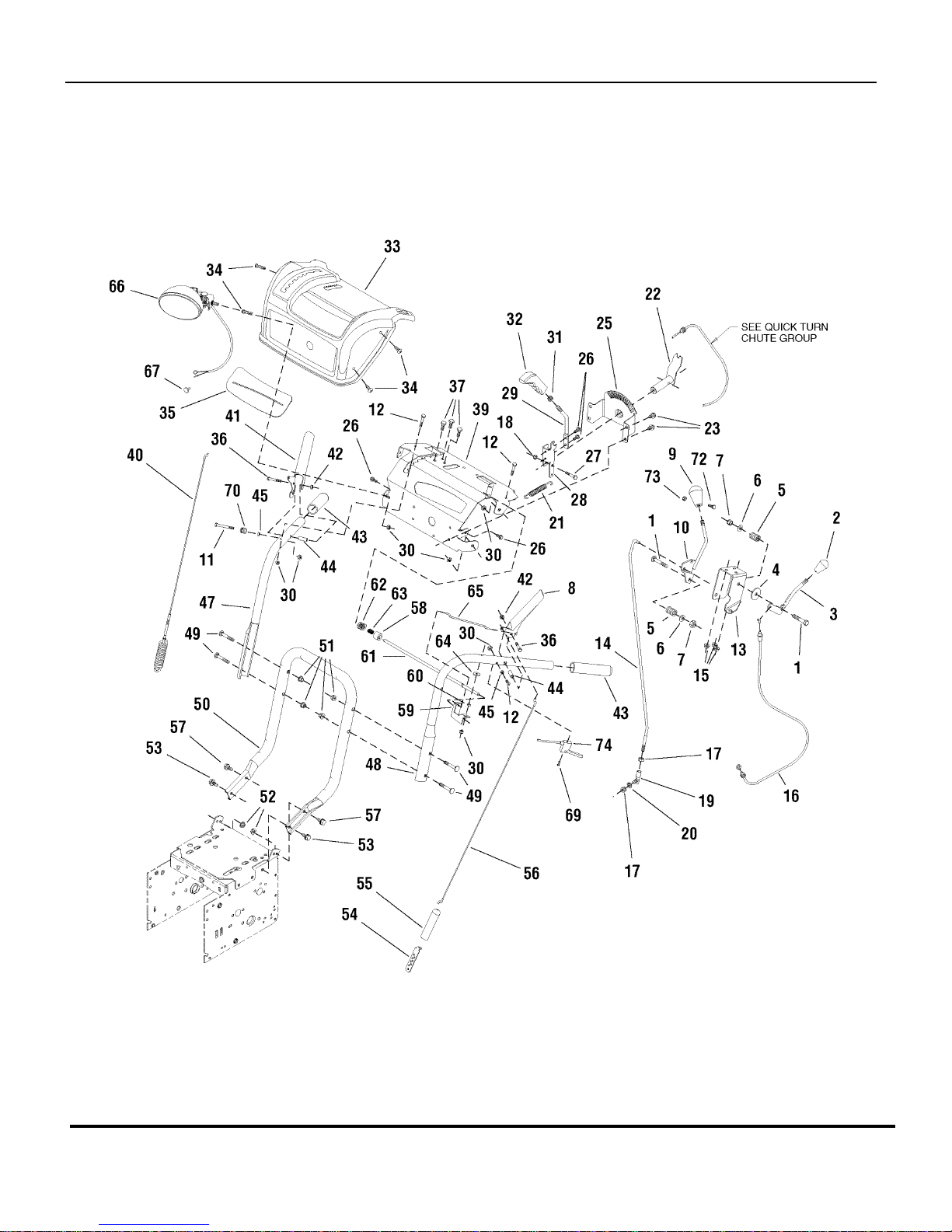

Handle & Controls Group
Footnotes:
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 7
Part No Descri
p
tionItem Qt
y
Note
40 1732471 1 CABLE & SPRING ASSEMBLY, Auger Drive R.H.
41 1722638 1 HANDLE, Clutch R.H.
42 1923358 2 NUT, Hex Centerlock 1/4-20
43 1726317 2 GRIP
44 1715655 2 SPACER
45 1678392 2 SPACER
47 1734587A 1 HANDLE, Upper R.H.
48 1734586A 1 HANDLE, Upper L.H.
49 1960723 4 CARRIAGE BOLT, 5/16-18 x 2-1/4 G5
50 1732781A 1 HANDLE, Lower
51 1960686 4 NUT, Hex Flange 5/16-18
52 1935048 2 NUT, Hex Flange 5/16-18 Two-Way Lock
53 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
54 723259 1 BRACKET, Cable Adjusting
55 723154 1 BOOT, Spring End Cover
56 727331 1 CABLE,
57 1921333 2 CAPSCREW, Hex Head 5/16-18 x 1 G5
58 1679166 1 SPACER, Powdered Metal
59 1733505A 1 BRACKET, Free Hand Control 12GA
60 1733095 1 SPACER, Powdered Metal
61 1733509 1 ROD & SPRING ASSEMBLY, w/Pin
62 1960027 4 WASHER, 1/2
63 2108360 1 SPRING, Compression
64 1960353 1 WASHER, 1/4
65 1722630 1 ROD, Hold Down E-Coat
66 1732321 1 HEADLIGHT ASSEMBLY, Oval Amber
67 1704351 5 FASTENER, Panel
69 1725702 1 SCREW, Pan Head Torx #10 x 1/2 Thick Cut
70 724621 1 SPOOL CABLE, Auger Control
72 1960589 1 SCREW, Round Head Phillips #10-24 x 3/4
73 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert
74 1718791 1 CABLE & HANDLE ASSEMBLY

Auger Housing & Chute Group
TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
8

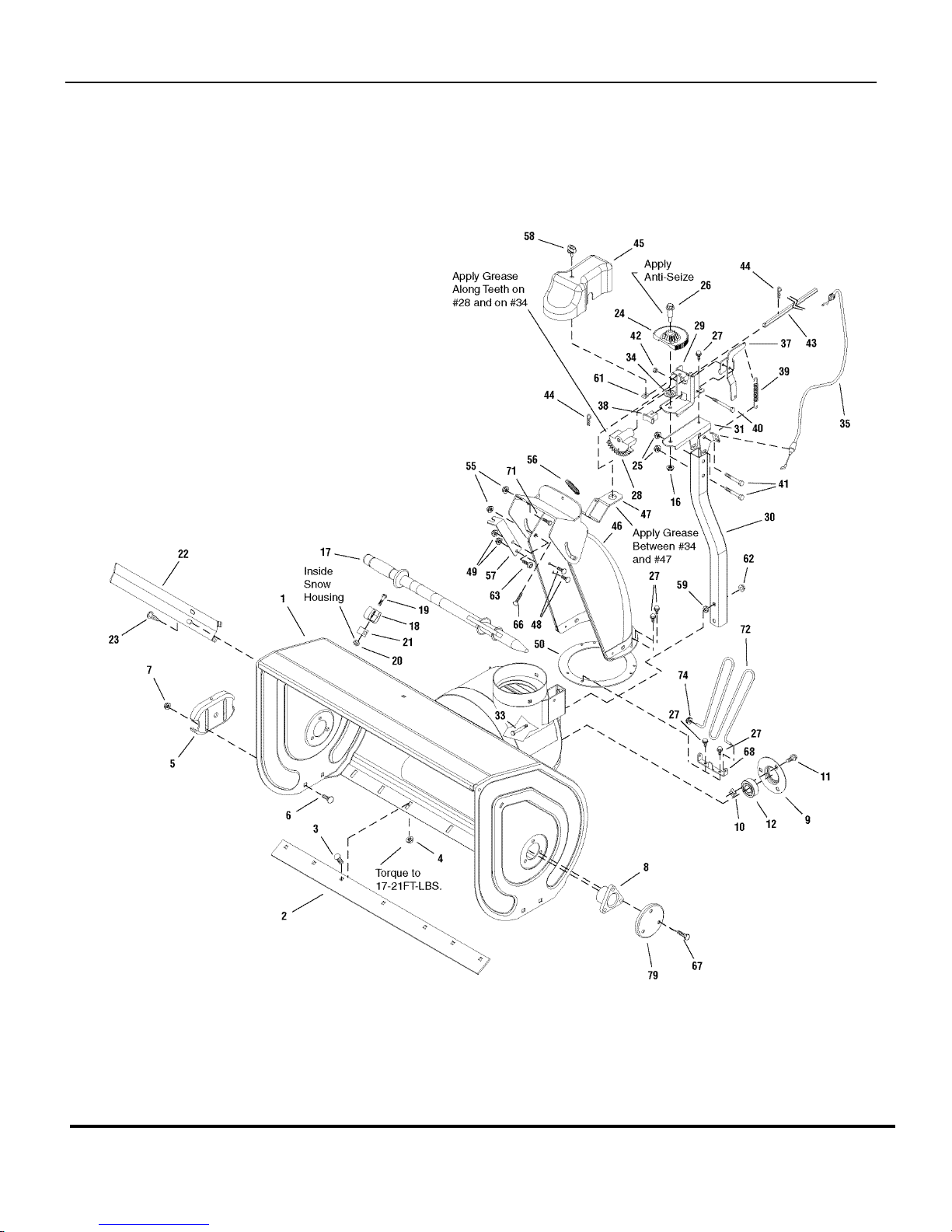

Auger Housing & Chute Group
Footnotes:
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 9
Part No Descri
p
tionItem Qt
y
Note
1 1734555D 1 HOUSING ASSEMBLY, 26”
1 1734556D 1 HOUSING ASSEMBLY, 28”
1 1734557D 1 HOUSING ASSEMBLY, 30”
1 1734558D 1 HOUSING ASSEMBLY, 32”
2 1732384A 1 BLADE, Scraper 26”
2 1709947A 1 BLADE, Scraper 28”
2 1732385A 1 BLADE, Scraper 30”
2 1709948A 1 BLADE, Scraper 32”
3 1960699 5/7 CARRIAGE BOLT, 5/16-18 x 5/8 G5 (Quantity 7 used on 30" & 32"
Models)
4 1935048 5/7 NUT, Hex Flange 5/16-18 Two-Way Lock
5 1727854A 2 SKID, Shoe Reversible
6 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5
7 1960687 4 NUT, Hex Flange 3/8-16 ESNA
8 1733103 2 BEARING, Flange
9 1665982 1 BEARING, Retainer
10 1930659 3 RETAINER, Nut, 5/16-18
11 1960738 3 SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
12 2108202 1 BEARING
16 1931277 7 NUT, Hex Flange 5/16-18, Whiz Lock
17 1733209 1 STICK, Cleanout w/Brush
18 722242 2 CLIP, Retainer
19 2860604 2 SCREW, Hex Washer Head
20 1933896 2 NUT, Hex Lock 10-24 w/Nylon Insert
21 724565 2 BLOCK, Universal Pivot
22 1733102A 2 CUTTER, Drift w/Tabs
22 1733102C 2 CUTTER, Drift w/Tabs
23 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
24 1732608 1 GEAR, 13 Tooth
25 1960684 2 NUT, Hex KEPS 5/16-18 Conical Washer
26 1732412 1 BOLT, Shoulder 5/16-18 x 3/5
27 1925003 6/8 SCREW, Hex Washer Head Taptite 1/4-20 x 1/2 (Quantity 8 used only on
CE/Export Models)
28 1732607 1 GEAR, Sector 34 Tooth Powdered Metal
29 1732602A 1 SUPPORT, Driver Gear
30 1734414A 1 TUBE
31 1732606A 1 BRACKET, Gear Support

Auger Housing & Chute Group
TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
10

Auger Housing & Chute Group
Footnotes:
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 11
Part No Descri
p
tionItem Qt
y
Note
33 1931353 2 CARRIAGE BOLT, 3/8-16 x 1-3/4
34 1733026 1 WASHER, Powdered Metal
35 1732238 1 CABLE, Chute Brake
37 1732837A 1 BRACKET, Brake
38 1732308 1 ARM & PAD ASSEMBLY, Brake
39 1679554 1 SPRING, Extension
40 1923282 1 CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5
41 1922127 2 CAPSCREW, Hex Head 5/16-18 x 1-3/4
42 1923358 1 NUT, Hex Centerlock 1/4-20
43 1732231 1 ROD, Hex Chute
44 1722460 2 PIN, Quick
45 1732241 1 COVER, Chute
46 1732506 1 CHUTE & DEFLECTOR ASSEMBLY
47 1732028 1 BRACKET, Chute Support
48 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5
49 1960294 2 NUT, Hex Flange 1/4-20 Whiz Lock
50 1732172A 1 RING, Chute Base
55 1960686 3 NUT, Hex Flange 5/16-18 ESNA
56 1733455 1 SPRING, Extension
57 1733082A 1 BRACKET, Cable
58 696239 1 KNOB & SCREW ASSEMBLY
59 1731942 2 NUT, Push Pal 3/8
61 1960593 1 NUT, Retainer Speed #10-24 w/Extrusion
62 1960680 2 NUT, Hex Keps Conical Washer 3/8-16
63 1960756 2 SCREW, Truss Head Trox Drive 5/16-18 x 3/4
66 7091542 3 SCREW, Pan Head Self Tap Torx 5/16-18 x 1/2
67 1931202 6 SCREW, Hex Washer head Taptite 5/16-18 x 1-1/4
68 1733476A 1 BRACKET, Chute Guard (CE/Export)
71 1960086 1 SCREW, Truss Head Torx 5/16-18 x 7/8
72 1733475 1 GUARD, Chute (CE/Export)
74 1960140 2 NUT, Push (CE/Export)
79 1734932A COVER, Bushing

Auger Drive Group
TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
12

Auger Drive Group
Footnotes:
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 13
Part No Descri
p
tionItem Qt
y
Note
1 1668344 2 PIN, SHEAR
2 7023590 2 COTTER PIN, 1/4” Self Locking
3 1612187A 1 IMPELLER ASSEMBLY, Large Frame Snow
4 1960474 1 SCREW, Set, Square Head Cup Point 3/8-16 x 1/2 G8
5 1732185 1 PULLEY, w/Hub
6 1734674A 1 AUGER ASSEMBLY, 24” & 26” R.H.
6 1734676A 1 AUGER ASSEMBLY, 28” & 30” R.H.
6 1734678A 1 AUGER ASSEMBLY, 32” R.H.
7 1734673A 1 AUGER ASSEMBLY, 24” & 26” L.H.
7 1734675A 1 AUGER ASSEMBLY, 24” & 30” L.H.
7 1734677A 1 AUGER ASSEMBLY, 32” L.H.
8 1732303 1 GEAR BOX ASSEMBLY
9 1928721 2 SCREW, Set, Square Head Cup Point 5/16-18 x 1/2 G8
10 2818312 2 KEY, Woodruff
11 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5
12 1931277 1 NUT, Hex Flange Whiz Lock, 5/16-18HEX FLANGE 5/16-18
15 1733406 2 TUBE

Engine Group
TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
14

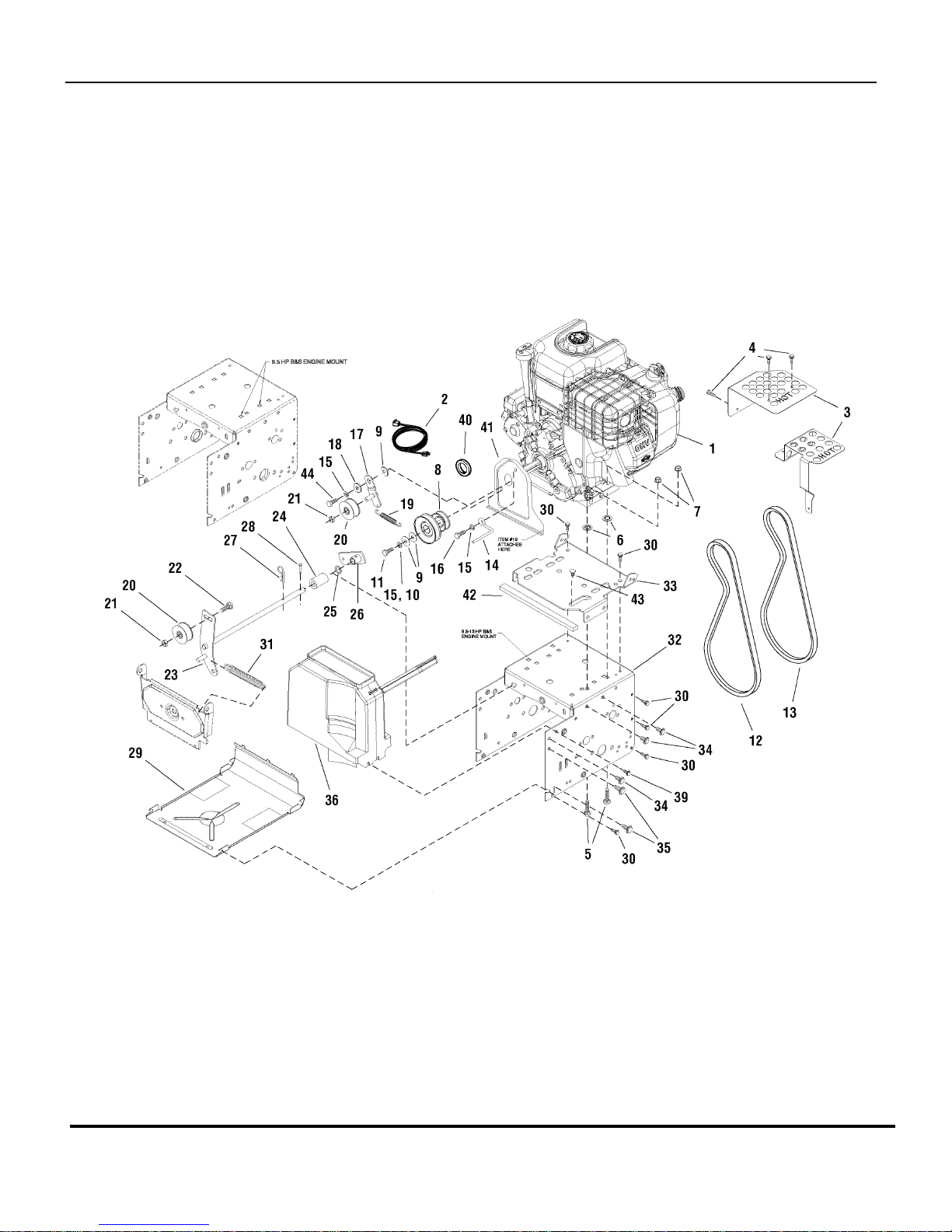

Engine Group
Footnotes:
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 15
Part No Descri
p
tionItem Qt
y
Note
1 -- 1 * ENGINE, 8.5HP B&S Mod. #15C1140112E1
1 -- 1 * ENGINE, 9.5HP B&S Mod. #20A4140117E1
1 -- 1 * ENGINE, 10.5HP B&S Mod. #20E2140118E1
1 -- 1 * ENGINE, 11.5HP B&S Mod. #21C2140132E1
1 -- 1 * ENGINE, 8.5HP B&S Mod. #15C1140111E1 (CE/Export)
1 -- 1 * ENGINE, 9.5HP B&S Mod. #20A4140119E1 (CE/Export)
1 -- 1 * ENGINE, 10.5HP B&S Mod. #20E2140113E1 (CE/Export)
1 -- 1 * ENGINE, 11.5HP B&S Mod. #21C2140115E1 (CE/Export)
2 1724064 1 CORD, Electric Start (Used on Domestic Models)
3 1734698 1 GUARD, Muffler (Used on Domestic Models)
3 1734732 1 GUARD, Muffler (Used on Domestic 8.5HP
Models)
4 1929477 3 SCREW, Hex Washer Head Taptite
5 720064 4 CARRIAGE BOLT, 5/16-18 x 1-1/2
6 720376 4 NUT, Speed
7 2831277 1 NUT, Hex Flange 5/16-18 Whiz Lock
7 1960686 3 NUT, Hex Flange 5/16-18 ESNA
8 722085 1 PULLEY, Engine
9 1922755 2 WASHER, 3/8
9 1919381 2 WASHER, 5/16-1 (Used on 8.5HP Models)
10 1916965 1 LOCKWASHER, Spring 3/8
11 1960428 1 CAPSCREW, Hex Head 3/8-24 x 1-1/4 G8
11 1921982 1 CAPSCREW, Hex Head 3/16-24 x 1-1/4 G8 (Used on 8.5HP Models)
12 1733324 1 V-BELT, 3L 33.13, Drive
13 1733507 1 V-BELT, 4L 38.50, Auger (Used on 10.5 - 11.5 HP Models)
13 1733051 1 V-BELT, 4L 36.50, Auger (Used on 8.5 - 9.5 HP Models)
14 1733014 1 STOP, Belt
15 1917356 3/4 LOCKWASHER, Spring 5/16
16 1921515 2 CAPSCREW, Hex Head 5/16-24 x 3/4 G5
17 722090 1 IDLER BRACKET ASSEMBLY, Drive Belt
18 722072 1 BUSHING, Idler Bracket
19 724418 1 SPRING, Extension Idler
20 722378 2 IDLER, Plastic Ball Bearing
21 1960251 2 NUT, Hex Centerlock Jam 3/8-16
22 724823 1 CARRIAGE BOLT, 3/8-16 x 1-1/4
23 722132 1 IDLER, Auger (Used on 10.5 - 11.5 HP Models)
23 1733055 1 IDLER, Auger (Used on 8.5 - 9.5 HP Models)
24 722118 1 SPACER/AUGER BRACKET
Note* See your local Briggs & Strattion Distributor for Parts & Service.

Engine Group
TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
16

Engine Group
Footnotes:
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 17
Part No Descri
p
tionItem Qt
y
Note
25 1960027 1 WASHER, 1/2
26 1733451 1 BRACKET & HUB ASSEMBLY, Spring
27 725367 1 PIN, Hair
28 1735135 1 PIN, Clevis
29 1740906A 1 PANEL, Bottom
30 1927429 12 SCREW, Hex Washer Head Taptite 1/4-20 x 5/8
31 722455 1 SPRING, Extension Auger Idler
32 1733154D 1 FRAME, EZ Turn Axle
32 1740572D 1 FRAME, EZ Turn Axle (Used on 8.5HP Models)
33 1733583D 1 PLATE, Engine Mount
34 1924856 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
35 1664847 6 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
36 1733923 1 COVER, Belt w/Toolbox B&S
39 722887 2 SCREW, 1/4-AB x 3/4 Hex
40 1733898 1 SHAFT, Seal
41 1733868A 1 SEAL, Plate
42 1733897 1 SEAL, Strip
43 1733924 1 CLIP, Pine Tree
44 725996 1 CAPSCREW, Hex Head 5/16-24 x 1 G8
Note* See your local Briggs & Strattion Distributor for Parts & Service.

Traction Drive Group - Standard
TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
18

Traction Drive Group - Standard
Footnotes:
TP 400-5286-IR-LF-N
Manual No. 7006185LARGE FRAME TWO STAGE
2008 MODELS 19
Part No Descri
p
tionItem Qt
y
Note
1 724613 1 CHAIN, Roller
2 723655 4 RETAINER & BUSHING ASSEMBLY
3 724619 5 WASHER
4 1924856 8 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
5 724627 1 CHAIN, Roller
6 721910 5 RETAINER, Ring 7/16
7 722377 3 SPRING LINK ASSEMBLY STANDARD
8 722423 1 SPRING, Extension
9 722081 2 SPROCKET, Set
10 1960027 1 WASHER, 1/2
11 722082 1 AXLE, Swing Plate
12 722211 1 AXLE
13 720220 1 BOLT, Hex 1/4-20 x 1-3/4
16 722080 2 SPROCKET, Axle
17 722091 1 BEARING, Axle D-Hole
18 722083 1 HEX SHAFT & SPROCKET ASSEMBLY
19 723694 1 HUB, Friction Wheel & Bearing
20 722185 3 WHEEL, Friction
21 1921959 3 CAPSCREW, Hex Head 1/4-20 x 5/8 G5
22 1928372 1 NUT, Hex KEPS 1/4-20
23 724620 1 RING, Retaining, Extension
24 722391 1 NUT, FlangeLock 38-24
25 722069 1 PLATE, Swining
26 722110 1 SPACER, Friction Pulley
27 722092 1 FRICTION PULLEY ASSEMBLY
28 722087 1 SPEED SELECT ASSEMBLY
29 724636 2 BEARING, Flange
30 1920397 1 NUT, Hex Lock ESNA Light 1/4-20
31 1922837 1 CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5
32 724621 1 SPOOL CABLE, Auger Control
33 722070 1 BRACKET, Cable Spool
34 722095 1 CABLE, Front Drive Lower All

Traction Drive Group - EZ Turn
TP 400-5286-IR-LF-N
Manual No. 7006185 LARGE FRAME TWO STAGE
2008 MODELS
20
