Socket CHARGING STAND User manual

CHARGING STAND
USERGUIDE

© 2019 Socket Mobile, Inc. All rights reserved. Socket®, the Socket Mobile logo, SocketScan®, DuraScan®, Battery Friendly® are
registered trademarks or trademarks of Socket Mobile, Inc. Microsoft® is a registered trademark of Microsoft Corporation in the
United States and other countries. Apple®, iPad®, iPad Mini®, iPhone®, iPod Touch®, and Mac iOS® are registered trademarks of
Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks
owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade
names are those of their respective owners.

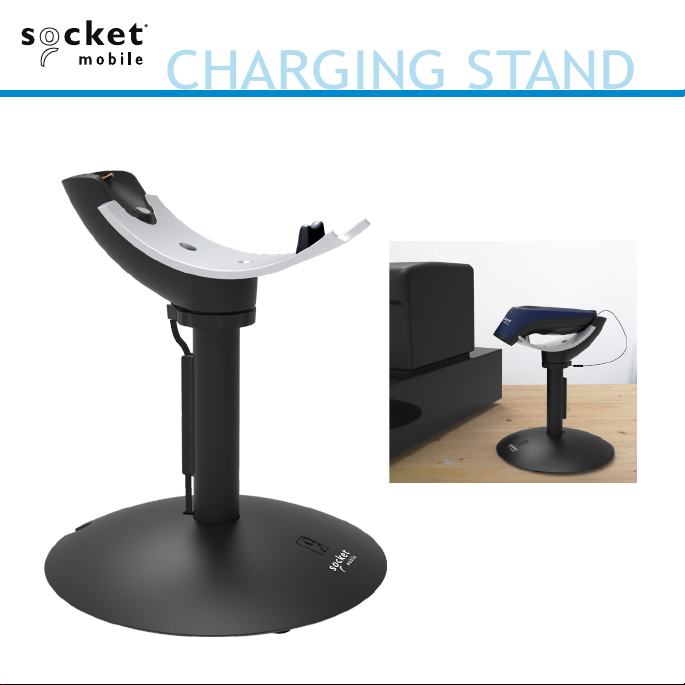

Charging Stand
PACKAGE CONTENTS
Micro USB
Charging Cable
*Table Mounting
Template
TOP VIEW
SCALE 1:1
2x DRILL DIA
3/32
”
3
5/16
”
Charging Stand TableMount Drill Template
Insert Lock
Leavespace ~2 mm-4 mm
User Guide
*Security Cable
*Optional
CHARGING STAND
USERGUIDE

Magnet
Hook

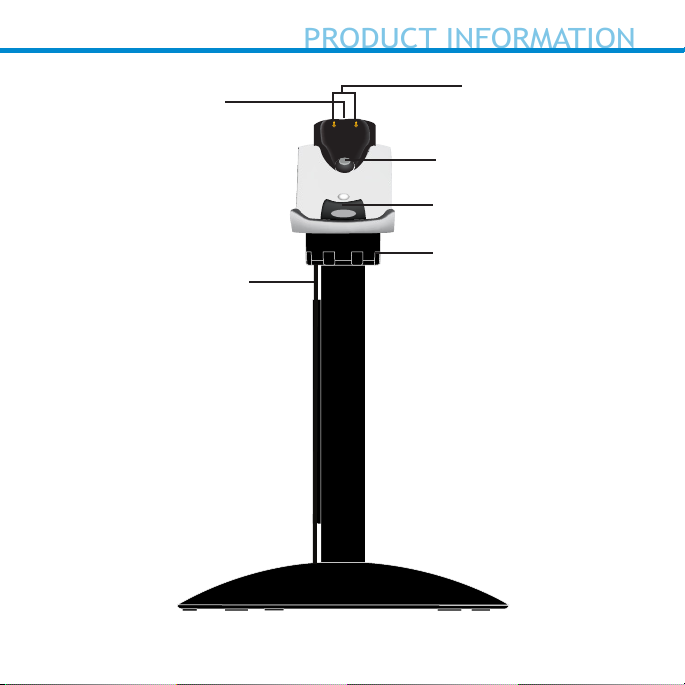

*Illuminates Red when connected to AC Power.
Charging Pins
Light*
Charging Cable
3
PRODUCT INFORMATION
Slot for security cable

Step 1 Step 2
Step 3 Step 4
4
*ATTACHING THE SECURITY CABLE
+
*Security cable comes Pre-installed for your
convenience. To remove, follow step 2 and
step 1.

Insert the post into the top of the base, lining up the marker on the
post to the unlock icon. Push down and turn the post towards the lock
icon until you hear a click. Run the USB cord through the channel at the
bottom of the base.
5
INSERTING THE POST TO THE BASE

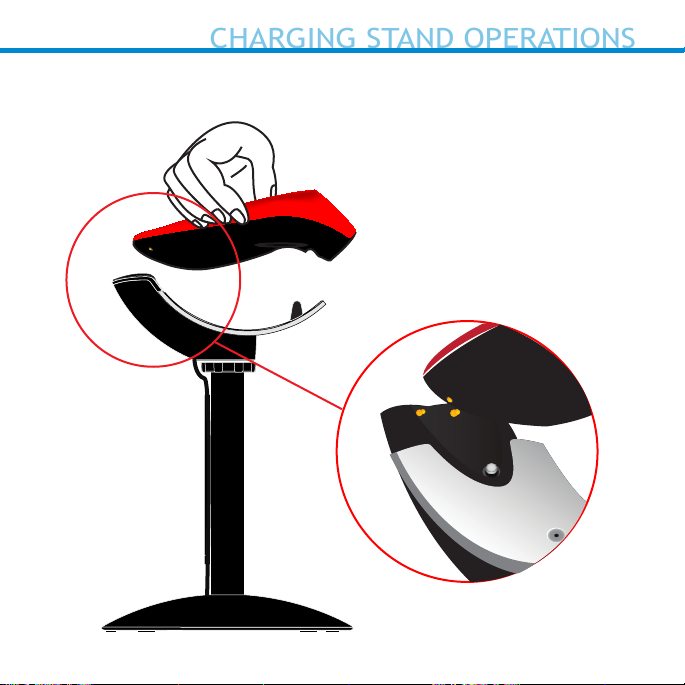

The charging pins must align
to supply power to the scanner.
The red light will illuminate and
the scanner will beep twice.
6
CHARGING STAND OPERATIONS

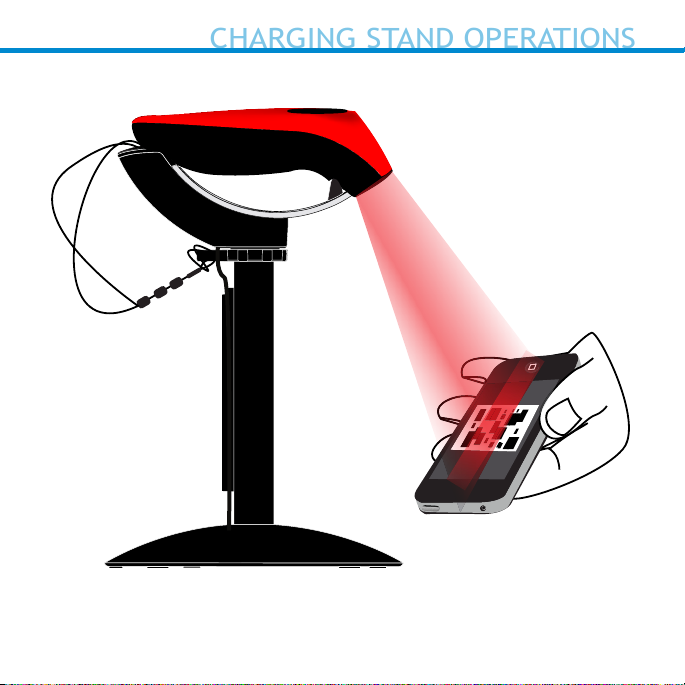

Approximately
4-8 inches*
(10-20 cm)
7
CHARGING STAND OPERATIONS
*When set to Auto Scan with Socket Mobile’s 2D barcode scanners
(7Qi, 7Xi, D740, D750, D760, S740, S760), the barcode should be 4 to 8
inches away.

8
Two keyholes are provided on the Charging Stand base for an optional
installation on a wooden surface (screws and drill template included).
1. Place the Charging Stand on the drill template and position these
in the desired location. Rotate the Charging Stand to align with the
solid notch (not the dotted notch) on the template.
2. Rotate the Stand/template combination so the Socket Mobile logo
faces the direction you want the scanner to aim.
3. Tape the template to the surface and remove the Charging Stand.
4. Drill two 3/32” holes through the drill marks on the template.
5. Tighten the two screws with about 1/4” of the screw head exposed.
6. Place the Charging Stand on the template aligned with the dotted
notch.
7. You can now tear away the template.
8. Twist the Charging Stand clockwise to lock the screws in the
keyholes.
OPTIONAL TABLE MOUNTING
TOP VIEW
SCALE 1:1
2x DRILL DIA
3/32
”
3
5/16
”
Charging Stand Table Mount Drill Template
Insert Lock
Leave space ~2 mm-4 mm

9
Magnet Magnet
Magnet Command barcode
for conguring
Auto Scan
Keyholes for table mounting
Notch for charging cable
Model:
Charging Stand
Do Not Expose To
Extreme Temperatures
Auto Scan
© 2019 Socket Mobile, Inc.
Made in Singapore
OPTIONAL TABLE MOUNTING

Charging Stand Modes
Auto Scan
Scan the barcode to enable Auto Scan.
This will allow the scanner to
automatically scan barcodes without
pressing the scan button.
#FNB 41FBA50003#
Manual Mode - Normal (default)
Scan the barcode to congure the scanner
back to normal. It will be in manual scan
mode even when placed in the stand or
cradle.
#FNB 41FBA50000#
10
COMMAND BARCODES

Charging Stand Modes
Stand Mode*
Scan the barcode to congure the scanner
is permanently in Auto Scan mode,
regardless whether it is connected to
power or not.
#FNB 41FBA50001#
*This mode will drain the battery faster if not connected to
power.
11
COMMAND BARCODES

12
1. Scan command barcode to place your scanner in Auto Scan.
Note: Turn o host device’s Bluetooth before scanning command
barcode.
2. Once the scanner is in Auto Scan, it will switch to automatic
scanning when it detects power coming from the charging pins of
the Dock or Stand. Place a barcode in the scanners eld of view
and the scanner will automatically scan it.
*Supported 2D Scanners:
7Qi, 7Xi, D740, D750, D760, S740, and S760
AUTO SCANNING MODE (CONTINUED)

13
Action Behavior Notication
Beep Pattern Light Activity Vibrate
Place Scanner
in the Stand
Scanner
switches to
Auto Scan Mode
High-high tone
conrms proper
seating*
Battery Status
Light is
Disabled
None
Place a barcode
in the Scanners
Field of View
Decode
barcode
1 Beep when
Data
successfully
scanned
Green Light
blinks (while
scanning)
None
Action Behavior
Notication
Beep Pattern Light Activity Vibrate
Remove the
Scanner from
the Stand and
press the scan
button
Scanner
switches to
Manual Mode
None Battery Status
Light is Enabled
Enabled
Press the scan
button
Decode
barcode
1 Beep when
Data
successfully
scanned
Green Light
blinks (while
scanning)
Vibrate when
Data
successfully
scanned
Auto Scanning Mode: Barcodes placed in the Scanner’s eld of view are automatically
scanned.
Manual Mode (default): Pressing the scan button initiates a scan.
How Auto Scanning Mode Works in the Stand or Dock
How the Scanner reverts to Manual Mode (Not in the Stand)
AUTO SCAN MODE

Dimensions
Stand Height 6.5 in (165 mm)
Charging Mount Width 1.80 in (46 mm)
Charging Mount Length 5.50 in (140 mm)
Base Diameter 5.75 in (146mm)
Total Weight
Without Scanner and Power Adapter 12.7 oz (360 g)
Antimicrobial Rating JLS z2801:2000 Test:
2.49 on MRSA 6.07 when
cleaned with SaniCloth
Plus cloth wipes Biosafe
HM4100, EPA#83019-1
14
PRODUCT SPECIFICATIONS

Dimensions
Stand Height 6.5 in (165 mm)
Charging Mount Width 1.80 in (46 mm)
Charging Mount Length 5.50 in (140 mm)
Base Diameter 5.75 in (146mm)
Total Weight
Without Scanner and Power Adapter 12.7 oz (360 g)
Antimicrobial Rating JLS z2801:2000 Test:
2.49 on MRSA 6.07 when
cleaned with SaniCloth
Plus cloth wipes Biosafe
HM4100, EPA#83019-1
Technical Support and Product Registration: support.socketmobile.com
Phone: [phone] [phone] (worldwide)
Warranty Checker: socketmobile.com/warranty-checker
Socket Mobile Developer Program: socketmobile.com/developer
Download Socket Mobile’s scanner User Guide and Command Barcodes at
socketmobile.com/downloads
HELPFUL RESOURCES
2019 6430-00358G Printed in U.S.A.
