socomec SUNSYS PCS2 Series User manual

SUNSYS PCS2
Power Conversion System and Storage
from 33 to 200 kVA
EN
INSTALLATION
AND OPERATING
MANUAL
www.socomec.com

3EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
CONTENTS
1. CERTIFICATE AND CONDITIONS OF WARRANTY 5
2. SAFETY STANDARDS 6
2.1 DESCRIPTION OF SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. FOREWORD 9
4. SUNSYS PCS² RANGES 11
4.1 IEC VERSIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 UL VERSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. ENVIRONMENTAL REQUIREMENTS AND HANDLING 12
5.1 ENVIRONMENTAL REQUIREMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2 HANDLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3 FLOOR ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.4.1 PROCEDURE FOR PCS233 TR - 66 - 100 TR/TL. . . . . . . . . . . . . . . . . . . 16
5.4.2 PROCEDURE FOR PCS2132 - 200 TL . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6. ELECTRICAL INSTALLATION 31
6.1 ELECTRICAL REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7. OVERVIEW 33
7.1 SWITCHES AND INTERFACES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.2 DIAGRAM OF MAIN SYSTEM EXAMPLE FOR VERSION 100 TR . . . . . . . . . . . . . . . . 45
8. CONNECTIONS 46
8.1 INPUT CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.2 INSTRUCTIONS FOR SUNSYS PCS2TL VERSION . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9. CONTROL PANEL 54
9.1 EXCEPTION FOR PCS2132 - 200 TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
9.2 CONVERTER STATE MACHINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10. FIRST START-UP 57
11. MENU 60
11.1 DISPLAY OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
11.2 MENU TREE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
11.3 MENU DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
12. OPERATING PROCEDURES 66
12.1 SWITCHING ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
12.2 SWITCHING OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
13. OPERATING MODE 68
13.1 ENERGY SAVER MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
14. STANDARD FEATURES AND OPTIONS 69
14.1 SERIAL COMMUNICATION INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
14.2 MODBUS TCP INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
14.3 ADC CARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
14.4 SERIAL COMMUNICATION INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
14.5 SIGNAL CABLES ROUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
15. WARNINGS AND TROUBLESHOOTING 75
16. PREVENTIVE MAINTENANCE 77
16.1 BATTERIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
16.2 FANS & CAPACITORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
17. SAFEGUARDING THE ENVIRONMENT 78
18. TECHNICAL SPECIFICATIONS 79

5EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
1. CERTIFICATE AND CONDITIONS OF WARRANTY
SOCOMEC warrants the SUPPLY against all proven defects or hidden defects in design and manufacture.
The period of warranty starts from the date of shipment and consists of 24 (twenty-four) months as from the date of
commissioning of the SUPPLY and shall not exceed 27 (twenty-seven) months from the date of the dispatch.
For all cases, the CUSTOMER shall not be entitled to enforce the warranty unless it shall have fully paid for the
SUPPLY.
The warranty of SOCOMEC shall be strictly limited to its SUPPLY and does not extend to the equipment within which
the SUPPLY is integrated nor to the performance of such equipment. SOCOMEC's liability shall be limited, in its
discretion, to the repair or replacement at its expense in its factory of all or part of the SUPPLY recognized as defec-
tive. As soon as the CUSTOMER has knowledge of the defect, it shall inform SOCOMEC in writing of the defects
which it claims affect the SUPPLY, and shall supply all evidence thereof and indicate the use and the conditions of
use of the SUPPLY. SOCOMEC reserves the right to modify the SUPPLY in order to satisfy the implementation of its
warranty. The repair, replacement or modification of all or part of the SUPPLY during the period of warranty shall not
have the effect of prolonging the duration thereof. Defective items replaced free of charge shall be made available to
SOCOMEC and shall become its property. Items invoiced as appropriate to the CUSTOMER shall be warranted 3
(three) months in normal conditions of use.
The warranty shall be excluded:
a) In the event that the defect is due to the material supplied by the CUSTOMER, or due to a design imposed by it.
b) In the event of damage or accident due to the transport or arising from the negligence, defective installation,
supervision or maintenance by the CUSTOMER or a third party.
c) In the event of use, installation or storage of the SUPPLY in abnormal conditions or conditions not in compliance
with recommendations of SOCOMEC.
d) If the CUSTOMER has carried out or has had carried out any changes, adjustments or repairs to the SUPPLY
without the express agreement of SOCOMEC.
e) In the event of damage arising from events of frustration or force majeure, or due to the fault of the CUSTOMER
or of a third party.
The warranty does not cover the replacement or repair of items which are due to normal wear and tear of the
SUPPLY.
SOCOMEC retains the full and exclusive ownership rights to this document. Only a personal entitlement to use the
document for the application indicated by SOCOMEC is granted to the recipient of this document. The reproduction,
modification, distribution of this document, either partially or wholly and in any manner, is strictly prohibited except
upon Socomec’s express prior written consent.
This document is not a specification. SOCOMEC reserves the right to make any changes to the information provided
without prior notice.

6EN SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
2. SAFETY STANDARDS
This user manual specifies installation and maintenance procedures, technical data and safety instructions for
SOCOMEC products. For further information visit the Socomec website: www.socomec.com.
NOTE!
Any work carried out on the equipment must be performed by skilled, qualified technicians.
NOTE!
Before carrying out any operations on the SUNSYS PCS2read the installation and operating
manual carefully. Keep this manual safe for future reference.
DANGER!
Failure to observe safety standards could result in fatal accidents or serious injury, and damage
equipment or the environment.
CAUTION!
If the unit is found to be damaged externally or internally, or any of the accessories are damaged
or missing, contact SOCOMEC. Do not operate the unit if it has suffered a violent mechanical
shock of any kind.
NOTE!
Install the unit in accordance with clearances in order to prevent access to handling devices and
guarantee sufficient ventilation (refer to 'Environmental requirements' chapter).
NOTE!
Only use accessories recommended or sold by the manufacturer.
NOTE!
When the equipment is transferred from a cold to a warm place wait approx. two hours before
putting the unit into operation.
NOTE!
When carrying out electrical installation, all standards applicable specified by the IEC and the
electricity supplier must be observed. All national standards applicable to batteries must be
observed. For further information refer to 'Technical specifications' chapter.
DANGER! LIVE DEVICE! RISK OF ELECTRIC SHOCK: SUNSYS PCS2is connected to three sepa-
rately protected power supplies:
1 DC cable - Battery power supply.
2 AC cable - Power from the mains network, supplied by the electricity company.
3 AC cable - Auxiliary power supply.
DANGER! RISK OF ELECTRIC SHOCK!
Before carrying out any operations on the unit (cleaning and maintenance performances,
connection of appliances, etc.) disconnect all power sources.
DANGER! LIVE DEVICE! RISK OF ELECTRIC SHOCK: Carry out the following steps before
system maintenance:
- Disconnect the batteries.
- Disconnect the AC power supplies.
- Disconnect the DC disconnection switches.
- Make sure the cable is fixed in position securely.
- Make sure the system cannot be restarted.
- Make sure the electricity supply (AC and DC voltages) has been disconnected.
- Cover or separate nearby live device units.
DANGER! RISK OF ELECTRIC SHOCK!
After disconnecting all power sources wait approx. 5 minutes for the complete discharge of the
unit.
CAUTION! RISK OF BURNS!: During operation the casing can reach high temperatures. Do not
touch the surfaces!

7EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
NOTE!
Any use other than the specified purpose will be considered improper. The manufacturer/supplier
shall not be held responsible for damage resulting from this. Risk and responsibility lies with the
system manager.

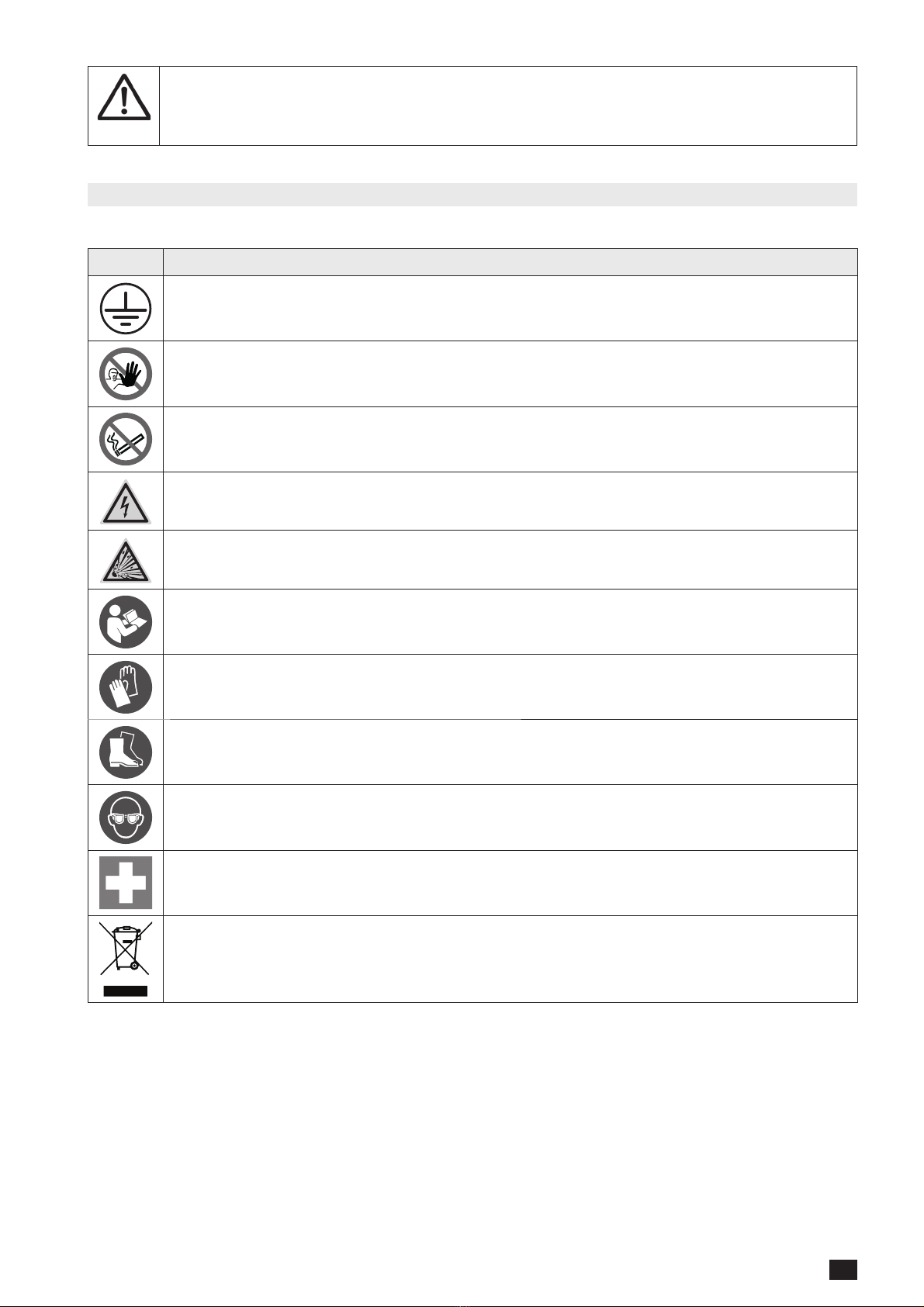

2.1 DESCRIPTION OF SYMBOLS
Comply with all internal and external precautions and warnings on labels and plates on the equipment.
Symbols Description
Protective earth terminal (PE).
Authorised personnel only.
No smoking.
Risk of electric shock!
Risk of explosion! Avoid short circuits!
Read the user instructions carefully.
Read the user manual before performing any operations.
Wear protective gloves
Wear safety shoes.
Wear protective goggles.
In the event of contact with the eyes, wash immediately with plenty of water and call a doctor.
Call a doctor immediately in the event of accidents or illness.
Do not dispose of in normal waste stream (symbol waste electrical and electronic equipment).

8EN SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
2.2 ABBREVIATIONS
For the purpose of this document, the following abbreviations are used:
BES Battery Energy Storage
BMS Battery Management System
EMC Electro Magnetic Compatibility
EMS Energy Management System
ESS Energy Storage System
HMI Human Machine Interface
IEC International Electrotechnical Commission
IM Islanding Mode
IMD Insulation Monitoring Device
PCS Power Conversion System
PE Protective Earth
PMS Power Management System
PV Photovoltaic
SBMS System BMS
SOC State of Charge
SOH State of Health
SPD Surge Protection Device
THDI Total Harmonic Distortion in Current
THDV Total Harmonic Distortion in Voltage
TL Transformer-less
TR Transformer based

9EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
3. FOREWORD
Energy storage is the key solution to meeting the challenges of energy transition, using renewable energy and provid-
ing energy cost reductions for the following 4 main applications.

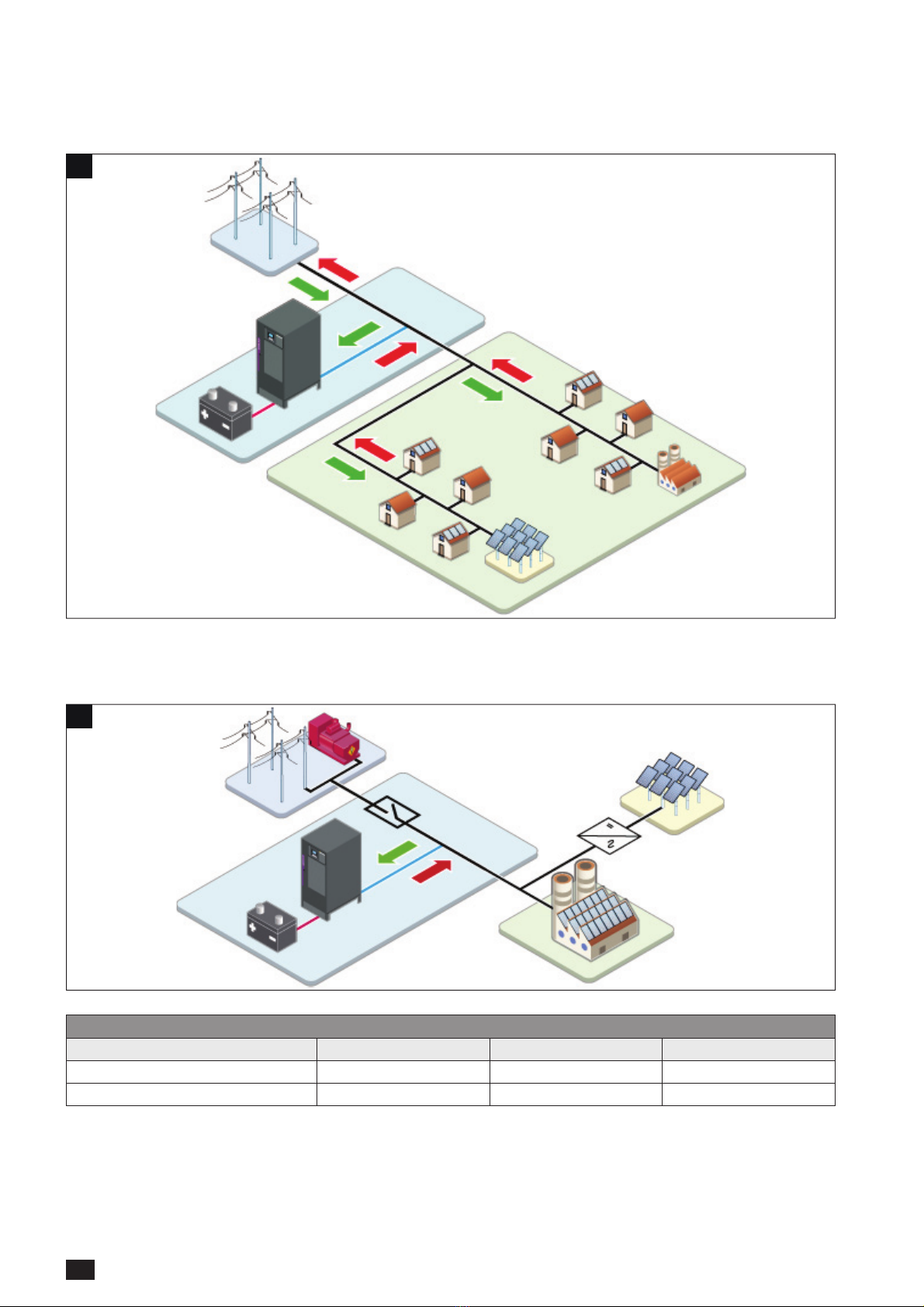

• Behind-the-Meter Energy Storage:
Reduce peak consumption and maximise PV energy self-consumption. SUNSYS PCS² (IM) can limit the impact
of increases in the electricity retail price by supplying the load to cut peak demand (peak shaving), maximising PV
energy self-consumption at building or community level. Any PV energy surplus is stored in the SUNSYS PCS² (IM)
battery system. This stored energy is used later to supply the load.
1
• PV plants:
Manage the intermittence of renewable energy production. SUNSYS PCS2(IM) ensures the production profile of an
intermittent renewable energy plant by limiting production to a predefined value, injecting energy to compensate for
solar variations, setting constant ramp-up or ramp-down.
2

10 EN SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01

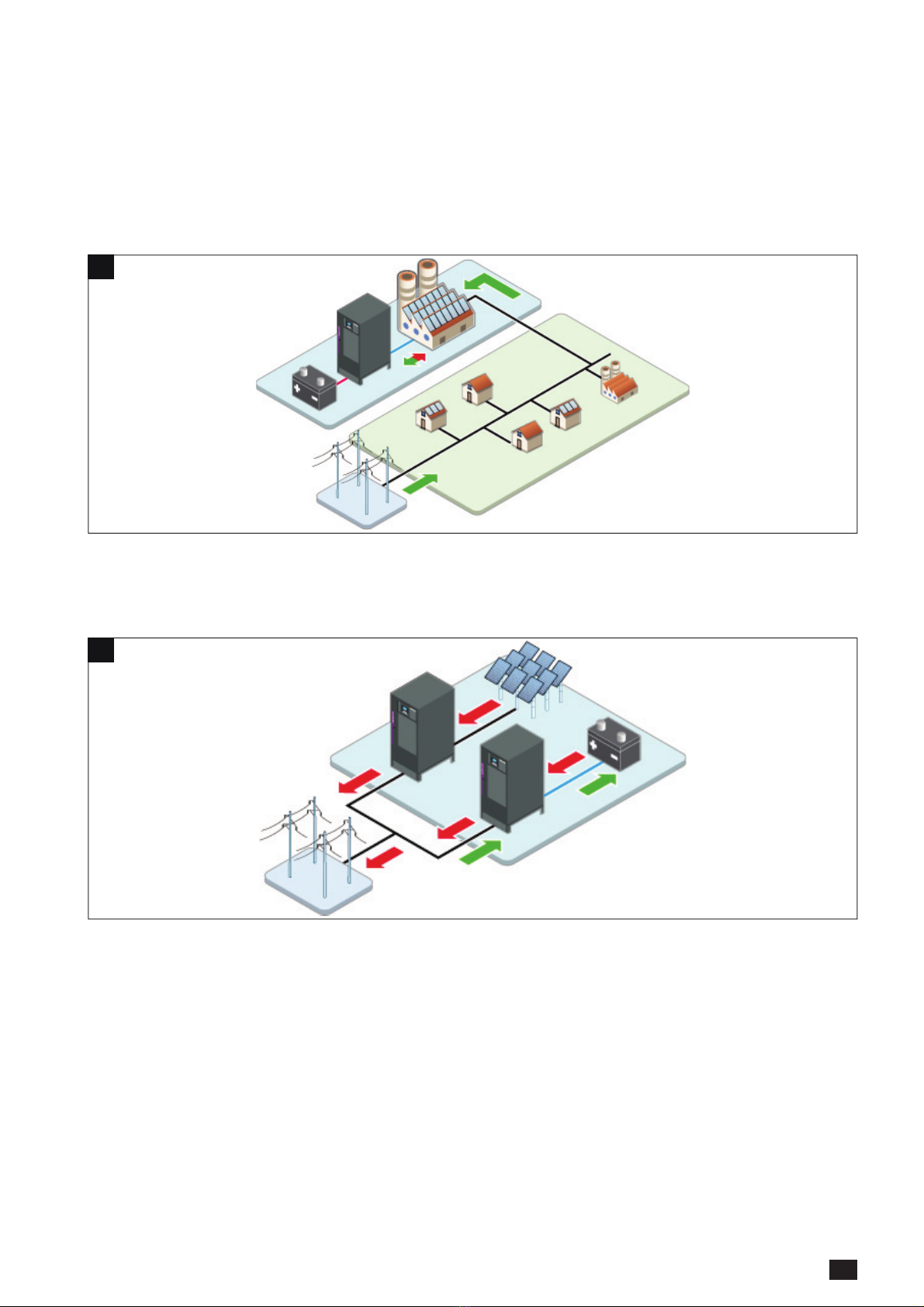

• Grid support:
Meet the challenge of demand-response energy balance. When directly connected to the grid, SUNSYS PCS2(IM)
improves stability and management of grid operators thanks to voltage and frequency regulation, load shifting, peak
shaving and ancillary services for grid support.
3
• Microgrids:
Ensure energy availability and quality. The SUNSYS PCS² IM enables the microgrid to disconnect from the main grid
and be electrically autonomous thanks to local generation (PV, Wind, Diesel generators, etc.).
4
To sum up:
Products / Applications On-Grid On-Grid + Off-Grid Pure Off-Grid
SUNSYS PCS² •
SUNSYS PCS² IM • •

11EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
4. SUNSYS PCS² RANGES
4.1 IEC VERSIONS
SUNSYS PCS² SUNSYS PCS² IM
33 kVA 66 kVA 100 kVA 132 kVA 200 kVA 33 kVA 66 kVA 100 kVA 132 kVA 200 kVA
Internal
transformer
(TR version)
External
transformer
(TL version)
4.2 UL VERSIONS
SUNSYS PCS² SUNSYS PCS² IM
33 kVA 66 kVA 100 kVA 132 kVA 200 kVA 33 kVA 66 kVA 100 kVA 132 kVA 200 kVA
Internal
transformer
(TR version)
External
transformer
(TL version)

12 EN SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
5. ENVIRONMENTAL REQUIREMENTS AND HANDLING
5.1 ENVIRONMENTAL REQUIREMENTS
Install the unit in an equipment room.
The room must be:
• of a suitable size;
• free from conductive, inflammable and corrosive items;
• not exposed directly to sunlight.
The floor must support the weight of the unit and guarantee its stability. The unit is designed for indoor rooms only.
For information regarding ambient temperature, dimensions and weights refer to 'Technical specifications' chapter.

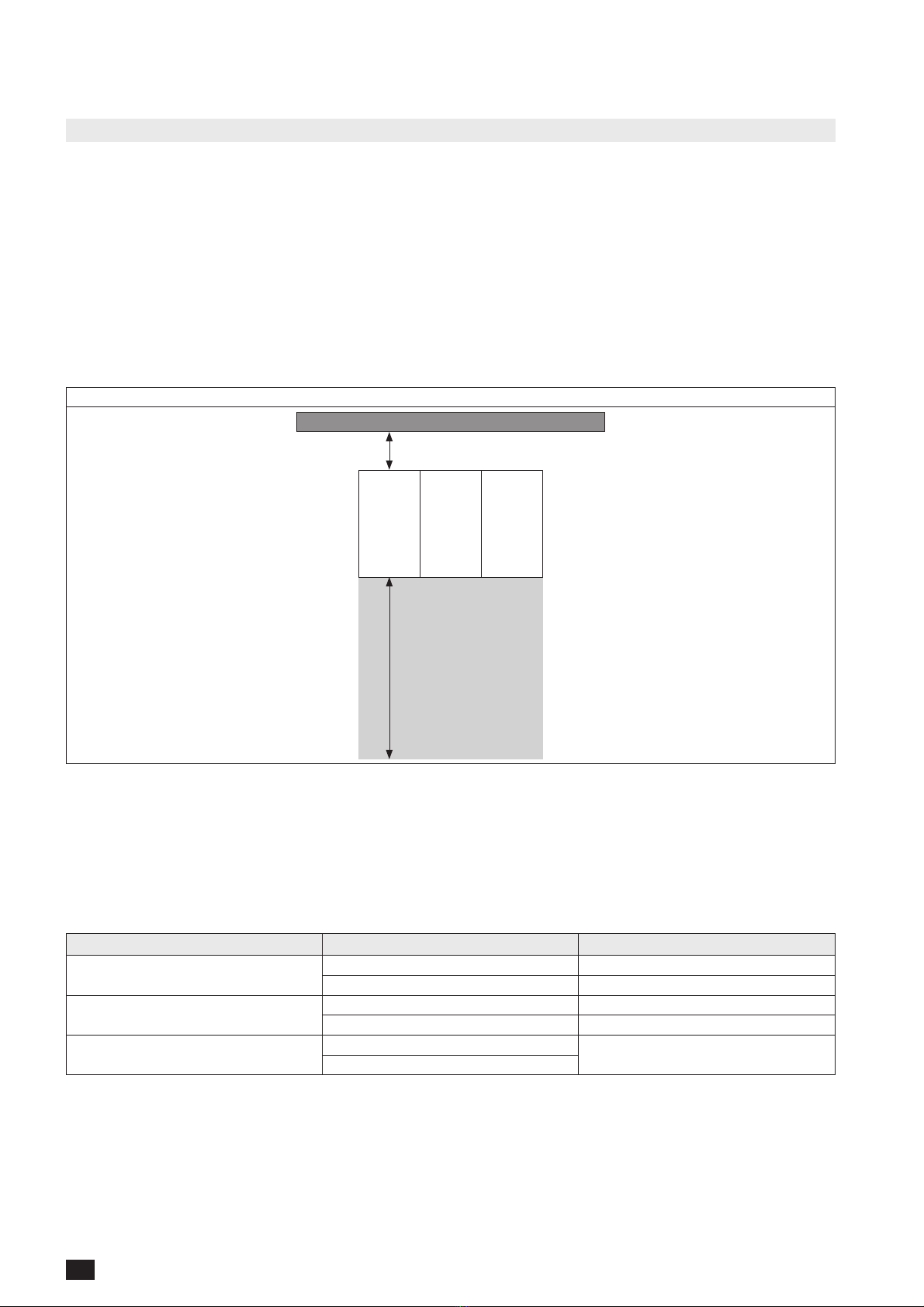

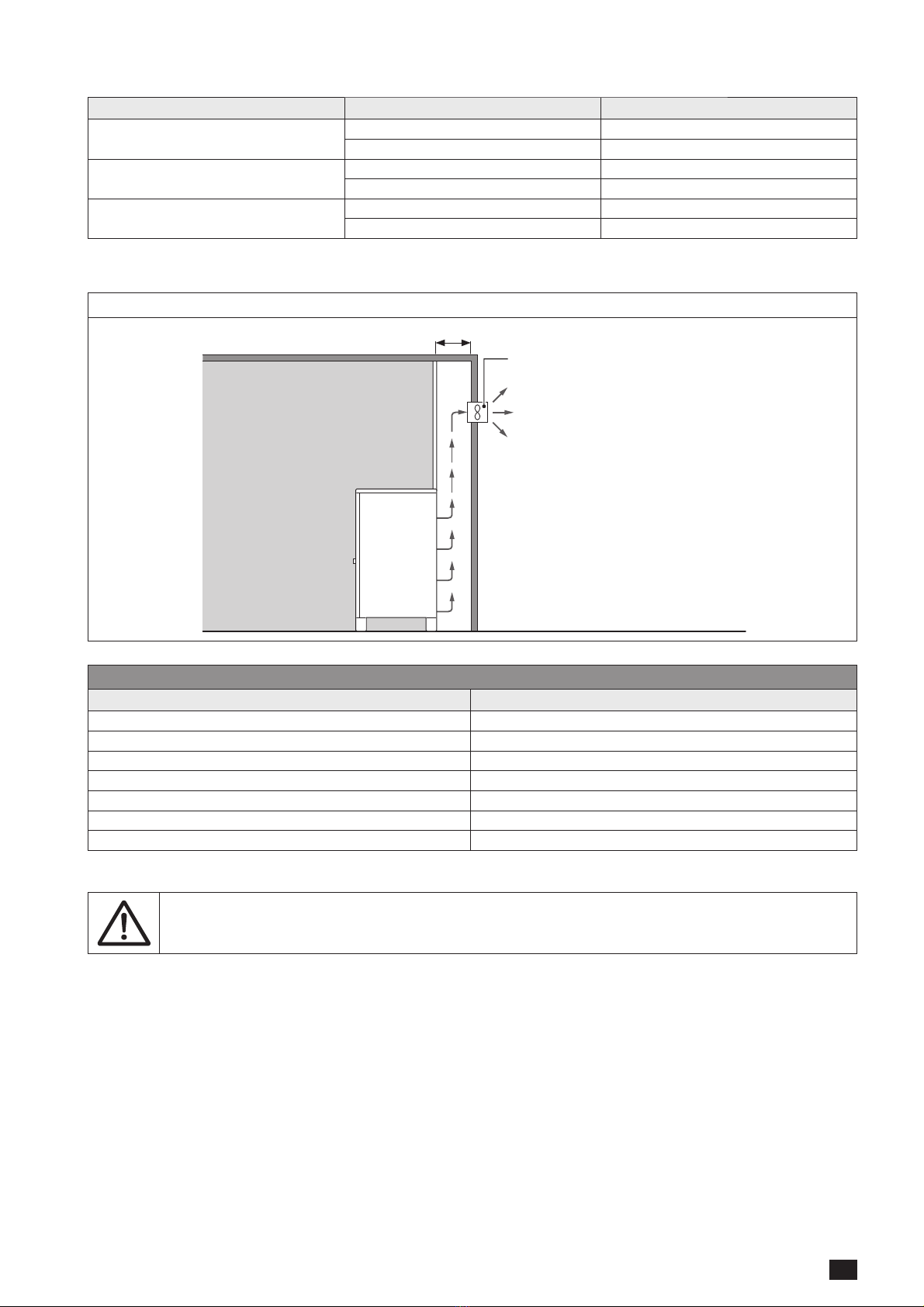

To position the unit correctly see the diagrams below.
ROOM POSITIONING
Top view
Free area
SUNSYS
PCS2
SUNSYS
PCS2
SUNSYS
PCS2
30 cm1.5 m
SPACING-AIR FREE
To ensure the full unit power up to 40°C ambient temperature, observe the following minimum distances:
- rear space: 30 cm.
- above space: 45 cm.
This distance can be reduced depending on:
• the maximum ambient temperature accepted (Full load conditions).
Distance from the rear wall Space above the top panel Ambient temperature
30 cm 45 cm 40 °C
25 cm 35 °C
20 cm 45 cm 35 °C
25 cm 30 °C
10 cm 45 cm 25 °C
25 cm

13EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
• the maximum power required from the load (at 40 °C ambient temperature).
Distance from the rear wall Space above the top panel Power
30 cm 45 cm 100%
25 cm 90%
20 cm 45 cm 90%
25 cm 80%
10 cm 45 cm 75%
25 cm 75%
SPACING-AIR FLOW
Typical air extraction structure
SUNSYS
PCS2
hood
air
air extractor
external
environment
internal
environment
≥10 cm
Minimum air extractor flow(1)
Models Minimum extraction flow
33 TR 600 m3/h
66 TR 1200 m3/h
100 TR 1800 m3/h
66 TL 900 m3/h
100 TL 1350 m3/h
132 TL 1780 m3/h
200 TL 2700 m3/h
1. SUNSYS PCS2at a distance of 10 cm from the rear wall (40 °C ambient temperature and full load).
NOTE: the hood must prevent air losses and enable the removal of the SUNSYS PCS2’s top panel
for maintenance.

14 EN SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01

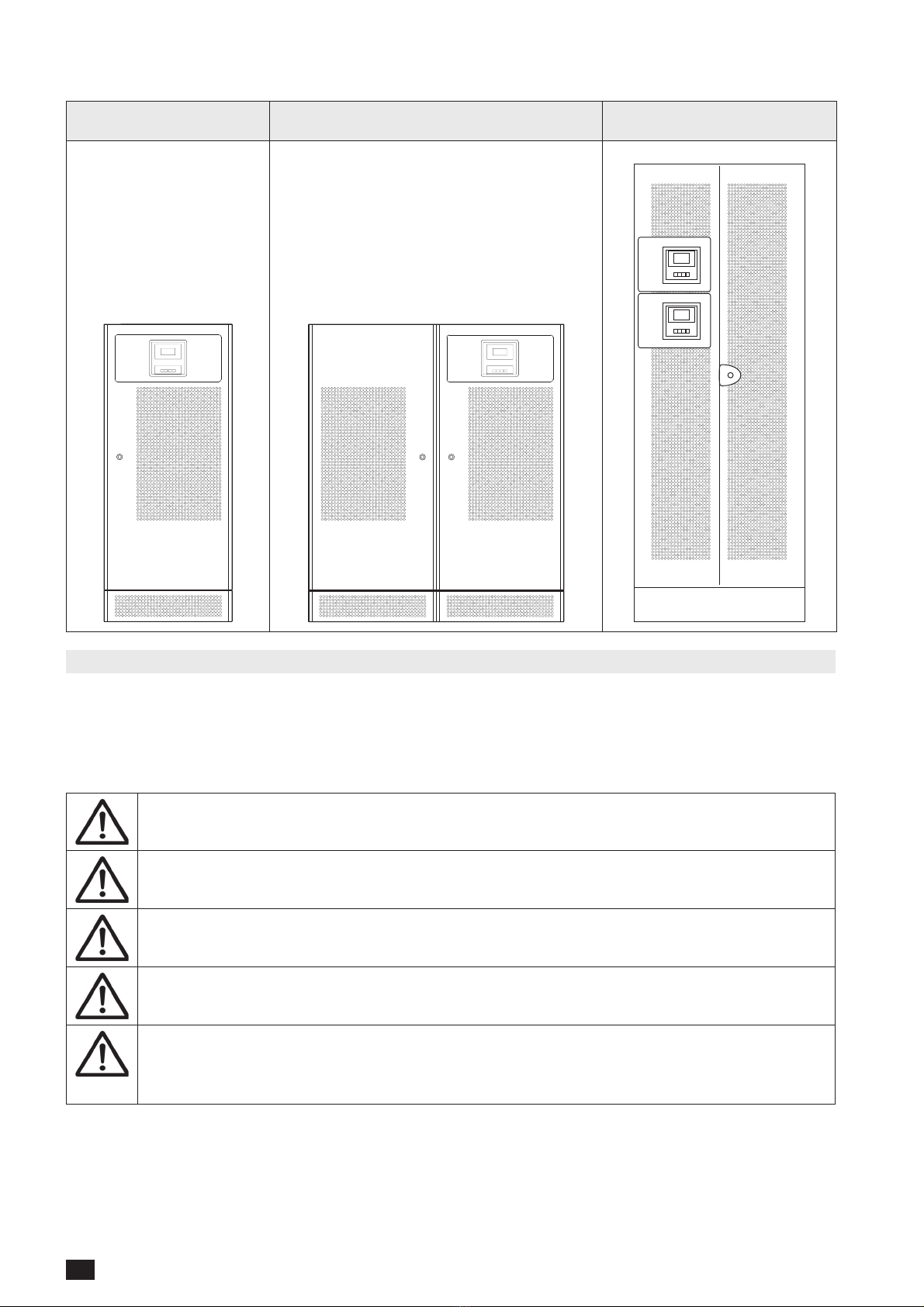

CABINET LAYOUT
SUNSYS PCS2
33 TR - 66 TR/TL - 100 TL
SUNSYS PCS2
100 TR
SUNSYS PCS2
132 - 200 TL
5.2 HANDLING
• The packaging guarantees the stability of the unit during shipping and physical transfer.
• The unit must remain in a vertical position during all shipping and handling operations.
• Ensure that the floor is strong enough to support the weight of the unit.
• Carry the packaged unit as close as possible to the installation site.
WARNING! HEAVY WEIGHT!
Move the unit using a fork lift truck taking the utmost caution at all times.
The unit MUST be handled by at least two people. The people MUST take position at the sides of
the PCS2with respect to the direction of movement.
Do not move the unit by putting pressure on the front door.
When moving the unit on even slightly sloping surfaces, use the locking equipment and braking
devices to ensure that the unit does not fall over.
WARNING!
The following instructions must be carried out prior to moving the unit (after initial positioning).
Failure to heed this warning could result in the unit falling over, equipment damage, injury and
even death.

15EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
5.3 FLOOR ASSEMBLY
• PCS2range 33 TR - 66 - 100 TR/TL:
Remove the protective cover
30 cm
SUNSYS PCS2
Rear
• PCS2132 - 200 TL:
Level adjustment and floor fixing
Level regulation bolt
Fixing bolt
618 mm
720 mm

16 EN SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
5.4 INSTALLATION
POWER MODULE INSERTION
WARNING: before installing the module ensure that there is no voltage.
NOTE: the module must be handled by at least two people (30.5 kg / 67.2 lb).
WARNING! RISK OF TIPPING OVER: before carrying out any operations, ensure the SUNSYS
PCS2is secured at the feet.
WARNING! RISK OF TIPPING OVER: the modules must be inserted from the bottom upwards
and removed from the top downwards to ensure the unit remains stable.
WARNING: the modules have to be moved individually. Never handle more than one module.
5.4.1 PROCEDURE FOR PCS233 TR - 66 - 100 TR/TL
• Open the door with the appropriate key.

17EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
• Position the cables in the hose clamp to enable correct module insertion.
• Remove the Lexan protection on the connectors.

18 EN SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
• Place the module on the guides and insert it up to the limit starting by the lower one.
In order to ensure the safety of installers, installers shall be at least two people to process the
installation (30.5 kg / 67.2 lb).
67.2
lb
30.5
kg

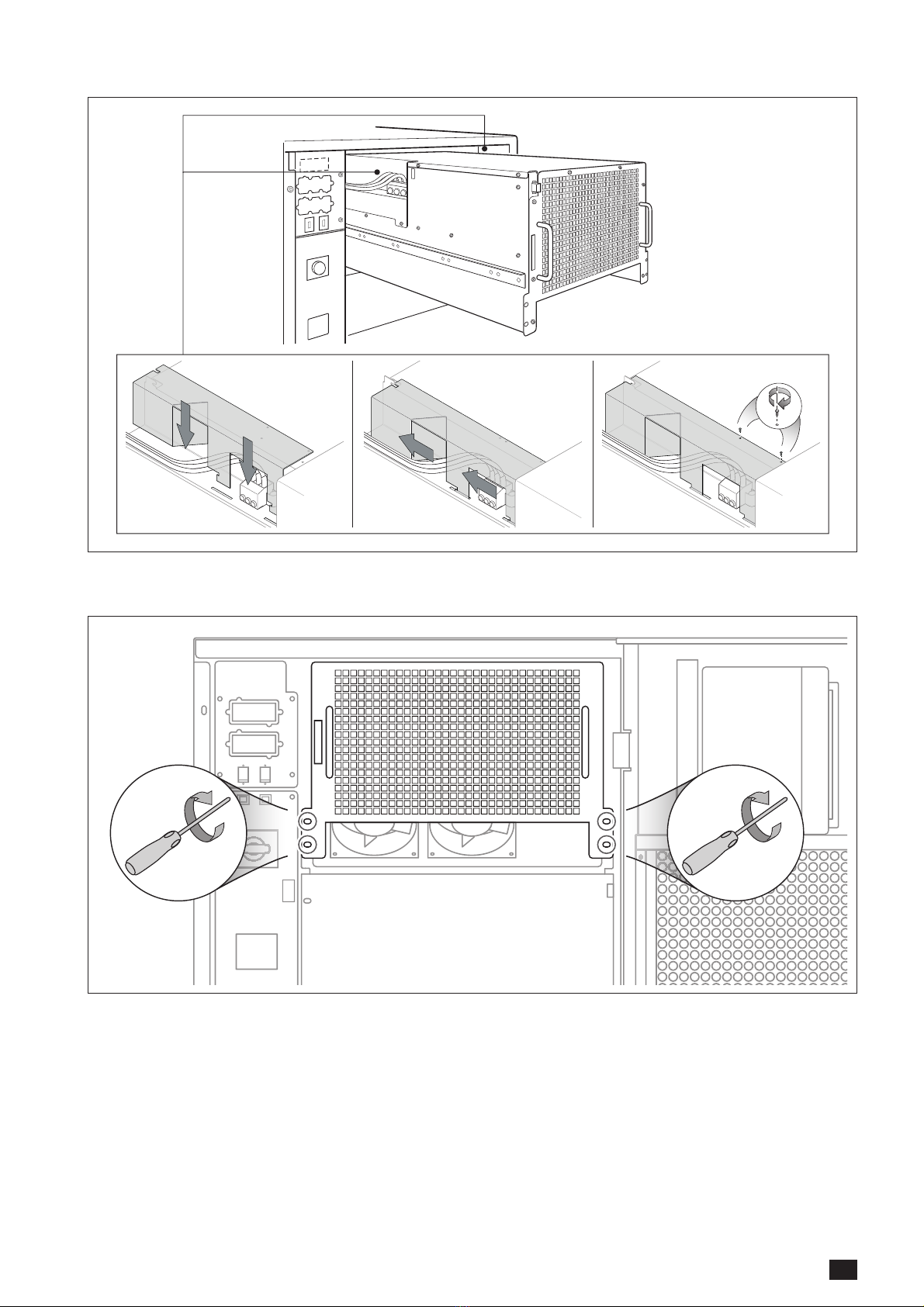

• Insert the connectors and secure them.

19EN
SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
• Position the Lexan protection and secure it.
• Insert the module completely.
• Tighten the screws to secure the module to the SUNSYS PCS2.

20 EN SUNSYS PCS2 Power Conversion System and Storage from 33 to 200 kVA - Ref.: IOMSUNPCXX04-EN 01
• Connect the communication cable.
Communication cable
