SoftBank Whiz P0004930100R User manual

Notification Pager Receiver Manual
MODEL ID: P0004930100R

1
Notification Pager
Notification Pager
Functions
Notification pager will notify the operator (Sound/Vibration) when irregularities occur during autonomous cleaning
or when the machine encounters obstacles. When using the notification pager for the first time, please take the
pager out of the package box, connect pager transmitter to robot and charge the pager receiver. (⇒see
"Recharging the Notification Pager').
Notification pager can only be used during autonomous cleaning.
No. Item Description
1 Display The battery level icon and mute icon appear on the left of the display, and alerts
appear on the right of the display. (
⇒
see "Alert display and its notification timing")
2 Pager mute switch To set the notification pager only to vibrate for alert notifications, set the pager mute
switch on.
3 Pager main button To stop the alert and vibration, press the pager main button.
4 Clip Use the clip when placing the notification pager in your pocket, etc.

2
Notification Pager Receiver Functions & Usage
When the machine detects danger or detects an obstacle, an alert will be displayed on the notification pager receiver (⇒see
"Alert display and its notification timing") and it notifies the operator by emitting an alert and vibrating. It emits an alert and
vibrates for 15 seconds then stops for 5 seconds, which it repeats for 10 minutes. After the error with the machine has been
resolved, the notification pager sounds for 1 second and its display indicates standby.
During autonomous cleaning, always carry the notification pager receiver on you.
The range in which the notification pager can communicate with the machine is a direct line up to 300 m(985 ft)(2 floors above
and below).
*Range of communication depends on the environment. Communication may not be possible such as where there are walls
with metal.
After using the notification pager, charge the pager receiver.

3
Alert display and its notification timing
Appearing on display Description Appearing on display Description
Standby (within the
communication range/paired) Autonomous cleaning complete
Machine battery level low No machine battery
remaining
Dustbag full Connected for wireless
communication
Connection for wireless
communication not possible
(outside communication rang
e/not paired)
Error alert
・When danger has been
detected near obstacles or
steps
・When the emergency stop
button has been pressed
・When the machine goes off
path during the operation

4
Turning the Notification Pager Receiver On/Off
When using the notification pager for the first time, long pressing receiver button and turn the power On.
Turning the Notification Pager Receiver On
Long pressing the main button on the side of the notification pager
Keep 10s pressing the main button until the notification pager receiver vibrates.
An icon appears on the display.
1

5
Turning the Notification Pager Receiver Off
Long pressing the main button on the side of the notification pager receiver
The display goes out.
Press the pager main button, and check that nothing appears on the display
1
2

6
Setup the Notification Pager
In order to receive the alert on the notification pager, the notification pager transmitter must be setup in Whiz i.
Turn on the notification pager receiver and the machine
Check if the machine is connected to the Robot Operations Center (ROC)
Please check your mobile phone cellular connection in advance. Robot Operations Center (ROC) will not be connected to
LTE in an area where there is no signal.
The connection status to the ROC will be shown by the ROC indicator on the display (
⇒
see "Touch Display")
1
2

7
Attach the pager transmitter to the pager holder on the top of the machine
Carry out autonomous cleaning and check if you will receive the alerts (
⇒
see "Carrying Out Autonomous Cleaning").
3

8
Recharging the Notification Pager Receiver
If notification pager receiver battery is running low, charge the receiver fully before using it.
Insert the Micro USB cable into the notification pager receiver
Connect the USB cable into a USB AC adpapter, and plug the adapter into an outlet
The customer must purchase a USB AC adapter themselves.
Place the notification pager receiver in its charger
An AC adapter is not included in the product package. The customer must use their own AC adapter.
Press the receiver main button, and if the fully charged mark appears on the display, it has completed charging.
1
2
3

9
Safety Warnings
About Safety Warnings
IMPORTANT SAFETY INFORMATION: Please read and understand these Safety Warnings prior
to unpacking and using the machine.
Warnings presented here are intended to warn the user of potential harm to the user and other
persons as well as damage to property. Always adhere to them to reduce the potential for harm.
This manual also provides safety warnings, correct handling procedures, and other regulatory
information for using the machine, notification pager, battery, and battery charger. Warnings
provided in this manual do not cover all possible situations that may arise.
Always adhere to warnings regarding machine installation, maintenance, and use. Store this
manual where it can always be referred to. In the following emergencies, immediately press the
emergency stop button and turn off the main power switch.
The machine is in a hazardous state (example: emitting smoke, is inoperable, has fallen over, etc.)
The machine has come close to inflicting harm on surrounding persons or things
The machine is operating (behaving) unpredictably or is moving differently than the descriptions provided in this manual.

10

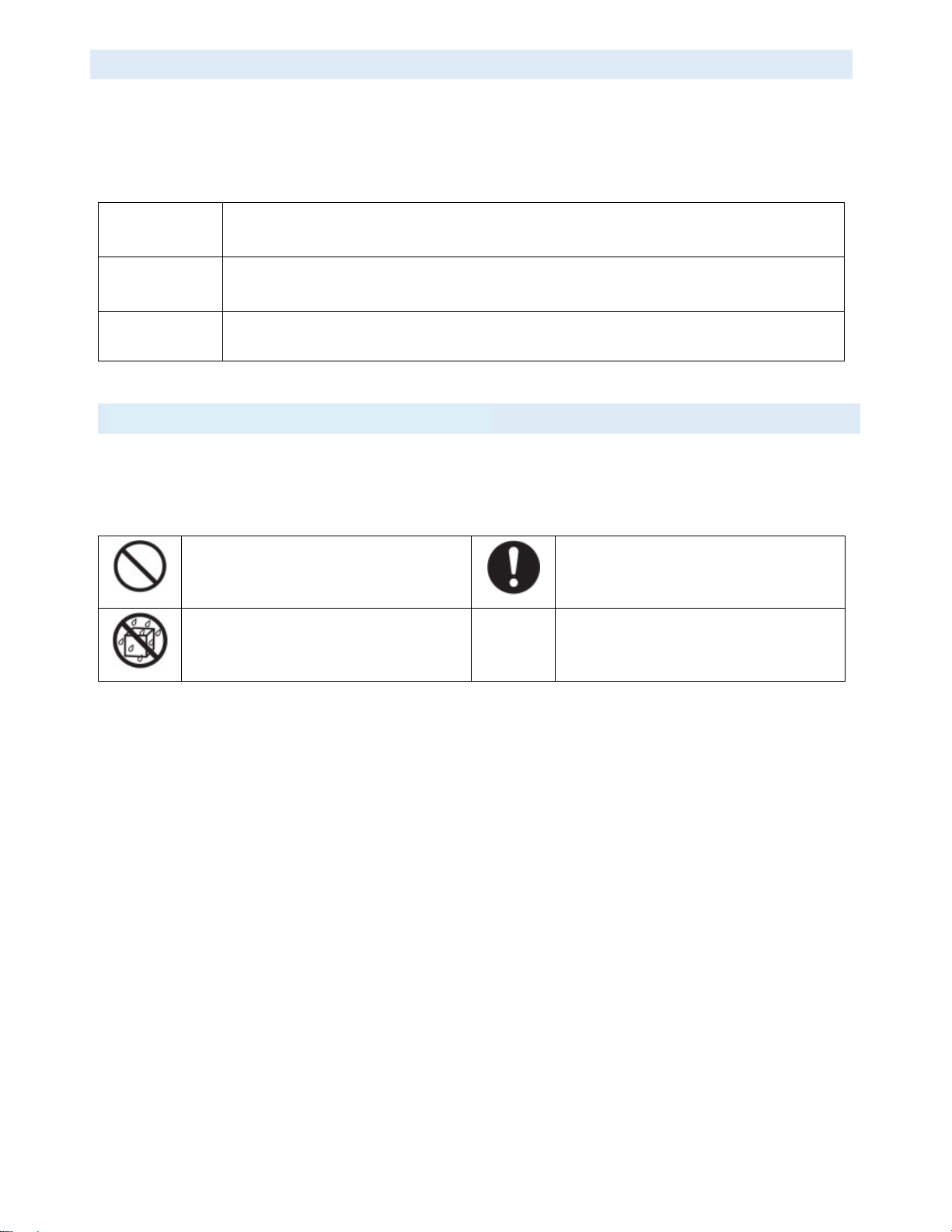

Description of Symbols
The following symbol categories explain the level of harm or damage that can occur if warnings are
not observed and if the equipment is used incorrectly. Please be sure you understand these
symbols and their correlating meanings before reading the remainder of this manual.
DANGER
Indicates a hazardous situation that, if not avoided, will result in death or
serious injury
WARNING
Indicates a hazardous situation that, if not avoided, could result in death or
serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or
moderate injury.
Description of Pictorial Indications
The following pictorial indication categories explain information to be observed. Read this guide
after thoroughly understanding the information.
Prohibited (not allowed) action. Compulsory action based on instruction (must
be performed).
Must not be used where exposed to water, and
must not be splashed with water. Unplug the power plug from the outlet.

11
Handling the Notification Pager
DANGER
WARNING
Handling near Electronic Medical Devices
DANGER
Do not drop or throw.
Subjecting the notification pager to a strong impact may cause the battery pack in the notification pager to leak,
overheat, rupture, or ignite, and otherwise result in injury, electric shock, damage, malfunction, overheating, leakage,
chemical explosion,
or other
damage to the machine, battery charger, battery or notification pager.
Store out of the reach of infants and access of pets.
Failure to do so may present a choking hazard or other risk of physical injury or death of infants or pets
If prolonged contact with the notification pager causes skin irritation (itchiness, rash, eczema, etc.),
immediately discontinue use and consult a doctor.
If wearing an implanted cardiac pacemaker or implanted defibrillator, consult with the manufacturer of such
medical device to confirm a safe operational distance from the machine.
Electric signals may affect the operation of the pacemaker or defibrillator.
Do not use in a healthcare environment or near electronic medical devices.
* The machine does not comply with UL or IEC 60601 standards (or equivalent standards).

12
Pictorial Symbols
Refer to the labels on each product (the machine, battery charger, battery).
Do not short-circuit. Do not disassemble.
Do not immerse in water or other
liquid.
Machine Disposal and Recycling
The machine you have purchased is designed and manufactured with recyclable, high-quality materials and
components. When disposing of the machine, check that it is being disposed of properly as industrial waste
differentiated from general and business waste according to regional and municipal regulations by request
to an industrial waste disposal operator.
* If the machine is being leased, it cannot be disposed of by yourself. Contact customer support. When
disposing of the machine, remove the battery from the machine, and dispose of properly according to
regulations for waste disposal in the region you are residing in.
