SOGEDIS HP T2 User manual

SECHE LINGE
MANUAL DE SERVICE
BANDEAU HP T2

CONTENTS
1. OVERVIEW AND WORKING PRINCIPLE................................................................................................ 4
1.2. Working Principle: ........................................................................................................................ 4
2. TECHNICAL SPECIFICATIONS................................................................................................................ 5
3. INSTALLATION ..................................................................................................................................... 5
3.1. Issues that should be informed to customer ............................................................................... 5
4. CONTROL PANEL AND PROGRAM SELECTION TABLE.......................................................................... 6
4.1. Control Panel................................................................................................................................ 6
4.2.Program List .................................................................................................................................. 6
4.3. Children’s Safety........................................................................................................................... 7
5. FAILURE MODES AND SERVICE AUTOTEST.......................................................................................... 8
5.1. Failure Modes and Warning Leds................................................................................................. 8
5.2. Service Autotest Steps.................................................................................................................. 9
6. DISASSEMBLY..................................................................................................................................... 11
6.1. Top Plate..................................................................................................................................... 11
6.2. Control Panel............................................................................Hata! Yer işareti tanımlanmamış.
6.3. Electronic Card .........................................................................Hata! Yer işareti tanımlanmamış.
6.4. Side Panel ................................................................................................................................... 16
6.5. Supply Cable ............................................................................................................................... 18
6.6. Emi Filter..................................................................................................................................... 19
6.7. Rear Cover.................................................................................................................................. 20
6.8.Pump ........................................................................................................................................... 21
6.9.Process Fan.................................................................................................................................. 23
6.10. Rear Panel................................................................................................................................. 24
6.11.Rear Isolation Group ................................................................................................................. 26
6.12. Rear Bearing Group .................................................................................................................. 27
6.13.Water Tank Housing.................................................................................................................. 28
6.14.Drum.......................................................................................................................................... 29
6.15. Motor ....................................................................................................................................... 30
6.16.Capacitors.................................................................................................................................. 32
6.17.Belt ............................................................................................................................................ 33
6.18. Humidity Sensor ....................................................................................................................... 34
6.19. Door latch................................................................................................................................. 35
6.20. Plinth ........................................................................................................................................ 36

6.21. Cooling Fan Cover..................................................................................................................... 37
6.21. Plinth Cover .............................................................................................................................. 38
6.22. Door.......................................................................................................................................... 39
6.23. Drum Bearing Wheel ................................................................................................................ 40
6.24. Drumlight.................................................................................................................................. 41
6.25. Front Panel ............................................................................................................................... 42
6.26. Door NTC .................................................................................................................................. 43
6.27. Side Bracket.............................................................................................................................. 44
6.28. Front Shield .............................................................................................................................. 45
6.29.Front Isolation Foam ................................................................................................................. 46
6.30. Cable Group.............................................................................................................................. 47
7. COMPONENT SPECIFICATIONS AND MEASUREMENTS..................................................................... 49
7.1. Motor ......................................................................................................................................... 49
7.1.1. Motor Measurements ............................................................................................................. 50
7.2. Pump .......................................................................................................................................... 51
7.2.1 Pump Measurements............................................................................................................... 52
7.3. Electronic Card ........................................................................................................................... 53
7.4. Door/Compressor NTC Sensor ................................................................................................... 54
7.4.1. Door NTC Sensor Measurements............................................................................................ 54
7.5. Compressor ................................................................................................................................ 55
7.5.1. Compressor Measurements.................................................................................................... 56
7.6. Door Latch .................................................................................................................................. 57
7.6.1 Door Latch Measurements....................................................................................................... 57
7.7. Humidity Sensor ......................................................................................................................... 58
7.7.1 Humidity Sensor Measurements.............................................................................................. 58
7.8. Cooling Fan................................................................................................................................. 59
7.8.1. Cooling Fan Measurements..................................................................................................... 60
7.9. Drumlight.................................................................................................................................... 60
8. TROUBLESHOOTING .......................................................................................................................... 61

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL

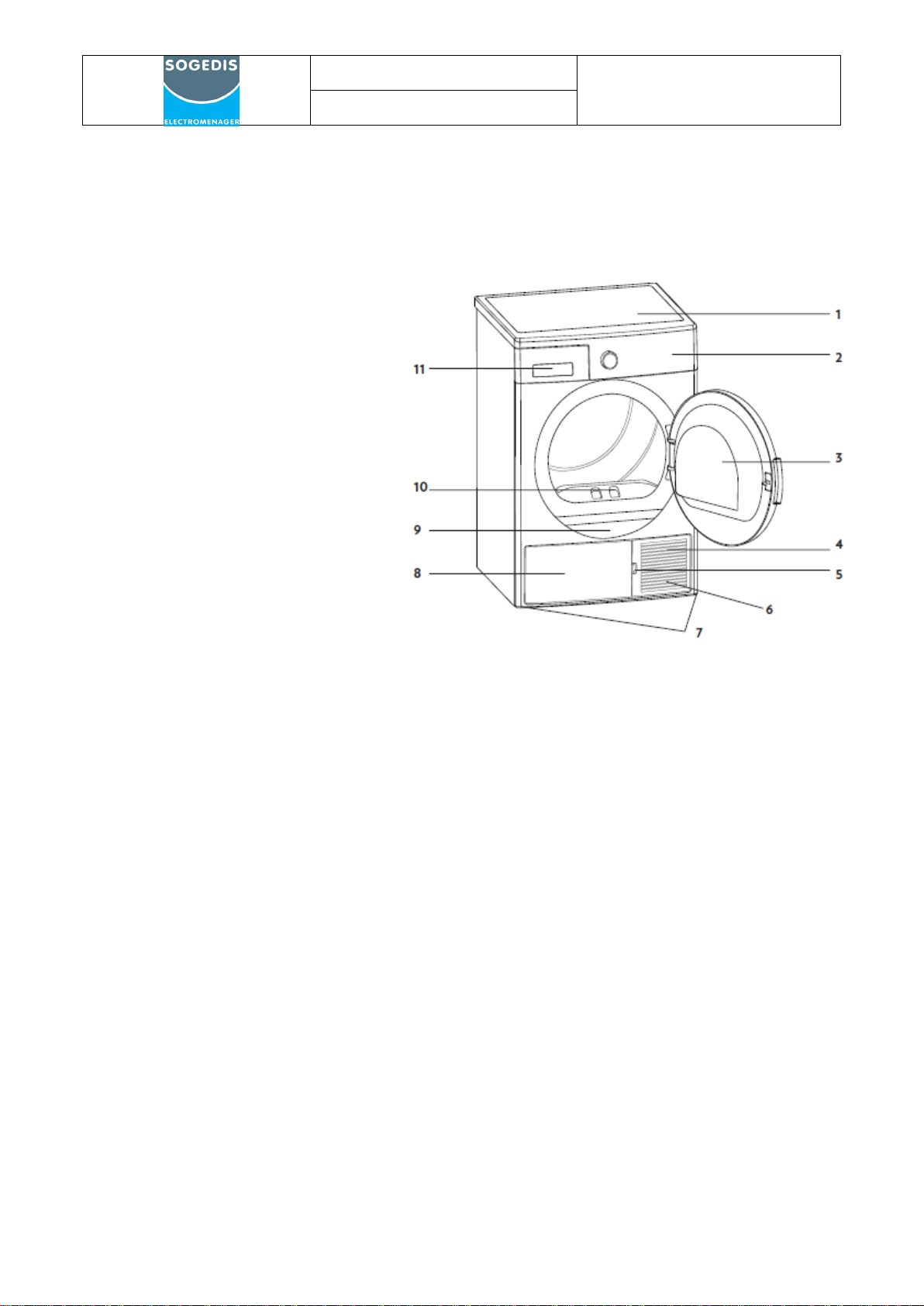

1. OVERVIEW AND WORKING PRINCIPLE
1. Top Plate
2. Control Panel
3. Loading Door
4. Plinth
5. Plinth opening slot
6. Ventilation grills
7. Adjustable feet
8. Plinth cover
9. Type plate
10. Lint filter
11. Drawer Cover
1.2. Working Principle:
In the heat pump dryer machine, heated air is sent to the wet laundry in the drum from the
heater side of the coil which called by condenser. The humidity of the laundry is taken and
reaches the cold side of the coil which called by evaporator via filter. With a compressor,
refrigerant is passed through inside of the tubes of coils both condenser and evaporator. A
capillary causes resistance against to refrigerant flow. By this way, the evaporator surface is
cooled and condenser surface is heated. The hot and humid air from the drum is reached cold
evaporator surface and the humidity on it is left as water. The condensing water in the
evaporator is pumped to the water tank by the pump.

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
2. TECHNICAL SPECIFICATIONS
Manufacturer
Vestel White Goods
Capacity (max)
7 kg (100LT)
8 kg / 9kg (112LT)
H x W x D
845x596x563 mm
845x596x609 mm
Net weight (with plastic door)
42,6 kg
44 kg
Net weight (with glass door)
45 kg
46,4 kg
Voltage
220-240V / 50 Hz
Working Temp.
+5°C -+35°C
Electrical Current (A)
10 A
Power
1000 W
3. INSTALLATION
3.1. Issues that should be informed to customer
1. Drying machine must be grounded.
2. Lint filter must be cleaned after each use
3. Water tank must be unloaded after each use
4. Even if the heat exchanger cleaning warning les is not on : clean the heat exchanger
after every 30 drying processes or once a month
5. The amount of laundry should be appropriate to program.
6. Use this product only for laundry with a label that indicates it is suitable for drying.
7. Children should not play with appliance.
8. This product contains environmental friendly but flammable R290 gas. Keep open
flame and fire sources away from the product.
9. Ventilation grills should not be closed.
10. The service life time of tumble dryer is 10 years.
11. Adjustable feet should not be removed.
12. There should not be lockable or sliding door in the installation area
13. Never spray or pour water onto the dryer to wash it. There is a risk of electric shock.
Please ensure that customer reads the user manual
1. Check the environmental conditions. (Voltage, current etc.)
2. Ensure that product is used correctly
3. If the system displays failure code, find the corresponding code in the failure code list
then act according to this.
4. Check the electronic connections

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
4. CONTROL PANEL AND PROGRAM SELECTION TABLE
4.1. Control Panel

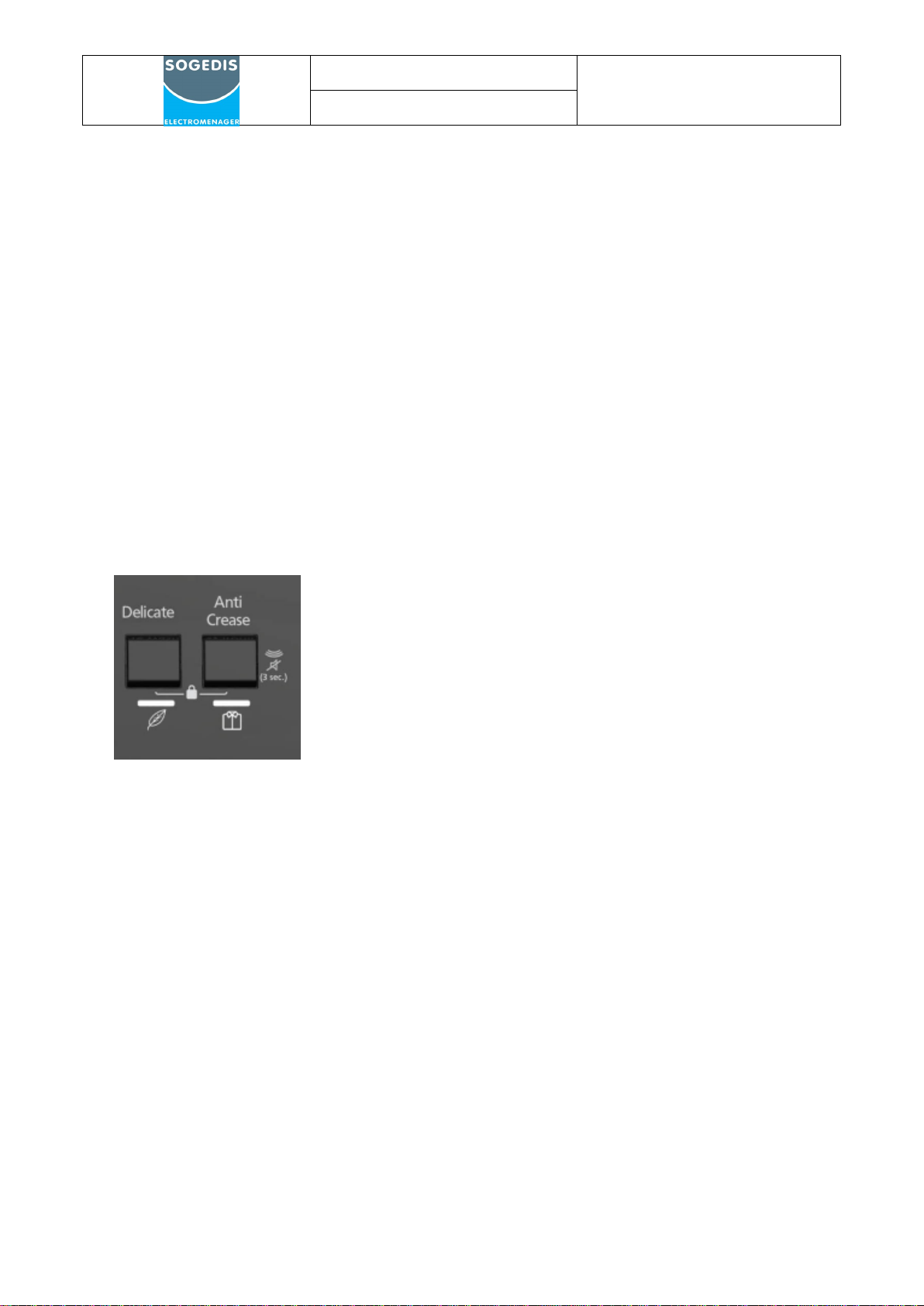

Display Symbols
4.2.Program List
KNOB
POSITION
PROGRAM
1
Cotton Extra Dry
2
Cotton Cupboard Dry
3
Cotton Iron Dry
4
Synthetics Cupboard Dry
5
Synthetics Iron Dry
6
Delicate
7
Time Drying
8
Baby Care
9
Duvet
10
Sport
11
Mix
12
Wool Refresh
13
Refresh
14
Express 34’
15
Shirts 20’
16
OFF

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
***The machine has humidity sensor that detects whether the laundry dry or not. At the
programs that work with humidity sensor laundry does not dry in fixed time. Duration is
constantly updates according to humidity data taking from laundry.
***Time Drying Program: Humidity sensor is deactivated. The program ends when the time is up,
without checking the humidity of the laundry.
***Express 34’/ Shirts 20 ‘: Humidity sensor is activated. The program time may extend, if the
customer use different laundry according to the load in the program description.
***Delicate: This programme dries synthetics, such as shirts, t-shirts, blouses, at a lower
temperature compared to the cottons programme.
*** Refresh: Time drying option is selected from 10 minutes to 150 minutes without providing hot
air, refresh is done and bad odors can be eliminated.
4.3. Children’s Safety
There is a child lock option to avoid changes in the program
flow when keys are pressed during the program. To activate child lock,
press and hold “sw2” and “sw3” keys simultaneously for 3 seconds.
When the child lock is active, all keys will be deactivated. Child lock will
be deactivated automatically at the end of the program. When the
child lock is being activated/deactivated, “CL” will flash on the display
for 2 seconds and an audio warning will be heard.
Warning: when the product is running or the child lock is active, if you turn the program selection knob,
you will hear an audible warning. Even if you set the program knob to another program, the previous
program will continue running. To select a new program, you need to deactivate the child lock and
then set the program selection knob to “Cancel” position. Then, you can select and start the desired
program.

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
5. FAILURE MODES AND SERVICE AUTOTEST
***Service auto test must be run for every service call.
5.1. Failure Modes and Warning Leds
Notes For Service autotest:
*Service can not pass the current step before completing the minimum duration
*When minimum duration for each step (5 sec) is completed, filter led makes slow blink to indicate
that service can pass the next step
*For error codes, leds must make fast blink
ERROR CODE REASON
E00 Touch UI board doesn't receive communication from mainboard
E03
Aquaswitch connector is disconnected
E04 Compressor connector is disconnected
E05 Compressor NTC connector is disconnected
E06 Door NTC connector is disconnected
E07
Motor connector is disconnected, motor is locked
E08
Voltage fluctuation
HEAT PUMP MODEL ERROR CODES
SW5
SW2
SW3
SW1
SW4
SW6

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
5.2. Service Autotest Steps
STEPS
Control
Minimum
Step
Duration*
Error
code
Led
Indication
Possible Errors
The Routine to
Enter Servis
Autotest
Set program knob at
position 3. Push SW5
button.
Keeping SW5 button
pushed, turn program
knob to position 1. After
3 sec, SAU is shown in
display.
Then press Start/Pause
button. Machine enters
to service autotest.
Machine shows the last
error saved by machine.
If there is no error, "- - -
" visualise on the display
When knob positioned
to program 2, control
steps starts.
5 sec
-
Step 2
(Knob Position 2)
Dryer check
Aquaswitch, if
aquaswitch ON go to
next step (pump
activation), if
aquaswitch OFF give
water tank full error
10sec
E03
-
*Aquaswitch connector
is taken out
*Aquaswitch connector
is short circuit
*Styrofoam is borken
or not
Step 3
(Knob Position 3)
Pump is on
5 sec
-
-
Service must pour
water to pump
reservoir and check
whether water is
pumped to tank.
If water is not pumped
to water tank;
*Pump connector is
taken out

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
Step 4
(Knob Position 4)
Motor CCW (Tumble
CW)-Motor stops
10 sec
-
-
Service must check
whether tumble is
moving to CW. If not;
*Motor connector is
taken out
*Motor might be
locked
*Motor belt might be
dislocated
Step 5
(Knob Position 5)
Motor CW (Tumble
CCW) -Motor stops
10 sec
-
-
Service must check
whether tumble is
moving to CCW
*If tumble is moving to
CW again, then motor
relay short circuit CCW
Step 6
(Knob Position 6)
Check Heater NTC if
heater NTC T=255
5 sec
E05
-
*Heater NTC connector
is taken out or short
circuit
Step 7
(Knob Position 7)
Check Door NTC if
heater NTC T=255
5 sec
E06
-
*Door NTC connector
is taken out or short
circuit
Step 8
(Knob Position 8)
Compressor OFF- Motor
CCW (Tumble CW) OFF-
Cooling fan ON
10 sec
-
-
Service must check
power of at the home
voltage and fan will be
controlled manually by
technical service.
Step 9
(Knob Position 9)
Compressor ON- Motor
CCW (Tumble CW) -
motor off
10 sec
-
-
Service must check
power of at the home
voltage.
Step 9
(Knob Position 9)
Check conductivity
sensor when door is
opened and motor is off
5 sec
E01
-
Service puts his hand
on the humidity sensor
plates and software
checks sensor data
*If sensor data=0,
humidity sensor
connector is taken out
Remove the last
error (Knob
Position 1)
5 sec
DEL
DL is visualized
on display and
make fast blink
for 2 sec for
T0.DEL is
visualized on
display and
make fast blink
for 2 sec
When the knop
positioned to program
1, service will pust the
both SW4 and SW5 for
T0/T1 (child lock
mode).
When the knop
positioned to program
1, service will pust the
both SW2 and SW3 for
T2 (child lock mode).

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
6. DISASSEMBLY

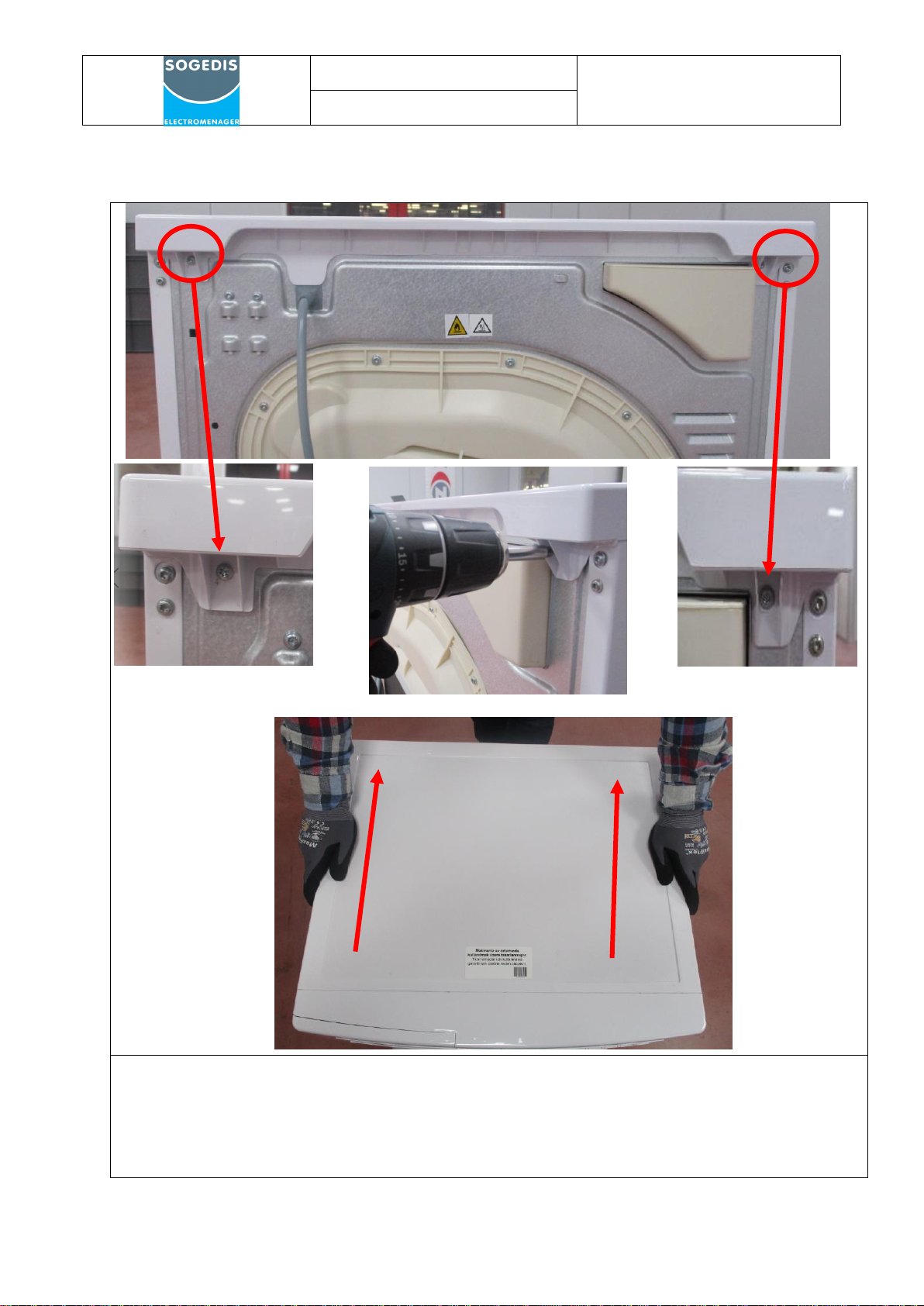

6.1. Top Plate
1. Remove two screws that fix the top plate at the back.
2. Remove by pulling the top plate to yourself.

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
6.2. Control Panel
1. Remove 2 screws from the top.
2. After disassembly the water tank , remove 1 screw from front

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
6.2. Control Panel
1. All sockets are removed from control panel
2. The cables on the control panel are carefully removed from the cable paths.
3. Remove the PCB box by pressing clips which provide fixing to panel So, PCB box will be
separated from control panel

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL

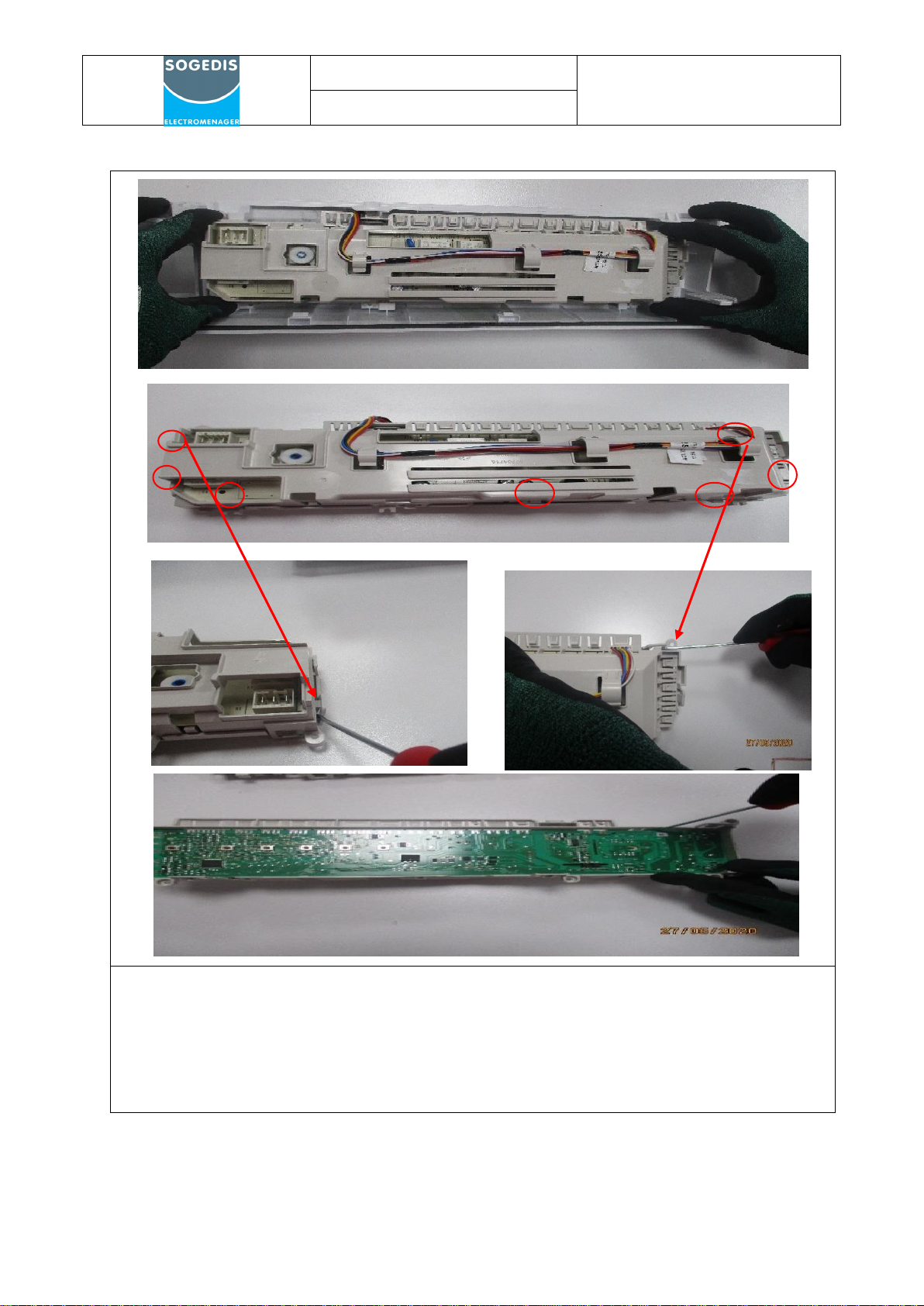

6.3. Electronic Card
1. For opening the PCB box, press the clips (6 units) Care should be taken not to break the clips
here.
2. The electronic card inside is removed from the nails. Remove the electronic card from pcb box
as shown in the photo

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
6.4. Dısplay Card
1. Remove screw on UI card as shown in photo.
2. Display card on control panel is disassembled as shown in photo.

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL

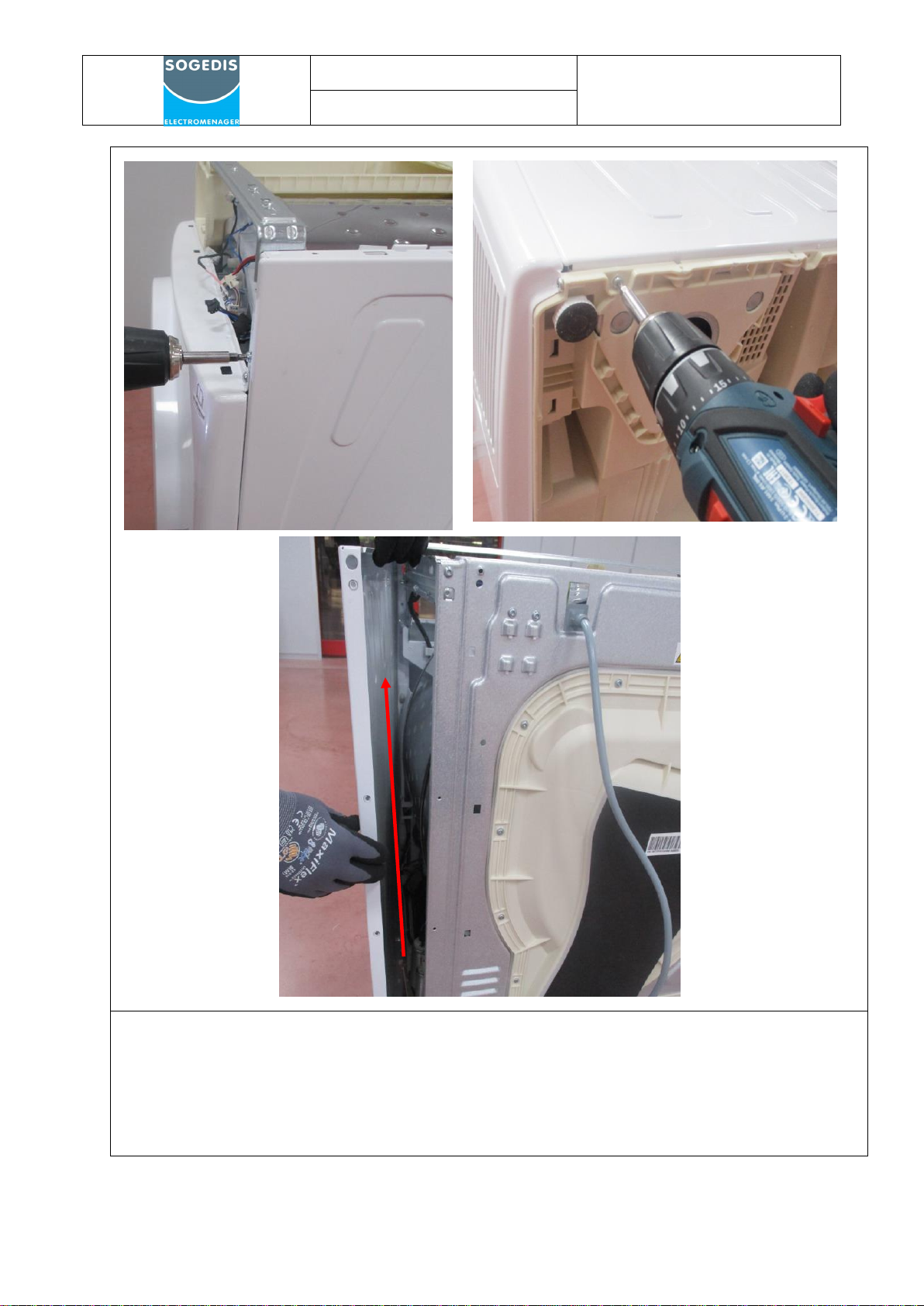

6.4. Side Panel
1. Remove 10 screws on side panels
6.4. Side Panel

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
2. Remove 2 screws from front
3. It should not be forgotten to take bottom screw ( 2 screws)
4. Remove the side plate which is pulled out screws , by pushing up

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL
6.5. Supply Cable
1. Remove the supply cable brown and blue cable socket.
2. Remove the terminals with tool as shown in the photo
3. Remove supply cord by pushing up
3
2
1

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL

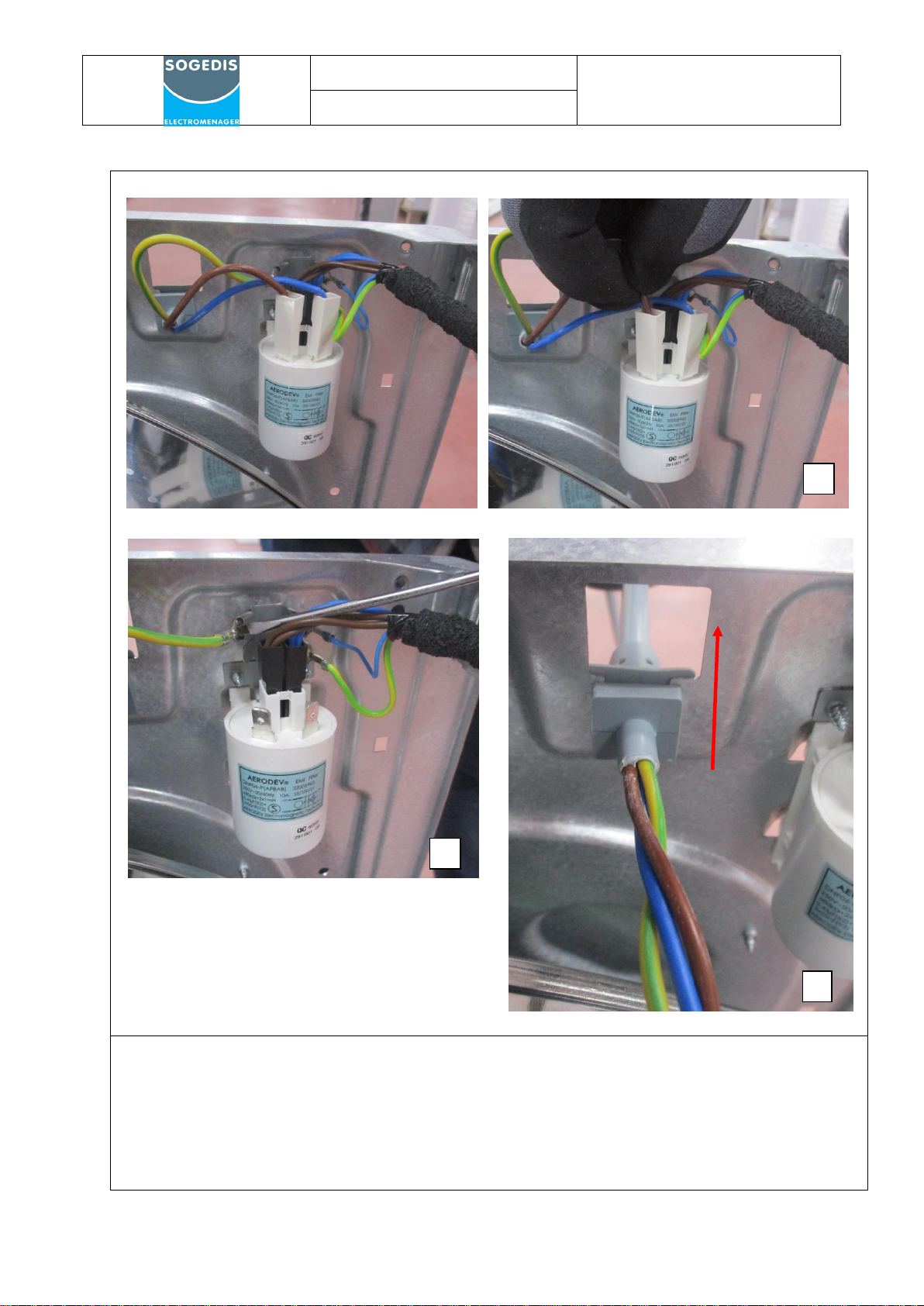

6.6. Emi Filter
1. Remove EMI filter sockets
2. Remove the terminals with tool as shown in the photo
3. Remove the EMI filter which is fixed with 2 screws to the rear panel

HP T2 PANEL
CUSTOMER
SUPPORT
SERVICE MANUAL

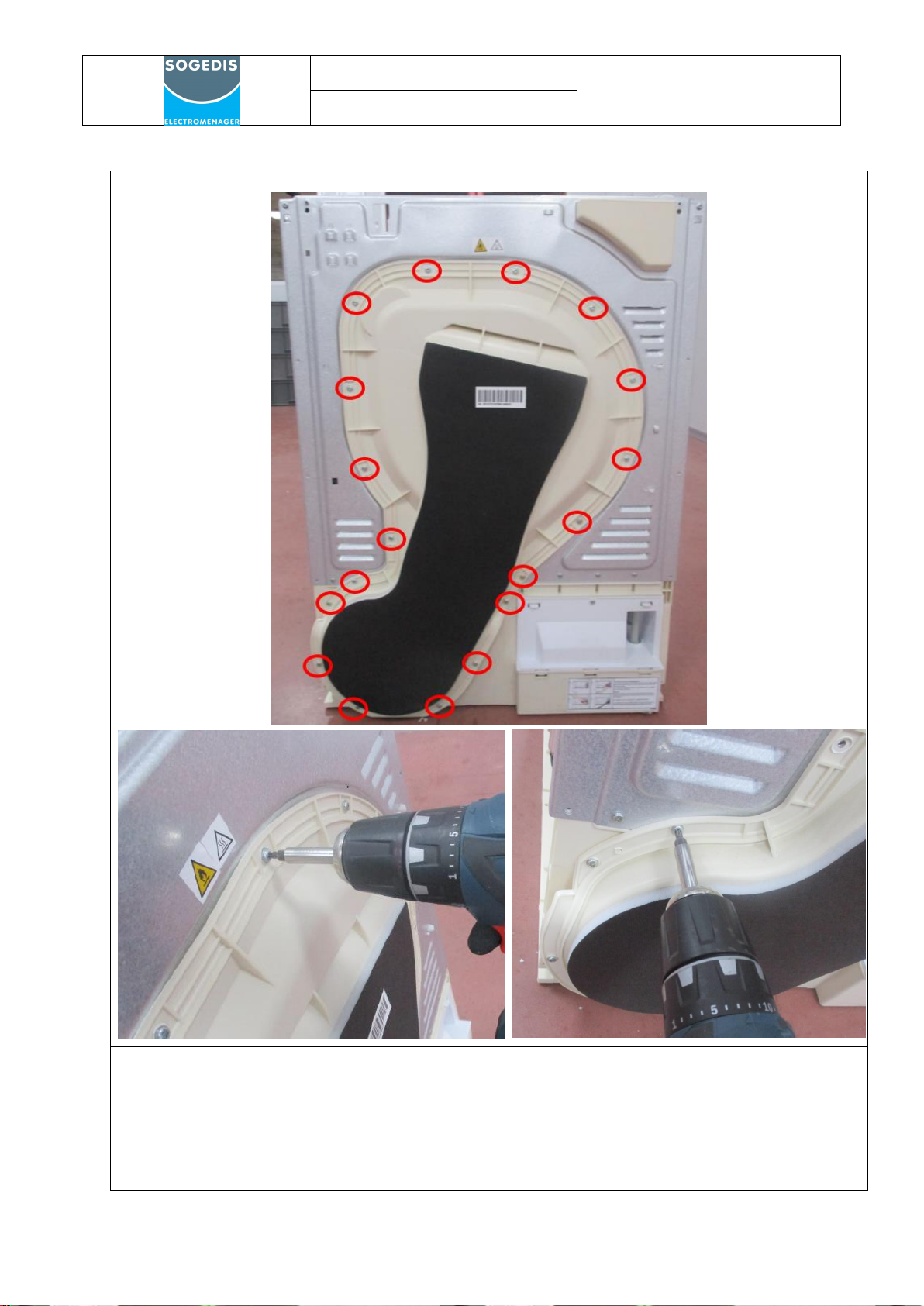

6.7. Rear Cover
1. Remove all screws shown in the photo.
