Sola ATLAS GREEN User manual

ATLAS GREEN
HU
BG
Gebrauchsanweisung
Operating instructions
Manuel d’instructions
Instruzioni d‘uso
Instrucciones de uso
Gebruiksaanwijzing
Руководство по применению
Instrukcja obsługi
Eksploatacijos instrukcija
Lietošanas instrukcija
Uputstvo za upotrebu
Návod k použití
Manual de utilizare
Ръководство за употреба
Használati útmutató

2
EN
3.
2.
5.
6.
Scope of delivery for ATLAS
1. ATLAS line laser
2. LB GREEN laser goggles
3. AA batteries
4. Quick Starter
5. Case
6. Stand adapter 1/4"
7. Stand adapter 5/8"

3
EN
2.1 Device components, display and operating elements
1. Laser beam output opening
2. On/o switch, transport lock
3. Tripod adapter 5/8"
4. Battery compartment cover
5. Fine adjustment
6. Keypad 6.
4.
2.
1.
5.
3.

4
EN
ATLAS GREEN
operating manual
About this manual
Congratulations on the purchase of your new ATLAS GREEN! You have acquired a SOLA measurement
instrument, which can make your work easier, faster and more precise. To utilize the complete functiona-
lity range of this measurement instrument, and to ensure a safe operation, please observe the following
instructions:
• Please read this operating manual before starting to use the device.
• Always keep the operating manual near the device.
• Only hand over the device to other persons together with the operating manual.
• Never render the attached warning signs unreadable.
Contents
1. General information
2. Description
3. Technical data
4. Safety instructions
5. Laser safety / classification
6. Startup
7. Operation
8. Checking the accuracy
9. Maintenance, storage and transportation
10. Scope of delivery and accessories
11. Troubleshooting
12. Disposal
13. Warranty
14. EC conformity declaration

5
EN
1.1 Signal words and their meaning
DANGER
For an imminent danger that could lead to serious
injury or death.
WARNING
For a possibly dangerous situation that could lead
to serious injury or death.
CAUTION
For a possibly dangerous situation that could lead
to slight injury or property damage.
NOTE
For application notes and other useful information
1.2 Pictograms and other information
1.2.1 Warning signs
Warning of dangers in general
1. General information
1.2.2 Symbole
Read instructions before use
Batteries and devices must not be
disposed of with household waste
Do not throw batteries into a fire
Warning signs on battery Do not
heat the battery above 60 °C.
Class 2 laser device
Do not look into the laser beam!

6
EN
2.1 Device components, display and operating elements
1. Laser beam output opening
2. On/o switch, transport lock
3. Tripod adapter 5/8"
4. Battery compartment cover
5. Fine adjustment
6. Keypad
2.2 Intended use
The ATLAS GREEN is a line laser that enables a single person to level and align plumb points as well as
90 degree angles horizontally and vertically.
The device is designed to be preferably used indoors. For outdoor applications, it must be ensured that
the ambient conditions are similar to those indoors.
The visibility range of the laser lines depends on the ambient conditions.
In low light conditions or for long distances, the hand-held receiver can be used to locate the laser line
position (the hand-held receiver is not included in the standard delivery, but can be ordered as an option).
Follow the instructions contained in this manual. The device and accessory equipment may be a source
of danger if they are utilised improperly or inappropriately by persons who are not adequately instructed.
2. Description

7
EN
3. Technical data
3.1 ATLAS GREEN line laser
Working range
- Laser lines
- receiver
r = 25 m*
r = 80 m*
Max. measurement tolerance
- Laser lines ± 0.2 mm/m
Protection class IP 54
Levelling range (typical) ± 3°
Levelling time (typical) ≤ 5 s
Power supply 3 x 1.5 V AA batteries
Battery life (at 20°C)
- AA batteries 6,5 h
Permissible temperatures
Operating temperature
Storage temperature
-10°C to +50°C
-20°C to +60°C
Laser diode lines/points 510-525 nm < 5 mW
Laser class 2, DIN EN 60825-1 : 2014
Tripod adapter 5/8“
Weight without batteries 1100 g
Dimensions H x W x L 125 x 123 x 204 mm
*... depending on the ambient conditions in the workplace. Subject to modifications (drawings, descriptions and technical data).

8
EN
4. Safety instructions
4.1 AREA OF RESPONSIBILITY
4.1.1 Manufacturer
SOLA is responsible for the safe delivery condition of the product, including the operating manual and the
original accessories.
4.1.2 Operator
The operator is responsible for using the product as intended, the deployment of personnel,
their training and the operational safety of the product.
The operator understands the safety information which is stated on the product and
the instructions which are contained in the operating manual.
The operator shall comply with local regulations relating to safety and accident prevention regulations
as well as worker protection laws and regulations.
The operator shall immediately notify SOLA if safety-related issues should develop on the product or
during its utilization.
The operator shall ensure that the product is not utilized any further if defects become evident, and he
will have the product repaired professionally.
4.2 Improper Use
Use of the device and the accessories without instruction.
Use of third-party accessories or additional equipment.
Use outside of the intended limits (see Chapter 3/Technical data) .
Use under extreme temperature fluctuations without an adequate acclimatization.
Disabling of safety devices and removal of hazard notices and labels.
Unauthorized opening of the device.
Performance of modifications or alterations the device or the accessories.
Deliberate blinding of third parties.
Inadequate safeguarding at the installation site.
4.3 Utilization limitations
The ATLAS GREEN is suitable for a continuous use in an atmosphere which can be inhabited by humans.
Do not operate the product in explosion-prone or corrosive environments.
Inform the local safety authorities and safety experts before working in hazardous environments,
in close proximity to electrical installations or similar surroundings.

9
EN
4.4 Usage Hazards
4.4.1 General
WARNING
Missing or incomplete instructions may result in improper or incorrect use. This can cause
accidents with serious damages to persons, property, assets and the environment.
Follow the manufacturer‘s and operator‘s safety instructions.
Protect equipment and accessories from access by children.
WARNING
Blinding by laser radiation can indirectly lead to serious accidents, especially for people who
are driving a vehicle or operating machinery. Do not look into the laser beam.
Do not set up the laser beam and the laser plane at eye level or aim at people.
CAUTION
A fall, longer storage, transportation or other mechanical eects can lead to
erroneous measurement results. Check the unit for damage before use.
Do not use damaged equipment.
Repairs have to be exclusively performed by SOLA
Before use, check the accuracy of the device (see Chapter 8/Checking the accuracy)
4.4.2 batteries/rechargeable batteries
DANGER
Mechanical damage can lead to a leakage, fire or explosion of the batteries or trigger the
release of toxic substances.
Batteries and rechargeable batteries may not be opened or exposed to mechanical loads.
Damaged batteries, chargers and charging stations may not be used.
Repairs have to be exclusively performed by SOLA.
WARNING
High ambient temperatures and immersion into liquids can cause a leakage, fire or explosion of
the batteries or trigger the release of toxic substances.

10
EN
Protect batteries and rechargeable batteries from mechanical damage during transport.
Never store the Li-Ion battery in the sun, on radiators or behind glass windows.
Do not overheat batteries and rechargeable batteries or expose them to fire.
Avoid the ingress of moisture into batteries and rechargeable batteries.
Do not use damaged batteries or rechargeable batteries. Dispose of properly. (see Chapter 12/Disposal) .
WARNING
A short-circuiting or unintended use can cause batteries to overheat and create an injury or fire
hazard.
Do not transport or store batteries in the pockets of garments.
Do not bring the battery contacts in contact with jewelery, keys, or other electrically conductive objects.
Do not charge non-rechargeable batteries
Do not discharge the batteries through short-circuiting.
Do not solder the batteries within the device.
Do not mix old and new batteries, and do not mix batteries from dierent manufacturers or
with a diering type designation.
WARNING
If disposed of improperly third parties can possibly be seriously injured and the environment
polluted. The burning of plastic components generates toxic fumes which may impair the
health of people. Batteries/rechargeable batteries may explode if they are damaged or heated
excessively, and thereby cause poisoning, burning, corrosion or environmental contamination.
If disposed of negligently unauthorized persons are able to use the product improperly.
The product must not be disposed of together with household waste. Dispose of the device and
accessories properly
(see Chapter 12/Disposal) .
Protect the product at all times from access by unauthorized persons, and especially children.

11
EN
4.5 ELECTROMAGNETIC COMPATIBILITY (EMC)
The electromagnetic compatibility is the ability of the product to function in an environment where
electromagnetic radiation and electrostatic discharge are present, without causing electromagnetic
interference to other devices.
4.5.1 Interference of other devices by ATLAS GREEN
Although the product meets the strict requirements of the relevant directives and standards, SOLA can
not completely exclude the possibility of interference with other devices (for example, when using the
product in combination with third-party devices, such as field computers, personal computers, wireless
devices, mobile phones, certain cables or external batteries).
When using computers and radio equipment make sure to observe the vendor-specific information
about electromagnetic compatibility.
Only use original SOLA equipment and accessories.
4.5.2 Interference of the ATLAS GREEN by other devices
Although the product meets the strict requirements of the relevant directives and standards, SOLA can
not entirely exclude the possibility that intense electromagnetic radiation in the immediate vicinity of radio
transmitters, two-way radios, diesel generators, etc. can distort the measurement results.
When performing measurements under these conditions check the plausibility of the results.

12
EN

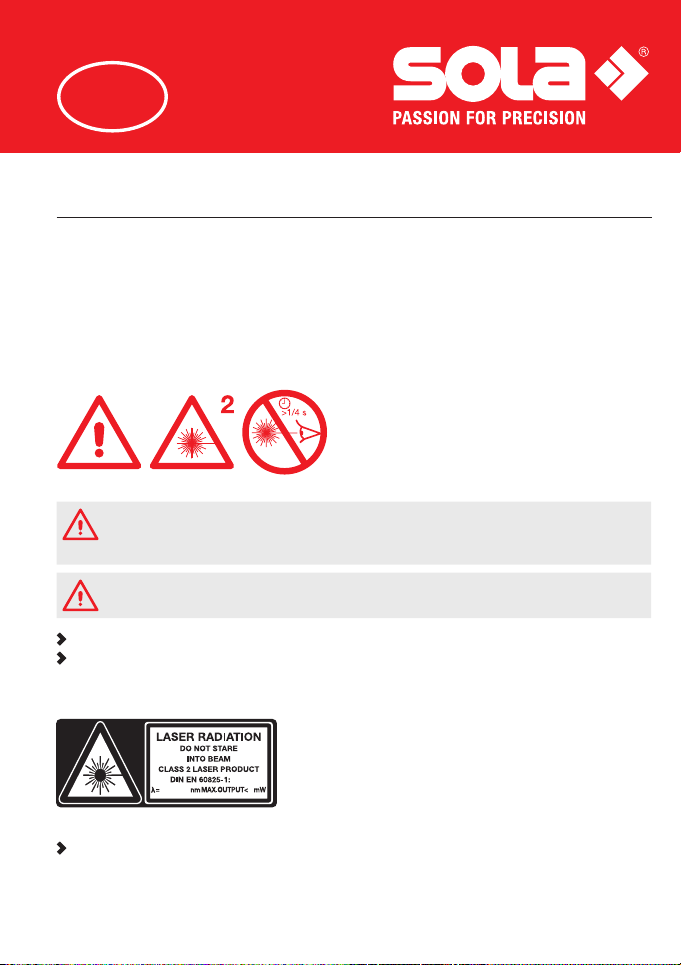

5. LASER SAFETY/CLASSIFICATION
The ATLAS GREEN emits one 120° horizontal line as well as three 120° vertical lines.
The product corresponds to Laser class 2 according to DIN EN 60825-1:2014.
Laser class 2:
With class 2 laser devices, eyes are protected by the the blink reflex and/or the aversion responses in the
event that a person accidentally looks at the laser for a short time.
WARNING
Looking directly into the laser beam with optical aids (such as binoculars, telescopes) can be
dangerous.
WARNING
Looking directly into the laser beam can damage the eyes.
Do not look into the laser beam.
Do not point the laser beam at other people.
Labelling on the device:
See cover page for the position of the label.
Do not remove the label!
2014
510-525 5

13
EN
6. Start-up
6.1 Operation with batteries
1. Open the battery compartment cover.
2. Insert batteries with the correct polarity into the ATLAS GREEN.
3. Close the battery compartment cover (audible click of the cover).
Use only 1.5v AA size (Mignon) batteries.
Remove the batteries if the instrument is not used for an extended period.
NOTE
The intensity of the laser lines can vary depending on the battery quality.

14
EN
7. Operation
7.1 ATLAS GREEN
Switching the laser on/o
On:
Turn the on/o switch, transport lock to the right (ON position) and the pendulum unit will be released.
The device transmits the horizontal 360° line from the output aperture. To turn o the vertical 360° line,
press V on the keypad.
The instrument will level itself automatically within the specified inclination range
(see Chapter 3/Technical data).
O:
Turn the on/o switch, transport lock to the left (OFF position) and the pendulum unit will be locked;
the laser lines will disappear.
NOTE
Magnets can aect the measurement instrument and lead to false results.
If the vertical laser line is not projected vertically to the wall or to the target surface, uneven surfaces can
lead to erroneous measurement results.
Make sure that the vertical laser line is projected vertically to the wall or to the target surface.
Severe temperature fluctuations can lead to erroneous measurement results.
Before start-up, allow the device to acclimatise to the environmental conditions.
The laser lines will flash every 30 seconds when the battery capacity falls below 10%.
Recharge the battery regularly or ensure additional batteries are available.
7.1.2 PULSE mode
The REC LRD0 receiver can be used to detect the laser lines at even greater distances or in unfavourable
environmental conditions. The pulse mode is active at all times for the ATLAS.

15
EN
7.1.3 Creating inclinations beyond the range of automatic levelling
On:
Turn the on/o switch, transport lock to the left (OFF position).
Press and hold the tilt key for 5 seconds to start the tilt function.
Press the V key to switch on the vertical lines.
Press the H key to switch o the horizontal lines.
To indicate that the self-levelling is switched o, the lines will blink every 4 seconds.
O:
Briefly press the tilt key to exit the tilt function.
CAUTION
If the laser line is not projected vertically to the surface or the surface is uneven, this can lead
to erroneous measurement results.
Make sure that the laser line is projected vertically to the wall or to the target surface.

16
EN
7.2 Applications
7.2.1 Horizontal levelling 360°
7.2.2 Vertical levelling 360°
7.2.3 90° angle

17
EN
7.2.5 Inclination
7.2.6 Working at distances
90°
7.2.4 Layout with a 90° angle
DE
18
7.3.4 Horizontales und vertikales Nivellieren (mit Stativ -> optionales Zubehör)
7.3.5 Gestaltung im 90°-Winkel
90°90°
90°
90°
DE
18
7.3.4 Horizontales und vertikales Nivellieren (mit Stativ -> optionales Zubehör)
7.3.5 Gestaltung im 90°-Winkel
90°90°
90°
90°

18
EN

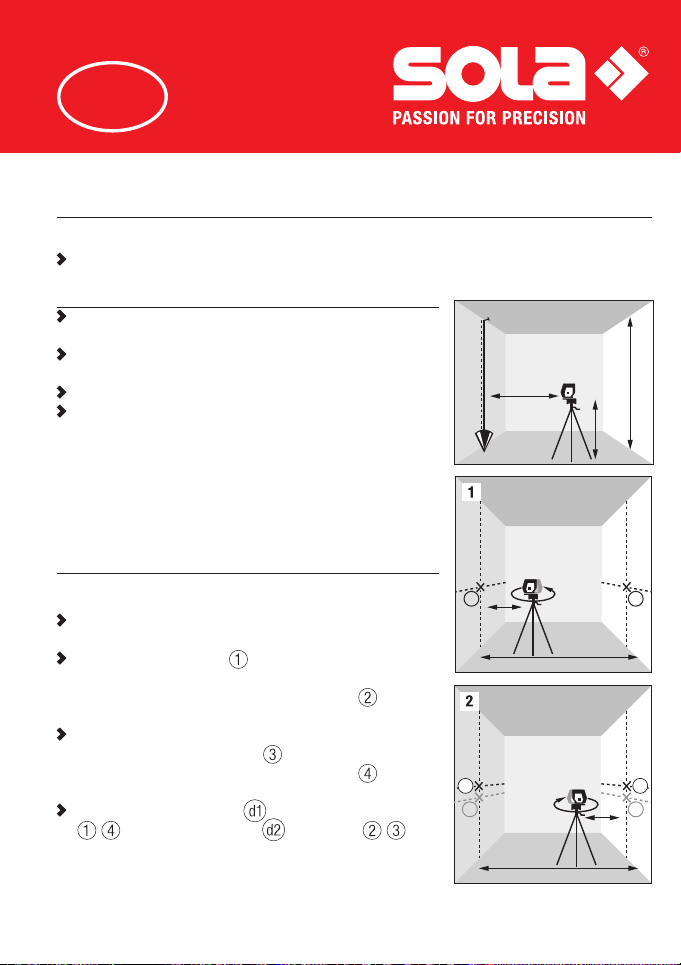

8. Checking the accuracy
Check the accuracy of the ATLAS GREEN before each measurement.
Before starting the check, let the device acclimatise to the environmental conditions.
8.1 Checking the accuracy of the vertical line
Attach a plumb line as close as possible possible to a (at least)
3 m high wall.
Mount the ATLAS GREEN onto a tripod at a height of approx.
1.2 m.
Position the device approx. 3 m in front of the plumb line.
Switch on the ATLAS GREEN and project the vertical laser line
onto the plumb line.
If the deviation is greater than 4 mm, the device must be readjus-
ted. In this case, consult your dealer.
8.2 Checking the leveling accuracy
of the horizontal line
1. Select two horizontal, flat walls (A & B), which are approx.
10 meters apart.
Mount the ATLAS GREEN onto a tripod and position it at a
distance of approx. 20 cm from wall A.
Mark the intersecting point of the vertical and horizontal
lines on wall A.
2. Rotate the ATLAS GREEN by 180° and mark point
on wall B.
Position the laser at the same height approx. 20 cm
away from wall B and mark point on wall B.
3. Rotate the ATLAS GREEN by 180° and mark point
on wall A.
Measure the vertical distance of the marked points
- and the vertical spacing of the points - .
min. 3 m
ca. 1,2 m
ca. 3 m
ca. 10 m
A B
ca.
20 cm
180°
1 2
ca. 10 m
180°
A B
ca.
20 cm
1
4
2
3

19
EN
Mark the center point of and .
If the reference points and are on dierent sides of the
center point, must be subtracted from .
If the reference points and are on the same side of the
center point, must be added to .
Divide the results with twice the value of the room length.
If the result is greater than 4 mm, the device must be
readjusted. For this, please consult your dealer.
4
1
AB
3
d 1
2
d 2

20
EN
9. Maintenance, storage and transportation
9.1 Cleaning
Wipe o any dirt with a soft damp cloth.
Check the outlet openings of the laser regularly, and thoroughly clean them if necessary. Do not touch
the glass with your fingers.
Do not use aggressive cleaning agents or solvents.
Do not immerse the device into water!
Clean and dry wet equipment, accessories and transport containers prior to packaging them. Only
pack equipment again when it is completely dry.
Keep plug connections clean and protected from moisture.
9.2 Storage
The equipment may only be stored within the specified temperature limits (see Chapter 3/Technical data) .
After a prolonged storage, check the accuracy of the measuring device before using it.
9.3 Transport
9.3.1 General
The device may be damaged by strong vibrations or by dropping.
Never transport the product loose. Always use the original packaging or an equivalent
transport container.
Switch o the measuring device before transporting it. During the shutdown the pendulum unit is
locked in position and protected against damage.
Check the unit for damage before use.
Regularly check the accuracy of the device (see Chapter 8/Checking the accuracy) .
9.3.2 Batteries/rechargeable batteries
When transporting or shipping batteries, the operator is responsible for complying with the applicable
national and international laws and regulations.
Before shipping, remove the batteries from the device.
