Solar Power Float 50 User manual

4. installation and commissioning
1. Roll out the connection cable on the pump completely.
2. The pond aerator can be operated in three different ways depending on
the pond depth.

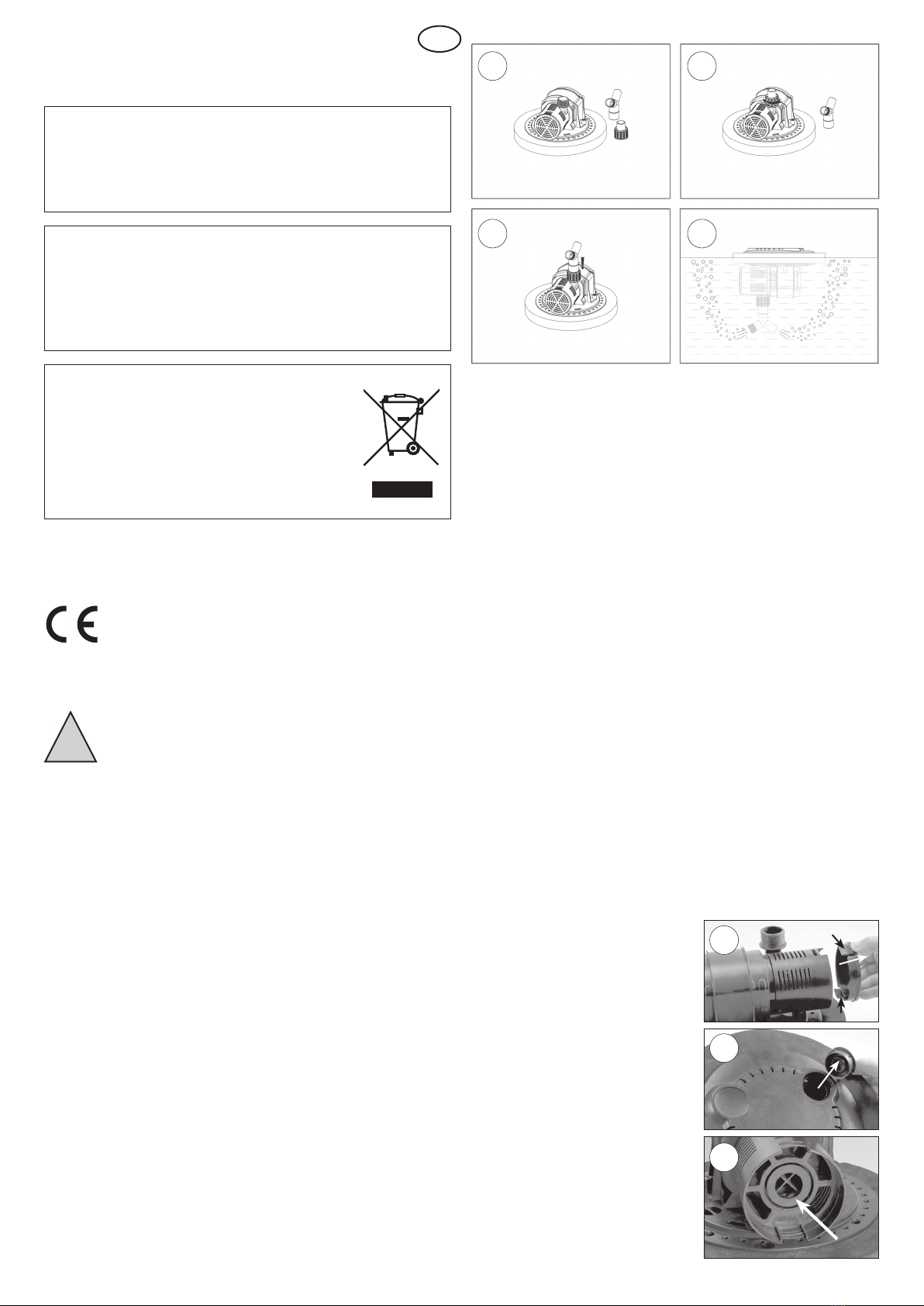

1. Possibility (pic. 1) without additional parts: Here you get the hig-
hest air flow rate. The aeration is less deep and the water circulation is
also the lowest. Especially suitable for smaller ponds.
2. Possibility (pic. 2) with thread adapter: This is the variant we
recommend. Here you get a high air flow rate in combination with a very
good water circulation. Due to the downward directed water-air jet the
pond is optimally circulated even in deeper areas.
3. Possibility (pic. 3 & 4) with threaded adapter and Y-piece: This
variant is comparable with possibility 2, but offers less deep aeration
due to the Y-piece. Thus, the pond aerator can also be used in less
deep pond zones.
3. Since the pond aerator moves on the pond surface, it can be fixed in
the pond with a cord to an eyelet on the bottom.
4. Now place the pond aerator on the water surface.
5. Now supply the pump with energy. This can be done using a solar
module included in the set. Plug the plug connection firmly together
and secure it against the ingress of water or moisture by tightening the
sealing cap.
Note: The plug is protected against reverse polarity, no force must be
used when plugging in.
Note: If the pump is supplied with power, it starts up with a delay. An
internal protective circuit first checks whether the pump is completely
immersed in water.
5. Care and maintenance
In order to maintain the performance of the pump, the pump must be
washed with warm water, depending on water contamination. Proceed as
follows:
Note: Please do not use force when
disassembling and reassembling the
pump. The parts can break easily. If
something does break, all spare parts are
available at www.esotec.de
1. Unplug the pump and remove it from
the water.
2. Remove the coarse filter by pressing
the side latches (picture 5).
3. Turn the round cover on the upper
side to the „OPEN“ position (Fig. 6)
and remove the cover. Underneath it
is the opening for air intake.
4. Now wash out the parts and the sucti-
on area of the pump under a running
tap with some pressure (Fig. 7)
5. Reassemble the pump in reverse
order.
6. Now place the pond aerator on the
water surface.
Operating Instructions
Floating pond aerator „Power Float 1000“
1. Introduction
Dear customer, we thank you for purchasing the Solar Globelight.
With this Solar Light you have purchased a product that complies with the
latest and most up-to-date technology.
This product complies with the European and National
Standards. The relevant certificates of conformity are
deposited with the manufacturer.
To preserve this standard and in order to maintain safety
you must adhere to the use instructions!
2. Security Instructions
In the event of any problems arising or damage occur-
ring from not following these instructions, the warranty
is deemed cancelled. The manufacturer will not be held
responsible for any claims or damages arising from the
misuse of this product.
- For safety reasons and in order to maintain standards (CE) you are pro-
hibited from altering or changing any component in the product.
- Please follow the instructions very carefully.
- This product is only suitable for private use!
3. Function and intended use
This floating pond aerator floats on the water surface and is supplied with
energy by a solar module or an accumulator station.
This pond aerator not only works like an air pump but is also an injector
pump (jet pump). This pump sucks in water just below the surface, through
an opening on the surface air is automatically sucked in by this negative
pressure, mixed with the water and pushed back into the pond. This results
in a particularly powerful unit which operates with high efficiency and saves
energy.
The pond aerator can be fixed in the pond with a small eyelet. The aera-
tion jet can either be directed directly perpendicular to the pond bottom or
distributed by a Y-piece.
The pumps are only designed for DC voltage, operation on AC voltage will
destroy the pump! When used with a solar module, the pumps will only
operate when sufficient sunlight hits the solar module.
To avoid damage to the pumps during the cold season, the pumps must
be removed from the water in frosty conditions.
GB
Customer support:
If you have problems or questions regarding this product, simply contact us!
esotec GmbH, Industriegebiet Weberschlag 9, D-92729 Weiherhammer
Internet: www.esotec.de Manufacturer Art.-Nr: 101855
By phone: [phone]
By e-mail for ordering spare parts: [email protected]
By e-mail for questions about the product: [email protected]
!
Disposal:
Dear customer,
please cooperate in avoiding waste. When you intend to
dispose of the product in future, please consider that it
contains valuable raw materials suited for recycling.
Therefore, do not dispose it of with domestic waste but
bring it to a collection point for the recycling of waste
electrical and electronic equipment.
Thank you very much for your cooperation!
DANGER for children! Keep children away from the swallowable small parts
(rising pipe and sprinkler) and the packaging material. There is danger of suf-
focation!
WARNING: Danger of tripping! Lay the connecting cable so that it does not beco-
me a trip hazard!
CAUTION Damage to property! If you install the solar module without the module
holder, you must ensure sufficient stability. If the module overturns or a foreign
object strikes against it, the solar module may be damaged.
5.
7.
6.
1. 2.
3. 4.

7. Reconnect it to the appropriate power source.
The pond aerator is ready again for operation.
6. Malfunctions
Pump delivers little / no air
- Clean pump according to instructions!
- Check supply line to the pump and correct connection to the solar modu-
le!
Air intake noise is very loud
- The top cover of the muffler is not completely closed?
Pump does not react/ no function
- Is the pump in the water?
- Is the operating voltage reversed?
- Wait for self-test! After applying the operating voltage, it takes a few
seconds until the pump starts up.
- Pump dirty? Clean the pump see point 5.
7. Technical data
- Operating voltage: 18 VDC
- Air volume: approx. 400 l/h
- Power consumption: approx 1,05 A
- Power consumption: approx 19 W
- Protection class: IP 68
- Protection class: III
- Cable length: 5 m
- Dimensions (D x H): 28 x 16,5 cm cm (without adapter)
- Weight: approx. 2,8 kg

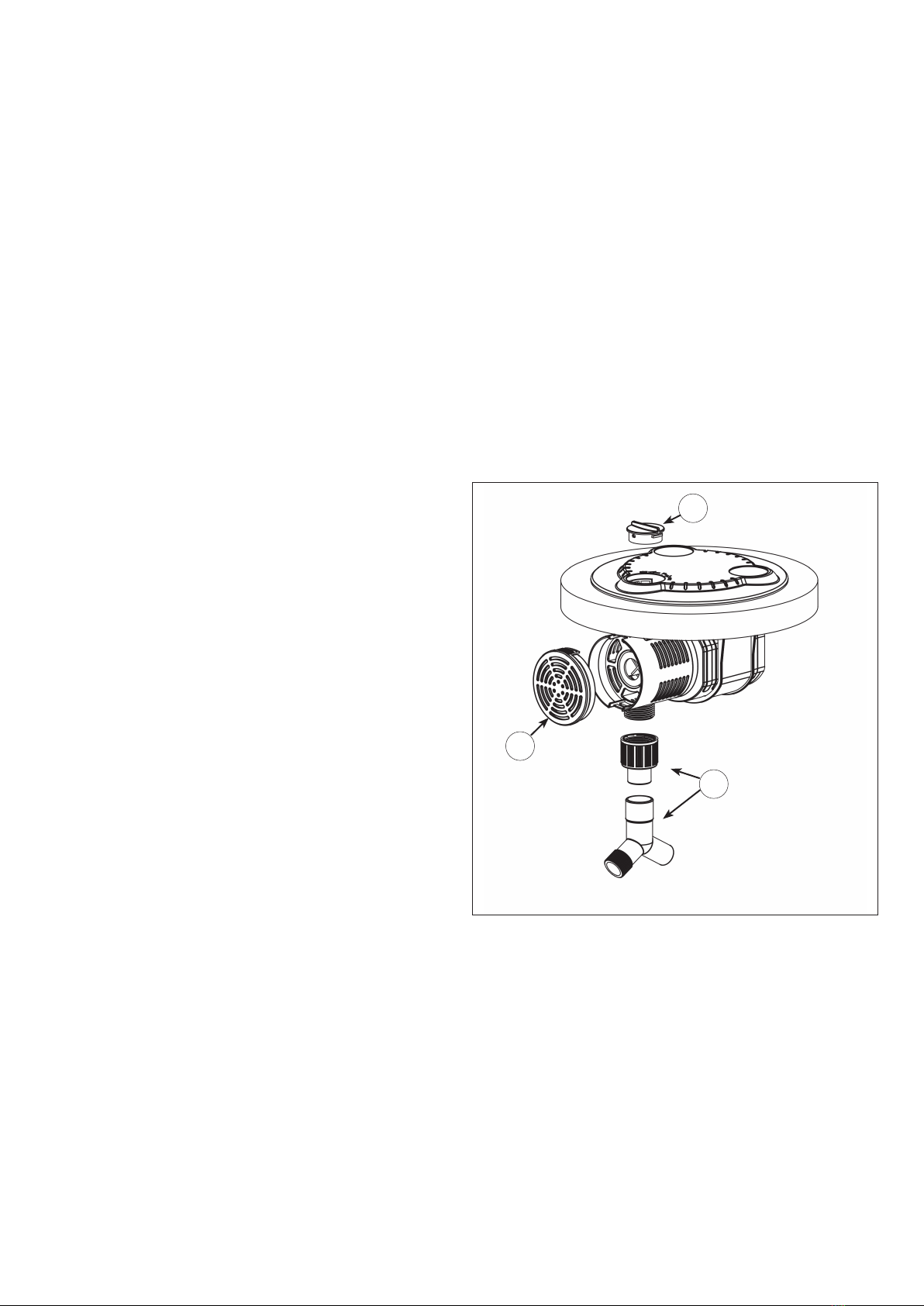

8. Spare parts
You can order all spare parts conveniently on the Internet at www.esotec.
de
1. Plastic lid. Part no.: 911212
2. Filter cover Part no.: 911215
3. Set of accessories tubes Part no.: 911216
Copyright, Subject to change without notice!
1.
2.
3.
