Gardena Easy 1887 User manual

EN Operator’s manual
Water Control
FR Mode d’emploi
Programmation d’arrosage
IT Istruzioni per l’uso
Unità di controllo per irrigazione
ES Instrucciones de empleo
Control de riego
PT Manual de instruções
Controlador de rega
EL Οδηγίες χρήσης
Σύστημα ελέγχου ποτίσματος
Easy Art. 1887
EL PT ES IT FR EN

EL PT ES IT FR EN
2

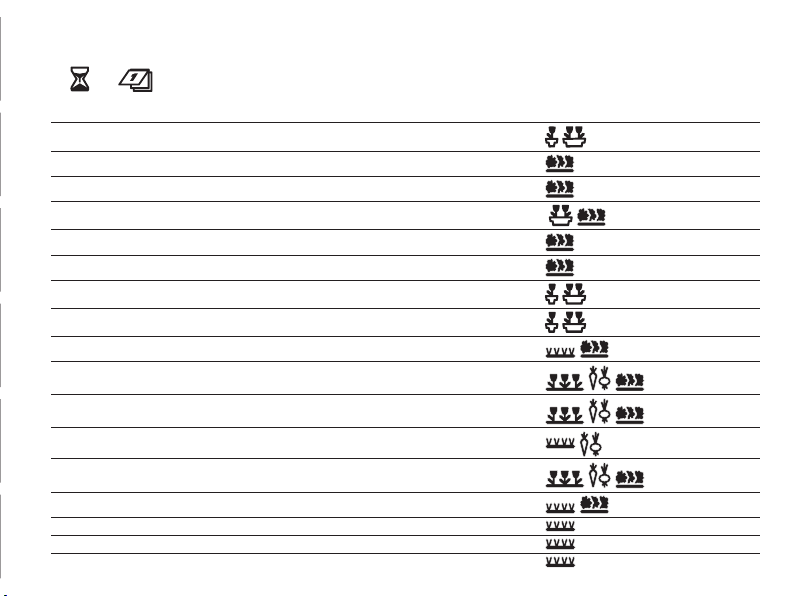

Bewässerungsart/Irrigation type/Type d'irrigation /
Tipo di irrigazione / Tipo de riego/Tipo de rega/
Τεχνητή βροχή Τύπος
Bepflanzungsart/Planting type /
Type de plantation / Tipo di piantu-
mazione/Tipo de plantación /
Tipo de plantação/Φύτευση τέχνης
1 min. 8 hrs GARDENA Micro-Drip-System
5 min. 8 hrs GARDENA Micro-Drip-System
10 min. 8 hrs GARDENA Micro-Drip-System
3 min. 12 hrs GARDENA Micro-Drip-System
5 min. 12 hrs GARDENA Micro-Drip-System
15 min. 12 hrs GARDENA Micro-Drip-System
3 min. 24 hrs GARDENA Micro-Drip-System
5 min. 24 hrs GARDENA Micro-Drip-System
10 min. 24 hrs GARDENA Micro-Drip-System, GARDENA Sprinklersystem
15 min. 24 hrs GARDENA Micro-Drip-System
30 min. 24 hrs GARDENA Micro-Drip-System
45 min. 24 hrs GARDENA Sprinklersystem
10 min. 48 hrs GARDENA Micro-Drip-System
30 min. 48 hrs GARDENA Micro-Drip-System, GARDENA Sprinklersystem
60 min. 48 hrs GARDENA Sprinklersystem
30 min. 72 hrs GARDENA Sprinklersystem
60 min. 72 hrs GARDENA Sprinklersystem
Bewässerungsempfehlungen/Irrigation recommendations /Recommandations d'irrigation /
Raccomandazioni di irrigazione/Consejos de riego/Conselhos de rega/Συστάσεις άρδευσης
2

3x
Green
= OK
Ø 26,5mm G3/4"
+ Ø 33,3mm G1"
D
ABC
E
1x 9V
1x
2x
...
23x
= 1hr
= 2hrs
...
= 23hrs
Red LED
= Low
Water Now
30 min
1.
2. 3.
Run Time
Frequency
3

GARDENA Water Control Easy
Translation of the original instructions.
For safety reasons, children and young
people under 16 as well as anyone who is
not familiar with these operating instruc-
tionsshould not use the product. Persons with
reduced physical or mental abilities may use the
product only if they are supervised or instructed by
a responsible person. Children must be supervised
to ensure that they do not play with the product.
Never operate the product when you are tired, ill or
under the influence of alcohol, drugs or medicine.
Intended use:
The GARDENA Water Control is intended for private
use in domestic and hobby gardens, exclusively
for outdoor use, to control sprinklers and watering
systems. The Water Control can be used for auto-
matic watering during holidays.
DANGER! The GARDENA Water Control must
not be used for industrial purposes or in
conjunction with chemicals, foodstuffs, easily
flammable and explosive materials.
EN
4

1. SAFETY
Important!
Read the operator’s manual carefully before use
and keep for future reference.
Battery:
To ensure the Water Control runs safely,
only a 9V alkaline manganese battery
(alkaline) type IEC 6LR61 must be used!
In order to stop the Water Control from failing
because of a weak battery if you are away for
a long time, the battery must be replaced when
the LED flashes red.
Setting up:
The Water Control may only be set up vertically
with the sleeve nut to the top to prevent water
penetrating into the battery compartment.
The minimum water output to ensure that the
Water Control functions correctly is 20 – 30 l/h.
For example, at least 10 x 2-litre Drip Heads are
required to control the Micro-Drip-System.
The max. temperature for the water flow is
40 °C.
Avoid tensile strain.
vDo not pull the hose connected to the
Water Control.
CAUTION! If the control section is
removed when the valve is open, the
valve remains open until the control section
is reattached.
DANGER! Cardiac arrest!
This product makes an electromagnetic
field while it operates. This field may under some
conditions interfere with active or passive medical
implants. To decrease the risk of conditions that
can possibly injure or kill, we recommend persons
with medical implants to speak with their physician
and the medical implant manufacturer before you
operate the product.
DANGER! Risk of suffocation!
Small parts can be easily swallowed. There
is also a risk that the polybag can suffocate tod-
dlers. Keep toddlers away when you assemble the
product.
5
EN

2. INITIAL OPERATION v(Fig. A–C)
3. FUNCTION AND SETTING
4. MAINTENANCE v(Fig. D)
5. STORAGE
To put into storage:
vThe product must be stored away from
children.
vTo preserve the battery, it should be
removed (Fig. B).
vStore the controller and the valve unit in
a dry, enclosed and frost-free place.
Disposal: (in accordance with RL2012/19/EC)
The product must not be disposed of to
normal household waste. It must be dis-
posed of in line with local environmental
regulations.
IMPORTANT!
Dispose of the product through or via your
municipal recycling collection centre.
Disposal of the battery:
vPlease return a flat battery to a GARDENA dealer
or dispose of it properly at your nearest recycling
centre.
Dispose of the battery only when discharged.
v (Fig. E)
Once the duration and frequency have been set,
the values will be applied 5 seconds later. The
green LED will flash three times to confirm this.
The first watering operation commences. This will
be the watering start time from now on. If you want
watering to commence later than this, press the
+1h button repeatedly within the 5-second time
window until the desired start time has been set.
A video of the
commissioning
and setting
processes is
available here:
6
EN

6. TROUBLESHOOTING
Problem Possible Cause Remedy
Manual watering is
not possible using
the button
Low battery is continuously displayed:
LED next to start delay lights up red.
vInsert a new (alkaline) battery.
Tap is turned off. vTurn the tap on.
Controller is not connected. vMount the controller on housing.
Watering program is
not being undertaken
(no watering)
Program entry/modification during or
just before the start pulse.
vMake program entry/modifi-
cation outside the programmed
start times.
Valve was opened manually previously. vAvoid possible program over-
laps.
Tap is turned off. vTurn the tap on.
Controller is not connected. vMount the controller on housing.
Low battery is continuously displayed:
LED next to start delay lights up red.
vInsert a new (alkaline) battery.
Minimum pressure of 0.5 bar not
available.
vEnsure a pressure of at least
0.5bar.
Water Control does
not close
Minimum quantity of water drawn is
less than 20 l/h.
vConnect more drip heads.
Valve soiled. v Flush in the opposite direction to
the normal flow direction.
7
EN

7. TECHNICAL DATA
8. ACCESSORIES
Water Control Value / Unit
Min./max. operating
pressure 0.5 bar /12 bar
Operating temperature
range 5 °C to 50 °C
Flow medium Clear fresh water
GARDENA Anti-theft device Art.1815-00.791.00 from the GARDENA Service
Water Control Value / Unit
Max. liquid temperature 40 °C
Battery required 1 x 9V alkaline
manganese
Typ IEC 6LR61
Operating time of the
battery
approximately
1 year
NOTE: For any other malfunctions please contact the GARDENA service department.
Repairs must only be done by GARDENA service departments or specialist dealers
approved by GARDENA.
8
EN

9. SERVICE/WARRANTY
Service:
Please contact the address on the back page.
Warranty:
In the event of a warranty claim, no charge is levied
to you for the services provided.
GARDENA Manufacturing GmbH offers a 2-year
warranty for this product (from the date of pur-
chase) if the product has been used exclusively for
private purposes. This manufacturer’s warranty
does not apply to used products purchased from
a secondary market. This warranty includes all
significant defects of the product that can be
proved to be material or manufacturing faults. This
warranty is fulfilled by supplying a fully functional
replacement product or by repairing the faulty
product sent to us free of charge; we reserve the
right to choose between these options. This
service is subject to the following provisions:
• The product was used for its intended purpose
as per the recommendations in the operating
instructions.
• Neither the purchaser nor a third party has
attempted to repair the product.
• Only original GARDENA spare and wear parts
were used.
Normal wear and tear of parts and components,
optical changes, as well as wear parts and con-
sumables, are excluded from the warranty.
This manufacturer’s warranty does not affect
warranty entitlements against the dealer/retailer.
If problems arise with this product, please con-
tactour Service department. In the event of a war-
ranty claim, please send the defective product
together with a copy of the purchase receipt and
a description of the defect, sufficiently stamped, to
the GARDENA service address on the back page.
Consumables:
Faults which occur as a result of incorrectly
installed or leaking batteries are not covered by
the guarantee.
Damage caused by frost is not covered by the
warranty.
9
EN

EN Product liability
In accordance with the German Product Liability Act,
we hereby expressly declare that we accept no liability
for damage incurred from our products where said pro-
ducts have not been properly repaired by a GARDENA-
approved service partner or where original GARDENA
parts or parts authorised by GARDENA were not used.
FR Responsabilité
Conformément à la loi relative à la responsabilité du fait
des produits défectueux, nous déclarons expressément
par la présente que nous déclinons toute responsabilité
pour les dommages résultant de nos produits, si lesdits
produits n’ont pas été correctement réparés par un par-
tenaire d‘entretien agréé GARDENA ou si des pièces
d’origine GARDENA ou des pièces agréées GARDENA
n’ont pas été utilisées.
IT Responsabilità del prodotto
In conformità con la Legge tedesca sulla responsabilità
del prodotto, con la presente dichiariamo espressa-
menteche decliniamoqualsiasi responsabilità per danni
causati dai nostri prodotti qualora non siano stati cor-
rettamenteriparati presso un partner di assistenza
approvato GARDENA o laddove non siano stati utilizzati
ricambi originali o autorizzati GARDENA.
ES Responsabilidad sobre el producto
De acuerdo con la Ley de responsabilidad sobre pro-
ductos alemana, por la presente declaramos expresa-
mente que no aceptamos ningún tipo de responsabilidad
por los daños ocasionados por nuestros productos si
dichos productos no han sido reparados por un socio
de mantenimiento aprobado por GARDENA o si no se
han utilizado piezas originales GARDENA o piezas
autorizadas por GARDENA.
PT Responsabilidade pelo produto
De acordo com a lei alemã de responsabilidade pelo
produto, declaramos que não nos responsabilizamos por
danos causados pelos nossos produtos, caso os tais
produtos não tenham sido devidamente reparados por
um parceiro de assistência GARDENA aprovado ou se
não tiverem sido utilizadas peças GARDENA originais ou
peças autorizadas pela GARDENA.
EL Ευθύνη προϊόντος
Σύμφωνα με τον γερμανικό νόμο περί Ευθύνης για τα
Προϊόντα, με το παρόν δηλώνουμε ρητώς ότι δεν απο-
δεχόμαστε καμία ευθύνη για τυχόν ζημίες που προκύ-
πτουν από τα προϊόντα μας εάν αυτά δεν έχουν επι-
σκευαστεί σωστά από κάποιον εγκεκριμένο συνεργάτη
επισκευών της GARDENA ή εάν δεν έχουν χρησιμοποι-
ηθεί αυθεντικά εξαρτήματα GARDENA ή εξαρτήματα
εγκεκριμένα από την GARDENA.
40
