Solaris mozart User manual

USER MANUAL
TMB 24/7 Technical Support
US/Canada: +1 818.794.1286
Toll Free: 1 877.862.3833 (877.TMB.DUDE)
UK: +44 (0)20.8574.9739
Toll Free: 0800.652.5418
e-mail: [e-mail]

Solaris Mozart user manual version 2.0 122216
- 2 -
TABLE OF CONTENTS
1. INTRODUCTION ............................................................................................................................................3
PRODUCT OVERVIEW ...................................................................................................................................3
UNPACKING INSTRUCTIONS...........................................................................................................................3
POWER REQUIREMENTS...............................................................................................................................3
SAFETY INSTRUCTIONS.................................................................................................................................3
FUSE REPLACEMENT (PSU) .........................................................................................................................4
MOUNTING/RIGGING (10-WAY PSU)………………………………………………………. ................................4
2. SETUP............................................................................................................................................................5
DMX CONNECTOR CONFIGURATION FOR MOZART 10-WAY PSU....................................................................5
SETTING UP A DMX SERIAL LINK..................................................................................................................6
FIXTURE LINKING..........................................................................................................................................6
3. OPERATING INSTRUCTIONS.......................................................................................................................7
PIXEL MAP...................................................................................................................................................7
INTERNAL ADDRESS SET...............................................................................................................................8
RDM.........................................................................................................................................................10
SENSORS...................................................................................................................................................10
4. APPENDIX....................................................................................................................................................11
RDM FUNCTIONALITY.................................................................................................................................11
GENERAL MAINTENANCE ............................................................................................................................11
LIMITED WARRANTY ...................................................................................................................................11
RETURN PRODECURE.................................................................................................................................12
MOZART FIXTURE TECHNICAL SPECIFICATIONS............................................................................................13
MOZART 10-WAY PSU TECHNICAL SPECIFICATIONS....................................................................................14

Solaris Mozart user manual version 2.0 122216
- 3 -
1. Introduction
PRODUCT OVERVIEW
The Solaris Mozart is an extremely versatile and creative pixel-mapping and decorative lighting tool that can
be placed almost anywhere. Blazing fast (38,400Hz), with Cree™LEDs, Mozarts are ideal for high-speed
photography and video. Modes include 1, 4, or 16 pixels (3 to 48 DMX channels) per fixture.
The 10-way power supply in a rugged ProPlex Mini enclosure is designed for portable use or truss-mounting
with yoke included. Coming soon is the 40-way 2U RackMount power supply which supports DMX, RDM,
ArtNet, and sACN protocols. It features a large front-panel touchscreen, and a dedicated PC configuration
utility.
•Great for low weight load-bearing structures and surfaces.
•Approx. 11,000 NITS! Brighter than nearly all outdoor LED walls!
•Rain and dust resistant IP65 enclosure – use in all environments!
•Ultra-high refresh rate – 38,400Hz! Great for high-speed photography and videography.
•Single cable, simple power-data connections, daisy-chain or split – location flexibility.
•Extremely compact and lightweight – 4.7 x 43.7 inches. Only 1 ¼ lb.
•Easy remote addressing and mode switching via RDM
UNPACKING INSTRUCTIONS
Upon receipt of the fixture, carefully unpack the carton and check the contents to ensure that all parts are
present and in good condition. Notify the shipper immediately and retain packing material for inspection if
any parts appear to be damaged from shipping or if the carton itself shows signs of mishandling. Save the
carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that
the fixture be returned in the original factory box and packing.
POWER REQUIREMENTS
Before powering the unit, make sure the line voltage is within the range of accepted voltages. This fixture
accommodates 100-240VAC, 50/60Hz. All fixtures must be powered directly from a switched circuit and
cannot be operated with a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0-100% switch.
When powered up, Solaris performs a preprogrammed internal test. On initial power-up the factory default
DMX address appears on the display screen and Solaris is ready for operation. After initial power-up, the
last-saved DMX address will appear.
SAFETY INSTRUCTIONS
•Please keep this User Guide for future reference. If unit is sold to another user, make sure they also
receive this instruction booklet.
Please read these instructions carefully. This user guide
contains important information about the installation, usage
and maintenance of this product.

Solaris Mozart user manual version 2.0 122216
- 4 -
•Ensure fixture is connected to proper voltage, and that line voltage is not higher than that stated on the
fixture.
•Make sure there are no flammable materials close to the unit while operating.
•Always disconnect from the power source before servicing or fuse replacement. Always use the fuse
specified in this manual..
•Always use a safety cable when hanging fixture overhead.
•Maximum ambient temperature (Ta) is 40°C (104°F). Do not operate fixture at temperatures above this
rating.
•In the event of a serious operating problem, stop using the unit immediately. Repairs must be carried
out by trained, authroized personnel. Conact the nearest authorized technical assistance center. Only
OEM spare parts should be used.
•Do not connect the device to a dimmer pack.
•Make sure power cord is never crimped or damaged.
•Never disconnect power cord by pulling or tugging on the cord.
•Avoid direct eye exposure to the light source during operation.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact your
distributor.
FUSE REPLACEMENT
The Mozart 10-way PSU uses a 6A, 250V, slow-blow, 5x20mm (0.2x0.8 in.) fuse. Mozart fixtures have no
fuse. To replace fuse:
1. With a screwdriver turn the fuse cap counter-clockwise to remove fuse cap with fuse.
2. Replace fuse attached to fuse cap.
3. Reinsert fuse cap with new fuse and tighten clockwise.
MOUNTING/RIGGING –MZ10 PSU 10-WAY,MINI ENCLOSURE
Orientation
The Mozart MZ10 PSU 10-way may be mounted on truss or pipe, in any position, using the yoke supplied
with the unit. Always make sure there is adequate room for ventilation.
Rigging – Always consult a certified rigging engineer before suspending any fixture
overhead!

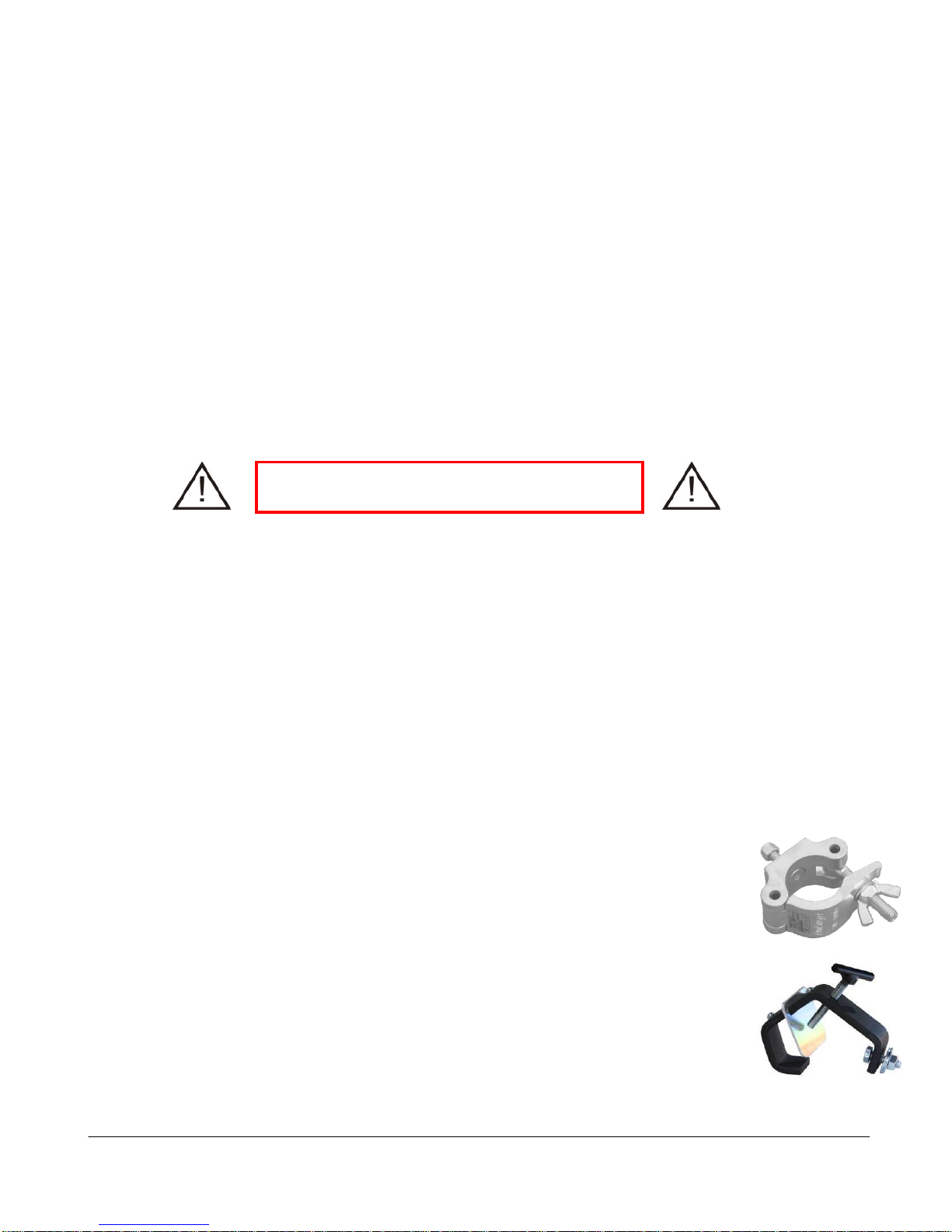

Use ProBurger®couplers or equivalent C- or O-type clamps for attaching to truss. After
establishing the desired position, retighten both knobs.
•Always use safety cables!
•When selecting installation location, consider routine maintenance.
•Never mount Mini enclosure where it will be exposed to moisture, high humidity,
extreme temperatures, or restricted ventilation.
Disconnect the power cord before replacing a
fuse and always replace with the same type fuse.

Solaris Mozart user manual version 2.0 122216
- 5 -
2. Setup
A DMX data link is needed to run light shows of one or more fixtures using a DMX-512 lighting
console. The combined number of channels required by all of the fixtures on the DMX data link will
determine the number of fixtures the DMX data link can support.
Important: Fixtures on a DMX data link must be daisy-chained in one single line. To comply with the
EIA-485 standard, no more than 32 devices should be connected on one data link. Connecting more
than 32 fixtures on one serial data link without the use of a DMX optically isolated splitter may result
in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance between fixtures: 300 meters (984 ft.)
DMX CONNECTOR CONFIGURATION FOR MOZART 10-WAY PSU
Do not allow contact between the common and the fixture’s chassis
ground. Grounding the common can cause a ground loop, and your
fixture may perform erratically. Test cables with an ohm meter to verify
correct polarity and to make sure the pins are not grounded or shorted
to the shield or each other.

Solaris Mozart user manual version 2.0 122216
- 6 -
SETTING UP A DMX SERIAL LINK
1. Connect the (male) 5-pin connector side of the DMX cable to the output (female) 5-pin connector of the
DMX console.
2. Connect the opposite end of the cable (female) to the input connector of the Mozart PSU consisting of a
(male) 5-pin connector.
3. Proceed to connect from the PSU output as stated above to the input of the following PSU and so on.
4. Continue linking until the last fixture is conected in your DMX chain.

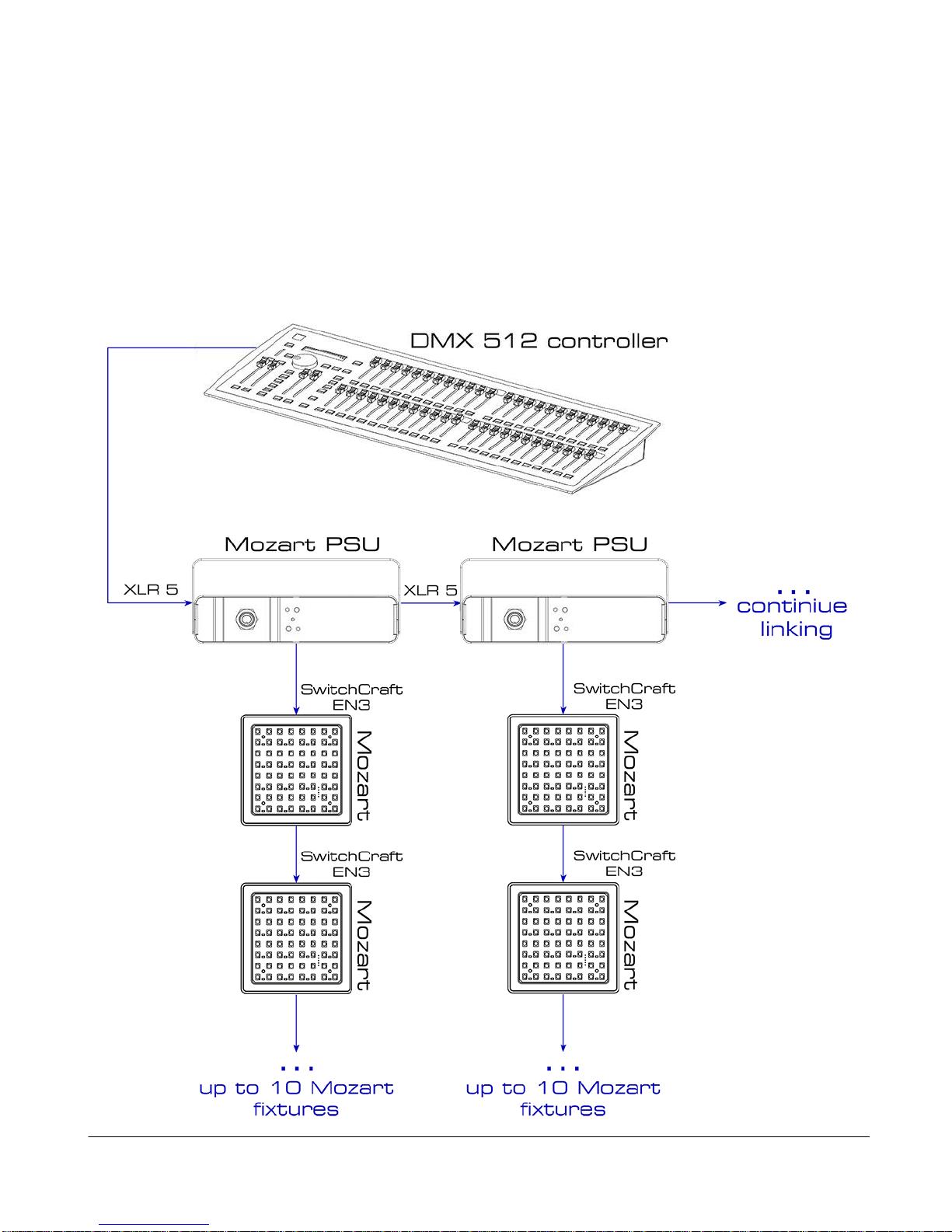

FIXTURE LINKING

Solaris Mozart user manual version 2.0 122216
- 7 -
3. Operating instructions
PIXEL MAP
Mozart consists out of 64 RGB 1 chip engines which are located in 8 rows and 8 columns.
There are 3 control modes for Solaris Mozart fixtures:
1) As 1pixel unit (3channel mode)
2) As 4pixel unit (12 channel mode)
3) As 16 pixel unit (48 channel mode)
You can only change these modes using the RDM protocol and an RDM enabled controller.
•RDM Mode 1
•RDM Mode 2
•RDM Mode 3

Solaris Mozart user manual version 2.0 122216
- 8 -
INTERNAL ADDRESS SET
The Mozart 10-way power supply must be addressed via RDM.
To set the address for Mozart fixtures, first set the starting address for the Mozart 10-way powersupply .
To set the fixture address of Mozart fixtures (1-10), follow these steps:
Press and hold <Address set> button located at the back of the Mozart.
The current internal addressing number will appear (1-10).
To change this number, press <Address set> button. The next addressing number will appear. Repeat until
the desired fixture number is shown on the tile
Rendering of numbers from 1-10 shown on Mozarts LEDs:

Solaris Mozart user manual version 2.0 122216
- 9 -
Using a starting address of DMX
1 on the 10-way PSU, this chart
is an example of the Mozart
fixture addresses.

Solaris Mozart user manual version 2.0 122216
- 10 -
RDM
Using RDM you also have an option to locate the device. This will force selected Mozart to strobe its
sequence number in white.
SENSORS
Mozart has 3 sensors:
•Temperature sensor
•Bus current sensor
•Main voltage sensor
Bus current and main voltage values can be seen only using RDM compliant lighting control device (for
example, ProPlex®MasterFade).
To see current temperature of Mozart, press "Address set" button located at the back of fixture.
If Mozarts temperature is below or equal 40°C (104°F), one green pixel (4 LEDs) will appear as shown:
Mozart’s temperature is indicated by the number of illuminated pixels: i.e., one pixel equals 2.5°C increase.
In addition, as Mozart’s temperature increases, more red pixels are illuminated. At 60°C (140°F) the fixture
is prompted to slowly decrease the LEDs’ output intensity to reduce the temperature of fixture.
For example, the diagram below shows the current temperature of a Mozart that is 60°C (40°C base pixel
and 8 additional pixels):

Solaris Mozart user manual version 2.0 122216
- 11 -
4. Appendix
RDM FUNCTIONALITY
Mozart power supplies have RDM Functionality. Below are the RDM functions available in these devices.
TMB has many options for RDM control of your devices: ProPlex RDMigo and IQ RDM Manager Software;
ProPlex Striker; and ProPlex MasterFade. Additionally, ProPlex RDM Opto-Splitters and the ProPlex IQ
product range offer many means of RDM over DMX data distribution.
Main
Display
Voltage (V)
Current (A)
Mode
Display invert
Present value
Present value
DMX address
Display level
Highest value
Highest value
RDM version
Lowest value
Lowest value
Software version
GENERAL MAINTENANCE
To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage and
environment are contributing factors in determining frequency. As a general rule, fixtures should be
cleaned at least twice a month. Dust build up reduces light output performance and can cause
overheating. This can lead to reduced lamp life and increased mechanical wear. Be sure to disconnect
power to the fixture before conducting maintenance.
Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust
collected on external vents and internal components. Clean all glass when the fixture is cold with a mild
solution of glass cleaner or Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue. Apply solution to
the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish optical surfaces until they
are free of haze and lint.
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. Clean
with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics
at least every 20 days. Clean the internal optics at least every 30 to 60 days.
LIMITED WARRANTY
Solaris LED fixtures (the Product) are warranted by TMB against defective materials or workmanship
for a period of two (2) years from the date of original sale by TMB.
TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective
and for which a claim is submitted to TMB before the expiration of the applicable warranty periods.
This Limited Warranty is void if the defects of the Product are the result of:
•Opening the casing, repair, or adjustment by anyone other than TMB or persons specifically
authorized by TMB
•Accident, physical abuse, mishandling, or misapplication of the product.
•Damage due to lightning, earthquake, flood, terrorism, war, or act of God.

Solaris Mozart user manual version 2.0 122216
- 12 -
TMB will not assume responsibility for any labor expended, or materials used, to replace and/or repair
the Product without TMB’s prior written authorization. Any repair of the Product in the field, and any
associated labor charges, must be authorized in advance by TMB. Freight costs on warranty repairs
are split 50/50: Customer pays to ship defective product to TMB; TMB pays to ship repaired product,
ground freight, back to Customer.
This warranty DOES NOT cover consequential damages or costs of any kind.
A Return Merchandise Authorization (RMA) Number must be obtained from TMB prior to return of any
defective merchandise for warranty or non-warranty repair. For all repairs please contact TMB Tech
Support Repair using the contact information below or email [e-mail].
527 Park Ave., San Fernando, CA 91340
Tel: [phone]
Fax: [phone]
tmb-inf[email protected]om
www.tmb.com
RETURN PROCEDURE
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products
returned without an RMA # will be refused. Please contact TMB and request RMA # prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause for
the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is
the customer’s responsibility. TMB reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA #, please include the following information on a piece of paper inside
the box:
1) Your name
2) Your address
3) Your phone number
4) The RMA #
5) A brief description of the symptoms

Solaris Mozart user manual version 2.0 122216
- 13 -
MOZART RGB FIXTURE –TECHNICAL SPECIFICATION
DIMENSIONS / WEIGHT
Length................................................................................................................................4.7 in / 119 mm
Width....................................................................................................................................1.8 in / 45 mm
Height ................................................................................................................................4.7 in / 119 mm
Weight .................................................................................................................................1.25 lb / 565 g
POWER
Operating voltage ..........................................................................................................................24V DC
Power consumption..........................................................................................................20W @ full load
DMX/ power connectors ........................................................................................Amphenol Sensor M12
LIGHT SOURCE
LEDs....................................................................................................................... 64 Cree LMC-E LEDs
Colors .................................................................................................................................................RGB
Beam spread ..................................................................................................................................... 120°
Refresh reate .............................................................................................................................38,400Hz
Average Color Wavelenght.................................................................................................red: 625 nm
green: 530 nm
blue: 460 nm
THERMAL
Max ambient temperature................................................................................................................ +40°C
Min. ambient temperature.................................................................................................................-20°C
Cooling ................................................................................................................................ Conventional
IP rating .............................................................................................................................................IP 65
CONTROL & PROGRAMMING
Control .....................................................................................................................DMX-512A with RDM
Color dimming control.............................................................................................................16bi or 8 bitt
Pixel modes................................................................................................................................... 1, 4, 16
DMX Channels .........................................................................3, 12, 48 (based on selected pixel mode)
Color dimming control........................................................................................................................16 bit
DMX/ power connectors ........................................................................................Amphenol Sensor M12

Solaris Mozart user manual version 2.0 122216
- 14 -
MOZART MZ10, 10-WAY PSU –TECHNICAL SPECIFICATION
DIMENSIONS / WEIGHT
Depth .............................................................................................................................. 8.75 in / 222 mm
Width............................................................................................................................... 7.25 in / 186 mm
Height (with yoke)...................................................................................................................3 in / 76 mm
Weight .....................................................................................................................................5 lb / 2.3 kg
POWER
AC power IN ...............................................................................................................................100-240V
AC power IN connector .......................................................................................................user specified
Power consumption.................................................................................... 200W max. (with 10 Mozarts)
DMX/ power OUT connector .................................................................................Amphenol Sensor M12
DC power OUT ...................................................................................................................................24V
THERMAL
Operating temperature ................................................................................-4° to +104°F / -20° to +40°C
Cooling ................................................................................................................................... Convection
IP rating …………………………………………………………………………………………………………IP20
CONTROL & PROGRAMMING
Control ........................................................................................................................DMX-512 with RDM
DMX Channels ............................................................................................................................ 3, 12, 48
DMX input................................................................................................. locking 5-pin XLR male socket
DMX output for further linking ................................................................locking 5-pin XLR female socket
DMX output for Mozart ..........................................................................................Amphenol Sensor M12
DMX output for Mozart ..................................................................................................................10 max.
10-WAY PSU – inches [mm]
