1 About this operating manual
1.1 Scope
This operating manual describes the operation, troubleshooting, and maintenance pro-
cesses for the inverters SM330TS-SV, SM360TS-SV (TS-SV inverter) and their control
unit TS-SV Master Control Unit (MCU).
1.2 Target group
This operating manual is written for the operator of the PV system and the qualied
electrician.
1.3 Where to keep this manual
The system operator must ensure that this operating manual is available to those respon-
sible for the system at all times. If this original document is lost, an up-to-date version of
the operating manual can be downloaded from our website (www.solarmax.com).
1.4 Symbols used in this manual
From time to time you will see the following symbols when reading this operating manual:
DANGER
This symbol indicates that ignoring this instruction can lead directly to serious
injury or death.
CAUTION
This symbol indicates that ignoring this instruction can lead to damage to your
inverter or your PV power plant.
NOTE
This symbol indicates information which is especially important for operating
the inverter.

52
en
2 Safety instructions
DANGER
■ In daylight the PV generator supplies the inverter with a dangerously high DC
voltage.
■ SolarMax inverters and accessories may only be installed or opened by qualied
electricians who have completely read and understood this instruction manual in
advance.
■ Only qualied electricians who have already completely read and understood this
instruction manual in advance may install and open SolarMax inverters.
■ Ignoring the installation and safety instructions shall cancel any and all warranty
and liability claims.
■ Touching live parts is life-threatening.
■ The inverters and accessories must not be opened at any time during operation.
■ Before the inverter or the MCU is opened, the DC and AC feed lines must be dis-
connected according to the instructions and secured against being reconnected
accidentally.
■ After disconnecting the inverter wait at least 5 minutes before opening the device
to permit internal capacitors to discharge.

53
3 Description
All SolarMax inverters work completely automatically. The DC and AC power switches
(Q4-Q6 and Q1-Q3) as well as the main switch (Q7) are always on during normal opera-
tion. The inverter starts when there is enough input power and continues to operate until
the available input power from the PV generator drops below the necessary minimum.
The inverter is operated using the external master control unit (MCU). The MCU controls
the connected inverters and is also the communications and user interface.
3.2 Operating elements
The following section describes the operating elements of the TS-SV inverter and the
master control unit (MCU).

54
en
3.2.1 Inverter
Legend:
1AC power switch Q1 4DC power switch Q4
2AC power switch Q2 5DC power switch Q5
3AC power switch Q3 6DC power switch Q6
1 42 53 6

55
3.2.2 Master Control Unit (MCU)
Legend:
1Main switch Q7 4Status LED
2Graphics display 5Lock
3Push-buttons
1
5
2
3
4

56
en
4 Operation
The inverter is operated using the external MCU. The MCU allows all the connected invert-
ers to be operated simultaneously, only the DC and AC power switches must be operated
directly on the respective inverter.
For all other functions described below the MCU is the shared interface for all the con-
nected inverters.
4.1 How the main switch works
When you switch off the main switch Q7, turning it to the OFF position, the inverter opens
the contacts of the AC protections K1, K2 and K3. This disconnects the inverter from the
mains.
DANGER
If you switch the main switch Q7 to the OFF position, the inverter’s components are
still live! This includes the 3 power units and the lters on the input end!
4.2 How the DC and AC power switches work
The DC power switches Q4, Q5 and Q6 are used to connect or disconnect the direct
current of the PV plant to the inverter. The AC power switches Q1, Q2 and Q3 connect or
disconnect the inverter to or from the mains. The DC as well as the AC power switches
are equipped with thermomagnetic overcurrent fuses.
DANGER
Even when the DC and AC power switches are switched off, the connections for the DC
and AC feed lines in the inverter are still live!

57
4.3 Switching on the inverter
Procedure
Action Reaction
1. Switch off main switch Q7
(to “OFF” position)
2. Switch on DC power switch Q4, Q5 & Q6
(to “ON” position)
The graphics display is activated after a
maximum of 20 seconds (if there is enough
sunlight).
3. Switch on AC power switch Q1, Q2 & Q3
(to “ON” position)
4. Switch on main switch Q7
(to “ON” position)
After several seconds the Overview menu is
displayed. The message “Startup....” appears
in the “Status” line. The status LED blinks
green.
When the connected inverters have been
started up and are feeding power into the
mains, indicates the device status “Mains
operation”. The status LED glows green.
NOTE
■ When the inverters are commissioned the “Initial Setup” menu appears rst,
during subsequent start-ups the “Overview” menu; see the installation manual.
■ If several inverters are connected to one MCU steps 2 and 3 must be performed
for each inverter before the main switch Q7 switches on the whole system (step 3).

58
en
4.4 Switching off the inverter
DANGER
■ Even when the inverter is switched off, the connections for the DC and AC feed
lines in the inverter remain live!
■ Before the inverter or the MCU is opened, the DC and AC feed lines must be dis-
connected according to the instructions and secured against being reconnected
accidentally.
■ After disconnecting the inverter wait at least 5 minutes before opening the device
to permit internal capacitors to discharge.
Procedure
Action Reaction
1. Switch off main switch Q7
(to “OFF” position)
Message on the graphics display is: “Main
switch off”. The device disconnects from the
mains.
2. Switch off AC power switch Q1, Q2 & Q3
(to “OFF” position)
3. Switch off DC power switch Q4, Q5 & Q6
(to “OFF” position)
After a short time the graphics display of the
MCU is shut down.
NOTE
Steps 2 and 3 must be repeated for each inverter connected to the MCU.

59
4.5 Operating the graphics display
The graphics display on the front of the MCU shows the system dimensions, status infor-
mation and the malfunction messages of the connected inverters. The display allows you
to learn the current device status, access the integrated data logger and enter various
system settings. Navigate the various menus using the three push-buttons under the
display.
Since the MCU is supplied with power both from the DC end and the AC end, it is also
possible to use the MCU functions at night or when the DC end is shut down. However,
the inverters connected to the MCU only deliver data and measured values if the inverters
are in operation (when there is enough power from the DC end).
To the left of the graphics display there is a status LED indicating the device status, see
7.1 “Status messages and status LED”.
4.5.1 Menu button symbols
With the help of the symbols shown here you can navigate the various menus and func-
tions visible in the display. The current button function changes from one menu to the
next, corresponding to the symbol appearing directly over the button:
Symbol Function
Scroll up, increase number or next element
Scroll down, or previous element
Back to higher level menu
Select next number
Display selected submenu or conrm changes
Launch edit mode for selection
Abort

60
en
4.5.2 Menu structure

61
4.5.2.1 Main menu

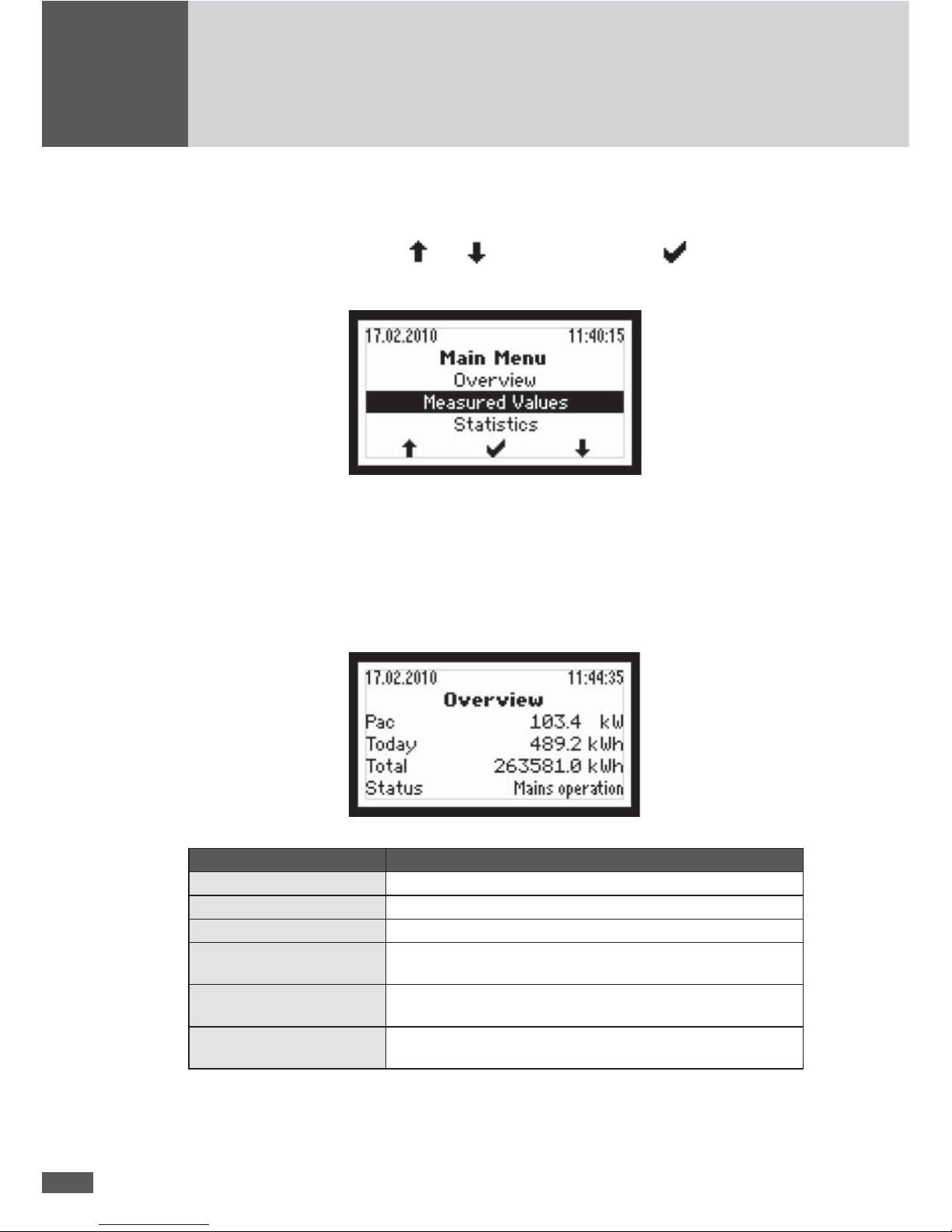

The main menu is the starting point for all the submenus and displays, see 4.5.2 “Menu
structure”. Use the arrow keys and to select a menu. Click to conrm your
selection.
4.5.2.2 Overview
If none of the three buttons is pushed for 120 seconds, the display returns automatically
to the Overview menu which shows the three most important values as well as the current
operating status of the system (all the inverters connected to the MCU).
Operating parameters Description
17.02.2010 (example) Current date
11:44:35 (example) System time
Pac Momentary effective output
Today Total energy fed into the mains on the current date and as of the
momentary time.
Total Total energy fed into the mains since the inverter’s
commissioning.
Status For status messages and warnings of the system, see 7 “Operat-
ing status” and 8.2.2 “Warnings”.
4.5.2.3 Measured values

62
en
The “Measured values” menu allows the display of currently measured values in relation
to the system or the power unit selected.
NOTE
■ The number of power units listed in the “Measured values” menu depends on the
number of inverters connected to the MCU.
■ Three power units are displayed per inverter.
■ The numbering of the power units follows the addresses allocated to the power
units at the time of the installation (see Installation Manual).
Use the button to highlight a category. Select a category by pressing the button.
In each case only four measured values are displayed at the same time.
Use the arrow buttons and to navigate the measured values. Press the left button
to return to the Main menu.

63
The following measured values can be accessed for the system:
Measured value Description
Vdc DC Input voltage (only in single MPPT operation)
Idc DC Input current (only in single MPPT operation)
Vac (L1L2, L2L3, L3L1) Mains voltage (Phase to Phase)
Iac (L1, L2, L3) AC Input current (per Phase)
Pac Active output power
Q Reactive power (+: overexcited / −: underexcited)
S Apparent output power
CosφPower factor (OEX: overexcited / UEX: underexcited)
Frequency Mains frequency
Temperature Highest currently measured temperature in the power unit
The following measured values are available for the relevant power unit:
Measured value/Status Description
Vdc DC Input voltage
Pdc Input power at the power unit
Temperature Highest currently measured temperature in the power unit
Fan Operating condition of fans
Status Operating status of the power unit (On/Off/Error)
Measured values only to be displayed with MaxTalk (menu: device/measured values):
Measured value Description
Prel Relative output (Prel = (Pac/Pinst tot) × 100%)
Vsym Voltage of the PV generator in comparison with the earthing
potential(DC+ and DC- against earth)
Vsym AC Effective value of the AC voltage share of the DC symmetry
voltage
Ief Earth fault current
NOTE
Remember that the MCU measured values must not be used for billing purposes or
calculating efciency. Only the measured values of a calibrated electricity meter are
the basis for billing purposes.

64
en
4.5.2.4 Statistics
In the Statistics menu you can access the MCU’s internal data logger. The accessible
statistics are for the most recent 31 days, 12 months or 10 years. The displayed statistical
values each refer to the system as a whole.
Use the button to highlight a statistic category. Select a category by pressing the
button.
Press the left button to return to the Main menu.

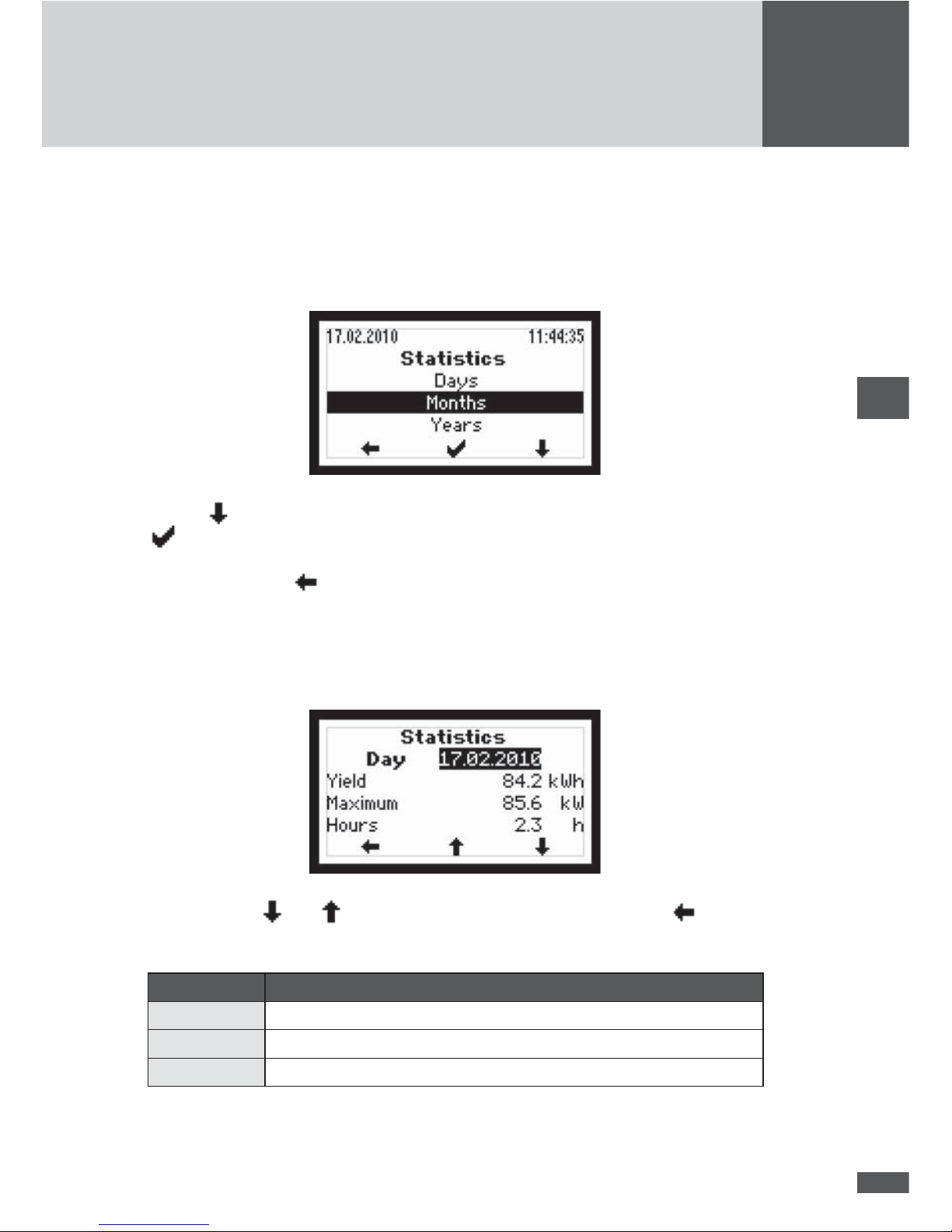

Daily statistics
This menu provides access to the data from the most recent 31 days.
Use the buttons and to select a daily statistic. Press the left button to return
to the Statistics menu.
Parameter Description (refers to the day displayed)
Yield Total amount energy fed into the mains
Maximum Peak value of the output fed into the mains
Hours Total operating hours (in device status “mains operation”)

65

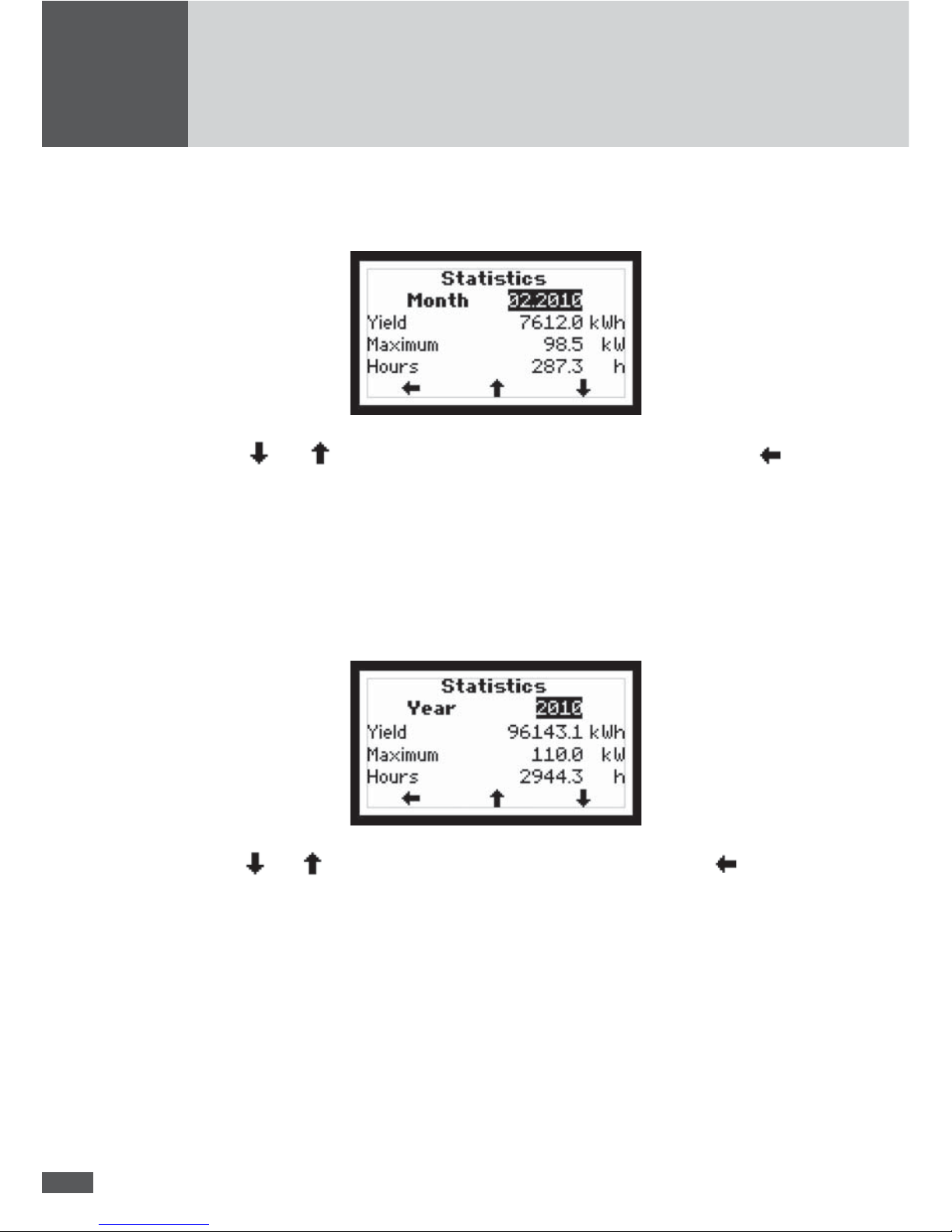

Monthly statistics
This menu provides access to the data from the most recent 12 months.
Use the and buttons to select a monthly statistic. Press the left button to
return to the Statistics menu.
The displayed values correspond to those in the daily statistics; but the values refer to
the month displayed.
Yearly statistics
This menu provides access to the data from the most recent 10 years.
Use the and buttons to select a yearly statistic. Press the left button to return
to the Statistics menu.
The displayed values correspond to those in the daily statistics; but the values refer to
the year displayed.

66
en
Total
This menu lists the total yield and the total number of operating hours of the inverter or
the system since it was commissioned.
Press the left button to return to the Statistics menu.
Reset
In this menu you can delete all the entries in the Statistics menu.
NOTE
Once deleted these data are irretrievably lost!
Press the button to conrm the deletion of all the statistics entries. Use the
button to enter the Statistics menu without deleting the statistics entries.

67
4.5.2.5 Conguration
The “Conguration” menu contains the inverter’s available operating parameters and ad-
vanced functions. The settings displayed for the limit values and the functions depend on
the country selected during initial start-up.
NOTE
MaxTalk 2 Pro, the extension to the standard MaxTalk 2 software, allows author-ised
skilled workers to individually adjust the operating parameters. The required “TS se-
ries/TS-SV parameter conguration using MaxTalk 2 Pro” instruction manual can be
found on our website www.solarmax.com (Downloads area). You can request MaxTalk
2 Pro from the SolarMax service centre. The contact details can be found overleaf.
Parameter Description Unit
Country Country settings selected during initial start-up -
f nominal Mains nominal frequency Hz
Vac nominal Mains nominal voltage V
Vac min 1 Minimum admissible mains voltage (rst limit) V
t Vac min 1 Release time for minimum admissible mains voltage ms
Vac max 1 Maximum admissible mains voltage (rst limit) V
t Vac max 1 Release time for maximum admissible mains voltage ms
Vac min 2 Minimum admissible mains voltage (second limit) V
t Vac min 2 Release time for minimum admissible mains voltage ms
Vac max 2 Maximum admissible mains voltage (second limit) V
t Vac max 2 Release time for maximum admissible mains voltage ms
Vac 10 min max Maximum admissible average value of the mains voltage
over the last 10 minutes
V
f min 1 Minimum admissible mains frequency (rst limit) Hz
t f min 1 Release time for minimum admissible mains frequency ms
f max 1 Maximum admissible mains frequency (rst limit) Hz
t f max 1 Release time for maximum admissible mains frequency ms
f min 2 Minimum admissible mains frequency (second limit) Hz
t f min 2 Release time for minimum admissible mains frequency ms
f max 2 Maximum admissible mains frequency (second limit) Hz
t f max 2 Release time for maximum admissible mains frequency ms
Iac max Maximum admissible mains current (per shift) A
Pac max Maximum effective power to be fed W
S max Maximum apparent power to be fed. VA
Island Detection Immediate grid disconnection when island operation
detected
-
OV Detection Immediate grid disconnection with transients to Vac -
