Solas Twenty6 FI User manual

FI-26N, FI-26P
This manual specifies the installation and operation requirements for the
Model Nos. FIN-36N, FIN-36P, FI-26N, FI-26P for installation into a Masonry or Factory Built (Metal)
Wood-burning Fireplace.

2
AVERTISSEMENT: Assurez-vous de bien suivre
les instructions données dans cette notice pour
réduire au minimum le risque d’incindie ou
d’explosion ou pour éviter tout dommage
matériel, toute blessure ou la mort.
- Ne pas entreposer ni utilizer d’essence ni
d’autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE
GAZ:
 Ne pas tenter d’allumer d’appareil.
 Ne touchez à aucan interrupteur. Ne pas
vous servir des téléphones se trouvant
dans le bâtiment où vous trouvez.
 Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivezles instructions du fournisseur.
 Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incindie.
- L’installation et l’entretien doivent être assurés
par un installateur ou un service d’entretien
qualifié ou par le fournisseur de gaz.
Cet appareil peut être installé dans une maison
préfabriquée (mobile) déjà installée à demeure
si kes règlements locaux le permettent.
Cet appareil doit être uniquement avec las type
de gaz indiqué sur la plaque signalétique. Cet
appareil ne peut être converti à d’autres gaz,
sauf si une trousse de conversion est utilisée.
Ne pas utiliser cet appareils’il a été plongé,
meme partiellement, dans l’eau. Appeler un
technician qualifié pour inspecter l’appareail et
remplacer toute partie du système de commande
et toute commande qui a été plongée dans /’eau.
Attention. Au moment de l’entretien des com-
mandes, étiquetez tous les fils avant de les dé-
brancher. Des erreurs de la câblage peuvent en-
traîner un fonctionnement inadequate et dan-
gereux.
S’assurer que l’appareil fonctionne adéquate-
ment une fois l’entretien terminé.
AVERTISSEMENT. Ne pas utiliser l’appareil
si le panneau frontal en verre n’est pas en place,
est craqué ou brisé. Confiez le remplacement du
panneau à un technician agree.
INSTALLATEUR: Laissez cette notice avec l’appareil.
COMSOMMATEUR: Conservez cette notice pour consultation ultérieur.

3
IMPORTANT SAFETY INFORMATION 4
SPECIFICATIONS 5
INSTALLATION REQUIREMENTS 6
MASSACHUSETTS REQUIREMENTS 7
ASSEMBLY & INSTALLATION 9
VENTING 10
ELECTRICAL REQUIREMENT 14
GAS CONNECTION 14
LIGHTING AND OPERATION 20
MAXITROL CONTROL SYSTEM 22
MAINTENANCE 28
MAINTENANCE LOG FORM 30
REPLACEMENT PARTS LIST 31
CONTROL SCHEMATIC 32
INSTALLATION RECORD FORM 33
WARRANTY INFORMATION 34
TABLE OF CONTENTS
WE STRONGLY SUGGEST THAT YOU READ THIS MANUAL THOROUGHLY BEFORE BE-
GININNG THE INSTALLATION OF THE DIRECT VENT GAS FIREPLACE IN-
SERT. ALTHOUGH THE BASIC REQUIREMENTS FOR THE INSTALLATION OF ALL DI-
RECT VENT GAS FIREPLACES INSERTS ARE SIMILAR, EACH SPECIFIC PRODUCT HAS
ITS OWN UNIQUE SET-UP AND INSTALLATION REQUIREMENTS THAT MUST BE FOL-
LOWED EXACTLY. PLAN YOUR INSTALLATION IN ADVANCE BY CAREFULLY RE-
VIEWING ALL THE INFORMATION CONTAINED IN THIS MANUAL.

4
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, or the Canadian Installation Code, CAN/CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280 or when such a standard is not applica-
ble, the Standard for Manufactured Home Installations, ANSI/BCSBCS A225.1, or Standard for Gas
Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5
kPa).
The installation must provide for adequate ventilation air to the appliance.
This gas appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
The appliance, when installed, must be electrically grounded in accordance with local codes, or, in the
absence of local codes, with the National Electrical Code ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22. 1.
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
The flow of combustion and ventilation air must not be obstructed. Adequate accessibility clearances must
be maintained for servicing and proper operation of this appliance.
Do not use this appliance if any part has been under water. Immediately call a qualifed service technician
to inspect the appliance and to replace any part of the control system and any gas control which has been
under water.
Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating the
appliance.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that the
control compartments, burners and circulating air passageways of the appliance be kept clean.
WARNING: Do not operate the appliance with the glass door assembly removed, or if the glass is
cracked or broken. Replacement of the glass should be done by a qualified service
person.
WARNING: Use only glass assembly, P/N 36-510 which includes the glass panel, frame and gasket.
Do not use substitute materials. Do not strike or slam the glass front. Do not use
abrasive cleaners. Do not clean when hot.

5
SPECIFICATIONS
INPUT Natural Gas Propane (LP)
Input Rating-Btu/hr 19,500 19,500
Min. Input-Btu/hr 14,000 16,000
Orifice-DMS #46 #55
GAS SUPPLY
Manifold Pressure (H) 3.4”w.c. / 1.0kPa 10.0”w.c. / 2.5kPa
Manifold Pressure (L) 1.6”w.c. / 0.47kPa 6.0”w.c. / 1.5kPa
Min. Supply Pressure 5.5”w.c. / 1.4kPa 11.0”w.c. / 2.8kPa
Max. Supply Pressure 10.0”w.c. / 2.5kPa 13.0”w.c. / 3.3kPa
EFFICIENCY
Maximum Observed Steady State Efficiency - % 79% 80%
Steady State Efficiency - % 63.06% 65.6%
Annual Fuel Utilization Efficiency (AFUE) - % 61.63% 64.3%
Canadian p.4 Efficiency - % 59.8% 58.8%
It is recommended that the pilot flame be turned off if the appliance will not be in use for an extended
period of time.
This appliance is equipped for use with the fuel type indicated on the rating plate.
This appliance has been certified by OMNI-Test Laboratories, Inc. to ANSI Z21.88-2009 • CSA 2.33-2009
Vented Gas Fireplace Heaters and CAN/CGA-2.17-M91(R2009), Gas-Fired Appliances for Use At High
Altitudes and CSA P.4.1-09.
The Fireplace Insert is approved for installation at elevations up to 2000 feet in the U.S. and
1370 meters (4500 feet) in Canada without change. If your installation is at an elevation greater than these,
consult with the local authority having jurisdiction for gas product installations to determine their specific
requirements for high altitude installations.
OVERALL DIMENSIONS

6
INSTALLATION REQUIREMENTS
FIREPLACE REQUIREMENTS
• Insert must be placed within a code-conforming masonry fireplace or tested and listed factory-built
(metal) wood-burning fireplace. Repair any fireplace damage prior to installation.
• Because the insert uses a circulation blower, clean the fireplace, smoke shelf, and chimney prior to
installation.
• This heater may be placed in a bedroom. Please be aware of the large amount of heat this appliance
produces when determining a location.
• Installation and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a professional service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. It is imperative that the control compartment,
burners and circulating air passageways of the appliance be kept clean.
Minimum Opening
Width. 29.75” -
additional space may be
required for gas line instal-
lation.
Surround Size Options:
Standard: 26”H x 38”W
Medium: 29”H x 40”W
Large: 32”H x 44”W
The Solas Fireplace Insert
inserts 14.75" deep into the
Fireplace cavity.
For tight fits (under 24") see the section
"Removing the “Vent Connector" See Page
12.

7
MINIMUM CLEARANCES
Due to the high temperature of the heater, it should be
located out of traffic and away from furniture and
draperies.
Minimum Clearances
K Sidewall to Insert 4-1/2"
I Side Facing 4-1/2"
M Top Facing 35" *
N Mantel 35" *
F To combustible Floor 1"
X Extension onto Hearth 1"
* Measured from the base of the insert.
Mantel Clearances
The maximum mantel depth is 12”.
NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it
does, it is considered a mantel and must meet the mantel requirements listed in this manual.
INSTALLATION REQUIREMENTS

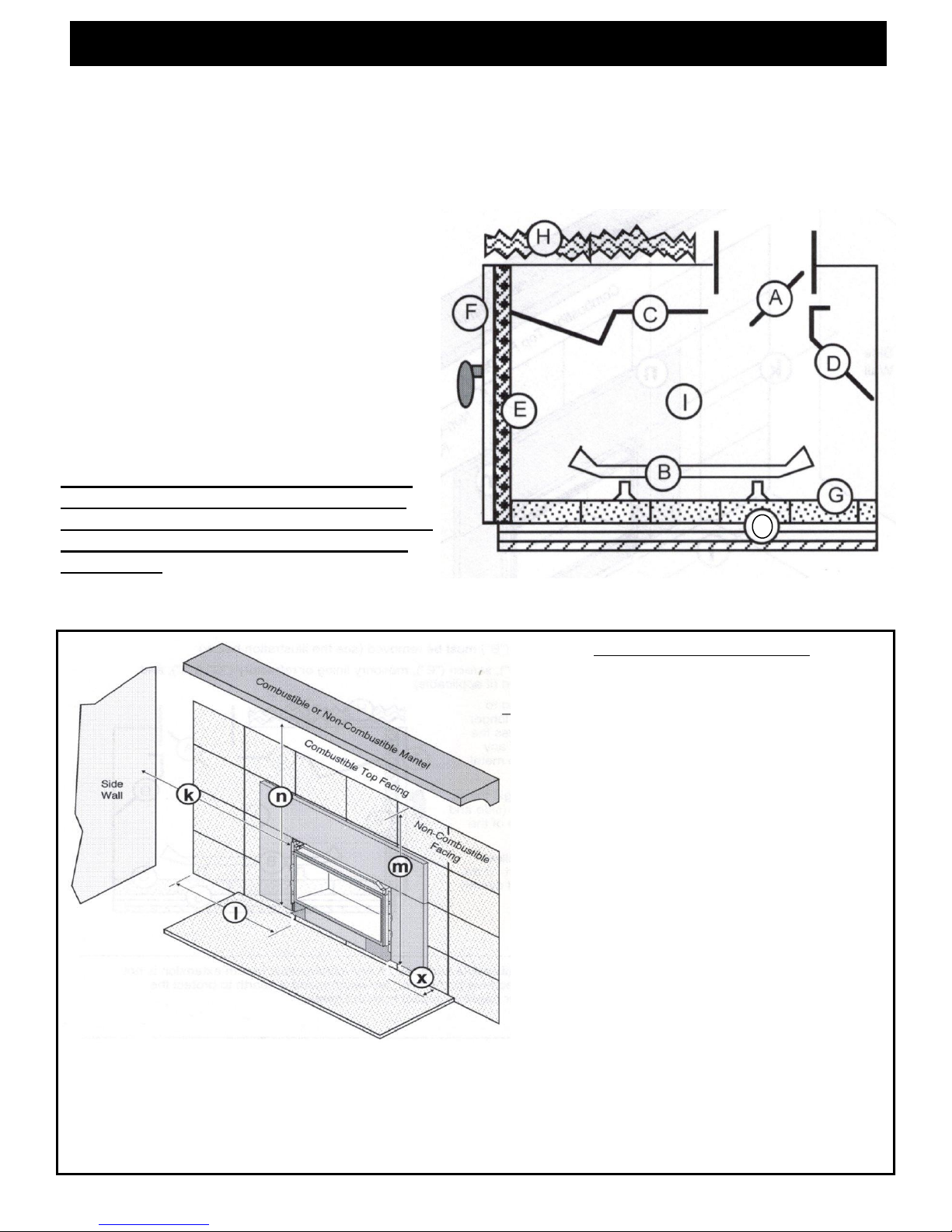

Factory-Built (Metal) Wood-Burning Fireplace Requirements
NOTE: Any parts that are removed must be removed in a way that would allow them to be re-installed if
the insert is ever removed (removal of rivets or screws is acceptable).
The damper ("A") and grate (with log set) ("B") must be removed (see the illustration below)
The smoke shelf ("C"), internal baffles ("D"), screen ("E"), masonry lining or refractory ("G" & "I"), and
metal or glass doors ("F") may be removed if
they are attached by mechanical fasteners (if ap-
plicable).
The fireplace must be permanently marked to
indicate that it has been altered and is no longer
suitable for burning solid fuel (wood), unless the
removed parts are re-installed.
Cutting of any sheet metal parts is prohibited.
The insulation ("H"), and any structured rigid
frame members must not be removed or altered
(side and top of door frame, side and top of the
face of the fireplace, metal sides, etc.).
Attach the "This fireplace has been altered"
tag to the fireplace (use two screws or other
suitable method). You may wish to place it in a
location where it will be covered by the sur-
round panel.

8
INSTALLATION REQUIREMENTS
Hearth Requirements
The heater and face must not contact any combustible surfaces. A minimum 1” clearance to a combustible
floor is required. A non-combustible hearth extension is not required. However, if the heater is installed
close to the floor, we recommend a hearth to protect the flooring surface from discoloration or other negative
impacts from the heater.
The gas fireplace insert is shipped with a 3/8” stainless steel flex connector. The gas supply piping should
have a separate gas shutoff valve and a 1/8” NPT plugged tapping upstream of the valve. The stove and its
main control valve must be disconnected from the gas supply piping system during any pressure testing of
that system at test pressures in excess of 1/2 psi (3.5 kPa). The fireplace insert must be isolated from the gas
supply piping system by closing the main control valve during any pressure testing of the gas supply system
at test pressures equal to or less than 1/2 psi (3.5 kPa). After the gas supply has been connected, use a com-
mercial gas leak detector or apply a soapy water solution to all the fittings to check for gas leaks. Never use
a flame to test for leaks.
REQUIREMENTS FOR THE COMMONWEALTH OF MASSACHUSETTS
This product must be installed by a licensed plumber or gas fitter when installed within the Common-
wealth of Massachusetts. If this appliance is installed in a dwelling, building or structure used in
whole or in part for residential purposes, a hard-wired carbon monoxide detector with an alarm and
battery back-up must be installed on the floor level of the dwelling, building or structure where the
appliance is to be installed.
Additionally, a hard-wired or battery operated carbon monoxide detector with an alarm must be in-
stalled on each additional level of the dwelling, building or structure served by the appliance. It shall
be the responsibility of the property owner to secure the services of qualified licensed professionals
for the installation of hard-wired carbon monoxide detectors.
In the event that this requirement cannot be met at the time of completion of the installation of the
appliance, the owner shall have a period of thirty (30) days to comply with the requirement. However,
during said thirty (30) day period, a battery operated carbon monoxide detector with alarm must be
installed.
Each carbon monoxide detector as required in accordance with the above provisions must comply
with NFPA 720 and be ANSI/UL 2034 and IAS certified.
In addition when the vent termination is less than seven (7) feet above finished grade a metal or plas-
tic identification plate must be permanently mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the exhaust vent terminal. The sign shall
read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Fireplace Dampers must be removed or welded in the open position prior to the installation of a fire-
place insert or Gas Log.
A COPY OF THESE INSTRUCTIONS PLUS ALL VENTING INSTRUCTIONS WHICH IN-
CLUDE PARTS LISTS, AND/OR ALL VENTING DESIGN INSTRUCTIONS MUST REMAIN
WITH THE FIREPLACE AT THE COMPLETION OF THE INSTALLATION.
ATTENTION INSTALLERS: Approved with Duraflex AL - Flexible Aluminium Pipe venting system.

9
ASSEMBLY & INSTALLATION
UNPACKING THE
FIREPLACE INSERT
The fireplace components are shipped in two car-
tons, The crate contains the fireplace insert, and
the carton contains the surround you have selected.
Start by opening the crate. Locate and remove the
box containing the accessory items. The following
items are packed in the accessory box:
1) Installation and operating instructions
2) Convection Air Ducts (x 2)
3) Glass Media for burner
4) Remote Control with batteries
5) “Fireplace Altered” Tag
6) Vent Restrictors (x 2)
Set these items to one side for use later
in the installation process.
Remove the packaging materials from around the
unit and unbolt the unit from the pallet.
Remove the Fireplace Insert from the pallet, and
position it in front of the fireplace opening.
Finally, unpack the fireplace surround from the
second carton and set aside on a soft surface for
later use.
2 1
2
5
4
3
6
WARNING: Failure to position the parts in accordance with the diagrams shown on
pages 9 thru 18 of this manual, or failure to use the parts specifically approved with
the appliance may result in property damage, or personal injury.

10
VENTING
Preliminary steps to prepare for the installation of the
Fireplace Insert
Remove the chimney cap if one exists so that the flue may be
cleaned and the venting installed.
Remove any existing hearth accessories such as glass doors, spark
screens, andirons and grates.
Clean the chimney thoroughly to remove ash, soot, and any ob-
structions, and then clean ash, soot, dust and debris from the fire-
place.
Chimney cleanouts must fit properly
The damper must be locked open to allow the 2 x 3” venting to
pass through. If it is necessary to modify the damper area to allow
passage of the venting, the modifications should be allowed under
local codes. Confirm any planned changes with local building of-
ficials.
Use Only Approved Venting
Observe local codes when venting the Fireplace In-
sert. If no local codes exist, follow ANSI Z21.88-2009 installation
code.
Please consult the installation instructions supplied by the venting
manufacturer you are using. Additional brand specific installation
requirements may apply, follow the installation instructions in-
cluded by the venting manufacturer with the venting system com-
ponents you have chosen. The venting manufacturer’s installa-
tion instructions must be followed exactly.
Do not connect the venting to the flue of a chimney that serves a
separate solid fuel burning appliance.
The most efficient venting systems are those that have a minimum
number of bends and minimal horizontal runs.
WARNING: Operation of this heater when not connected to a
properly installed and maintained venting system can result in car-
bon monoxide (CO) poisoning and possible death.
Exhaust restrictor plates must be installed depending on type
of gas and chimney height. See Page 12 to determine restrictor
requirements.
The fireplace and fireplace
chimney must be clean and in
good working order and con-
structed of non-combustible
materials.

11
Use Only Approved Venting
This appliance has been tested and is listed for installa-
tion with Simpson Duravent Duraflex AL venting com-
ponents. The warranty will be voided, and serious fire,
health, or other safety hazards may result from any of
the following actions:
 Installation of any damaged Simpson Duravent
component.
 Unauthorized modification of the Simpson Du-
ravent System.
 Installation of any component part not manufac-
tured or approved by Simpson Duravent.
 Installation other than as instructed by Simpson
Duravent and the appliance manufacturer.
Consult your local building codes before beginning the
installation, and follow the manufacturer’s instructions
exactly.
The Following Vertical Termination Caps are the only
ones approved for use on this appliance:
Simpson Duravent #46DVA-VC
Selkirk Direct Temp 1604802
Amerivent Direct 4DVC
ICC ExcelDirect TM4VT
This unit is intended for Vertical Termination only.
Horizontal Termination not allowed.
VENTING
Uncoil the three inch aluminum chimney liners on the
ground and measure to make sure the pipes are long
enough. Mark one of the liners at both ends with paint
and use it for the exhaust side connection. Once they
are in the chimney it allows easier identification of
intake and exhaust connections.
Minimum vertical vent pipe length is 10 Feet.
Maximum vertical vent pipe length is 36 Feet.
Maximum horizontal distance is 36”.

12
VENTING
Feed chimney liners down the chimney and through the
damper.
Position the Fireplace Insert in front of
the fireplace opening to prepare for Installation.
Locate the Vent Connector
Plate locking bar on the top
of the unit
Lift up on the locking bar to
release.
Push bar towards the rear,
sliding the Vent Connector
Plate halfway down in its
locating track. At this point
it will be possible to re-
move the plate from the
fireplace insert body by lift-
ing the plate upwards
Take care not to damage
the sealing gasket affixed
to the insert body.
With the Vent Connector Plate separated from the unit,
attach the flex liners you have dropped into the fire-
place cavity to the plate using hose clamps, making
sure that the Intake and Exhaust are connected to the
correct collars. Remember the exhaust liner is the one
that was marked with paint earlier.
Vent Restrictors
Installations with extended vent runs may experience
over-drafting and require the addition of a Vent Re-
strictor (E or F). The best indication of over-drafting is
a hyper-active flame pattern (flames that move too
quickly). Over-drafting may affect the pilot, causing it
to lift off the flame sensing rod shutting off the unit.
Too much restriction will lead to ghosting or lifting
flames - in this case less restriction is required.
The Fireplace Insert is supplied with two
restrictor plates and provide restriction as follows:
No Restrictor Plate —No Restriction
Plate “E” 1.75” diameter—Maximum Restriction
Plate “F” 2.00” diameter. —Minimum Restriction
Determine the flue restrictor needed for this application
and install into the exhaust port on the insert body.
•Natural gas uses no restrictor from 10’ to 22’ and the
1.75”ID (E) restrictor from 22’ to 36’.
•Propane uses no restrictor for 10’ to 22’ and the 2.0”
ID (F) for the 22’ to 36’ chimneys.
Removable Venting Connector Plate
The Fireplace
Insert is equipped with a re-
movable Venting Connector
Plate. Remove this plate from
the unit as follows:
Air Intake Exhaust
Exhaust Air Intake

13
VENTING / INSTALLATION
If you determine that a restrictor is required in your installation, place either the “E” or “F” restrictor into
the exhaust port of the fireplace insert body PRIOR to reconnecting the Vent Connector Plate to the insert
body as shown:
Exhaust Air Intake

14
Gas Connection.
1. The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and
the requirements listed below.
2. Verify that the gas type is correct for the fireplace insert by looking at the rating plate that is attached to
the control area of the appliance, adjacent to the control valve. Note: The fireplace insert is shipped
from the factory equipped to burn the fuel listed on the rating plate. Fuel conversion in the field is not
allowed.
3. The gas inlet is located on the bottom left side of the appliance. Connection should now be made from
the gas supply line to the inlet flex connector on the fireplace. Use only a qualified gas installer to
make the connection.
4. The fireplace is shipped from the factory with a 1/2” female flare fitting on the 3/8” flex connector.
5. The gas supply piping should have a separate gas shut-off valve and a 1/8 NPT plugged tapping up-
stream of the valve. We recommend installing a shut-off valve between the gas supply line where it
penetrates the wall / fireplace the flex on the fireplace insert. This will allow gas to be shut-off to the
fireplace by simply removing the fireplace surround to gain access to the shut-off valve.
6. The fireplace and its inlet regulator and main burner valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
7. The fireplace must be isolated from the gas supply piping system by closing the gas shut-off valve dur-
ing any pressure testing of the gas supply system at test pressures equal to or less than 1/2 psi (3.5kPa).
After the gas supply has been connected, use a commercial gas leak detector or apply a soapy water
solution to all the fittings to check for gas leaks. Never use a flame to test for leaks.
If the factory built fireplace has no gas access hole(s) provided, an access hole of 1.5” (37.5mm) or
less may be drilled through the lower sides, or bottom of the firebox in a proper workmanship like
manner. This access hole must be plugged with non-combustible insulation after the gas supply line
has been installed
ASSEMBLY & INSTALLATION
ELECTRICAL WIRING
This fireplace insert requires 110V AC electrical supply for normal operation in order to power up the Igni-
tion Control Module that is required to operate the Remote Control. However, during a power outage situa-
tion, its electronic system (Ignition Control) can temporarily be powered with 4 AA batteries. The convec-
tion blower will not function when the unit is operating on backup battery power.
Always verify operation after servicing.
WARNING
Electrical connections should only be performed by a qualified, licensed electrician. Main power must be
off when connecting to main electrical power supply or performing service.
All wiring shall be in compliance with all local, city, and state codes, or in the absence of local codes, with
the National Electrical Code ANSI/NFPA 70 (latest edition) and Canadian Electrical Code, CSA C22.1.
Caution
Label all wires before disconnecting when servicing controls. Wiring errors can cause improper and dan-
gerous operation.
Warning
Electrical Grounding Instructions. This appliance is equipped with a three-prong (grounding) plug for your
protection against shock hazard and should be plugged into a properly grounded three prong receptacle.
DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THIS PLUG.

15
ASSEMBLY & INSTALLATION
Once the gas connection and electrical hook up have
been complete you can start to process of connecting
the venting to the insert body, and pushing the insert
into the fireplace cavity.
Locate the Vent Connector Plate locking bar and pull
it forward until you can align the plate with its locat-
ing track on the top of the insert body.
Take care not to damage the sealing gasket affixed
to the insert body.
Pull the locking bar forward to fully engage the vent
connector plate to the insert body.
Lock the bar over the front locking tab, making sure
the vent connector plate is fully engaged in its track,
and sealed to the insert body.
Push the fireplace insert fully into the fireplace cav-
ity, and using the 4 leveling bolts on the unit, level
the insert as necessary.

16
ASSEMBLY & INSTALLATION

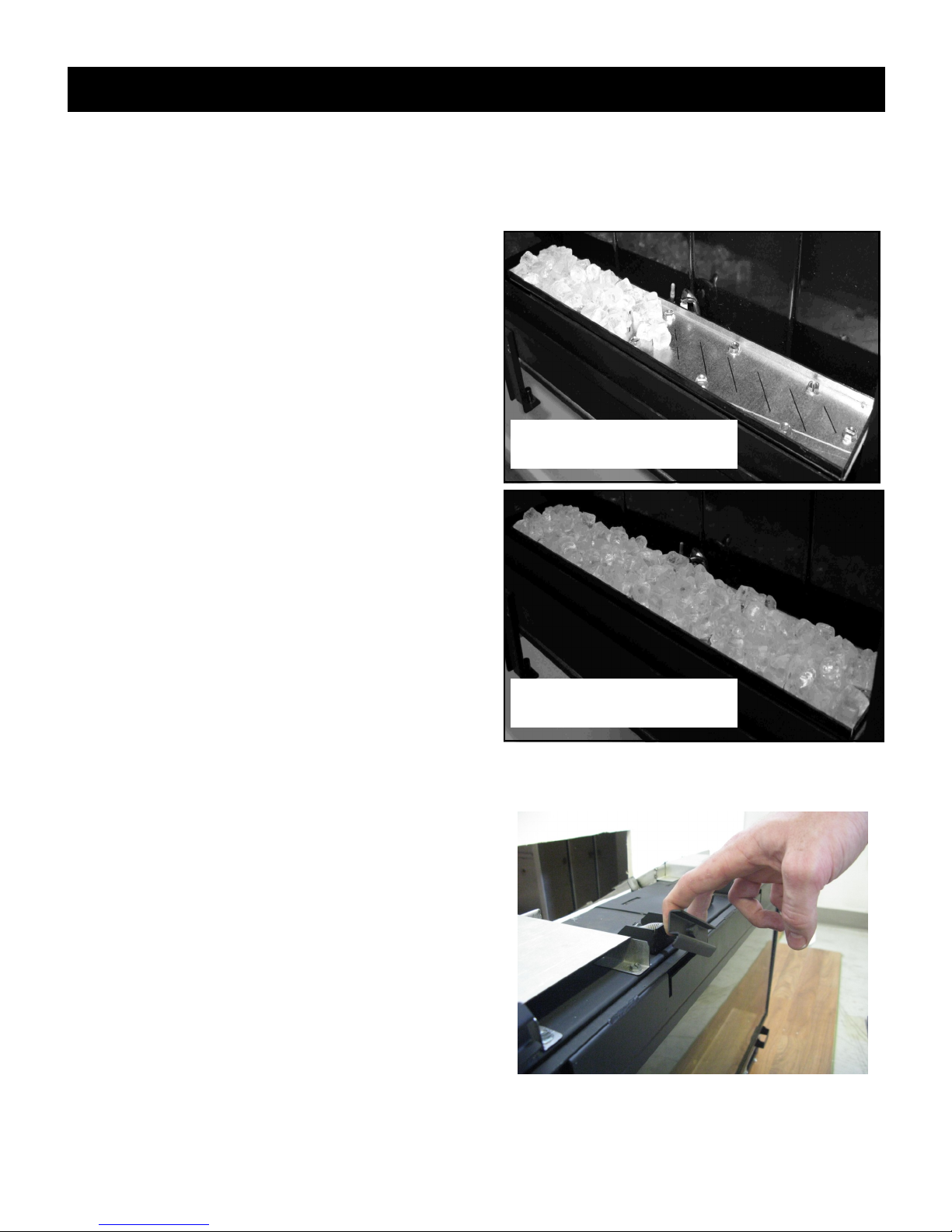

Placing the Burner Glass Media
In order to place he glass media on the burner assembly, you will need to remove the glass front from the
unit.
Glass Front removal:
The glass front is retained by four springloaded glass retaining clips.
Pull each of these clips forward, rotating 180 degrees as you do so.
Once all four retaining clips have been released, the glass frame can be
tipped forward and lifted out of the bottom retaining rail. The glass is
retained in the frame with retaining tabs, so remove the glass and frame
as a complete assembly. Place your thumbs on the outside of the glass
frame and wrap your fingers around the frame and onto the glass.
Squeeze the frame and glass while moving. Carefully lift the glass
frame and glass up and off the fireplace. Set the glass and frame aside
on a padded surface. BURNER TRAY

17
ASSEMBLY & INSTALLATION
The burner glass media poly-bag that you set aside when you unpacked the fireplace contains the correct
amount of glass material to cover the burner. The entire contents of the bag should be evenly distributed
over the burner tray.
1. Locate the burner in the fireplace insert. Refer to the
adjacent illustration.
4. Starting at one end, pour the glass media onto the
burner tray, keeping the pouring spout on the poly-
bag toward the center of the burner to avoid spillage
of glass pieces over the sides of the burner. See the
adjacent illustrations.
5. Once you have poured all of the glass burner media
into the burner tray, carefully smooth the glass pieces
out so they have a uniform depth over the entire sur-
face of the burner. When the burner glass media is
properly placed, it should look like the adjacent illus-
trations.
6. Note: If a few pieces of glass escape over the edges
of the burner tray during installation, it is not a prob-
lem. They will simply land in the area below the
burner and will do no harm.
With the glass media in place, refit the front glass panel.
Carefully pick up the glass and glass frame assembly by
grasping the sides of the frame and using your thumbs and
fingers to hold the glass and frame as a complete assem-
bly.
Place the bottom edge of the frame in its retaining track on
the bottom of the firebox opening, centering the glass
frame left to right in the track.
Then reengage the 4 spring loaded retaining clips, by pull-
ing them forward and rotating them 180 degrees so that the
bottom angled lip of each clip fully engages in its corre-
sponding notch on the glass front.
BURNER GLASS MEDIA
PARTIALLY INSTALLED
BURNER GLASS MEDIA
FULLY INSTALLED

18
ASSEMBLY & INSTALLATION
Installing or Replacing the Batteries
1. The valve control module is powered by four “AA” batteries. The batteries are mounted within the
Valve Receiver Module located underneath the fireplace, behind the surround, attached to a slide-
out mounting bracket for easy accessibility.
2. Loosen the thumb screw on the module slide-out mounting bracket by turning counter-clockwise
until the threads are fully disengaged from the base bracket.
3. Rotate the Valve Receiver Module and mounting bracket. Toward you 90 degrees.
4. Slide off the Battery compartment cover.
5. Install the 4 “AA” batteries, supplied, using the guides inside the battery pack to show you the cor-
rect battery orientation.
6. Replace the battery compartment cover. Rotate the Valve Receiver Module and mounting bracket
into its home position and tighten the thumb screw to secure.
7. The remote handset is powered by three “AAA” batteries. The access panel is located on the back
of the handset and simply snaps open to provide access to the battery compartment. Install the three
batteries as shown on the label inside the remote control battery compartment
8. Replace the remote handset access panel.

19
ASSEMBLY & INSTALLATION
Installing Convection Air Ducts:
With the front glass panel fitted, you now need to install the two
convection air ducts tat were shipped in the accessory box with
the fireplace insert.
Align the top of the duct with the air channel on the top of the
insert.
Insert the “keyed” tabs into the slots provided on the insert front
frame, and seat in place.
Both Convection air ducts need to be in position be-
fore the Fireplace surround can be installed
Installing Front Face Surround:
 Locate the On/Off switch connecting cable on the back side of the Front
Face.
 Locate the connection point for the switch cable on the front of the fire-
place insert. Plug the cable into the connection point on the unit
 Engage the hanging hooks on the back side of the front face surround on
the hangers located on the top left and right side and bottom left and
right side of the insert. On/Off Switch plug in
location.
Note: The Fireplace insert surround shall not seal ventilation openings in the fireplace.

20
LIGHTING AND OPERATION
1. STOP! Read the safety information above on this label.
2. This appliance is equipped with an ignition device that automatically lights the pilot. Do not try to light the pilot by hand.
3. Using the Remote Handset, or the optional Wall Switch, push the “OFF” button until you hear an audible signal to insure
the appliance is Off.
4. Wait five (5) minutes to clear out any gas. Then smell for gas including near the floor. If you smell gas, STOP! Follow “B”
in the safety information above. If you don’t smell gas, proceed to step 5.
5. Using either the Remote Handset, or the optional Wall Switch, simultaneously press the “ON” and “High Flame” but-
tons. An audible signal confirms the start sequence has begun.
6. Continuing beeps confirm the ignition is in process. Once lighting the pilot flame should appear as shown in Fig.2. Once the
pilot is confirmed, the main burner ignites on high.
NOTE: If the pilot does not stay lit after several tries, proceed to step 9.
7. Use the flame height adjustment buttons on either the Remote Handset or the optional Wall Switch to adjust the flame. Press
the button twice to decrease the flame height to its lowest setting, press the button twice to increase flame height to the
highest setting. Pressing the or button once will module the flame to intermediate settings. The Remote Handset can
also be used to control the appliance thermostatically.
8. Press and hold the button on the Remote Handset or optional Wall Switch to set the appliance to Pilot flame only.
9. If the appliance will not operate, follow the instructions “TO TURN OFF GAS TO THE APPLIANCE” and call your gas ser-
vice technician or gas supplier.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
When lighting this appliance, follow these instructions exactly.
A. This appliance is equipped with an ignition device that automatically lights the pilot. Do not try to light the pilot by hand.
B. BEFORE OPERATIONG THE BURNER SYSTEM, smell around the appliance area for gas. Be sure to smell next to the
floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
 Do not try to light the appliance.
 Do not touch any electric switch; do not use any telephone in your building.
 Immediately call your gas supplier from a neighbor’s telephone. Follow the gas supplier’s instructions
 If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to operate the gas controls. Never use tools. If a knob will not push in or turn by hand, don’t try to re-
pair it, call a qualified service technician. Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system which has been under water.
OPERATING INSTRUCTIONS
TO TURN OFF GAS TO THE APPLIANCE
FIG. 2
High Flame
Low Flame
ON/OFF
FIG. 1
1. To turn off gas to the appliance,
push and release the “OFF”
button on either the Remote Hand-
set or on the optional Wall Switch.
You will hear an audible signal
confirming the off setting.
2. TO TURN OFF THE GAS SUP-
PLY TO THE APPLIANCE, close
the shut-off valve on the gas sup-
ply line to the appliance.
