Soleus Air SG-WAC-15ESE User manual

Electronic Window Air Conditioner

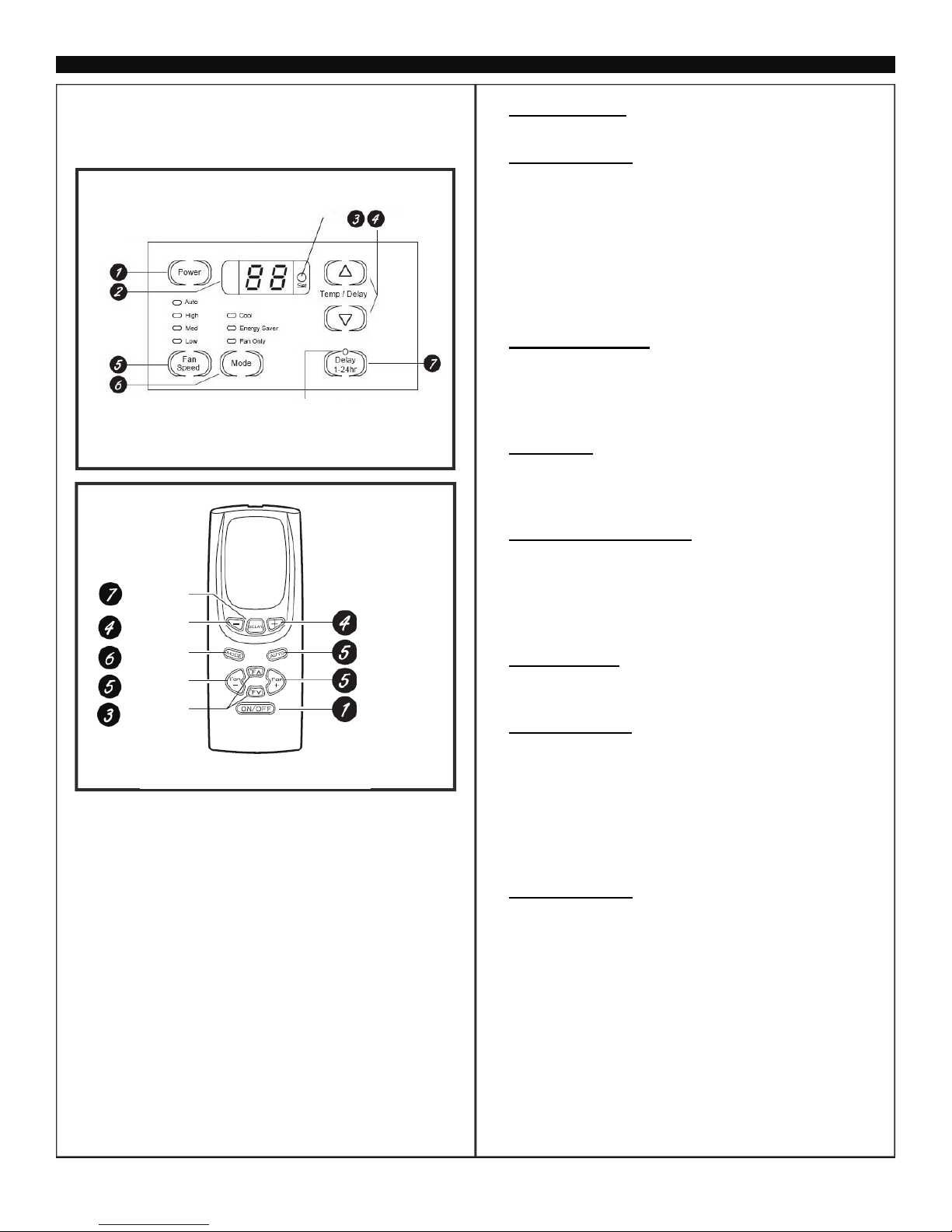

Operating Instructions
Models
SG-WAC-15ESE
SG-WAC-18ESE
SG-WAC-25ESE

Thank you for choosing a Soleus Air powered by Gree Air Conditioner. This owner’s manual will
provide you with valuable information necessary for the proper care and maintenance of your new
product. Please take a few moments to thoroughly read the instructions and familiarize yourself with
all the operational aspects of your new air conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT SAFETY INSTRUCTIONS
Before installing and using your air conditioner, please read this owner’s manual carefully. Store this
manual in a safe place for future reference. Your safety and the safety of others is very important to
us. Please pay attention to all safety messages outlined in this owner’s manual.
WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow
the following basic precautions:
2
This is a safety alert symbol.
This symbol alerts you to potential hazards that can harm you or others or even cause
death.
All safety messages will directly follow the safety alert symbol and/or the words
“DANGER” or “WARNING”.
Failure to immediately follow these
instructions may cause serious injury
or even death.
All Safety messages alert you of potential hazards, how to reduce the chance of injury,
and what can happen if instructions are not followed correctly.
• Plug into a grounded 3 prong outlet.
• Do not remove the ground prong.
• Do not use a plug adapter.
• Do not use an extension cord.
• Unplug the air conditioner before servicing
• Use two or more people to move and install the air
conditioner

Wiring Requirement
Recommended Ground Method
For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a 3 prong power
supply cord with a grounded plug. To minimize the possibility of electrical shock, the cord must be plugged into a 3 prong
outlet and grounded in accordance with all local codes and ordinances. If a 3 prong outlet is not available, it is the cus-
tomer’s responsibility to have a properly grounded 3 prong outlet installed by a qualified electrician.
LCDI Power Cord and Plug
This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as
required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord with no termination
on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current
leakage between the cord shield and either load conductor exceeds a predetermined value. The cord will remain de-
energized until the devise has been manually reset. This is intended to reduce the risk of a fire in the power cord or
combustible materials nearby. The cord shields are not grounded and they must be considered a shock hazards if
exposed. The cord shield must not be connected to ground or to any exposed metal.
The test and reset buttons on the LCDI Plug are used to check if
the plug is functioning properly. To test the plug:
1. Plug power cord into a wall outlet
2. Press the TEST Button, the circuit should trip and cut all
power to the air conditioner
3. Press the RESET button for use
If a test is performed and the indicator light remains ON, the
current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Customer
Service for troubleshooting recommendations.
ELECTRICAL REQUIREMENTS
3
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong.
Do not use an adapter
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock
The electrical ratings for your air conditioner are listed on the model and serial
number label located on the front left side of the unit (when facing the front).
Specific electrical requirements are listed in the chart below. Follow the
requirements below for the type of plug on the power supply cord.
Power Supply Cord
It is the customer’s responsibility:
• To contact a qualified electrician
• To assure that the electrical installation is adequate
and in conformance with the National Electrical Code,
ANSI/NFPA 70 - latest edition, and all local codes and
ordinances.
Copies of the standards listed may be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02269
208~230 Volt (197.2 min. - 253 max.)
0-20 amps
20-amp time-delay fuse or
Use on single outlet circuit only

PARTS LIST
(on 25ESE models)
SEAL-BOTTOM RAIL TO UNIT
SIDE RETAINER
FRAME
ASSEMBLY
(LEFT)
WASHER HEAD
LOCKING SCREW
FOAM GASKET
TOP ANGLE
FRAME
ASSEMBLY
(RIGHT)
SAFETY LOCK AND
3/4"ROUND-HEAD
SCREW
1/2" LONG
SCREWS AND
LOCKNUTS
LOCKNUT
3/4" LONG
FLAT HEAD
BOLT
WINDOW SUPPORT
BRACKET
WINDOW SASH SEAL
SILLANGLE
BRACKET
TOOLS NEEDED
Large Flathead Screwdriver
Tape Measurer
Adjustable Wrench or Pliers
Pencil
Level
Socket Wrenches
Phillips Head Screwdriver
25ESE 15/18ESE
Non-Hardware Packing List
• Window Air Conditioner
• AAA Batteries (2) & Remote Control
• Top Mounting Rail
• Foam Top Mounting Rail Seal Strip
• Accordion Panels (2)
• Side Retainer (2)
• Window Sash Seal
• Foam Seal for Bottom Rail
• Owner’s Manual
4
25ESE 15/18ESE
7/8
3
ROUND HEAD

SPECIFICATIONS
• Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the unit.
Model SG-WAC-15ESE
Power Supply (Ph/V/Hz) 1/115/60Hz
Dehumidifying Capacity (Pints/Day) 91.2
Rated Cooling Capacity (BTU/h) 15,000
Rated Heating Capacity (BTU/h) /
Cooling Power Input (Watts) 1400
Heating Power Input (Watts) /
Rated Current Cooling (Amperage) 12
Rated Current Heating (Amperage) /
EER/C.O.P 10.8
Noise Level db (A) Indoor/Outdoor 58/64
CFM 480
Design Pressure (PSIG) (H/L) /
Dimensions (W” x H” x D”) 23.63 x 17.78 x 25.44
Package Dimensions (W” x H” x D”)28.28 x 19.97x 26.09
Net/Gross Weight (Lbs) 110/129
Refrigerant Charge (Oz) 28.22
SG-WAC-18ESE
1/230-208/60Hz
129.6
18,000 /17,600
/
1680 /1650
/
8.1/8.8
/
10.7
59/64
480
/
23.63 x 17.78x 25.44
28.28 x19.97 x 26.09
110/125
28.75
SG-WAC-25ESE
1/230-208/60Hz
192
24,500/24,000
/
2600 /2550
/
11.6/12.6
/
9.4
59/64
400-490
/
26.54x 18.62x26.30
28.94x 20.1 x 31.69
135/152
40.56
5

INSTALLATION & ASSEMBLY INSTRUCTIONS
Window Preparation
Please read all instructions prior to installing your air conditioner. Two people are recommended to install this product. If
a new electrical outlet is required, have the outlet installed by a qualified electrician before installing the unit.
Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made
to fit inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the needed
screws. If not, make repairs prior to installing the unit.
Storm Window Requirements
A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly. To
adjust for this, attach a board or piece of wood to the sill. The board or wood piece should have a depth of at least 1 1/2”.
Make sure the board or piece of wood is approximately 1/2” higher than the storm window frame. This will allow the air
conditioner to tilt enough for proper drainage. (See FIG. 1).
Prior to Installing the Air Conditioner
1. Check for anything that could block airflow. Check the area outside of the window for things such as shrubs, trees, or
awnings. Check the inside area to make sure curtains, drapes, or blinds will not prevent proper airflow.
2. Check the available electrical outlet. The power supply must be the same as shown on the unit serial nameplate
(located on the left side of the unit, near the front faceplate). Be sure the outlet is close enough for the power cord to
reach.
3. Carefully unpack the air conditioner. Remove all packing material and make sure the floor is protected when remov-
ing. Due to the large size of this air conditioner, two people should move the unit together.
6
Model SG-WAC-25ESE SG-WAC-15ESE / SG-WAC-18ESE
Unit Height 18 5/8” 17 5/8”
Unit Width 26 1/2” 23 1/2”
Min. Window Opening 19” 18 1/2”
Min. Window Width 31” 26 1/2”
Max Window Width 43” 40 1/2”
SASH
1 1/2” MIN
(38 mm)
STORM
WINDOW
FRAME
Board or wood
piece must be
approximately
1/2” higher
than the storm
window frame
for proper
drainage
FIG. 1
When handling the unit, be careful to avoid cuts from
the sharp metal edges and aluminum fins on the front
and rear coils.

INSTALLATION & ASSEMBLY INSTRUCTIONS - WINDOW MOUNTING
REMOVE CHASSIS
1. Pull down the front panel and remove the filter (FIG. 1 below)
2. Lift the front panel upwards to remove and place to the side.
3. Locate the four faceplate screws and remove. These screws will need to be re-installed prior to mounting the air con-
ditioner (FIG. 2 above)
4. After removing the screws, gently pull away the faceplate from the air conditioner cabinet (FIG. 3 & 4).
5. Remove the shipping screws from the top of the unit (SG-WAC-25ESE only) and both sides of the cabinet if in-
stalled.
6. Remove the two screws on the top of the chassis that hold the cabinet to the unit. Hold the cabinet while pulling on
the base of the chassis and remove the chassis from the cabinet (FIG. 5).
7. Add two foam inserts to the holes on top of the cabinet where the shipping screws were located.
8. There may be internal packing protection on the SG-WAC-25ESE. This packing material must be removed prior to
installation (FIG. 6)
7
FIG. 2
FIG. 1
FIG. 3 FIG. 4
FIG. 6
FIG. 5

ASSEMBLY & INSTALLATION (CONT.)
8
4. Install top angle side to cabinet as shown in FIG. 7.
5. Slide "I" section of window filler panel into side retainer.
Do both sides.
WINDOW FILLER PANEL
WINDOW FILLER
PANEL
SIDE RETAINER
SIDE RETAINER
FIG. 8a
FIG. 7
Foam Gasket and Top
Angle Rail
Top Angle Rail and Side Bracket Installation
1. Place the air conditioner on a hard flat surface.
2. Locate the foam gasket and top angle rail
3. Attach the foam gasket to the top angle rail.
7. Install side retainer to cabinet as shown in
FIG.8b-9.
(see FIG 8b-9)
6
. Insert top and bottom legs of window filler panel frame
into channel in the top angle and bottom rail. Do both
sides
FIG.8b
PLASTIC
FRAME
WINDOW FILLER
PANEL
SIDE RETAINER
8. Once the window panelsarecorrectly installed, for 25K
insert the washer head locking screws on the top rail and
frame. Do not tighten all the way at this time. Allow the
bottom frame to slide freely.
Placing the Cabinet Inside the Window
1. Open the window and place the cabinet in the middle
of the window sill.
2. Make sure the bottom rail is seated over the window
sill as shown below. Bring the window down temporar-
ily behind the top angle rail to hold the cabinet in place.
3. Fasten cabinet to window sill using two 7/8” Round-
head screws (3/4” ROUND-Head screws on SG-WAC-
25ESE). Pre-drill holes if needed. Add the bottom rail
seal over the screws.
FIG. 9
TOP VIEW
SILL
BOTTOM
RAIL
ROUND-HEAD SCREW
3/4"for 25ESE
7/8"for 15/18ESE

ASSEMBLY & INSTALLATION (CONT.)
9
Install Support Brackets
1. Hold each support bracket flush against the outside of
the window sill. Tighten each bracket to the bottom of
the cabinet as shown below. Mark the brackets at top
lever of the window sill and then remove.
2. Assemble the sill angle brackets to the support brack-
ets at the marked position as shown above. Hand
tighten, but not all the way for any changes that may
need to be made later during installation.
3. Install the support brackets (with sill angle brackets
attached) to the bottom of the cabinet as shown below.
4. Tighten all 6 bolts securely.
Mark
Left
Right
1/2” Long Screws
and Locknuts
Sill Angle
Bracket
Flat Head Bolt
Locknut
1/2” long
screw and
locknuts
Extend the Accordion Panels
1. Carefully raise the window to expose the accordion
panel and panel frame. Loosen the locking screws so
the accordion panels slide easily.
2. Extend each panel to completely fill the width of the
3. Close window behind top angle.
4. Set a locking screw on both sides of the curtain as shown.
window. Tighten the locking screws when the panels
are fully extended.
Install the Window Lock and Sash Seal
1. Trim the sash seal to fit the width of the window. Insert
the sash seal into space between the upper and lower
sashes.
2. Attach the right angle safety lock as shown below.
Locking Screw
For 24K
3/4" Round-
Head Screw
for 14/18K
