Thank you for choosing a Soleus Air Water Cooler. This owner’s manual will provide you with
valuable information necessary for the proper care and maintenance of your new product.
Please take a few moments to thoroughly read the instructions and familiarize yourself with all
the operational aspects of your new water cooler.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the
store name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire,
electric shock, and injury to persons or property. Read all instructions before using any appliance.
1. Do not let hot water touch bare skin. Keep combustible material such as furniture, bedding, pillows,
clothes, and/or papers away from the back of the unit.
2. Do not operate this, or any other appliance, with a damaged power cord. No other appliance should be
plugged into the same outlet. Be sure that the plug is fully inserted into the outlet.
3. Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep cord away
from high traffic areas, and do not submerge in water.
4. We do not recommend the use of extension cord as it may overheat and cause a risk of fire.
5. Exercise caution and use reasonable supervision when the appliance is used by or near children.
6. Do not use your water dispenser outdoors. Place the water dispenser away from direct sunlight and make
sure that there is at least 4 inches (10cm) of space between the back of your unit and wall. Keep a mini-
mum of 2 inches (5cm) on each side of your unit free.
7. Do not use this product to dispense anything other than water.
8. To avoid a hazard due to instability of the appliance, it must be placed on even and flat surface.
9. If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person must
replace it in order to avoid a hazard.
10. This water cooler must be positioned so that the plug is accessible.
11. Disconnect the plug from the outlet when not in use.
12. Remove power plug or disconnect from the main power source before servicing the appliance.
PLEASE SAVE THESE INSTRUCTIONS.
2

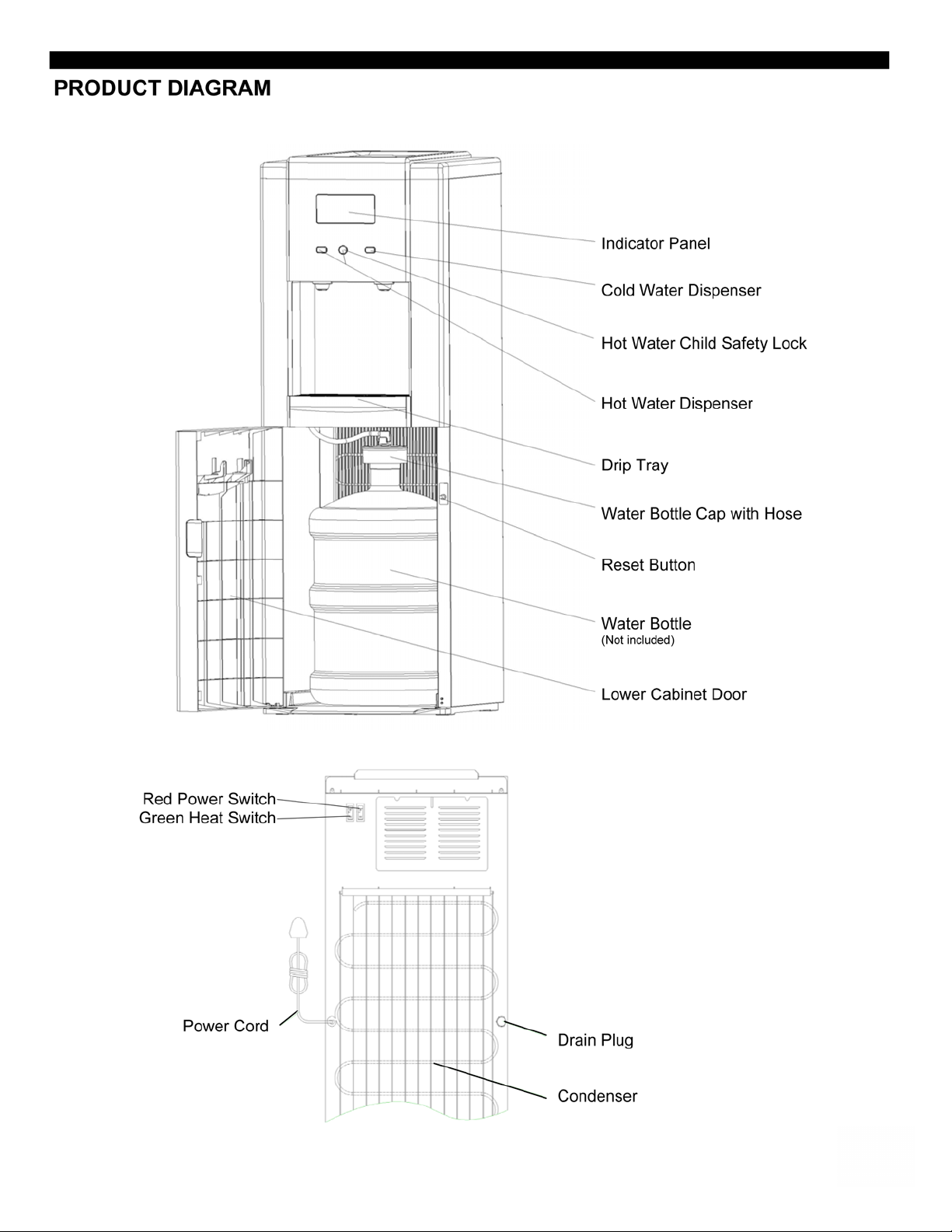

3
TECHNICAL SPECIFICATIONS
Model WA2-02-50A
Power Supply 115V, 60Hz
Electrical Rating 4.7 Amps, 485 Watts
Refrigerant and Quantity R134a, 1.34oz
Weight 40.5 lbs.
Dimensions 13.25"W x 16.5"D x 42" H

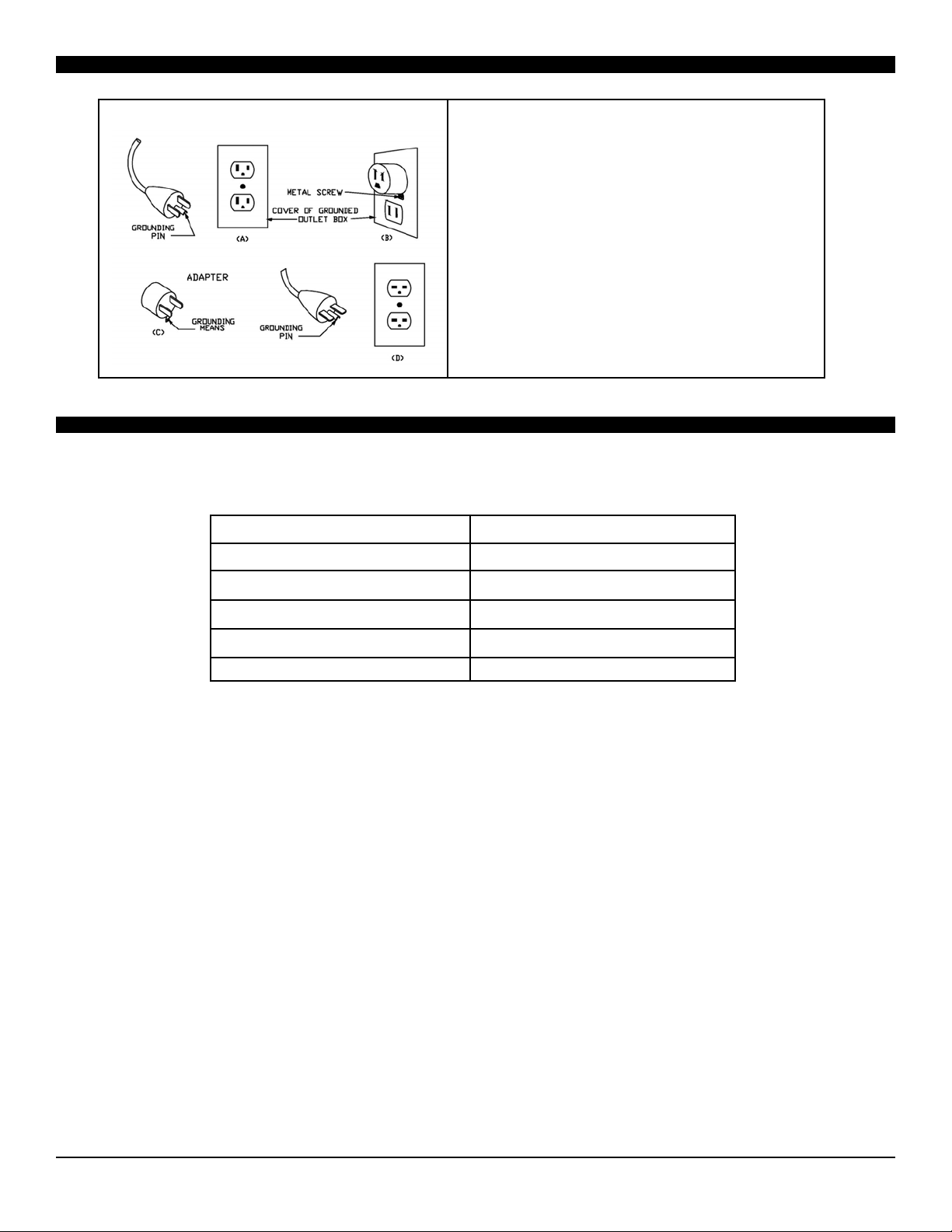

WARNING: This water cooler is for use on 120 volt
outlets only. The cord has a plug as shown in A. An
adapter as shown in C is available for connecting three-
blade grounding-type plugs to two-slot receptacles. The
grounding lug extending from the adapter must be con-
nected to a permanent ground such as a properly
grounded outlet box. The adapter should not be used if a
three-slot grounded receptacle is available.
DO NOT DEFEAT THE SAFETY PURPOSE OF THE
GROUNDED PLUG.

4

5
HOT WATER
TEMP.
COLD WATER
ICON
COLD WATER
TEMPERATURE
WATER
PUMP ON
RESET
UNIT
FULL
BOTTLE
EMPTY
BOTTLE

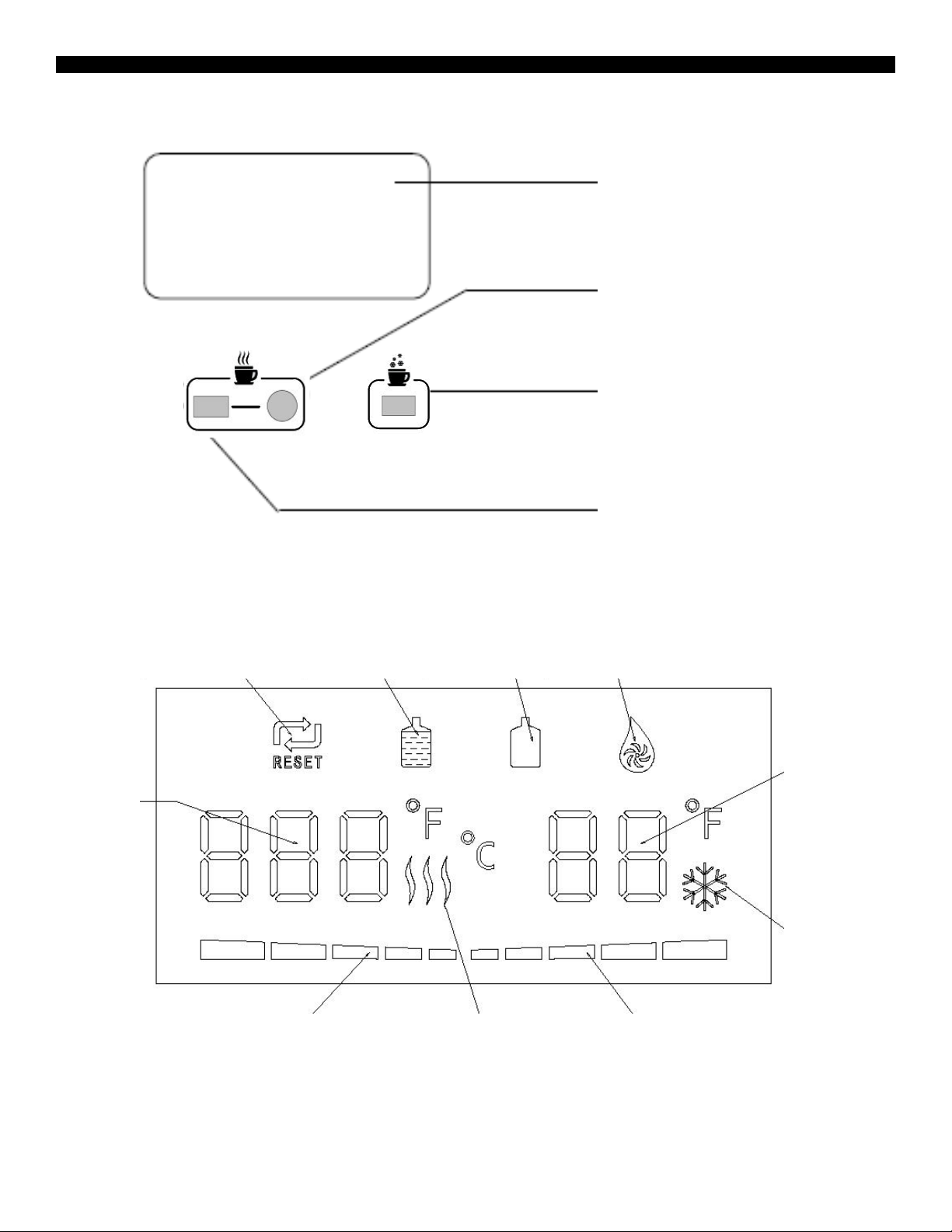

CONTROL PANEL AND MULTI-COLOR DISPLAY
Multi-color Display
Child Safety Lock
Cold Water Button
Hot Water Button
UNIT IS COOLING
WATER
UNIT IS HEATING
WATER
HOT WATER
ICON

UNPACKING THE WATER COOLER
1. Cut and remove the straps from the box. DO NOT turn the box upside down, or lay it on its
side. The bottom of the box is separate from the top section. Lift straight up on the top box
section to remove the top box section. Remove the Styrofoam packaging and plastic bag.
Lift the water cooler off the bottom of the box. Wipe it clean if necessary.
2. Place the machine on a hard, flat surface. Make certain the unit is level. The unit should not
be close to direct sunlight or other source of heat.
3. It is best to place the water cooler in an area with good air circulation. Make sure there is at
least 4 inches (10cm) of space between the back of your water cooler and the wall. Keep a
minimum distance of 2 inches (5cm) on each side of your water cooler.
WARNING: The drain cap on the back of the unit may become loose during shipping. Fasten
the drain cap tightly before you start to operate the unit. If the drain cap is loose, the unit may
leak and cause floor damage.
PREPARING THE WATER COOLER FOR USE
The Aqua Sub is different from a traditional water
cooler. The water bottle does not need to be placed up-
side down on the top of the unit. The water bottle is
placed in the lower cabinet of the unit, and then a pump
draws the water up to the dispenser.
Much like a new refrigerator with an ice maker or
water dispenser, it is recommended to run 1 or 2 wa-
ter bottles full of water through the system before
use.
6

NOTE: If there is not a secure connection between the hose cap and the connector on the water cooler,
the water pump will operate but the water cooler will not dispense water. Make sure the hose is con-
nected to the water cooler correctly.
NOTE: Please wait until the water pump stops running before using the unit. If the water tank is not full, no
water will dispense from the cold water faucet and the hot water faucet.
1. Your new water cooler features an adjustable quick connect system. For proper operation, make sure the
connector is sealed tight (Fig.1).
2. The connector can be removed easily for cleaning with warm soapy water (Fig. 2)
3. The stainless steel tube can be adjusted up and down to accommodate both 3 gallon and 5 gallon water bot-
tles. (Fig. 3)
1. Make sure the water dispenser is not plugged into an electrical out-
let.
2. Open the door of the lower cabinet.
3. Place full water bottle on floor. Remove the plastic cover over the
mouth of the water bottle.

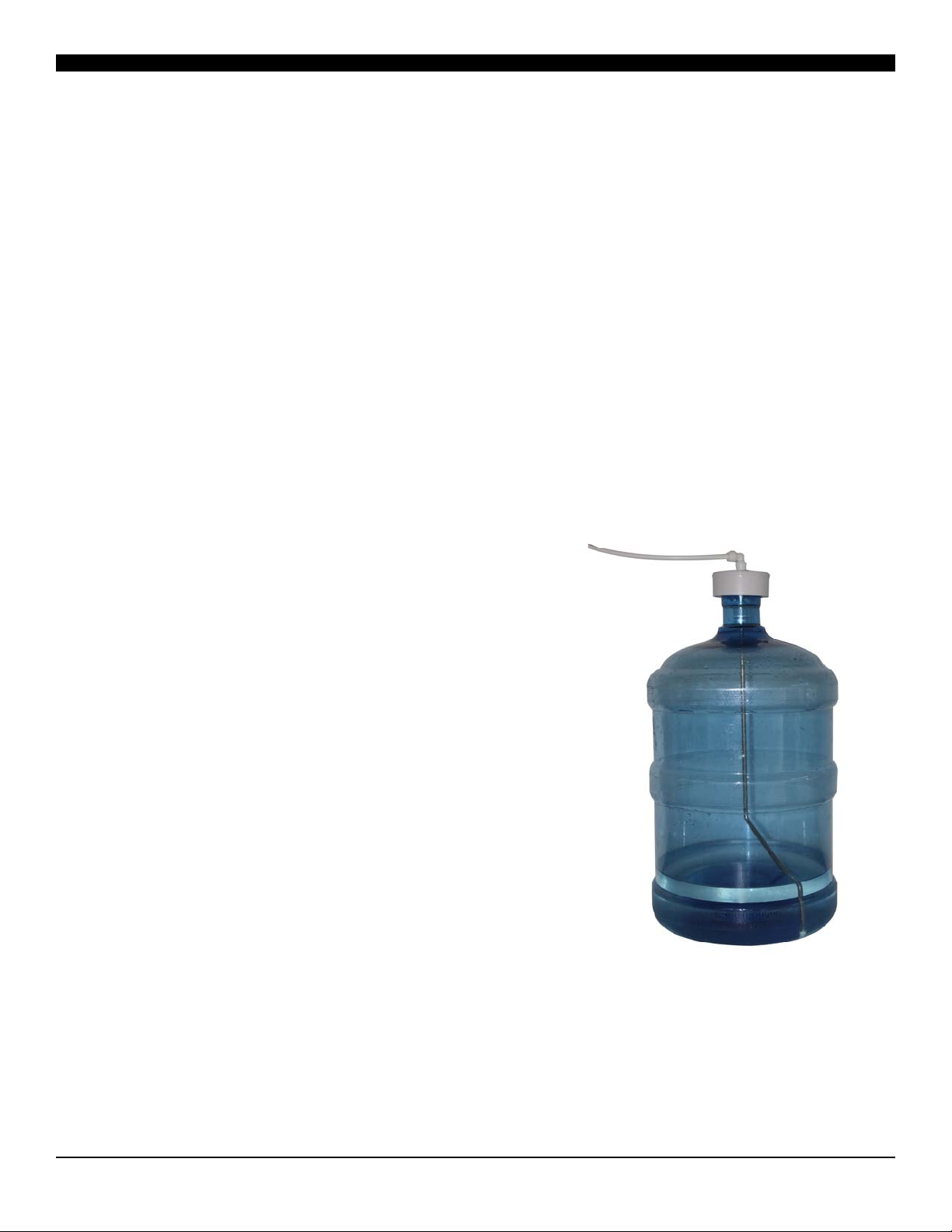

4. Place the stainless tube inside the bottle and place the water bottle
cap firmly over the mouth of the water bottle.
5. Attach the hose to the top of the cap using the quick connect system
shown below.
6. Slide the bottle inside the cabinet and close the lower cabinet door.
7. Plug the water cooler into a grounded power outlet and turn on the
power switch located on the back.
8. The unit will start to operate, but you should wait at least half an
hour before using the water cooler.
9. This unit is equipped with a green switch that turns the heating fea-
ture on and off. If you are not going to use hot water, turn the heat-
ing switch to “OFF” to conserve energy.
Fig. 1 Fig. 2 Fig. 3
7

OPERATION
After the water bottle has been connected to the water cooler, the unit is ready for use. Turn the power switch
on the back of the unit to ON. The water cooler will start running. First the unit will pump the water from the
water bottle into the cooling and heating tanks, and then the unit’s compressor and heater will start to operate.
The first time the water cooler is used, you will have to wait at least half an hour for hot and cold water.
Using the Water Cooler (See PAGE 5 for Button Placement)
• To dispense HOT water, press the HOT WATER BUTTON and CHILD SAFETY LOCK BUTTON at the
same time.
• To dispense COLD water, press the COLD WATER BUTTON.
• When the EMPTY BOTTLE indicator icon on the front panel is on, there is no water left in the water bot-
tle. The water bottle will need to be replaced. Replace the water bottle, and close the door to reset the unit.
The water cooler will work again and the indicator icon will turn off.
CLEANING & MAINTENANCE
1. To avoid accidents, turn off and unplug the water cooler from the outlet before cleaning.
2. A soft damp cloth may be used to clean the surface of the water cooler. When necessary, a mild deter-
gent may be used. DO NOT use erosive chemical solvents to clean the unit, as this may damage the
surface of the water cooler.
3. DO NOT pour water on the exterior of the unit to avoid getting the internal electrical system damp. DO
NOT immerse the unit in water when cleaning.
4. The water bottle cap, hose, and drip tray may be washed in a dishwasher (top rack only).
5. Keep the water cooler 6 inches (15cm) away from the wall so it can work properly. Make certain all
ventilation openings are clear of obstruction.
6. Do not damage the heating or cooling system, paying particular attention to the black condenser or heat
radiator on the back of the water cooler.
7. If you will not use the water cooler for a long period of time, please unplug the power cord and drain
the water cooler. Drain the water from all faucets, then remove the drain cap on back and allow it to
drain. Make certain the drain cap is fastened tightly when finished.
8

TROUBLESHOOTING
Please check the troubleshooting chart below. It includes several common problems, which you can correct
at home, making a customer service call unnecessary.
Problem Possible Cause Remedy
Unit does not dispense hot
and cold water.
Unit is unplugged. Plug the power cord into an outlet.
Main power supply is off. Reestablish main power supply.
Damaged water dispenser Replace the dispenser.
The water bottle cap is not attached
properly to the connector on the
water cooler.
Connect properly. There will be a
give when the hose cap slides prop-
erly over the connector.
Unit does not dispense
cold water.
Over consumption of cold water in
a short time.
Wait a moment for the water to
cool.
System Malfunction Contact Soleus Air for service
The ventilation around the unit is
insufficient.
Space the unit from the wall by
more than 15 cm.
The temperature of water in the
water bottle is too high. (When the
bottle is exposed to direct sunlight
for a long time.)
Place the water bottle in a cool loca-
tion out of direct sunlight.
Unit does not dispense hot
water.
Over consumption of hot water in a
short time.
Wait a moment for the water to
heat.
System Malfunctions Contact Soleus Air for service
Unit is noisy during opera-
tion.
The appliance is not level. Place the unit on a level, flat sur-
face.
Unit is touching other objects. Move the unit away from other ob-
jects.
Water leaks from the fau-
cet.
The top portion of the faucet has
become loose.
Tighten the top threaded portion of
the faucet.
The faucet has been damaged. Call the customer service telephone
number to repair the faucet.
The Hose Connector is not con-
nected properly or the inside hot or
water tanks are leaking.
Make sure the hose connector is
properly connected. Contact Soleus
Air Service if a water tank is leak-
ing
The drain cap on the back is not
fastened properly.
Tighten the drain cap. If the sealing
silicon material inside the drain cap
is torn or damaged, then replace
with a new one.
The water being dispensed
has a strange taste.
This is not uncommon with new
water coolers. Do not worry, this is
not dangerous to your health. This
water cooler is FDA approved.
Clean the hose in the dishwasher
(top rack only) or let it soak in dish
soap. The strange taste usually goes
away after the first bottle has been
used up.
Water is dripping out of
the water cooler and onto
the floor.
9

10
WARRANTY
One Year Limited Warranty
Soleus Home Comfort warrants the accompanying Soleus Air Water Cooler to be free of defects in material and work-
manship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original
retail purchase in the United States.
If the unit exhibits a defect in normal use, Soleus Home Comfort will, at its option, either repair or replace it, free of
charge within a reasonable time after the unit is returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty Certificate along with a
copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
 Damage, accidental or otherwise, to the unit while in the possession of a consumer not caused by a defect in
material or workmanship.
 Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions
in the instructions.
 Damage to the finish of the case, or other appearance parts caused by wear.
 Damage caused by repairs or alterations of the unit by anyone other than those authorized by Soleus Home
Comfort.
 Freight and Insurance cost for the warranty service.
 Filter and Accessories
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE LIMITED TO
ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY. SOLEUS HOME COMFORT
DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES AND IN NO EVENT
SHALL SOLEUS HOME COMFORT’S LIABILITY EXCEED THE RETAIL VALUE OF THE UNIT FOR
BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THIS UNIT.
This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used, sal-
vaged, or refurbished products.
As some states do not allow the limitation or exclusion of incidental or consequential damages, or do not allow
limitation on implied warranties, the above limitations and exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to state.
For Technical Support and Warranty Service
Please Call [phone]
Or Write To:
Soleus Home Comfort
17911 East Ajax Circle
City of Industry, CA 91748
www.soleushomecomfort.com
