Solo 109L User manual

- ENGLISH - Brushcutter 109L / 109B / 111L / 111B
ENGLISH 1
Instruction manual
Original instructions
Caution! Prior to operating the unit, please
read the owner’s manual carefully, and most
importantly, observe all safety rules.
Observe the maintenance guidelines closely to
ensure the long service life of your equipment.
Your dealer will be glad to assist you with any
questions.
EC declaration of conformity ÎThe EC
declaration of conformity on a separate piece of
paper forms part of these operating instructions.
Packaging and disposal
Please keep the original packaging in order to
protect the equipment against transport damage in
case you ever need to ship it or transport it. If the
packaging materials are no longer required then
they must be disposed of properly in accordance
with applicable local regulations. Cardboard
packaging materials are raw materials which can
be recycled or reused.
At the end of the equipment’s service life, please
make sure that you dispose of it properly, in
accordance with the official directives and
regulations that apply in your area
In the best interest of continued technological
progress we reserve the right to change the design
and configuration of any product without prior
notice.
For that reason, no claims can be accepted with
reference to text and illustrations in this manual
Type plate
a: Type designation
b: Serial number
c: Build year (08 Î2008)

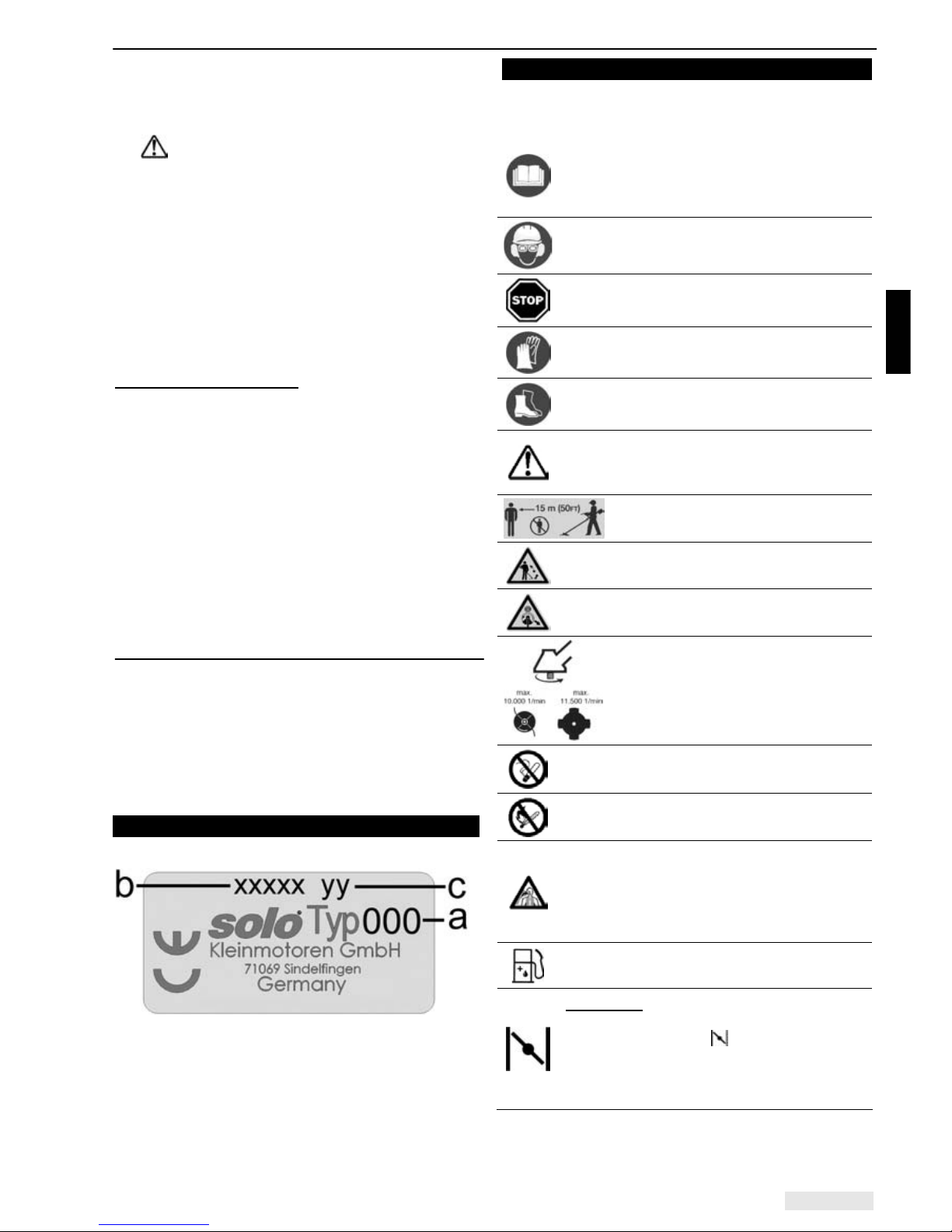

Symbols
The following symbols are used in this manual and
on the product:
Thoroughly read these operating
instructions before undertaking any
maintenance, installation and cleaning
steps
Wear ear defenders and a face shield
before starting the engine
Switching off the engine, stop switch on
"STOP"
Wear protective gloves when handling
and working with the equipment
Wear solid shoes, preferably safety
shoes with a good tread
Danger! Failure to comply with the
instructions could cause accidents with
potentially life-threatening injuries.
Maintain a minimum distance of
15 metres bystanders
Please note: objects may be thrown out
and high
Please note: power tool may kick back on
contact with a solid object
Never exceed the specified
maximum speed
Never smoke near the power tool or
where the equipment is refuelled!
Keep open flames away from the power
tool and the fuel can
- This equipment produces exhaust
fumes
and
- fuel vapours are poisonous;
never start or refuel in enclosed spaces
Fuel mixture: symbol above the fuel
mixture tank cap

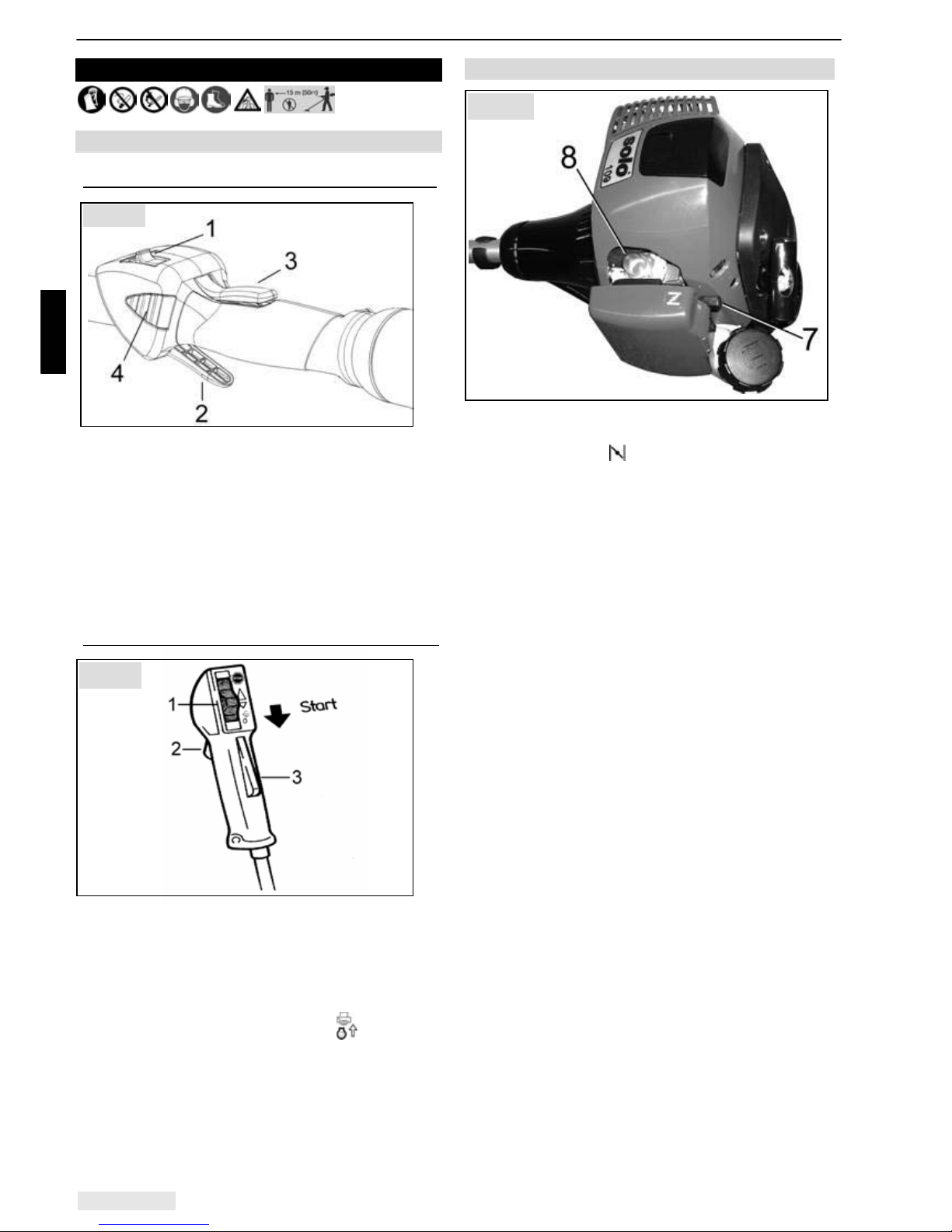

Choke flap:
Cold start position Îchoke lever up,
towards this symbol
Operation and warm start Îchoke
lever down

ENGLISH 2
Index
Page
1. Safety regulations ........................................................................................................................ 3
1.1 Correct use / General safety instructions 3
1.2 Working clothes 4
1.3 Fuelling 4
1.4 When transporting the equipment 4
1.5 Preparing the equipment for starting 5
1.6 Starting 5
1.7 Maintenance and repairs 5
1.8 Working with the machine 6
2. Standard delivery......................................................................................................................... 7

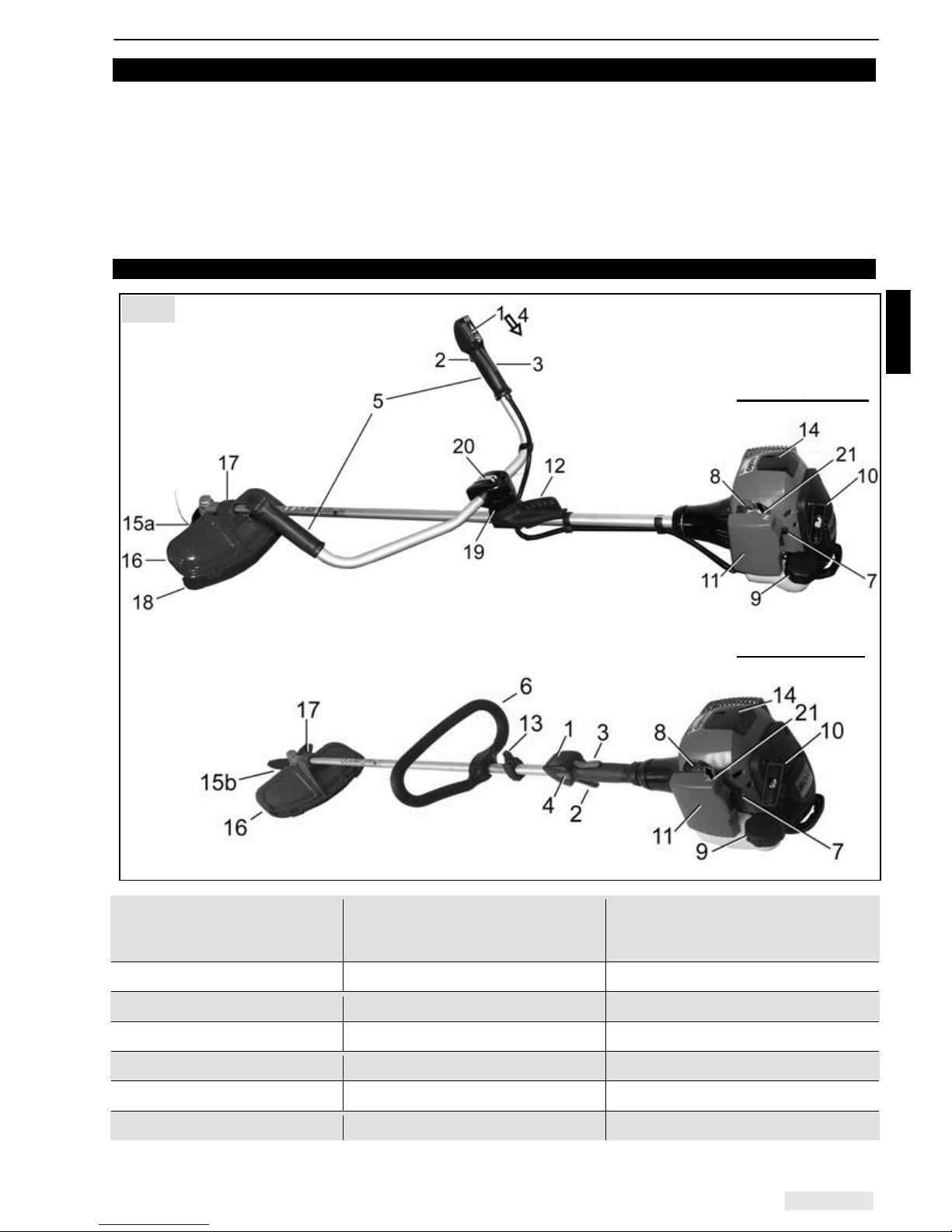

3. Control and function elements ..................................................................................................... 7
4. Accessories ................................................................................................................................. 8
5. Preparing the equipment for use .................................................................................................. 9

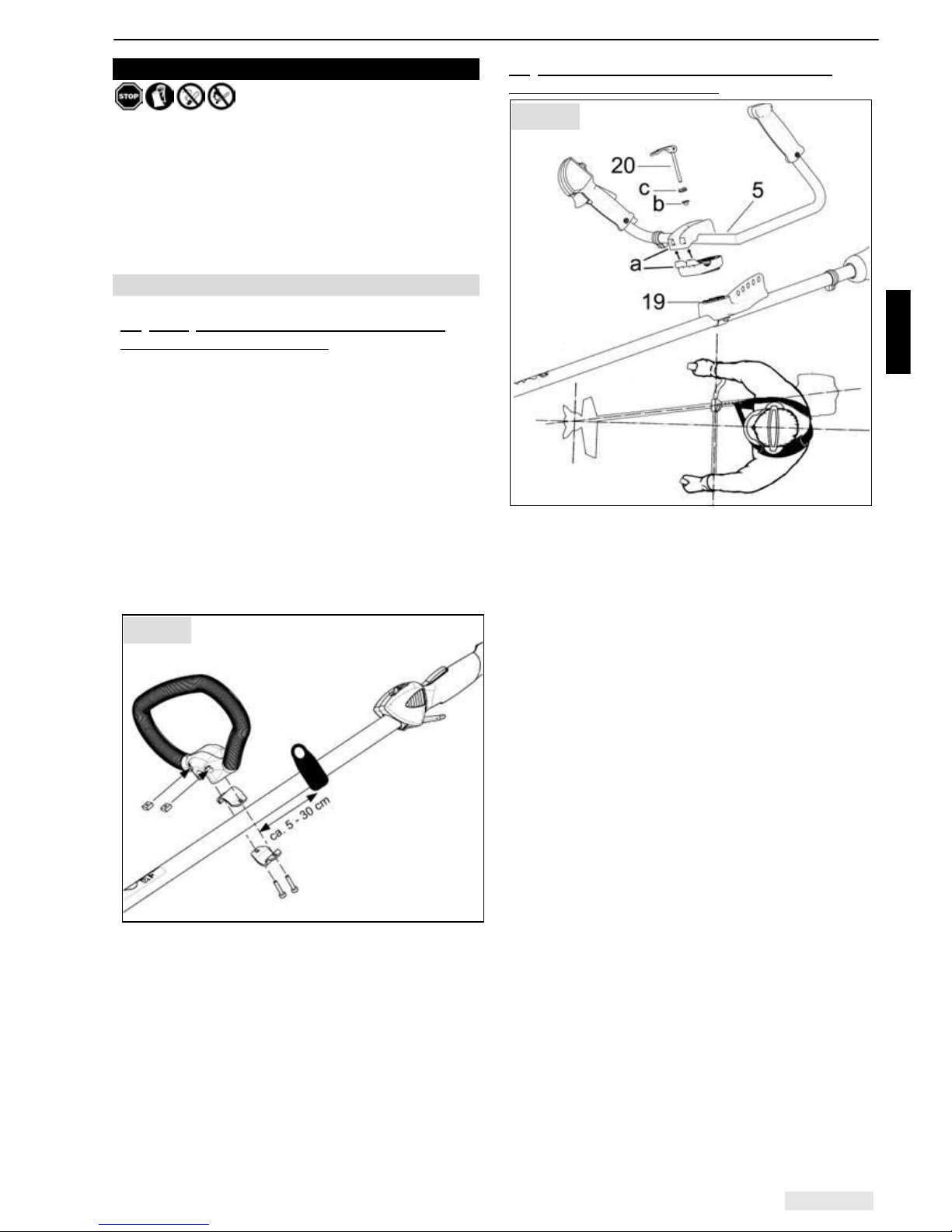

5.1 Assembly of the handle 9

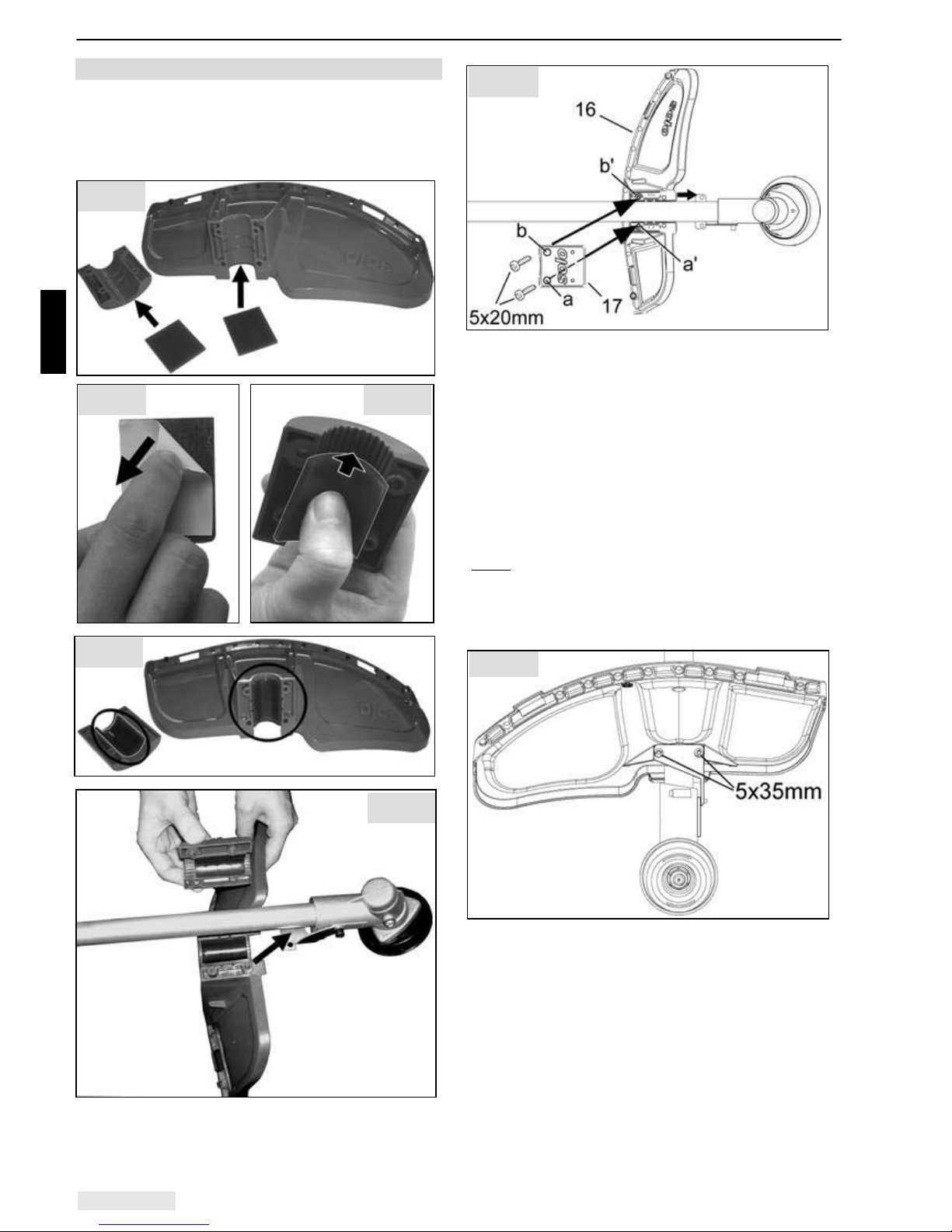

5.2 Shield installation 10

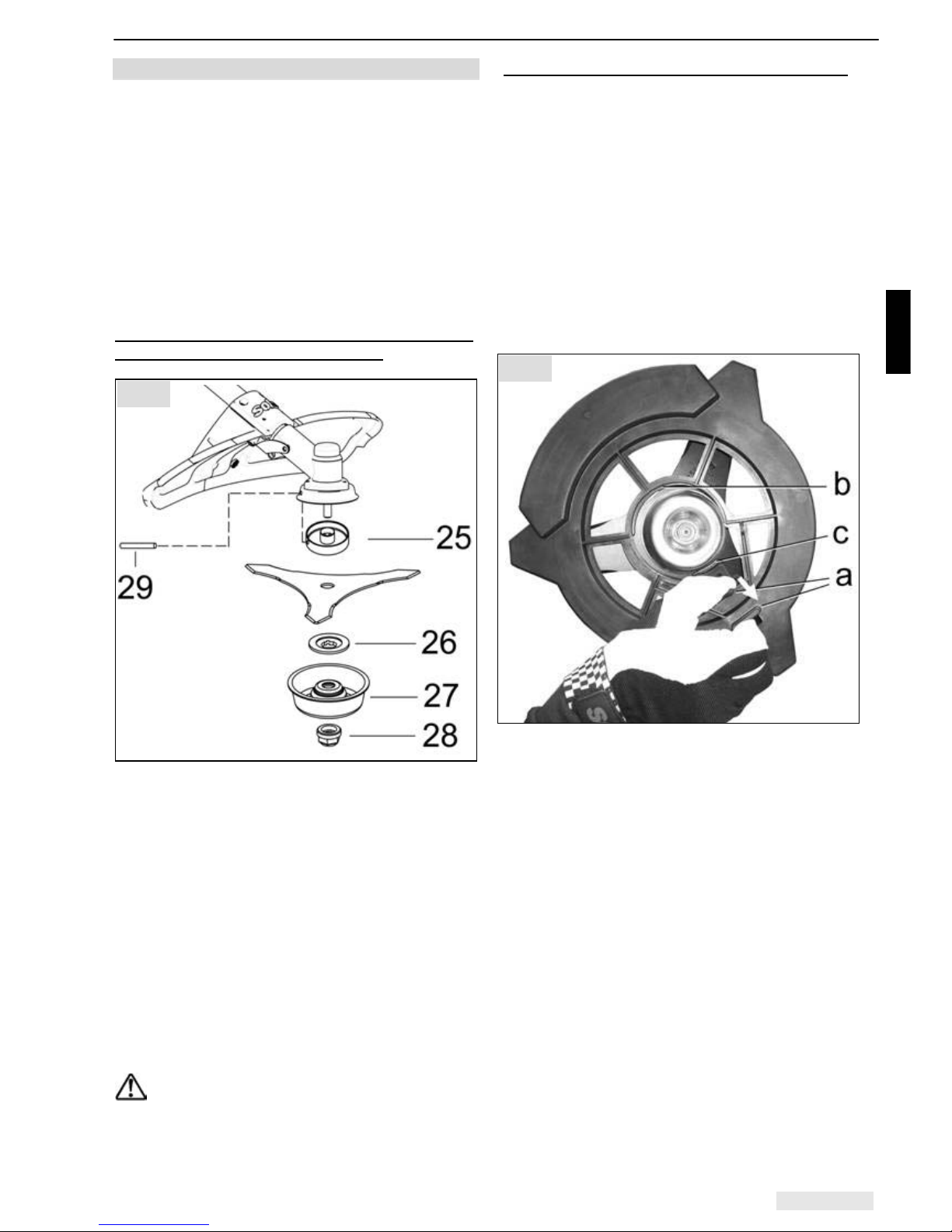

5.3 Cutter installation 11

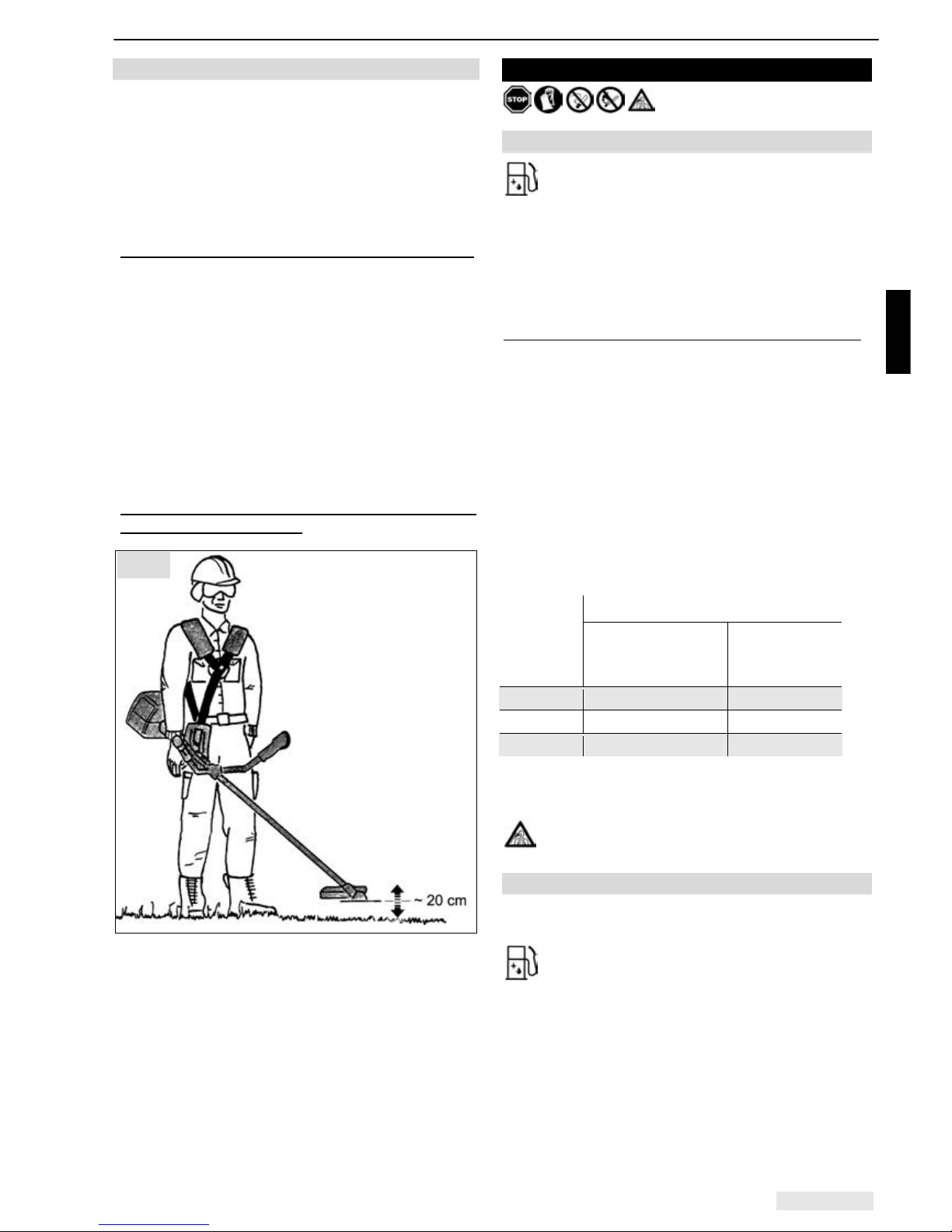

5.4 Shoulder strap adjustment 13
6. Fuelling...................................................................................................................................... 13
6.1 Fuel information 13
6.2 Fuelling 13
7. Starting / Stopping the engine.................................................................................................... 14
7.1 Half throttle start position 14
7.2 Choke and primer 14
7.3 Starting 15
7.4 Turning off the engine: 15
7.5 Engine will not start: 15
8. Using your brushcutter .............................................................................................................. 16
8.1 Scope of Application 16
8.2 Initial use/ start-up behaviour 16

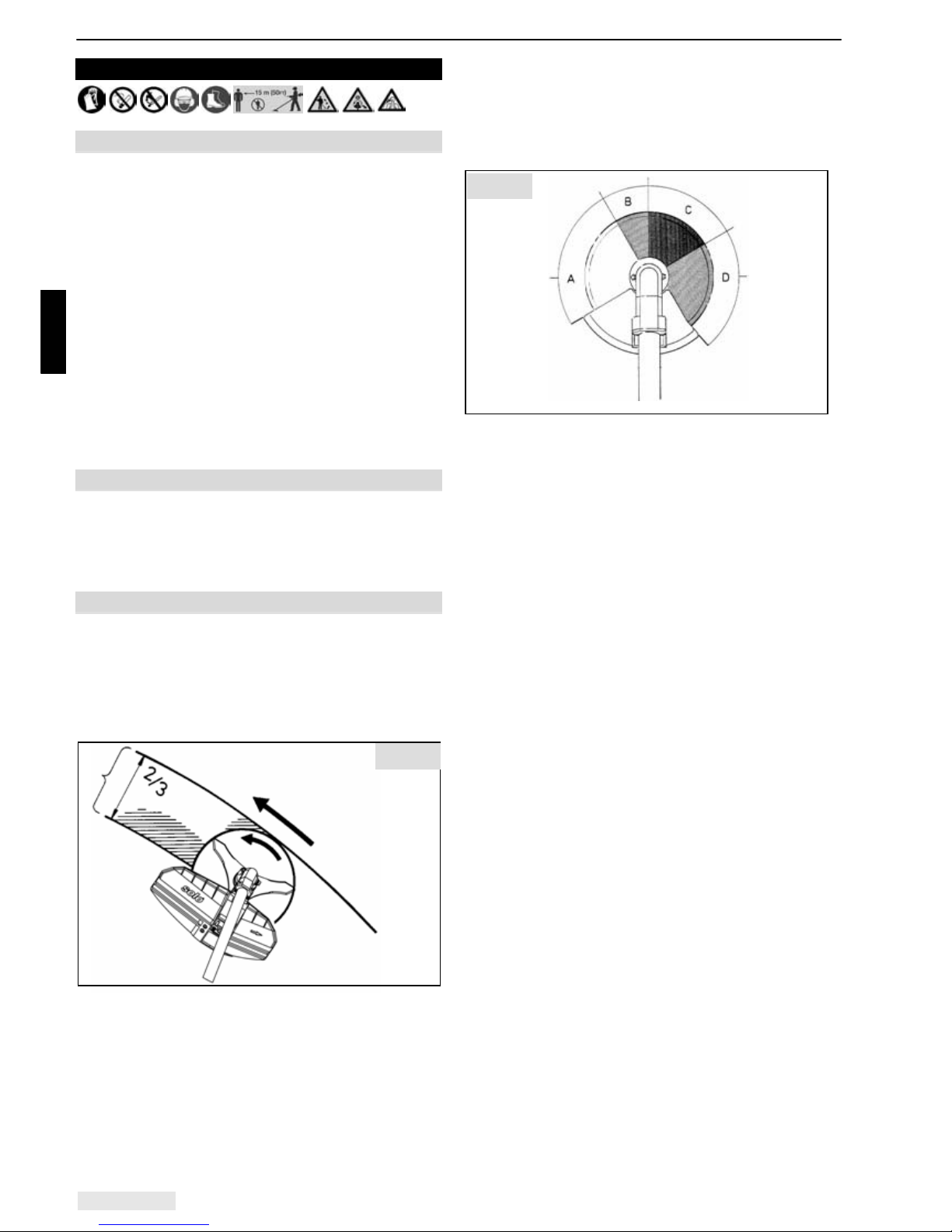

8.3 Correct brushcutter operation 16

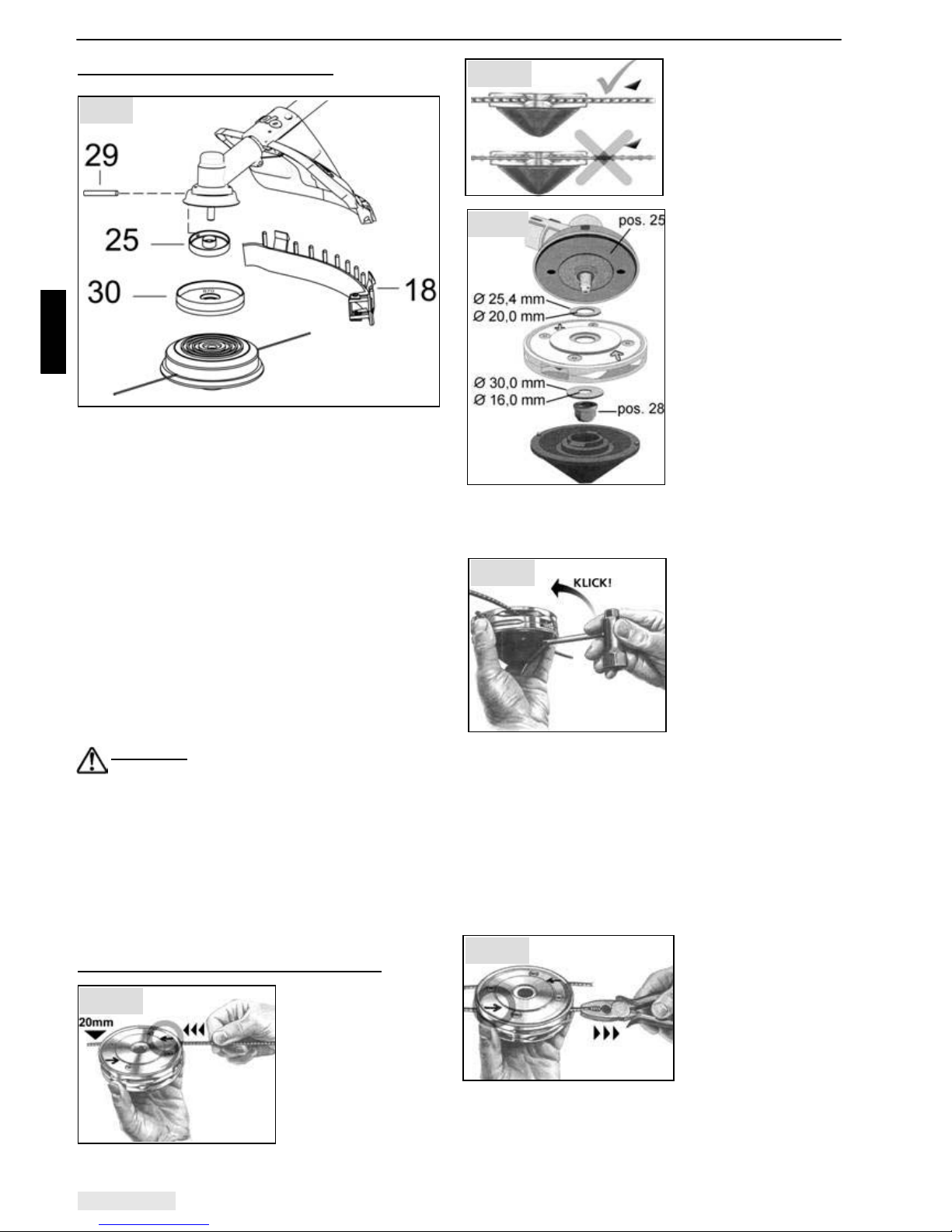

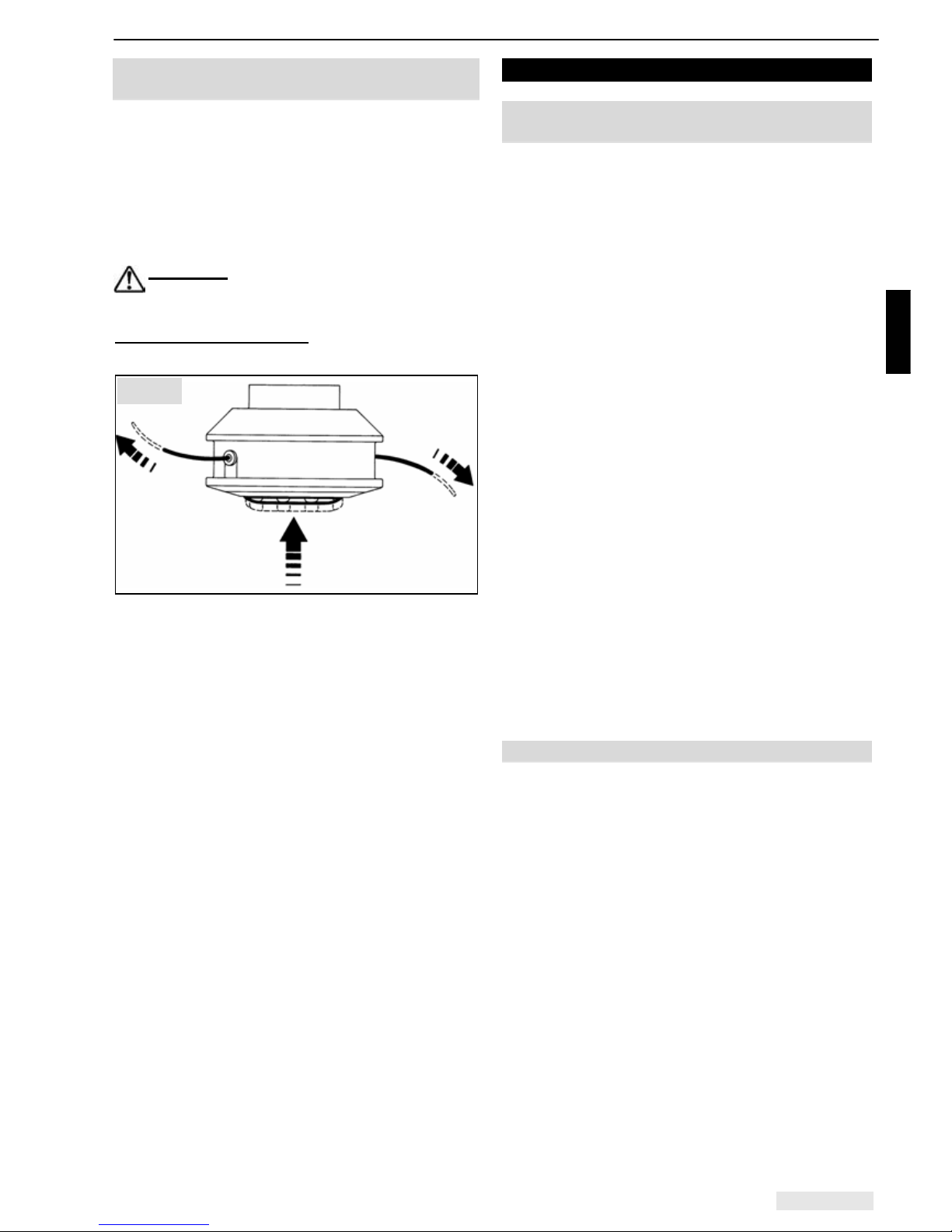

8.4 Note on using the nylon line head (available as accessory) 17
9. Operating and maintenance instructions.................................................................................... 17
9.1 General operating and maintenance instructions 17
9.2 Information about the silencer 17

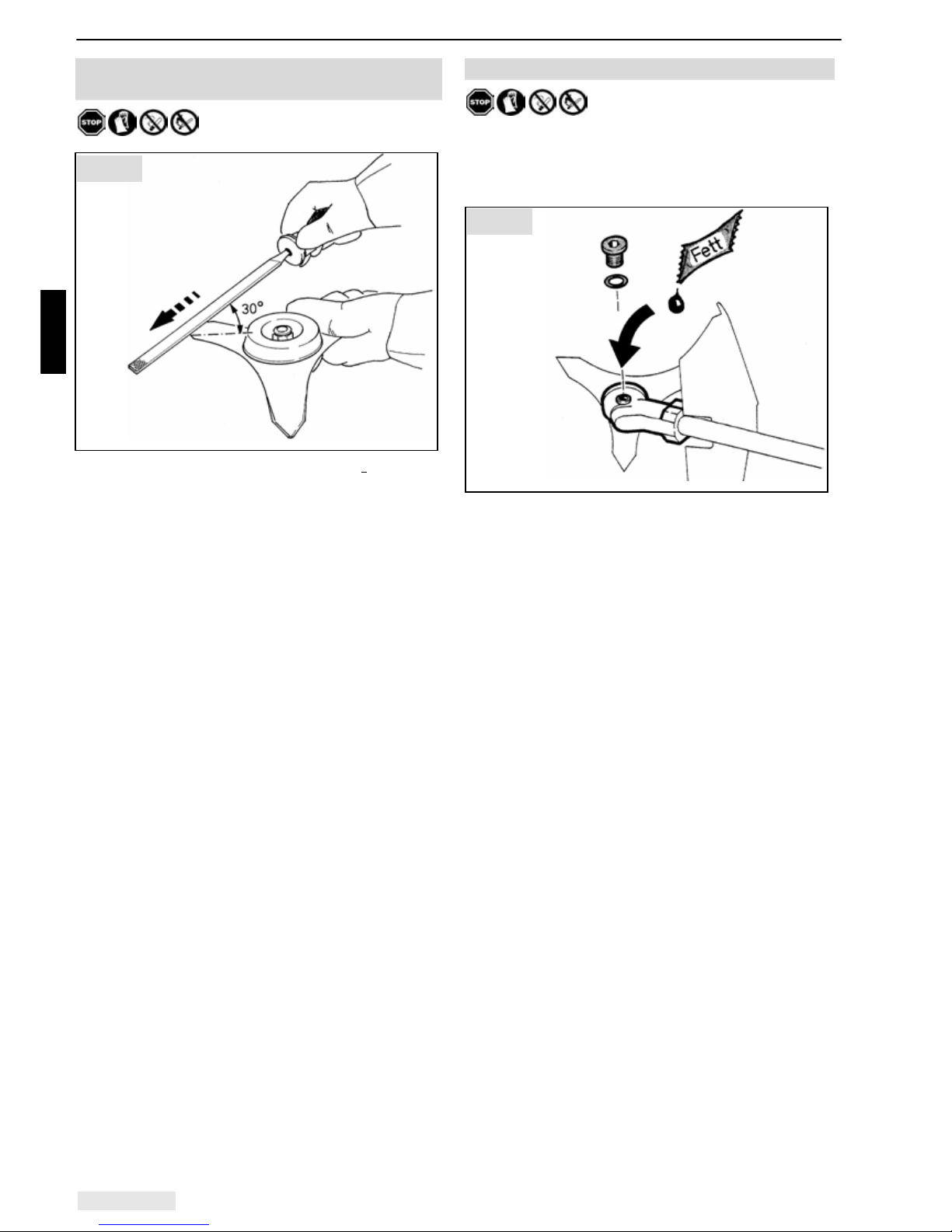

9.3 Sharpening instructions – metal cutting blades (subject to model) 18
9.4 Gearbox lubrication 18

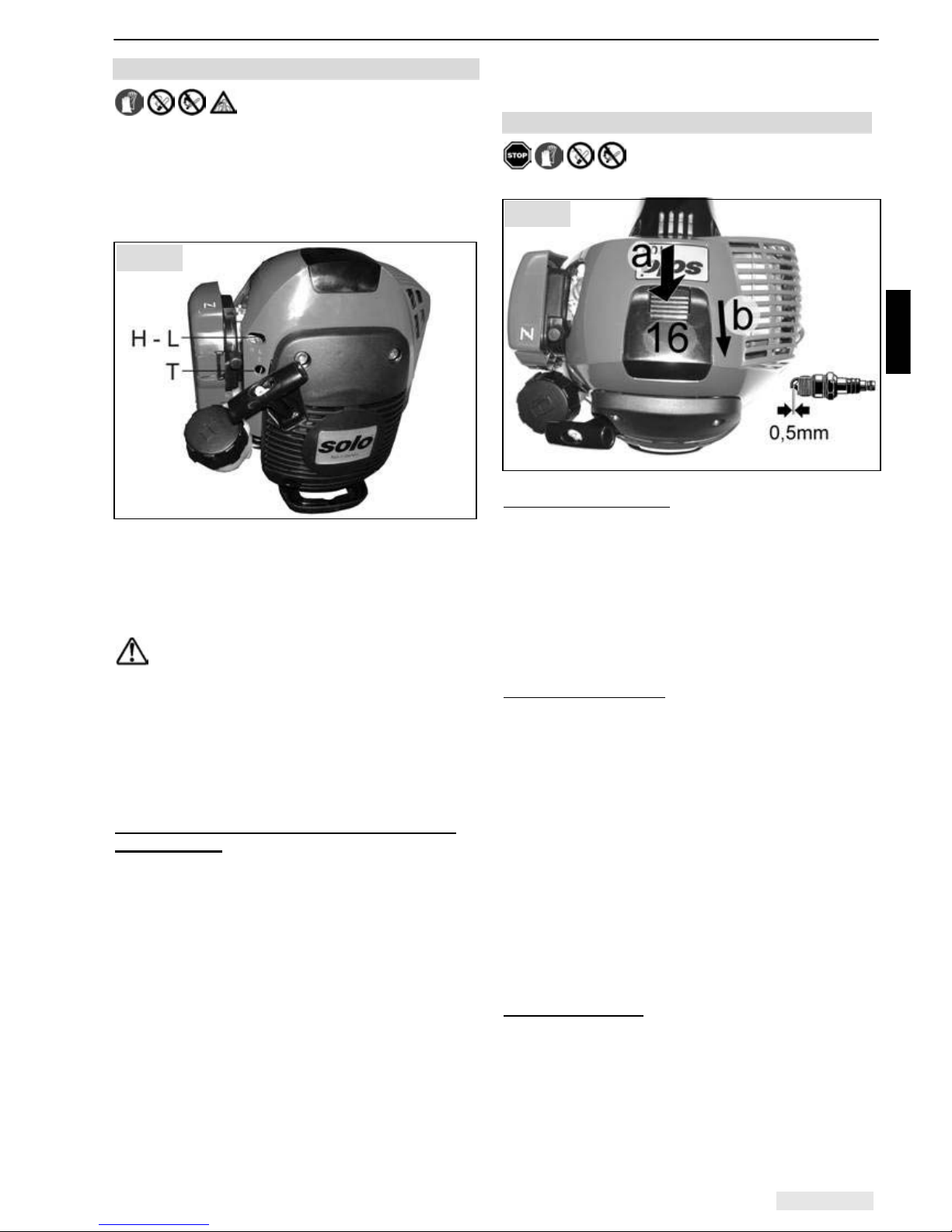

9.5 Carburettor adjustment 19
9.6 Information about the spark plug 19

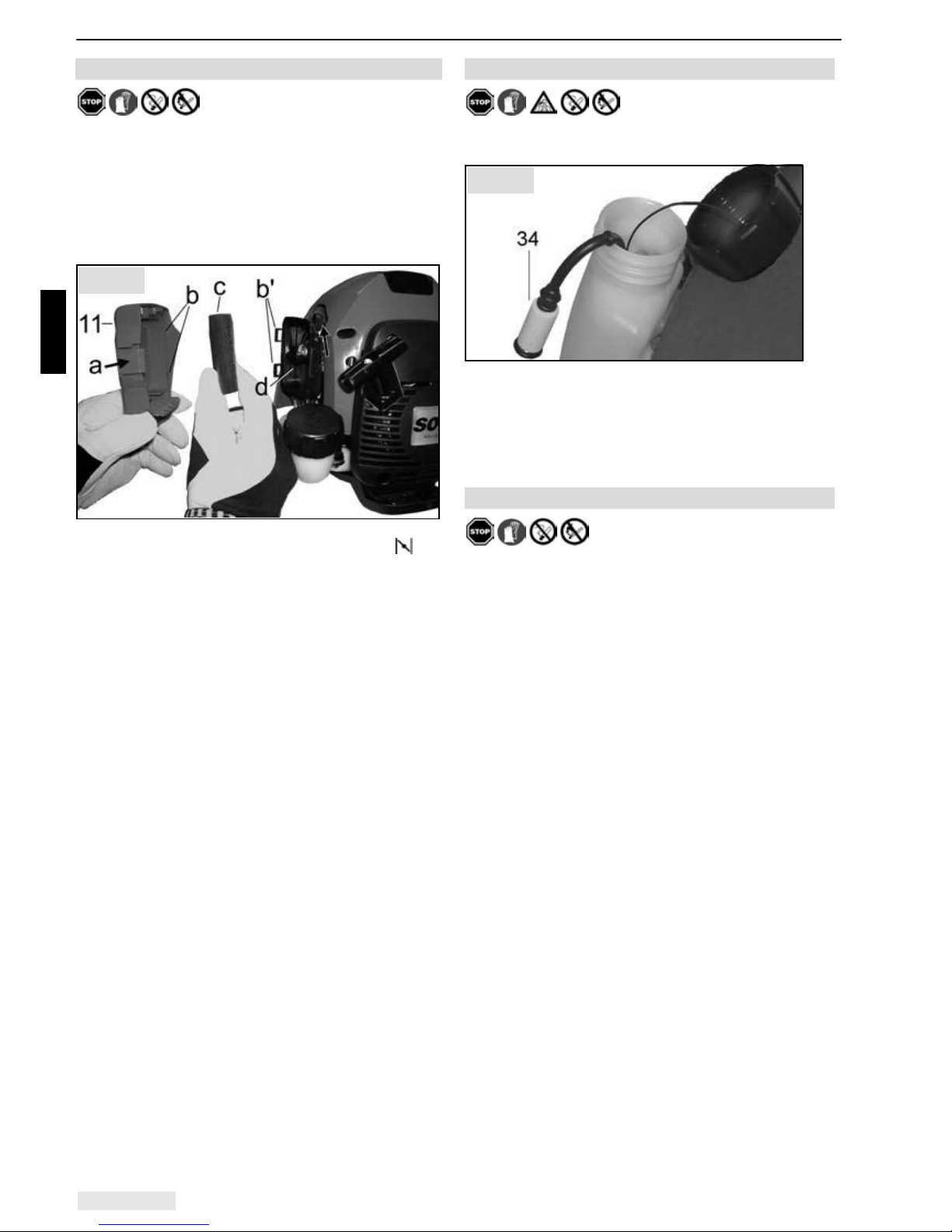

9.7 Air Filter Maintenance 20
9.8 Replacing the fuel filter 20
9.9 Shutdown and storage 20
9.10 Scheduled maintenance 21
10. Specification ............................................................................................................................ 22
11. Guarantee ................................................................................................................................23
12. Parts subject to wear and tear.................................................................................................. 23
* For USA only: Emissions Control Warranty Statement / Manufacturers Warranty Coverage ......23

Safety regulations
ENGLISH 3
1. Safety regulations
1.1 Correct use / General safety instructions
The brushcutter must only be used to cut grass, reeds, weeds and wild growth at ground level. The
brushcutter must not be used for any other purposes (see chapter 8.1 "Scope of Application").
Read the operating instructions carefully before placing in service and keep them in a safe
place.
Use this power tool with particular caution.
Non-observance of safety instructions can lead to a risk to life. Also observe any regulations from your
professional body. These operating instructions must always be available at the place of work. All
individuals instructed to work with the equipment (including maintenance, care and repair), should read
these instructions.
•You should request and receive instructions from the vendor on the safe operation if you are using this
type of product for the first time.
•Children and young people under 18 years may not work with this power tool, with the exception of
young people over 16 years of age who are being trained under supervision.
•Keep bystanders and animals away from the working area. Maintain a minimum distance of 15 m.
When working near thickets, be aware that children and animals may be hidden there. Immediately
stop the machine and the cutter if any person or animal comes close to the working area. The operator
is responsible for any accidents or damage caused to parties or property.
•This machine may only be passed on or lent to third parties if they are familiar with the safe use of this
product and with these instructions. Always supply the manual with the machine.
•Ensure you are rested and in good health when using this machine.
•Persons under the influence of alcohol or drugs, including prescription drugs, are not allowed to use
this machine, as their ability to quickly react to potential danger may be impaired.
•Never alter, change or modify any safety equipment or functional assemblies on this machine.
•Only use this machine if it is in good, safe condition. Always check the machine prior to use. Risk of
accident!
•Only use those accessories and attachments that have been supplied by the manufacturer and that
are expressly approved for attachment. When using a nylon head, never replace a plastic line with a
steel line. Always use the appropriate contact protection with each cutter.
•Always stop the engine and remove the spark plug cap when changing cutters to prevent unintentional
starting of the engine.
•The reliability and safe operation of your machine depend on the quality of parts used with the
machine. Only use original spare parts. Original spare parts are identical with genuine production parts
and guarantee best quality in material, dimensions, function and safety. Original parts and accessories
are available from your specialist dealer. Your dealer has been supplied with appropriate
documentation to determine the correct parts. Your dealer is frequently supplied with updates about
improvements to the equipment. Please note that the use of non-original parts will void your warranty.
•Always store the machine in a safe place and in such a way that it will not pose any danger. Stop the
engine when the machine is not used.
Persons who disregard safety instructions, operating or maintenance instructions may be liable for any
damage or consequential losses.

Safety regulations
ENGLISH 4
1.2 Working clothes
To prevent injuries, always wear suitable clothing and safety equipment when working with this power tool.
This clothing should be practically oriented to the application (for example a tight fitting work suit), but
should not be confining.
We recommend:
SOLO forest and countryside work jacket EN 340 Part no: 99303000 + size (2[s] - 6[xxl])
SOLO Outdoor Knee-breeches Part no: 9902095 + size
or SOLO Outdoor dungarees Part no: 9902094 + size
Never wear scarves, ties, jewellery or other items of clothing, which might get caught in the equipment, in
brush or on branches. Safely tie back long hair (use a cap, helmet or similar).
Wear sturdy shoes with a good tread - ideally safety shoes.
We recommend: SOLO leather forest boots Part no: 9930510 + size (36 - 48)
Wear protective gloves with non-slip palms.
We recommend: SOLO Fit Part no: 9939012 + size.
Use ear defenders and/or a visor for protection against flying objects or objects caught up in the
turbulence (protective goggles for example).
We recommend: SOLO face/ear protection pack Part no: 993901002 (one size)
1.3 Fuelling
Petrol is very light and highly flammable. Keep away from open flames and never spill fuel. Do
not smoke at the operating site or at and near the refuelling site!
•Stop the engine prior to refuelling.
•Let the engine cool down before refuelling - fire risk!
•Open the tank lid slowly to allow any excess pressure in the tank to be reduced without the risk of
petrol spraying out.
•Fuel may contain substances similar to solvents. Prevent products made from mineral oil coming into
contact with skin and eyes. Wear protective gloves during filling with fuel. Frequently change and clean
protective clothing.
•Avoid breathing in fuel vapour.
•The refuelling site should be well ventilated.
•Avoid any soil spillage of fuel or oil (protection of the environment). Use a suitable mat.
•Immediately clean any spilled fuel on the machine. Change contaminated clothing without delay.
•Firmly tighten all tank lids. This will reduce the risk of spillage from lids, which have become loose from
engine vibrations.
•Check for petrol leaks. Do not start the machine or work with the machine if there is a petrol leak. Life
threatening risk from burns!
•Store fuel and oil in approved and correctly labelled containers.
1.4 When transporting the equipment
•Always turn off the engine when transporting the machine.
•Never carry or transport the brushcutter with the engine running.
•Always cover the cutters with blade protectors, when transporting the equipment over longer
distances.
•To prevent fuel running out and associated damages, secure the equipment against tipping over
during vehicle transportation. Check the tank for leaks. It is advisable to drain the tank before
transportation.
•Drain the tank before despatching the equipment.

Safety regulations
ENGLISH 5
1.5 Preparing the equipment for starting
Check the complete machine for operational safety.
•The stop switch should function properly.
•The throttle must have freedom of movement and return to the idle position on its own accord.
•The cutters and contact protection must be tightly secured and in perfect condition.
•Ensure the spark plug cap and the ignition cable are connected firmly. A loose connection may cause
a spark, which can ignite any existing fuel:air mixture - fire hazard!
Should the check reveal any irregularities or recognisable damage (also to the frame), incorrect
adjustments or reduced efficiency of the machine, do not commence work. Take the power tool to a
specialised workshop and have it checked.

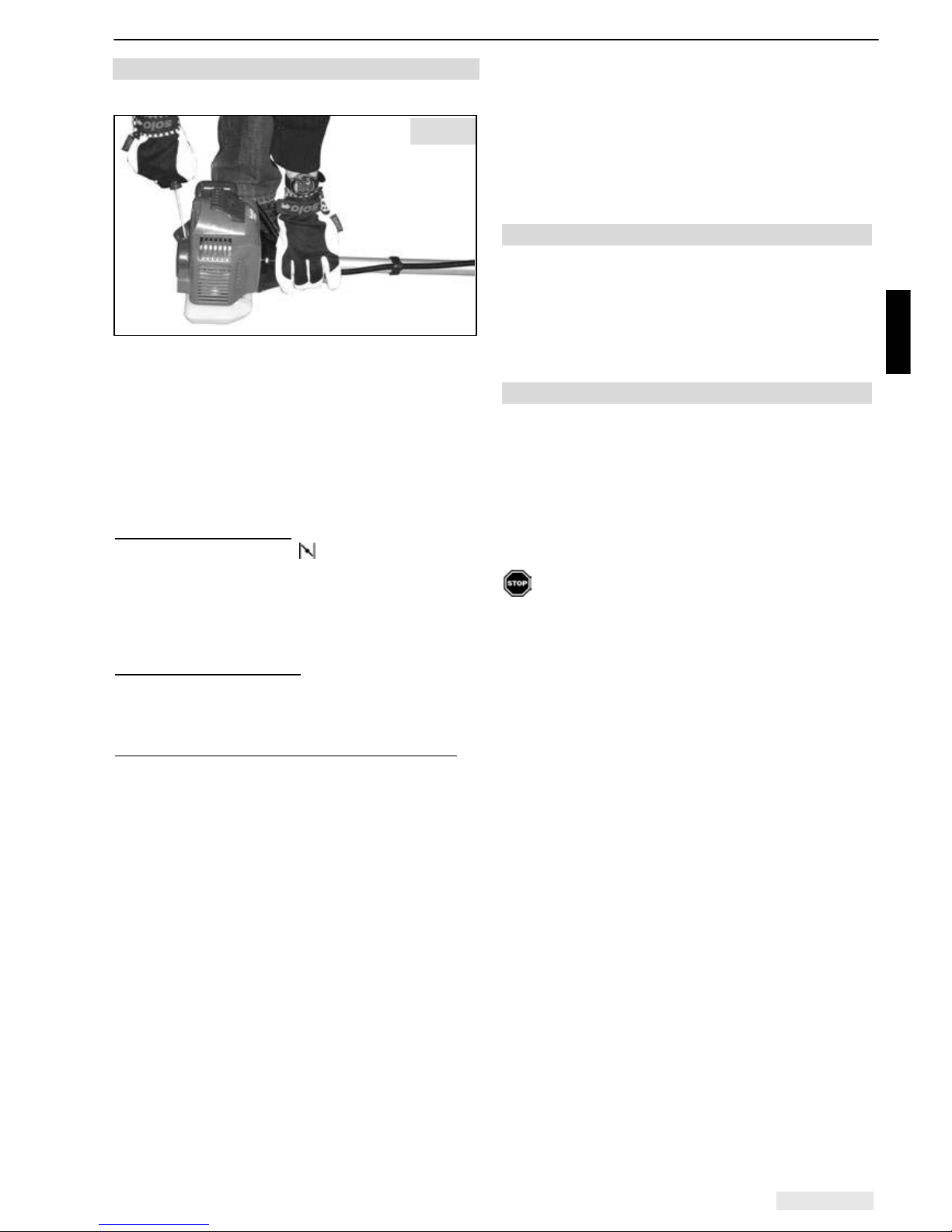

1.6 Starting
•Start the machine no less than 3 metres from the refuelling location. Never start the machine in an
enclosed space.
•Ensure that you are standing firmly on the ground when starting. Always start on even ground, with a
firm grip on the power tool.
•Only one person at the time may operate this power tool - no other people should be within a radius of
15 m - even when starting.
•Continue with the starting procedure as described in section 7. "Starting/Stopping the engine".
1.7 Maintenance and repairs
Regularly service this machine. Only carry out those maintenance jobs and repairs, which are described in
this manual. A specialised service centre will carry our all other jobs.
•Do not maintain, repair or store the machine near an open flame.
•Before cleaning, maintenance and repair work, always stop the engine first and pull the spark plug
cap. Exceptions: carburettor and idle adjustments.
•For any repairs only use original parts from the manufacturer.
•Do not modify, alter or change the machine as this may impact on the safe operation of the machine
and may lead to accidents and injuries!
