Solwise NET-PL-200AV11NRT User manual

HomePlug AV 200Mbps 4-Port Wireless-N Router

User Manual
Page 2 of 66
2008 Copyright. All rights reserved. Version 1.1
No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or
mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express
written permission. We reserve the right to revise this document at any time without the obligation to notify any person and/or entity. All other company
or product names mentioned are used for identification purposes only and may be trademarks of their respective owners.
LIMITATION OF LIABILITY AND DAMAGES
THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED "AS IS," BASIS. THE MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY
REFERRED TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES ARISING FROM COURSE
OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. IN NO EVENT WILL THE SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT
NOT LIMITED TO DIRECT, INDIRECT, SPECIAL WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF
BUSINESS PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING OUT OF THE USE OR THE INABILITY TO
USE THE PRODUCT OR THE SOFTWARES, INCLUDING BUT NOT LIMITED TO THOSE RESULTING FROM DEFECTS IN THE PRODUCT OR SOFTWARE OR
DOCUMENTATION, OR LOSS OR INACCURACY OF DATA OF ANY KIND, WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY, EVEN IF
THE PARTIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE
PRODUCT OR ITS SOFTWARE IS ASSUMED BY CUSTOMER. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR
DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE LIABILITY OF EACH AND
EVERY KIND IN RELATION TO THE PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT PAID BY CUSTOMER FOR THE PRODUCT.
Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This
equipment meets the following conformance standards:
EN300 328, EN301 489-17, EN60950
Countries of Operation and Conditions of Use in the European Community
This device is intends to be operated in all countries of the European Community. Requirement is for indoors vs. outdoors operation, license
requirements and allowed channels of operation apply in some countries as described in this document.
Note: The user must use the configuration utility provided with this product to check the current channel of operation and confirm that the devices
operating in conformance with the spectrum usage rules for the European Community countries as described below.
If operation is occurring outside of the allowable channels as indicated in this guide, then the user must cease operating the product and consult with the
local technical support staff responsible for the wireless network.
This device may be operated indoors or outdoors in all countries of the European Community using the 2.4GHz band: Channels 1 – 13, except where
noted below:
·In Italy the end-user must apply for a license from the national spectrum authority to operate this device outdoors.
·In France outdoor operation is only permitted using the 2.4 – 2.454 GHz band: Channels 1 – 7.

User Manual
Page 3 of 66
Contents
About the Product................................................................................................................................................................................................ 5
Requirements ............................................................................................................... 6
Package Contents .........................................................................................................6
Device Design................................................................................................................7
Getting Started ..................................................................................................................................................................................................10
Planning Your Network............................................................................................ 11
Remove or Disable Conflicts .................................................................................... 12
Internet Sharing, Proxy, and Security Applications..............................................................................................12
Configuring TCP/IP Settings ...............................................................................................................................13
Configuring Internet Properties..........................................................................................................................13
Removing Temporary Internet Files ....................................................................................................................14
Setup the Device......................................................................................................... 15
Connecting to the Internet ....................................................................................... 16
Connecting Wireless Devices ...................................................................................18
Manual Setup......................................................................................................................................................18
WPS (Wi-Fi Protected Setup)...............................................................................................................................19
WCN (Windows Connect Now) ..............................................................................................................................19
Creating a HomePlug AV Network...........................................................................20
Using Simple Connect Button..............................................................................................................................20
Using HomePlug AV Utility..................................................................................................................................21
About the Web User Interface .............................................................................................................................................................................. 23
Menus........................................................................................................................... 24
Basic Menu .........................................................................................................................................................24
Advanced Menu...................................................................................................................................................24
Maintenance.......................................................................................................................................................24
Basic Menu........................................................................................................................................................................................................ 25
Quick Start..................................................................................................................25
Product Info................................................................................................................27
Advanced Menu.................................................................................................................................................................................................. 29
QoS................................................................................................................................ 29
StreamEngine......................................................................................................................................................29
WISH...................................................................................................................................................................32
NAT (Network Address Translation) ...................................................................... 35
Port Forwarding..................................................................................................................................................35
Port Trigger........................................................................................................................................................36

User Manual
Page 4 of 66
Virtual Server......................................................................................................................................................38
DMZ....................................................................................................................................................................39
Routing........................................................................................................................ 40
Static Routing.....................................................................................................................................................40
RIP (Routing Information Protocol) ...................................................................................................................41
Security ....................................................................................................................... 42
Access Control.....................................................................................................................................................42
Firewall Settings .................................................................................................................................................43
Inbound Filter ....................................................................................................................................................47
Inbound Filter Rules List....................................................................................................................................48
MAC Address Filter (Network Filter)....................................................................................................................48
Website Filter......................................................................................................................................................49
Applications................................................................................................................ 50
DDNS (Dynamic DNS)..........................................................................................................................................50
Schedules............................................................................................................................................................51
Syslog..................................................................................................................................................................52
Time ...................................................................................................................................................................52
UPnP ..................................................................................................................................................................54
Wireless....................................................................................................................... 55
Status........................................................................................................................... 57
Internet Sessions.................................................................................................................................................57
Logs....................................................................................................................................................................58
Routing...............................................................................................................................................................59
Traffic Status ......................................................................................................................................................59
Wireless Clients...................................................................................................................................................60
WISH Sessions.....................................................................................................................................................61
Maintenance ............................................................................................................... 62
System ................................................................................................................................................................62
System Settings...................................................................................................................................................64
Firmware Upgrade...............................................................................................................................................64
Reboot ................................................................................................................................................................65

User Manual
Page 5 of 66
About the Product
The HomePlug AV 200Mbps 4-port Wireless-N Router offers an All-in-one In-house Networking Device. The HomePlug wireless router offers high capacity
for HD and SD multimedia distribution, while carrying other Internet services, is easy to use, simple to install and requires no new wires. It instantly
converts existing power lines installations into high-speed virtual Ethernet networks.
The HomePlug Wireless Router combines the benefits of HomePlug AV and 802.11n Wireless-N features, provides dedicated powerline date rate up to
200Mbps - perfect for streaming HD IPTV and VoD (Video-on-Demand) while offering full in-house wireless coverage at a speed up to 300Mbps*. On top
of that, the HomePlug wireless router has built-in QoS (Quality-of-Service) engine for enhanced Internet experience.
For powerline security, HomePlugAV 4-port wireless 802.11n Router supports 128-bit Advanced Encryption Standard (AES) to ensure maximum security.
Coupled with "Simple Connect" button to enable the security and pairing up of HomePlug Adapters at a simple touch of a button. For maximum wireless
security, the HomePlug wireless router supports WEP, WPA and WPA2 with WPS (Wi-Fi Protected Setup) feature.
Applications: High Definition (HD) and Standard Definition (SD) video distribution, TV over IP (IPTV), Higher data rate broadband sharing, Shared
broadband internet access, Audio and video streaming and transfer, Expanding the coverage of wireless LANs, Voice over Internet Protocol (VoIP), PC files
and applications sharing, Printer and peripheral sharing, Network and online gaming, Security camera.

User Manual
Page 6 of 66
Requirements
Your computer must meet the following minimum requirements.
Any operating system can be used
Internet Explorer 4.0 or Netscape Navigator 3.02
233MHz processor
CD-ROM Drive
Ethernet network adapter
Package Contents
Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents vary for different models.
Router
Ethernet cable
+12VDC, 1.67A Power Adapter
Easy Start Guide
Resource CD

User Manual
Page 7 of 66
Device Design

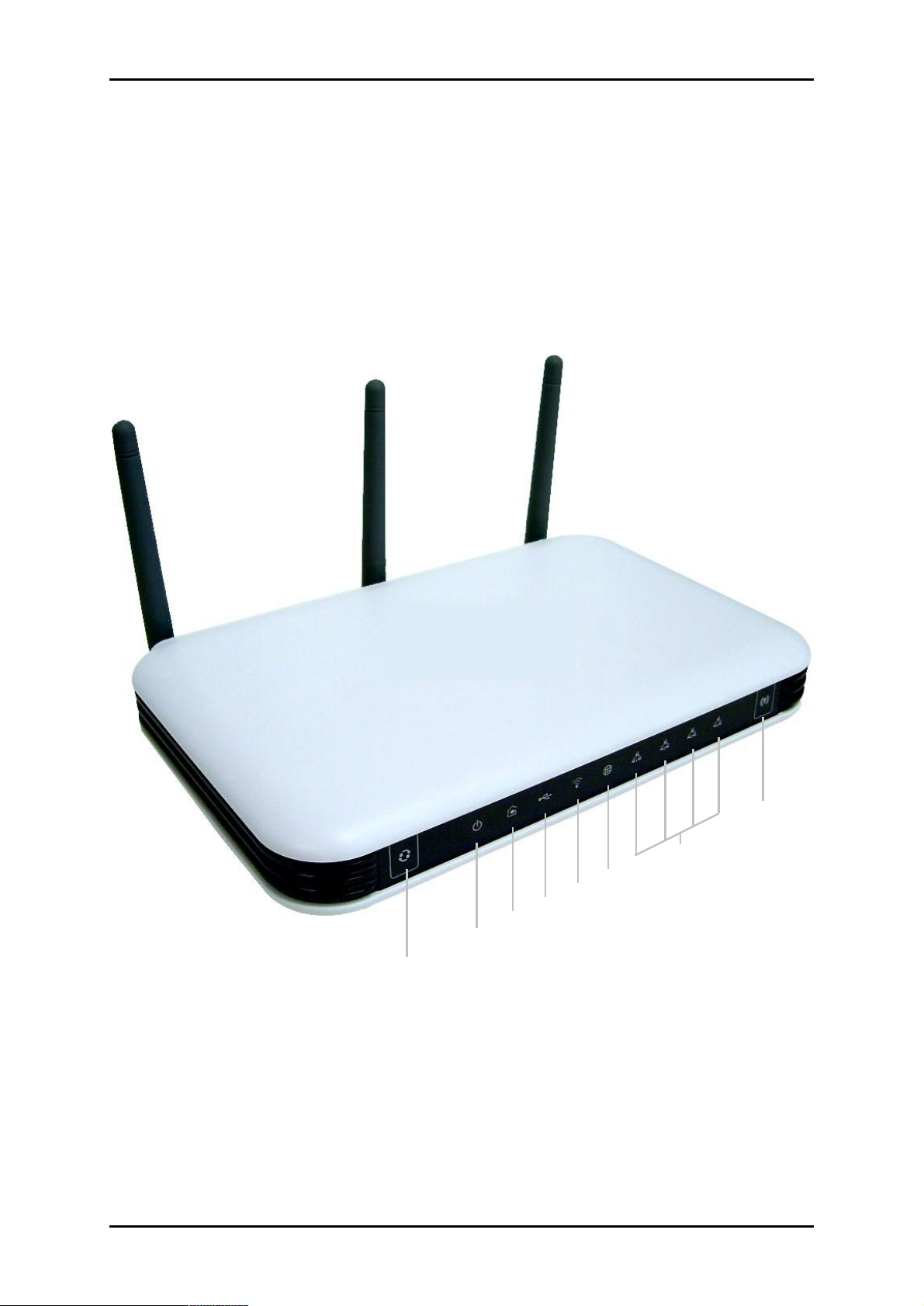

Front Panel
A
B
C
D
E
F
G
H

User Manual
Page 8 of 66
Label
Action
Description
A
Simple Connect Button
Press for 2 seconds to create or join a HomePlug AV network.
Press for 10 seconds to reset the Private Network Name to a random key.
Off
No power is supplied to the device
B
Power
Steady light
Connected to an AC power supply
Off
No Homeplug connection
Steady light
Homeplug connection established
The LED colors represents the connection rate within the HomePlug AV network
whether it is good (red), better (amber), or best (green).
C
Powerline Activity
Blinking light
Transmitting/Receiving data
D
USB
Blinking light
Will blink 3 times indicating Windows Connect Now (WCN) Process
Off
Wireless Disabled
Steady Light
Wireless Enabled
E
WLAN
Blinking light
Transmitting/Receiving data wirelessly
Off
No modem connection
Steady light
Connected to an active modem
F
WAN
Blinking light
Transmitting/Receiving data
Off
No Ethernet connection
Steady light
Connected to an active Ethernet device
G
Ethernet 1-4
Blinking light
Transmitting/Receiving data
H
WPS
(Wi-Fi Protected Setup)
Press for two seconds (or until the LED blinks) to start WPS pairing.
Wireless client must be WPS-enabled and must be pressed within 3 minutes.

User Manual
Page 9 of 66
Back Panel
Label
Used for…
1
Power
Connecting the +12VDC, 1.67A DC power adapter
2
USB
Windows Connect Now (WCN)
3
Reset
Press for 2 seconds to reset the Router and HomePlug to default settings.
4
WAN
Connecting with a modem using an Ethernet cable
5
Ethernet 1-4
Connecting with computers/devices using an Ethernet cable
6
Antenna 1-3
Sending/receiving wireless signals

User Manual
Page 10 of 66
Getting Started
Setting up the device is easy. The flowchart below provides an outline of the steps needed to complete the installation. Brief descriptions appear beside
each step. Detailed instructions are provided in the subsequent pages.
Remove/Disable
Conflicts
Plan your Network
Ready to Use
Setup the Router
Connect to the
Internet
You may need to check some setting or disable
some application before installation.
Connect the modem, computer, and power adaptor
to the router.
Open a browser to access the Web User Interface and
then use Setup Wizard to connect to the Internet.

User Manual
Page 11 of 66
Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a network diagram to help identify your network devices and plan out how to
connect these devices. The illustration below is an example of a network diagram.
To create a network diagram:
For wireless devices, identify the wireless devices you want to include in the network
For wired devices, identify which router port you want to use for each device.
For HomePlug devices, identify the HomePlug devices you want to include in the network.

User Manual
Page 12 of 66
Remove or Disable Conflicts
To make sure the router installation moves on smoothly, you need to remove or disable conflicts that may interfere the installation. Probable conflicts
may include:
Internet sharing applications
Proxy software
Security software
TCP/IP settings
Internet properties
Temporary Internet files
Internet Sharing, Proxy, and Security Applications
Internet sharing, proxy software, and firewall applications may interfere with the router installation. These should be removed or disabled before start
the installation.
If you have any of the following or similar applications installed on your computer, remove or disable them according to the manufacturer’s instructions.
Internet Sharing Applications
Proxy Software
Security Software
Microsoft Internet Sharing
WinGate
Symantec
WinProxy
Zone Alarm

User Manual
Page 13 of 66
Configuring TCP/IP Settings
Check if your computer uses the default TCP/IP settings.
To check the TCP/IP properties:
Click the Start button, and then click Run. This opens the Run dialog box.
Type control ncpa.cpl, and then click OK. This opens the Network Connections in your computer.
Right-click LAN, and then select Properties. This opens the Local Area Connection Properties dialog box.
Select Internet Protocol (TCP/IP), and then click Properties. This opens the Internet Protocol (TCP/IP) dialog box.
Check Obtain an IP address automatically.
To close the Internet Protocol (TCP/IP) dialog box, click OK.
To close the Local Area Connection Properties dialog box, click OK.
Configuring Internet Properties
To set the Internet Properties:
Click the Start button, and then click Run. This opens the Run dialog box.
Type control inetcpl.cpl, and then click OK. This opens Internet Properties.
Click Connections tab.
In Dial-up and Virtual Private Network settings, check Never dial a connection.
To close Internet Properties, click OK.

User Manual
Page 14 of 66
Removing Temporary Internet Files
Temporary Internet files are files from Web sites that are stored in your computer. Delete these files to clean the cache and remove footprints left by the
Web pages you visited.
To remove temporary Internet files:
Click the Start button, and then click Run. This opens the Run dialog box.
Type control, and then click OK. This opens Control Panel.
Double-click Internet Options. This opens Internet Options.
In the Temporary Internet Files pane, click Delete Cookies.
Click Delete Files.
To close Internet Properties, click OK.

User Manual
Page 15 of 66
Setup the Device
When installing the router, find an area where there are enough electrical outlets for the router, the main computer, and your other computer devices.
To setup the router:
Use an Ethernet cable to connect a modem to the WAN port.
Use an Ethernet cable to connect a computer to any of the available Ethernet ports from 1-4.
Connect the power adapter and then plug it to an electrical source.

User Manual
Page 16 of 66
Connecting to the Internet
To connect to the Internet, use the Web User Interface’s Setup Wizard.
Note: To connect to the Internet, make sure that your router is connected to a modem and you have an active Internet service account.
To connect to the Internet via the Web User Interface:
Open your browser.
Type 192.168.1.1 in the address field and then press Enter. This opens the Log In Authentication page.
Type your Username and Password. The default username is admin, with blank password.
Quick Start Setup opens. You will be asked to provide the WAN and LAN Settings.

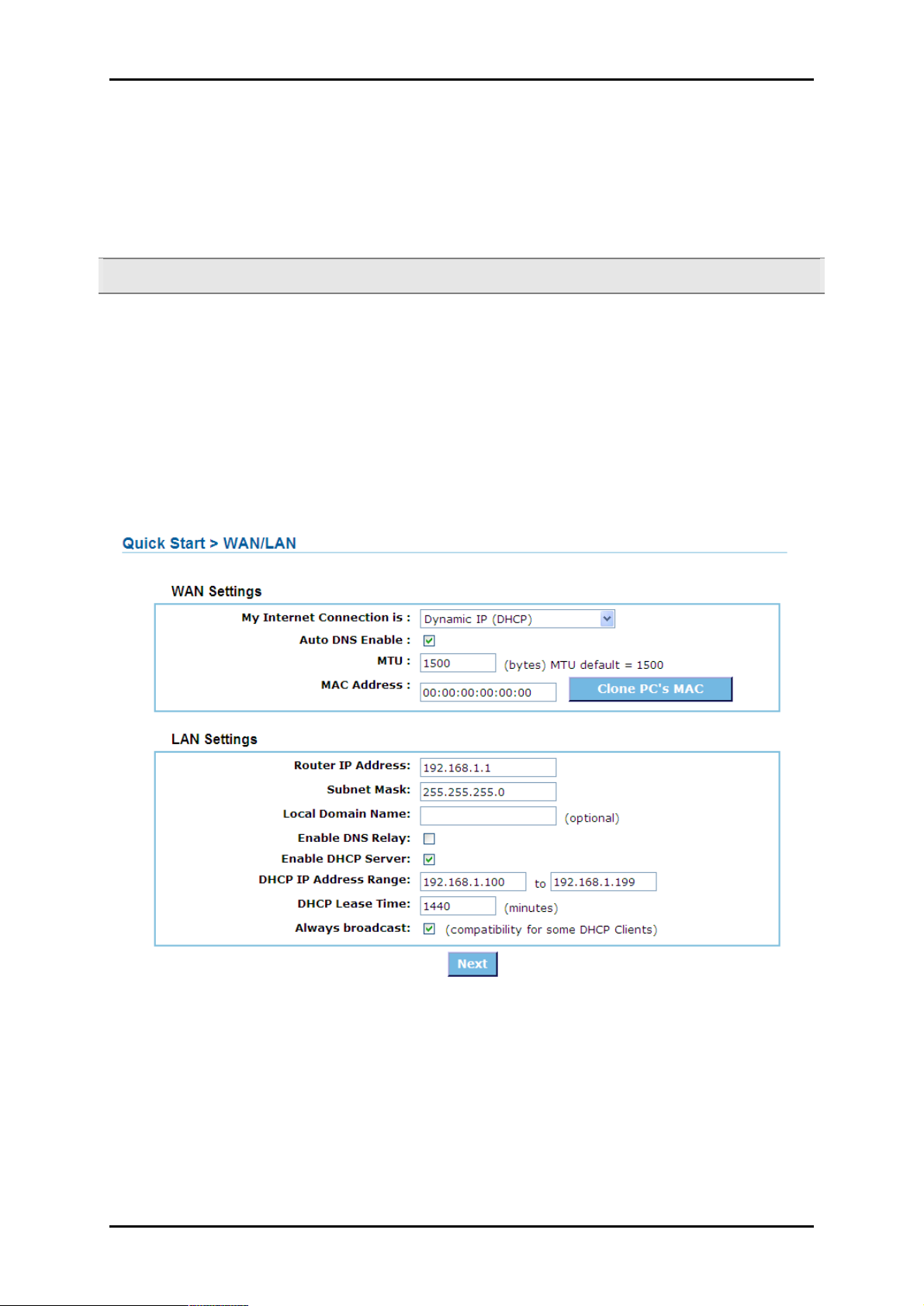

Configure the WAN and LAN settings, and click Next.

User Manual
Page 17 of 66

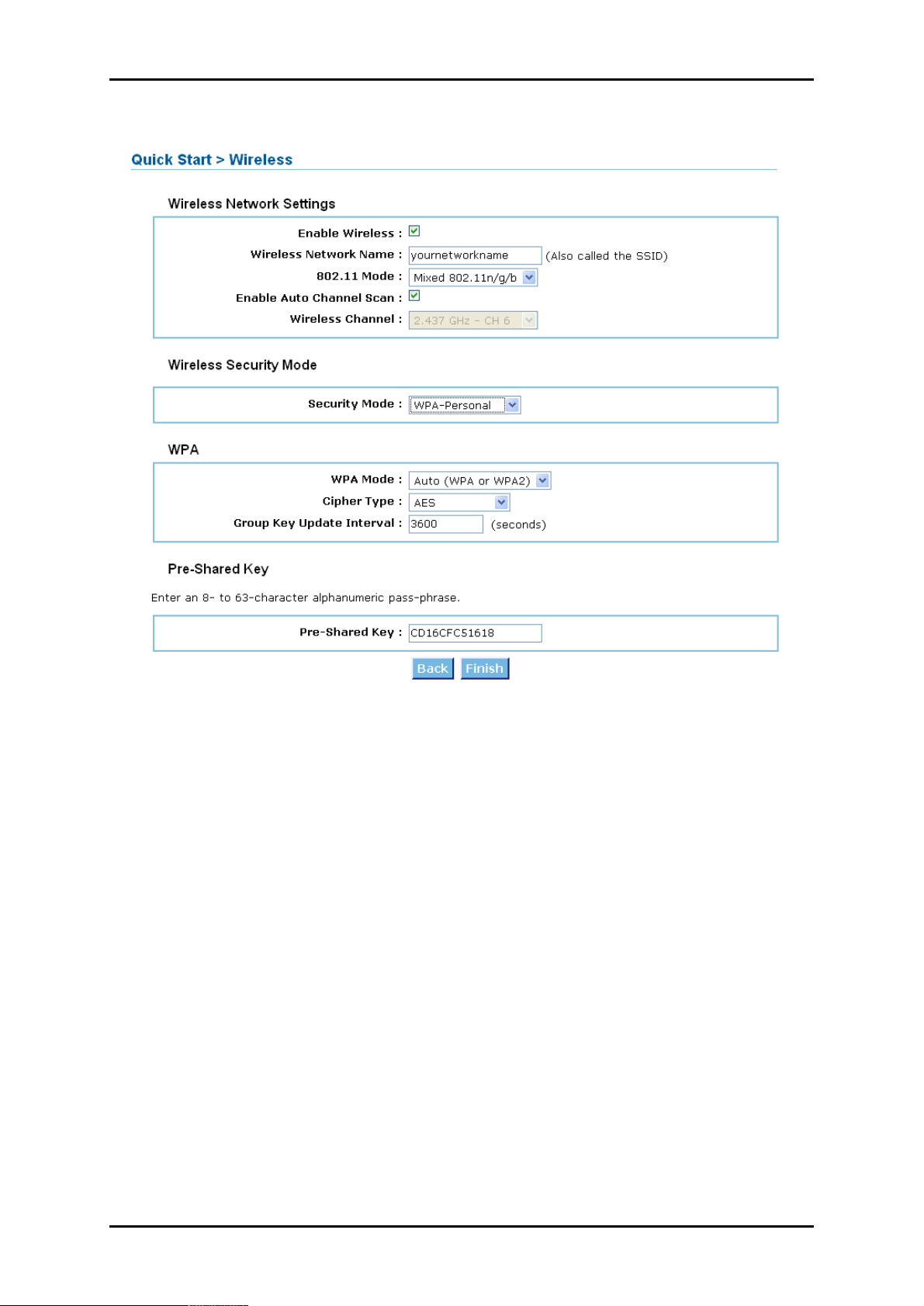

Configure the Wireless Network Settings including the Wireless Security Mode and click Finish.
After you click Finish, the router will save the new settings and then try to establish a connection with your Internet service provider.
To verify if your connection has been successful, click Product Info under the Basic Menu. A WAN IP address will appear under the WAN Connection
Information pane.

User Manual
Page 18 of 66
Connecting Wireless Devices
Manual Setup
Using WPS (Wi-Fi Protected Setup)
Using WCN (Windows Connect Now)
Manual Setup
After you setup the Router settings through the main computer, you can connect other devices with wireless capabilities. Wireless devices relieve you from
the task of laying out cables and allow you to use the Internet connection from your router.
To connect with wireless devices:
Turn on your wireless device.
Open the software you use to detect a wireless connection. This opens a window to ask for the connection settings.
Enter the connection settings for the wireless network. These settings are defined in your router during setup.

User Manual
Page 19 of 66
WPS (Wi-Fi Protected Setup)
WPS button allows you to enable Wi-Fi Protected Setup (WPS). When enabled, Wi-Fi Protected Setup automatically detects and connects wireless clients
into the wireless network by broadcasting the wireless network settings from your Access Point to you wireless device/s.
To setup WPS:
Press the WPS button on the router for two seconds, or until the LED blinks
Within 3 minutes, press the WPS button on the Wireless Client.
Note: WPS can only be used with wireless client devices that have a compatible WPS component.
WCN (Windows Connect Now)
WCN (Windows Connect Now) technology allows users to easily create a wireless network and add additional wireless devices using a USB flash drive.
With Windows Connect Now, users running Windows XP Service Pack 2 and later Windows OS version can create wireless network configuration settings
and transmit them to the access point and other wireless devices.
To setup WCN (Windows Connect Now):
Click Start and then click Control Panel.
For Control Panel Category View: click Network and Internet Connections, and then click Wireless Network Setup Wizard.
For Control Panel Classic View: click Wireless Network Setup Wizard.
Follow the instructions on your screen.
Choose "Use a USB flash drive"
Insert the USB Flash drive into your computer. Wireless network configuration settings will be saved to the flash drive.
Plug the flash drive into your Access Point, wireless client or Windows Connect Now compatible device that you want to add to the wireless network.
Note: Windows Connect Now can only be used with WCN compatible devices.

User Manual
Page 20 of 66
Creating a HomePlug AV Network
HomePlug AV utilizes the existing electrical wiring in the house as a path to create a secured network of computers and Ethernet devices. With a
maximum data rate of up to 200 Mbps, HomePlug AV can reliably handle high requirement applications like broadband Internet, high definition video
streaming, and Voice over IP. HomePlug AV converts digital signals to a complex analog signal that traverses along the electrical wires. When receiving
the analog signal, HomePlug AV converts the analog signal back to digital. To make the signal secured, a 128-bit AES encryption is applied.
To create a HomePlug AV network, you need at least two HomePlug AV devices using random Private Network Names. When you press Simple Connect
on both devices, a common Private Network Name will be automatically generated to enable them to communicate with each other.
When a HomePlug AV communicates with another device, the Powerline Activity LED color will give you an idea about the connection rate: red means
below 40 Mbps; amber means 40 to 105 Mbps; and green means more than 105 Mbps.
Using Simple Connect Button
Simple Connect provides a more convenient way of creating your HomePlug AV network without the need to open the HomePlug AV Utility software
from a computer.
To create a HomePlug AV network using Simple Connect:
Plug your HomePlug AV adaptor near your Router where you can easily observe the LED behavior.
Upon connection, the LEDs will blink simultaneously and then the Power LED lights on steadily.
Press Simple Connect for two seconds on your Router. After you release the button, the Simple Connect will blink. If the Simple Connect did not
blink, press the button again for two seconds.
Note: Do not press Simple Connect for more than 2 seconds.
Press Simple Connect for two seconds on your HomePlug AV adaptor. After you release the button, the Simple Connect will blink. If the Simple Connect
did not blink, press button again for two seconds.
Make sure to press Simple Connect on your HomePlug AV adaptor within two minutes after you press Simple Connect on your Router. The LEDs on both
devices will switch off and on twice to signify that they are searching for another device to pair with.
To confirm if the connection was established, check the LEDs. The Power LEDs and the Powerline Activity LEDs on your Router and HomePlug Adaptor
are on. When the Powerline Activity LED on either Router or HomePlug Adaptor is off, this means the pairing is not successful. In this case, press the
Simple Connect button for 10 seconds (or until all the LEDs turns Off and On) to reset to a random Private Network Name, and redo the Pairing process.
Unplug the HomePlug AV adaptor and then connect it to your Ethernet-enabled device using an Ethernet cable. After connecting the Ethernet cable, plug
the HomePlug adaptor directly to a wall outlet.
