SOMFY 1870932 User manual

Weather Station KNX
Weather Station KNX
Art. no.: 1870932
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
These instructions are an integral part of the product, and must remain with the end customer.
2 Device components
Figure1: View
Figure2: Underside view
(1) Sensor head
(2) Grub screw for locking
(3) Fastening arm
(4) Global radiation sensor
(5) Precipitation sensor
(6) Light and twilight sensors
(7) Mounting for fastening arm with bus connection
(8) Air humidity sensor
(9) Wind speed and wind direction sensor
(10) Temperature sensor
(11) Guide blade
(only if mounted on a mast)
1 / 8
82590128 16.02.2021
5158881A

Weather Station KNX
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed tech-
nical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
The function of this device depends upon the software. Detailed information on loadable soft-
ware and attainable functionality as well as the software itself can be obtained from the manu-
facturer´s product database. Planning, installation and commissioning of the device are carried
out with the aid of KNX-certified software. The latest versions of product database and the tech-
nical descriptions are available on our website.
Intended use
– Measurement and evaluation of weather data: Wind speed, Wind direction, Precipitation,
Brightness, Global radiation Twilight, Temperature, Relative air humidity and Air pressure
– Installation on the outside of buildings, preferable in the roof and facade area
– Operation with additional power supply (see accessories)
Product characteristics
– Integrated GPS/GLONASS receiver for automated positioning
– Calculation of additional weather data: Absolute air humidity, chill temperature, comfort
– Function for shading control
– Integrated KNX bus coupling unit
– Measurement data acquisition and limit value monitoring
– Software logic modules for linking events
– Integrated heating
The measured values apply to the mounting location. Variations to other weather services
– e.g. through local turbulence or areas with build-ups of air – are possible.
4 Information for electrically skilled persons
DANGER!
Electrical shock on contact with live parts in the installation environment.
Electrical shocks can be fatal.
Before working on the device, disconnect the power supply and cover up live parts
in the working environment.
4.1 Fitting and electrical connection
Selecting installation location

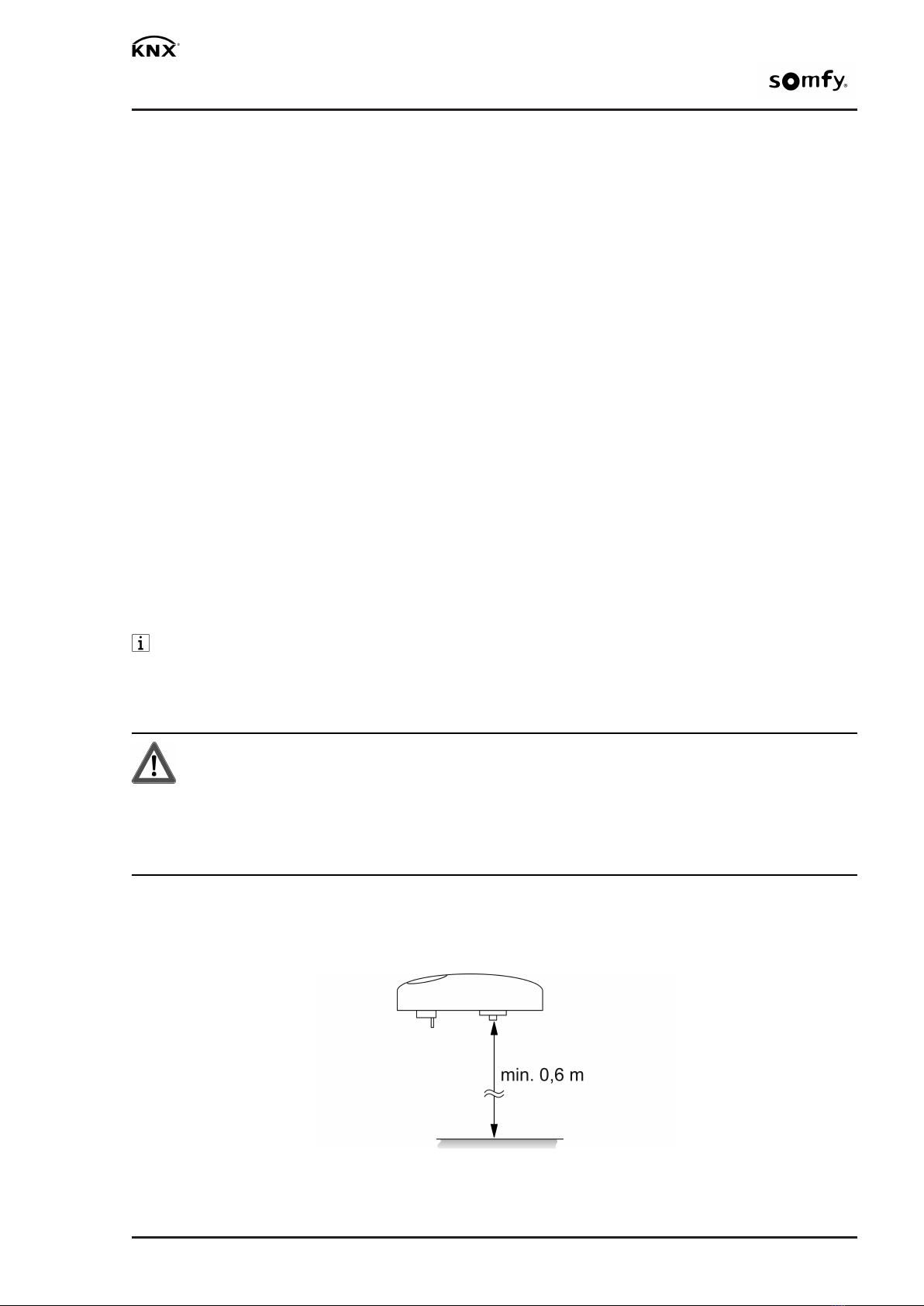

Figure3: Minimum distance to surfaces
2 / 8
82590128 16.02.2021
5158881A

Weather Station KNX
Figure4: Avoid spray water
Figure5: Maximum load on the fastening arm
Select a mounting selection in which the weather station is not influenced by local obstacles or
shading, such as surrounding trees, chimneys, awnings, etc. The sensor must be able to detect
wind, rain and ambient brightness without impedance. Avoid slipstream, shadow casting and
light reflection.
Preferred mounting on a freestanding mast. If mounted on house walls, the measurement of
wind and brightness in particular can be distorted.
Do not mount it below or next to building sections, from which water can drip onto the device.
Select the mounting location so that the weather station will be accessible.
In the case of flat roofs, locate the weather station as close to the centre of the roof as possible.
Minimum distance to surfaces below the weather station: 0.6 m (Figure 3). Otherwise, the
sensors on the underside may get damaged by penetrating spray water (Figure 4).
Direct sunlight, chimneys or other waste gas or ventilation systems affect the temperature
measurement.
Do not operate in the vicinity of radio transmitter systems. Doing so will compromise function.
Do not connect more than 3 weather stations in a KNX line.
Mounting weather station without fastening arm on freestanding mast
Figure6: Mounting on freestanding mast without fastening arm
Use mast with outer diameter <25 mm and inner diameter >19 mm.
3 / 8
82590128 16.02.2021
5158881A

Weather Station KNX
￭ Mount enclosed guide blade (11) in the fields provided next to the connection (7).
If mounted on a mast without the guide blade, no correct wind direction measurement is
possible due to the resulting turbulences.
￭ Route the power supply line through the mast.
￭ Attach the 7-pin plug to the connection (7). Tighten threaded ring with max. 0.5 Nm.
￭ Mount weather station onto the mast and align. The grub screw (2) must be pointing
north.
￭ Tighten grub screw (2) with max. 0.6 Nm.
Mounting weather station with fastening arm on mast or wall
Figure7: Mounting with fastening arm
Mount enclosed fastening arm onto a suitable mast or wall.
The enclosed hose clamps are suitable up to a maximum mast diameter of 60 mm.
If mounted on the supplied fastening arm, do not mount the enclosed guide blade.
￭ Mast mounting: Attach fastening arm to mounting mast using the enclosed hose clamps.
￭ Wall mounting: Attach fastening arm to the wall through the boreholes (Figure 8) using
suitable screws.
￭ Route the power supply line along the underside of the fastening arm and guide the 7-pin
plug through the open pipe socket at the end of the fastening arm.
￭ Attach the 7-pin plug to the connection (7). Tighten threaded ring with max. 0.5 Nm.
￭ Mount weather station onto the mast and align. The grub screw must be pointing north.
￭ Tighten grub screw with max. 0.6 Nm.
￭ Route the power supply line through the cable bushing into an installation pipe.
Figure8: Fastening arm – dimensions for boreholes
Mounting and connecting the device
￭ Connect bus line and external power supply to power supply line.
red KNX+
4 / 8
82590128 16.02.2021
5158881A

Weather Station KNX
Black KNX–
orange AC/DC 24 V ~/+
brown AC/DC 24 V ~/-
The sensor head is translucent. Therefore, do not stick or write on the sensor head.
Aligning the device
Figure9: Orienting the weather station
￭ Align the sensor head in the appropriate direction or - depending on the detailed on-site
circumstances - according to the alignment of the facade (Figure 9).
4.2 Commissioning
Commissioning the device
Figure10: Position of the programming LED and reed contact
￭ Switch on the bus voltage.
￭ Switch on supply voltage.
￭ Hold the supplied programming magnet by the integrated reed contact (12).
The programming LED (13) indicates the programming state blue.
￭ Assign physical addresses and load application software into the device.
￭ Note the physical address on adhesive labels on the underside.
The device is ready for operation.
5 Technical data
Supply
Rated voltage AC24 V SELV (± 10%)
Rated voltage DC 21 ... 32 V SELV
Current consumption 100 ... 400 mA (dependent on the weather)
Protectionclass III
Connecting cable
5 / 8
82590128 16.02.2021
5158881A

Weather Station KNX
Cable type LiYCY 4xAWG26
Length connecting cable 5 m
Total length per line 15 m
Number of weather stations max. 3 (per line)
KNX
KNX medium TP256
Commissioning mode S-mode
Rated voltage KNX DC 21 ... 32 V SELV
Current consumption KNX max. 5 mA
Ambient conditions
Ambient temperature -30 ... +60 °C
Storage/transport temperature -25 ... +70 °C
Degree of protection IP 44 (in position for use)
Housing
Dimensions Ø×H 130×68 mm
Weight approx. 230 g
Wind direction sensor
Measuring range 1...360°
Resolution 1°
Accuracy ± 10° (laminar wind stream)
Wind speed sensor
Measuring range approx. 0 ... 40 m/s
Resolution 0.1 m/s
Accuracy ≤ 10 m/s ± 1 m/s
Accuracy >10 m/s ± 5 %
Accuracy as RMS average value over 360°.
Temperature sensor
Measuring range -30 ... +60 °C
Resolution 0.1 K
Accuracy ± 1 K (Wind > 2 m/s, for -5 ... +25 °C)
Precipitation sensor
Measuring range yes/no
Accuracy Fine drizzle
Brightness sensors
6 / 8
82590128 16.02.2021
5158881A

Weather Station KNX
Number 4
Measuring range approx. 0 ... 150 klx
Spectral range 475 ... 650 nm
Resolution 1 klx
Accuracy ± 3 %
Twilight sensor
Measuring range approx. 0...900 lx
Resolution 1 lx
Accuracy ± 10 lx
Air pressure sensor
Measuring range 300 ... 1100 hPa
Resolution 0.01 hPa
Accuracy ± 0.5 hPa
Humidity sensor
Humidity sensor
Measuring range 0 ... 100 % rel. humidity
Resolution 0.1 % rel. humidity
Accuracy ± 10% rel. humidity (20°C)
abs. humidity 0 ... 400 g/m³
Resolution 0.01 g/m³
Global radiation
Measuring range 0 ... 1300 Watt/m²
Resolution 1 Watt/m²
Accuracy ± 10 %
Spectral range 350 ... 1100 nm
All accuracy specifications relate to the respective measuring range end value.
6 Accessories
animeo Power Supply DC 1860093
Install with twisted pair cable.
Commissioning is done with software (ETS).
Somfy hereby declares that the radio equipment covered by these instructions is in
compliance with the requirements of Radio Directive2014/53/EUand the other essential
requirements of the applicable European Directives. The full text of the EU declaration of
conformity is available at www.somfy.com/ce.
7 / 8
82590128 16.02.2021
5158881A

Weather Station KNX
We care about our environment. Do not dispose of the appliance with usual household
waste. Give it to an approved collection point for recycling.
Somfy Activités SA
70 Avenue du Nouveau Monde
74300 Cluses
France
www.somfy.com
www.somfy.com/projects
