Sonance PROFESSIONAL Series User manual

1
PROFESSIONAL SERIES
PS-60XF 70V
TRANSFORMER MANUAL
DESCRIPTION
The Sonance Professional Series PS-60XF Transformer
is a line matching transformer that matches the
impedance of any 8 Ohm Sonance speaker for
70V/100V system configurations. The PS-60XF has
multiple output taps for dierent wattage requirements.
Use this product in projects where a Sonance 8 Ohm
speaker is desired but the system is comprised of
other 70V/100V speakers on a 70V/100V amplifier.
These system configurations are typical of commercial
applications or residential spaces where many speakers
are connected to a single amplifier for coverage in
large areas or where speaker placement is over a great
distance, requiring long speaker wire runs.
70 volt systems are great for commercial applications
such as restaurants, hospitality, and amusement parks
but are also frequently used in residential outdoor
applications. They are ideal for covering large areas and
maintaining a consistent volume level.
BOX CONTENTS
1 Professional Series 60 Watt 70V Transformer
1 Installation Manual
61
51
0.9
82.8
27.5
29.5
11.5
47
1.25
20
37.5
8.8
7 - 2.5
1.25 8.8
5
5
5
5
19
R9.5
63.1
7.8
4.1
R2

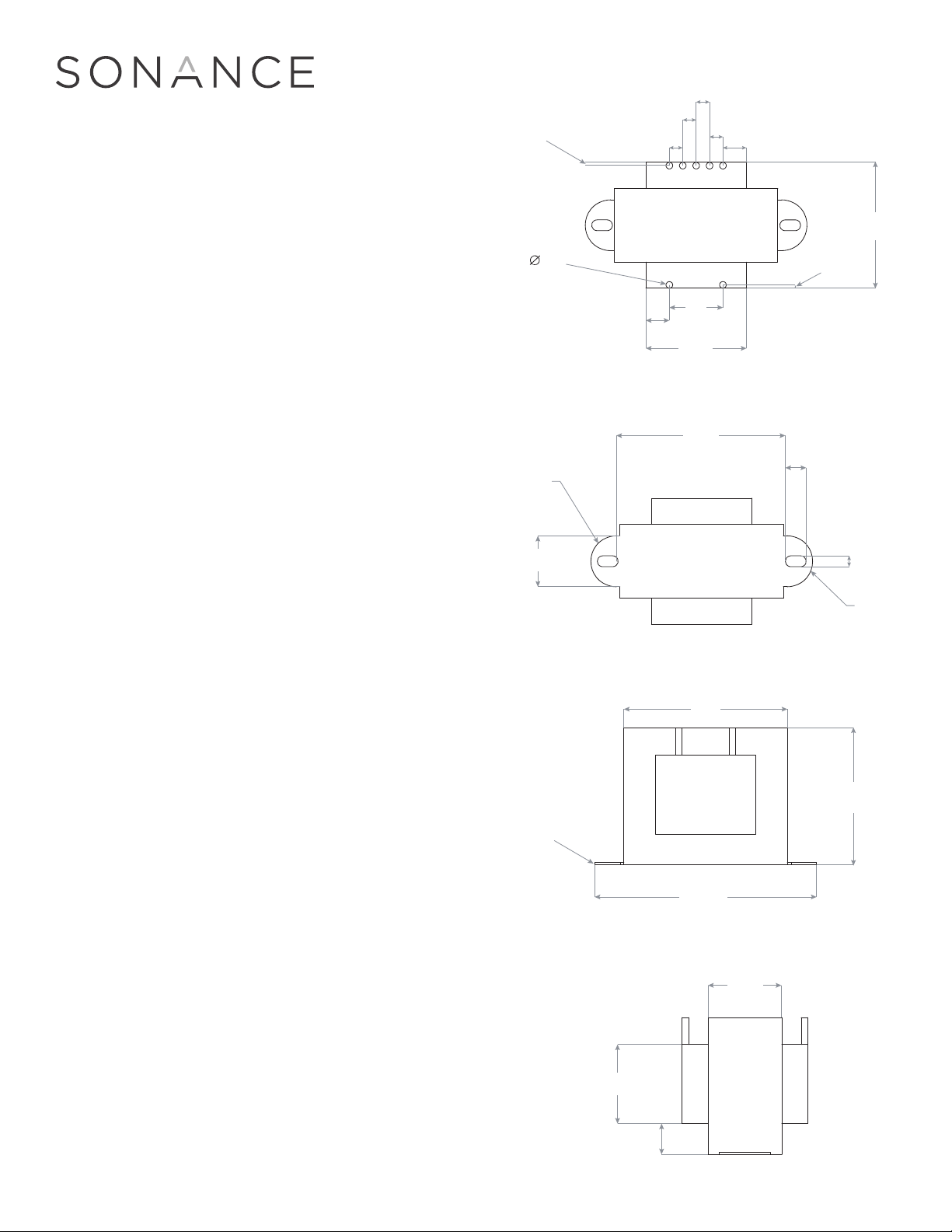

TOP VIEW
61
51
0.9
82.8
27.5
29.5
11.5
47
1.25
20
37.5
8.8
7 - 2.5
1.25 8.8
5
5
5
5
19
R9.5
63.1
7.8
4.1
R2
BOTTOM VIEW
61
51
0.9
82.8
27.5
29.5
11.5
47
1.25
20
37.5
8.8
7 - 2.5
1.25 8.8
5
5
5
5
19
R9.5
63.1
7.8
4.1
R2
FRONT VIEW
61
51
0.9
82.8
27.5
29.5
11.5
47
1.25
20
37.5
8.8
7 - 2.5
1.25 8.8
5
5
5
5
19
R9.5
63.1
7.8
4.1
R2
SIDE VIEW
Primary Voltage:
Power Rating:
Primary Taps:
Secondary Impedance:
Insertion Loss:
Frequency Response:
Lead Length:
Weight:
Mounting Dimensions:
Mounting Method:
TECHNICAL SPECIFICATIONS
PROFESSIONAL SERIES PS-60XF TRANSFORMER
70V
60W
7.5, 15, 30, 60W
6 Ohms
1dB
20Hz - 20kHz +/- 1dB
6”
1.19 lbs
3.26” W x 1.85” D x 2.01” H
(82.8mm x 47mm x 51mm)
Surface Mounted using
built in mounting holes

2
©2019 Sonance. All rights reserved. Sonance is a registered trademarks of Dana Innovations. Due to continuous product improvement,
all features and specifications are subject to change without notice. For the latest Sonance product specification information visit our
website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA
PHONE: [phone] • FAX: [phone] • Technical Support: [phone] • www.sonance.com
11.07.2019
LIMITED THREE (3) YEAR WARRANTY
SONANCE warrants to the first end-user purchaser that this Sonance-brand product (PS-60XF), when purchased from an authorized
SONANCE Dealer/Distributor, will be free from defective workmanship and materials for the period stated below. SONANCE will at its
option and expense during the warranty period, either repair the defect or replace the Product with a new or remanufactured Product
or a reasonable equivalent.
EXCLUSIONS
TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF, ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY SONANCE. ALL OTHER
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, IMPLIED WARRANTY OF
FITNESS FOR USE, AND IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED.
No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and exclusive
remedy and Sonance’s performance shall constitute full and final satisfaction of all obligations, liabilities and claims with respect to the
Product.
IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY, BODILY INJURY, OR
PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY OR OTHERWISE.
This warranty statement gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not
allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and limitations may not apply. If your state
does not allow disclaimer of implied warranties, the duration of such implied warranties is limited to period of Sonance’s express warranty.
Your Product Model and Description: PS-60XF
Warranty Period for this Product: One (1) year from the date on the original sales receipt or invoice or other satisfactory proof of purchase.
Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-transferable, applies only to the
initial installation of the Product, does not include installation of any repaired or replaced Product, does not include damage to allied
or associated equipment which may result for any reason from use with this Product, and does not include labor or parts caused by
accident, disaster, negligence, improper installation, misuse (e.g. overdriving the amplifier or speaker, excessive heat, cold or humidity),
or from service or repair which has not been authorized by Sonance. Obtaining Authorized Service: To qualify for the warranty, you
must contact your authorized Sonance Dealer/Installer or call Sonance Customer Service at [phone] within the warranty period,
must obtain a return merchandise number (RMA), and must deliver the Product to Sonance shipping prepaid during the warranty
period, together with the original sales receipt, or invoice or other satisfactory proof of purchase.
70 Volt Amplifier Input
(Primary)
Speaker Output
(Secondary)
4
8
0
5W (1000 )
10W (500 )
15W (330 )
20W (250 )
Common
0 (Black)
4 (White)
8 (Red)
Common (Black)
20W (Brown)
15W (Orange)
10W (Yellow)
5W (Blue)
TO AMPLIFIER
TO SPEAKER
70 Volt Amplifier Input
(Primary)
Speaker Output
(Secondary)
4
8
0
5W (1000 )
10W (500 )
15W (330 )
20W (250 )
Common
0 (Black)
4 (White)
8 (Red)
Common (Black)
20W (Brown)
15W (Orange)
10W (Yellow)
5W (Blue)
TO AMPLIFIER
TO SPEAKER
WIRING DIAGRAM AND TAP WIRES
