Sonic Cat Pop Keys User manual

!
!
Pop Keys User Manual!
!
(03/2014)!
!
!
Support!
!
Thanks for purchasing Sonic Cat Inc. product. If you can’t solve your problem with this manual,
please don't hesitate to contact us for user support.!
!
•eMail : [email protected]!
!
!
Must keep your purchasing email. When will be supported, need your order number and product
number.!
!
!
All programming, scripting, samples, images and text Copyright © Sonic Cat Inc. All Rights
Reserved.!
!
!

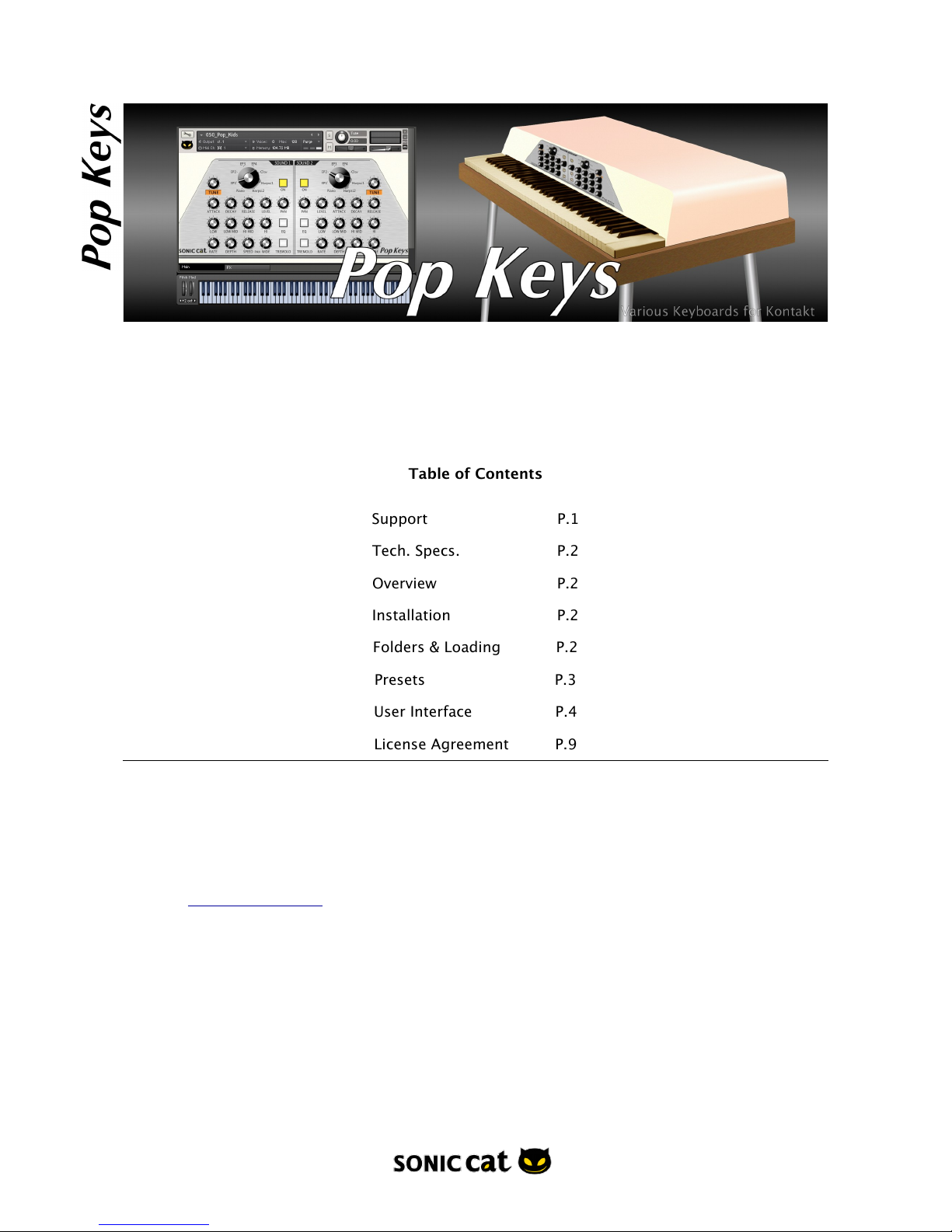

Table of Contents
Support P.1
Tech. Specs. P.2
Overview P.2
Installation P.2
Folders & Loading P.2
Presets P.3
User Interface P.4
License Agreement P.9
1

Tech. Specs.!
!
Features :!
•Various acoustic piano sounds!
•Various electric piano sounds!
•Various keyboard sounds for all music genre!
•Innovate instrument structure by 2 layers mixing style!
•Can easily make unique user sounds!
•Easy and accurate digit display FX knobs!
!
Tech Specs :!
•150 .NKI Kontakt instrument presets for Kontakt 5.3+!
•1,451 samples!
•24 bit / 44.1 kHz .NCW format samples!
•About 900 MB installed!
!
System Requirements :!
•Kontakt 5.3+ full version required!
•Kontakt Player is not compatible!
Windows :!
•Windows 7 or Windows 8 (latest Service Pack, 32/64 Bit)!
•Intel Core Duo or AMD Athlon 64 X2!
•2 GB RAM (4 GB recommended)!
Mac :!
•Mac OS X 10.7 or 10.8 (latest update)!
•Intel Core 2 Duo!
•2 GB RAM (4 GB recommended)!
!
Supported Interfaces :!
Stand-alone, VST, Audio Units, AAX Native (Pro Tools 10), RTAS, ASIO, CoreAudio, WASAPI!
!
!
Overview!
!
Pop Keys is a sample library for Kontakt of a useful keyboard sounds package.!
!
Pop Keys has basically standard acoustic & electric piano sounds, moreover it has various
keyboard instrument sounds total 150 presets. Just one Pop Keys will solve your keyboards part in
your various music genres.!
!
!
Installation!
!
Decompress downloaded .ZIP file at your want directory. Please keep a copy for your original .ZIP
file. This library doesn’t require any special activation.!
!
!
Folders & Loading!
!
•Documentation : There are User Manual with EULA PDF files.!
•Instruments : There are 150 .NKI files. Preset will be loaded when double click .NKI files or drag
into Kontakt. Or you can load by click Files button on Main Control Panel of Kontakt.!
•Samples : There are 1,451 .NCW files for .NKI presets.!
!
2

Presets!
!
!
!
•Instruments/01_Single : There are presets of using 1 layer standard sounds.!
!
!
•Instruments/02_Double : There are presets of using 2 layers richness sounds.!
!
!
•Instruments/03_Hybrid : There are more unique presets.!
!
!
•Notice : Sometimes you can hear hiss noise when playing high velocity. It’s just because
recorded in analog equipments. It’s not defective goods.!
!
!
3

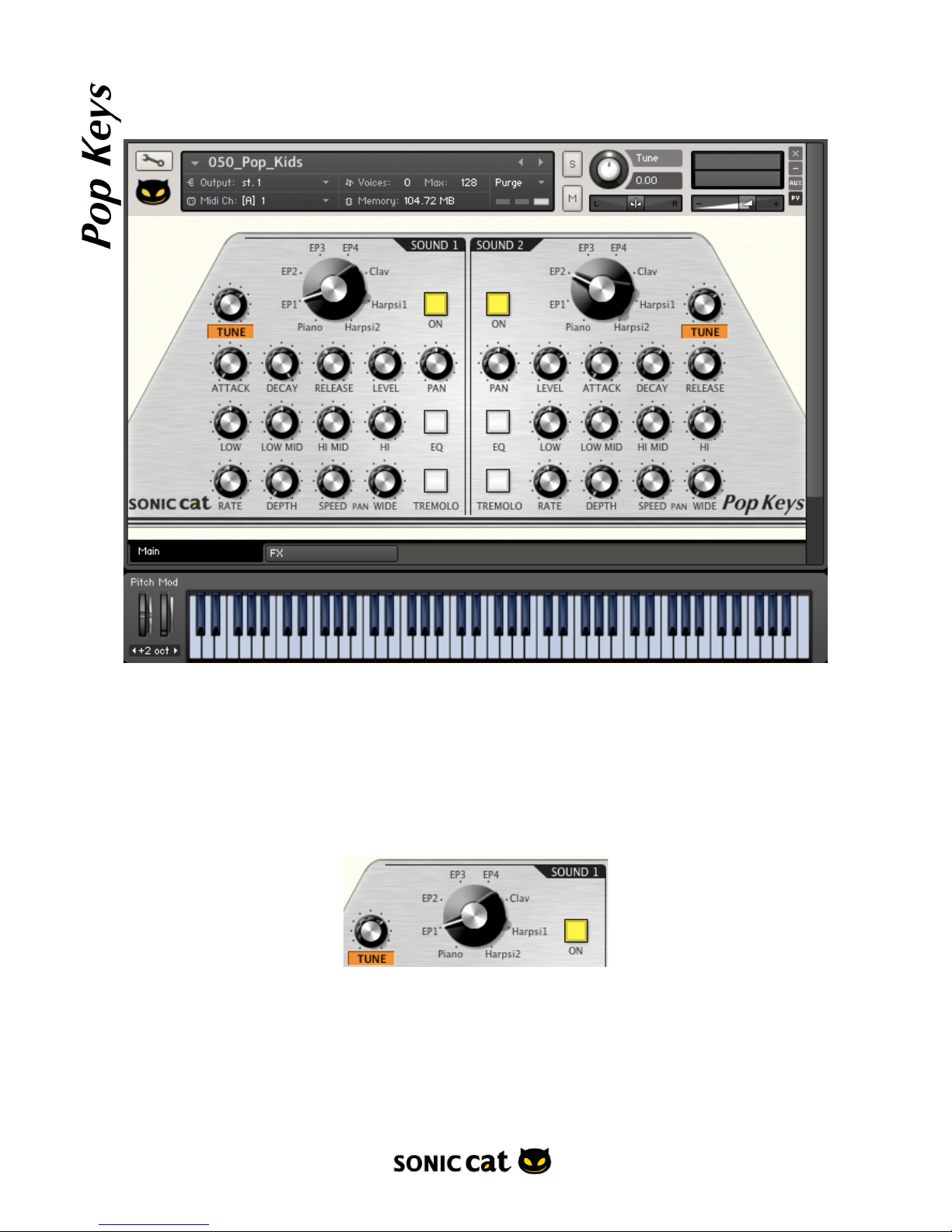

User Interface!
!
< Main UI >!
!
!
!
!
!
!
!
!
•TUNE : Changes the playback pitch within three octave up or down.!
!
•Selector : Can select basic sound sources.!
!
•On/O#: On/O#Sound 1 or Sound 2.!
!
!
4

!

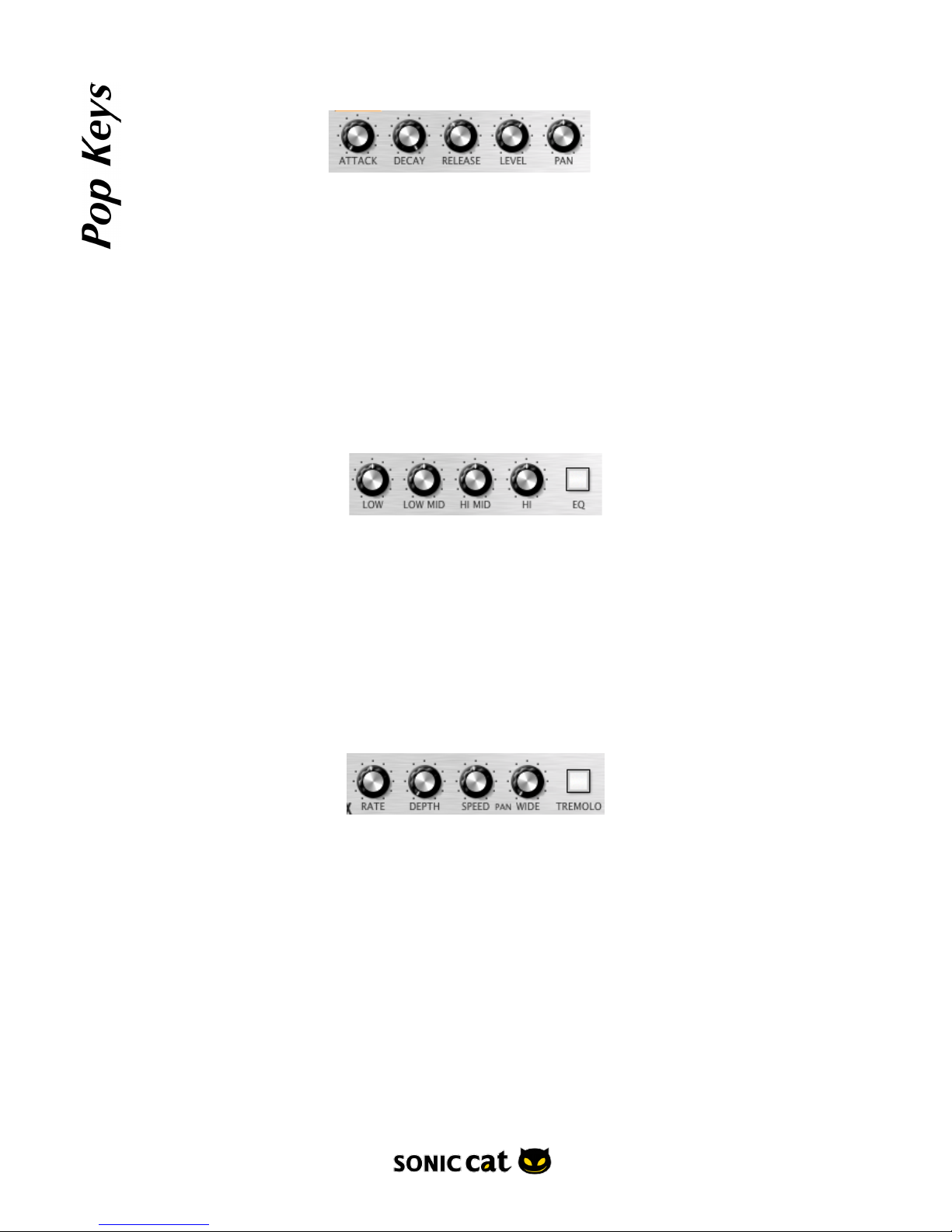

•ATTACK : The initial time it will take the envelope to reach its maximum level after it has been
triggered.!
!
•DECAY : The time it will take the envelope to fall from its maximum level to the level set by the
Sustain control.!
!
•RELEASE : The time it will take the envelope to fall from its sustain level back to zero after the
key has been released!
!
•LEVEL : Adjusts the overall level of all signals that originate from this Group.!
!
•PAN : If the Group is being routed to a stereo Output Channel, this control allows you to place
the signal in the stereo panorama.!
!
•LOW : Adjusts the amount of boost or cut at the LF Frequency.!
!
•LOW MID : Adjusts the amount of boost or cut at the LMF Frequency.!
!
•HI MID : Adjusts the amount of boost or cut at the HMF Frequency.!
!
•HI : Adjusts the amount of boost or cut at the HF Frequency.!
!
•On/O#: On/O#EQ!
!
•RATE : Adjusts the speed of tremolo.!
!
•DEPTH : Adjusts the depth of tremolo.!
!
•SPEED : Adjusts the speed of auto panning.!
!
•WIDE : Adjusts the stereo width of auto panning.!
!
•On/O#: On/O#Tremolo e#ect.!
!
!
!
!
!
!
!
!
5

!

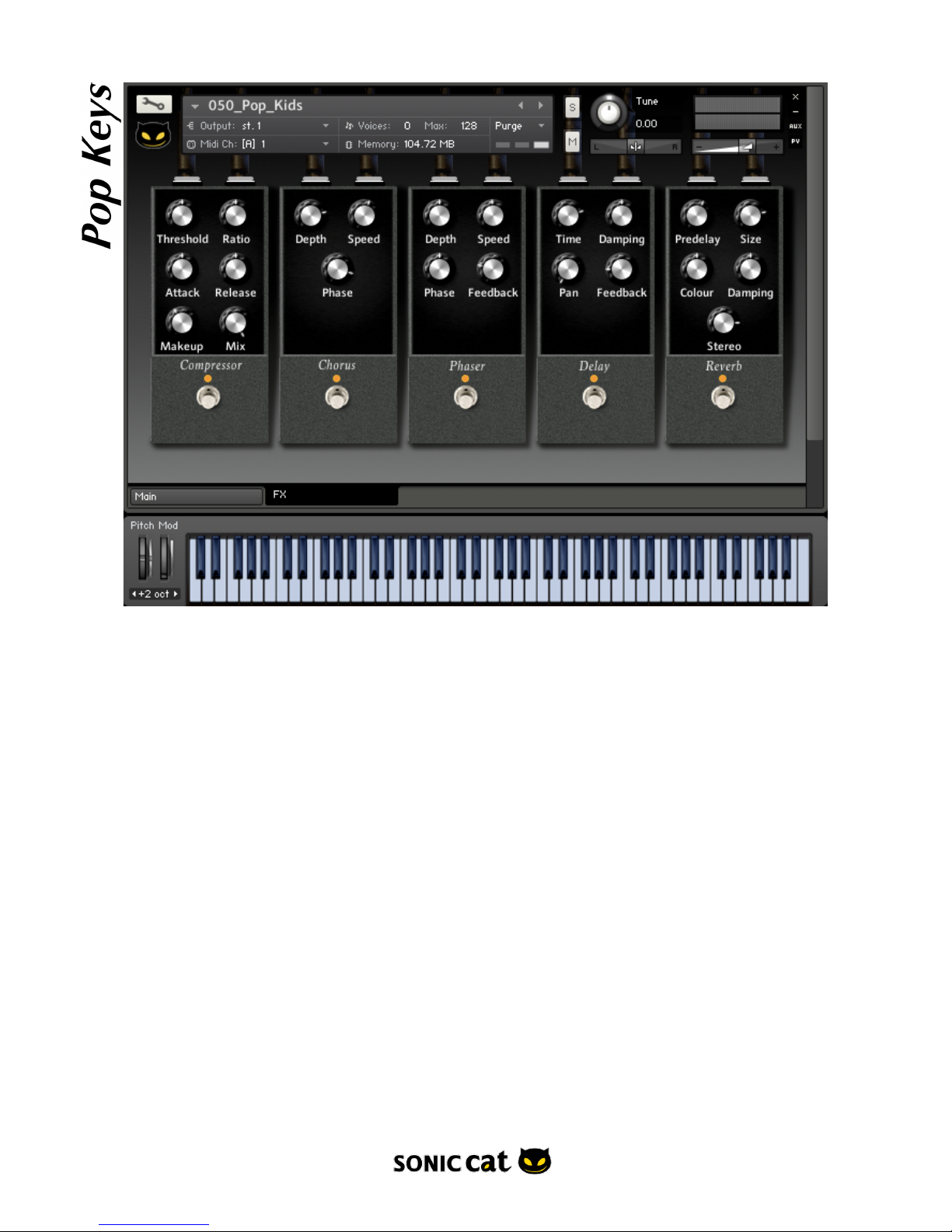

< FX UI >!
!
*All knobs are digit display knobs.!
$!
Compressor!
!
Compressor is dynamic tools which automatically reduce the level of loud passages in a signal,
thereby a#ecting the signal’s dynamic range.!
!
•Threshold : Sets a level threshold above which the Compressor starts working. Only levels that
rise above this threshold will be reduced by the compression; signals that stay below it will be
left unprocessed.!
!
•Ratio : Controls the amount of compression, expressed as a ratio of “input level change” against
“output level change”. A Ratio of 1:1 means that no compression will be happening. For example,
a Setting of 4 represents the ration 4:1, which means for every 4 decibel increase of amplitude
above the threshold, the output will increase by only 1 decibel.!
!
•Attack : Adjusts the time the Compressor will take to reach the full Ratio value after an input
signal exceeds the Threshold level.!
!
•Release : Adjusts the time the compressor will take to fall back to non-compression after the
input signal falls below the threshold.!
!
•Makeup : Controls the output gain of the compressed signal. Used to compensate for the gain
reduction of the e#ect.!
!
6

•Mix : Controls the dry/wet mix of the compressor. This can be used to create a parallel
compression style routing, which increases the quieter signals rather than reducing the louder
ones. At a setting of 100% you will only hear the compressed signal, at a setting of 0% you will
only hear the unprocessed input signal.!
!
!
Chorus!
!
The Chorus module “thickens” the audio signal by splitting it up and detuning one version in
relation to the original.!
!
•Depth : Adjusts the range of modulated detuning. Higher values give a more pronounced
chorusing e#ect.!
!
•Speed : Adjusts the LFO speed. To synchronize the speed to your host or Master Editor tempo,
click the Speed parameter’s unit display and choose a note length value from the drop-down list.!
!
•Phase (0 to 90 degrees) : Imparts an LFO phase di#erence between the left and the right stereo
channel. This can considerably increase the width of the output signal’s stereo base.!
!
!
Phaser!
!
This e#ect continually changes the phase relationships in your signal with an all-pass filter.!
!
•Depth : The amount of LFO modulation. Higher values cause the phaser e#ect to sweep over a
wider frequency range.!
!
•Speed : The LFO modulation speed. To synchronize the speed to your host or Master Editor
tempo, click the Speed control’s unit display and choose a note length value from the drop-down
list.!
!
•Phase (0 to 90 degrees) : Imparts an LFO phase di#erence between the left and the right stereo
channel. This can considerably increase the width of the output signal’s stereo base.!
!
•Feedback : This control adjusts the emphasis of the peaks and notches that the comb filter e#ect
imparts on the signal.!
!
!
Delay!
!
This module o#ers a delay line that can optionally be synced to the tempo and provides an
adjustable feedback level, a low-pass filter, and a pan control for ping-pong echo e#ects.!
!
•Time : The delay time in milliseconds. To synchronize the time to your host or Master Editor
tempo, click the Speed parameter’s unit display and choose a note length value from the drop-
down list.!
!
•Damping : Attenuates high frequencies in the delayed signal. Turning this control clockwise will
increase the damping e#ect. If you have set a feedback level, the signal will gradually lose more
high frequency content with each repetition.!
!
•Pan : Setting a value higher than 0 creates a panning e#ect, which alternates echos between the
left and the right side of the stereo panorama — this is a#ectionally called a ping-pong delay.
Higher values will result in wider panning; at 100, signals alternate between the far left and far
right channel.!
!
•Feedback : Controls the amount of the output signal that’s being fed back into the input of the
delay line, thereby creating a series of echos that gradually fade into silence.!
!
7

Reverb!
!
This module simulates the natural reverberation that occurs when a sound source is placed in an
acoustic environment, thus adding a feeling of spaciousness to the sound.!
!
•Predelay. : Introduces a short delay between the direct signal and the reverb trail build-up. This
corresponds to the natural reverberation behavior of large rooms, where a short time elapses
before the first reflection of a sound wave returns from a wall.!
!
•Size : Adjusts the size of the simulated room. This a#ects the duration of the reverb trail.!
!
•Colour : This control allows you to adjust the construction material of the simulated room and,
consequently, the color of the reverb trail. Low values simulate softer surfaces like wood, while
high values simulate the reflection behavior of hard surfaces like concrete.!
!
•Damping : Sets the amount of simulated absorption that takes place in rooms due to furnishings,
people, or acoustic treatments a#ecting the reflection behavior.!
!
•Stereo : Higher values increase the stereo base width of the output signal. Lower values simulate
a closer distance to the sound source.!
!
!
8

SONIC CAT SOFTWARE END-USER LICENSE AGREEMENT!
!
IMPORTANT! READ CAREFULLY :!
This End-User License Agreement ("EULA") is a legal agreement between you (either an
individual or a single entity) and Sonic Cat Inc. ("Sonic Cat") for the Sonic Cat software
product(s) accompanying this EULA, which include(s) computer software and may include
associated media, videos, recordings, printed materials, electronic documentation, service
based on Internet ("SOFTWARE"). By installing, copying, or otherwise using the SOFTWARE,
you agree to be bound by the terms of this EULA. If you do not agree to the terms of this
EULA, do not open, install, copy, or otherwise use the SOFTWARE; you may, however, return
it to your place of purchase for a full refund.!
!
All programming, scripting, samples, images and text Copyright © Sonic Cat Inc. All Rights
Reserved.!
!
1) LICENSE TO USE SOFTWARE!
Sonic Cat grants to you as an individual, a personal, nonexclusive license to use the
SOFTWARE and make backup copies of the SOFTWARE (a) for your internal use; (b) for
playing, performing and recording your music or sound e#ects; and (c) for education. You
may use this product on up to three (3) separate computers, which computers shall be
owned and used by you exclusively. If you are an entity, Sonic Cat grants you the right to
designate one individual within your organization to have the sole right to use the
SOFTWARE in the manner provided above.!
!
2) ADDITIONAL LICENSE RIGHTS - RE-DISTRIBUTABLE DATA!
Additional license rights for certain data that are made by using the SOFTWARE are provided
to you. Sonic Cat and any of its suppliers shall be not liable for any problem about re-
distributable data, redistribution or any other products. Sonic Cat grants you the right to
distribute or sell recordings such as music or sound e#ects that are made by using the
SOFTWARE for value or not.!
!
3) RESERVATION OF RIGHTS AND OWNERSHIP!
Sonic Cat reserves all rights not expressly granted to you in this EULA. The SOFTWARE is
protected by copyright and other intellectual property laws and treaties. Sonic Cat or its
suppliers own the title, copyright, and other intellectual property rights in the SOFTWARE.
The SOFTWARE is licensed, not sold.!
!
4) REFUNDS!
All sales are final and your purchase is not refundable, so please choose your selection
carefully.!
!
5) DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS!
!
5.1) Not For Resale Software!
If the SOFTWARE is labeled "Not For Resale" or "NFR," then you may not resell, or
otherwise transfer for value, the SOFTWARE.!
!
5.2) Limitations on Reverse Engineering, Decompilation, and Disassembly!
You may not reverse engineer, decompile, or disassemble the SOFTWARE.!
!
5.3) Consent to Use of Data!
You agree that Sonic Cat and its a%liates may collect and use technical information
gathered as part of the support services related to the SOFTWARE ("SUPPORT") provided to
you. Sonic Cat may use this information solely to improve our products or to provide
customized services or technologies to you and will not disclose this information in a
form that personally identifies you.!
!
5.4) Software Transfer!
9

The SOFTWARE and the license of SOFTWARE cannot be transferred to any other use.
Sonic Cat guarantee no SUPPRT for the transferred SOFTWARE or the license of
SOFTWARE.!
!
6) TERMINATION!
Without prejudice to any other rights, Sonic Cat may terminate this EULA if you fail to comply
with the terms and conditions of this EULA. In such event, you must destroy all copies of the
all of SOFTWARE and UPDATE.!
!
7) LIMITATION OF LIABILITY!
Sonic Cat does not warrant that the SOFTWARE is error-free or will operate without
interruption. Sonic Cat and any of its suppliers shall be not liable for any damages that you
might incur for any reason whatsoever (including, without limitation, all damages referenced
herein and all direct or general damages in contract or anything else).!
This EULA shall be governed by the internal laws of Korea, Republic of, without giving e#ect
to principles of conflict of laws. All questions concerning this EULA shall be directed to :!
!
!
www.sonic-cat.com!
!
!
!
!
!
!
!
!
!
10
