SonicWALL TZ 200 Series User manual

Getting Started Guide
SonicWALL Network Security Appliances
NETWORK SECURITY
TZ 100 / TZ 200 Series

SonicWALL TZ 100/200 Series Getting Started Guide Page i
SonicWALL TZ 100/200 series
Getting Started Guide
This Getting Started Guide provides instructions for basic
installation and configuration of the SonicWALLTZ 100/200
series appliance running SonicOS Enhanced.
Document Contents
This document contains the following sections:
Setting Up Your Network - page 1
Registering Your Appliance - page 9
Enabling Security Services - page 13
Advanced Network Configuration - page 21
Advanced Deployments - page 33
Support and Training Options - page 59
1
2
3
4
5
66

Page ii

SonicWALL TZ 100/200 Series Getting Started Guide Page 1
Setting Up Your Network
In this Section:
This section provides pre-configuration information. Review this section before setting up your SonicWALL TZ 100/200 series appliance.
•System Requirements - page 2
•Recording Configuration Information - page 2
•Completing the Setup Wizard - page 4
•Accessing the Management Interface - page 5
•Verifying WAN (Internet) Connectivity - page 6
•Connecting Your Network Devices - page 6
•Troubleshooting Initial Setup - page 7
1

Page 2 System Requirements
System Requirements
Before you begin the setup process, verify that you have:
• An Internet connection
• A Web browser supporting Java Script and HTTP uploads.
Supported browsers include the following:
Recording Configuration Information
Record the following setup information to use during the setup
process and for future reference:
Registration Information
Networking Information
Administrator Information
Supported Browsers Browser Version
Number
Internet Explorer 6.0 or higher
Firefox 2.0 or higher
Netscape 9.0 or higher
Opera 9.10 or higher
for Windows
Safari 2.0 or higher
for MacOS
Serial Number: Record the serial number found on the
bottom panel of your SonicWALL
appliance.
Authentication Code: Record the authentication code found on
the bottom panel of your SonicWALL
appliance.
LAN IP Address:
. . .
Select a static IP address for your
SonicWALL appliance that is within the
range of your local subnet. If you are
unsure, you can use the default IP
address (192.168.168.168).
Subnet Mask:
. . .
Record the subnet mask for the local
subnet where you are installing your
SonicWALL appliance.
Ethernet WAN IP Address:
. . .
Select a static IP address for your
Ethernet WAN. This setting only applies if
you are already using an ISP that assigns
a static IP address.
Admin Name: Select an administrator account name.
(default is admin)
Admin Password: Select an administrator password.
(default is password)

SonicWALL TZ 100/200 Series Getting Started Guide Page 3
Primary Internet Service Provider (ISP) Information
Record the following information about your current ISP:
Secondary ISP Information
If applicable, record the following information about your
secondary ISP or WWAN service provider:
If you connect
via You likely use Please record
Cable modem,
DSL with a
router
DHCP No Internet connection information is
usually required, although some service
providers require a host name.
Host Name:
Home DSL PPPoE User Name:
Password:
Note: Your ISP may require your user name
in the format: [e-mail]
T1/E1,
Static
broadband,
Cable or DSL
with a static IP
Static IP IP Address: . . .
Subnet Mask: . . .
Default Gateway
(IP Address): . . .
Primary DNS: . . .
Secondary DNS
(optional): . . .
Dial-in to a
server PPTP Server Address:
User Name:
Password:
If you connect
via You likely use Please record
Cable modem,
DSL with a
router
DHCP Host Name:
Home DSL PPPoE User Name:
Password:
T1/E1,
Static
broadband,
Cable or DSL
with a static IP
Static IP IP Address: . . .
Subnet Mask: . . .
Default Gateway
(IP Address): . . .
Primary DNS: . . .
Secondary DNS
(optional): . . .
Dial-in to a
server PPTP Server Address:
User Name:
Password:

Page 4 Completing the Setup Wizard
Completing the Setup Wizard
The Setup Wizard takes you through several basic steps to get
your SonicWALL TZ 100/200 series appliance configured for
your network. Use the Recording Configuration Information
section, on page 2 to record your configuration information
as you complete the wizard.
Note: If you are having trouble accessing the Setup Wizard,
see the Troubleshooting the Setup Wizard section, on
page 7 of this document.
The Setup Wizard guides you through the following steps:
Change Password—Create a new password so that only you
have access to the management interface. The default
password is “password.”
Change Time Zone—Select the correct time zone for proper
updates and time-based functionality.
WAN Network Mode—Choose your method of connecting to
the Internet. This information is provided by your Internet
Service Provider (ISP).
WAN Settings—Required for some WAN modes. This
information is also provided by your ISP.
LAN Settings—Enter custom local network address settings,
or use the default values, which work well for most networks.
LAN DHCP Settings—Allow your SonicWALL TZ 100/200
series appliance to automatically connect other local computers
by specifying a DHCP range, or use the default.
Ports Assignment—Configure the extra interfaces (X2-X5) for
different network requirements.
At the end of the wizard, a configuration summary displays. It is
recommended that you record this information in the Recording
Configuration Information section, on page 2 of this guide.
After the Setup Wizard completes, the appliance may reboot.
Please wait a few minutes while the SonicWALL appliance
reboots to save the updated firmware settings, and then
continue with the next section of this guide.

SonicWALL TZ 100/200 Series Getting Started Guide Page 5
Accessing the Management Interface
The computer you use to manage the SonicWALL TZ 100/200
series appliance must be set up to connect using DHCP, or with
a static IP address in your chosen subnet. The default subnet
for LAN zone ports is 192.168.168.x.
If your SonicWALL TZ 100/200 series appliance required a
reboot after completing the Setup Wizard, wait until the LED
is no longer lit before continuing.
To access the SonicOS Web-based management interface:
1. Enter the default IP address of http://192.168.168.168, or
the LAN IP address you chose during the Setup Wizard, in
the Location or Address field of your Web browser.
Tip: If you changed the LAN IP of your SonicWALL during
the Setup Wizard, you may need to restart your
computer for changes to take effect.
2. When the SonicWALL Management Login page displays,
enter your username and password (default values are
“admin” for user name and “password” for password).

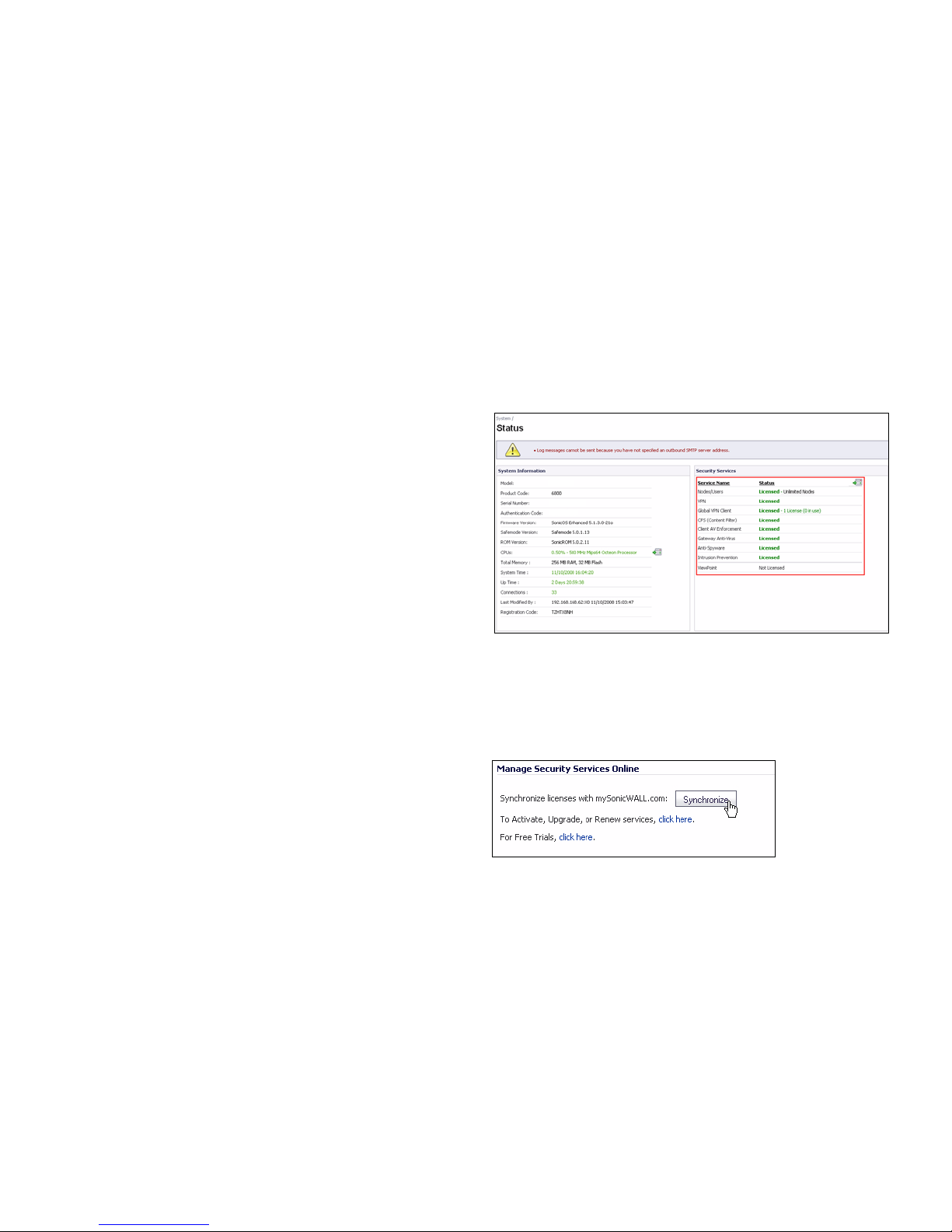

If the System > Status page (shown below) displays, then you
have correctly configured the SonicWALL TZ 100/200 series
appliance to work with the computer on your LAN.

Page 6 Verifying WAN (Internet) Connectivity
Verifying WAN (Internet) Connectivity
Complete the following steps to confirm your Internet
connectivity:
1. In the Windows interface, launch your Web browser.
2. Enter “http://www.sonicwall.com” in the address bar and
press Enter on the keyboard. The SonicWALL website
displays. If you are unable to browse to a Website, see
“Troubleshooting Internet Connection” on page 7.
Connecting Your Network Devices
N
LAN
LAN
N
WLAN
N
Power
X0 X1
LAN
Console
WAN
X2 X3 X4 X5
Wireless Clients Desktop Clients Local Server
W0 WLAN X2 LAN X3 LAN X4 LAN
Good for small networks (less than 5 clients)
Easy to setup
Requires less equipment
Each interface may be congured for a
dierent zone (LAN, WAN, DMZ)
Connecting Directly
N
WLAN
N
LAN
LAN
LAN
Power
X0 X1
LAN
Console
WAN
X2 X3 X4 X5
Wireless Clients Desktop Clients
Hub/Switch
Local Server
W0 WLAN
X2 LAN
Requires extra equipment (hub/switch)
Ability to connect to multiple clients
through one port
Zone security assignment (LAN, WAN, DMZ)
can be applied to many clients on a
single interface
Connecting With a Hub/Switch

SonicWALL TZ 100/200 Series Getting Started Guide Page 7
Troubleshooting Initial Setup
This section provides troubleshooting tips for the following initial
setup topics:
•Troubleshooting the Setup Wizard - page 7
•Troubleshooting Internet Connection - page 7
•Configuring DHCP IP Addressing - page 8
Troubleshooting the Setup Wizard
• If you see the login screen, but not the Setup Wizard:
• Configure your Web browser to allow pop-ups.
• Log into the security appliance using “admin” as the
user name and “password” as the password. After
you log in, click the Wizards button at the top right.
• If you do not see the login screen or the Setup Wizard,
verify the following:
• Did you correctly enter the SonicWALL TZ 210 series
appliance management IP address, 192.168.168.168,
in your Web browser?
• Is your computer set to accept DHCP addressing or
set to a static IP address within the 192.168.168.x
subnet range? If not, see the Configuring DHCP IP
Addressing section, on page 8 for instructions.
• Is the Ethernet cable connected between your
computer and the LAN (X0) port on your SonicWALL?
• Do you need to add the SonicWALL appliance to your
list of trusted sites in your Web browser? Use the
default IP address (192.168.168.168) for this.
• Is the Test LED on the front panel of your SonicWALL
appliance lit? If the Test LED stays lit for more than a
few minutes after the initial power on sequence, power
cycle the SonicWALL appliance.
Troubleshooting Internet Connection
If you can view the SonicWALL home page, you have
configured your SonicWALL TZ 100/200 series appliance
correctly. If you cannot view the SonicWALL home page, try the
following:
•Renew your management station DHCP address if
you changed the IP address/subnet of your network
during setup.
•Restart your management station to accept new
network settings from the DHCP server in the
SonicWALL appliance.
•Restart your Internet router or modem to
communicate with the DHCP client in the SonicWALL
appliance.
•Log into the SonicOS management interface and
launch the Setup Wizard again by clicking the Wizards
button in the top right corner of the interface. Ensure
that all of your settings are correct.

Page 8 Troubleshooting Initial Setup
Configuring DHCP IP Addressing
If you are having trouble connecting to the SonicWALL TZ 100/
200 series appliance, complete the following section based on
your Windows operating system flavor. Configure your
management computer to obtain an IP address using DHCP.
Windows Vista
1. From the Start menu, right-click Network and select
Properties.
2. In the Tasks menu, click Manage network connections.
The Network Connections windows displays.
3. Right-click on your Local Area Connection and select
Properties.
4. In the list, double-click Internet Protocol Version 4 (TCP/
IP).
5. Select Obtain an IP address automatically and Obtain a
DNS address automatically.
6. Click OK, and then click OK again for the settings to take
effect.
Windows XP
1. From the Start menu, highlight Connect To and then
select Show All Connections.
2. Right-click on your Local Area Connection and select
Properties.
3. In the list, double-click Internet Protocol (TCP/IP).
4. Select Obtain an IP address automatically and Obtain a
DNS address automatically.
5. Click OK, and then click OK again for the settings to take
effect.
Windows 2000
1. From the Windows Start menu, select Settings.
2. Open Network and Dial-up Connections.
3. Click Properties.
4. Highlight Internet Protocol (TCP/IP) and click Properties.
5. Select Obtain an IP address automatically and Obtain a
DNS address automatically.
6. Click OK for the settings to take effect.

SonicWALL TZ 100/200 Series Getting Started Guide Page 9
Registering Your Appliance
In this Section:
This section provides instructions for registering your SonicWALL TZ 100/200 series appliance.
•Creating a MySonicWALL Account - page 10
•Registering and Licensing Your Appliance on MySonicWALL - page 10
Note: Registration is an important part of the setup process and is necessary to receive the benefits of SonicWALL security services,
firmware updates, and technical support.
2

Page 10 Creating a MySonicWALL Account
Creating a MySonicWALL Account
A MySonicWALL account is required for product registration. If
you already have an account, continue to the Registering and
Licensing Your Appliance on MySonicWALL section.
Perform the following steps to create a MySonicWALL account:
1. In your browser, navigate to www.mysonicwall.com.
2. In the login screen, click the Not a registered user? link.
3. Complete the Registration form and click Register.
4. Verify that the information is correct and click Submit.
5. In the screen confirming that your account was created,
click Continue.
Registering and Licensing Your Appliance
on MySonicWALL
This section contains the following subsections:
•Product Registration - page 10
•Security Services and Software - page 11
•Activating Security Services and Software - page 12
•Trying or Purchasing Security Services - page 12
Product Registration
You must register your SonicWALL security appliance on
MySonicWALL to enable full functionality.
1. Login to your MySonicWALL account. If you do not have an
account, you can create one at www.mysonicwall.com.
2. On the main page, type the appliance serial number in
the Register A Product field. Then click Next.
3. On the My Products page, under Add New Product,
type the friendly name for the appliance, select the
Product Group if any, type the authentication code into
the appropriate text boxes, and then click Register.
4. On the Product Survey page, fill in the requested
information and then click Continue.

SonicWALL TZ 100/200 Series Getting Started Guide Page 11
Security Services and Software
The Service Management - Associated Products page in
MySonicWALL lists security services, support options, and
software, such as ViewPoint, that you can purchase or try with a
free trial. For details, click the Info button.
If you purchased an appliance that is pre-licensed, you may be
required to enter your activation key here unless current
licenses are already indicated in the Status column with either a
license key or an expiration date.
The following products and services are available for the
SonicWALL TZ 100/200 series appliances:
• Gateway Service Bundles:
• Client/Server Anti-Virus Suite
• Comprehensive Gateway Security Suite
• Individual Gateway Services:
• Gateway Anti-Virus, Anti-Spyware,
Intrusion Prevention
• Global Management System
• Content Filtering: Premium Edition
• High Availability Upgrade
• Desktop and Server Software:
• Enforced Client Anti-Virus and Anti-Spyware
• Global VPN Client
• Global VPN Client Enterprise
•ViewPoint
• Support Services:
• Dynamic Support 8x5
• Dynamic Support 24x7
• Software and Firmware Updates

Page 12 Registering and Licensing Your Appliance on MySonicWALL

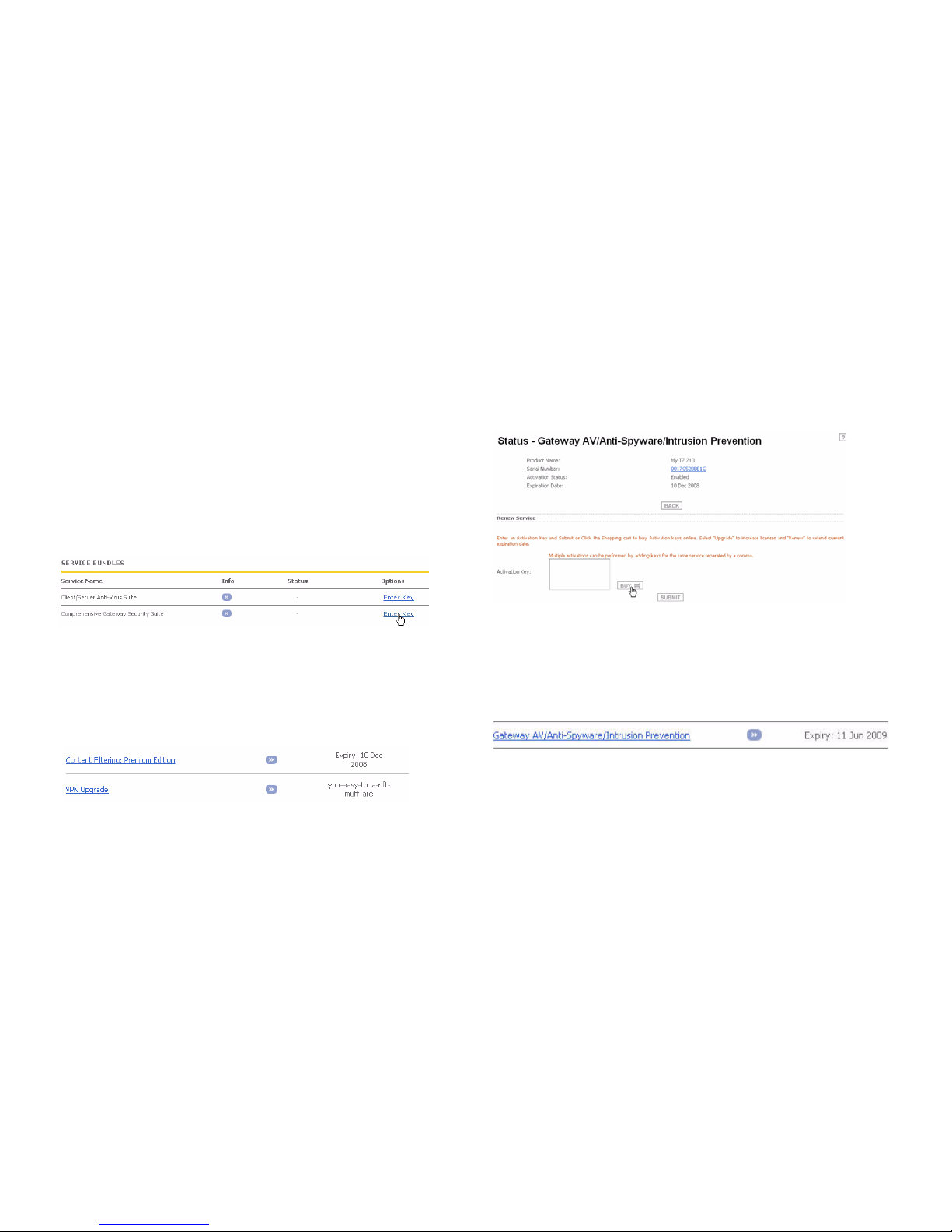

Activating Security Services and Software
If you purchase a service subscription or upgrade from a sales
representative, you will receive an activation key. This key is
emailed to you after online purchases, or is on the front of the
certificate that was included with your purchase.
To activate existing licenses, perform the following tasks:
1. Navigate to the My Products page and select the
registered product you want to manage.
2. Locate the product on the Service Management page and
click Enter Key in that row.
3. In the Activate Service page, type or paste your key into
the Activation Key field and then click Submit.
Once the service is activated, you will see an expiration
date or a license key string in the Status column on the
Service Management page.
Trying or Purchasing Security Services
To try a Free Trial of a service, click Try in the Service
Management page. To purchase a product or service, click
Buy Now in the Service Management page.
When activation is complete, MySonicWALL displays an
activation screen with service status and expiration information.
The service management screen also displays the product you
licensed.
You have successfully registered your SonicWALL appliance.
And now you need to enable Unified Threat Management
(UTM) security services. SonicWALL UTM security services are
not enabled by default.

SonicWALL TZ 100/200 Series Getting Started Guide Page 13
Enabling Security Services
In this Section:
Security services are an essential component of a secure network deployment. This section provides instructions for registering and
enabling security services on your SonicWALL TZ 100/200 series appliance.
•Enabling Security Services in SonicOS - page 14
•Verifying Security Services on Zones - page 19
3

Page 14 Enabling Security Services in SonicOS
Enabling Security Services in SonicOS
After completing the registration process in SonicOS, perform
the tasks listed below to activate your licenses and enable your
licensed services from within the SonicOS user interface.
SonicWALL security services are key components of threat
management in SonicOS. The core security services are
Gateway Anti-Virus, Intrusion Prevention Services, and Anti-
Spyware.
You must enable each security service individually in the
SonicOS user interface. See the following procedures to enable
and configure your security services:
•Verifying Licenses - page 14
•Enabling Gateway Anti-Virus - page 15
•Enabling Intrusion Prevention Services - page 16
•Enabling Anti-Spyware - page 17
•Enabling Content Filtering Service - page 18
Verifying Licenses
Verify that your security services are licensed on the System >
Status page.
If services that are already activated on MySonicWALL do not
display as licensed, you need to synchronize your SonicWALL
with the licensing server.
If initial setup is already complete, click the Synchronize button
to synchronize licenses from the System > Licenses page.

SonicWALL TZ 100/200 Series Getting Started Guide Page 15

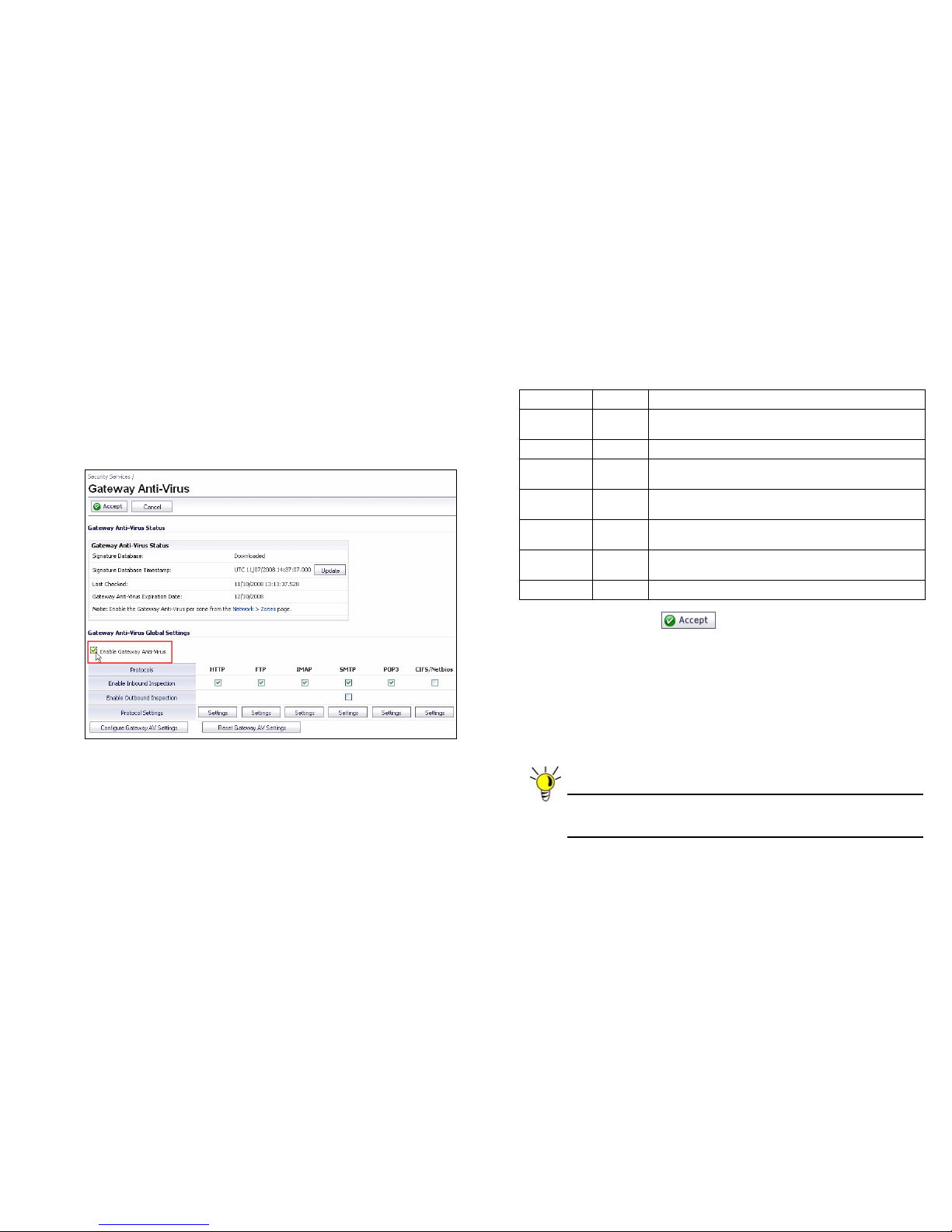

Enabling Gateway Anti-Virus
To enable Gateway Anti-Virus (GAV) in SonicOS:
1. Navigate to the Security Services > Gateway Anti-Virus
page.
2. Select the Enable Gateway Anti-Virus checkbox and click
Accept to apply changes.
3. Verify that the Enable Inbound Inspection checkboxes
are selected for the protocols you wish to inspect. See the
following table for an explanation of these protocols.
The following table gives descriptions and default values for
GAV-enforced protocols:
4. Click the Accept button to apply changes.
GAV contains many other useful features, including:
•Outbound SMTP Inspection scans outbound email
•User Notification notifies users when content is blocked
•File-Type Restrictions blocks various non-scannable files
•Exclusion Lists for network nodes where Gateway Anti-
Virus enforcement is not necessary.
Tip: For a complete overview of GAV features, refer to the
SonicOS Enhanced Administrator’s Guide.
Protocol Default Description
H T T P Enabled Hyper-Text Transfer Protocol, common Web-browsing
traffic
F T P Enabled File Transfer Protocol, dedicated file download servers
I M A P Enabled Internet Message Access Protocol, standard method
for accessing email
SMTP Enabled Simple Mail Transfer Protocol, standard method for
accessing email
POP3 Enabled Post Office Protocol 3,standard method for accessing
email
CIFS/
N e t b i o s Disabled Intra-network traffic on Windows operating system (network file-sharing)
TCP Stream Disabled Any other non-standard type of network data transfer

Page 16 Enabling Security Services in SonicOS
Enabling Intrusion Prevention Services
To enable Intrusion Prevention (IPS) in SonicOS:
1. Navigate to the Security Services >Intrusion Prevention
page.
2. Select the Enable Intrusion Prevention checkbox.
3. In the Signature Groups table, select the Prevent All and
Detect All checkboxes based on attack priority.
Note: Prevent All blocks attacks of the chosen priority, and
Detect All saves a log of these attacks that can be
viewed on the Log >View page. A common setting is
to enable Prevent for High and Medium Priority
threats, and Detect for all threats.
4. Click the Accept button to apply changes.
Intrusion Prevention contains other useful features, including:
•Exclusion Lists for network nodes where IPS
enforcement is not necessary.
•Log Redundancy to control log size during high-volume
intrusion attack attempts by enforcing a delay between log
entries.
Tip: For a complete overview of IPS features, refer to the
SonicOS Enhanced Administrator’s Guide.

SonicWALL TZ 100/200 Series Getting Started Guide Page 17
Enabling Anti-Spyware
To enable Anti-Spyware in SonicOS:
1. Navigate to the Security Services >Anti-Spyware page.
2. Select the Enable Anti-Spyware checkbox.
3. In the Signature Groups table, select the Prevent All and
Detect All checkboxes for each spyware danger level that
you want to prevent.
Note: Prevent all blocks attacks of the chosen priority, Detect
All saves a log of these attacks which can be viewed in
the Log >View screen.
4. Click the Accept button to apply changes.
Anti-Spyware contains other useful features, including:
•Exclusion Lists excludes network nodes when
Anti-Spyware enforcement is not necessary.
•Log Redundancy controls log size during high-volume
intrusion attack attempts by enforcing a delay between log
entries.
•Clientless Notification displays messages to users when
content is blocked by SonicWALL Anti-Spyware.
•Outbound Inspection enables scanning and logging of
outbound spyware communication attempts.
•Disable SMTP Responses suppresses the sending of
email messages to clients when spyware is detected.
Tip: For a complete overview of Anti-Spyware features,
refer to the SonicOS Enhanced Administrator’s Guide.
