Sonoff LBS L2 User manual

Wi-Fi Smart LED Light Strip
中 文 --------1 - 4 English ----- 5-8 FCC Warning------ 9
User manual V1.1
L2/L2 Lite

功能特点
●采⽤SMD5050LED灯珠，FPCB线路板，每三个LED为⼀段
●发光颜⾊：主要为红光/蓝光/绿光
情景模式
光随乐动 1600万种颜色
语音控制
手机控制 智能定时/延时
遥控器控制
分享功能 亮度调节
蓝⽛控制
中 文
Shenzhen Sonoff Technologies Co., Ltd.
1.清理安装表⾯
使⽤说明
2.撕开背部胶纸
3.将灯带粘贴在安装表⾯
1

中 文

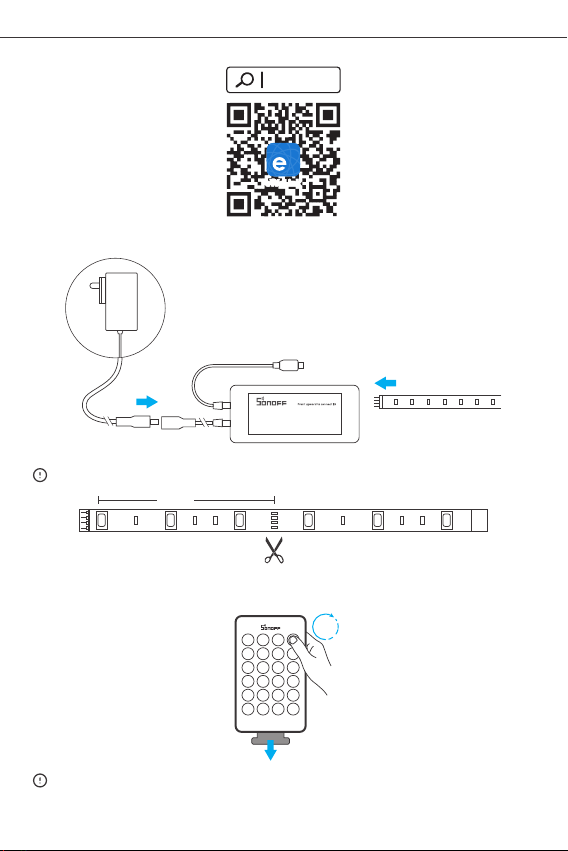

4.下载“易微联”App 易 微 联
eWeLink
Android™ & iOS
Shenzhen Sonoff Technologies Co., Ltd.
5.上电
100mm
每100mm可剪切
6.取下遥控器电池绝缘⽚，⻓按“on”按键5秒直⾄灯带呈“闪烁”状态，设备进⼊蓝⽛配⽹模式。
ONOFF
RGB W
5s
⼀分钟内没有进⾏配⽹，设备将退出蓝⽛配⽹模式。如需再次进⼊，⻓按遥控器“on”按键
5秒直⾄灯带呈“闪烁”状态即可。
2

中 文
Shenzhen Sonoff Technologies Co., Ltd.
7.添加设备
产品参数
产品型号: L2-2M, L2-5M, L2 Lite-5M-EU, L2 Lite-5M-US
灯带
输入电压 DC 12V 30LEDs/m
光通量 ≥300lumens/m > 25000 小时
发光角度 L2: 140° L2 Lite: 120° -15°C ~ 50°C
工作湿度 ≤95%
材质 FPCB
光衰 持续工作1000小时后就只有不到3% 的亮度
电源适配器
输入 100-240V AC 50/60Hz 0.6A Max
保护 过压、过载、过温
DC 12V 2000mA
灯珠数量
寿命
工作温度
输出
防护等级 L2: IP65
L2 Lite: IP20
添加设 备
快速添加
适用于大部分易微联生态设备
声波添 加
适用于摄像 头等支持
声波配对设 备
扫码添 加
GSM 类设备和附带
二维码的设 备
所有设 备
蓝牙配网
适用于蓝牙 配网
控制器
输入 DC 5-12V
遥控器 24键红外发射
3V(CR2025)
遥控器电池
功率 24W(最大36W)
IEEE 802.11 b 2.4GHz
蓝⽛ 5.0 BLE
Wi-Fi
点击“+”，选择“ 蓝⽛配⽹”，再根据App提⽰进⾏操作。
App支持系统 Android & iOS
3

中 文
Shenzhen Sonoff Technologies Co., Ltd.
L2
Wi-Fi控制设置
在eWeLink App 设备设置界⾯选择 “Wi-Fi设置” 进⾏添加和更换网络。
当设备断开Wi-Fi连接时，设备将切换为蓝⽛控制（⼿机蓝⽛必须为打开状态）。
重新配对
⻓按遥控器“on”按键5秒直⾄灯带呈“闪烁”状态，设备进⼊蓝⽛配⽹模式，即可再󴤣添加。
安全注意事项
1. 使用前先确认电压是否符合本产品的工作电压，使用不适当的电压可能会损坏产品并带
来安全隐患；
2. LED光源不可更换，请勿私自拆产品；
3. 灯带在工作中会产生热量，请保存周围空气对流，以便散热。
恢复出⼚设置
在eWeLinkApp端“删除设备”，设备即恢复出⼚设置。
ONOFF
RGB W
5s
4
CCT W
R255
>
G105
>
B0
>
52%
常⽤
开关 调⾊ 情景 律动
设备设置
分享设备
WiFi设 置
⼚商
型号
设备ID
删除设备
SONO FF
L2
10013 7ffce
固件名称 O PL-LED- 01
⼩程序控制
设备信息
线序调整
设备设置
WiFi设置

Shenzhen Sonoff Technologies Co., Ltd.
5
Single/Countdown
Timing
Dimming
Bluetooth Control
App Control Voice Control Share Control
Music Reactive
Mode
16M Colors Remote Control Scene Mode
● SMD5050 LED Beads; FPCB Circuit Board; Every 3 LED lights in one segment.
● Main Colors of the Light: Red/Blue/Green.
Features of the Smart LED Light Strip
Operation instruction
1. Clean the surface
2. Tear the backing tape
3. Adhere it to the surface

4. Download the eWeLink App
Shenzhen Sonoff Technologies Co., Ltd.
eWeLink
eWeLink
Android™ & iOS
5. Power on
100mm
Cutable every 100mm
6. Pull out the insulation sheet, then long press “on” button for 5s until the light
strip “flashes”, which means it enters the Bluetooth Pairing mode.
ONOFF
RGB W
5s
The device will exit the Bluetooth Pairing mode if not paired within 1min. If you
want to enter this mode again, long press the “on” button on the remote controller
for 5s until the light strip “flashes” and release.
6

Shenzhen Sonoff Technologies Co., Ltd.
Sou nd Pair ing
Availa ble for e WeLin k suppo rt devi ces
Availa ble for G SM
and oth er devi ces
with QR code.
Available for camera
and other devices that
support this pairing
method.
Add D evice All d evices
Qui ck Pa irin g
Sca n QR code
Availa ble for b lue tooth
conne cti on.
Bluetooth Pairing
Tap “+” and select “Bluetooth Pairing”, then operate following the prompt on the App.
7. Add the device
Model: L1-2M, L1-5M, L1 Lite-5M-EU, L1 Lite-5M-US
Light Strips
Input Voltage DC 12V LED QTY 30LEDs/m
Luminous Flux ≥300lumens/m Life Expectancy > 25000 hours
Beam Angle Operating Temperature -15°C ~ 50°C
Working Humidity ≤95%
Material FPCB
Light Decay Less than 3% after 1000 hours constant work
Power Adapter
Input 100-240V AC 50/60Hz 0.6A Max
Protection Anti-overvoltage, Anti-overload, Anti-overtemperature
DC 12V 2000mA
Specifications
Output
Protect Range
L1: 140° L1 Lite: 120°
L1: IP65
L1 Lite: IP20
Wi-Fi Controller
DC 5-12V
Remote Control 24 Keys IR Remote Controller
3V(CR2025)
Remote controller battery
Power 24W(36W Max)
IEEE 802.11 b 2.4GHz
5.0 BLE
Wi-Fi
Input
Bluetooth
Android & iOS
App operating systems
7

Shenzhen Sonoff Technologies Co., Ltd.
Safety Warning
1. Before using this product, please make sure that your voltage is appropriate for
this product’s working voltage. Using this product with a voltage other than the one
specified may damage the product and cause safety hazards.
2. LED Light Sources are unchangeable, please don't dismantle them.
3. While the Light Strip is working, it will generate heat so please keep it in a cross-
ventilation environment for heat dissipation.
Wi-Fi control setting
Select the "Wi-Fi Settings" on the "Device Settings" interface in the eWeLink App to
add or change the network.
When Wi-Fi is not available, the device will automatically switch into Bluetooth
control (Ensure Bluetooth is enable on your mobile phone).
Deleting the device on the eWeLink app indicates you restore it to factory setting.
Factory Reset
L2
CCT W
R255
>
G105
>
B0
>
52%
Recen t
ON/OFF P alette Sc ene Musi c
Viual izer
Long press “on” button for 5s until the light strip “flashes”, which means it enters the
Bluetooth Pairing mode and you can pair again.
ONOFF
RGB W
5s
Re-establish Pairing
Sha re
WiF iSett ings
Man ufac turer
Mod el
Devi ce ID
Del etedev ice
SONO FF
L2
1001 37ffce
FWNa me OPL- LED-0 1
WeCh at cont rol
Devi ceinf o
SetWi ringDi agram
Devi ceSet ting s
Devi ceSet ting s
WiFiSettings
8

FCC Radiation Exposure Statement:
FCC Warning
C h a n g e s o r m o d i fi c a t i o n s n o t e x p r e s s l y a p p r o v e d b y t h e p a r t y r e s p o n s i b l e f o r
c o m p l i a n c e c o u l d a v o i d t h e u s e r ’ s a u t h o r i t y t o o p e r a t e t h e e q u i p m e n t .
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
FCC Warning
9
Shenzhen Sonoff Technologies Co., Ltd.

Shenzhen Sonoff Technologies Co., Ltd.
MADE IN CHINA
1001, BLDG8, Lianhua Industrial Park, shenzhen, GD, China
ZIP code: 518000 Website: sonoff.tech
https://sonoff.tech/usermanuals
Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment
type L1-2M/L1-5M/L1 Lite-5M-US/L1 Lite-5M-EU is in compliance with Directive
2014/53/EU.The full text of the EU declaration of conformity is available at the
following internet address:
