Sony Ericsson J210i User manual

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
Working Instructions – mechanical
Applicable for J210i
CONTENTS
1Read this first! ......................................................................................... 2
2Introduction.............................................................................................. 3
3Repair actions.......................................................................................... 4
3.1 Battery Cover ass’y & Battery ....................................................................5
3.2 Front Cover ass’y .......................................................................................8
3.3 Keypad .....................................................................................................10
3.4 PCB…. .....................................................................................................11
3.5 Display .....................................................................................................13
3.6 Name Plate ..............................................................................................15
3.7 Microphone ass’y .....................................................................................16
3.8 Earphone & Earphone Gasket .................................................................17
3.9 Joystick Button ass’y ................................................................................18
3.10 Tape Shield Can.......................................................................................19
3.11 Keypad Dome ..........................................................................................20
3.12 Vibrator.....................................................................................................21
3.13 Battery Connector ....................................................................................22
3.14 Loudspeaker ass’y ...................................................................................23
3.15 Strap Insert Plate .....................................................................................24
3.16 IrDA Window ............................................................................................25
3.17 Water Damage Indicator ..........................................................................26
3.18 Frame ass’y..............................................................................................27
4Label ....................................................................................................... 28
5Revision History .................................................................................... 29

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
2(29)
1 Read this first!
After reading section 2 ‘Introduction’ and the first page of section 3 ‘Repair Actions’,
do as follows when a mechanical part needs to be replaced:
•Search for the part name on the contents page and go to the page number
where the instruction is found
•Disassemble the phone as far as needed by moving to the instructions stated as e.g.
Follow the Removal instructions of sections 3.1 – 3.6
•Carry out the actual repair action as described
•Assemble the phone by moving to the instructions stated as e.g.
Follow the Assembly instructions of sections 3.6 – 3.1 (pls. note the reverse order)

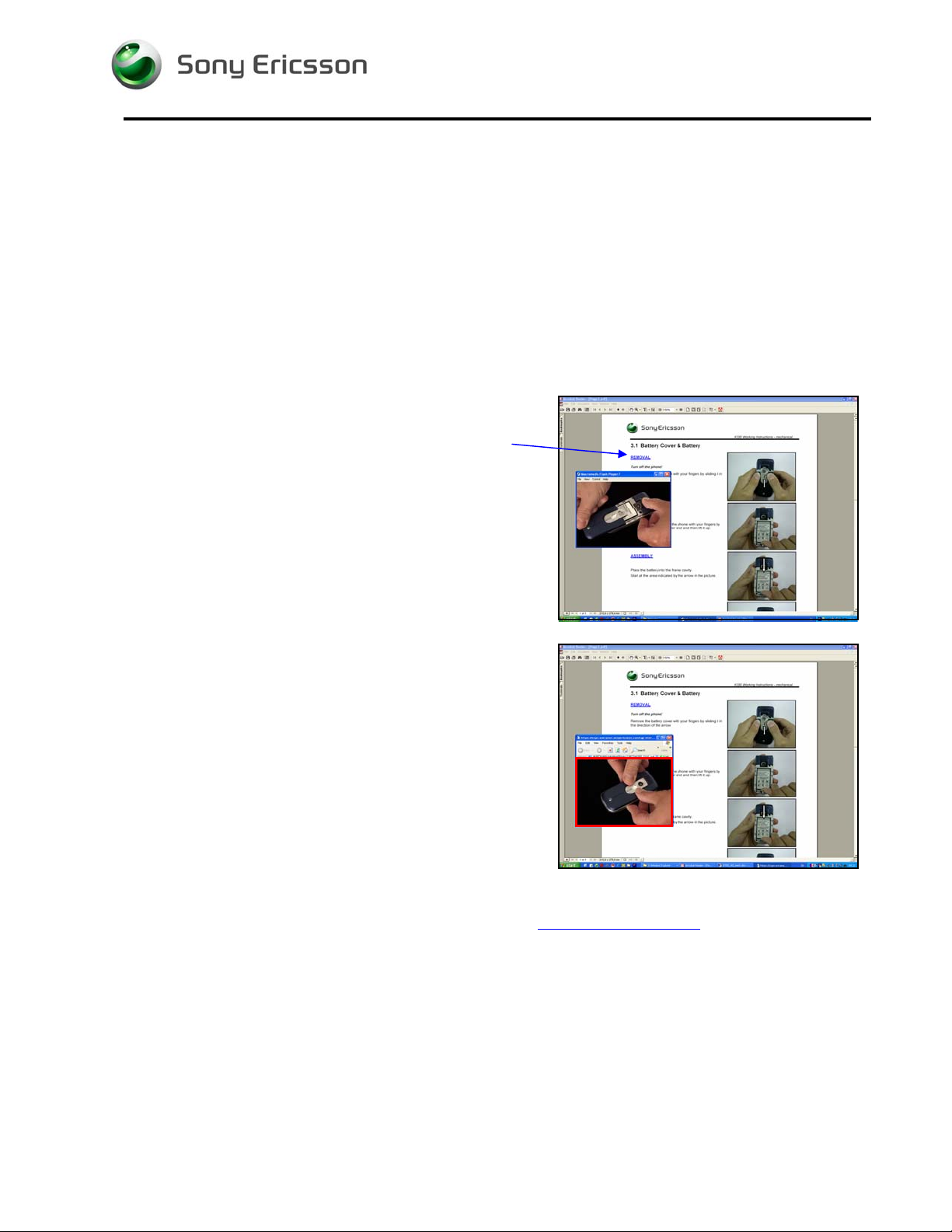

When watching the document off-line (after downloading
and extracting the ZIP-file)), most of the Removal and
Assembly headings are blue-coloured and underlined.
By clicking on such a heading, a Flash Player window
opens, showing a video clip of the removal/assembly.
The flash movie can be controlled from the keyboard by
holding down the Ctrl-key and pressing another key as
follows:
- Start and Stop: Ctrl – Enter
- Rewind to start position: Ctrl – R
- Move one small step forward: Ctrl – right arrow
- Move one small step back: Ctrl – left arrow
If your computer is set up to show Flash movies in an
Internet Explorer window, the movie will most likely be full
size, resulting in poor picture quality.
To shrink the video window to its proper size, drag the
bottom right corner of the Internet Explorer window until
the movie is shown without blur and edges, which occurs
when the movie window is approx. 12 x 9 cm (indicated by
the red frame in the adjacent picture).
However, it is recommended to have your computer set up
to have the Flash movies played by the Flash Player
application.
NOTE! Flash Player ver. 6 or later must be installed on the computer.
The Flash Player can be downloaded free of charge from www.macromedia.com.

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
3(29)
2 Introduction

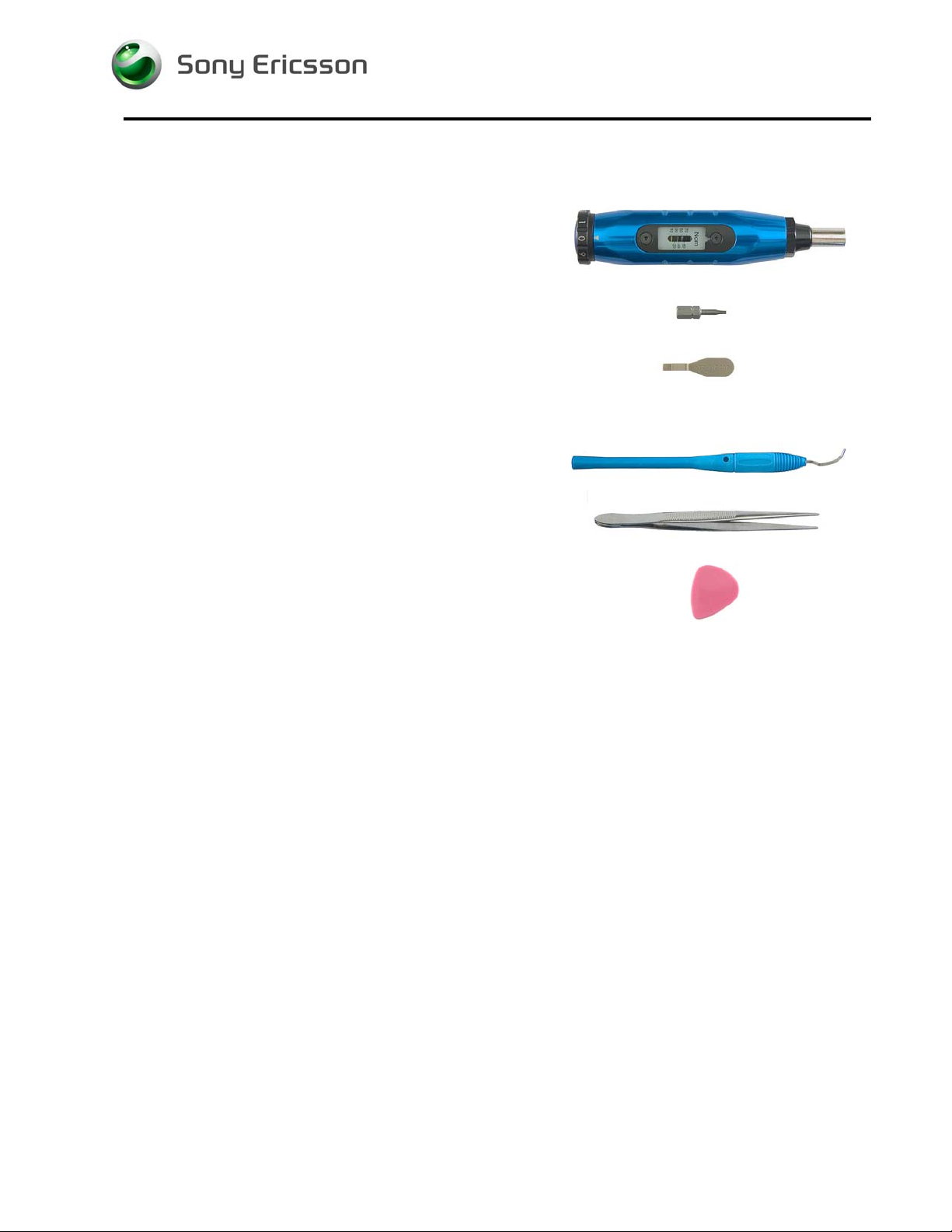

SPECIAL TOOLS
No new special tools are introduced but a few other
Sony Ericsson tools are required:
•NTZ 112 459 Torque screwdriver (or equivalent)
to 11 Ncm ±6 %
•NTZ 112 288 Torx bit no. 6
•NTZ 112 302/2 Front opening tool
STANDARD TOOLS
The following tools have to be locally purchased:
•Dentist hook
•Blunt pair of tweezers
•Guitar pick
•Air duster (air blow equipment)
ESD EQUIPMENT
Protect the phone from ESD damages whenever it has been opened by using:
•ESD-gloves (cotton gloves)
•ESD-wristband
CAUTIONS
•Keep all contact surfaces clean, no dirt or hand grease!
•Be careful when using tools like the dentist hook, tweezers, opening tools etc. to avoid
scratches or damages to the exterior and interior parts of the phone!
•Be careful not to damage the contact springs on parts like the earphone and vibrator!
•Remember to remove the protection foils on new parts such as the display!
•Never touch the display glass!
•Use air blow equipment to keep the front window and display module dust free!

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
4(29)
3 Repair actions

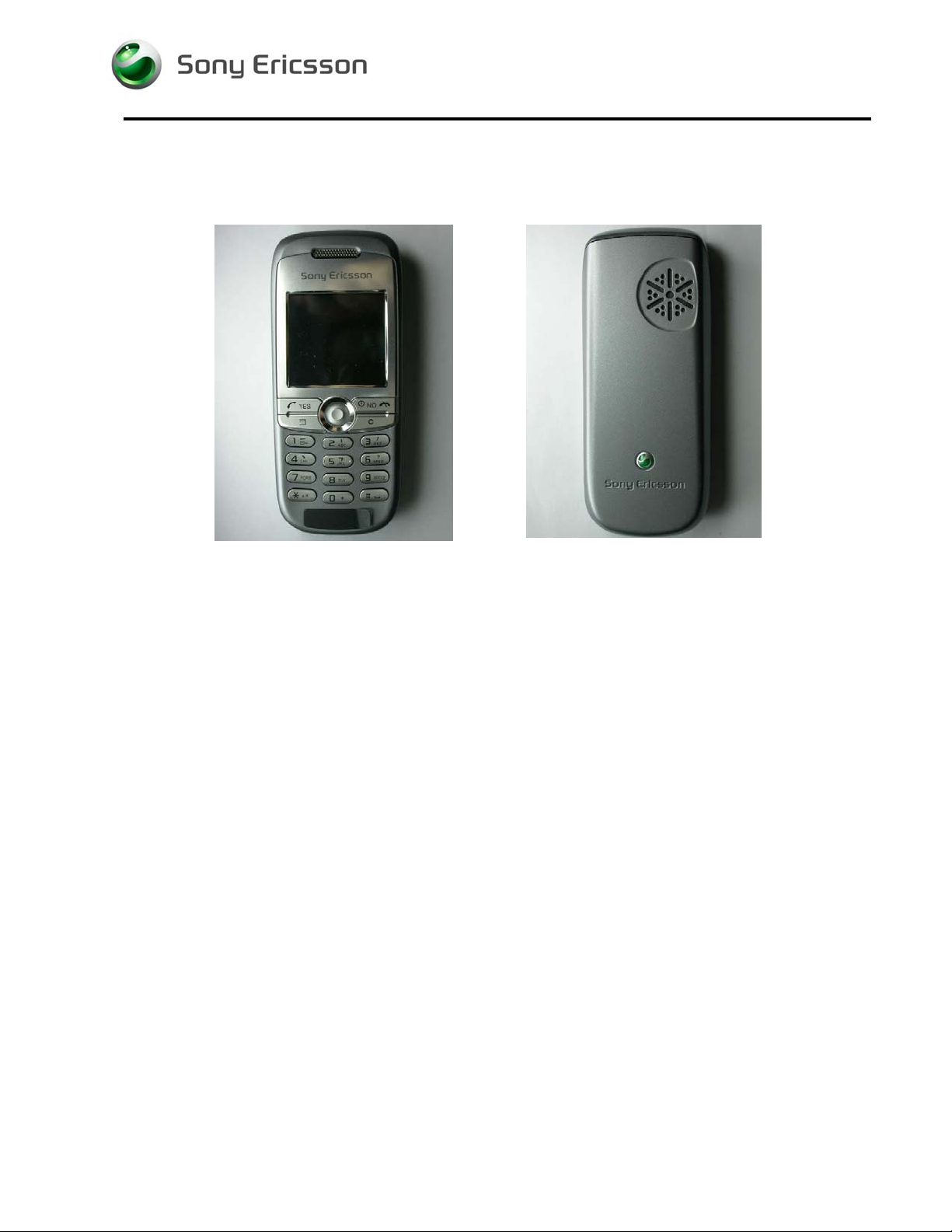

FRONT/REAR VIEW

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
5(29)
3.1 Battery Cover ass’y & Battery
REMOVAL
Turn off the phone!
Hold the phone like the picture shows.
Use your thumbs to slide down the battery cover,
just until the antenna flex film becomes visible.
Remove the battery cover by lifting it up.
Push the battery slightly forward,

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
6(29)
Battery Cover ass’y & Battery continued
and at the same time pull upwards to remove it.
ASSEMBLY
Insert the two battery pegs,
into these slots,
and push forward,

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
7(29)
Battery Cover ass’y & Battery continued
while pressing down to secure the battery in its proper
position.
Place the battery cover as shown in this picture,
so that that the antenna flex film becomes visible.
Hold the phone like this and slide the battery cover until it
gets closed.

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
8(29)

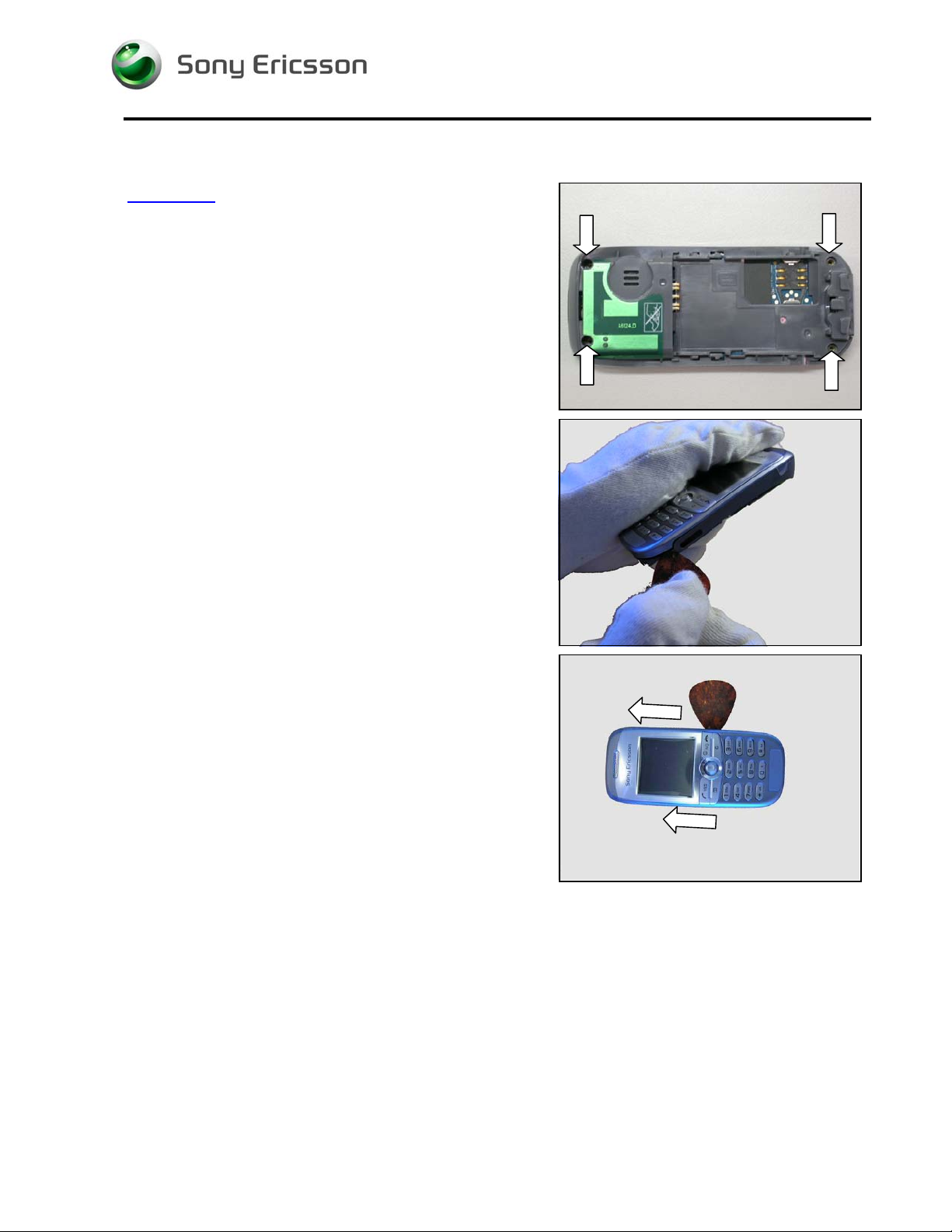

3.2 Front Cover ass’y
REMOVAL
Follow the Removal instructions of section 3.1
Remove the four screws using torx bit no. 6.
The screws cannot be reused and must be scrapped!
Do not use a screwdriver or any other sharp object, as
this might damage the covers or other components!
Insert the guitar pick between the frame and the front
cover,
and release the front cover by sliding the guitar pick from
bottom to top along each side of the phone.
The front cover can then be lifted off.

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
9(29)

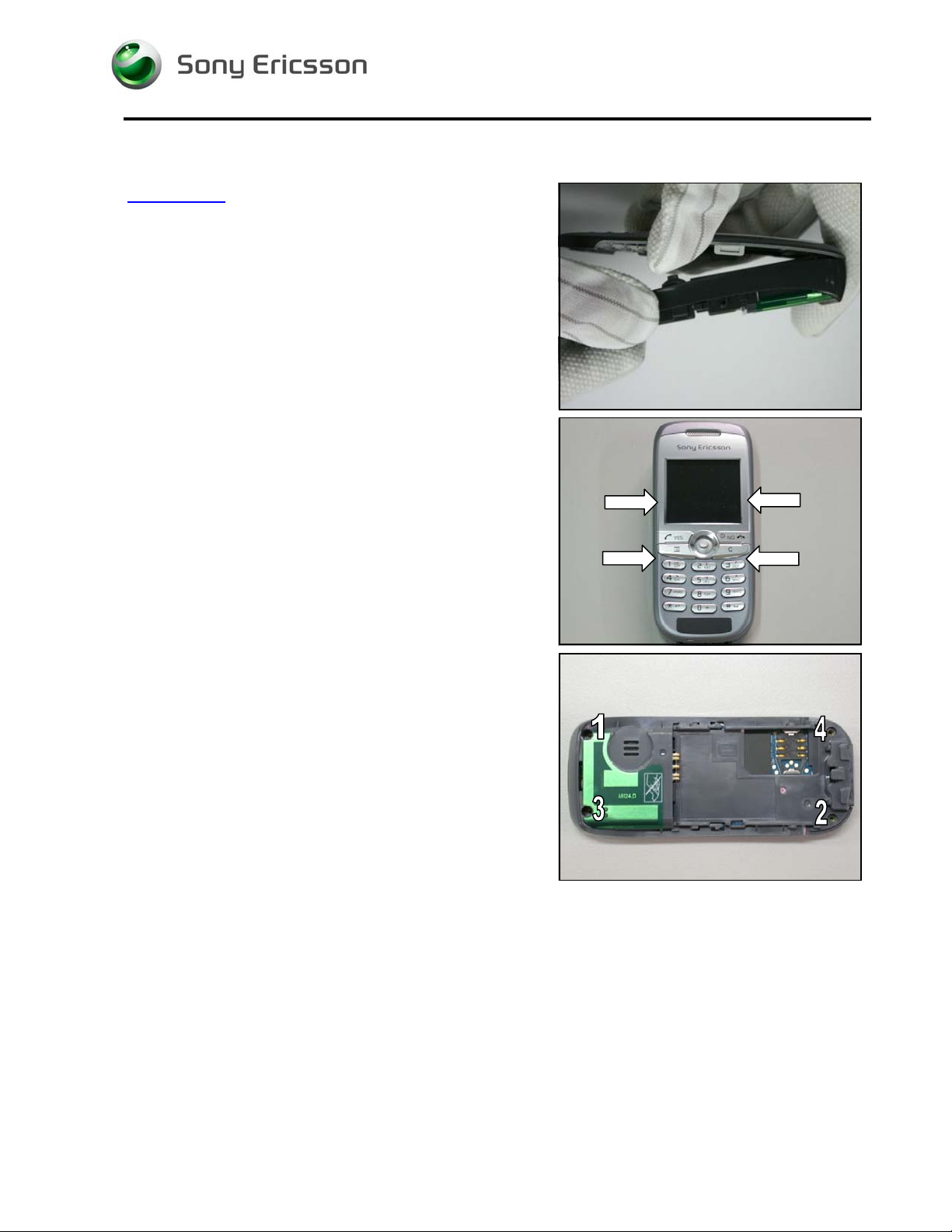

Front Cover ass’y continued
ASSEMBLY
Place the front cover on top of the frame.
Use your fingers to press on each side of the front cover
as indicated by the arrows, to make it securely snapped.
Tighten four new screws with 11 Ncm torque using torx bit
no. 6 in order 1-4, as indicated in the adjacent picture.
Follow the Assembly instructions of section 3.1

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
10(29)

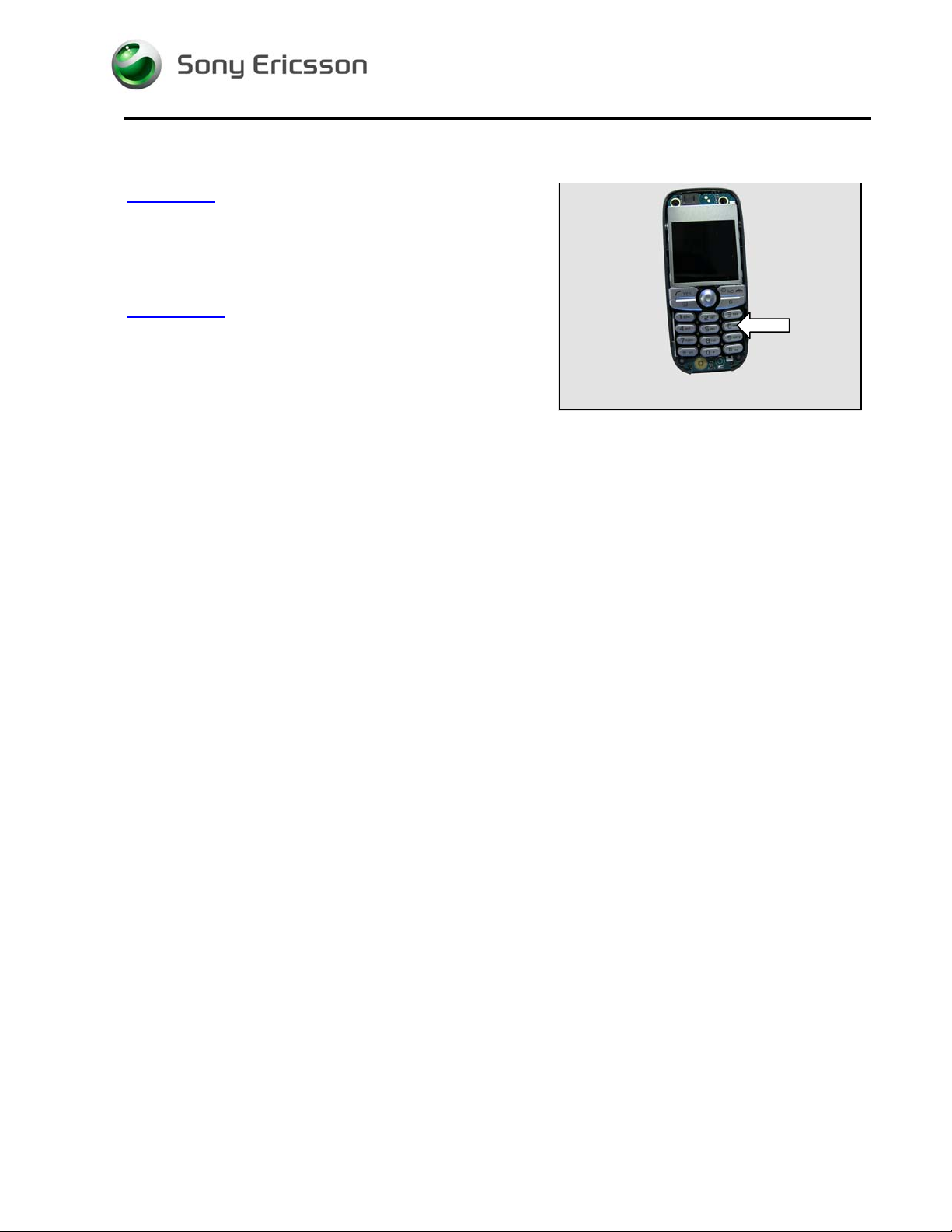

3.3 Keypad
REMOVAL
Follow the Removal instructions of sections 3.1 – 3.2
Use the tweezers to remove the keypad.
ASSEMBLY
Use the tweezers to install the keypad.
Follow the Assembly instructions of sections 3.2 – 3.1

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
11(29)
3.4 PCB
REMOVAL
Follow the Removal instructions of sections 3.1 – 3.3
Place the front opening tool in the gap just below one of
the hooks, indicated by the arrows, and press the tool
down until the PCB becomes released from the snap hook
of the frame.
Do the same thing on the opposite side.
Remove the PCB.

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
12(29)
PCB continued
ASSEMBLY
Make sure the following items are in the correct positions
before you install the PCB:
1. IrDA window
2. Louderspeaker ass’y
3. Vibrator
4. Battery Connector
5. Strap Insert Plate
6. Water Damage Indicator
Place the PCB inside the frame.
Use your thumbs to press the PCB down into the frame.
Press down on each side to snap the hooks (red circles),
and check that the PCB is securely attached.
Follow the Assembly instructions of sections 3.3 – 3.1

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
13(29)
3.5 Display
REMOVAL
Follow the Removal instructions of sections 3.1 – 3.4
Be careful not to damage the display flex film or
connector
Use the guitar pick or front opening tool to disconnect the
display from the board-to-board connector.
There are four snap hooks holding the display onto the
PCB.
Use your fingers to release the hooks in order 1-4.
ASSEMBLY
There are two guiding holes on the PCB to facilitate the
installation of the display.

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
14(29)
Display continued
Tilt the display to a 30oangle.
Insert the two guiding pegs of the display into the guiding
holes of the PCB.
Press gently on the four snap fit hooks from the left side to
the right side of display with your fingers and check that
the display is securely attached.
Use your fingers to connect the board-to-board connector
to the PCB.
Follow the Assembly instructions of sections 3.4 – 3.1

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
15(29)
3.6 Name Plate
REMOVAL
The name plate cannot be reused!
Be careful not to scratch the front cover!

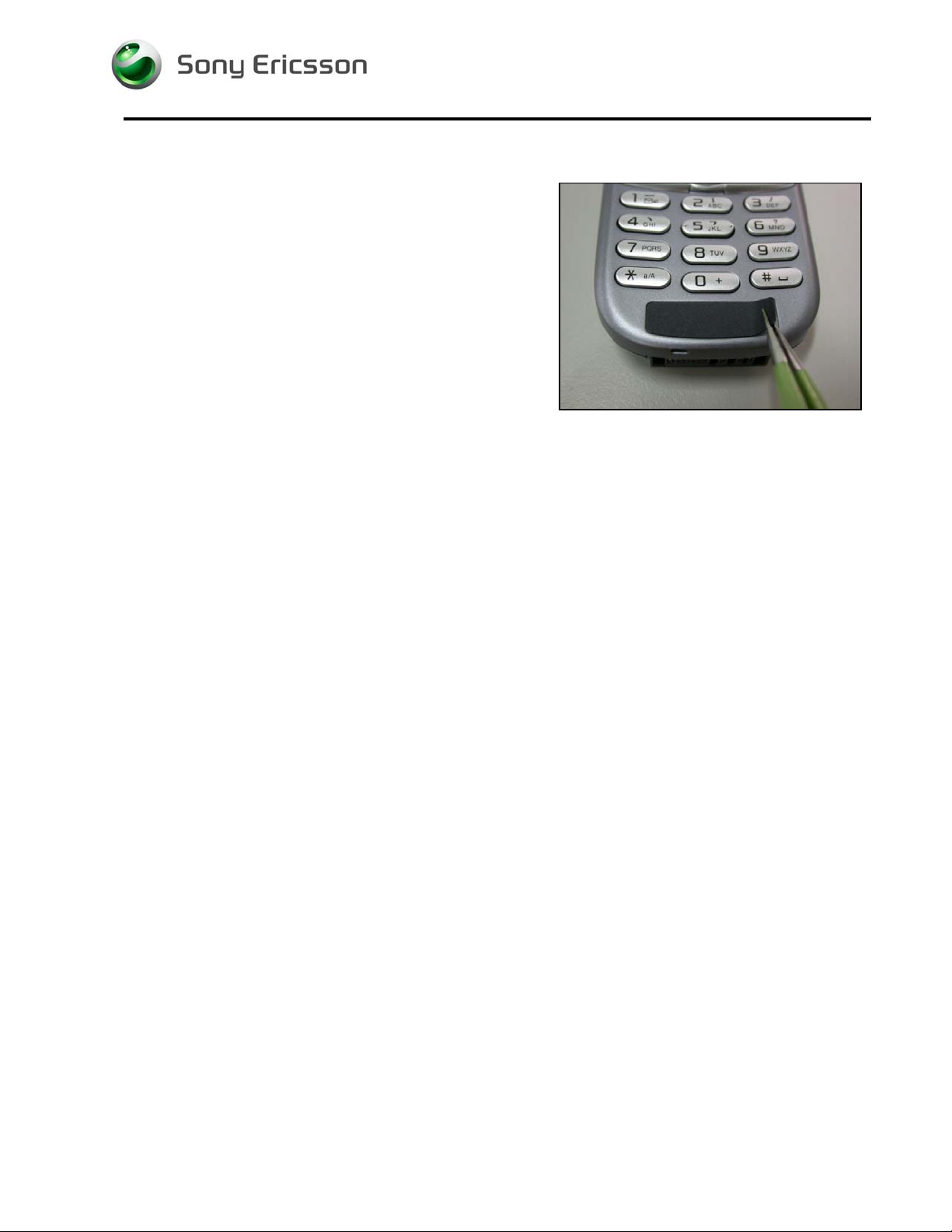

Gently remove the name plate by using tweezers.
ASSEMBLY
Clean the surface with isopropyl alcohol.
Attach a new name plate by using tweezers and/or your
fingers.

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
16(29)

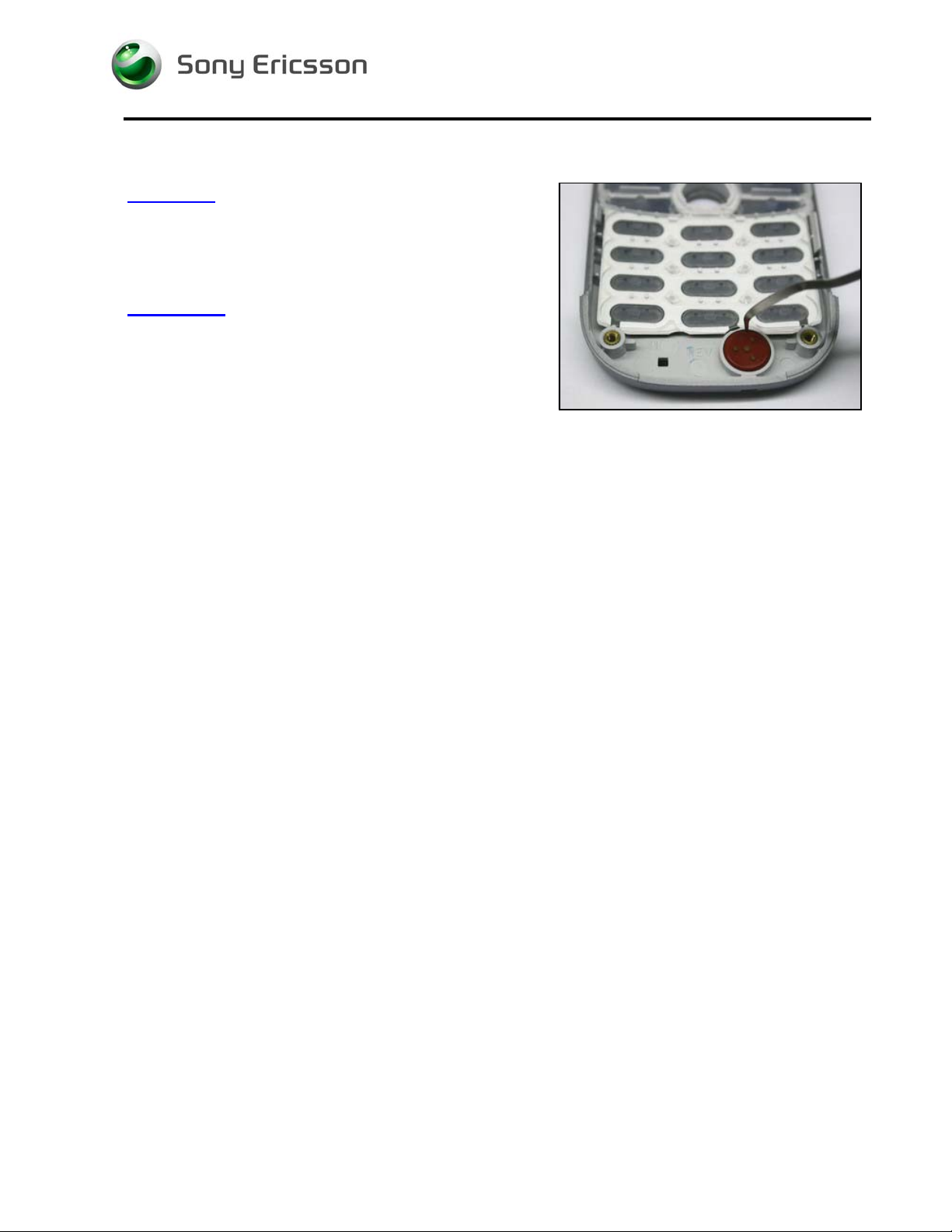

3.7 Microphone ass’y
REMOVAL
Follow the Removal instructions of sections 3.1 – 3.2
Use a dentist hook to lift the microphone out of its cavity
and then the tweezers to remove it.
ASSEMBLY
Use your fingers or tweezers to install the microphone.
Gently press on the microphone until it reaches the bottom
of the cavity.
Follow the Assembly instructions of sections 3.2 – 3.1
.

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
17(29)
3.8 Earphone & Earphone Gasket
REMOVAL
Follow the Removal instructions of sections 3.1 – 3.2
Be careful not to damage the spring connectors.
Insert the tweezers into the gap of the front cover.
Lift the earphone upwards and remove it.
Remove the remaining earphone gasket residue from the
earphone cavity.
ASSEMBLY
This picture shows how an earphone gasket mounted on
an earphone looks like.
But when installing, first place a new earphone gasket into
the earphone cavity with the adhesive side face up.
Mount the earphone so that the earphone peg is pointing
upwards.
Use tweezers to place the earphone inside the cavity.
Press on the earphone to make it securely attached.
Follow the Assembly instructions of sections 3.2 – 3.1
W
rong
Right

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
18(29)
3.9 Joystick Button ass’y
REMOVAL
Follow the Removal instructions of sections 3.1 – 3.3
Use your fingers to remove the joystick button by lifting it
upwards.
ASSEMBLY
The small cavity on the joystick button must be pointing
towards the bottom of the phone.
Use your fingers and place the joystick button on top of the
joystick switch and press to make it securely attached.
Check that the button cavity is in the position shown in this
picture.
Follow the Assembly instructions of sections 3.3 – 3.1

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
19(29)

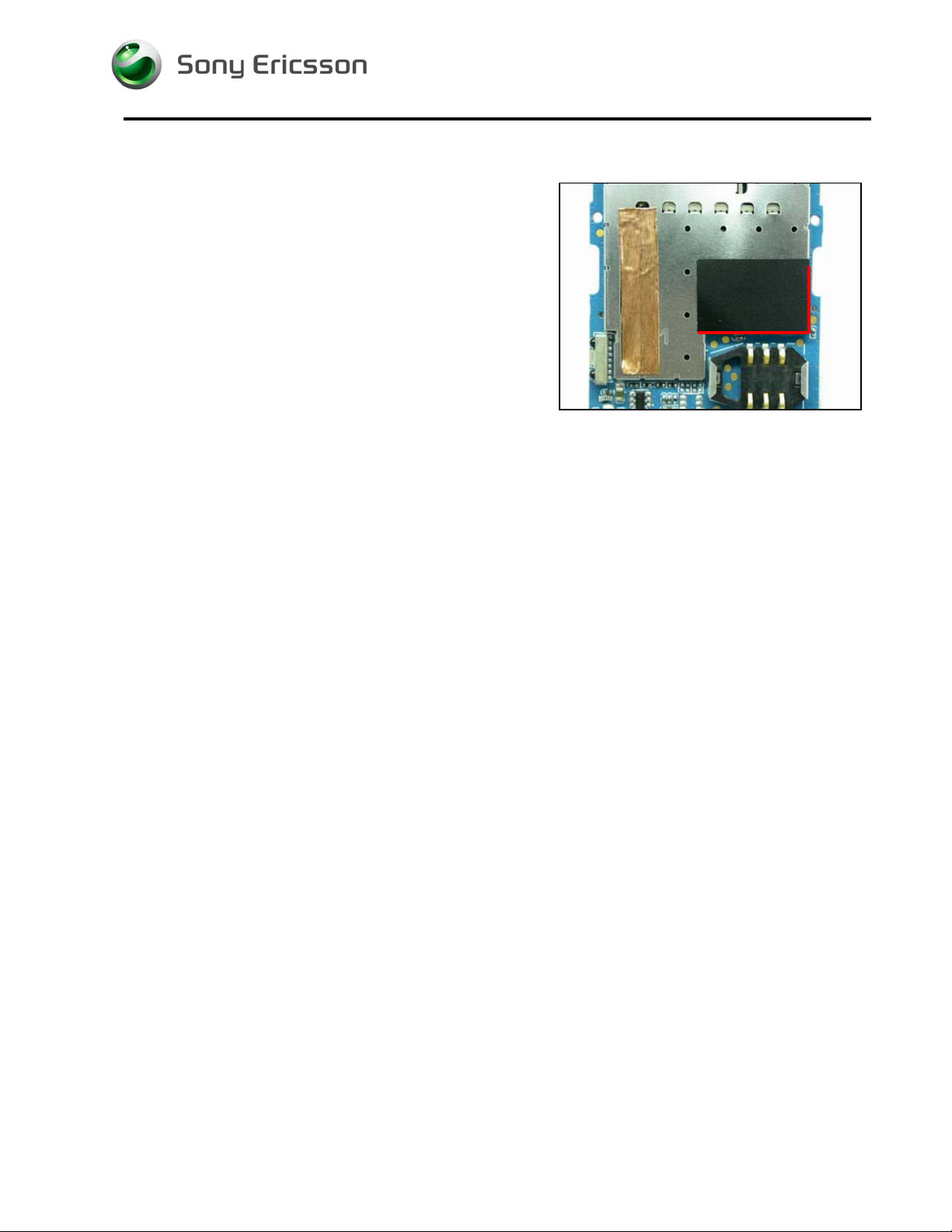

3.10 Tape Shield Can
REMOVAL
Follow the Removal instructions of sections 3.1 – 3.4
Use the tweezers to remove the tape shield can.
ASSEMBLY
Clean the surface with isopropyl alcohol.
Attach a new tape shield can to be aligned with the red
line.
Follow the Assembly instructions of sections 3.4 – 3.1

J210 Working Instructions - mechanical
3/00021-1/FEA 209 544/107A
Company Internal Sony Ericsson Mobile Communications AB
20(29)
3.11 Keypad Dome
REMOVAL
Follow the Removal instructions of sections 3.1 – 3.4
Use the tweezers to remove the keypad dome.
ASSEMBLY
Clean the PCB with isopropyl alcohol!
The PCB and a new keypad dome have three guiding
holes each, as indicated by the red circles.
Place the new keypad dome on the PCB.
Make sure that the guiding holes of the keypad dome are
placed above the guiding holes of the PCB.
Follow the Assembly instructions of sections 3.4 – 3.1
