Sony Ericsson SplashPhoto 4.0 User manual

Wireless Manager 4.0
User Guide

ii Contents
Contents
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
How this guide is organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Additional resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Conventions used in this guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installing and uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installing your software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

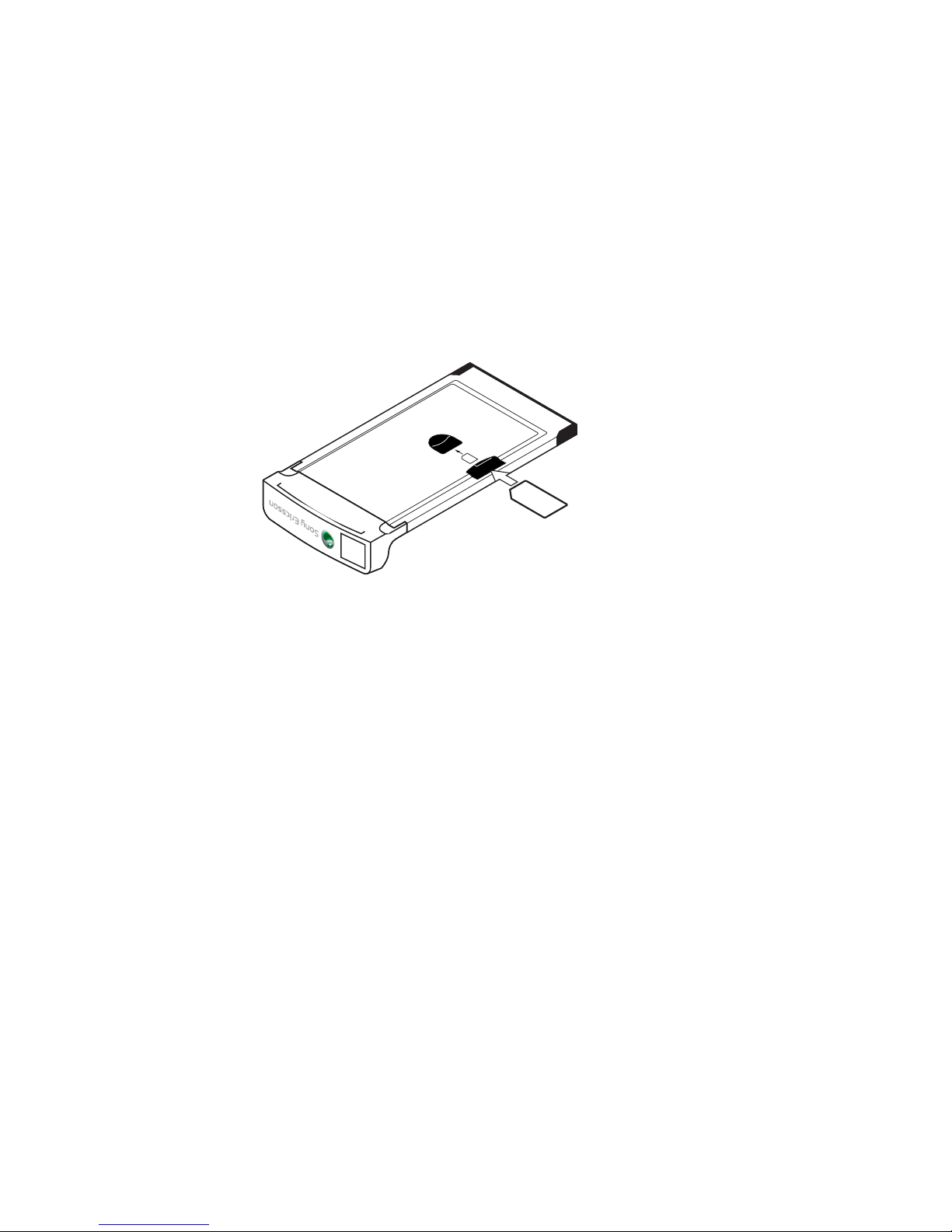

Preparing your PC card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Inserting your PC card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Removing your PC card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Uninstalling your software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Wireless Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Starting Wireless Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Navigating in Wireless Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Wireless Manager status icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Windows status icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Creating a GPRS/EDGE/UMTS or CSD connection . . . . . . . . . . . . . . . . . 16
Creating a GPRS/EDGE/UMTS connection . . . . . . . . . . . . . . . . . . . . . . . . 17
Creating a CSD connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Modifying a connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Deleting a connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using your connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Browsing the Internet via a GSM GPRS/EDGE/UMTS connection . . . . . . 20
Sending and receiving e-mail messages . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Creating a GPRS/EDGE/UMTS connection by using Windows dial-up
networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Logging on to Windows using a GPRS/EDGE/UMTS dial-up connection . 22
Configuring Wireless Manager preferences . . . . . . . . . . . . . . . . . . . . . . . . 23
Wireless Manager – Status view . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Displaying the GSM GPRS/EDGE/UMTS panel. . . . . . . . . . . . . . . . . . . . . 30
Establishing a connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Displaying the 802.11 WLAN panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Displaying usage summary information . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Displaying incoming calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Wireless Manager – Telephony Settings view. . . . . . . . . . . . . . . 33
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Forward (Divert) Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Contents iii
Wireless Manager – Phone Book view . . . . . . . . . . . . . . . . . . . . . 41
Navigating the Phone Book view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Managing entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Wireless Manager – SMS Messages view . . . . . . . . . . . . . . . . . . 46
Displaying the SMS Messages view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Creating and sending SMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Managing SMS messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Wireless Manager – Online Services view . . . . . . . . . . . . . . . . . . 50
Using the Sony Ericsson Wireless Utility . . . . . . . . . . . . . . . . . . 51
Opening the Sony Ericsson Wireless Utility . . . . . . . . . . . . . . . . . . . . . . . . 51
Enabling the Sony Ericsson Wireless Utility . . . . . . . . . . . . . . . . . . . . . . . . 51
Navigating in the Wireless Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Wireless Utility status icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Accessing the Wireless Utility status icon menu. . . . . . . . . . . . . . . . . . . . . 53
Enabling and disabling the 802.11 radio. . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Configuring your location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Creating a wireless LAN connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Connecting to an open wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Connecting to a secure wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Running diagnostic tests on your wireless LAN adapter . . . . . . . . . . . . . . 62
Using the Windows XP wireless network connection utility . . . 63
Opening the Windows XP wireless network connection utility . . . . . . . . . . 63
Enabling the Windows XP wireless network connection utility . . . . . . . . . . 63
Configuring your location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Creating a wireless LAN connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Connecting to an open wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Connecting to a secure wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Advanced wireless LAN features . . . . . . . . . . . . . . . . . . . . . . . . . 70
Setting up an ad hoc group network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Connecting to an ad hoc network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Sharing an Internet connection in an ad hoc network. . . . . . . . . . . . . . . . . 72
Bridging connections on Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Managing static IP addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Wireless LAN adapter diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Wireless LAN information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Displaying Windows network connections . . . . . . . . . . . . . . . . . . . . . . . . . 77
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Status information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Status log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Wireless Manager icon errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Software errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
GSM GPRS/EDGE/UMTS error messages . . . . . . . . . . . . . . . . . . . . . . . . 79
SIM card errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Wireless LAN error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Wireless LAN performance and connectivity problems . . . . . . . . . . . . . . . 81
Windows error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

iv Contents
Appendix A - Connection parameters . . . . . . . . . . . . . . . . . . . . . 84
General connection parameters for CSD and GPRS . . . . . . . . . . . . . . . . . 84
CSD-specific parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
TCP/IP optimisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Appendix B - Changing the wireless LAN adapter properties . . 87
Appendix C - Additional information . . . . . . . . . . . . . . . . . . . . . . 89
License agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Wireless LAN regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Contents v
Trademarks and Notices
Second edition (July 2007)
This manual is published by Sony Ericsson Mobile Communications AB, without any warranty.
Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current
information, or improvements to programs and/or equipment, may be made by Sony Ericsson at any
time and without notice. Such changes will, however, be incorporated into new editions of this manual.
All materials, including all images, software, text and graphics, buttons, as well as the general “look
and feel”, (“the Content”), contained in this document are protected by copyright under national laws
and international treaties. The marks, corporate logos and emblems displayed in this document are
subject to the trademark and other rights of Sony Ericsson or its content providers. Without limiting
the foregoing,
is the trademark or registered trademark of Sony Ericsson or is used under licence from Sony Corporation
or Telefonaktiebolaget LM Ericsson.
You cannot use the Content except as specified herein. Violation of these terms may constitute
violation(s) of our or our content providers’ intellectual property rights, and Sony Ericsson
or its content providers may be required to take legal actions to protect these rights.
The Content may be viewed and printed, and distributed provided such documents are used for
information and non-commercial personal purposes only and reference is made to Sony Ericsson
whenever the document is used. You may not exchange, modify, sell or transmit anything in this
document.
Microsoft, Windows and Vista are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
All other product or service names mentioned in this manual are trademarks of their respective companies.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2007
Publication number: EN/LZT 123 8312 R1B

vi About this guide
About this guide
This guide describes how to use Wireless Manager to configure and operate a Sony Ericsson PC card.
Note:
Be sure to read all safety guidelines in your PC Card User Guide before using your PC card.
Wireless Manager includes the following tools to meet your needs:
• Wireless Manager is the application you use to configure and manage mobile network connections.
• Sony Ericsson Wireless Utility is the utility you use to configure and manage wireless LAN
connections. Check the User Guide for your PC card to determine whether your PC card
contains a wireless LAN adapter.
• Sony Ericsson PC card drivers, which are required to operate your PC card.
Note:
Some of the features that Wireless Manager and Wireless Utility support might not be available
on your PC card. For detailed information about features that your PC card supports, refer to your
PC card documentation.
How this guide is organized
Chapter 1: Getting started on page 1, contains an overview of Wireless Manager and the system
requirements to run the software.
Chapter 2: Installing and uninstalling on page 3, contains instructions for installing your software
and PC card. This chapter also provides information about where the drivers are located on the
Wireless Manager CD.
Chapter 3: Using Wireless Manager on page 11, describes the Wireless Manager interface including
how to navigate within the application. This chapter also provides instructions for starting and stopping
Wireless Manager and making mobile network connections.
Chapter 4: Wireless Manager – Status view on page 29, describes how to check the status of the
network connections that are established with your PC card.
Chapter 5: Wireless Manager – Telephony Settings view on page 33, describes how to configure the
telephony settings for your PC card, such as phone lock, preferred mobile networks, and call diverting.
Chapter 6: Wireless Manager – Phone Book view on page 41, describes how to add, delete, and modify
phonebook entries on your SIM card and your hard drive.
Chapter 7: Wireless Manager – SMS Messages view on page 46, describes how to create, send,
and organize your SMS messages.
Chapter 8: Wireless Manager – Online Services view on page 50, describes how to use the services
menu that your network operator may have placed on your SIM card.
Chapter 9: Using the Sony Ericsson Wireless Utility on page 51, describes the Sony Ericsson Wireless
Utility interface. This chapter also provides instructions about how to use the Sony Ericsson Wireless
Utility to set up and connect to Wireless LANs.
Chapter 10: Using the Windows XP wireless network connection utility on page 63, describes the
Windows XP wireless network connection utility interface. This chapter also provides instructions
about how to use the Windows XP wireless network utility to set up and connect to Wireless LANs.

About this guide vii
Chapter 11: Advanced wireless LAN features on page 70, provides instructions for some of the
advanced wireless LAN features including, setting up an ad hoc network using your PC card, sharing
an Internet connection, and managing IP addresses.
Chapter 12: Troubleshooting on page 78, provides instruction for some of the most common issues
that you might encounter when using your PC card.
Appendix A - Connection parameters on page 84, provides general connection information that
you can use to optimize your PC card.
Appendix B - Changing the wireless LAN adapter properties on page 87, provides instructions
for changing wireless LAN properties for your PC card.
Additional resources
Additional resources can be found on the CD that came with your Sony Ericsson PC card or on the
Internet at the Sony Ericsson support Web site.
Publications
The following documents are provided with your Sony Ericsson PC card:
• A printed Quick Start Guide aimed at getting you operational as quickly as possible.
• An online Wireless Manager User Guide (this document) that provides a comprehensive description
of how to use Wireless Manager to manage and operate the wireless connections for your
Sony Ericsson PC card. The Wireless Manager User Guide is saved as an Adobe Acrobat PDF
file on the CD-ROM that came with your PC card.
• An online PC Card User Guide containing a detailed description of your Sony Ericsson PC card,
the features that it supports, and the guidelines for safe and efficient use. The PC Card User
Guide is saved as an Adobe Acrobat PDF file on the CD-ROM that came with your PC card.
The CD-ROM also contains Adobe Acrobat Reader®, which you can install if necessary.
Sony Ericsson support Web site
You can visit the Sony Ericsson Web site to find the most up-to-date product information and support
wherever you are. It gives you access to online customer services, online user manuals, the latest
software downloads, and other useful information. The address is:
http://www.sonyericsson.com/support
General information about wireless LANs can be obtained from:
http://www.wlana.org

viii About this guide
Conventions used in this guide
This document uses the following conventions:
Convention Description
Bolded text When describing window elements that require you to click or type,
such as a button, field, or icon, the name of the window is displayed
as bolded text.
For example, click OK.
Italicized text Cross references and other publications: These items are displayed
as italicized text within this document.
For example, for more information about installing Wireless Manager,
see Installing and uninstalling on page 3.
<variables> Information that is specific to you, such as where your Windows®
temp directory is located or the letter that is used to access your
hard drive, is represented as a variable. Variables are displayed
as italicized text between left and right angle brackets <>.
For example, to install Wireless Manager on your hard drive, select
<your_drive>, where <your_drive> is the letter of your hard drive.
Notices Notes: These notices provide important tips, guidance, or advice.
Caution: These notices help you avoid situations that might result
in the loss of data, signal, or service.
Important: These notices alert you to unsafe practices and situations
that could potentially result in minor injury to your PC card or computer.

Getting started 1
Getting started
Congratulations and thank you for purchasing a Sony Ericsson PC card.
Your Sony Ericsson PC card comes with the Wireless Manager application. Wireless Manager provides
a set of tools that you can use to configure and manage wireless connections on your laptop computer.
You can use Wireless Manager to:
• Connect to the Internet or a corporate wireless network
• Display GPRS/EDGE/UMTS and wireless LAN status information
• Create or modify connection settings
• Manage your Sony Ericsson PC card settings
• Manage phone books for your SIM card and laptop computer
• Send and receive SMS messages
System requirements
This section lists the network subscriptions and hardware and software requirements for using your
Sony Ericsson PC card.
Network and subscription
The network subscription that you use depends on which services are available from your network
operator. Contact your network operator or service provider to make sure the options that you require
are available. Make sure that data options are included in your subscription, as these are usually
optional services.
Note:
Network operators often provide multiple connection options via UMTS/EDGE/GPRS such as
WAP, MMS, and Internet. Verify the services that you require, such as Internet, email or corporate
VPN (Virtual Private Network) service is available through your network operator and enabled
on your subscription.
This section describes the mobile network services supported by Sony Ericsson PC cards.
Check your PC Card User Guide for information about supported services for your specific model.
Circuit Switched Data (CSD)
CSD is the original GSM network data transfer method, used in the past for WAP. Almost all GSM
networks have this capability at 9.6 kbps. It is possible for the network to upgrade the speed to 14.4 kbps.
Depending on the Sony Ericsson PC card that you have, your PC card may operate at this higher
speed where available.
General Packet Radio Service (GPRS)
GPRS is a type of network connection which provides “always on” mobility. The connection setup
is fast and, once connected, applications may send and receive data whenever required. In today’s
GPRS networks, the Sony Ericsson PC card receives data at speeds up to 53.6 kbps and transmits
at speeds up to 26.8 kbps.

2 Getting started
Enhanced Data Rates for Global Evolution (EDGE)
EDGE enhances GPRS by increasing data throughput by a factor of 3. GPRS networks enhanced with
EDGE are often referred to as Enhanced GPRS (E-GPRS) networks. EDGE provides the “always
on” capability of GPRS but at faster speeds. EDGE technology is transparent, simply make a GPRS
connection as usual and benefit from the increase in speed where EDGE is available in a network.
When EDGE is available you can expect increased speeds of up to 200 kbps, dependent on network
coverage.
Universal Mobile Telecommunications System (UMTS)
UMTS is a 3G technology standard for wide-area wireless data communication. The UMTS standard
uses advanced network operator mobile Internet services to achieve data transfer rates up to 384 kbps,
which are ideal for connecting your laptop to the Internet or a corporate network.
Short Message Service (SMS)
The PC can send and receive SMS text messages using the SMS Messages window in Wireless Manager,
see Wireless Manager – SMS Messages view on page 46, for more details.
Wireless LAN connection
Your PC card may also contain wireless LAN functionality. For detailed information about features
that your PC card supports, refer to your PC Card User Guide.
To use your Sony Ericsson PC card as a wireless LAN adapter for a corporate, small office, or home
network, you must have the appropriate access and logon rights to that network. If necessary, contact
your network administrator to arrange access.
Hardware
You will need the following hardware:
• PC that has the minimum specification recommended by Microsoft®to run the version of Windows
installed on it
• PC card slot that is compatible with your PC card
• Sony Ericsson PC card
• SIM card
Software
You will need the following software:
• Windows 2000 with Service Pack 4 (SP4), Windows XP with
Service Pack 2 (SP2) or Windows Vista™.
• Sony Ericsson Wireless Manager CD-ROM
Note:
You can download Wireless Manager from the Sony Ericsson Web site. For more information
about accessing support information, see Additional resources on page vii.

Installing and uninstalling 3
Installing and uninstalling
The Wireless Manager CD-ROM contains the software required to operate your Sony Ericsson PC card.
Make sure that the GSM/UMTS services that you require are included on your SIM card
subscription. For an explanation of the services that are supported see Network and subscription on
page 1. Contact the organization that supplied you with your SIM card and request that the specific
services (UMTS, GSM GPRS/EDGE, CSD and SMS) you require are added to your subscription.
If you want to use wireless LAN, you will need to have access rights to the corporate networks and
hotspots that you intend to use.
The Wireless Manager CD-ROM contains the following:
• Wireless Manager software
• User documentation
• Online help
• Readme text file containing the latest information about your Sony Ericsson PC card
• Sony Ericsson PC card drivers
Installing your software
Before you insert your PC card into your computer, install the software.
Important:
The installation process might pause for several minutes. During this time the drivers are installed.
Do not cancel.
To install Sony Ericsson Wireless Manager on your computer
1. Insert the Sony Ericsson Wireless Manager CD-ROM in your CD drive.
After a few seconds a Sony Ericsson Welcome window is displayed.

4 Installing and uninstalling
Note:
If the CD-ROM does not automatically start, select StartRun, and then type
<D>:\Setup.exe in the Open field (where <D> is the letter of your CD drive).
2. Click Next. The License Agreement window is displayed.
3. Read the agreement and click Ye s. The Choose Destination Location window is displayed.
4. To change the default location where the Wireless Manager files are saved, click Browse and
navigate to the directory that you want to use for the installation. After you select the directory,
click OK.

Installing and uninstalling 5
5. Click Next. The Select Program Folder window is displayed.
6. Click Next. The Setup Type window is displayed.
7. To display a Wireless Manager shortcut icon on the Windows desktop, click Yes.
Otherwise click No.

6 Installing and uninstalling
8. Click Next. The second Setup Type window is displayed.
9. To configure Wireless Manager to start each time that you start Windows, click Yes. To configure
Wireless Manager to start only when you run it, click No. You can change this setting from the
Preferences window after Wireless Manager is installed. For more information, see Configuring
Wireless Manager preferences on page 23.
10. Click Next. The Setup Status window is displayed and a progress bar indicates the progress
of the installation.
Important:
The installation process might pause for several minutes at one or more stages. During this
time the drivers are installed. Do not cancel.
Wireless Manager is installed in the same language as your Windows installation, or English
if your Windows language is not available.
11. When the installation process is complete click Finish.

Installing and uninstalling 7
Preparing your PC card
Before you can connect to a mobile network, your SIM card must be inserted into your Sony Ericsson
PC card. Additionally, your SIM card must include a subscription that provides access to data services.
To install your SIM card into your Sony Ericsson PC card
1. Remove your Sony Ericsson PC card from its protective case.
2. Insert your SIM card into the slot on the back of the PC card, with the gold contacts facing
downwards.
Note:
The angled corner of the SIM card must be placed into the PC card as demonstrated below.
The gold contacts of the SIM card should face downwards.
To use the PCMCIA slot for another device, remove the Sony Ericsson PC card as instructed in
Removing your PC card on page 9, then insert the other device.
When your Sony Ericsson PC card is not in use it is recommended that you store it in the protective
carrier box provided.
Important:
Do not insert the card into the laptop until you have installed the software from the CD-ROM.
If you accidentally insert the PC card before you install the software, simply cancel the
New Hardware wizard.
564464
8695
89034
SIM
Card

8 Installing and uninstalling
Inserting your PC card
Before you insert your PC card, install the Wireless Manager software.
To insert your PC card for the first time
1. Turn on your PC and start Windows.
2. Insert your Sony Ericsson PC card. Make sure it is fully inserted.
3. After a few seconds, the New Hardware Wizard opens and installs the necessary drivers onto
your PC from the CD. Several Found New Hardware pop-up messages are displayed indicating
that new hardware is being installed.
The wizard may require you to locate a specific driver file. If this happens, a dialogue box opens;
click Browse and select the applicable location for the component that is being installed:
In the above table, Drepresents your CD drive. Select the driver file requested by the
Hardware Wizard and click Open. The Hardware Wizard finishes the installation.
Component Location of files
on the CD-ROM
Sony Ericsson GCxx UMTS Modem
(where xx is the version number of your PC card)
D:\Driver\Driver2k
Sony Ericsson Wireless WAN Adapter D:\Driver\Driver2k
Sony Ericsson SIM Card Reader D:\Driver\Driver2k
Sony Ericsson 802.11g Wireless LAN Adapter D:\WLAN
UMTS/EDGE/WLAN PC Card
GC99
WLAN WAN WLAN WAN

Installing and uninstalling 9
4. After Windows finishes installing the hardware, a final message displays in the system tray
indicating that your new hardware is installed and ready to use.
Select Programs Sony Ericsson Wireless Manager to start using your Sony Ericsson
PC card.
Or
From the Windows desktop, double-click the Wireless Manager shortcut .
Note:
If you are prompted to reboot the laptop during software installation, you may find that Wireless
Manager may attempt to start before all of the drivers are installed. The reason this occurs
is the New Hardware Wizard is still busy installing the device drivers. The Wireless Manager
splash screen is displayed, followed by a warning dialogue box that indicates “You must have
a Sony Ericsson Wireless Modem installed to run this application. Please install a Sony Ericsson
Wireless Modem and try again”. If this occurs:
1. Click Ok.
2. Wait for the New Hardware Wizard to complete the driver installation.
3. Reboot the laptop.
4. To start Wireless Manager, from the WIndows desktop, double-click on the
Wireless Manager icon .
Or
Select Programs Sony Ericsson Wireless Manager.
Removing your PC card
As a best practice, stop your Sony Ericsson PC card from transmitting before you attempt to remove
it. This ensures that your Sony Ericsson PC card is safely removed. Additionally, always remove
your Sony Ericsson PC card antenna before you transport or store your laptop in a carrying case.
Leaving your PC card antenna attached during transport could damage your PC card.
To remove your Sony Ericsson PC card
1. Disconnect any active Sony Ericsson PC card network connections.
2. Exit Wireless Manager.
3. From the Windows desktop, click on the PC Card icon in the system tray. All the currently
connected devices are listed.
4. From the list of devices, select your Sony Ericsson modem. A message box is displayed
indicating that it is safe to remove the card.
Important:
Incorrect removal of your Sony Ericsson PC card can damage the card.
Uninstalling your software
Before you uninstall the software, remove your PC card from your PC.
To remove Sony Ericsson Wireless Manager from your computer
1. From the Windows desktop, select Start Settings Control Panel
Add or Remove Programs.
2. From the Currently installed programs list, select Sony Ericsson Wireless Manager,
and click Change/Remove.

10 Installing and uninstalling
3. Follow the on-screen instructions.
4. Repeat steps 2 and 3 to remove each of the following programs:
• Sony Ericsson Wireless Modem
• Sony Ericsson 802.11 Wireless LAN Adapter Driver
• Sony Ericsson 802.11 Wireless LAN Adapter Control Panel
5. (Optional) To remove the SMS messages and Phonebook entries that are saved on your hard
drive, complete the following steps:
a. Navigate to the following directory:
c:\Documents and Settings\<username>\Application Data
\Sony Ericsson\GCXX Manager
where <username> is the user name of the Windows account that was used
to install Wireless Manager.
b. Delete the files in this directory.

Using Wireless Manager 11
Using Wireless Manager
Use Wireless Manager to configure your Sony Ericsson PC card settings such as, network connections,
telephony settings, phonebook, and SMS messaging.
Starting Wireless Manager
There are several methods that you can use to start Wireless Manager.
To start Wireless Manager
1. From the Windows desktop, select Start Programs Sony Ericsson Wireless Manager.
Or
From the Windows desktop, double-click the Wireless Manager shortcut .
Or
From the Windows system tray, double-click the Wireless Manager status icon .
The Wireless Manager status icon is displayed in the system tray only when Wireless Manager
is active.
Note:
To successfully run the Wireless Manager application, a SIM card must be inserted in your
Sony Ericsson PC card. If your PC card includes wireless LAN functionality, the wireless LAN
features may be used without a SIM card inserted. To access the Sony Ericsson Wireless
Utility that is used to manage wireless LAN functionality, right-click the Wireless Utility status
icon in the Windows system tray and select Open Wireless Utility.
2. If requested, enter your SIM card PIN and Phone Lock code, and then click OK.
You are allowed three attempts to enter the correct PIN and lock code. If you fail to enter the
SIM card PIN correctly, you are blocked from accessing the SIM card. If you fail to enter the
Phone Lock code correctly, your Sony Ericsson PC card is locked. Contact your network operator
for your personal unblocking key (PUK). Enter the unblock key into the Card Blocked dialogue
box and enter a new PIN code and confirm it.
To set the SIM card PIN and Phone Lock code, see Locks on page 33.

12 Using Wireless Manager
The Wireless Manager window is displayed.
If your PC card supports wireless LAN, the Wireless Manager window displays information about
your GSM GPRS/EDGE/UMTS and wireless LAN network connections. If your PC card does
not support wireless LAN, the Wireless Manager window displays the GSM GPRS/EDGE/UMTS
connection information only:
To close Wireless Manager
1. Click the close button in the upper-right corner of the Wireless Manager window.
A confirmation window is displayed.
2. Click Ye s. When you close Wireless Manager any existing mobile network connections
are terminated.
