Integrated
Stereo Amplifier
Operating Instructions ________________________
Manual de instrucciones ______________________
Bruksanvisning _____________________________
___________________________
TA-FA1200ES
ES
GB
SE
PL

2GB
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains,
etc. And don’t place lighted candles on the
apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Do not installthe appliance in a confined space, such
as a bookcase or built-in cabinet.
Install this system so that the power cord can be
unplugged from the wall socket immediately in the
event of trouble.
Don’t throw away the battery with
general house waste, dispose of it
correctly as chemical waste.
NOTICE FOR THE CUSTOMERS IN THE
UNITED KINGDOM
A moulded plug complying with BS1363 is fitted to
this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be
replaced, a fuse of the same rating as the supplied
one and approved by ASTA or BSI to BS1362, (i.e.,
marked with or mark) must be used.
If the plug supplied with this equipment has a
detachable fuse cover, be sure to attach the fuse
cover after you change the fuse. Never use the plug
without the fuse cover.
If you should lose the fuse cover, please contact your
nearest Sony service station.
For customers in Europe
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
Union and other European countries
with separate collection systems)
WARNING
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment and
human health, which could otherwise
be caused by inappropriate waste
handling of this product. The recycling
of materials will help to conserve
natural resources. For more detailed
information about recycling of this
product, please contact your local
Civic Office, your household waste
disposal service or the shop where you
purchased the product.

3GB
About this manual
• The instructions in this manual are for model TA-
FA1200ES. Check your model number by looking
at the lower right corner of the front panel.
• The instructions in this manual describe the
controls on the supplied remote. You can also use
the controls on the amplifier if they have the same
or similar names as those on the remote.
This amplifier incorporates Dolby* Digital and
DTS**.
* Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
** “DTS” and “DTS 2.0” are trademarks of Digital
Theater Systems, Inc.
Table of contents
Getting Started
Unpacking ....................................................4
Connecting speakers .....................................4
Using a bi-wiring connection .......................6
Connecting components with analog audio
input/output jacks ....................................7
Connecting components with digital audio
input/output jacks ....................................8
Connecting the AC power cord
(mains lead) .............................................9
Inserting batteries into the remote ................9
Location of Parts and
Operation
Front panel ..................................................10
Rear panel ...................................................11
Remote commander ....................................12
Configuration
Calibrating the appropriate settings
automatically
(AUTO CALIBRATION) ......................13
Settings for the amplifier ............................16
Clearing the amplifier’s memory ................18
Additional Information
Precautions .................................................19
Troubleshooting ..........................................20
Specifications .............................................22
Index ...........................................................23
GB

4GB
Unpacking
Check that you received the following items:
• Operating Instructions (this manual)
• Optimizer microphone ECM-AC1 (1)
• AC power cord (mains lead) (1)
• Remote commander RM-AAU010 (1)
• R6 (size-AA) batteries (2)
If any item is missing, please consult your
nearest Sony dealer.
Audio connecting cords, digital connecting
cords, speaker cords are not supplied with this
amplifier. Please purchase them separately.
Notes on connections
• Turn off the power to all components before
making any connections.
• Do not connect the AC power cord (mains
lead) until all of the connections are
completed.
• Be sure to insert all plugs firmly to avoid
hum and noise.

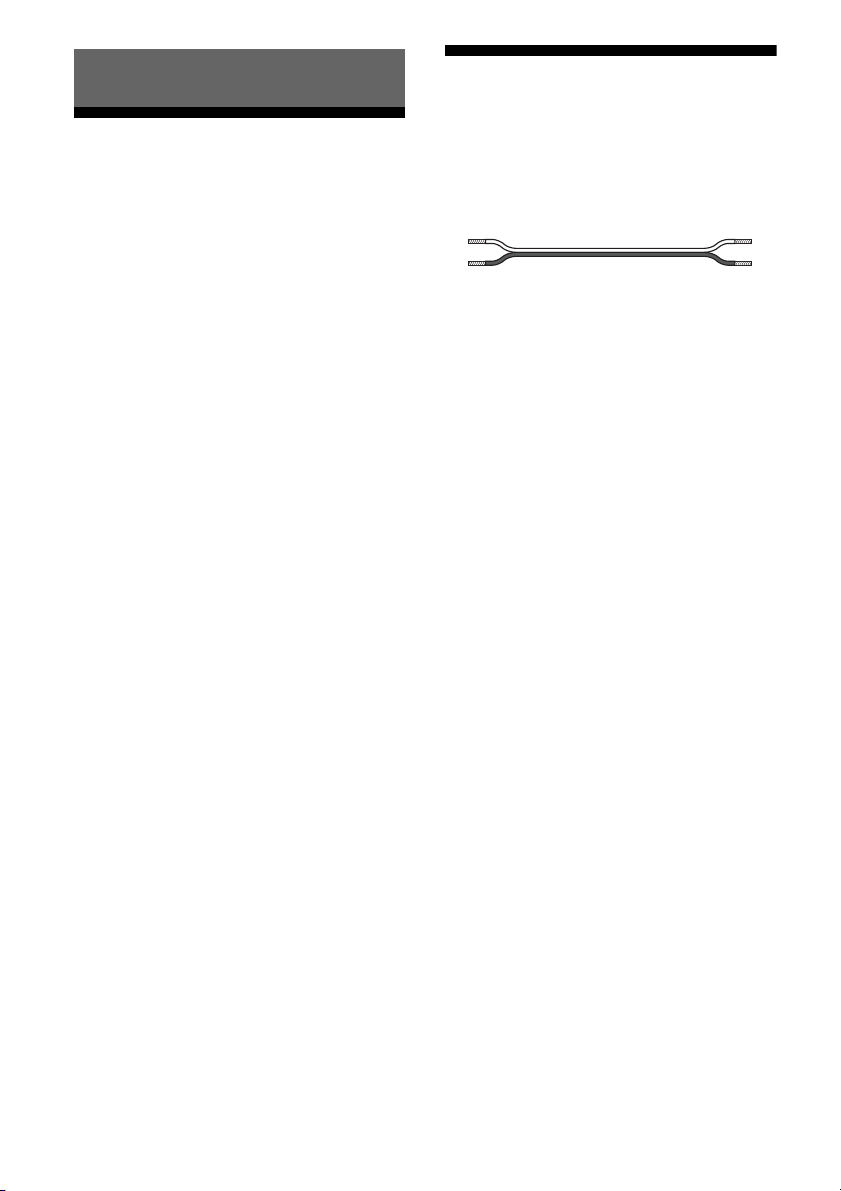

Connecting speakers
Connect your speakers to the amplifier.
Use a speaker cord (not supplied) to connect to
the speaker terminals.
Speaker cord (not supplied)
Notes on speaker connections
Connect the left speaker to the SPEAKERS L
terminal and the right speaker to the
SPEAKERS R terminal.
Be sure to connect the speaker cords between
the speakers and the amplifier with the same
polarities (plus (+) to plus (+), minus (–) to
minus (–)).
By paying attention to the color or mark of the
speaker cord to be connected to the plus (+) or
minus (–) connector, you can always be sure of
connecting the cord correctly without
mistaking plus or minus.
Getting Started

5GB
Getting Started
Setting the speaker impedance
• Be sure to turn the power off before
adjusting the IMPEDANCE SELECTOR.
• When you connect all speakers with a
nominal impedance of 8 ohms, set the
IMPEDANCE SELECTOR to “8Ω.” When
connecting other types of speakers, set it to
“4Ω.”
• When you connect speakers to both the
SPEAKERS A and B terminals, connect the
speakers with a nominal impedance of 8
ohms or higher.
– When you connect speakers with
impedance of 16 ohms or higher in both
“A” and “B” configuration:
Set IMPEDANCE SELECTOR to “8Ω.”
– For other types of speakers in other
configurations:
Set IMPEDANCE SELECTOR to “4Ω.”
• If you are not sure of the impedances of the
speakers, refer to the operating instructions
supplied with your speakers. (This
information is often on the back of the
speaker.)
* If you have an additional speaker system, connect
them to the SPEAKERS B terminals. You can
select the speaker system you want to use with the
SPEAKERS (OFF/A/B/A+B) on the front panel
(page 11).
SPEAKERS Bterminals*
IMPEDANCE SELECTOR
Speaker A
(L)
Speaker A
(R)

6GB

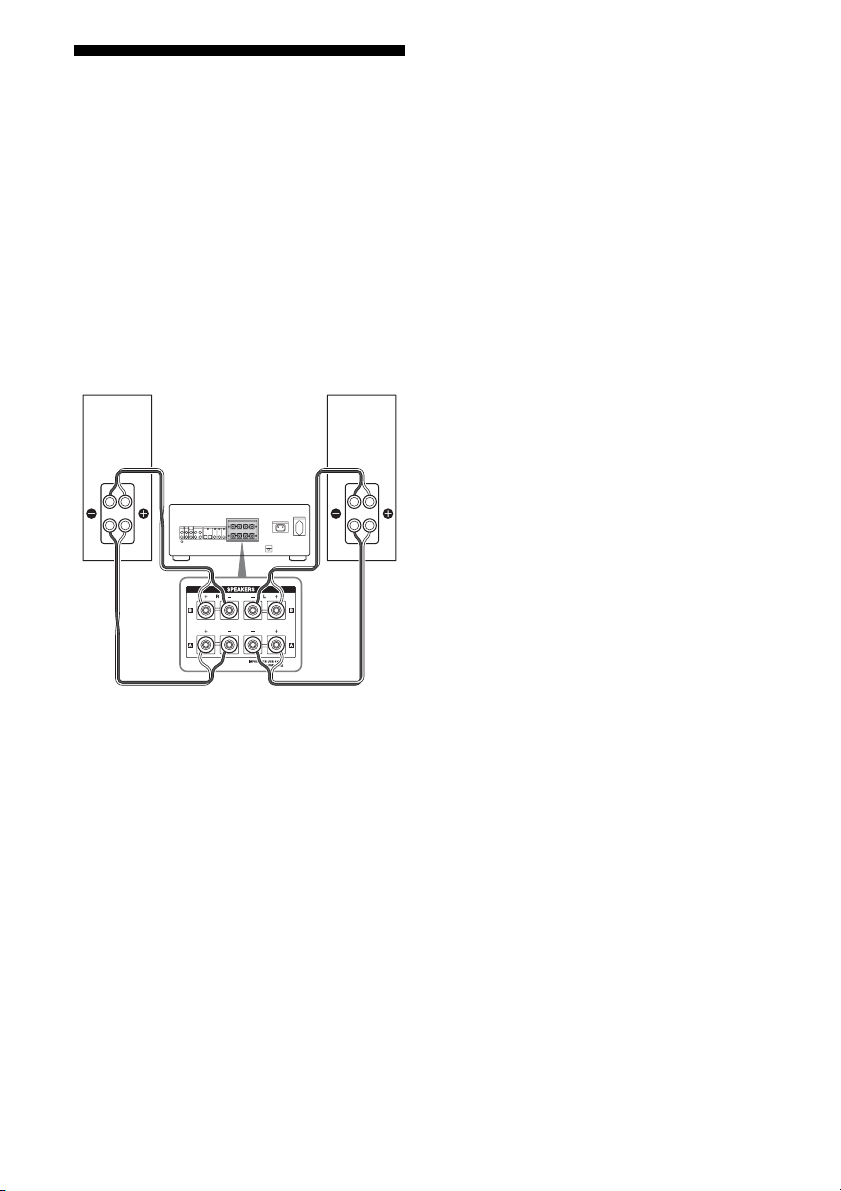

Using a bi-wiring
connection
You can make a bi-wiring connection by
connecting both the SPEAKERS A terminals
and SPEAKERS B terminals simultaneously.
When using a bi-wiring connection, set
SPEAKERS (OFF/A/B/A+B) to A+B
(page 11).
To connect speakers
Connect the terminals on the Lo (or Hi) side of
the speakers to the SPEAKERS A terminals,
and connect the terminals on the Hi (or Lo)
side of the speakers to the SPEAKERS B
terminals. Make sure that metal fittings of Hi/
Lo attached to the speakers have been removed
from the speakers. Not doing so may cause a
malfunction of the amplifier.
Note
When you use the auto calibration function, make
the bi-wiring connection before you perform auto
calibration.
Speaker
(L)
Speaker
(R)
Hi
Lo
Hi
Lo

7GB
Getting Started
Connecting components with analog audio input/
output jacks
You can connect a component with analog
audio jacks, such as a Super Audio CD player
or CD player, etc. to this amplifier.
Use an audio cord (not supplied) to connect a
component to the analog audio jacks.
Connect the white plug to the L jack and the
red plug to the R jack.
Audio cord (not supplied)
Note
If your turntable has a ground (earth) wire, connect
it to the (U) SIGNAL GND terminal.
Tu r n t a bl e Super Audio CD
player,
CD player,
VCR
Tape deck

8GB

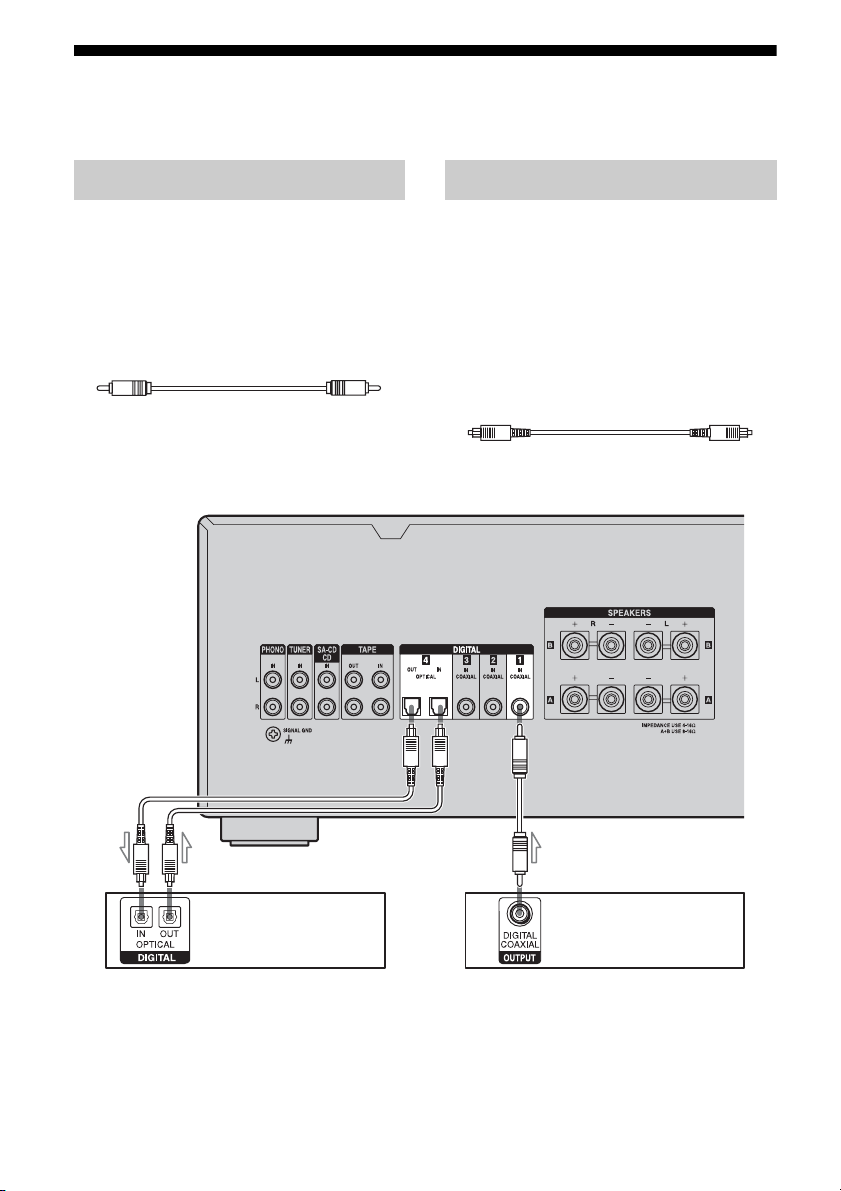

Connecting components with digital audio input/output
jacks
You can connect a component with coaxial
digital output jacks to this amplifier.
Use a coaxial digital cord (not supplied) to
connect a component to the coaxial jacks
(DIGITAL 1 to 3).
Coaxial digital cord (not supplied)
You can connect a component with optical
digital output jacks to this amplifier.
Use an optical digital cord (not supplied) to
connect a component to the optical jacks
(DIGITAL 4).
When connecting optical digital cords, insert
the plugs straight in until they click into place.
Optical digital cord (not supplied)
Note
When DIGITAL 1, 2, or 3 is selected, the selected
input signal is output from the DIGITAL 4 OUT
jack. When DIGITAL 4 or analog input is selected,
no signal is output from the DIGITAL 4 OUT jack.
Tip
All the digital audio jacks are compatible with 32
kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting to the COAXIAL jack Connecting to the OPTICAL jack
MD deck,
DAT deck,
Satellite tuner
(for the IN jack only)
Super Audio CD player,
CD player,
DVD player,
DVD recorder

9GB
Getting Started
Connecting the AC power
cord (mains lead)
Connect the supplied AC power cord (mains
lead) to the AC IN terminal on the amplifier,
then connect the AC power cord (mains lead)
to a wall outlet.
You can connect the AC power cord (mains
lead) of your component to the amplifier’s AC
OUTLET(s).
* The configuration, shape, and number of AC
outlets will vary according to the area.
** A several space is left between the plug and the
rear panel even when the power cord (mains
lead) is inserted firmly. The cord is supposed be
connected this way. This is not a malfunction.
Notes
• The AC OUTLET(s) on the rear of the amplifier is
a switched outlet, which supplies power to the
connected component only while the amplifier is
turned on.
• Make sure that the total power consumption of the
component(s) connected to the amplifier’s AC
OUTLET(s) does not exceed the wattage stated on
the rear panel. Do not connect high-wattage
electrical home appliances such as electric irons,
fans, or TVs to this outlet. This may cause a
malfunction.
Inserting batteries into
the remote
Insert two R6 (size-AA) batteries in the RM-
AAU010 remote commander.
Observe the correct polarity when installing
batteries.
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrosion.
Tip
When the remote no longer operates the amplifier,
replace all the batteries with new ones.
AC OUTLET*AC IN terminal
To the wall outlet
AC power cord
(mains lead)
(supplied)
**
RM-AAU010

10GB
Front panel

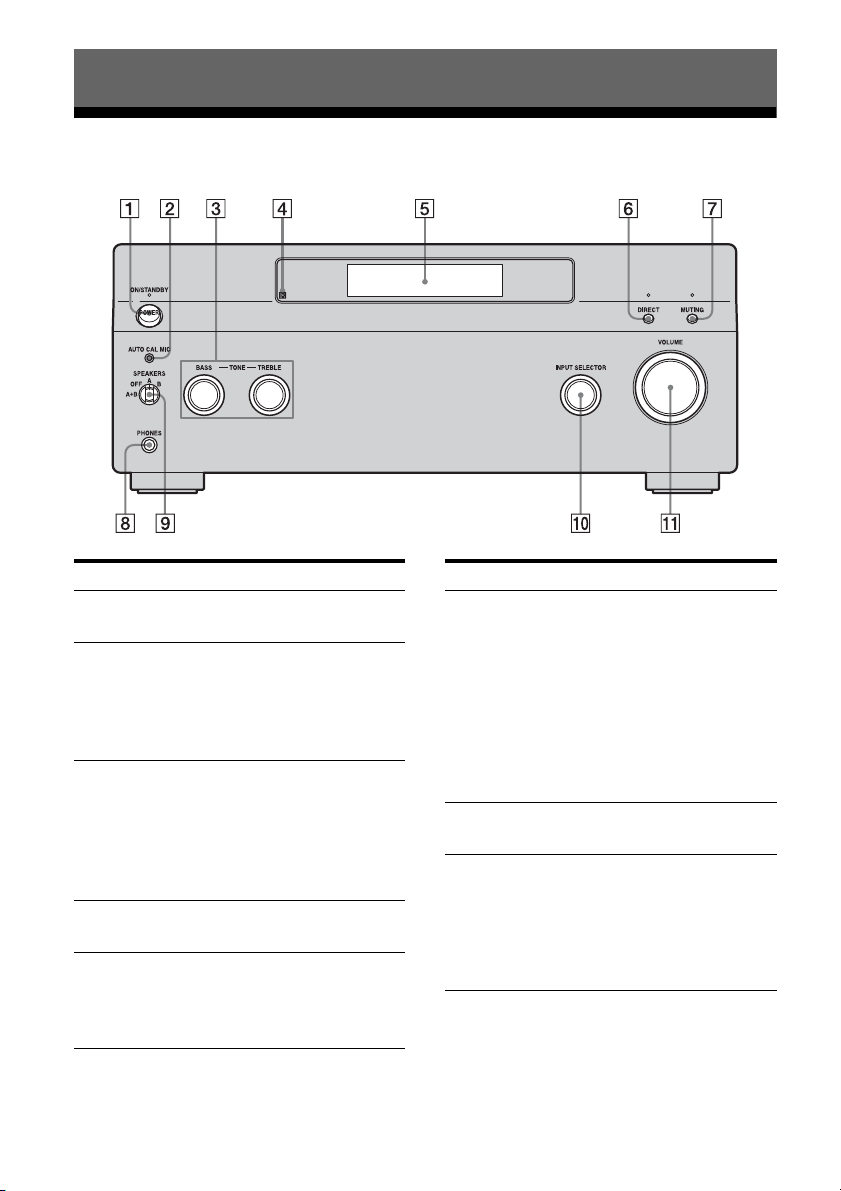

Location of Parts and Operation
Name Function
APOWER Press to turn the
amplifier on or off.
BAUTO CAL MIC
jack
Connects to the
supplied optimizer
microphone for the
Auto Calibration
function (page 13).
CTONE
BASS/TREBLE
Turn to adjust the
BASS and TREBLE
levels.
The level can be
adjusted from –10 dB
to +10 dB.
DRemote sensor Receives signals from
the remote.
EDisplay The current status of
the selected component
or a list of selectable
items appears here.
FDIRECT Press to bypass the
TONE function to
listen to better quality
sound.
Note
When you play back a DTS
96/24 format disc, set the
DIRECT function to ON.
If the DIRECT function is set
to OFF, the DTS signal is
played back at 48 kHz.
GMUTING Press to activate the
muting function.
HPHONES jack Connects to
headphones.
Note
When you connect
headphones, the DTS 96/24
signal is played back at DTS
48 kHz.
Name Function

11GB
Location of Parts and Operation

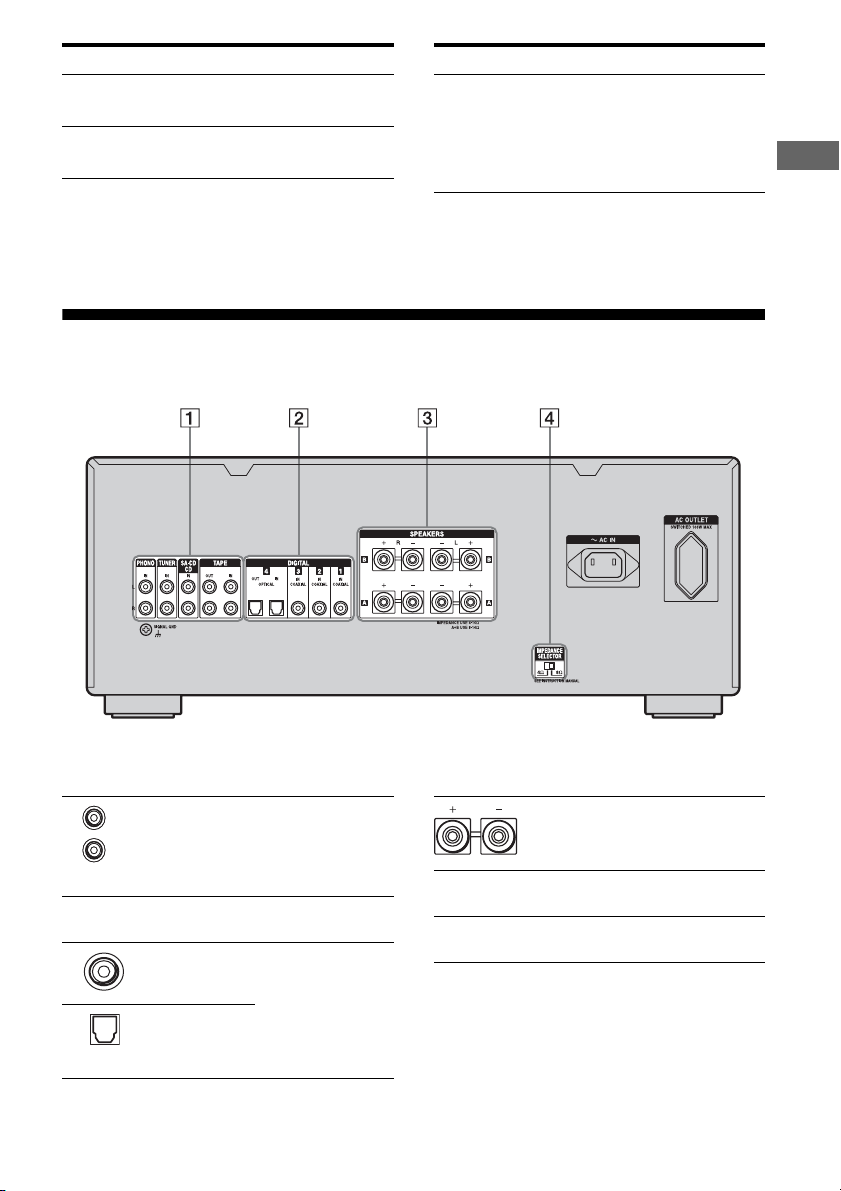

Rear panel
ISPEAKERS
(OFF/A/B/A+B)
Turn to select OFF, A,
B, A+B of the speakers.
JINPUT
SELECTOR
Turn to select the input
source to play back.
Name Function
KVOLUME Turn to adjust the
volume level of
speakers. The level can
be adjusted from –∞dB
to +23 dB.
Name Function
AAUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks
Connects to a Super
Audio CD player,
tape deck, MD deck
or DAT player, etc
(page 7).
BDIGITAL INPUT/OUTPUT section
COAXIAL IN
jacks
Connects to a DVD
player, Super Audio
CD player, etc. The
COAXIAL jacks
provide a better
quality sound (page
8).
OPTICAL IN/
OUT jack
L
R
CSPEAKERS section
Connects to speakers
(page 4).
DIMPEDANCE SELECTOR
Set the appropriate speaker impedance for the
speakers you are using (page 5).

12GB
Remote commander
RM-AAU010
Name Function
A?/1
(on/standby) Press to turn the amplifier on or
off.
BU/u/I/i
ENTER After pressing MENU (9),
press U/u, Ior ito select the
settings. Then press ENTER to
enter the selection (page 16).
CInput
buttons Press one of the buttons to
select the component you want
to use. When you press any of
the input buttons, the amplifier
turns on.
DBALANCE
L/R Press to adjust the balance
between left and right speakers.
Both the left and the right
balance can be adjusted from 0
dB to +20 dB. The initial setting
is 0 dB (center).
EBASS/
TREBLE +/– Press to adjust the BASS and
TREBLE levels. The level can
be adjusted from –10 dB to +10
dB.
FDIMMER Press to adjust brightness of the
display.
GVOLUME +/– Press to adjust the volume level
of speakers.
The level can be adjusted from
–∞dB to +23 dB.
HSLEEP Press to activate the Sleep
Timer function and the duration
which the amplifier turns off
automatically.
The Sleep Timer can be set to
30, 60, 90, or 120 minutes.
IMENU Press to display the menu for
the amplifier (page 16).
JDIRECT Press to bypass the TONE
function to listen to better
quality sound.
Note
When you play back a DTS 96/24
format disc, set the DIRECT
function to ON.
If the DIRECT function is set to
OFF, the DTS signal is played back
at 48 kHz.
KMUTING Press to activate the muting
function.

13GB
Configuration
Calibrating the
appropriate settings
automatically (AUTO
CALIBRATION)
The auto calibration function allows you to
measure the following:
• Whether or not speakers are connected
• Polarity of speakers
• Distance of each speaker from your listening
position
• Speaker angle
• Speaker level
• Frequency characteristics
After saving the measurement result, you can
confirm the speaker level by pressing
BALANCE L/R (page 12). The other
measurement results are not displayed, but are
set to appropriate settings automatically.
Before you perform the auto calibration, set up
and connect the speakers (page 4).
• The AUTO CAL MIC jack is used for the
supplied optimizer microphone only. Do not
connect other microphones to this jack.
Doing so may damage the amplifier and the
microphone.
• During the calibration, the sound that comes
out of the speakers is very loud. The volume
of the sound cannot be adjusted. Pay
attention to the presence of children or to the
effect on your neighborhood.
• Perform the auto calibration in a quiet
environment to avoid the effect of noise and
get a more accurate measurement.
• If there are any obstacles in the path between
the optimizer microphone and the speakers,
the calibration cannot be performed
correctly. Remove any obstacles from the
measurement area to avoid measurement
error.
Notes
• The auto calibration function does not work when
headphones are connected to the amplifier.
• Cancel MUTING if it is set to on.
1Connect the supplied optimizer
microphone to the AUTO CAL
MIC jack on the front panel.
2Set up the optimizer
microphone.
Place the optimizer microphone at your
listening position. Use a stool or tripod so
that the optimizer microphone remains at
the same height as your ears. Orient the L
end of the optimizer microphone toward
the front left speaker and the R end of the
optimizer microphone toward the front
right speaker.
1Turn on the amplifier.
2Press MENU.
Configuration
Before you perform auto
calibration
Performing auto calibration
Optimizer microphone
(supplied)
continued

14GB
3Press uto display “<2-Auto
Calibration>,” then press
ENTER to enter the menu.
4Press uto display “CAL TYPE,”
then press ENTER to enter the
parameter.
5Press U/uto select the
parameter, then press ENTER
to enter the selection.
6Press Uto display “AUTO CAL
START?,” then press ENTER to
start the measurement.
Measurement starts in five seconds. A
countdown appears on the display.
While the time is counting down, stand
away from the measurement area to
avoid measurement error.
7Measurement starts.
The measurement process will take
approximately 10 seconds. Wait until the
measurement process completes.
Tip
When special speakers, such as dipole speakers, are
used, the measurements may not be performed
correctly or auto calibration cannot be performed.
To cancel auto calibration
Auto calibration is cancelled when you change
the volume, change the input source, change
the speaker selection, press MUTING, or
connect headphones.
1Confirm the measurement
result.
When the measurement ends, a beep
sounds and the measurement result
appears on the display.
2Press U/urepeatedly to select
the item, then press ENTER.
When error codes appear
Try the remedies and re-perform the auto
calibration.
Calibration
type Explanation
ENGINEER Sets the frequency
characteristics to a set that
matches that of the Sony
listening room standard.
FULL FLAT Makes the measurement of
frequency from each
speaker flat.
Confirming/saving the
measurement results
Measurement
result Display Explanation
When the
measurement
process
completes
properly
COMPLETE
Proceed to step
2.
When the
measurement
process fails
ERROR
CODE XX
See “When
error codes
appear” (page
14).
Item Explanation
RETRY Re-performs the auto
calibration.
SAVE EXIT Saves the measurement
results and exits the setting
process.
WRN CHECK Displays a warning
concerning the
measurement results. See
“When you select “WRN
CHECK”” (page 15).
EXIT Exits the setting process
without saving the
measurement results.
Error code Cause and remedies
CODE 31 SPEAKERS (OFF/A/B/A+B) is
set to OFF. Select A or B and re-
perform the auto calibration.
When using a bi-wiring
connection, set SPEAKERS
(OFF/A/B/A+B) to A+B.

15GB
Configuration
•CODE 31
1
Turn SPEAKERS (OFF/A/B/A+B) to select
A or B, then follow the instructions given
in step 2 of “Performing auto calibration.”
When using a bi-wiring connection, set
SPEAKERS (OFF/A/B/A+B) to A+B.
•CODE 32, 33, 34
1Remedy the error.
2Press ENTER.
“RETRY?” appears.
3
Press
U
/
u
to select “YES,” then press ENTER.
The auto calibration is restarted from step 7 of
“Performing auto calibration.”
When you select “WRN CHECK”
If a warning on the measurement result is
present, detailed information is displayed.
Press ENTER to return to step 1 of
“Confirming/saving the
measurement results.”
The initial setting is underlined.
xAUTO CAL START?
(Starts auto calibration)
• MEASUREMENT COUNTDOWN
A time countdown appears on the display
from five seconds to one second.
• MEASURING TONE
Appears while TONE is being measured.
• MEASURING T.S.P.
Appears while TSP* is being measured.
• COMPLETE
Appears when the measurement process
completes successfully. For details on each
message, see “Confirming/saving the
measurement results” (page 14).
• WARNING CODE [ :4x]
Appears if a warning on the measurement
result is present. For details on each
message, see “Confirming/saving the
measurement results” (page 14).
• NO WARNING
There is no warning information.
• ERROR CODE [ :3x]
Appears when the measurement fails. For
details on each message, see “Confirming/
saving the measurement results” (page 14).
CODE 32 None of the speakers were
detected. Make sure that the
optimizer microphone is
connected properly and re-
perform the auto calibration.
If the optimizer microphone is
connected properly but the error
code appears, the optimizer
microphone cable may be damaged
or improperly connected.
CODE 33 None of the speakers are
connected.
CODE 34
Speakers are not placed in the
proper position. Speakers or an
optimizer microphone on the right
or left may be placed wrongly.
Check the speaker position.
Warning code Explanation
WARNING 40
Try to perform the auto calibration
in a quiet environment.
The auto calibration has
completed. However, the noise
level is high. You may be able to
perform the auto calibration
properly if you try it again, even
though the measurement cannot
be performed in all environments.
Error code Cause and remedies
WARNING 41 Try to perform the auto
calibration when the environment
is quiet enough to allow proper
measurement.
The sound input from the
optimizer microphone is outside
the acceptable range. It is louder
than the loudest sound that can be
measured.
WARNING 42 Try to perform the auto
calibration when the environment
is quiet enough to allow proper
measurement.
The volume of the amplifier is out
of the acceptable range.
NO WARNING There is no warning information.
Auto Calibration menu
parameters
Warning code Explanation
continued

16GB
•RETRY?
Appears to ask you to re-measure or exit
without re-measuring when the
measurement fails.
• CANCEL
Appears when you cancel auto calibration
during the measurement.
* TSP (Time Stretched Pulse)
A TSP signal is a highly precise measuring signal
that utilizes impulse energy, measuring a wide
band, from low to high, in a short period.
The amount of energy used to measure signals is
important to ensure measurement accuracy in a
normal indoor environment. Using TSP signals
makes it possible to measure signals effectively.
xCAL TYPE
(Parameter type)
• ENGINEER
Sets the frequency to one that matches that
of the Sony listening room standard.
•FULLFLAT
Makes the measurement of frequency from
each speaker flat.
xEQ CURVE EFFECT
(Activates/deactivates the EQ
curve measurement)
•OFF
Deactivates the EQ curve measurement.
•ON
Activates the EQ curve measurement.
After the measurement is completed, this
setting is set to ON automatically.
Notes
• DTS 96/24 signals are played back as 48 kHz
signals when EQ CURVE EFFECT is set to “ON.”
When you play back DTS 96/24 signals, set this
item to “OFF” and set the DIRECT function to
“ON” (page 10, 12).
• You cannot select this setting before saving the
measurement results (factory setting).
Settings for the amplifier
By using the System Settings menus, you can
make various adjustments to customize the
amplifier.
1Press MENU.
2Press Uto display “<1-System
Settings>,” then press ENTER
to enter the menu.
3Press U/urepeatedly to display
the parameter you want to
adjust.
4Press ENTER to enter the
parameter.
5Press U/urepeatedly to select
the setting you want to adjust.
6Press ENTER to enter.
7Repeat steps 3 to 6 when you
want to make other settings.
To return to the menu one level
up
Press I.
To exit the menu
Press MENU.
Note
Some parameters and settings may appear dimmed
on the display. This means that they are either
unavailable or fixed and unchangeable.

17GB
Configuration
The initial setting is underlined.
xDEC. PRIORITY
(Digital audio input decoding
priority)
Lets you specify the input mode for the digital
signal input to the DIGITAL IN jacks.
•AUTO
Automatically switches the input mode
between DTS, Dolby Digital, or PCM.
•PCM
PCM signals are given priority (to prevent
interruption when playback starts).
Note
When set to “AUTO” and the sound from the digital
audio jacks (for a CD, etc.) is interrupted when
playback starts, set to “PCM.”
xDUAL MONO
(Bilingual audio selection)
For a bilingual broadcast, you can select the
language you want to listen to. This feature
only functions for Dolby Digital sources.
• MAIN/SUB
Sound of the main language will be output
through the left speaker, and sound of the
sub language will be output through the right
speaker simultaneously.
•MAIN
Sound of the main language will be output.
•SUB
Sound of the sub language will be output.
• MAIN+SUB
Mixed sound of both the main and sub
languages will be output.
xD.RANGE COMP.
(Dynamic range compressor)
Lets you compress the dynamic range of the
soundtrack. This may be useful when you want
to watch movies at low volumes late at night.
Dynamic range compression is possible with
Dolby Digital sources only.
•OFF
The dynamic range is not compressed.
•STD
The dynamic range is compressed as
intended by the recording engineer.
•MAX
The dynamic range is compressed
dramatically.
Tip
Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signal.
“STD” is the standard setting, but it only enacts light
compression. Therefore, we recommend using the
“MAX” setting. This greatly compresses the
dynamic range and lets you view movies late at night
at low volumes. Unlike analog limiters, the levels are
predetermined and provide a very natural
compression.
xDC PHASE L.
(DC Phase Linearizer)
Lets you approximate the low frequency phase
characteristics to a traditional analog
amplifier.
•OFF
Phase correction is not performed.
• LOW-A, STD-A, HIGH-A, LOW-B, STD-
B, HIGH-B
The bandwidth range of the phase correction
increases in the order of “LOW,” “STD,”
“HIGH.”
“B” parameter phase correction provides
more enhanced bass characteristics.
System Settings menu
parameters

18GB
Clearing the amplifier’s
memory
1Press POWER to turn off the
amplifier.
2Hold down POWER while
pressing DIRECT and MUTING
to turn on the amplifier.
After “MEMORY CLEARING...”
appears on the display for a while,
“MEMORY CLEARED!” appears.
The following items are reset to their
initial settings.
• All settings in the System Settings and
Auto Calibration menus.
1,2 2

19GB
Additional Information
Precautions
On safety
Should any solid object or liquid fall into the
cabinet, unplug the amplifier and have it
checked by qualified personnel before
operating it any further.
On power sources
• Before operating the amplifier, check that
the operating voltage is identical with your
local power supply.
The operating voltage is indicated on the
nameplate on the back of the amplifier.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• If you are not going to use the amplifier for
a long time, be sure to disconnect the
amplifier from the wall outlet. To disconnect
the AC power cord (mains lead), grasp the
plug itself; never pull the cord.
• The AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the amplifier heats up during
operation, this is not a malfunction. If you
continuously use this amplifier at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid
burning yourself, do not touch the cabinet.
On placement
• Place the amplifier in a location with
adequate ventilation to prevent heat buildup
and prolong the life of the amplifier.
• Do not place the amplifier near heat sources,
or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.
• Do not place the amplifier near equipment
such as a television, VCR, or tape deck. (If
the amplifier is being used in combination
with a television, VCR, or tape deck, and is
placed too close to that equipment, noise
may result, and picture quality may suffer.
This is especially likely when using an
indoor antenna (aerial). Therefore, we
recommend using an outdoor antenna
(aerial).)
On operation
Before connecting other components, be sure
to turn off and unplug the amplifier.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
If you have any questions or problems
concerning your amplifier, please consult your
nearest Sony dealer.
Additional Information

20GB
Troubleshooting
If you experience any of the following
difficulties while using the amplifier, use this
troubleshooting guide to help you remedy the
problem. Should any problem persist, consult
your nearest Sony dealer.
Audio
There is no sound, no matter which
component is selected, or only a very
low-level sound is heard.
• Check that the speakers and components
are connected securely.
• Check that all speaker cords are connected
correctly.
• Check that both the amplifier and all
components are turned on.
• Check that VOLUME control is not set at
–∞dB.
• Check that SPEAKERS (OFF/A/B/A+B)
is not set to “OFF” (page 11).
• Press MUTING to cancel the muting
function.
• Check that you have selected the correct
component with INPUT SELECTOR.
• Check that headphones are not connected.
• The protective device on the amplifier has
been activated. Turn off the amplifier,
eliminate the short-circuit problem, and
turn on the power again.
There is no sound from a specific
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cord(s) used for the
connection is (are) fully inserted into the
jacks on both the amplifier and the
component.
There is no sound from one of the
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones, the
component may not be connected to the
amplifier correctly. Check that all the
cords are fully inserted into the jacks on
both the amplifier and the component. If
both channels are output from the
headphones, the speaker may not be
connected to the amplifier correctly.
Check the connection of the speaker which
is not outputting any sound.
• Make sure you have connected both the L
or R jack to an analog component and not
just to either the L or R jack. Use a
monaural-stereo cable (not supplied).
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components
are connected correctly and securely.
• Adjust the balance parameters by pressing
BALANCE on the remote.
There is severe hum or noise.
• Check that the speakers and components
are connected securely.
• Check that the connecting cords are away
from a transformer or motor, and at least 3
m away from a TV set or fluorescent light.
• Move your TV away from the audio
components.
• Make sure you have grounded the U
SIGNAL GND terminal (only when a
turntable is connected).
• The plugs and jacks are dirty. Wipe them
with a cloth slightly moistened with
alcohol.
Recording cannot be carried out.
• Check that the components are connected
correctly (page 7, 8).
• Select the source component using INPUT
SELECTOR (page 11, 12).
Table of contents
Languages:
Other Sony Amplifier manuals

Sony
Sony DXA-WZ8D User manual

Sony
Sony TAD-M30 User manual

Sony
Sony TA-FE910R User manual

Sony
Sony TA-MR2ES - 2 Channel Amplifier User manual

Sony
Sony STR-NX300 User manual

Sony
Sony XM-444W User manual

Sony
Sony TA-AX401 User manual

Sony
Sony XDP-4000X Operating Instructions (primary... User manual

Sony
Sony XM-S400D User manual

Sony
Sony TA-VA7ES User manual
