GPS Unit Kit/
Kit d’unité GPS
GPS-CS1KASP
Operating Instructions
Mode d’emploi
GB
FR

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB02REG.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
2
Before operating the unit, please read this manual thoroughly, and retain
it for future reference.
To reduce fire or shock hazard, do not expose the unit to rain
or moisture.
If you have any questions about this product, you may call:
Sony Customer Information Services Center
1-800-222-SONY (7669)
The number below is for the FCC related matters only.
Regulatory Information
CAUTION
You are cautioned that any changes or modifications not expressly approved in this
manual could void your authority to operate this equipment.
English
WARNING
For Customers in the U.S.A.
Declaration of Conformity
Trade Name: SONY
Model No.: GPS-CS1
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego CA 92127 U.S.A
Telephone number: 858-942-2230
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB02REG.fm
master:Right
GPS-CS1KASP
3-398-844-11(1)
GB
3
GB
Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The supplied interface cable must be used with the equipment in order to comply
with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
This Class B digital apparatus complies with Canadian ICES-003.
Hereby, Sony Corporation, declares that this GPS-CS1 GPS unit is in
compliance with the essential requirements and other relevant provisions
of the Directive 1999/5/EC.
For details, please access the following URL:
http://www.compliance.sony.de/
This product has been tested and found compliant with the limits set out
in the R&TTE Directive for using connection cables shorter than 3 meters
(9.8 feet).
For Customers in Canada
For Customers in Europe

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB02REG.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
4
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product
shall not be treated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The recycling of materials
will help to conserve natural resources. For more detailed information
about recycling of this product, please contact your local Civic Office,
your household waste disposal service or the shop where you purchased
the product.

Table of contents
D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB01TOC.fm
master:L1 Right
GPS-CS1KASP
3-398-844-11(1)
GB
5
GB
Table of contents
Precautions ................................................................... 7
What is GPS?.............................................................. 10
Features ...................................................................... 13
Checking included items ............................................. 15
Identifying parts........................................................... 17
Inserting a battery ....................................................... 18
Cautions on carrying the unit ...................................... 20
Carrying the GPS unit using the carabiner.................. 20
Inserting the GPS unit into the carrying case.............. 21
Carrying the GPS unit with the carrying case ............. 21
Carrying the GPS unit using the armband .................. 22
Attach the GPS unit to the handle of a bicycle or a
motorcycle using the holder ........................................ 24
Record the GPS log using the GPS unit ..................... 27
Using the supplied software ........................................ 31
Installing the supplied software ................................... 33
Apply position information to the images using “GPS
Image Tracker”............................................................. 35
View images on the “Picture Motion Browser” screen
.................................................................................... 38
Preparing
Use the GPS unit outside
Using the unit
Using the software

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB01TOC.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
6
Trouble shooting.......................................................... 39
Specifications.............................................................. 41
Additional information

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Right
GPS-CS1KASP
3-398-844-11(1)
GB
7
GB
Precautions
When using this unit, please keep the following in mind.
On a battery
A battery is not supplied
An LR6 (size AA) alkaline battery or an HR6 (size AA) Nickel-Metal
Hydride battery is necessary for recording log data in this unit. Purchase a
battery before using the unit.
Notes on a Nickel-Metal Hydride battery
•Charge the Nickel-Metal Hydride battery before using the unit for the
first time. Refer to instructions supplied with the battery on charging.
•The battery can be charged even if it is not completely discharged. Also,
even if the battery is not fully charged, you can use the partially charged
capacity of the battery as is.
•If you do not intend to use the battery for a long time, use up the existing
charge and remove it from the unit, then store it in a cool, dry place.
This is to maintain the battery’s functions.
On recorded data on the unit
If you remove the battery while using the unit, the log data may be
damaged. Be sure to replace the battery with a new one after you turn the
power off.
Compensation for damaged log data will not be made
If position information (GPS log files) is not recorded properly due to
malfunction of the recording memory or the system, compensation for
damaged log data or images with position information will not be made.
On use and storage
•Before you use the unit, make sure that the unit works properly by
checking its operation.
•Do not shake or strike this unit hard. In addition to malfunctions and an
inability to record the log, this may cause recorded data breakdown.
•This unit is neither dust-proof, nor splash-proof, nor water-proof.

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
8
Do not use/store the unit in the following places.
•In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the unit body may become
deformed and this may cause a malfunction.
•In places near a heater
The unit may become discolored or deformed, and this may cause a
malfunction.
•Near strong magnetic place
•In sandy or dusty places
Be careful not to let sand or dust get into the unit. This may cause the
unit to malfunction, and in some cases this malfunction cannot be
repaired.
Note on the bracket
•When attaching the GPS unit to a bicycle or a motorcycle, be sure the
GPS unit does not interfere with the operation of the bicycle or the
motorcycle.
•Be sure not to operate the GPS unit while riding a bicycle or a
motorcycle.
•When you check the LED indicator on the GPS unit while riding a
bicycle or a motorcycle, be sure to stop operating the bicycle or the
motorcycle before checking the GPS unit.
•Do not apply the bracket other than the handle.
Note on the armband
•If using the armband causes skin irritation, stop using the armband
immediately.
•Be careful not to fasten the armband too tightly while using it. This may
interfere with the circulation of the blood.
•Do not attach the armband to the parts other than the arm.
Note on the included items
•Keep the included items out of the reach of children.
On carrying the unit
•Do not sit on a chair etc., with the unit in the back pocket of your pants
or skirt, as this may cause malfunction or damage the unit.

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Right
GPS-CS1KASP
3-398-844-11(1)
GB
9
GB
On cleaning the unit
Cleaning the unit surface
Clean the unit surface with a soft cloth slightly moistened with water,
then wipe the surface with a dry cloth. Do not use the following as they
may damage the finish or the casing.
•Chemical products such as thinner, benzine, alcohol, disposable cloths,
insect repellent, sunscreen or insecticide, etc.
•Do not touch the unit with the above on your hand.
•Do not leave the unit in contact with rubber or vinyl for a long time.
Note on the location where you use the GPS unit
Do not use the GPS unit in an airplane.
The radio wave may affect the airplane and this may cause an accident
due to the malfunction of the airplane.
Note on applying position information to still images taken with
digital still cameras or digital video cameras other than Sony
products
If the still images are JPEG files compatible with Exif 2.1 or later, you
can apply position information to those images.
However, please note that the application of the position information to
still images cannot be guaranteed for cameras from all manufacturers.
We recommend that you save the images under different file names after
applying position information, or backup the images before processing.
Also please note that the functions which will be unavailable after
processing with the program depend on each manufacturer.

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
10

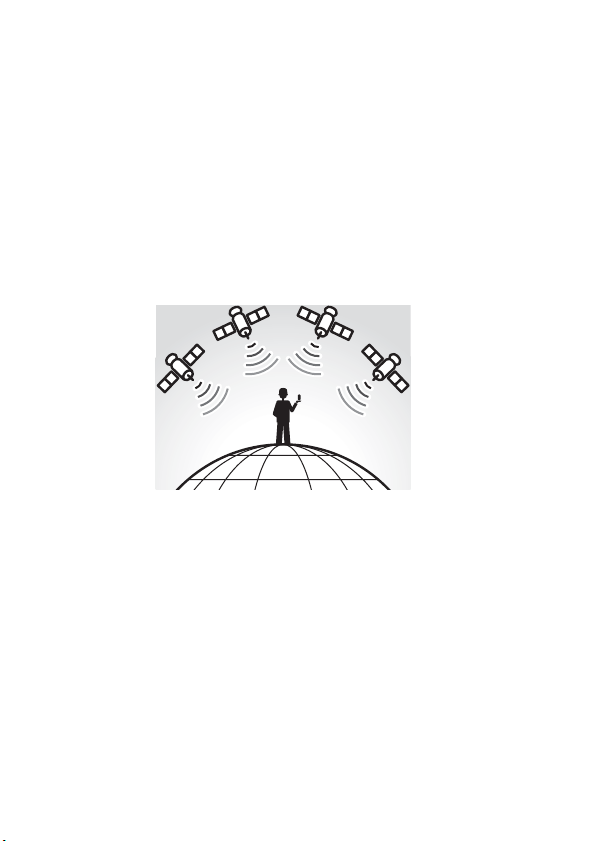

What is GPS?
The GPS is a navigational system that calculates position from accurate
US aviation satellites. This system allows you to track down your exact
location on the earth. The GPS satellites are located in six orbits, 20,000
km above us. The GPS consists of a total of 24 GPS satellites: Four of the
satellites are placed into each orbit, and at least three satellites are
required to pinpoint your location. A GPS receiver receives radio signals
from the satellites, and calculates the present location based on the orbital
information (almanac data) and travel time of the signals, etc.
Measuring a location is called “tracking”. A GPS receiver can track down
the location’s latitude and longitude by receiving signals from three
satellites.

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Right
GPS-CS1KASP
3-398-844-11(1)
GB
11
GB
Notes
•The positions of GPS satellites vary. Depending on the location and
time you use a GPS receiver, it may take longer for tracking or the
receiver may not track the location at all.
•“GPS” is the system tracking location by receiving radio signals from
GPS satellites. Avoid using the unit in the places where radio signals are
blocked or reflected, such as a shadowy place surrounded by buildings
or trees, etc. Use the unit in open sky environments.
•You may not record a GPS log at the locations or in the situations where
the radio signals from the GPS satellites do not reach to the unit as
follows.
–In tunnels, indoors or under shades of buildings.
–Between tall buildings or at narrow streets surrounded by buildings.
–At underground locations, surrounded by dense trees, under an
elevated bridge or at the locations where magnetic fields are generated
such as near high voltage cables.
–Near the devices that generate the radio signals of the same frequency
band as the unit: near the 1.5 GHz band mobile telephones, etc.
•The unit may not track when you are moving at the speed of about 500
km/hour (300 miles/hour) or faster.
GPS

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
12
On tracking errors
Error caused by position of GPS satellites
The unit automatically tracks your present location when the unit receives
radio signals from three or more GPS satellites. The tracking error caused
by the GPS satellites is about to ±10 m. Depending on the environment of
the location, the tracking error can be greater. In this case, your actual
location may not match with the location on the map based on GPS
information.
Error during tracking process
This unit records position information every fifteen seconds.
When you have an image recorded at any moment other than the moments
when the unit records your position, the position information at that
moment can be provided using the supplied software “GPS Image
Tracker”. A rough position can be calculated by measuring the distances
between the locations before and after the image is recorded. In this case,
the actual position may not match completely with the location on the
map based on GPS information.
On error due to incorrect clock setting on a camera
When the clock setting on your camera is incorrect, you cannot apply the
correct position information to the images. The position information is
applied to the images based on the time information of the GPS log files
and the time stamps of the images. So if the time stamps are incorrect,
you cannot match the images with the GPS log files properly. Adjust the
clock setting of your camera properly. Refer to the operating instructions
of your camera on how to set the clock settings.
• For details on modification of the time stamp of the images, refer to the help files
of “GPS Image Tracker”.

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Right
GPS-CS1KASP
3-398-844-11(1)
GB
13
GB
Features
This unit is a portable GPS unit to receive and record position
information.
Using this unit and the supplied software, you can:
•Check the locations of where you record still images or movies
(hereinafter collectively called “images”) on a trip, etc.
•Apply position information to the images you record, organize the
images by shooting date on the computer.
•You can display the recorded images and the tracks on the map and send
this map via e-mail.
1
Using the supplied attachments, you can carry the GPS unit in
various situations (page 20).
2
Turn on the unit, before you start recording images with your
digital camera, camcorder or digital single lens reflex camera
(hereinafter collectively called “camera”). The unit records
the GPS log (position and time) during your trip until the
power is turned off (page 27).
Use the GPS unit outside
Record the GPS log using the GPS unit

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
14
3
1Import the images taken with your camera to the computer
using the supplied software (Picture Motion Browser).
2Launch the supplied software (GPS Image Tracker) and
import the GPS log recorded on the unit to your computer.
3Load the images imported to your computer to “GPS
Image Tracker”.
4Match the imported images with the GPS log files while
checking on the map, then apply the position information
of where you recorded the images (page 36).
4
•You can show the tracks and images on the on-line map
using the “Map View” function of “Picture Motion Browser”
(page 38).
•You can send the original map data you created using the
e-mail.
Apply position information to the images using “GPS
Image Tracker”
View images on the “Picture Motion Browser” screen

Preparing
D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:L1 Right
GPS-CS1KASP
3-398-844-11(1)
GB
15
GB
Preparing
Checking included items
Make sure you have following things supplied with your GPS unit.
The number in parenthesis indicates the number of that item supplied.*1
•GPS unit (GPS-CS1) (1) •Carabiner (1)
•Bracket (1)*2 •Holder (1)*2

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
16
•CD-ROM
“GPS Unit Application Software” (1)
•Operating Instructions (this manual) (1)
•Set of other printed documentation
*1 An LR6 (size AA) alkaline battery or an HR6 (size AA) Nickel-Metal Hydride
battery is not supplied with this unit.
*2 The bracket, the holder, the armband and the carrying case are collectively called
the Attachment Kit.
•Armband (1)*2 •Carrying case (1)*2
•USB cable (1)

Preparing
D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Right
GPS-CS1KASP
3-398-844-11(1)
GB
17
GB
Identifying parts
1Carabiner attachment loop 2Antenna portion
3(Power) button 4GPS lamp
5BATT (Battery) lamp 6MEM FULL (Memory Full) lamp
7Battery cover
8CLEAR button 9Jack cover
0(USB) jack
1
2
3
4
5
7
6
8
9
0

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Left
GPS-CS1KASP
3-398-844-11(1)
GB
18
Inserting a battery
The following batteries are acceptable.
•LR6 (size AA) alkaline battery*
•HR6 (size AA) Nickel-Metal Hydride battery (recommended for use at
low temperatures)
* When an LR6 (size AA) alkaline battery is used, the battery life is shorter at a low
temperature.
1Slide the battery cover.
2Insert a battery into the unit with the + side of the battery
facing up.

Preparing
D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:Right
GPS-CS1KASP
3-398-844-11(1)
GB
19
GB
3Close the battery cover.
To remove the battery
Turn the power off and hold the unit with the battery cover up, then
remove the battery.
Be sure not to drop the battery.
Battery duration (When used at 25 °C (77 °F))
•When you use the unit at low temperatures, we recommend you use a
Nickel-Metal Hydride battery.
•The battery duration may differ from the above depending on the
situation or the environmental condition.
Cautions
If you mishandle the battery, there is a danger of leakage or explosion. Be
sure to observe the following.
–Insert a battery with the correct polarity +/–.
–Do not charge a dry battery.
–Remove the battery when you do not use the unit for a long time.
Otherwise, it may result in leakage of the battery.
LR6 (size AA) Sony alkaline battery
(not supplied)
HR6 (size AA) Sony Nickel-Metal
Hydride battery (not supplied)
about 10 hours about 14 hours

D:\WORK\GPS-CS1KASPGB\3398844111GPSCS1KASPGB\01GB-
GPSCS1\01GB04BAS.fm
master:L1 Left
GPS-CS1KASP
3-398-844-11(1)
GB
20
Use the GPS unit outside
Cautions on carrying the unit
•When you carry the unit, direct and hold the antenna-side upward or
outward.
•You can use the unit being covered with cloth, etc.
•The unit cannot receive radio signals when it is in a metallic bag such as
an attache case, or when it is covered with a metallic object.
Carrying the GPS unit using the carabiner
You can attach the GPS unit to the bag etc., using the carabiner.
1Detach the attachment string from the main body of the
carabiner as illustrated below (1) and draw the string
through the carabiner attachment loop of the unit (2).
2Thread the carabiner string through the carabiner loop (3),
then attach it in the main body (4).
Caution
•Do not use the supplied carabiner for any other purpose.
Attachment
string Main body of the
carabiner
