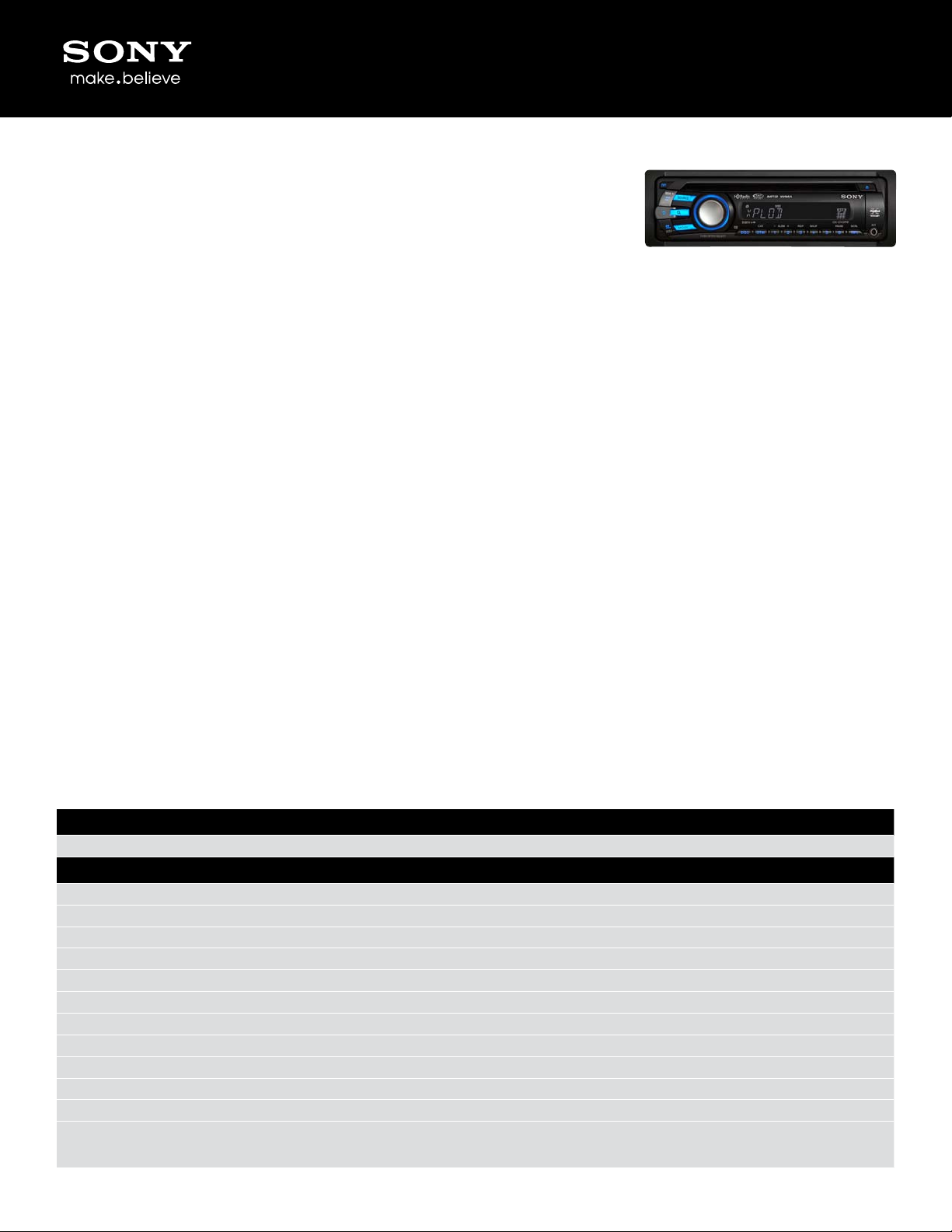

Sony CDX-GT43IPW - Fm/am Compact Disc Player User manual

Featuring iPod® Direct2 and enhanced iPod control features --such as
Quick-BrowZer®, Jump Mode, and Passenger Control -- the Sony Xplod®
CDX-GT43IPW lets you easily nd and select songs directly from your
dashboard. The unit comes ready to go with an integrated 1.5m 30-pin
iPod connection cable.
DRIVE-S Chassis
Sony® Drive-S technology provides the ultimate audio platform upon which to build a system
that caters to demanding ears!
MP3/WMA Playback1
Play CDs, CD-Rs, and CD-RWs, including discs loaded with MP3s and WMA les1.
iPod® Direct Control2
iPod® Direct2 provides you with the awesome ability to control your iPod directly from the Sony
Xplod® CDX-GT43WIP headunit
Detachable Faceplate with Front Aux Input
One little cable is all it takes to listen to your portable music player, or portable DVD player
through your Sony Xplod® system.
2x Preouts with HPF/LPF Filter
The Sony Xplod® CDX-GT43IPW includes two preouts so you can boost your car's sound system
with minimal eort and maximum exibility.
Sat Radio3 / HD Radio®4 ready
Upgrade your system with Sat Radio3 and HD Radio®4 via a simple connection and control it all
from the faceplate!
Quick-BrowZer®
Quick-BrowZer® lets you quickly search for and select songs while driving.
Passenger Control
Let your co-pilot take control. Passenger Control lets your passengers play DJ while you drive.
Specications
Amplier Section
Speaker Impedance 4-8 Ohms
Audio
Audio Format BTM
Band AM / FM
CD Playback Wow and utter-Below measurable limit
Digital-to-Analog Converter 24bit
Frequency Response 10-20,000Hz
Output Impedance 4-8 Ohms
Preout Voltage 2 volt
S/N Ratio CEA2006 S/N 82 dB
Sensitivity (db) FM:Usable sensitivity (75)(dBf): 9
Signal-to-Noise Ratio (dB) CD: 120dB
Station Preset(s) FM18/AM12
Tone Control(s)
Low: +/-10 dB at 60Hz (XPLOD)
Mid: +/-10dB at 1kHz (XPLOD)
High: +/-10dB at 10kHz (XPLOD)
CDX-GT43IPW CD Receiver Head Unit

Tuner Frequency Range FM:Tuner Frequency Range(MHz): 87.5-107.9, AM:Tuner Frequency Range(kHz): 530-1710
Tuner Type SSIR-EXA
Volume Control Tel/Nav Attenuation
Wow and Flutter Below Measurable Limit
Audio Features
Level Control -8dB ~ +18dB
Convenience
Menu Options Auto Title Scroll
Tilt Range 45°
Convenience Features
CD Text Display Yes
Illumination Blue
On-Screen Clock 12H
General
Color '07 Gun Metallic
Inputs and Outputs
12V Trigger Output(s) Power antenna
Amplier turn on
Analog Audio Input(s) (Total) Front Aux-In
Antenna Terminal(s) Aerial Input Terminal
Audio Out (Variable/Fixed) Speaker outputs (sure seal connectors)
Digital Audio Input(s)
This unit can be connected to the following iPod® models. Update your iPod to the
latest soware before you use it.
-iPod Mini*
-iPod Nano 1st generation*
-iPod Nano 2nd generation (aluminum)
-iPod Nano 3rd generation (video)
-iPod 4th generation*
-iPod 4th generation (color display)*
-iPod 5th generation (video)*
-iPod Classic
-iPod Touch
* When you connect iPod Mini or the 4th generation of iPod, Passenger Control is not
available.
For customers in the USA, please visit the following site for further information:
http://www.xplodsony.com
If you have any questions or problems concerning your unit that are not covered in this
manual, consult your nearest Sony dealer.
Infrared Port Remote Controller Input Terminal
Input(s) iPod® signal input terminal (30-pin), Front Aux in,
BUS audio input terminal
Power
Input Power 12 V DC car battery (negative ground (earth))
Output Power 52W x4 High Power - 17 watts per channel minimum continuous average power into
4 Ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic
distortion.
Power Consumption (in Operation) 45W
Tape Player
Frequency response CD: 10-20,000Hz
Tuner
FM Usable Sensitivity 10 dBf

1.Not all MP3, WMA, AAC les may playback due to le variations. Copyright protected
ACC-LC les cannot be played back.
2.Ability to use all generations of iPod® products may vary as not all products are
compatible.
3.Satellite radio service requires a satellite radio tuner and service subscription, sold
separately.
4.HD Radio® capability requires an optional HD Radio tuner (XT-100HD).
© 2009 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without
written permission is prohibited. Sony, Memory Stick, nav-u, Quick-BrowZer, Walkman,
Xplod, ZAPPIN, and the Sony, nav-u and Xplod logos are trademarks of Sony. iPhone and
iPod are trademarks of Apple Inc., registered in the U.S. and other countries. Bluetooth is
a trademark of Bluetooth SIG, Inc. NAVTEQ Maps & Trac is a trademark of NAVTEQ. All
other trademarks are trademarks of their respective owners. Features and specications
are subject to change without notice. Non-metric weights and measures are approximate.
/Updated: December 15, 2011
Frequency Response 20 - 15,000 Hz
S/N Ratio 70 dB
Selectivity 75 dB at 400 kHz
Stereo Separation 40 dB at 1 kHz
Video Features
Display Technology LCD
Weights and Measurements
Dimensions (Approx.) 178 x 50 x 179mm
Weight (Approx.) 1.3Kg
Supplied Accessories
Supplied Accessories Parts for installation and connections (1 set)
Card remote commander: RM-X151
Optional Accessories
Optional Accessories
HD Radio® tuner: XT-100HD
AUX-IN Selector: XA-300
Source Selector: XA-C40
CD Changer (6 discs): CDX-T69
CD Changer (10 discs): CDX-757MX
