Sony CDX-L410X - Fm/am Compact Disc Player User manual

Operating Instructions
Mode d’emploi
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record these numbers in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. CDX-L410X Serial No.
CDX-L410X
For installation and connections, see the supplied installation/connections manual.
En ce qui concerne l’installation et les connexions, consulter le manuel
d’installation/raccordement fourni.
© 2003 Sony Corporation
3-247-731-11 (1)
US
FR
FM / AM
Compact Disc
Player

2
Welcome !
Thank you for purchasing this Sony Compact
Disc Player. You can enjoy its various features
even more with:
Optional controller accessory
Card remote commander RM-X114
Warning
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
–
Reorient or relocate the receiving antenna.
–
Increase the separation between the equipment
and receiver.
–
Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
–
Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
The use of optical instruments with this product
will increase eye hazard.
CAUTION

3
Table of Contents
Location of controls . . . . . . . . . . . . . . . . . . . 4
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Notes on discs . . . . . . . . . . . . . . . . . . . . . . . . 6
Getting Started
Resetting the unit. . . . . . . . . . . . . . . . . . . . . . 7
Detaching the front panel . . . . . . . . . . . . . . . 7
Setting the clock . . . . . . . . . . . . . . . . . . . . . . 8
CD Player
Playing a disc. . . . . . . . . . . . . . . . . . . . . . . . . 9
Display items. . . . . . . . . . . . . . . . . . . . . . . . . 9
Playing tracks repeatedly
— Repeat Play . . . . . . . . . . . . . . . . . . . . 10
Playing tracks in random order
— Shuffle Play . . . . . . . . . . . . . . . . . . . . 10
Radio
Storing stations automatically
— Best Tuning Memory (BTM). . . . . . . 10
Receiving the stored stations. . . . . . . . . . . . 11
Storing only the desired stations . . . . . . . . . 11
Other Functions
Adjusting the balance and fader . . . . . . . . . 12
Quickly attenuating the sound . . . . . . . . . . 12
Canceling the beep sound . . . . . . . . . . . . . 12
Setting the equalizer (EQ3). . . . . . . . . . . . . 12
Additional Information
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 13
Removing the unit. . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 16
Error displays/Messages. . . . . . . . . . . . . . . 17

4

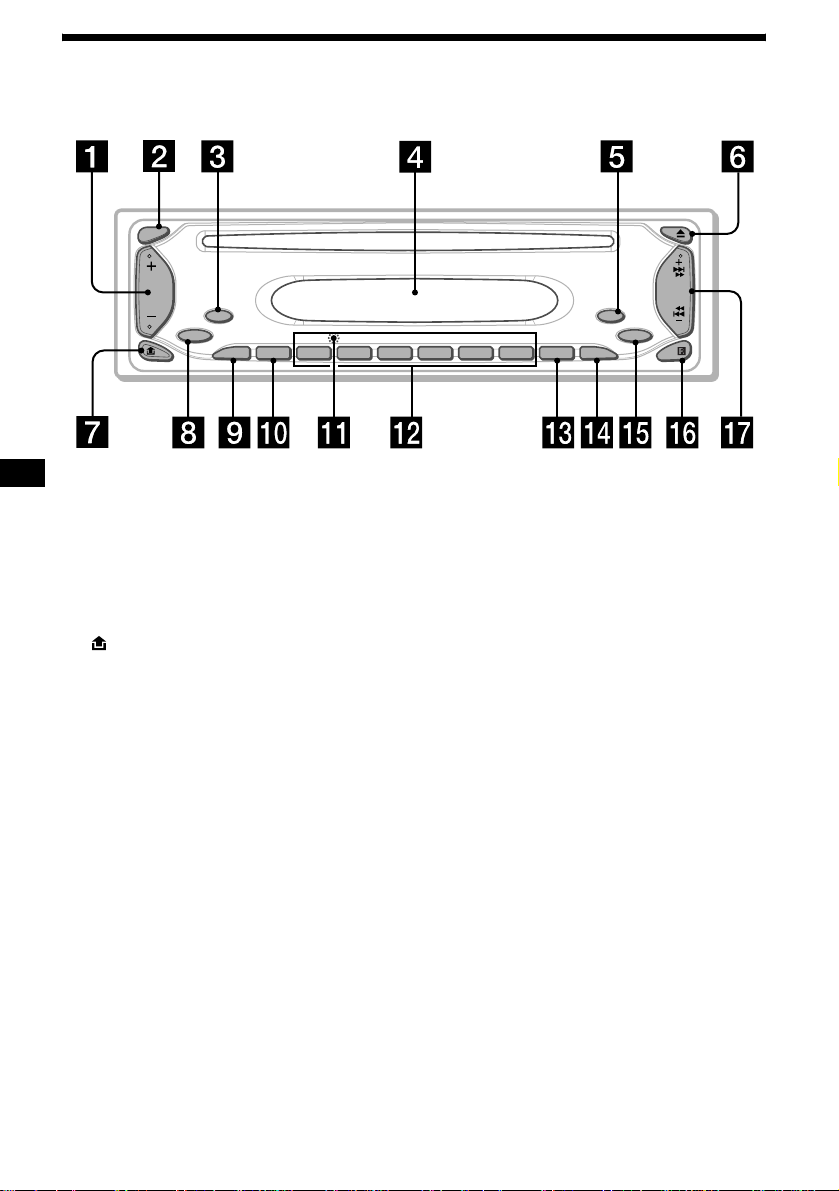

Location of controls
Refer to the pages listed for details.
aVolume +/– button
bSEL (select) button
Selecting items.
cMODE button
Changing the operation.
dDisplay window
eOFF (Stop/Power off) button* 7, 9
fZ(eject) button 9
g(front panel release) button 7
hSOURCE (Power on/Radio/CD) button
Selecting the source.
iATT (attenuate) button 12
jSENS button 11
kRESET button (located on the front side of
the unit, behind the front panel) 7
lNumber buttons
Radio:
Storing the desired station on each number
button.
CD:
(3): REP 10
(4): SHUF 10
mBTM (Best Tuning Memory) button 10
nDSPL (display mode change) button
8, 9
oEQ3 button 12
pReceptor for the card remote
commander
qSEEK +/– button
Radio:
Tuning in stations automatically/finding a
station manually.
CD:
Skipping tracks/fast-forwarding, reversing a
track.
*Warning when installing in a car without
an ACC (accessory) position on the
ignition switch
After turning off the ignition, be sure to press
and hold (OFF) on the unit until the display
disappears.
Otherwise, the display does not turn off and this
causes battery drain.
CDX-L410X
MODE
SEL
SOURCE
REP SHUF
OFF
EQ3
SEEK
SENS 1 ATT DSPL 2 3 4 5 6 BTM

5

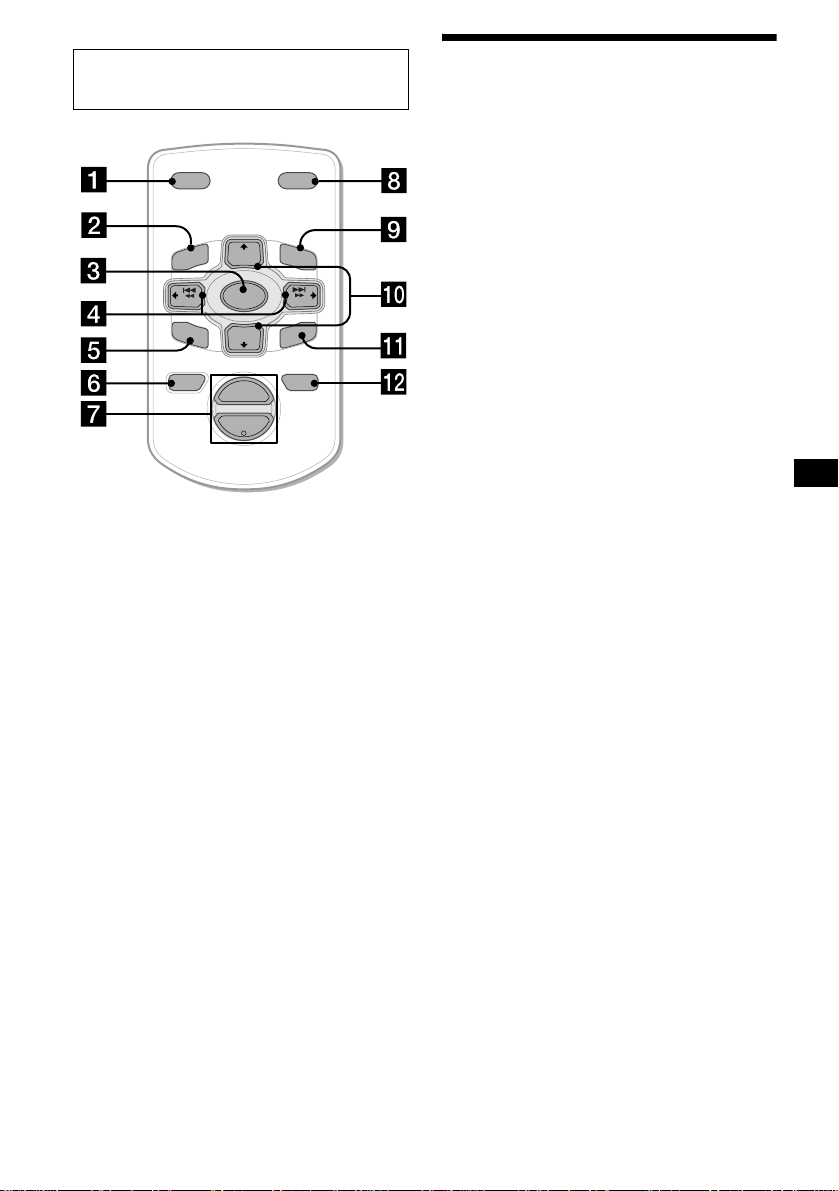

The corresponding buttons of the card
remote commander control the same
functions as those on this unit.
aDSPL button
bMENU button*
cSOURCE button
dSEEK (+/–) buttons
eSOUND button
fOFF button
gVOL (+/–) buttons
hMODE button
iLIST button*
jDISC*/PRESET (+/–) button
kENTER button*
lATT button
*Not available for this unit
Note
If the display disappears by pressing (OFF), it cannot
be operated with the card remote commander unless
(SOURCE) on the unit is pressed, or a disc is inserted
to activate the unit first.
Tip
Refer to “Replacing the lithium battery” for details on
how to replace the batteries (page 13).
Precautions
• If your car has been parked in direct sunlight,
allow the unit to cool off before operating it.
• Power antenna will extend automatically while
the unit is operating.
If you have any questions or problems
concerning your unit that are not covered in this
manual, please consult your nearest Sony dealer.
Moisture condensation
On a rainy day or in a very damp area, moisture
condensation may occur inside the lenses and
display of the unit. Should this occur, the unit
will not operate properly. In such a case, remove
the disc and wait for about an hour until the
moisture has evaporated.
To maintain high sound quality
Be careful not to splash juice or other soft drinks
onto the unit or discs.
Card remote commander RM-X114
(optional)
DISC
–
ATTOFF
DSPL MODE
SOURCE
DISC
+
VOL
+
–
PRESET
+
SEEK
+
SEEK
–
PRESET –
SOUND
ENTER
MENU
LIST

6

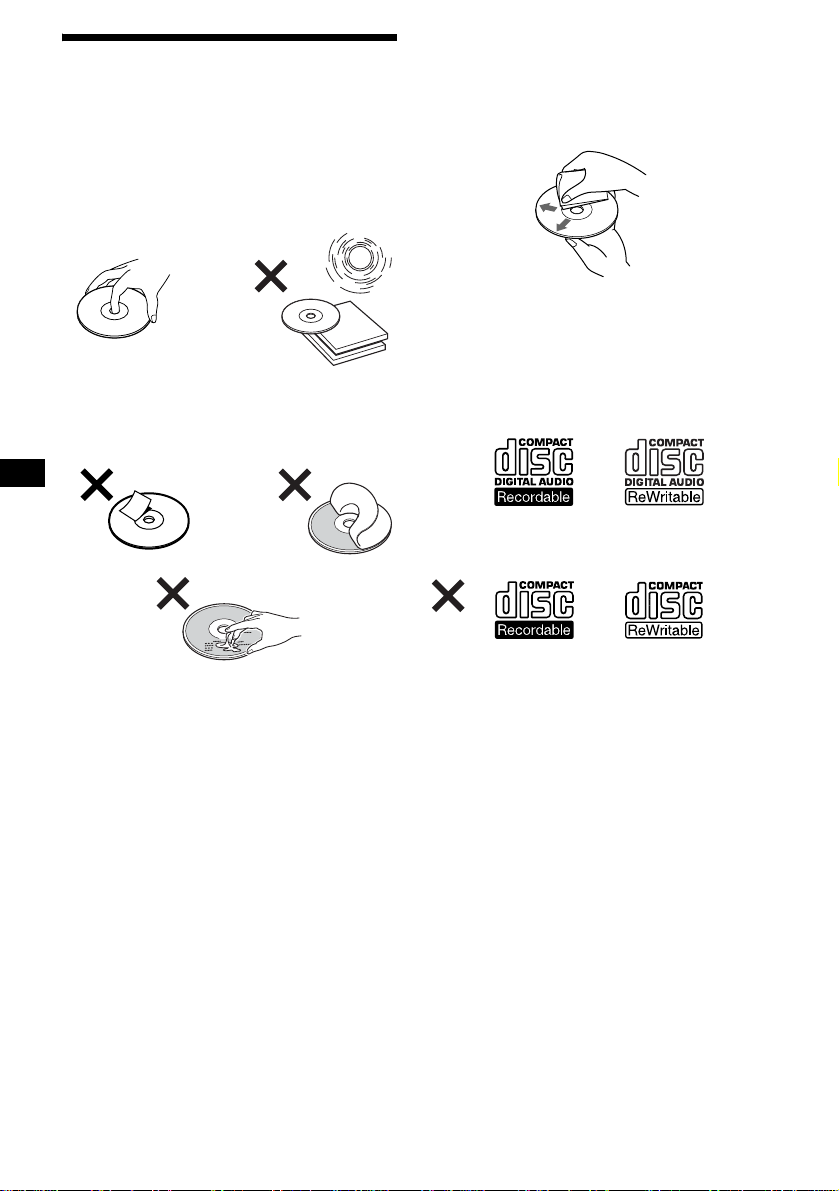

Notes on discs
• To keep the disc clean, do not touch the surface.
Handle the disc by its edge.
• Keep your discs in their cases or disc
magazines when not in use.
• Do not subject the discs to heat/high
temperature. Avoid leaving them in parked cars
or on dashboards/rear trays.
• Do not attach labels, or use discs with sticky
ink/residue. Such discs may stop spinning
when used, causing a malfunction, or may ruin
the disc.
• Do not use any discs with labels or stickers
attached.
The following malfunctions may result from
using such discs:
– Inability to eject a disc (due to a label or
sticker peeling off and jamming the eject
mechanism).
– Inability to read audio data correctly (e.g.,
playback skipping, or no playback) due to
heat shrinking of a sticker or label causing a
disc to warp.
• Discs with non-standard shapes (e.g., heart,
square, star) cannot be played on this unit.
Attempting to do so may damage the unit. Do
not use such discs.
• You cannot play 8 cm (3 in) CDs.
• Before playing, clean the discs with a
commercially available cleaning cloth. Wipe
each disc from the center out. Do not use
solvents such as benzine, thinner, commercially
available cleaners, or antistatic spray intended
for analog discs.
Notes on CD-R/CD-RW discs
• You can play CD-Rs (recordable CDs)/CD-
RWs (rewritable CDs) designed for audio use
on this unit.
Look for these marks to distinguish CD-Rs/
CD-RWs for audio use.
These marks denote that a disc is not for audio
use.
• Some CD-Rs/CD-RWs (depending on the
equipment used for its recording or the
condition of the disc) may not play on this unit.
• You cannot play a CD-R/a CD-RW that is not
finalized*.
*A process necessary for a recorded CD-R/CD-RW
disc to be played on the audio CD player.

7
Getting Started
Resetting the unit
Before operating the unit for the first time, or
after replacing the car battery or changing the
connections, you must reset the unit.
Remove the front panel and press the RESET
button with a pointed object, such as a ball-point
pen.
Note
Pressing the RESET button will erase the clock setting
and some stored contents.
Detaching the front panel
You can detach the front panel of this unit to
protect the unit from being stolen.
Caution alarm
If you turn the ignition switch to the OFF
position without removing the front panel, the
caution alarm will beep for a few seconds.
If you connect an optional amplifier and do not
use the built-in amplifier, the beep sound will be
deactivated.
1Press (OFF)*.
CD playback or radio reception stops (the key
illumination and display remain on).
*If your car has no ACC position on the ignition
switch, be sure to turn the unit off by pressing
(OFF) until the display disappears to avoid car
battery drain.
2Press , then slide the front panel a
little to the left, pull it off towards you.
Notes
•If you detach the panel while the unit is still turned
on, the power will turn off automatically to prevent
the speakers from being damaged.
•Do not drop or put excessive pressure on the front
panel and its display window.
•Do not subject the front panel to heat/high
temperature or moisture. Avoid leaving it in a parked
car or on a dashboard/rear tray.
Tip
When carrying the front panel with you, use the
supplied front panel case.
RESET button
continue to next page t
(OFF)

8
Attaching the front panel

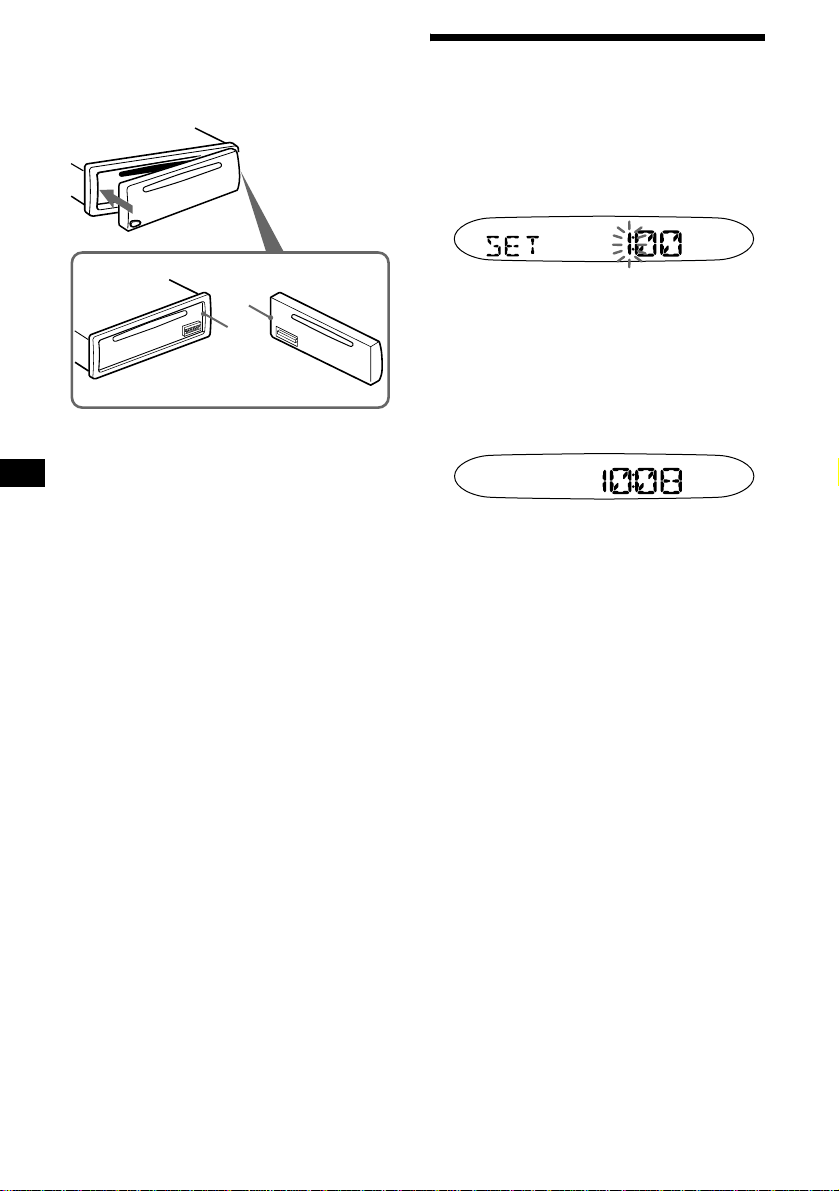

Attach part Aof the front panel to part Bof the
unit as illustrated and push the left side into
position until it clicks.
Note
Do not put anything on the inner surface of the front
panel.
Setting the clock
The clock uses a 12-hour digital indication.
Example: To set the clock to 10:08
1Press (DSPL) for 2 seconds.
The hour indication flashes.
1Press the volume +/– button to set
the hour.
2Press (SEL).
The minute indication flashes.
3Press the volume +/– button to set
the minute.
2Press (DSPL).
The clock starts. After the clock setting is
completed, the display returns to normal play
mode.
A
B

9
CD Player

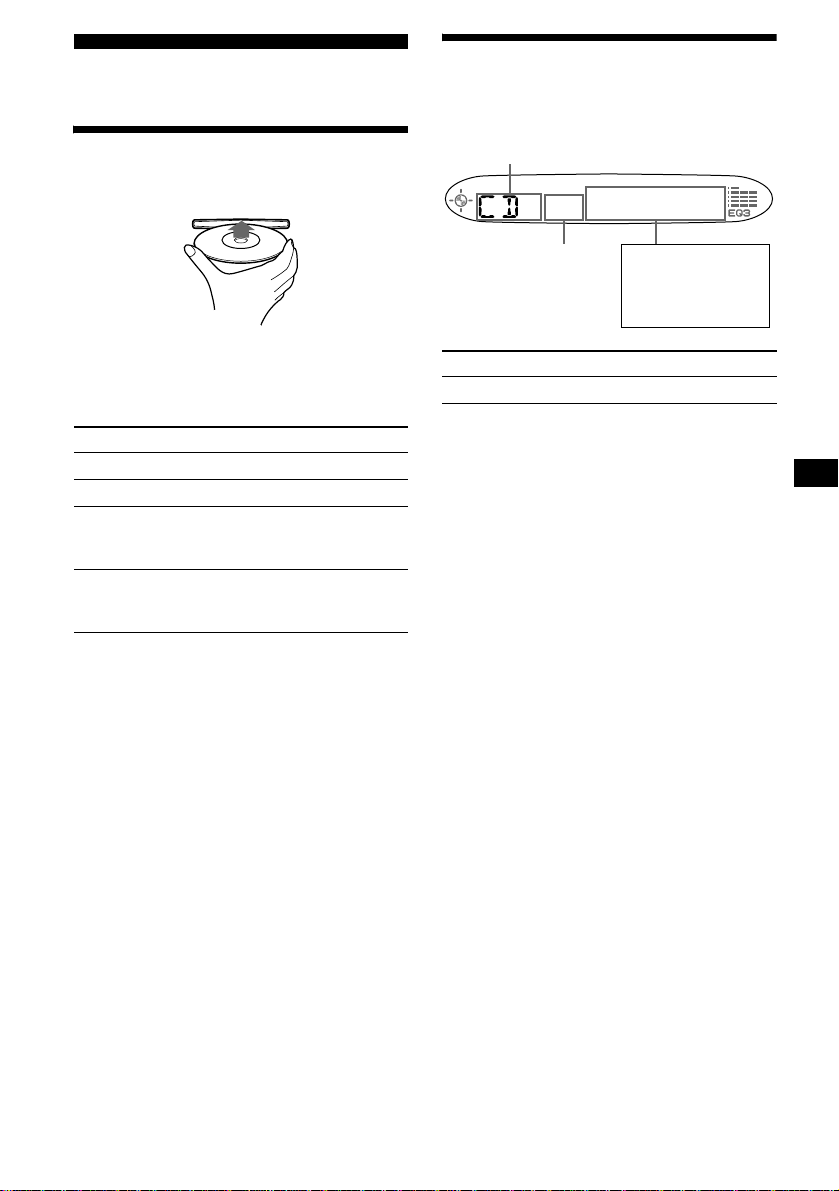

Playing a disc
Insert the disc (labeled side up).
Playback starts automatically.
If a disc is already inserted, press (SOURCE)
repeatedly until “CD” appears to start playback.
Notes
•While the first/last track on the disc is playing, if
(SEEK) (+) or (SEEK) (–) is pressed, playback
skips to the last/first track of the disc.
•When the last track on the disc is over, playback
restarts from the first track of the disc.
Display items
The following items can be displayed.
To Press
Stop playback Zor (OFF)
Eject the disc Z
Skip tracks
–Automatic
Music Sensor
(SEEK) (–/+)
(./>)
[once for each track]
Fast-forward/
reverse
–Manual Search
(SEEK) (–/+)
(m/M)
[hold to desired point]
To Press
Switch display item (DSPL)
Source
Displayable items
• Elapsed playing
time
•clock
Track number

10
Playing tracks repeatedly
— Repeat Play
The current track will repeat itself when it
reaches the end.
During playback, press (3) (REP) until
“REP” indicator appears in the
display.
Repeat Play starts.
To return to normal play mode, press (3) (REP)
again.
Playing tracks in random
order
— Shuffle Play
You can select to play the tracks on the current
disc in random order.
During playback, press (4) (SHUF)
until “SHUF” indicator appears in the
display.
Shuffle Play starts.
To return to normal play mode, press (4)
(SHUF) again.
Radio
The unit can store up to 6 stations per band
(FM1, FM2, FM3, AM1, and AM2).
Caution
When tuning in stations while driving, use Best
Tuning Memory to prevent accidents.
Storing stations
automatically
— Best Tuning Memory (BTM)
The unit selects the stations with the strongest
signals within the selected band, and stores them
in the order of their frequency.
1Press (SOURCE) repeatedly to select
the radio.
2Press (MODE) repeatedly to select the
band.
3Press (BTM) for 2 seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.
Notes
•If only a few stations can be received due to weak
signals, some number buttons will retain their former
settings.
•When a number is indicated in the display, the unit
starts storing stations from the one currently
displayed.

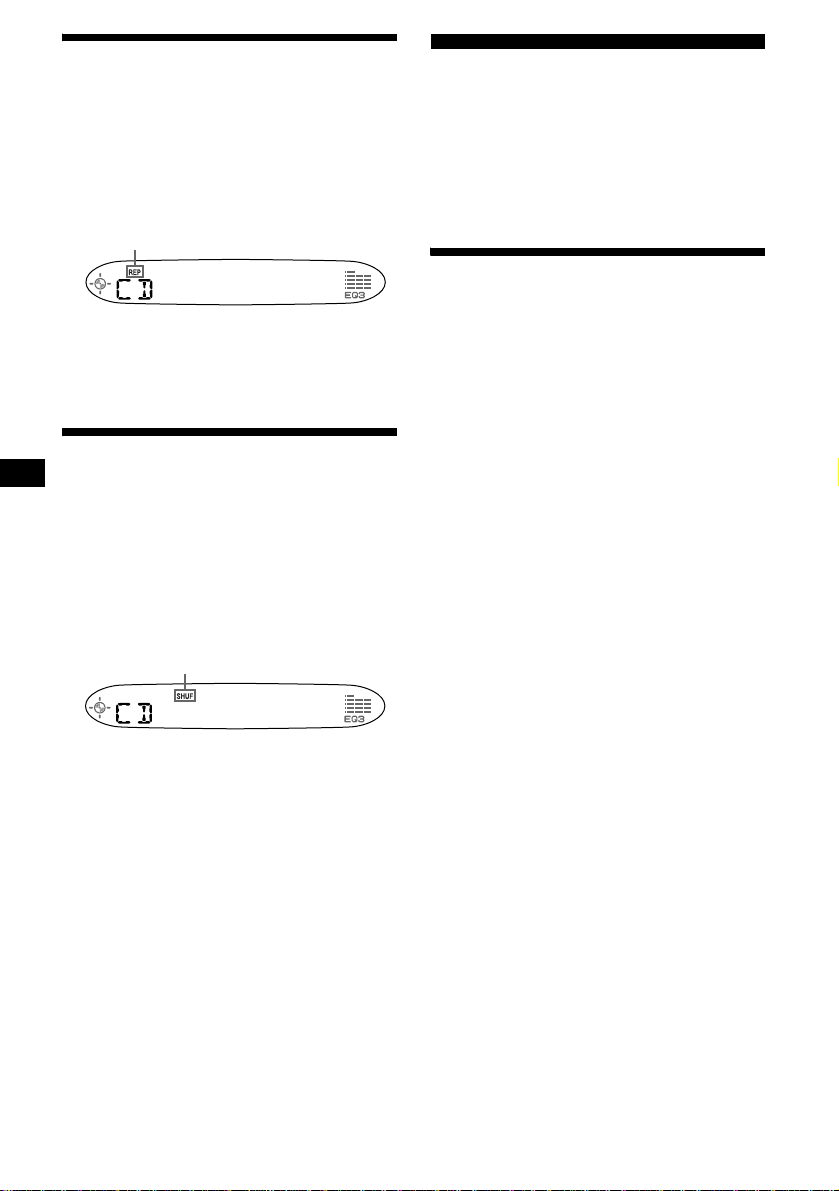

“REP” indicator is displayed.
“SHUF” indicator is displayed.

11
Receiving the stored stations
1Press (SOURCE) repeatedly to select
the radio.
2Press (MODE) repeatedly to select the
band.
3Press the number button ((1) to (6))
on which the desired station is stored.
If preset tuning does not work
— Automatic tuning/Local Seek Mode
Automatic tuning:
Press (SEEK) (+) or (SEEK) (–) to
search for the station.
Scanning stops when the unit receives a
station. Repeat the operation until the desired
station is received.
Local Seek Mode:
If the automatic tuning stops too
frequently, press (SENS) repeatedly
until “LCL” indicator appears in the
display.
Only the stations with relatively strong
signals will be tuned in.
To cancel the local seek mode, press (SENS)
again.
Tip
If you know the frequency of the station you want to
listen to, press and hold (SEEK) (+) or (SEEK) (–) to
locate the approximate frequency, then press
(SEEK) (+) or (SEEK) (–) repeatedly to fine adjust to
the desired frequency (manual tuning).
If FM stereo reception is poor
— Monaural Mode
During radio reception, press (SENS)
repeatedly until “MONO” indicator
appears in the display.
The sound improves, but becomes monaural
(“ST” disappears).
To return to normal radio reception mode, press
(SENS) again.
Storing only the desired
stations
You can manually preset the desired stations on
any chosen number button.
1Press (SOURCE) repeatedly to select
the radio.
2Press (MODE) repeatedly to select the
band.
3Press (SEEK) (+) or (SEEK) (–) to tune
in the station that you want to store.
4Press the desired number button ((1)
to (6)) for 2 seconds until “MEM”
appears.
The number button indication appears in the
display.
Note
If you try to store another station on the same number
button, the previously stored station will be erased.

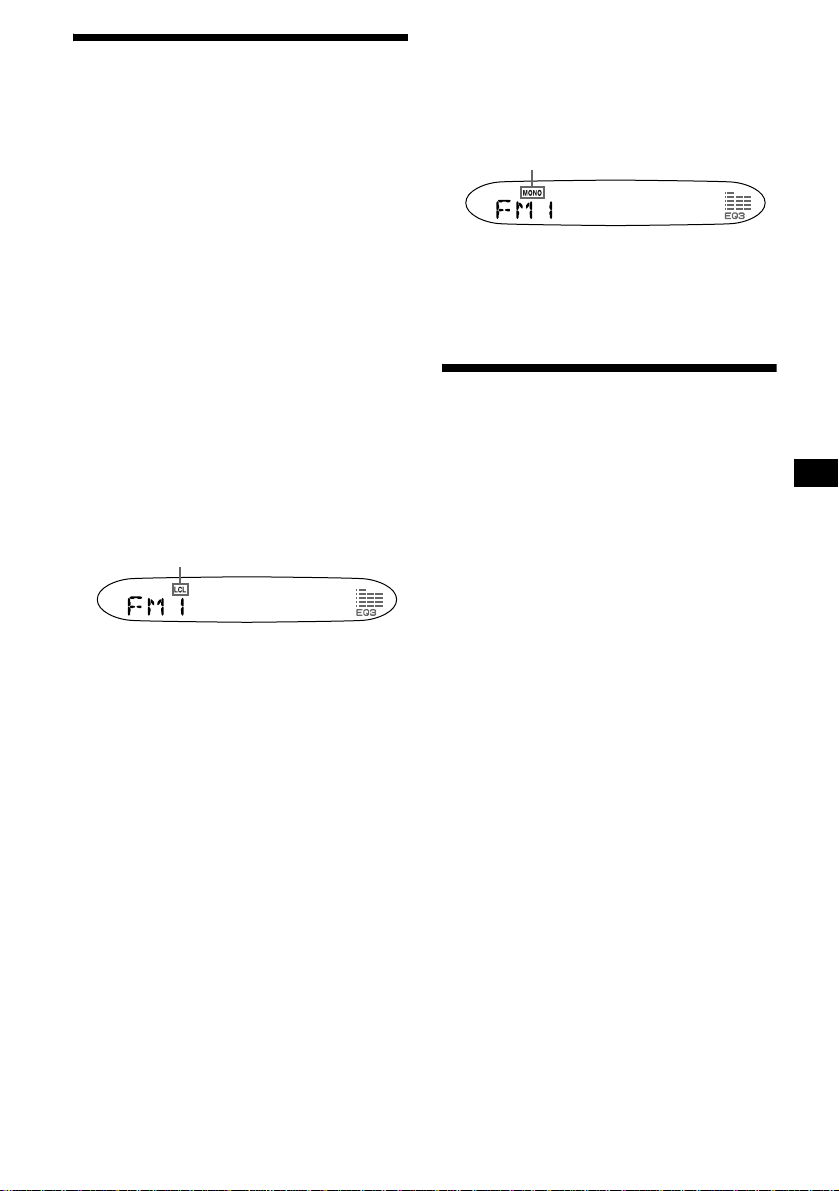

“LCL” indicator is displayed.
“MONO” indicator is displayed.

12
Other Functions
Adjusting the balance and
fader
You can adjust the balance and fader.
1Press (SEL) repeatedly until “BAL” or
“FAD” appears.
Each time you press (SEL), the item changes
as follows:
LOW*tMID*tHI*t
BAL (left-right) t FAD (front-rear)
*When EQ3 is activated (page 12).
2Press the volume +/– button to adjust
the selected item.
Note
Adjust within 3 seconds after selecting the item.
Quickly attenuating the
sound
Press (ATT).
The “ATT” appears in the display.
To restore the previous volume level, press
(ATT) again.
Canceling the beep sound
Press (6) while pressing (SEL) down.
To activate the beep sound again, press these
buttons again.
Note
If you connect an optional power amplifier and do not
use the built-in amplifier, the beep sound will be
deactivated.
Setting the equalizer (EQ3)
You can select an equalizer curve for 7 music
types (XPLOD, VOCAL, CLUB, JAZZ, N-
AGE, ROCK, CUST, and OFF (equalizer OFF)).
You can store a different equalizer setting for
each source.
Selecting the equalizer curve
1Press (SOURCE) to select a source
(Radio or CD).
2Press (EQ3) repeatedly until the
desired equalizer curve.
Each time you press (EQ3), the item
changes.
To cancel the equalizing effect, select “OFF.”
Adjusting the equalizer curve
You can store and adjust the equalizer settings
for different tone ranges.
1Press (SOURCE) to select a source
(Radio or CD).
2Press (EQ3) repeatedly to select the
desired equalizer curve.
3Adjusting the equalizer curve.
1Press (SEL) repeatedly to select the
desired tone range.
Each time you press (SEL), the tone range
changes.
LOW t MID tHI (tBAL tFAD)
2Press the volume +/– button
repeatedly to adjust to the desired
volume level.
The volume level is adjustable by 1 dB
steps from –10 dB to +10 dB.
3Repeat step 1and 2to adjust the
equalizer curve.
To restore the factory-set equalizer curve,
press (SEL) for 2 seconds.
After 3 seconds, the display returns to
normal play mode.
Note
When EQ3 is set to “OFF,” you cannot adjust the
equalizer curve settings.

13
Additional Information
Maintenance
Fuse replacement
When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the power
connection and replace the fuse. If the fuse blows
again after replacement, there may be an internal
malfunction. In such a case, consult your nearest
Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as this
could damage the unit.
Cleaning the connectors
The unit may not function properly if the
connectors between the unit and the front panel
are not clean. In order to prevent this, detach the
front panel (page 7) and clean the connectors
with a cotton swab dipped in alcohol. Do not
apply too much force. Otherwise, the connectors
may be damaged.
Notes
•For safety, turn off the ignition before cleaning the
connectors, and remove the key from the ignition
switch.
•Never touch the connectors directly with your fingers
or with any metal device.
Replacing the lithium battery
Under normal conditions, batteries will last
approximately 1 year. (The service life may be
shorter, depending on the conditions of use.)
When the battery becomes weak, the range of the
card remote commander becomes shorter.
Replace the battery with a new CR2025 lithium
battery. Use of any other battery may present a
risk of fire or explosion.
Notes on lithium battery
• Keep the lithium battery out of the reach of
children. Should the battery be swallowed,
immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a
good contact.
• Be sure to observe the correct polarity when
installing the battery.
• Do not hold the battery with metallic tweezers,
otherwise a short-circuit may occur.
Fuse (10 A)
Main unit
Back of the front panel
x
+ side up
WARNING
Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of
in fire.

14

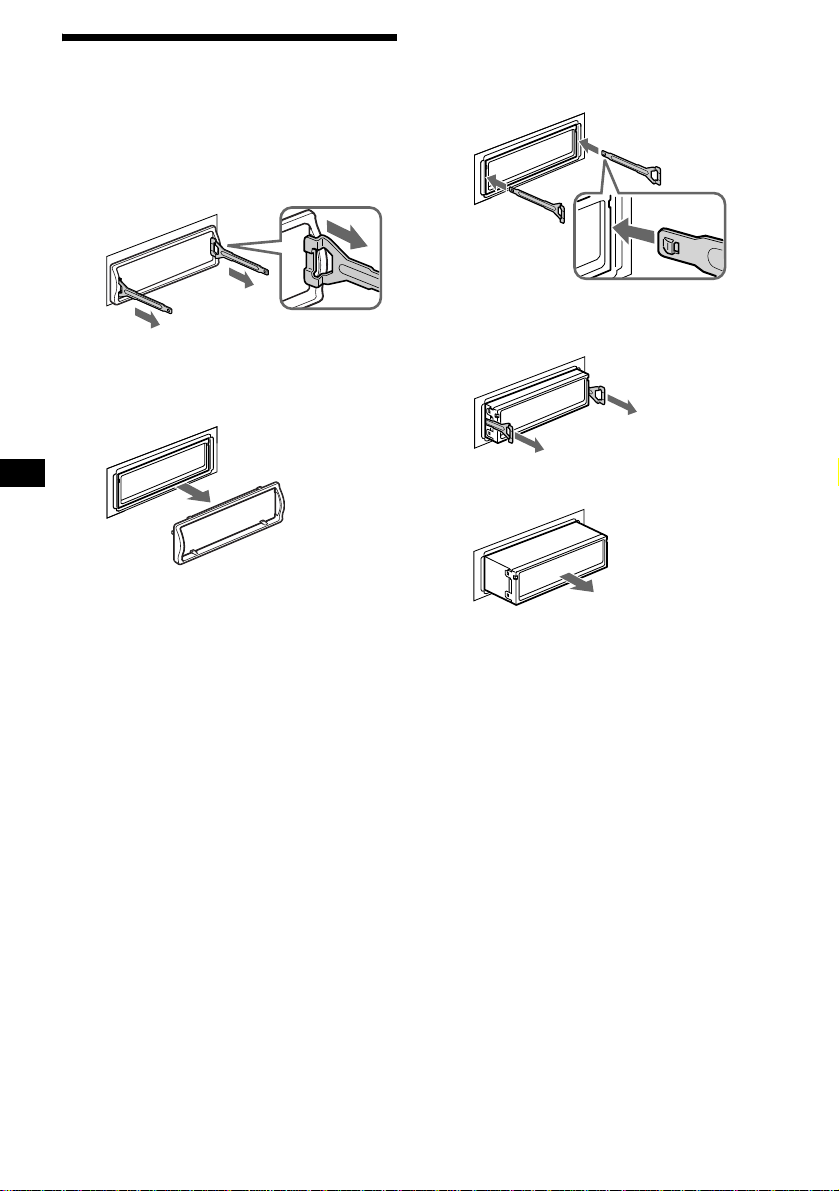

Removing the unit
1Remove the protection collar.
1Detach the front panel (page 7).
2Engage the release keys together
with the protection collar.
3Pull out the release keys to remove
the protection collar.
2Remove the unit.
1Insert both release keys together
until they click.
2Pull the release keys to unseat the
unit.
3Slide the unit out of the mounting.
Orient the release
key correctly.
Face the hook
inwards.

15
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
22 watts per channel minimum continuous average power into 4 ohms,
4 channels driven from 20 Hz to 20 kHz with no more than 5% total
harmonic distortion.
CD Player section
Signal-to-noise ratio 90 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Tuner section
FM
Tuning range 87.5 – 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 11 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
0.7 % (stereo),
0.5 % (mono)
Separation 33 dB at 1 kHz
Frequency response 30 – 15,000 Hz
AM
Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity AM: 30 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 45 W ×4 (at 4 ohms)
General
Outputs Audio outputs (rear)
Power antenna relay control
terminal
Power amplifier control
terminal
Inputs Antenna input terminal
Tone controls Low:
±10 dB at 60 Hz (XPLOD)
Mid:
±10 dB at 1 kHz (XPLOD)
High:
±10 dB at 10 kHz (XPLOD)
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 ×50 ×176 mm
(7 1/8×2 ×7 in) (w/h/d)
Mounting dimensions Approx. 182 ×53 ×161 mm
(7 1/4×2 1/8×6 3/8in)
(w/h/d)
Mass Approx. 1.2 kg
(2 lb 10 oz)
Supplied accessories Parts for installation and
connections
Front panel case (1)
Optional accessory Card remote commander
RM-X114
Design and specifications are subject to change
without notice.

16
Troubleshooting
The following checklist will help you remedy
problems you may encounter with your unit.
Before going through the checklist below, check
the connection and operating procedures.
General
No sound.
• Press the volume + button to adjust the
volume.
• Cancel the ATT function.
• Set the fader control to the center position for
a 2-speaker system.
The contents of the memory have been
erased.
• The RESET button has been pressed.
tStore again into the memory.
• The power cord or battery has been
disconnected.
• The power connecting cord is not connected
properly.
No beep sound.
• The beep sound is canceled (page 12).
• An optional power amplifier is connected
and you are not using the built-in amplifier.
The display disappear from/does not appear
in the display window.
• The display disappears if you press and hold
(OFF).
tPress and hold (OFF) again until the
disappears.
• Remove the front panel and clean the
connectors. See “Cleaning the connectors”
(page 13) for details.
Stored stations and correct time are erased.
The fuse has blown.
Makes noise when the ignition key is in the
ON, ACC, or OFF position.
The leads are not matched correctly with the
car’s accessory power connector.
No power is being supplied to the unit.
• Check the connection. If everything is in
order, check the fuse.
• The car does not have an ACC position.
tPress (SOURCE) (or insert a disc) to turn
on the unit.
The power is continuously supplied to the
unit.
The car does not have an ACC position.
The power antenna does not extend.
The power antenna does not have a relay box.
CD playback
A disc cannot be loaded.
• Another CD is already loaded.
• The CD has been forcibly inserted upside
down or in the wrong way.
Playback does not begin.
• Defective dirty CD.
• CD-R/CD-RW that is not finalized.
• You tried to playback a CD-R/CD-RW not
designed for audio use.
• Some CD-Rs/CD-RWs may not play due to
its recording equipment or the disc
condition.
A disc is automatically ejected.
The ambient temperature exceeds 50°C
(122°F).
The operation buttons do not function.
CD will not be ejected.
Press the RESET button.
The sound skips from vibration.
• The unit is installed at an angle of more than
60°.
• The unit is not installed in a sturdy part of
the car.
The sound skips.
Dirty or defective disc.

17
Error displays/Messages
If these solutions do not help improve the
situation, consult your nearest Sony dealer.
Radio reception
Preset tuning is not possible.
• Store the correct frequency in the memory.
• The broadcast signal is too weak.
The stations cannot be received.
The sound is hampered by noises.
• Connect a power antenna control lead (blue)
or accessory power supply lead (red) to the
power supply lead of a car’s antenna booster.
(Only when your car has built-in FM/AM
antenna in the rear/side glass.)
• Check the connection of the car antenna.
• The auto antenna will not go up.
tCheck the connection of the power
antenna control lead.
• Check the frequency.
Automatic tuning is not possible.
• The local seek mode is set to “ON.”
tSet the local seek mode to “OFF” (page
11).
• The broadcast signal is too weak.
tPerform manual tuning.
The “ST” indication flashes.
• Tune in the frequency accurately.
• The broadcast signal is too weak.
tSet the monaural reception mode to
“ON” (page 11).
A program broadcast in stereo is heard in
monaural.
The unit is in monaural reception mode.
tCancel monaural reception mode (page
11).
Error displays
The following indications will flash for about 5
seconds, and an alarm sound will be heard.
Err04
A CD is dirty or inserted upside down.
tClean or insert the CD correctly.
Err99
The CD unit cannot be operated because of
some problem.
tPress the RESET button on the unit.
Messages
“ ” or “ ”
You have reached the beginning or the end of
the disc and you cannot go any further.

2
Félicitations !
Nous vous remercions d’avoir fait l’acquisition
de ce lecteur de disques compacts Sony. Vous
pouvez profiter encore davantage des multiples
fonctions de cet appareil grâce à l’accessoire cité
ci-dessous :
Accessoire de commande en option
Mini-télécommande RM-X114

3
Table des matières
Emplacement des commandes. . . . . . . . . . . . 4
Précautions . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Remarques sur les disques. . . . . . . . . . . . . . . 6
Préparation
Réinitialisation de l’appareil . . . . . . . . . . . . . 7
Retrait de la façade . . . . . . . . . . . . . . . . . . . . 7
Réglage de l’horloge . . . . . . . . . . . . . . . . . . . 8
Lecteur CD
Lecture d’un disque. . . . . . . . . . . . . . . . . . . . 9
Rubriques d’affichage . . . . . . . . . . . . . . . . . . 9
Lecture de plages en boucle
— Lecture répétée. . . . . . . . . . . . . . . . . . 10
Lecture des plages dans un ordre
quelconque
— Lecture aléatoire . . . . . . . . . . . . . . . . 10
Radio
Mémorisation automatique des stations
— Mémorisation des meilleurs accords
(BTM). . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Réception des stations mémorisées. . . . . . . 11
Mémorisation des stations souhaitées
uniquement . . . . . . . . . . . . . . . . . . . . . . . 11
Autres fonctions
Réglage de la balance gauche-droite et de
l’équilibre avant-arrière . . . . . . . . . . . . . 12
Atténuation rapide du son. . . . . . . . . . . . . . 12
Désactivation du bip . . . . . . . . . . . . . . . . . . 12
Réglage de l’égaliseur (EQ3) . . . . . . . . . . . 12
Informations complémentaires
Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Démontage de l’appareil. . . . . . . . . . . . . . . 15
Caractéristiques techniques. . . . . . . . . . . . . 16
Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . 17
Affichage des erreurs et messages . . . . . . . 18

4
Emplacement des commandes
Pour plus de détails, reportez-vous aux numéros de pages indiqués.
aTouche de volume +/–
bTouche SEL (sélection)
Sélection de paramètres.
cTouche MODE
Changement du mode de fonctionnement.
dFenêtre d’affichage
eTouche OFF (Arrêt/Mise hors
tension)* 7, 9
fTouche Z(éjecter) 9
gTouche (déverrouillage de la
façade) 7
hTouche SOURCE (Mise sous tension/
Radio/CD)
Sélection de la source.
iTouche ATT (atténuation du son) 12
jTouche SENS 11
kTouche RESET (située à l’avant de
l’appareil, derrière la façade) 7
lTouches numériques
Radio :
Mémorisation des stations souhaitées sur
chaque touche numérique.
CD :
(3) : REP 10
(4) : SHUF 10
mTouche BTM (mémorisation des
meilleurs accords) 10
nTouche DSPL (modification du mode
d’affichage) 8, 9
oTouche EQ3 12, 13
pRécepteur de la mini-télécommande
qTouche SEEK +/–
Radio :
Sélection automatique des stations/recherche
manuelle d’une station.
CD :
Saut de plages ou avance ou retour rapide
dans une plage.
*Avertissement en cas d’installation de
l’appareil dans un véhicule dont le contact
ne comporte pas de position ACC
(accessoires)
Après avoir coupé le moteur, n’oubliez pas de
maintenir la touche (OFF) enfoncée sur
l’appareil jusqu’à ce que l’affichage
disparaisse.
Sinon, l’affichage n’est pas désactivé et la batterie
du véhicule se décharge.
CDX-L410X
MODE
SEL
SOURCE
REP SHUF
OFF
EQ3
SEEK
SENS 1 ATT DSPL 2 3 4 5 6 BTM
