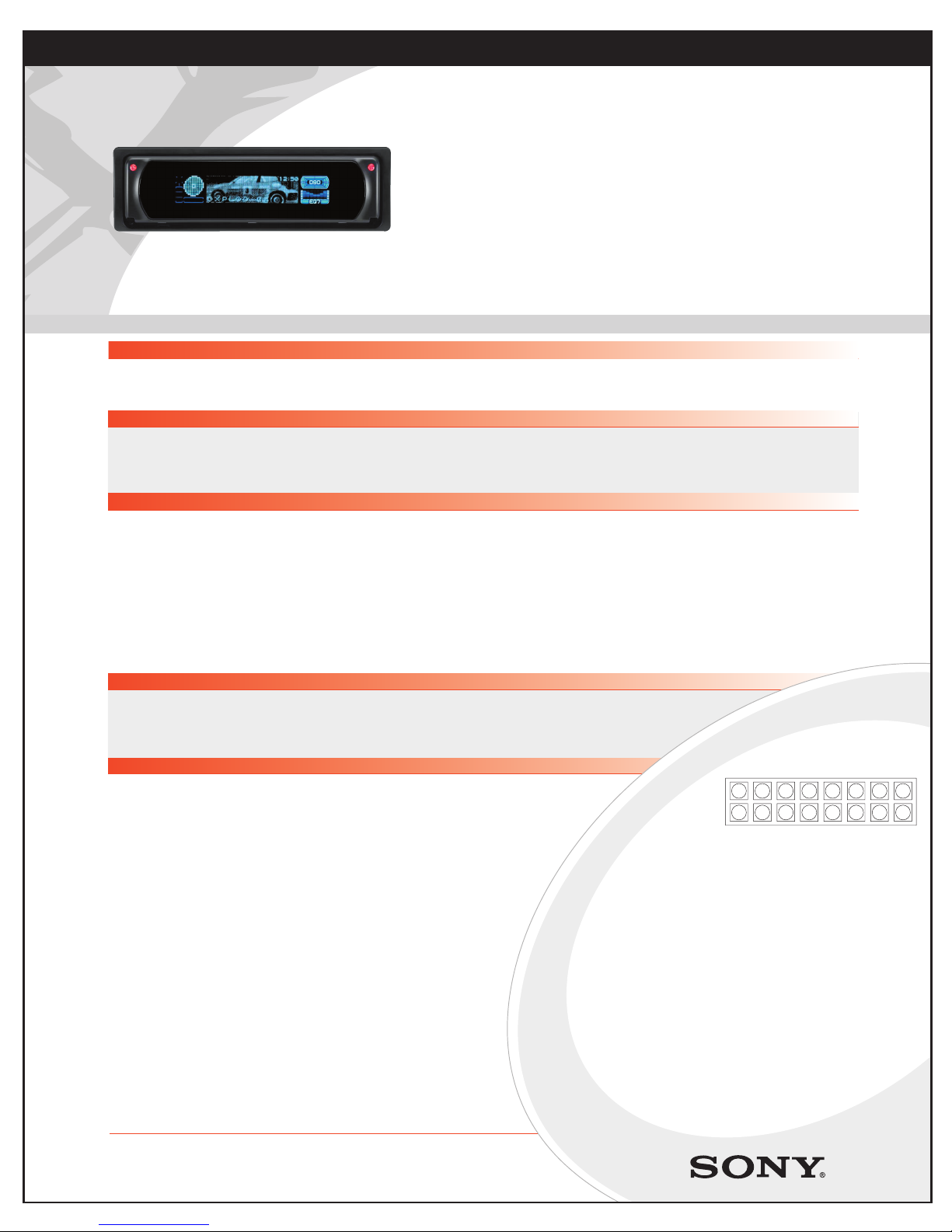

Sony CDX-M8800 - Fm/am Compact Disc Player User manual

2004 SONY MOBILE
PRODUCT GUIDE
CDX-M8800
FM/AM Compact Disc Player
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion
Note
This unit cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS system compatible.
Design and Specifications subject to change without notice.
CD Player Section
Signal-to-noise ratio 120 dB
Frequency Response 10 - 20,000 Hz
Stereo Separation 85 dB
Total Harmonic Distortion 0.01%
Tuner Section
FM AM
Tuning Range 87.5 - 107.9 MHz Tuning Range 530 - 1,710 kHz
Antenna Terminal External antenna connector Antenna Terminal External antenna connector
Intermediate Frequency 10.7 MHz/450 kHz Intermediate Frequency 10.7 MHz/450 kHz
Usable sensitivity 9 dBf Sensitivity 30 µV
Selectivity 75 dB at 400 kHz
Signal-tp-noise ratio 67 dB (stereo), 69 dB (mono)
Harmonic distortion at 1 kHz 0.5% (stereo), 0.3% (mono)
Separation 35 dB at 1 kHz
Frequency response 30 - 15,000 Hz
Outputs Speaker outputs (sure seal connectors)
Speaker impedance 4 - 8 ohms
Maximum power output 52 W x 4 (at 4 ohms)
Power Amplifier Section
General
• Fixed Active Black Panel design
• FL ABP Display
• MP3 playback
• BBE MP
• 4-Volt F/R/Sub Preamp output
with HPF/LPF
• CD/MD control, CD Text
• XM Ready
• DSO, EQ7
• 52W x 4 high power
• Aux Lite auxiliary input
• Drive-S
• 8fs, 1-bit D/A converter
• 45 degree install
• CD-R/RW playback
• SSIR-EXA tuner, Station Memo
• 18FM + 12AM memory presets
• Red key illumination
• Supplied wireless card remote
(RM-X143A)
• Optional wireless rotary remote
(RM-X6S)
• Optional wired rotary remote
(RM-X4S)
Preamp Output Level 4 Volts
Preamp Impedance 220 ohms
Outputs Audio outputs (front, rear) Subwoofer output (mono)
Power antenna relay control terminal
Power amplifier control terminal
Inputs Telephone ATT control terminal
BUS control input terminal or AUX IN terminal
BUS audio input terminal
Remote controller input terminal
Antenna input terminal
Tone controls Bass: ±10 dB at 62 Hz
Treble: ±10 dB at 16 kHz
Loudness +8 dB at 100 Hz, +2 dB at 10 kHz
Power requirements 12 V DC car battery (negative ground)
Dimensions Approx. 178 x 50 x 184 mm
(7 1/16 x 2 x 7 1/4 in.) (w/h/d)
Mounting dimensions Approx. 182 x 53 x 162 mm
(7 1/4 x 2 1/8 x 6 3/8 in.) (w/h/d)
Mass Approx. 1.7 kg (3 lb. 12 oz.)
Supplied accessories Card remote commander (RM-X143A)
Parts for installation and connections
Optional accessories Rotary remote commander (RM-X4S)
Rotary remote commander (RM-X6S)
Plug shown with wires facing viewer
Pin Number Wire Color Description
1 White Left front +
2 Green Left rear +
3 Purple Right rear +
4 Gray Right front +
5 Blue/white AMP Remote
6 Blue ANT Remote
7 Red Accessory
8 Black Ground
9 White/black Left front -
10 Green/black Left rear -
11 Purple/black Right rear -
12 Bray/black Right front -
13 Sky blue ATT
14
15 Orange/white Illumination
16 Yellow Battery
Harness Plug Configuration
1 2 345678
9 1011 12 13 14 15 16

2004 SONY MOBILE
PRODUCT GUIDE
CDX-M8800
FM/AM Compact Disc Player
Design and Specifications subject to change without notice.
178 mm (7-1/16”)
50mm (2”)
Antenna connector
Bus audio input/Aux in
Rear audio out
Front audio out
Rotary remote input
Bus control in
Fuse (10A)
47 mm (1-7/8”)
53 mm (2-1/16”)
88 mm (3-7/16”)
184 mm (7-1/4”)
162 mm (6-3/8”)
50mm (2”)
Sub output
