Help Guide
In-Car Receiver
XAV-AX6000
Main Unit and Remote Commander
Main unit
The VOL (volume) + button has a tactile dot.
RM-X400 remote commander (XAV-AX6000(E)/XAV-AX6000(E17)/XAV-AX6000(IN))
The remote commander can be used to operate the audio controls. For menu operations, use the touch screen.
The VOL (volume) +/ (play/pause) buttons have a tactile dot.
Note
The / (up/down) buttons in the illustration above are not supported.
7

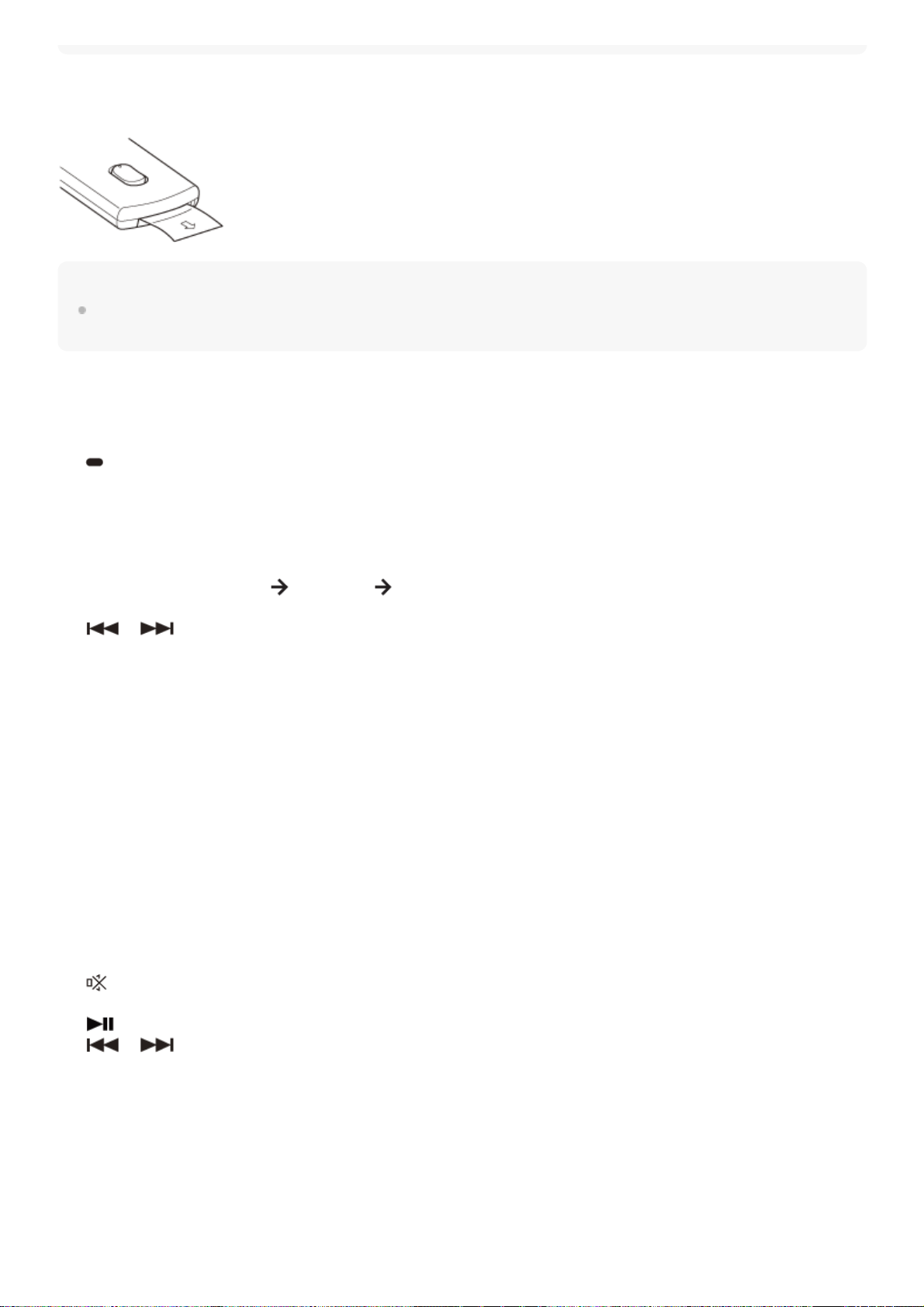

Remove the insulation film before use.
Hint
For XAV-AX6000(UC), the RM-X400 remote commander is available online at
https://encompass.com.
HOME
Displays the HOME screen.
STANDBY
Press and hold to turn off the unit.
Press and hold for more than 10 seconds to reset the unit.
1.
VOL (volume) +/–2.
Custom
Registers functions (Mute, Disp. Off (display off), Source Change).
To register, select [Settings] [Customize] [Custom Button].
3.
Receptor for the remote commander4.
/ (previous/next)
Functions differently depending on the selected source:
[Radio]: select a preset station.
[SiriusXM]: select a preset channel. (XAV-AX6000(UC))
[USB]: move to the previous/next content.
[Bluetooth Audio]: move to the previous/next content.
[Apple CarPlay]/[Android Auto]: move to the previous/next content.
Press and hold to:
[Radio]: tune into a station automatically (SEEK+/SEEK–).
[USB]: fast-reverse/fast-forward.
[Bluetooth Audio]: fast-reverse/fast-forward.
5.
VOICE
Activates the voice command function for Apple CarPlay and Android Auto.
6.
Display/touch screen7.
DISP OFF (display off)
Turns off the display.
To turn back on, press again.
8.
(mute)
Mutes the sound. To cancel, press again.
9.
(play/pause)
/ (previous/next)
Functions differently depending on the selected source:
[Radio]: select a preset station.
[SiriusXM]: select a preset channel. (XAV-AX6000(UC))
[USB]: move to the previous/next content.
[Bluetooth Audio]: move to the previous/next content.
[Apple CarPlay]/[Android Auto]: move to the previous/next content.
Press and hold to:
[Radio]: tune into a station automatically (SEEK+/SEEK–).
[SiriusXM]: switch the preset channel continuously. (XAV-AX6000(UC))
10.
8

Related Topic
Screen Displays
5-035-402-11(1) Copyright 2022 Sony Corporation
[USB]: fast-reverse/fast-forward.
[Bluetooth Audio]: fast-reverse/fast-forward. Functions differ depending on the BLUETOOTH device.
9

Help Guide
In-Car Receiver
XAV-AX6000
Screen Displays
Playback screen:
HOME1 screen:
HOME2 screen:
1. Status indication (left side)
2. Status indication (right side)
Icon in the display Detail
(back) Returns to the previous display.
(list) Opens the list. The available lists differ depending on the source.
Icon in the display Detail
10

3. Application specific area
Displays playback controls/indications or shows the unit’s status. Displayed items differ depending on the source.
4. (Apple CarPlay)/ (Android Auto)
Displays when connecting Apple CarPlay/Android Auto.
5. Clock
Displays the date and time which were set on the Date/Time setting.
6. Apps area (Favorite)
Up to 5 Apps can be set. Apps can be changed. You can set your Favorite Apps.
7. All Apps
Opens the HOME2 screen.
8. Close
Returns to the HOME1 screen.
9. Apps area
Displays all Apps except for Favorite Apps.
Apps icon list
XAV-AX6000(UC):
Icon in the display Detail
Clock Displays the time which was set on the Date/Time setting.
(mute) Lights up when the sound is muted.
(option) Opens the source option menu. The available items differ depending on the source.
(device) Displays the device’s name to connect to the unit.
(antenna) Indicates the signal strength status of the connected mobile phone.
(battery) Indicates the remaining battery status of the connected mobile phone.
Icon in the display Name
Android Auto
Apple CarPlay
Radio
SiriusXM
Bluetooth
RearCam
Settings
USB
11

XAV-AX6000(E)/XAV-AX6000(E17)/XAV-AX6000(IN):
Related Topic
System
Sorting Apps on the Apps Area (Favorite)
5-035-402-11(1) Copyright 2022 Sony Corporation
Icon in the display Name
HDMI
Devices
Phone

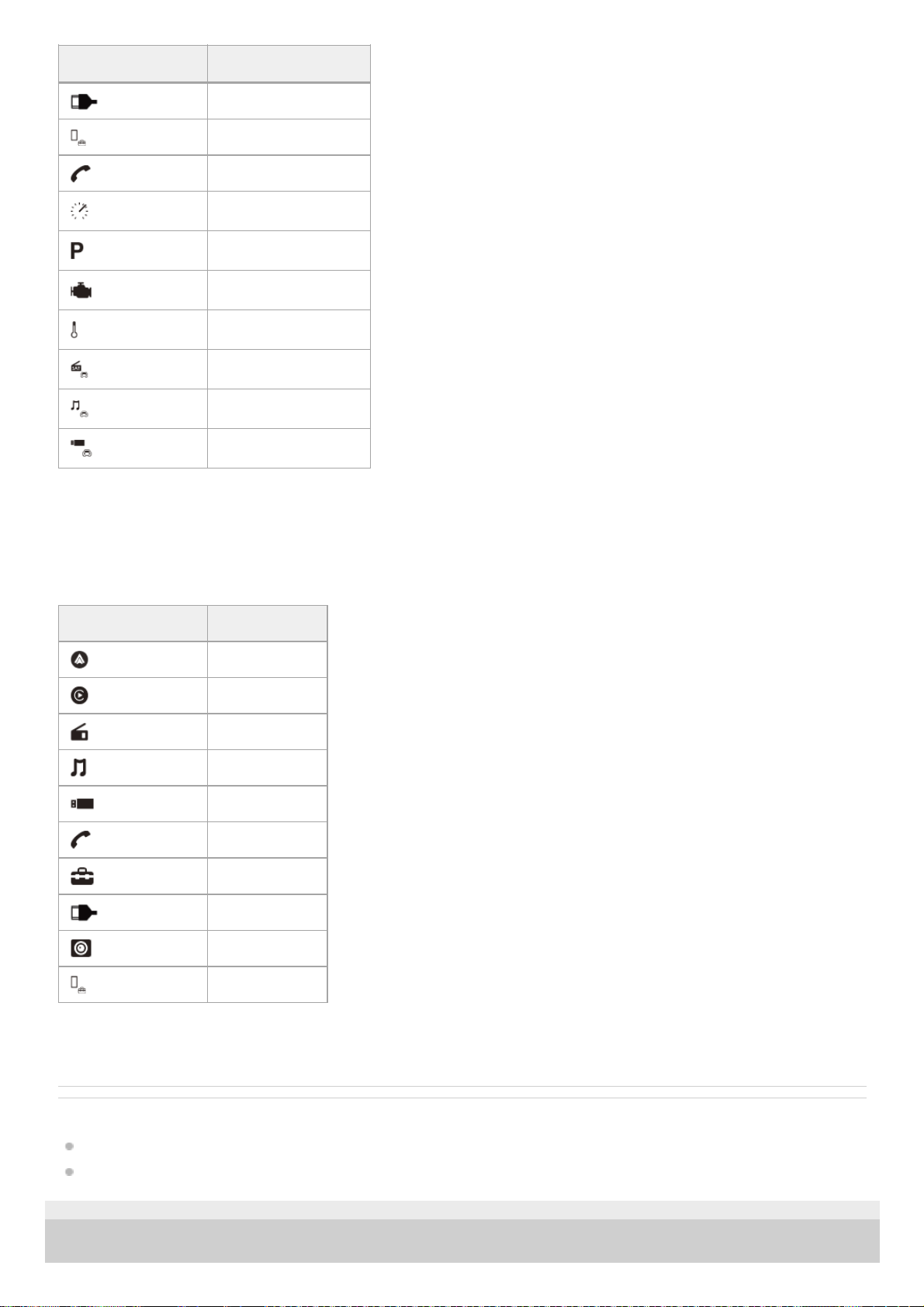

Gauges *1*2
Park Assist *1*2
Vehicle Info *1*2
Climate *1*2
Satellite Radio*1*2*3
Bluetooth Audio*1*2*3
Media Player*1*2*3
When connecting the iDataLink Maestro module (not supplied), the icon is displayed.
*1
Available functions differ according to your car type.
*2
The display names differ according to your car type.
*3
Icon in the display Name
Android Auto*
Apple CarPlay*
Radio
Bluetooth
USB
Phone
Settings
HDMI
RearCam
Devices
It may not be available in your country or region.
*
12

13

Help Guide
In-Car Receiver
XAV-AX6000
Performing Initial Settings
You need to perform initial settings before operating the unit for the first time, after replacing the car battery, or changing
connections.
If the initial settings screen does not appear when you turn on the unit, perform the factory reset to initialize the unit.
This setting can be further configured in the setting menu.
Related Topic
Device Connection
Sound
Customize
Application
System
5-035-402-11(1) Copyright 2022 Sony Corporation
Touch [Language], then set the display language.
To return to the previous display, touch (back).
1
Touch [Demo Mode] repeatedly to select [Off] to disable the demonstration mode.
2
Touch [Set Date/Time], then set the date and time.
To return to the previous display, touch (back).
XAV-AX6000(UC): skip to step 5.
3
Touch [Radio Tuning Steps], then set the radio frequency depending on the receiving area. (XAV-
AX6000(E)/XAV-AX6000(E17)/XAV-AX6000(IN))
4
Touch [OK].
The startup caution appears.
5
Read through the startup caution, then if you accept all conditions, touch [Close].
The setting is complete.
6
14

Help Guide
In-Car Receiver
XAV-AX6000

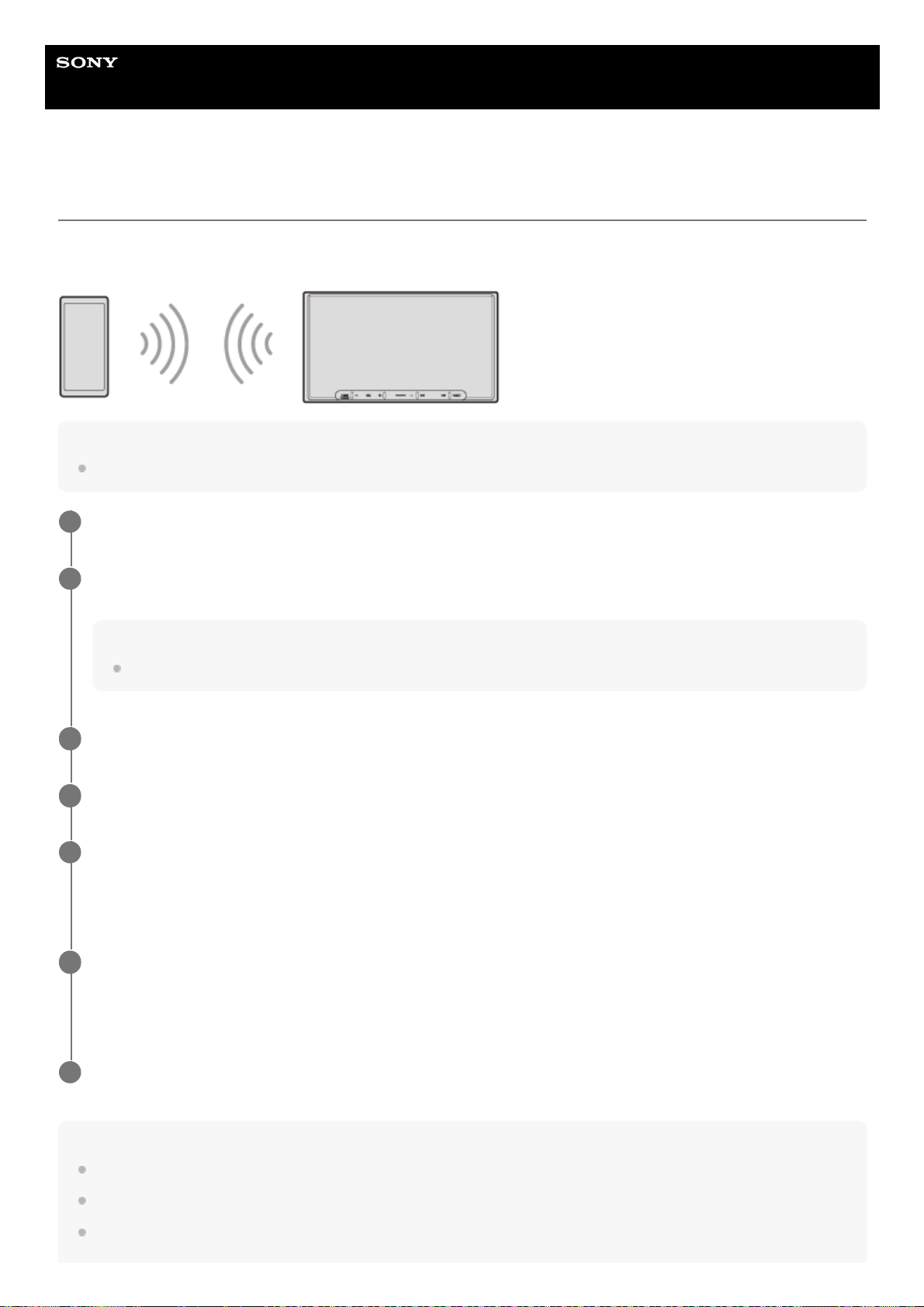

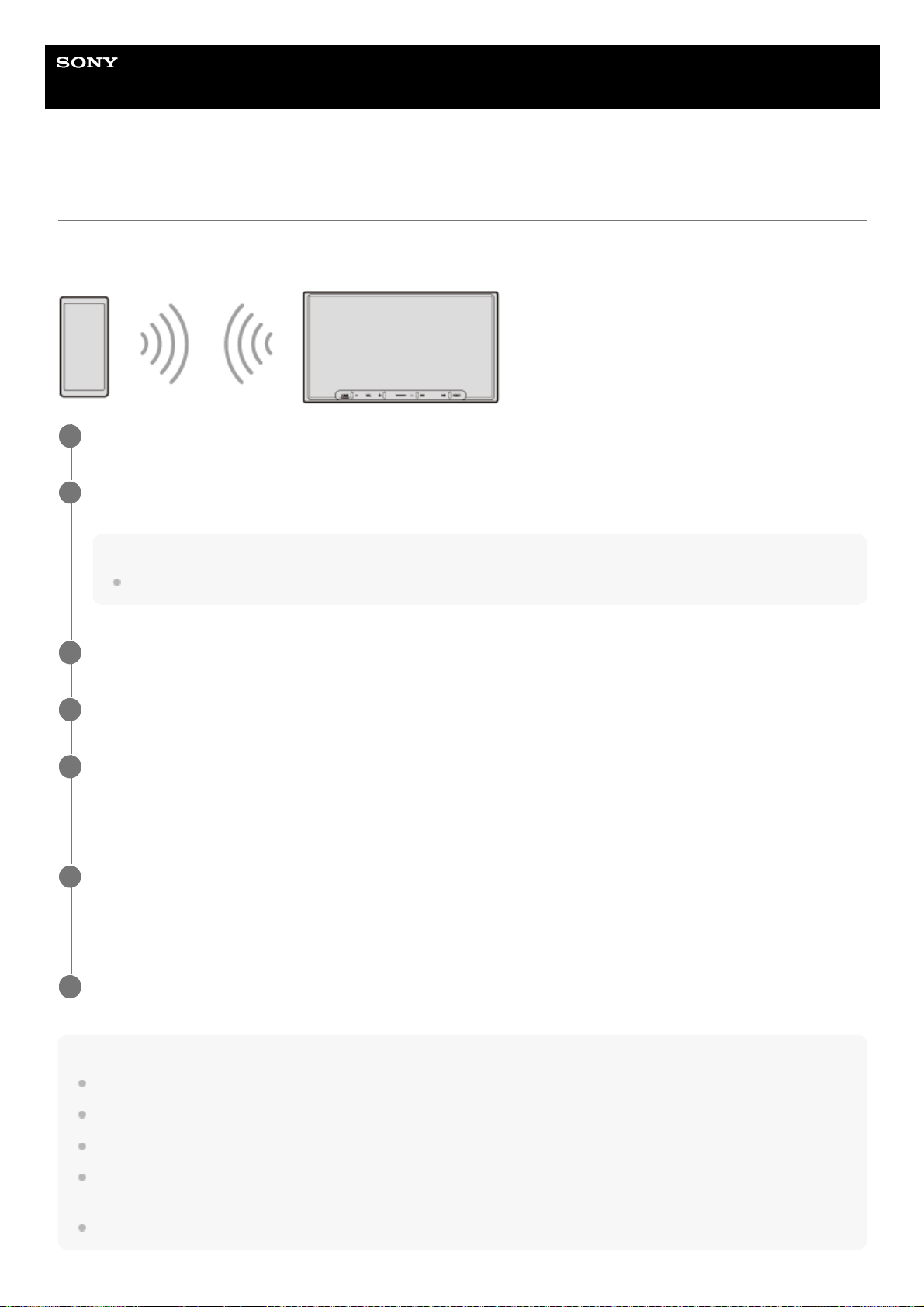

Using Apple CarPlay Wirelessly
When using Apple CarPlay for the first time, device registration (called “pairing”) is required. Pairing enables this unit and
your iPhone to recognize each other.
Note
Make sure the GPS antenna (aerial) (supplied) is connected.
Note
The unit can only be connected with one iPhone device at a time.
To disconnect the BLUETOOTH connection, turn the connection off from either the unit or your iPhone.
While using Apple CarPlay, BLUETOOTH connection is not possible. BLUETOOTH pairing is possible.
Place your iPhone within 1 m (3 ft) of this unit.
1
Press HOME, then touch [Settings].
If [Settings] is not set in the Favorite area, touch [All Apps] to display the HOME2 screen, then select [Settings].
Hint
You can touch [Devices] to open the [Device Connection] screen alternatively.
2
Touch [Device Connection].
3
Touch [+Add New Device].
4
Operate your iPhone according to its message on the [Add New Device] screen.
When setting the BLUETOOTH setting, Wi-Fi setting, and Apple CarPlay of your iPhone to [ON], select “XAV-
AX6000” on the setting screen of your iPhone and then proceed to the pairing steps.
5
[Pairing Request] appears on the unit.
Confirm the [Passkey:].
The same 6-digit passkey appears on your iPhone and the unit.
6
Touch [Pair], then touch [Apple CarPlay].
7
15

When using Apple CarPlay, remove the HDMI cable from your iPhone. The HDMI connection is not possible while Apple CarPlay
is running.
Apple CarPlay may not be available in your country or region.
Related Topic
Apple CarPlay
Device Connection
5-035-402-11(1) Copyright 2022 Sony Corporation
16

Help Guide
In-Car Receiver
XAV-AX6000
Using Android Auto™ Wirelessly
When using Android Auto for the first time, device registration (called “pairing”) is required. Pairing enables this unit and
an Android Auto compatible Android™ phone to recognize each other.
Note
The unit can only be connected with one Android phone at a time.
To disconnect the BLUETOOTH connection, turn the connection off from either the unit or your Android phone.
While using Android Auto, BLUETOOTH connection is not possible. BLUETOOTH pairing is possible.
When using Android Auto, remove the HDMI cable from your Android phone. The HDMI connection is not possible while Android
Auto is running.
Android Auto may not be available in your country or region.
Place your Android phone within 1 m (3 ft) of this unit.
1
Press HOME, then touch [Settings].
If [Settings] is not set in the Favorite area, touch [All Apps] to display the HOME2 screen, then select [Settings].
Hint
You can touch [Devices] to open the [Device Connection] screen alternatively.
2
Touch [Device Connection].
3
Touch [+Add New Device].
4
Operate your Android phone according to its message on the [Add New Device] screen.
When setting the BLUETOOTH setting, Wi-Fi setting, and Android Auto of your Android phone to [ON], select “XAV-
AX6000” on the setting screen of your Android phone and then proceed to the pairing steps.
5
[Pairing Request] appears on the unit.
Confirm the [Passkey:].
The same 6-digit passkey appears on your Android phone and the unit.
6
Touch [Pair], then touch [Start].
7
17

Related Topic
Android Auto
Device Connection
5-035-402-11(1) Copyright 2022 Sony Corporation
18

Help Guide
In-Car Receiver
XAV-AX6000
Using Android Auto with a USB Cable
When using Android Auto with a USB cable, connect an Android Auto compatible Android phone to the unit with the USB
cable.
Note
While using Android Auto, BLUETOOTH connection is not possible. BLUETOOTH pairing is possible.
Android Auto may not be available in your country or region.
Related Topic
Android Auto
5-035-402-11(1) Copyright 2022 Sony Corporation
Connect your Android phone to the USB port.
1
19

Help Guide
In-Car Receiver
XAV-AX6000
Pairing and Connecting with a Bluetooth® Device
You can enjoy music or perform handsfree calling depending on the BLUETOOTH compatible device such as
smartphones, mobile phones, and audio devices (hereafter “BLUETOOTH device” if not otherwise specified). For details
on connecting, refer to the operating instructions supplied with the BLUETOOTH device. Before connecting the
BLUETOOTH device, turn down the volume of this unit; otherwise, a loud sound may result.
When connecting a BLUETOOTH device for the first time, mutual registration (called “pairing”) is required. Pairing
enables this unit and other BLUETOOTH devices to recognize each other.
Note
The unit can only be connected with one BLUETOOTH device at a time.
To disconnect the BLUETOOTH connection, turn the connection off from either the unit or the BLUETOOTH device.
Place the BLUETOOTH device within 1 m (3 ft) of this unit.
1
Press HOME, then touch [Settings].
If [Settings] is not set in the Favorite area, touch [All Apps] to display the HOME2 screen, then select [Settings].
Hint
You can touch [Devices] to open [Device Connection] alternatively.
2
Touch [Device Connection].
3
Touch [+Add New Device].
4
Operate the BLUETOOTH device according to its message on the [Add New Device] screen.
When setting the BLUETOOTH setting of the BLUETOOTH device to [ON], select “XAV-AX6000” on the setting
screen of your BLUETOOTH device and then proceed to the pairing steps.
5
[Pairing Request] appears on the unit.
Confirm the [Passkey:].
The same 6-digit passkey appears on your BLUETOOTH device and the unit.
6
Touch [Pair].
7
20
