Operating Instructions
Instrukcje Obsługi
Návod k obsluze
Οδηγίεσ Λειτουργίασ
Kullanım kılavuzu
GB
PL
GR
CZ
TR

2
Table of Contents
Location of controls ............................................ 3
Getting Started
Resetting the unit ................................................ 4
Detaching the front panel .................................. 4
Setting the clock .................................................. 5
Cassette Player
Listening to a tape ............................................... 6
Playing a tape in various modes ....................... 7
Radio
Memorizing stations automatically
— Best Tuning Memory (BTM).................... 7
Memorizing only the desired stations ............. 8
Receiving the memorized stations ................... 8
RDS (XR-5890R/5880R only)
Overview of the RDS function .......................... 9
Displaying the station name.............................. 9
Retuning the same programme automatically
— Alternative Frequencies (AF) ................ 10
Listening to traffic announcements ................ 12
Presetting the RDS stations with the AF
and TA data................................................... 12
Locating a station by programme type .......... 13
Setting the clock automatically ....................... 14
Other Functions
Labelling the rotary commander .................... 15
Using the rotary commander .......................... 15
Adjusting the sound characteristics ............... 17
Attenuating the sound ..................................... 17
Changing the sound and display settings ..... 17
Boosting the bass sound
— D-bass ....................................................... 18
Additional Information
Precautions......................................................... 18
Maintenance....................................................... 19
Dismounting the unit ....................................... 20
Specifications ..................................................... 21
Troubleshooting guide ..................................... 22
Welcome !
Thank you for purchasing this Sony Cassette
Player. This unit lets you enjoy a variety of
features as well as an optional rotary
commander.

3

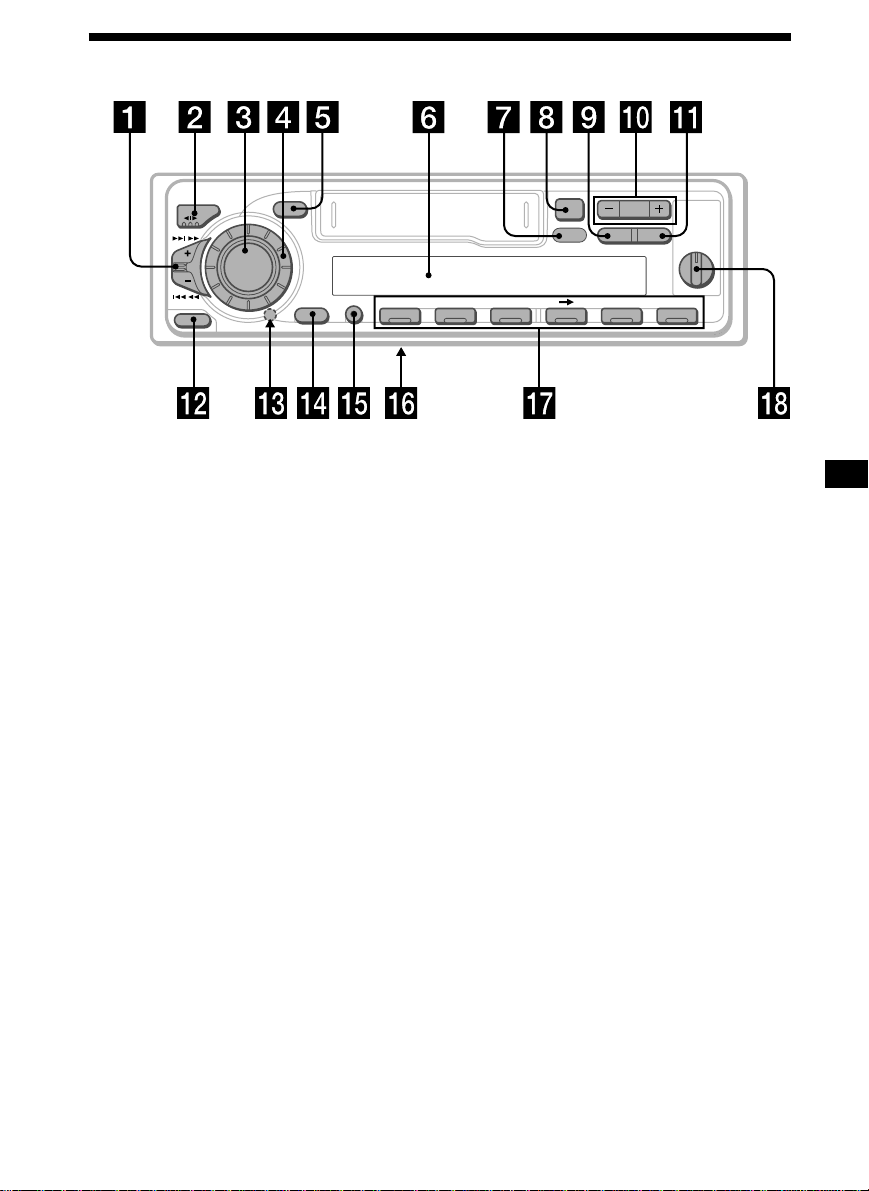

Location of controls
Refer to the pages listed for details.
1SEEK/AMS (seek/Automatic Music
Sensor/manualsearch)control
6, 8, 11, 14
2MODE (*) button
Duringtapeplayback:
Playbackdirectionchange 6
During radio reception:
BAND select 7, 8
3SOURCE (TAPE/TUNER) button 6, 7, 8,
12
4Dial(volume/bass/treble/left-right/rear-
front control) 5, 17
5SOUND button 17
6Display window
7DSPL (display mode change) button
6, 9, 10
86(eject) button 6
9PTYbutton *
RDS Programme 14
!º PRST button
During radio reception:
Presetstationsselect 8
!¡ AF/TA button*10, 11, 12, 13
!™ RELEASE(frontpanelrelease)button
4, 20
!£ Reset button (located on the front side
of the unit behind the front panel) 4
!¢ OFF button 4, 6
!∞ SHIFTbutton
PLAY MODE 7, 8, 11, 13
SET UP 5, 14, 17
!§ POWERSELECTswitch
(located on the bottom of the unit)
See “POWER SELECT switch” in the
Installation/Connections manual.
!¶ Number buttons 8, 11, 13
!• D-BASScontrol 18
*XR-5890R/5880R only
D-BASS
AF/TAPTYDSPL
PRST
6
OFF 123
SOURCE
MODE
SEEK / AMS
RELEASE
SOUND
OFF SHIFT SET UP
PLAY MODE
564321
+
–
XR-5890R/5880R

4
Attaching the front panel
Attach part aof the front panel to part bof
the unit as illustrated and push the left side
into position until it clicks.
Notes
• Be sure not to attach the front panel upside
down.
•Do not press the front panel too hard against the
unit when attaching it.
•Do not press too hard or put excessive pressure
on the display window of the front panel.
•Do not expose the front panel to direct sunlight
or heat sources such as hot air ducts, and do not
leave it in a humid place. Never leave it on the
dashboard of a car parked in direct sunlight or
where there may be a considerable rise in
temperature.
Caution alarm
If you turn the ignition key switch to the OFF
position without removing the front panel, the
caution alarm will beep for a few seconds
(only when the POWER SELECT switch on the
bottom of the unit is set to the Aposition).
Getting Started
Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Remove the front panel and press the reset
button with a pointed object, such as a
ballpoint pen.
Note
Pressing the reset button will erase the clock
setting and some memorized functions.
Detaching the front panel

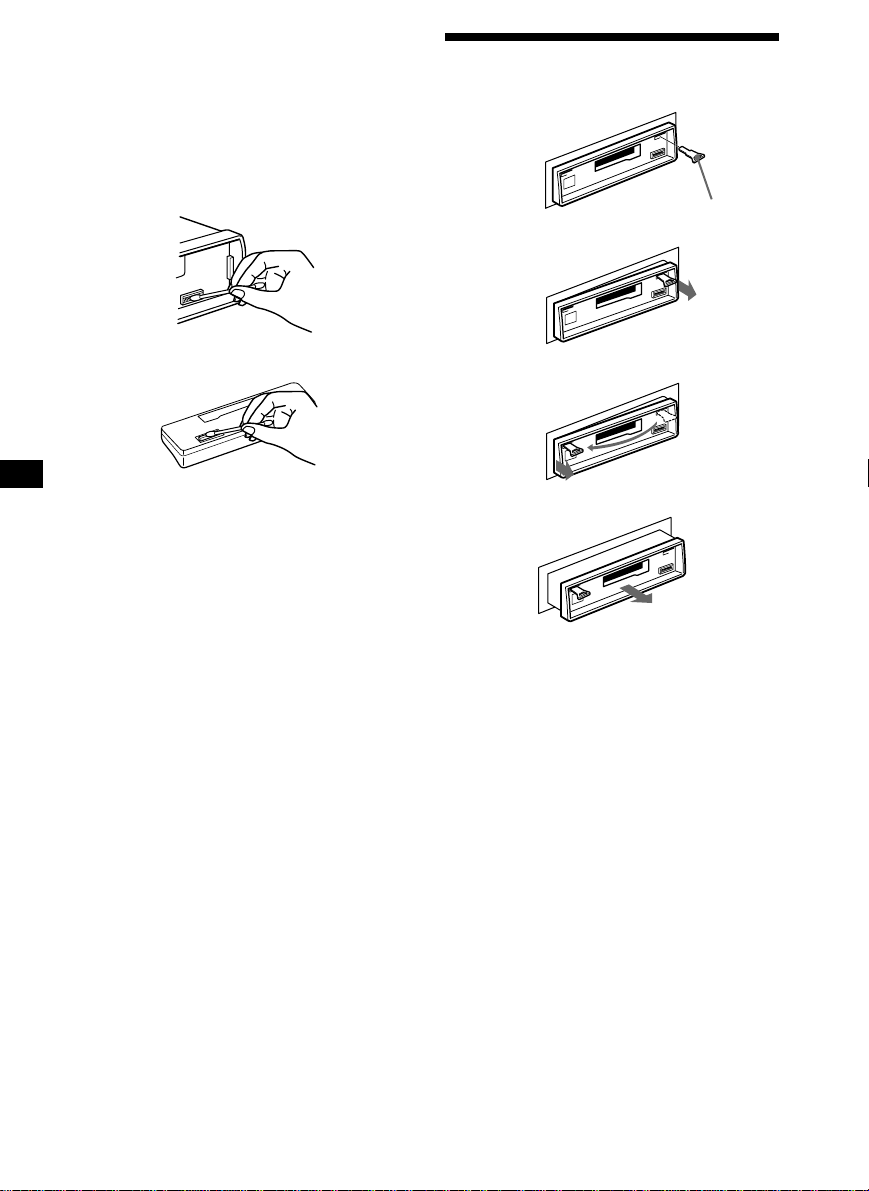

You can detach the front panel of this unit to
protect the unit from being stolen.
1Press (OFF).
2Press (RELEASE),thenslidethefront
panelalittletotheleft,andpullitoff
towards you.
Notes
• Be sure not to drop the panel when detaching it
from the unit.
•If you detach the panel while the unit is still
turned on, the power will turn off automatically
to prevent the speakers from being damaged.
•When carrying the front panel with you, use the
supplied front panel case.
Reset button
(OFF)
(RELEASE)
a
b

5
Setting the clock
The clock uses a 24-hour digital indication.
Example: To set the clock to 10:08
1Press (SHIFT),thenpress(2) (SETUP)
repeatedlyuntil“CLOCK”appears.
1Press (4) (n).
The hour indication flashes.
2Set the hour.
3Press (4) (n).
The minute indication flashes.
4Set the minute.
to go forward
to go backward
to go forward
to go backward
2Press (SHIFT).
The clock starts.
3Press (SHIFT).
After the clock setting is complete, the
display returns to normal playback mode.
Note
If the POWER SELECT switch on the bottom of the
unit is set to the Bposition, turn the power on
first, then set the clock.

6
Cassette Player
Listening to a tape

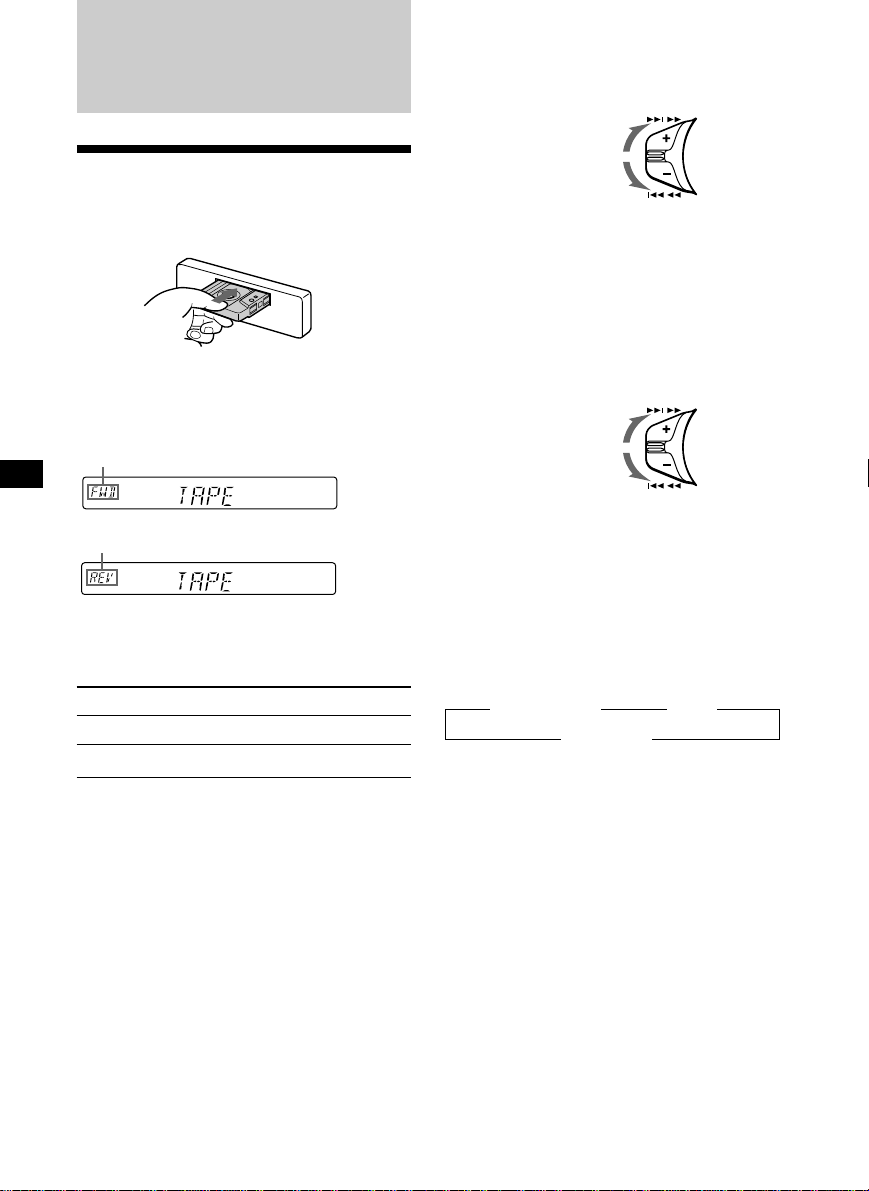

Insertacassette.
Playback starts automatically.
If a cassette is already inserted, press
(SOURCE) repeatedly until “FWD” or “REV”
appears to start playback.
The side facing up is played.
The side facing down is played.
Tip
To change the tape‘s playback direction, press
(MODE) (*).
To Press
Stop playback (OFF)
Eject the cassette 6
Fast-winding the tape
During playback, push the SEEK/AMS
control up or down and hold.
To start playback during fast-forwarding or
rewinding, press (MODE) (*).
Locating a specific track
— Automatic Music Sensor (AMS)
During playback, push the SEEK/AMS
control up or down and release for each
track you want to skip.
You can skip up to nine tracks at one time.
Note
The AMS function may not work when:
— the blanks between tracks are shorter than
four seconds
— there is noise between tracks
— there are long sections of low volume or quiet
sections.
Changing the display item
Each time you press (DSPL), the item changes
as follows:
zTape playback zClock
Frequency*Z
*While either of the following functions are
activated.
— ATA function
— AF/TA function (XR-5890R/5880R)
After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.
Tip
The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 17).
To locate
preceding tracks
To locate
succeeding tracks
Rewind
Fast-forward
SEEK / AMS
SEEK / AMS

7
Playing a tape in various
modes
You can play the tape in various modes:
•REP (Repeat Play) repeats the current track.
•METAL (Metal)*lets you play a metal or
CrO2tape.
•BL SKP (Blank Skip) skips blanks longer than
eight seconds.
•ATA (Automatic Tuner Activation) turns on
the tuner automatically when fast-winding
the tape.

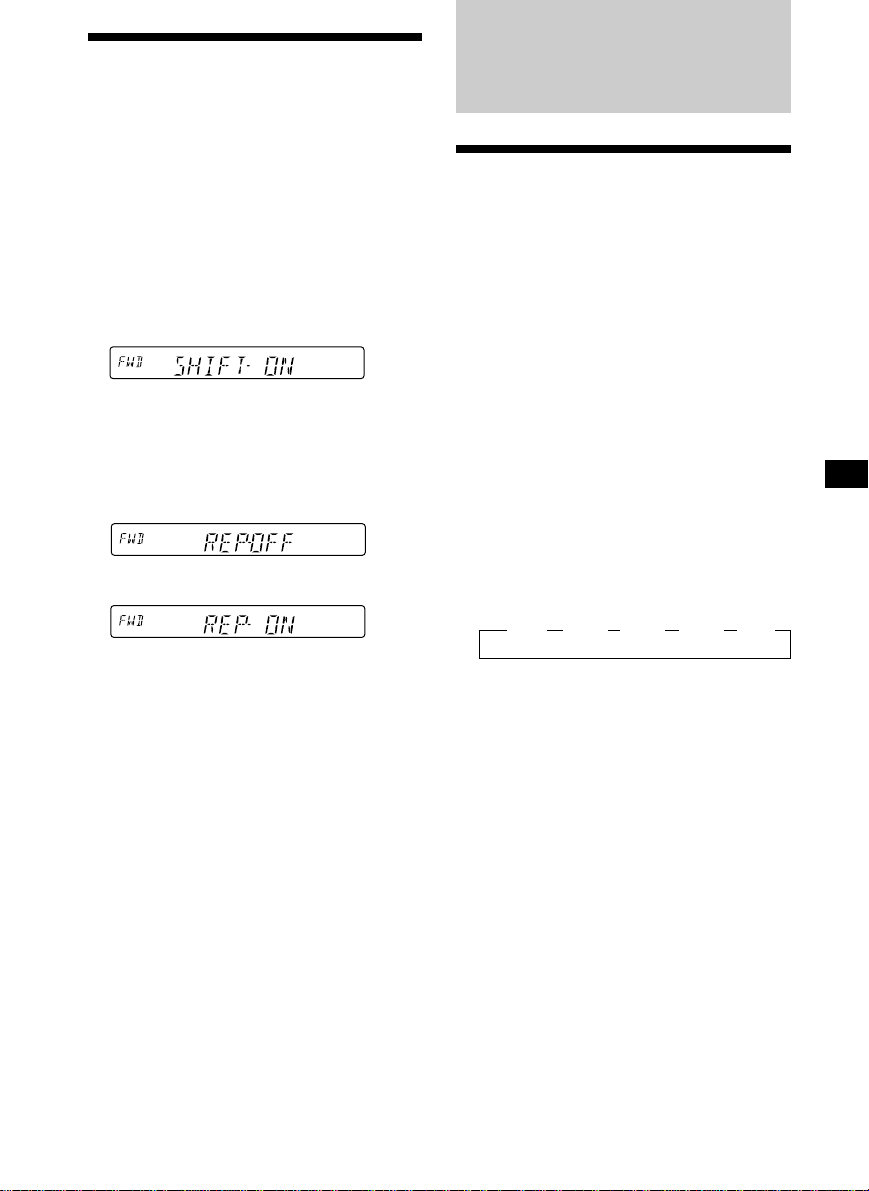

1Duringplayback,press (SHIFT).
“SHIFT-ON” appears in the display.
2Press (3) (PLAYMODE)repeatedlyuntil
the desired play mode appears.
Each time you press (3) (PLAY MODE),
the item changes as follows:
REP nMETAL*nBL SKP nATA
*XR-5890R/4890 only
3Press (4) (n)toselect“ON.”
Play mode starts.
4Press (SHIFT).
To return to normal playback mode, select
“OFF” in step 3 above.
Note
If the “SFT” indication appears, press (SHIFT) to
complete the mode setting.
Radio
Memorizing stations
automatically
— Best Tuning Memory (BTM)
The unit selects the stations with the strongest
signals and memorizes them in the order of
their frequencies. You can store up to 6 stations
on each band (FM1, FM2, FM3, MW, and LW).
Caution
When tuning in stations while driving, use
Best Tuning Memory to prevent accidents.
1Press (SOURCE) repeatedlytoselectthe
tuner.
Each time you press (SOURCE), the source
changes as follows:
TUNER ˜TAPE
2Press (MODE) repeatedlytoselectthe
band.
Each time you press (MODE), the band
changes as follows:
zFM1 zFM2 zFM3 zMW zLW
3Press (SHIFT),thenpress(3) (PLAY
MODE)repeatedlyuntil“B.T.M”appears.
4Press (4) (n).
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.
5Press (SHIFT).
Notes
•The unit does not store stations with weak
signals. If only a few stations can be received,
some number buttons will retain their former
setting.
•When a number is indicated in the display, the
unit starts storing stations from the one currently
displayed.

8
Memorizing only the
desired stations
You can preset up to 18 FM stations (6 each for
FM1, 2, and 3), up to 6 MW stations, and up to
6 LW stations in the order of your choice.
1Press (SOURCE) repeatedlytoselectthe
tuner.
2Press (MODE) repeatedlytoselectthe
band.
3Push the SEEK/AMS control up or down
to tune in the station that you want to
store on the number button.
4Press and hold the desired number
button((1) to(6))until“MEM”appears.
The number button indication appears in
the display.
Note
If you try to store another station on the same
number button, the previously stored station will
be erased.
Receiving the memorized
stations
1Press (SOURCE) repeatedlytoselectthe
tuner.
2Press (MODE) repeatedlytoselectthe
band.
3Press the number button ((1) to (6)) on
which the desired station is stored.
Tip
Press either side of (PRST) to receive the stations
in the order they are stored in the memory (Preset
Search Function).
If you cannot tune in a preset
station
PushandreleasetheSEEK/AMScontrol
up or down to search for the station
(automatic tuning).
Scanning stops when the unit receives a
station. Push the SEEK/AMS control up or
down repeatedly until the desired station is
received.
Note
If the automatic tuning stops too frequently, press
(SHIFT), then press (3) (PLAY MODE) repeatedly
until “LOCAL” (local seek mode) is displayed. Then
press (4) (n) to select “LOCAL-ON.” Press (SHIFT).
Only the stations with relatively strong signals will
be tuned in.
Tip
If you know the frequency of the station you want
to listen to, push the SEEK/AMS control up or
down and hold until the desired frequency
appears (manual tuning).
If FM stereo reception is poor
— Monaural Mode
1During radio reception, press (SHIFT),
thenpress (3) (PLAY MODE)repeatedly
until“MONO”appears.
2Press (4) (n)repeatedlyuntil“MONO-
ON“appears.
The sound improves, but becomes
monaural (“ST” disappears).
3Press (SHIFT).
To return to normal mode, select “MONO-
OFF” in step 2 above.

9
Changing the display item
Each time you press (DSPL), the item changes
as follows:
Frequency (Station Name)*˜Clock
*When you tune in an FM station that transmits
RDS data, the station name appears (XR-5890R/
5880R only).
After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.
Tip
The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 17).
RDS (XR-5890R/5880R only)
Overview of the RDS
function
Radio Data System (RDS) is a broadcasting
service that allows FM stations to send
additional digital information along with the
regular radio programme signal. Your car
stereo offers you a variety of services. Here are
just a few: retuning the same programme
automatically, listening to traffic
announcements, and locating a station by
programme type.
Notes
• Depending on the country or region, not all of
the RDS functions are available.
• RDS may not work properly if the signal strength
is weak or if the station you are tuned to is not
transmitting RDS data.
Displaying the station
name
The name of the current station lights up in the
display.
Select an FM station (page 7).
When you tune in an FM station that
transmits RDS data, the station name
appears in the display.
Note
The “*” indication means that an RDS station is
being received.

10
Retuning the same
programme automatically
— Alternative Frequencies (AF)
The Alternative Frequencies (AF) function
automatically selects and retunes the station
with the strongest signal in a network. By
using this function, you can continuously
listen to the same programme during a long-
distance drive without having to retune the
station manually.
1Select an FM station (page 7).
2Press (AF/TA) repeatedlyuntil“AF-ON”
appears.
The unit starts searching for an alternative
station with a stronger signal in the same
network.
Note
When there is no alternative station in the area
and you do not need to search for an alternative
station, turn the AF function off by pressing
(AF/TA) repeatedly until “AF TA-OFF” appears.

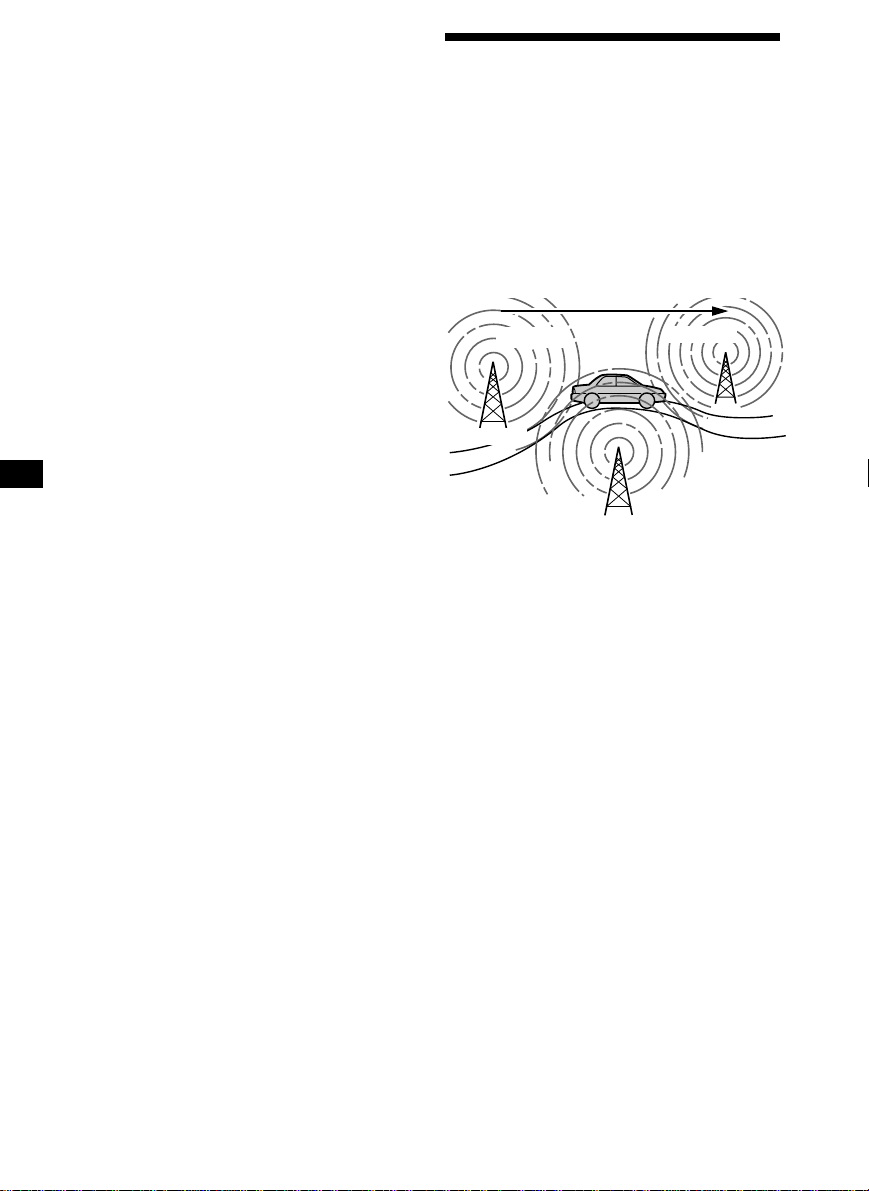

102.5MHz
96.0MHz
98.5MHz
Frequencies change automatically.
Station
Changing the display item
Each time you press (DSPL), the item changes
as follows:
Station Name (Frequency) ˜Clock
After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.
Tip
The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 17).
Note
“NO NAME” appears if the received station does
not transmit RDS data (XR-5890R/5880R only).

11
Changing the display item
Each time you press (AF/TA), the item changes
as follows:
” TA-ON ”AF TA-ON*
AF-ON “AF TA-OFF “
*Select this to turn on both the AF and TA
functions.
Notes
• When “NO AF” and the station name flash
alternately, it means that the unit cannot find an
alternative station in the network.
• If the station name starts flashing after selecting
a station with the AF function on, this indicates
that no alternative frequency is available. Push
the SEEK/AMS control up or down while the
station name is flashing (within eight seconds).
The unit starts searching for another frequency
with the same PI (Programme Identification) data
(“PI SEEK” appears and no sound is heard). If the
unit cannot find another frequency, “NO PI”
appears, and the unit returns to the previously
selected frequency.
Listening to a regional programme
The “REG-ON” (regional on) function lets you
stay tuned to a regional programme without
being switched to another regional station.
(Note that you must turn the AF function on.)
The unit is factory preset to “REG-ON,” but if
you want to turn off the function, do the
following.
1During radio reception, press (SHIFT),
thenpress (3) (PLAY MODE)repeatedly
until“REG”appears.
2Press (4) (n)repeatedlyuntil“REG-OFF”
appears.
3Press (SHIFT).
Note that selecting “REG-OFF” might cause
the unit to switch to another regional
station within the same network.
To return to regional on, select “REG-ON” in
step 2 above.
Note
This function does not work in the United
Kingdom and in some other areas.
Local link function (United
Kingdom only)
The Local Link function lets you select other
local stations in the area, even if they are not
stored on your number buttons.
1Pressanumberbuttonthathasalocal
station stored on it.
2Within five seconds, press the number
buttonofthelocalstationagain.
3Repeat this procedure until the desired
localstationisreceived.

12
Presetting the volume of traffic
announcements
You can preset the volume level of the traffic
announcements beforehand so you won’t
miss the announcement. When a traffic
announcement starts, the volume will be
automatically adjusted to the preset level.
1Select the desired volume level.
2Press (AF/TA) fortwoseconds.
”TA“ appears and the setting is stored.
Receiving emergency
announcements
If an emergency announcement comes in while
you are listening to the radio, the programme
will automatically switch to it. If you are
listening to a source other than the radio, the
emergency announcements will be heard if
you set AF or TA to on. The unit will then
automatically switch to these announcements
no matter which source you are listening to at
the time.
Presetting the RDS
stations with the AF and
TA data
When you preset RDS stations, the unit stores
each station’s data as well as its frequency, so
you don’t have to turn on the AF or TA
function every time you tune in the preset
station. You can select a different setting (AF,
TA, or both) for individual preset stations, or
the same setting for all preset stations.
Listening to traffic
announcements
The Traffic Announcement (TA) and Traffic
Programme (TP) data let you automatically
tune in an FM station that is broadcasting
traffic announcements even if you are listening
to other programme sources.
Press (AF/TA) repeatedlyuntil“TA-ON”
or“AFTA-ON”appears.
The unit starts searching for traffic
information stations. “TP” appears in the
display when the unit finds a station
broadcasting traffic announcements.
When the traffic announcement starts,
“TA” flashes. The flashing stops when the
traffic announcement is over.
Tip
If the traffic announcement starts while you are
listening to another programme source, the unit
automatically switches to the announcement and
goes back to the original source when the
announcement is over.
Notes
•
“NO TP” flashes for five seconds if the received
station does not broadcast traffic announcements.
Then, the unit starts searching for a station that
broadcasts it.
• When “EON” appears with “TP” in the display,
the current station makes use of broadcast traffic
announcements by other stations in the same
network.
To cancel the current traffic
announcement
Press (AF/TA) or(SOURCE).
To cancel all traffic announcements, turn off
the function by pressing (AF/TA) until “AF
TA-OFF” appears.

13
Presetting the same setting for all
preset stations
1Select an FM band (page 7).
2Press (AF/TA) repeatedlytoselecteither
“AF-ON,”“TA-ON”or“AFTA-ON”(for
both AF and TA functions).
Note that selecting “AF TA-OFF” stores not
only RDS stations, but also non-RDS
stations.
3Press (SHIFT),thenpress(3) (PLAY
MODE)repeatedlyuntil“B.T.M”appears.
4Press (4) (n)until“B.T.M”flashes.
5Press (SHIFT).
Presetting different settings for
each preset station
1Select an FM band, and tune in the
desiredstation.
2Press (AF/TA) repeatedlytoselecteither
“AF-ON,”“TA-ON”or“AFTA-ON”(for
both AF and TA functions).
3Press the desired number button and
holduntil“MEM”appears.
Repeat from step 1 to preset other stations.
Tip
If you want to change the preset AF and/or TA
setting after you tune in the preset station, you
can do so by turning the AF or TA function on or
off.
Locating a station by
programme type
You can locate the station you want by
selecting one of the programme types shown
below.
Programme types Display
News NEWS
Current Affairs AFFAIRS
Information INFO
Sports SPORT
Education EDUCATE
Drama DRAMA
Culture CULTURE
Science SCIENCE
Varied VARIED
Popular Music POP M
Rock Music ROCK M
Easy Listening EASY M
Light Classical LIGHT M
Classical CLASSICS
Other Music Type OTHER M
Weather WEATHER
Finance FINANCE
Children’s Programmes CHILDREN
Social Affairs SOCIAL A
Religion RELIGION
Phone In PHONE IN
Travel TRAVEL
Leisure LEISURE
Jazz Music JAZZ
Country Music COUNTRY
National Music NATION M
Oldies Music OLDIES
Folk Music FOLK M
Documentary DOCUMENT
Not specified NONE
Note
You cannot use this function in some countries
where no PTY (Programme Type selection) data is
available.
continue to next page n

14
Setting the clock
automatically
The CT (Clock Time) data from the RDS
transmission sets the clock automatically.
1During radio reception, press (SHIFT),
thenpress (2) (SETUP)repeatedlyuntil
“CT”appears.
2Press (4) (n)repeatedlyuntil“CT-ON”
appears.
The clock is set.
3Press (SHIFT) to return to the normal
display.
To cancel the CT function
Select“CT-OFF”instep2above.
Notes
• The CT function may not work even though an
RDS station is being received.
• There might be a difference between the time
set by the CT function and the actual time.
1Press (PTY) duringFMreceptionuntil
“PTY”appears.
The current programme type name appears
if the station is transmitting the PTY data.
“- - - - -” appears if the received station is
not an RDS station, or if the RDS data has
not been received.
2Press (PTY) repeatedlyuntilthedesired
programme type appears.
The programme types appear in the order
shown in the above table. Note that you
cannot select “NONE” (Not specified) for
searching.
3Push the SEEK/AMS control up or down.
The unit starts searching for a station
broadcasting the selected programme type.
When the unit finds the programme, the
programme type appears again for five
seconds.
“NO” and the programme type appear
alternately for five seconds if the unit
cannot find the programme type. It then
returns to the previously selected station.

15
Other Functions
You can also control this unit with an optional
rotary commander.
Labelling the rotary
commander
Depending on how you mount the rotary
commander, attach the appropriate label as
shown in the illustration below.
SOUND
DSPL
MODE
SOUND
DSPL
MODE
Using the rotary
commander
The rotary commander works by pressing
buttons and/or rotating controls.
By pressing buttons
(the SOURCE and MODE buttons)
Eachtimeyoupress (SOURCE),the
sourcechangesasfollows:
TUNER ˜TAPE
Pressing (MODE)changestheoperation
inthefollowingways;
• Tape : playback direction
• Tuner : FM1 nFM2 nFM3 nMW nLW
Tip
When the POWER SELECT switch is set to position
B, you can turn on this unit by pressing (SOURCE)
on the rotary commander.
(SOURCE)
(MODE)

16
Changing the operative direction
The operative direction of controls is factory-
set as shown below.
If you need to mount the rotary commander on
the right hand side of the steering column, you
can reverse the operative direction.
Press (SOUND)fortwosecondswhile
pushingtheVOLcontrol.
Tip
You can also change the operative direction of
these controls with the unit (see “Changing the
sound and display settings” on page 17).
Press (DSPL) to change
the displayed items.
Press (SOUND) to
adjust the volume
and sound menu.
To decrease
To increase
OFF
By rotating the control
(the SEEK/AMS control)
Rotatethecontrolandreleaseitto:
•Locate the beginnings of tracks on the
tape. Rotate and hold the control, and
release it to fast-wind the tape. To start
playback while fast-winding the tape,
press (MODE).
•Tune in stations automatically. Rotate and
hold the control to find a specific station.
By pushing in and rotating the
control (the PRESET/DISC control)
Pushinandrotatethecontrolto:
Receive the stations memorized on the
number buttons.
Other operations
Rotate the VOL control to
adjust the volume. Press (ATT) to
attenuate the
sound.
Press (OFF) to turn
off the unit.

17
Adjusting the sound
characteristics
You can adjust the bass, treble, balance, and
fader.
You can store the bass and treble levels
independently for each source.
1Selecttheitemyouwanttoadjustby
pressing (SOUND)repeatedly.
VOL (volume) nBAS (bass) n
TRE (treble) nBAL (left-right) n
FAD (front-rear)
2Adjusttheselecteditembyrotatingthe
dial.
Adjust within three seconds after selecting
the item. (After three seconds, the dial
function reverts to volume control.)
Attenuating the sound
Press (ATT)ontheoptionalrotary
commander.
“ATT-ON” flashes momentarily.
To restore the previous volume level, press
(ATT) again.
Tip
The unit decreases the volume automatically when
a telephone call comes in (Telephone ATT
function) (XR-5890R/4890 only).
Changing the sound and
display settings
The following items can be set:
•CLOCK (page 5).
•CT (Clock Time)*(page 14).
•AMBER/GREEN – to change the
illumination colour to amber or green.
•BEEP – to turn the beep sound on or off.
•RM (Rotary Commander) – to change the
operative direction of the rotary commander.
— Select “NORM” to use the rotary
commander as the factory-set position.
— Select “REV” when you mount the rotary
commander on the right side of the
steering column.
•M.DSPL – to turn the motion display on or
off.
1Press (SHIFT).
2Press (2)(SETUP)repeatedlyuntilthe
desireditemappears.
Each time you press (2) (SET UP), the item
changes as follows:
CLOCK nCT*nAMBER/GREEN nBEEP
nRM nM.DSPL
*XR-5890R/5880R only.
Note
The displayed item will differ depending on
the source.
3Press (4) ( n)toselectthedesired
setting(Example:ONorOFF).
4Press (SHIFT).
After the mode setting is complete, the
display returns to normal playback mode.
Note
If the “SFT” indication appears, press (SHIFT) to
complete the mode setting.

18
Additional
Information
Precautions
•If your car was parked in direct sunlight
resulting in a considerable rise in
temperature inside the car, allow the unit to
cool off before operating it.
•If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
•If no sound comes from the speakers of a
two-speaker system, set the fader control to
the centre position.
•When the tape is played back for a long
period, the cassette may become warm
because of the built-in power amplifier.
However, this is not a sign of malfunction.
If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.
To maintain high quality sound
If you have drink holders near your audio
equipment, be careful not to splash juice or
other soft drinks onto the car audio. Sugary
residues on this unit or cassette tapes may
contaminate the playback heads, reduce the
sound quality, or prevent sound reproduction
altogether.
Cassette cleaning kits cannot remove sugar
from the tape heads.
Boosting the bass sound
— D-bass
You can enjoy a clear and powerful bass
sound. The D-bass function boosts the low
frequency signal with a sharper curve than
conventional bass boost.
You can hear the bass line more clearly even
while the vocal volume remains the same. You
can emphasize and adjust the bass sound
easily with the D-BASS control.
Adjustingthebasscurve
TurntheD-BASScontroltoadjustthe
basslevel(1,2,or3).
“D-BASS” appears in the display.
To cancel, turn the control to OFF.
Note
If the bass sound becomes distorted, adjust the
D-BASS control or volume.
Level
Frequency (Hz)
0dB
D-BASS 3
D-BASS 2
D-BASS 1

19
Notes on Cassettes
Cassettecare
•Do not touch the tape surface of a cassette, as
any dirt or dust will contaminate the heads.
•Keep cassettes away from equipment with
built-in magnets such as speakers and
amplifiers, as erasure or distortion on the
recorded tape could occur.
•Do not expose cassettes to direct sunlight,
extremely cold temperatures, or moisture.
•Slack in the tape may cause the tape to be
caught in the machine. Before you insert the
tape, use a pencil or similar object to turn the
reel and take up any slack.
•Distorted cassettes and loose labels can cause
problems when inserting or ejecting tapes.
Remove or replace loose labels.
•The sound may become distorted while
playing the cassette. The cassette player head
should be cleaned after each 50 hours of use.
Cassetteslongerthan90minutes
The use of cassettes longer than 90 minutes is
not recommended except for long continuous
play. The tape used for these cassettes is very
thin and tends to stretch easily. Frequent
playing and stopping of these tapes may cause
them to become entangled in the cassette deck
mechanism.
Slack
Maintenance
Fuse replacement
When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the
power connection and replace the fuse. If the
fuse blows again after replacement, there may
be an internal malfunction. In such a case,
consult your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.
Fuse (10 A)
Fuse (10 A)
XR-5890R/5880R:
XR-4890/4880:

20
Cleaning the connectors
The unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
open the front panel by pressing (RELEASE),
then detach it and clean the connectors with a
cotton swab dipped in alcohol. Do not apply
too much force. Otherwise, the connectors may
be damaged.
Main unit
Back of the front panel
Notes
•For safety, turn off the engine before cleaning
the connectors and remove the key from the
ignition switch.
•Never touch the connectors directly with your
fingers or any metal device.
Release key (supplied)
Dismounting the unit
1
2
3
4
