Sony XR-C7220R User manual

Operating Instructions
Manual de instrucciones
Bruksanvisning
Manual de instruções
1999 by Sony Corporation
GB
ES
PT
SE
FM/MW/LW
Cassette
Car Stereo
XR-C8220R
XR-C7220R
For installation and connections, see the supplied installation/connections
manual.
Para obtener información sobre la instalación y las conexiones, consulte el manual
de instalación/conexiones suministrado.
Vi hänvisar till det medföljande häftet angående montering/anslutningar.
Para a instalação e as ligações, consulte o manual de instalação/ligações
fornecido.
XR-C8220R/C7220R

2
Welcome !
Thank you for purchasing this Sony Cassette
Player. This unit lets you enjoy a variety of
features as well as a supplied rotary
commander or an optional wireless remote.
In addition to the cassette playback and radio
operations, you can expand your system by
connecting an optional CD/MD unit*1.
When you connect an optional CD unit with
the CD TEXT function, the CD TEXT
information will appear in the display when
you play a CD TEXT disc*2.
*1You can connect a CD changer, an MD changer,
a CD player, or an MD player.
*2A CD TEXT disc is an audio CD that includes
information such as the disc name, artist name,
and track names.
This information is recorded on the disc.
Voice guide for safe driving
(XR-C8220R only)
This unit has a voice guide function*. When
the voice guide function is on, the unit gives
vocalized comments on functions
corresponding to the relevant button pushed.
These comments can be vocalized in either
English or Spanish.
*Some optional power amplifiers may cause a
break at the beginning of vocalized comments.
When you connect an optional MD changer, the
sound from the first MD may continue for a short
time even after the vocalized comments about
the second MD are announced.

3
Table of Contents
This Unit Only With Optional Equipment
Location of controls ................................................. 4
Getting Started
Resetting the unit ................................................ 6
Detaching the front panel .................................. 6
Setting the clock .................................................. 7
Cassette Player
Listening to a tape ............................................... 8
Playing a tape in various modes ....................... 9
Radio
Memorizing stations automatically
— Best Tuning Memory (BTM) ................. 10
Memorizing only the desired stations ........... 11
Receiving the memorized stations.................. 11
RDS
Overview of the RDS function ........................ 12
Displaying the station name ............................ 12
Retuning to the same programme
automatically
— Alternative Frequencies (AF) ................ 12
Listening to traffic announcements ................ 14
Presetting the RDS stations with
the AF and TA data ..................................... 15
Recording the traffic announcements
(XR-C8220R only)
—Traffic Information Replay (TIR) ........... 15
Locating a station by programme type .......... 17
Setting the clock automatically ....................... 18
Other Functions
Labelling the rotary commander .................... 18
Using the rotary commander .......................... 19
Adjusting the sound characteristics ............... 20
Attenuating the sound ..................................... 20
Changing the sound and display settings ..... 21
Adjusting the frequency of the subwoofer(s)
(XR-C8220R only) ........................................ 21
Adjusting the sound and frequency of the
equalizer preamplifier
(XR-C8220R only) ........................................ 22
Changing the line output level
(XR-C8220R only) ........................................ 22
CD/MD Unit
Playing a CD or MD ......................................... 23
Playing tracks repeatedly
— Repeat Play .............................................. 24
Playing tracks in random order
— Shuffle Play .............................................. 24
Creating a programme (XR-C8220R only)
— Programme Memory .............................. 25
Labelling a CD
— Disc Memo ............................................... 27
Locating a disc by name
— List-up ...................................................... 29
Selecting specific tracks for playback
— Bank .......................................................... 29
Additional Information
Precautions ......................................................... 30
Maintenance....................................................... 31
Dismounting the unit ....................................... 32
Specifications ..................................................... 33
Troubleshooting guide ..................................... 34

4
S
E
E
K
/
A
M
S
MODE
OFF
SOUND
DSPL PTY
LIST
OPEN
AF/TA
SOURCE
SHIFT
12345678910
TIR
XR-C8220R

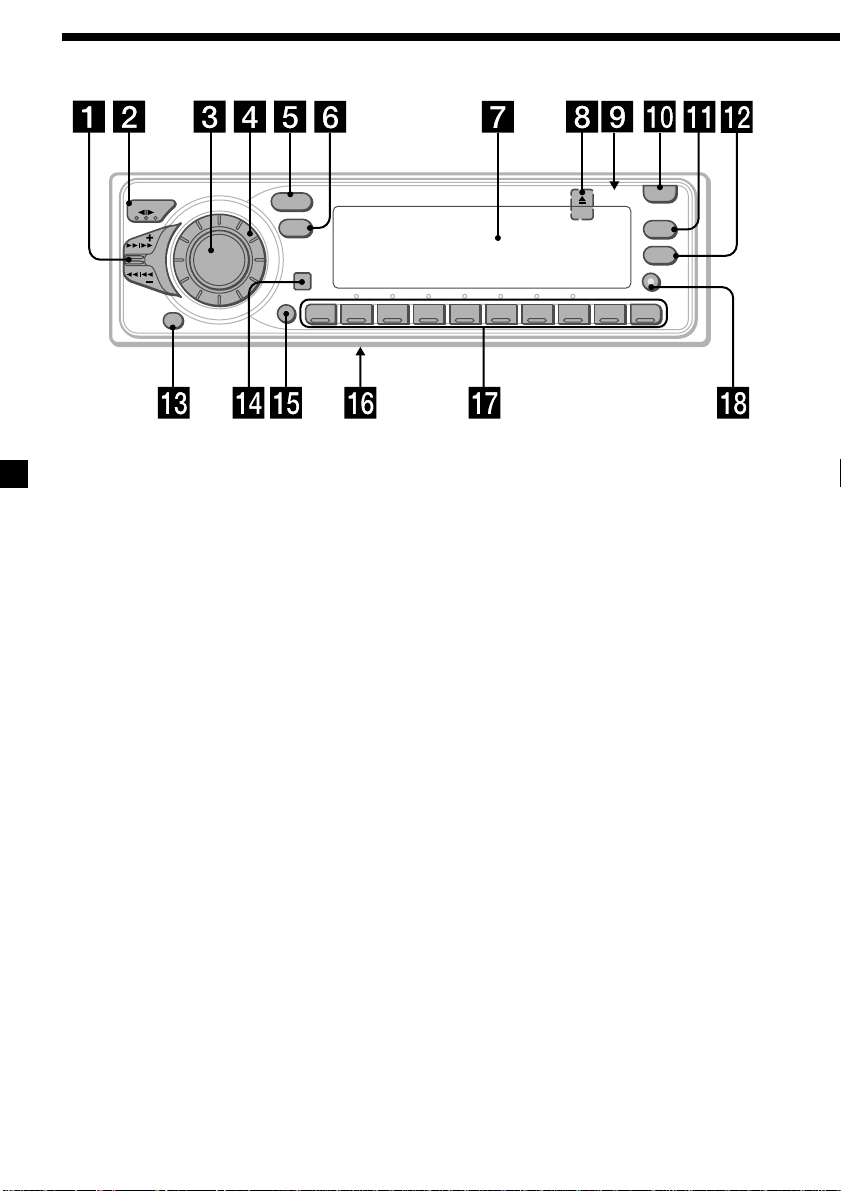

Location of controls
Refer to the listed pages for details.
1SEEK/AMS (seek/Automatic Music
Sensor/manual search) control
9, 11, 13, 16, 17, 24, 25, 26, 29
2MODE (*)button
During tape reception:
Playback direction change 8, 9
During radio reception:
BAND select 10, 11
During CD or MD playback:
CD/MD Unit select 23, 25, 28
3SOURCE (TAPE/TUNER/CD/MD) button
8, 10, 11, 14, 21, 23, 25, 28
4Dial (volume/equalizer curve*/listening
position*/subwoofer volume*/cut-off
frequency*/bass/treble/left-right/rear-
front control) 7, 15, 20, 27, 28
5SOUND button 20
6DSPL (display mode change) button
9, 11, 12, 23, 28, 29
7Display window
8 6(eject) button (located on the front
side of the unit behind the front panel) 8
9Reset button (located on the front side
of the unit behind the front panel) 6
!º OPEN button 6, 8, 32
!¡ PTY/LIST button
RDS Programme 17
Disc Memo 27, 28
List-up 29
!™ AF/TA button 12, 13, 14, 15
!£ OFF button 6, 8
!¢ Receptor for the optional wireless
remote
!∞ SHIFT button
PLAY MODE 9, 10, 11, 13, 15, 25, 26, 27,
29, 30
REP 10, 24
SET UP 7, 18, 21, 22, 23
SHUF 24
!§ POWER SELECT switch
(located on the bottom of the unit)
See “POWER SELECT switch” in the
Installation/Connections manual.
!¶ During radio reception:
Number buttons 11, 13, 15, 16
During CD or MD playback:
Direct disc selection buttons
24, 25, 26, 29
!• TIR button*15, 16
*XR-C8220R only

5

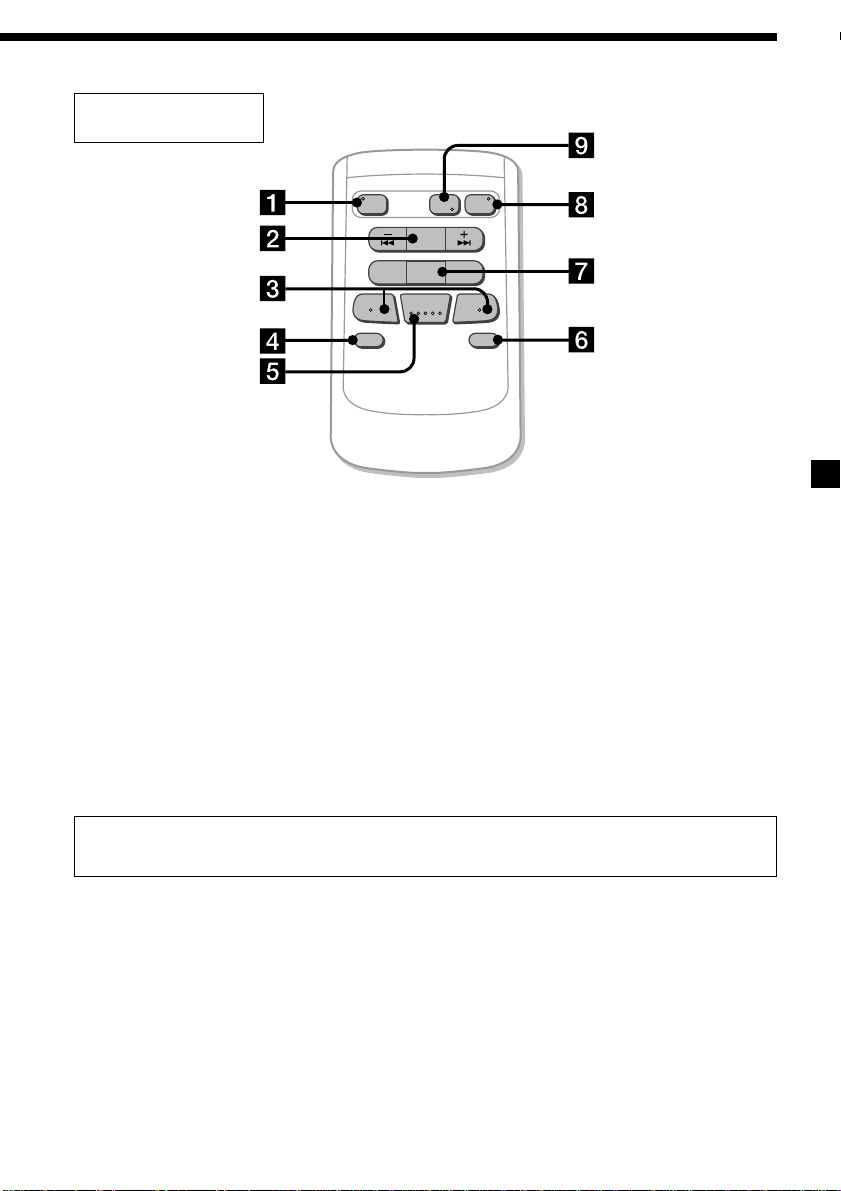

Optional wireless
remote (RM-X47)
The corresponding buttons of the
wireless remote control the same
functions as those on the unit.
1OFF button
2SEEK/AMS button
3(–) (+) buttons
4ATT button
5SOUND/SEL button
6DSPL button
7PRESET/DISC button
You cannot perform manual search and
manual tuning with the remote.
8SOURCE button
9MODE/DIR button
When the POWER SELECT switch is set to the Bposition, the unit cannot be operated with the
wireless remote unless (SOURCE) on the unit is pressed or a cassette is inserted to activate the
unit first.
OFF
SOURCE
DIR
SEL
+
FF
–
REW
SOUND
– +
ATT DSPL
SEEK
AMS
PRESET
DISC
MODE

6
Attaching the front panel
Place the hole aof the front panel onto the
spindle bon the unit as illustrated, then push
the left side in.
Notes
• Be sure not to attach the front panel upside
down.
•Do not press the front panel too hard against the
unit when attaching it.
•Do not press too hard or put excessive pressure
on the display window of the front panel.
•Do not expose the front panel to direct sunlight
or heat sources such as hot air ducts, and do not
leave it in a humid place. Never leave it on the
dashboard of a car parked in direct sunlight or
where there may be a considerable rise in
temperature.
Getting Started
Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Remove the front panel and press the reset
button with a pointed object, such as a
ballpoint pen.
Note
Pressing the reset button will erase the clock
setting and some memorized functions.
Detaching the front panel
You can detach the front panel of this unit to
protect the unit from being stolen.
1Press (OFF).
2Press (OPEN), then slide the front panel
to the right side, and pull out from the
left side.
Notes
• Be sure not to drop the panel when detaching it
from the unit.
•If you detach the panel while the unit is still
turned on, the power will turn off automatically
to prevent the speakers from being damaged.
•When you carry the front panel with you, use the
supplied front panel case.
Reset button
1
2
b
a
µ

7
Caution alarm
If you turn the ignition key switch to the OFF
position without removing the front panel, the
caution alarm will beep for a few seconds
(only when the POWER SELECT switch on the
bottom of the unit is set to the Aposition).
If you connect an optional power amplifier and
do not use the built-in amplifier, the beep
sound will be deactivated.
TIR indicator (XR-C8220R only)
If you pull out the ignition key while the TIR
function is on, the TIR indicator flashes a few
times. (only when the POWER SELECT switch
on the bottom of the unit is set to the A
position).
For more information on the TIR function,
refer to “Recording the traffic announcements”
(page 15).

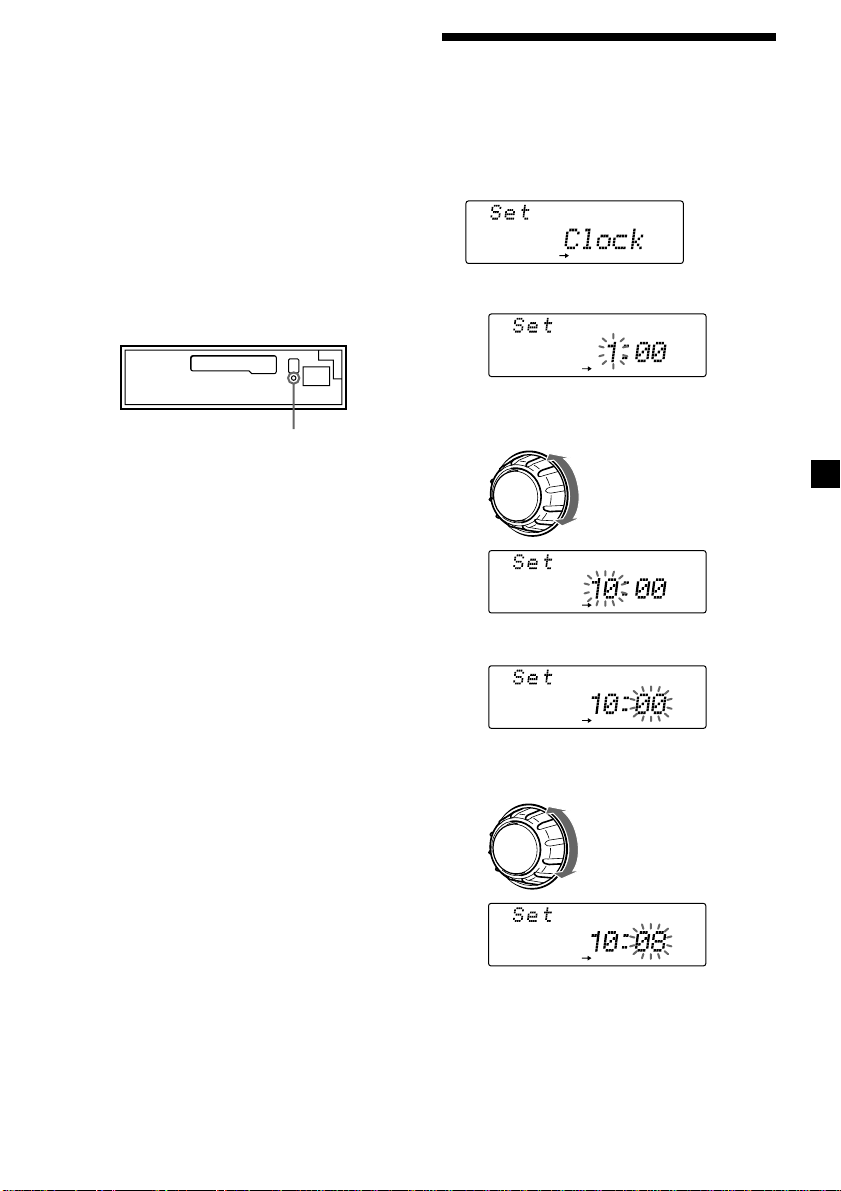

Setting the clock
The clock uses a 24-hour digital indication.
Example: To set the clock to 10:08
1Press (SHIFT), then press (3) (SET UP)
repeatedly until “Clock” appears.
1Press (5) (n).
The hour indication flashes.
2Set the hour.
3Press (5) (n).
The minute indication flashes.
4Set the minute.
continue to next page n
to go forward
to go backward
to go forward
to go backward
SET UP
SET UP
SET UP
SET UP
SET UP
TIR indicator

8
2Press (SHIFT).
The clock starts.
3Press (SHIFT).
After the clock setting is complete, the
display returns to normal playback mode.
Note
If the POWER SELECT switch on the bottom of the
unit is set to the Bposition, turn the power on
first, then set the clock.
6
Cassette Player
Listening to a tape
1Press (OPEN) and insert a cassette.
Playback starts automatically.
2Close the front panel.
If a cassette is already inserted, to start
playback, press (SOURCE) repeatedly until
“FWD” or “REV” appears.
The side facing up is played.
The side facing down is played.
Tips
• To change the tape’s playback direction, press
(MODE) (*).
• ”Metal” appears in the display when you insert a
metal or CrO2tape (Auto Metal function).
To Press
Stop playback (OFF)
Eject the cassette (OPEN) then 6
SET UP

9

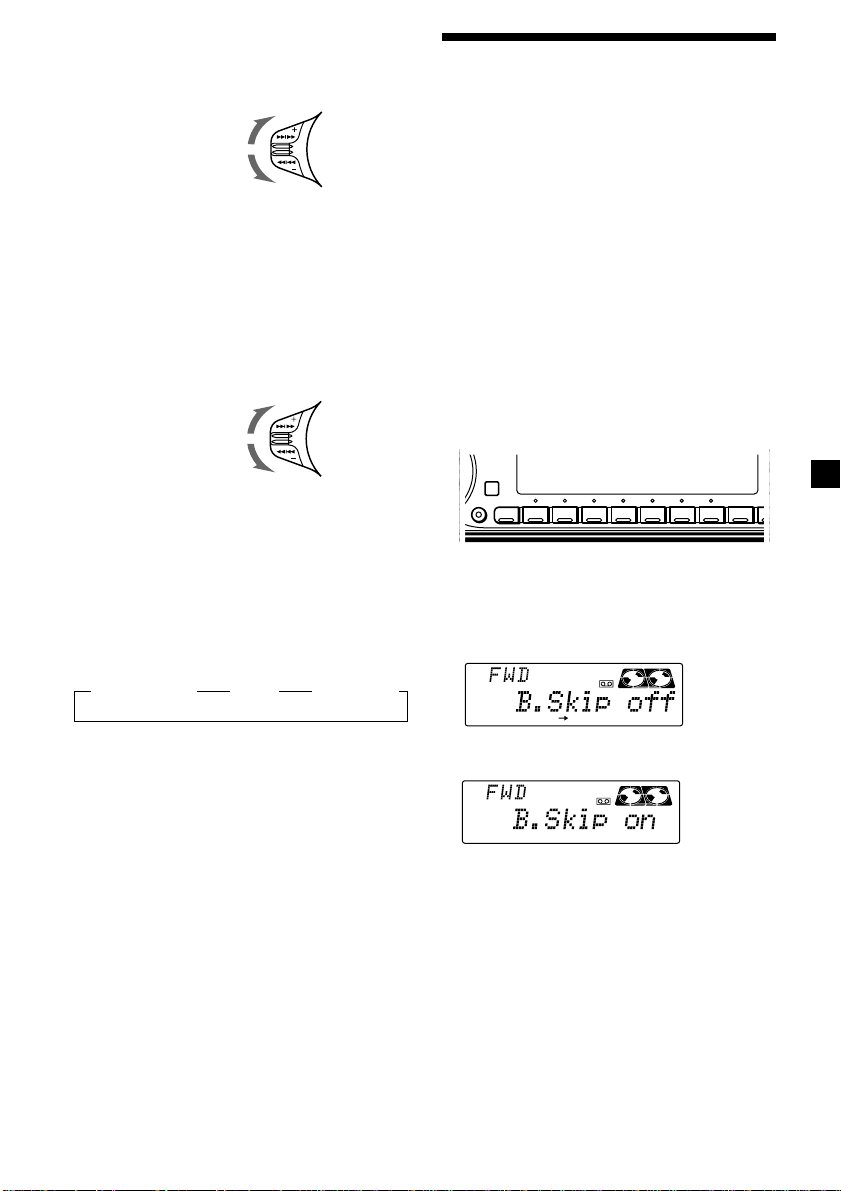

Fast-winding the tape
During playback, push the SEEK/AMS
control up or down and hold.
To start playback during fast-forwarding or
rewinding, press (MODE) (*).
Locating a specific track
— Automatic Music Sensor (AMS)
During playback, push the SEEK/AMS
control up or down and release, for each
track you want to skip.
You can skip up to nine tracks at one time.
Note
The AMS function may not work when:
— the blanks between tracks are shorter than
four seconds.
— there is noise between tracks.
— there are long sections of low volume or quiet
interludes.
Changing the display item
Each time you press (DSPL), the item changes
as follows:
zTape playback z Clock z Frequency*
*While either of the following functions are
activated.
— ATA function
— AF/TA function
After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.
Tip
The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 21.)
To locate
preceding tracks
To locate
succeeding tracks
Rewind
Fast-forward
Playing a tape in various
modes
You can play the tape in various modes:
•NR (Dolby NR) lets you select the Dolby*NR
B system.
•B. Skip (Blank Skip) skips blanks longer than
eight seconds.
•ATA (Automatic Tuner Activation) turns on
the tuner automatically when fast-winding
the tape.
•Repeat (Repeat Play) repeats the current
track.
*Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing
Corporation.
”DOLBY“ and the double-D symbol aare
trademarks of Dolby Laboratories Licensing
Corporation.
1During playback, press (SHIFT).
2Press (4) (PLAY MODE) repeatedly until
the desired play mode appears.
Each time you press (4) (PLAY MODE),
the item changes as follows:
NR nB. Skip nATA
3Press (5) (n) to select “on.”
The selected play mode starts.
4Press (SHIFT).
To return to normal playback mode, select
“off” in step 3 above.
A
SHIFT
1234567891
SET UP PLAY MODE REP
RLAY MODE

10
Radio
Memorizing stations
automatically
— Best Tuning Memory (BTM)
The unit selects the stations with the strongest
signals and memorizes them in the order of
their frequencies. You can store up to 10
stations on each band (FM1, FM2, MW, and
LW).
Caution
When tuning in stations while driving, use
Best Tuning Memory to prevent accidents.
1Press (SOURCE) repeatedly to select the
tuner.
Each time you press (SOURCE), the source
changes as follows:
zTUNER zCD*zMD*zTAPE
*If the corresponding optional equipment is
not connected, this item will not appear.
2Press (MODE) repeatedly to select the
band.
Each time you press (MODE), the band
changes as follows:
zFM1 zFM2 zMW zLW
3Press (SHIFT), then press (4) (PLAY
MODE) repeatedly until “B.T.M” appears.
4Press (5) (n).
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.
5Press (SHIFT).
Notes
•The unit does not store stations with weak
signals. If only a few stations are received, some
number buttons will retain their former setting.
•When a number is already indicated in the
display, the unit stores stations in order from the
one currently displayed.
Playing tracks repeatedly
— Repeat Play
1During playback, press (SHIFT).
2Press (7) (REP) repeatedly until ”Repeat
on“ appears.
Repeat Play starts.
3Press (SHIFT).
To return to normal playback mode, select
“Repeat off” in step 2 above.
DSPL
SHIFT
1234567891
SET UP PLAY MODE REP

11
Memorizing only the
desired stations
You can preset up to 20 FM stations (10 each
for FM1 and 2), up to 10 MW stations, and up
to 10 LW stations in the order of your choice.
1Press (SOURCE) repeatedly to select the
tuner.
2Press (MODE) repeatedly to select the
band.
3Push the SEEK/AMS control up or down
to tune in the station that you want to
store on the number button.
4Press and hold the desired number
button ((1) to (10)) until “MEM”
appears.
The number button indication appears in
the display.
Note
If you store a new station on a number button
which already has a station registered, the
previously stored station will be replaced by the
new one.
Receiving the memorized
stations
1Press (SOURCE) repeatedly to select the
tuner.
2Press (MODE) repeatedly to select the
band.
3Press the number button ((1) to (10))
where the desired station is stored.
If you cannot tune in a preset
station
Push and release the SEEK/AMS control
up or down to search for the station
(automatic tuning).
Scanning stops when the unit receives a
station. Push the SEEK/AMS control up or
down repeatedly until the desired station is
received.
Note
If the automatic tuning stops too frequently, press
(SHIFT), then press (4) (PLAY MODE) repeatedly
until “Local” (local seek mode) is displayed. Then
press (5) (n) to select “Local on.” Press (SHIFT).
Only the stations with relatively strong signals will
be tuned in.
Tip
If you know the frequency of the station you want
to listen to, push the SEEK/AMS control up or
down and hold until the desired frequency
appears (manual tuning).
If FM stereo reception is poor
— Monaural Mode
1During radio reception, press (SHIFT),
then press (4) (PLAY MODE) repeatedly
until “Mono” appears.
2Press (5) (n) repeatedly until “Mono
on“ appears.
The sound improves, but becomes
monaural (“ST” disappears).
3Press (SHIFT).
To return to stereo mode, select “Mono off” in
step 2 above.
Changing the display item
Each time you press (DSPL), the item changes
as follows:
Frequency (Station Name)*˜Clock
*When you tune in an FM station that transmits
RDS data, the station name appears.
After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.
Tip
The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 21.)

12
Changing the display item
Each time you press (DSPL), the item changes
as follows:
Station Name/Frequency ˜Clock
After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.
Tip
The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 21.)
Note
“NO Name” appears if the received station does
not transmit RDS data.
Retuning to the same
programme automatically
— Alternative Frequencies (AF)
The Alternative Frequencies (AF) function
automatically selects and retunes the station
with the strongest signal in a network. By
using this function, you can continuously
listen to the same programme during a long-
distance drive without having to retune the
station manually.
1Select an FM station.
2Press (AF/TA) repeatedly until “AF on”
appears.
The unit starts searching for an alternative
station with a stronger signal in the same
network.
Note
When there is no alternative station in the area or
you do not need to search for an alternative
station, turn the AF function off by pressing
(AF/TA) repeatedly until “AF TA off” appears.
RDS
Overview of the RDS
function
Radio Data System (RDS) is a broadcasting
service that allows FM stations to send
additional digital information along with the
regular radio programme signal. Your car
stereo uses this system to offer you a variety of
services. Here are just a few: retuning to the
same programme automatically, listening to
traffic announcements, and locating a station
by programme type.
Notes
• Depending on the country or region, not all of
the RDS functions are available.
• RDS may not work properly if the signal strength
is weak or if the station you are tuned to is not
transmitting RDS data.
Displaying the station
name
The name of the current station lights up in the
display.
Select an FM station (page 10).
When you tune in an FM station that
transmits RDS data, the station name
appears in the display.
Note
The “*” indication means that an RDS station is
being received.
96.0MHz
98.5MHz
Frequencies change automatically.
Station 102.5MHz

13
Local link function
(United Kingdom only)
The Local Link function lets you select other
local stations in the area, even though they are
not stored on your number buttons.
1Press a number button that has a local
station stored on it.
2Within five seconds, press the number
button of the local station again.
3Repeat this procedure until the desired
local station is received.
Changing the display item
Each time you press (AF/TA), the item changes
as follows:
”AF on ”TA on ”AF TA on*
AF TA off “
*Select this to turn on both the AF and TA
functions.
Notes
• If “NO AF” and the station name flash
alternately, this indicates that the unit cannot
find an alternative station in the network.
• If the station name starts flashing after selecting
a station with the AF function on, this indicates
that no alternative frequency is available. Push
the SEEK/AMS control up or down while the
station name is flashing (within eight seconds).
The unit starts searching for another frequency
with the same PI (Programme Identification) data
(“PI seek” appears and no sound is heard). If the
unit cannot find another frequency, “NO PI”
appears, and the unit returns to the previously
selected frequency.
Listening to a regional programme
The “REG on” (regional on) function lets you
stay tuned to a regional programme without
being switched to another regional station.
(Note that you must turn the AF function on.)
The unit is factory preset to “REG on,” but if
you want to turn off the function, do the
following.
1During radio reception, press (SHIFT),
then press (4) (PLAY MODE) repeatedly
until “REG” appears.
2Press (5) (n) repeatedly until “REG off”
appears.
3Press (SHIFT).
Note that selecting “REG off” might cause
the unit to switch to another regional
station within the same network.
To return to regional on, select “REG on” in
step 2 above.
Note
This function does not work in the United
Kingdom and in some other areas.

14
Presetting the volume of traffic
announcements
You can preset the volume level of the traffic
announcements beforehand so you won’t miss
the announcement. When a traffic
announcement starts, the volume will be
automatically adjusted to the preset level.
1Select the desired volume level.
2Press (AF/TA) for two seconds.
”TA“ appears and the setting is stored.
Receiving emergency
announcements
If an emergency announcement comes in while
you are listening to the radio, the programme
will automatically switch to it. If you are
listening to a source other than the radio, the
emergency announcements will be heard if
you set AF or TA to on. The unit will then
automatically switch to these announcements
no matter which source you are listening to at
the time.
Listening to traffic
announcements
The Traffic Announcement (TA) and Traffic
Programme (TP) data let you automatically
tune in an FM station that is broadcasting
traffic announcements even if you are listening
to other programme sources.
Press (AF/TA) repeatedly until “TA on” or
“AF TA on” appears.
The unit starts searching for traffic
information stations. “TP” appears in the
display when the unit finds a station
broadcasting traffic announcements.
When the traffic announcement starts,
“TA” flashes. The flashing stops when the
traffic announcement is over.
Tip
If the traffic announcement starts while you are
listening to another programme source, the unit
automatically switches to the announcement and
goes back to the original source when the
announcement is over.
Notes
•
“NO TP” flashes for five seconds if the received
station does not broadcast traffic announcements.
Then, the unit starts searching for a station that
broadcasts traffic announcements.
• When “EON” appears with “TP” in the display,
the current station makes use of broadcast it by
other stations in the same network.
To cancel the current traffic
announcement
Press (AF/TA) or (SOURCE).
To cancel all traffic announcements, turn off
the function by pressing (AF/TA) until
“AF TA off” appears.

15
Recording the traffic
announcements
(XR-C8220R only)
—Traffic Information Replay (TIR)
You can listen to the latest traffic
announcements by recording them. The unit
automatically records and stores up to eight
traffic announcements. If the recording
exceeds four minutes, the recorded
announcements are updated, so you can
always hear the latest information.
The TIR function turns on the unit
automatically and records the traffic
announcements for up to two hours before and
after a preset time.
Presetting the time and the station
1Press and hold (TIR) until “TIR” lights up
in the display.
2Press (5) (n) repeatedly until “TIR␣ on”
appears.
3Press (TIR) repeatedly until the time
indication appears.
1Set the hour by rotating the dial.
2Press (5) (n) until the minute digits
flash.
3Set the minute by rotating the dial.
continue to next page n
Presetting the RDS
stations with the AF and
TA data
When you preset RDS stations, the unit stores
each station’s data as well as its frequency, so
you don’t have to turn on the AF or TA
function every time you tune in the preset
station. You can select a different setting (AF,
TA, or both) for individual preset stations, or
the same setting for all preset stations.
Presetting the same setting for all
preset stations
1Select an FM band (page 10).
2Press (AF/TA) repeatedly to select either
“AF on,” “TA on” or “AF TA on” (for both
AF and TA functions).
Note that selecting “AF TA off” stores not
only RDS stations, but also non-RDS
stations.
3Press (SHIFT), then press (4) (PLAY
MODE) repeatedly until “B.T.M” appears.
4Press (5) (n) until “B.T.M” flashes.
5Press (SHIFT).
Presetting different settings for
each preset station
1Select an FM band, and tune in the
desired station.
2Press (AF/TA) repeatedly to select either
“AF on,” “TA on” or “AF TA on” (for both
AF and TA functions).
3Press the desired number button and
hold until “MEM” appears.
Repeat from step 1 for presetting other
stations.
Tip
If you want to change the preset AF and/or TA
setting after you tune in the preset station, you
can do so by turning the AF or TA function on or
off.

16
Playing back the recorded traffic
announcements
When there are recorded traffic
announcements you have not listened to yet,
tflashes.
1Press (TIR).
The latest traffic announcement is played
back. To listen to the previous ones, press
(TIR) or push the SEEK/AMS control up.
To replay the announcements, push the
SEEK/AMS control down.
“NO Data” appears if no traffic
announcements were recorded.
2Press (TIR) to return to the original
programme.
4Press (TIR).
5Select the desired station by pressing the
preset number button or pushing the
SEEK/AMS control up or down.
6Press (TIR) for two seconds to return to
the original display.
tlights up.
The unit turns on automatically and stands
by for traffic announcements for four hours
(two hours before and after the preset
time).
If the preset station does not broadcast the
traffic announcement while searching, the
unit starts searching for other traffic
programme (TP) stations.
To cancel the TIR function
Select “TIR off” in step 2 above.
Tips
• While the unit is recording the traffic
announcement, tand “TA” flash.
• If the unit still cannot find a TP station, it starts a
new search every five minutes until it finds one.
• If you pull out the ignition key while the TIR
function is on, "TIR on" and tflash a few times.
Notes
• The unit also stands by for traffic
announcements for two hours after you turn off
the engine, as long as the TIR function is on.
• If you have a power aerial, it automatically
extends every time the unit searches for a traffic
programme station.
If you have a manual aerial, make sure that the
aerial is fully extended.
• If you do not use your car for about ten days, the
TIR function will turn off automatically to avoid
battery wear, even if the TIR function is on.
SOUND
DSPL
SHIFT
123
SET U

17
1Press (PTY/LIST) during FM reception
until “PTY” appears.
The current programme type name appears
if the station is transmitting the PTY data.
“- - - - -” appears if the received station is
not an RDS station, or if the RDS data has
not been received.
2Press (PTY/LIST) repeatedly until the
desired programme type appears.
The programme types appear in the order
shown in the above table. Note that you
cannot select “None” (Not specified) for
searching.
3Push the SEEK/AMS control up or down.
The unit starts searching for a station
broadcasting the selected programme type.
When the unit finds the programme, the
programme type appears again for five
seconds.
“NO” and the programme type appear
alternately for five seconds if the unit
cannot find the programme type. It then
returns to the previously selected station.
Locating a station by
programme type
You can locate the station you want by
selecting one of the programme types shown
below.
Programme types Display
News News
Current Affairs Affairs
Information Info
Sports Sport
Education Educate
Drama Drama
Culture Culture
Science Science
Varied Varied
Popular Music Pop M
Rock Music Rock M
Easy Listening Easy M
Light Classical Light M
Classical Classics
Other Music Type Other M
Weather Weather
Finance Finance
Children’s programmes Children
Social Affairs Social A
Religion Religion
Phone In Phone In
Travel Travel
Leisure Leisure
Jazz Music Jazz
Country Music Country
National Music Nation M
Oldies Music Oldies
Folk Music Folk M
Documentary Document
Not specified None
Note
You cannot use this function in some countries
where no PTY (Programme Type selection) data is
available.

18
Other Functions
You can also control an optional CD or MD
unit, or equalizer preamplifier*with the rotary
commander.
*XR-C8220R only
Labelling the rotary
commander
Depending on how you mount the rotary
commander, attach the appropriate label as
shown in the illustration below.
Setting the clock
automatically
The CT (Clock Time) data from the RDS
transmission sets the clock automatically.

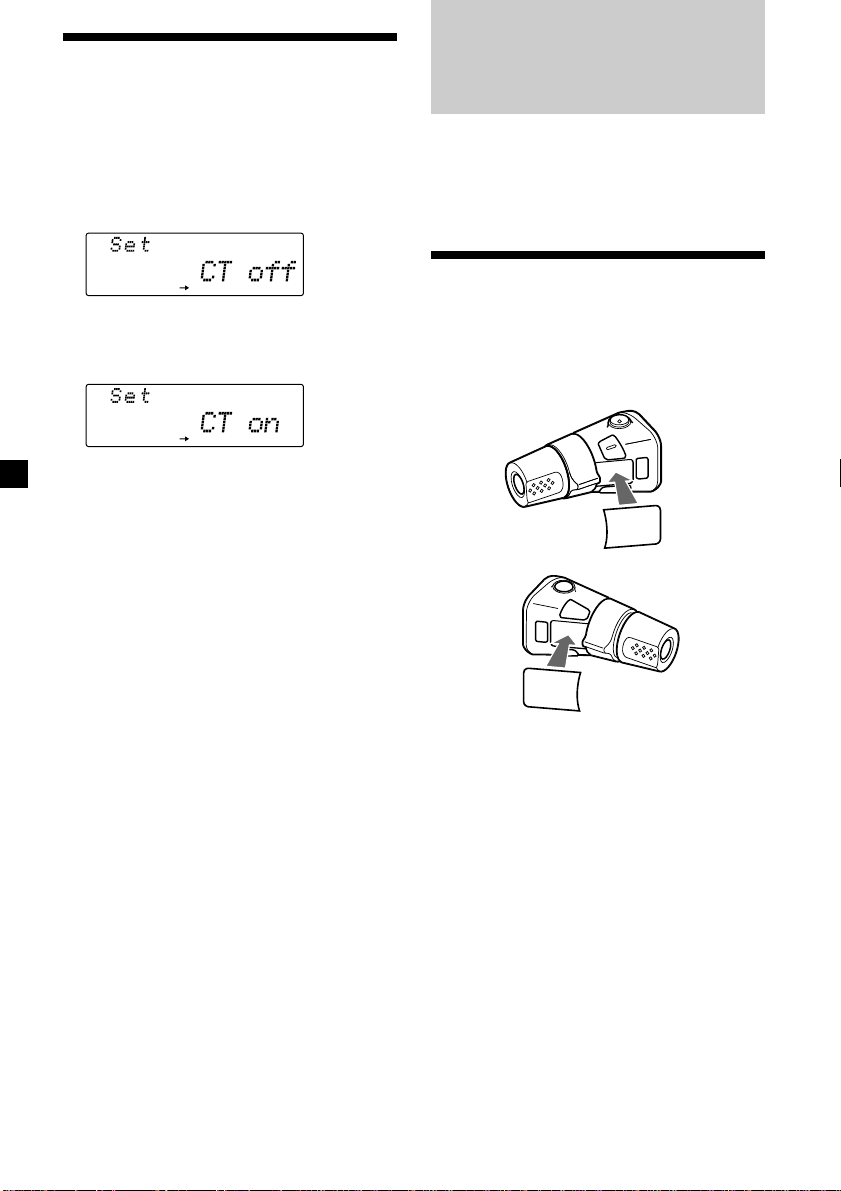

1Press (SHIFT), then press (3) (SET UP)
repeatedly until “CT off” appears.
2Press (5) (n) repeatedly until “CT on”
appears.
The clock is set.
3Press (SHIFT) to return to the normal
display.
To cancel the CT function
Select “CT off” in step 2 above.
Notes
• The CT function may not work even though an
RDS station is being received.
• There might be a difference between the time
set by the CT function and the actual time.
SET UP
SET UP
SOUND
LIST
MODE
SOUND
LIST
MODE

19

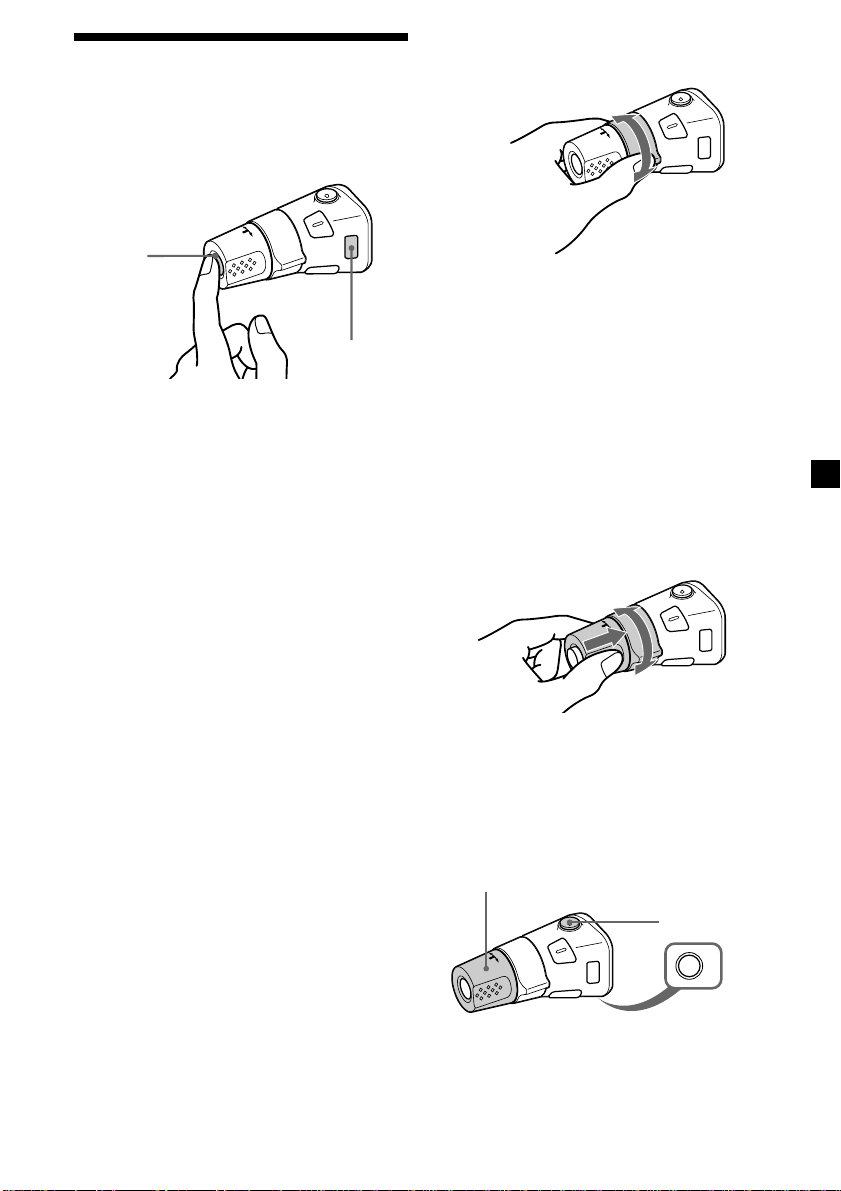

By rotating the control
(the SEEK/AMS control)
Rotate the control and release it to:
•Locate the beginnings of the tracks on the
tape. Rotate and hold the control
momentarily, then release it to fast-wind
the tape. To start playback while fast-
winding the tape, press (MODE).
•Locate a specific track on a disc. Rotate
and hold the control until you locate the
specific point in a track, then release it to
start playback.
•Tune in stations automatically. Rotate and
hold the control to tune in a specific
station.
By pushing in and rotating the
control (the PRESET/DISC control)
Push in and rotate the control to:
•Receive the stations memorized on the
number buttons.
•Change the disc.
Other operations
continue to next page n
Using the rotary
commander
By pressing buttons
(the SOURCE and MODE buttons)
Each time you press (SOURCE), the
source changes as follows:
TUNER nCD*nMD*nTAPE
Pressing (MODE) changes the operation
in the following ways;
• Tape : transport direction
• Tuner : FM1 nFM2 nMW nLW
• CD unit*: CD1 nCD2 n…
• MD unit*: MD1 nMD2 n…
*If the corresponding optional equipment is
not connected, this item will not appear.
Tip
When the POWER SELECT switch is set to position
B, you can turn on this unit by pressing (SOURCE)
on the rotary commander.
(SOURCE)
(MODE)
Rotate the VOL control to
adjust the volume.
Press (ATT) to
attenuate the
sound.
Press (OFF) to turn
off the unit.
OFF

20
Adjusting the sound
characteristics
You can adjust the equalizer curve, listening
position, cut-off frequency, bass, treble,
balance, and fader.
You can store the bass and treble levels
independently for each source.
1Select the item you want to adjust by
pressing (SOUND) repeatedly.
VOL (volume) nEQ (equalizer curve)*1, 2
nPOS (listening position)*1, 2
nSUB (subwoofer volume)*1
nCNW (Crossover Network)*1, 2
nBAS (bass) nTRE (treble)
nBAL (left-right) nFAD (front-rear)
*1XR-C8220R only
*2If the corresponding optional equipment is
not connected, this item will not appear.
2Adjust the selected item by rotating the
dial.
Adjust within three seconds after selecting
the item. (After three seconds, the dial
function reverts the volume control.)
Attenuating the sound
Press (ATT) on the supplied rotary
commander or the optional wireless
remote.
“ATT on” lights up for a second.
To restore the previous volume level, press
(ATT) again.
Tip
The unit decreases the volume automatically when
a telephone call comes in (Telephone ATT
function).
Changing the operative direction
The operative direction of controls is factory-
set as shown below.
If you need to mount the rotary commander on
the right hand side of the steering column, you
can reverse the operative direction.
Press (SOUND) for two seconds while
pushing the VOL control.
Tip
You can also change the operative direction of
these controls with the unit (See “Changing the
sound and display settings” on page 21).
To increase
To decrease
Press (SOUND) to
adjust the volume
and sound menu.
Press (LIST) to:
• Display the memorized names.
• Display the programme type.
